Name: Traxxas TRX-6 Ultimate RC Hauler With Pro Scale Winch
SKU: TRA88086-84
Availability: InStock

Product Description

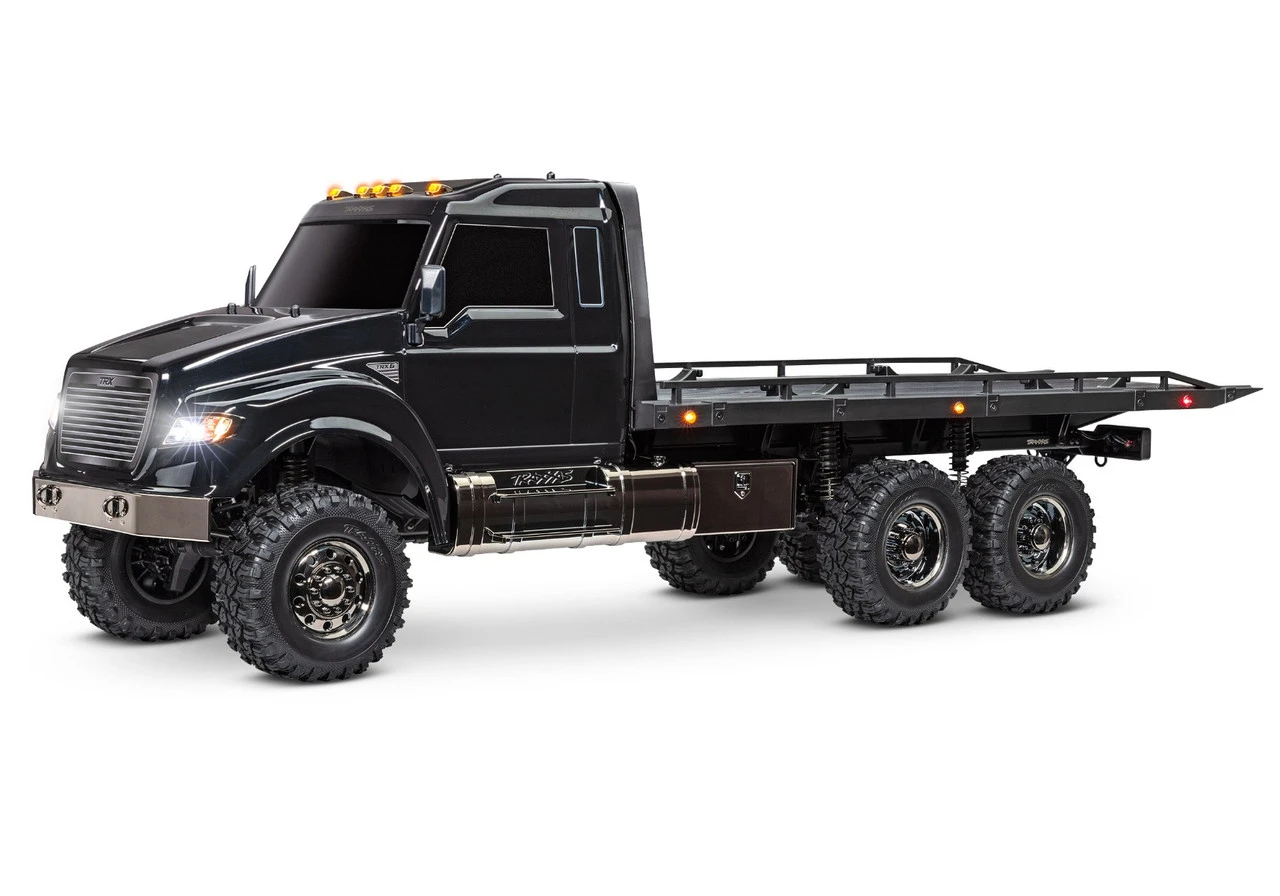

Traxxas TRX-6 Ultimate RC Hauler with Pro Scale Winch

One look at the new TRX-6® Ultimate RC Hauler and you’ll know this truck means business. Based on the hugely capable TRX-6 platform, the RC Hauler is the biggest and baddest rig in the TRX lineup. The tough looks are backed up with even tougher performance. The rear bed features adjustable wheel chocks and tie-down bands to haul and display 4-Tec® models with style. A highly detailed LED lighting system and black-over-black chrome body accessories give the Hauler a tough, menacing look. The Ultimate RC Hauler is built Traxxas Tough™ with portal axles, high-low transmission, and T-Lock™ remote locking differentials. When you’re ready for big-scale RC fun, nothing comes close to the Traxxas Ultimate RC Hauler.

Features

Large-Scale RC Hauler Rig Body
- Molded black chrome scale details
  - Fuel tanks, tool boxes, side rails, unique bumpers
- Molded side mirrors and roll bar
- Authentic decals
- Full Nylon composite wheel wells
- Detailed multi-piece hauler bed with adjustable wheel chocks
Installed LED Light Kit

Molded headlights with amber marker lights
Clearance and marker lights on roof, roll bar, and hauler bed
Tail lights integrated into rear bumper
Sealed waterproof design
25 individual LED lights
Regulated voltage for consistent and reliable power output

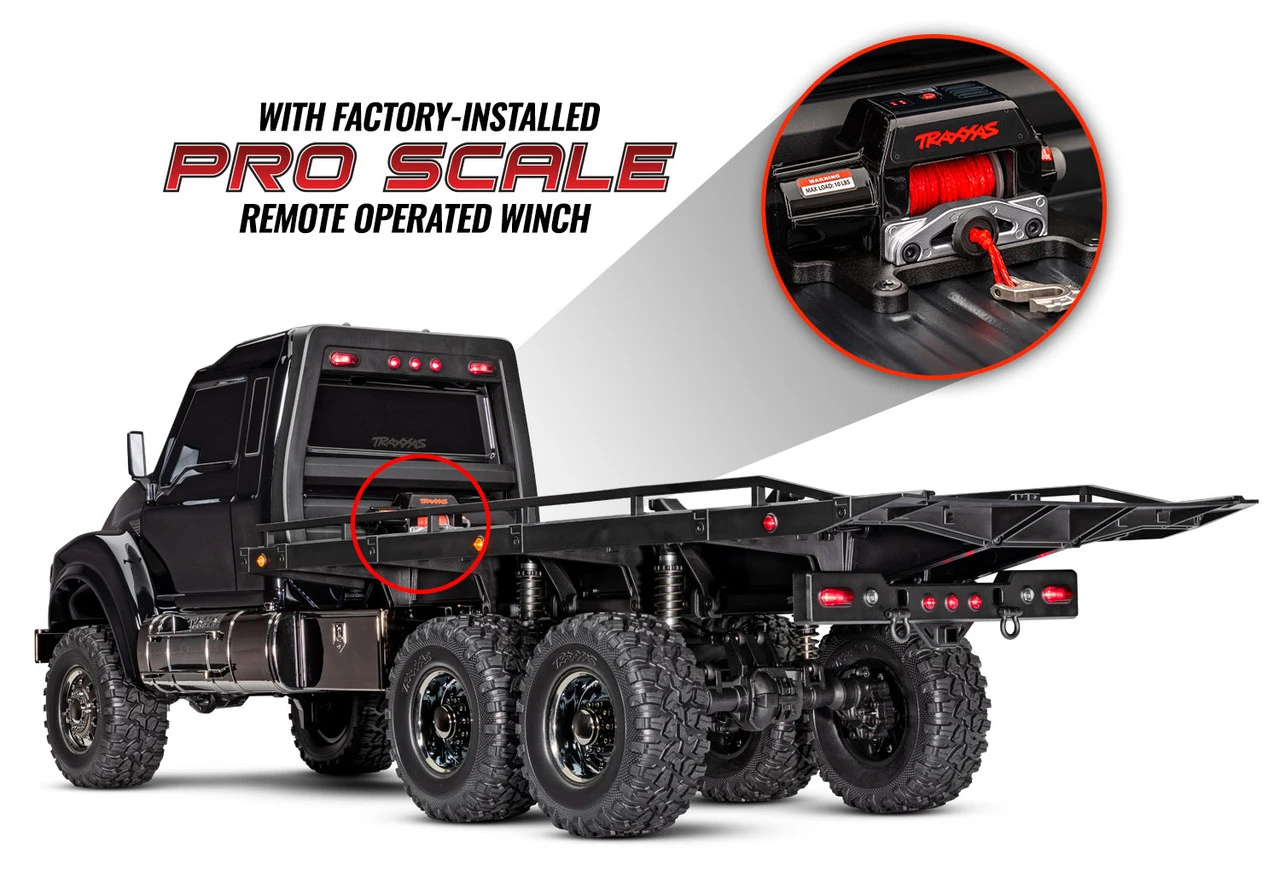

Pro Scale Winch

Detailed Scale Appearance
Rugged waterproof design
10-pound towing capacity
Included 2-channel remote

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode™ – 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
Titan 550 Motor
- Powerful Titan™ 21T reverse rotation motor with internal cooling fan
- Precise, preset gear mesh adjustments
- Motor retention separate from gear mesh

TQi™ 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug
Extended Chassis Design
- Full-length 30” steel frame rails
  - 1.5 mm thick for increased torsional rigidity
  - Rails run from bumper to bumper
- Extended wheelbase for full length tow bed
- Bearing-supported intermediate driveshaft
- Wire management clips integrated into frame rails
Drivetrain
- Full-time shaft driven 6-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case

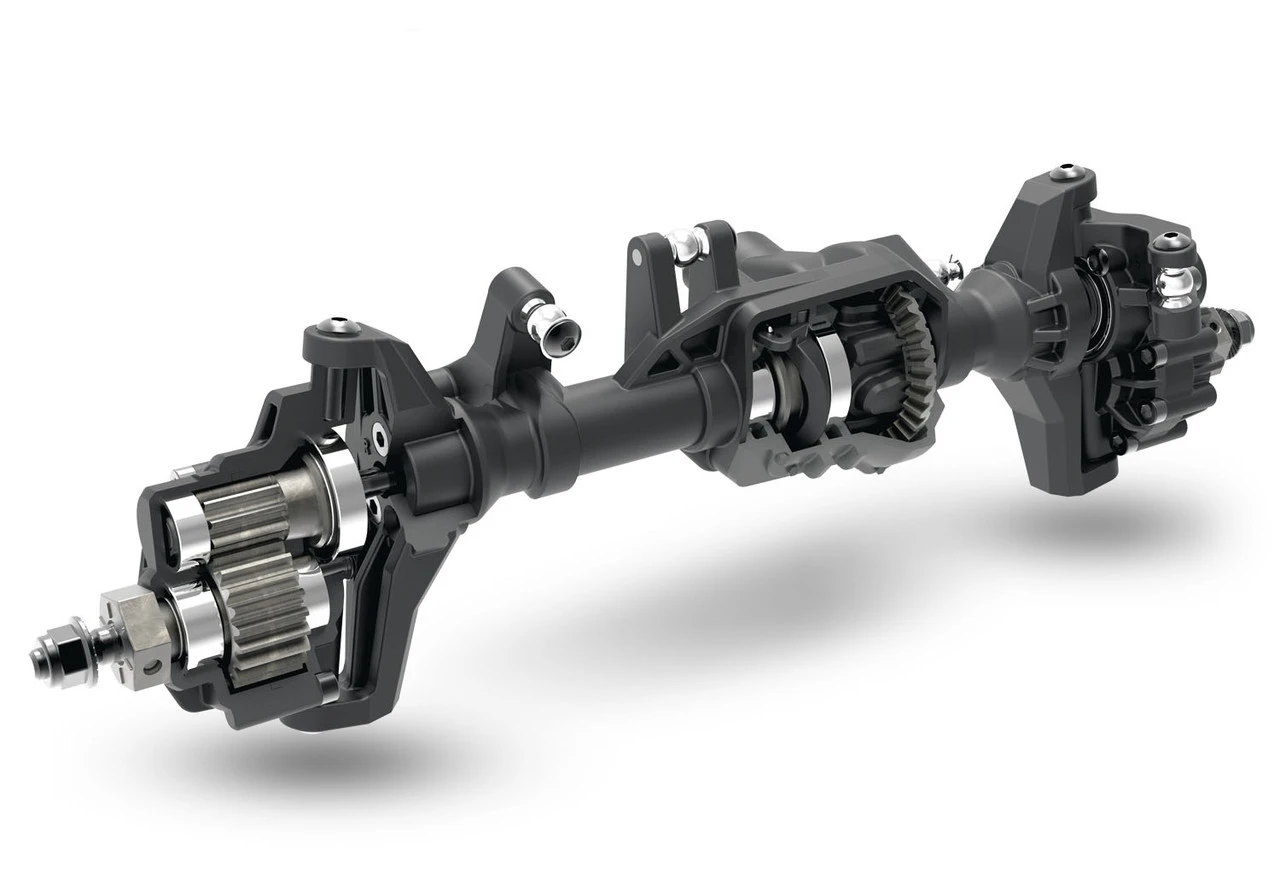

Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
Suspension
- Front — 3 link with panhard
- Rear — Dual triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter lower steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
Wheels and Tires
- 2.2” black chrome big rig wheels with hub inserts
- 2.2” Canyon RT all-terrain tires with foam inserts
- Sticky S1 rubber compound
- 12 mm steel hex
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating
Patented O-ring sealed watertight receiver box keeps the micro receiver dry

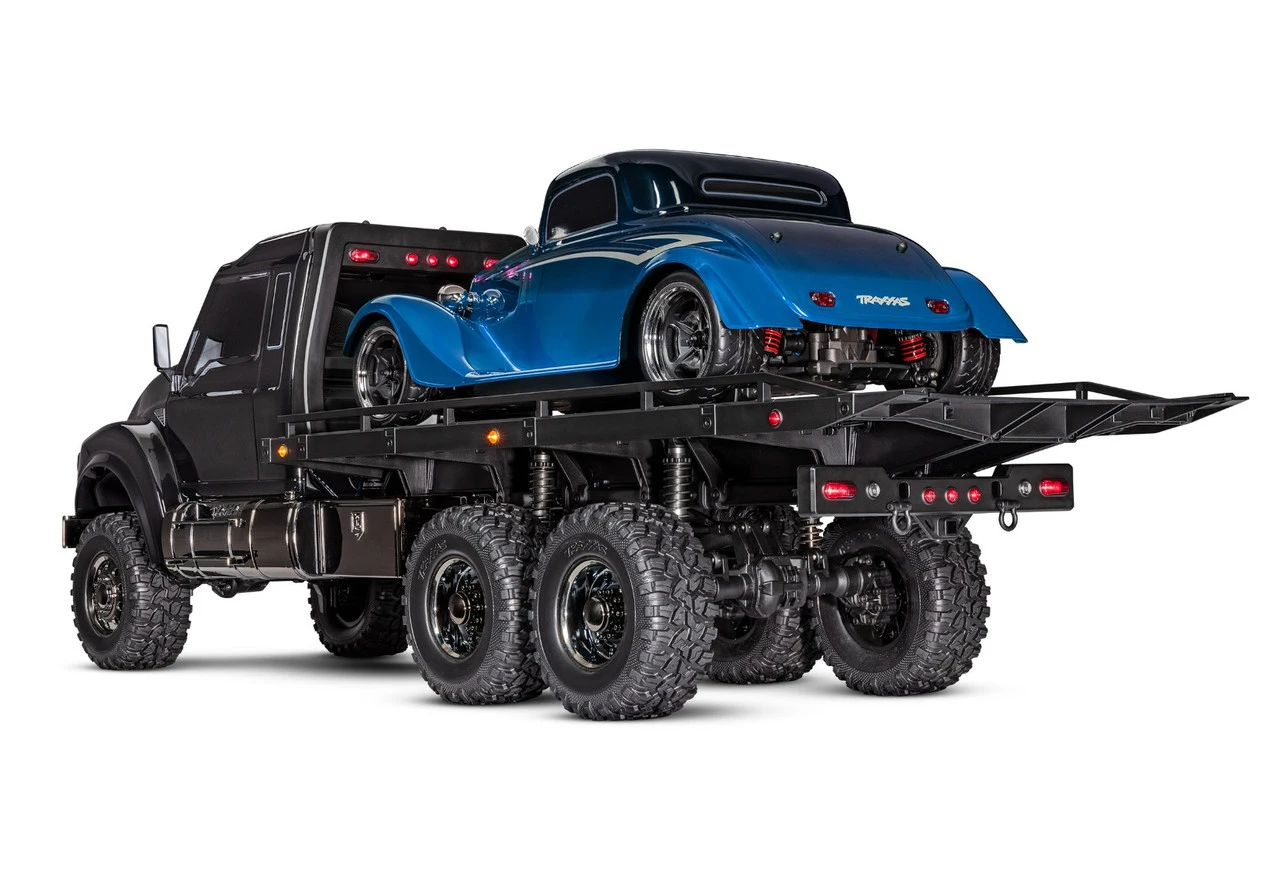

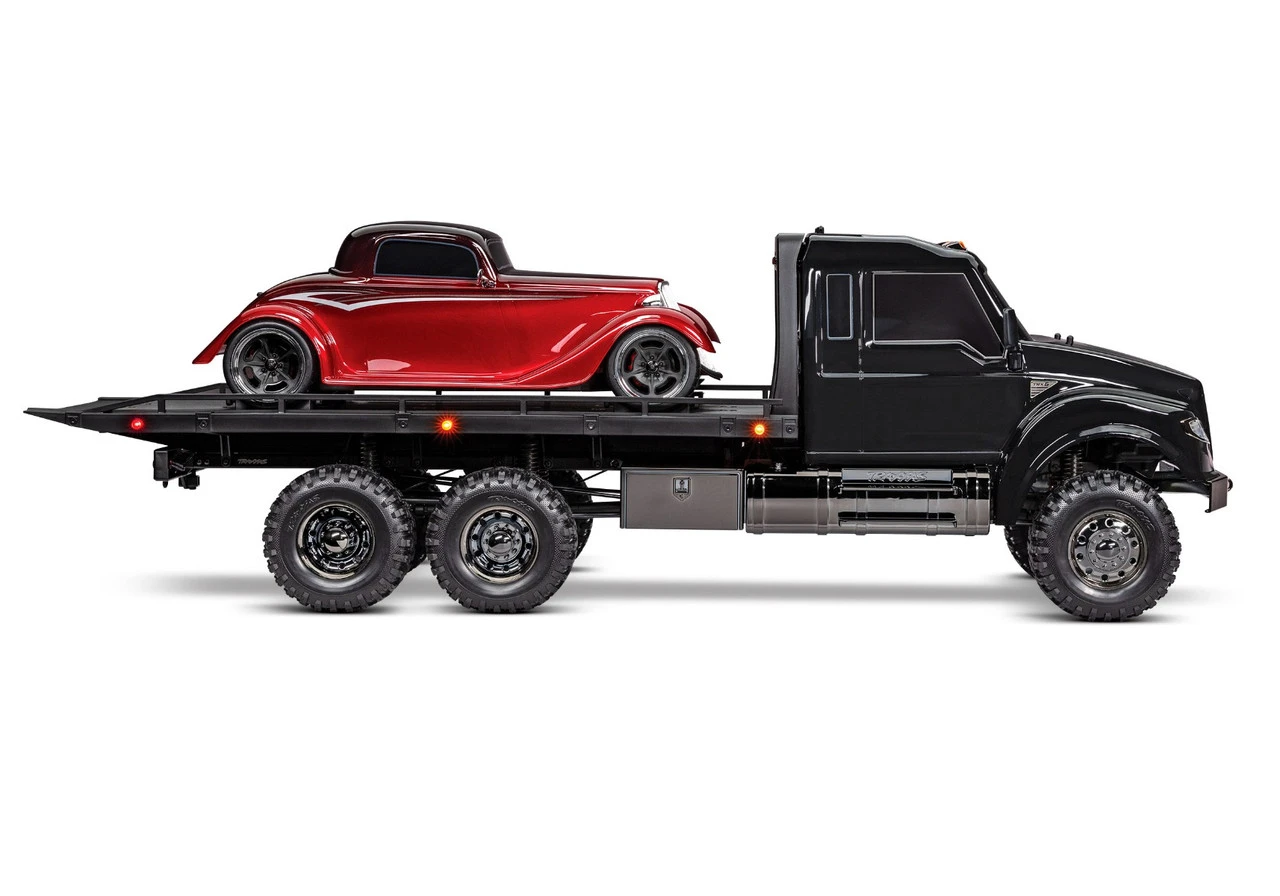

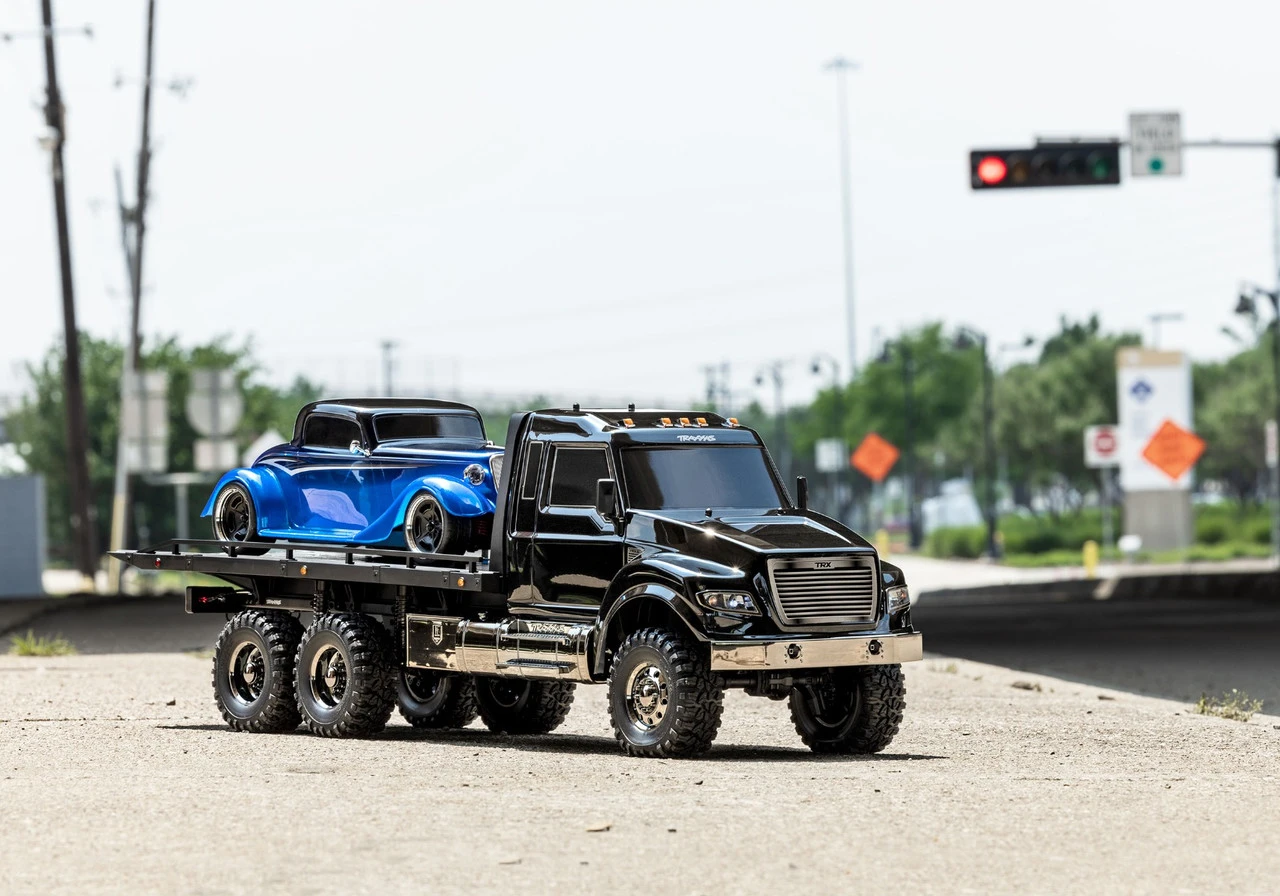

BUILT TO HAUL
The Ultimate RC Hauler is the largest TRX-6® model with an extra long 23.7″ (603mm) wheelbase and oversize bed to haul your 4-Tec models in style. The highly detailed truck features deep gloss black paint over molded black chrome body accessories for an intimidating look to match its big rig attitude.

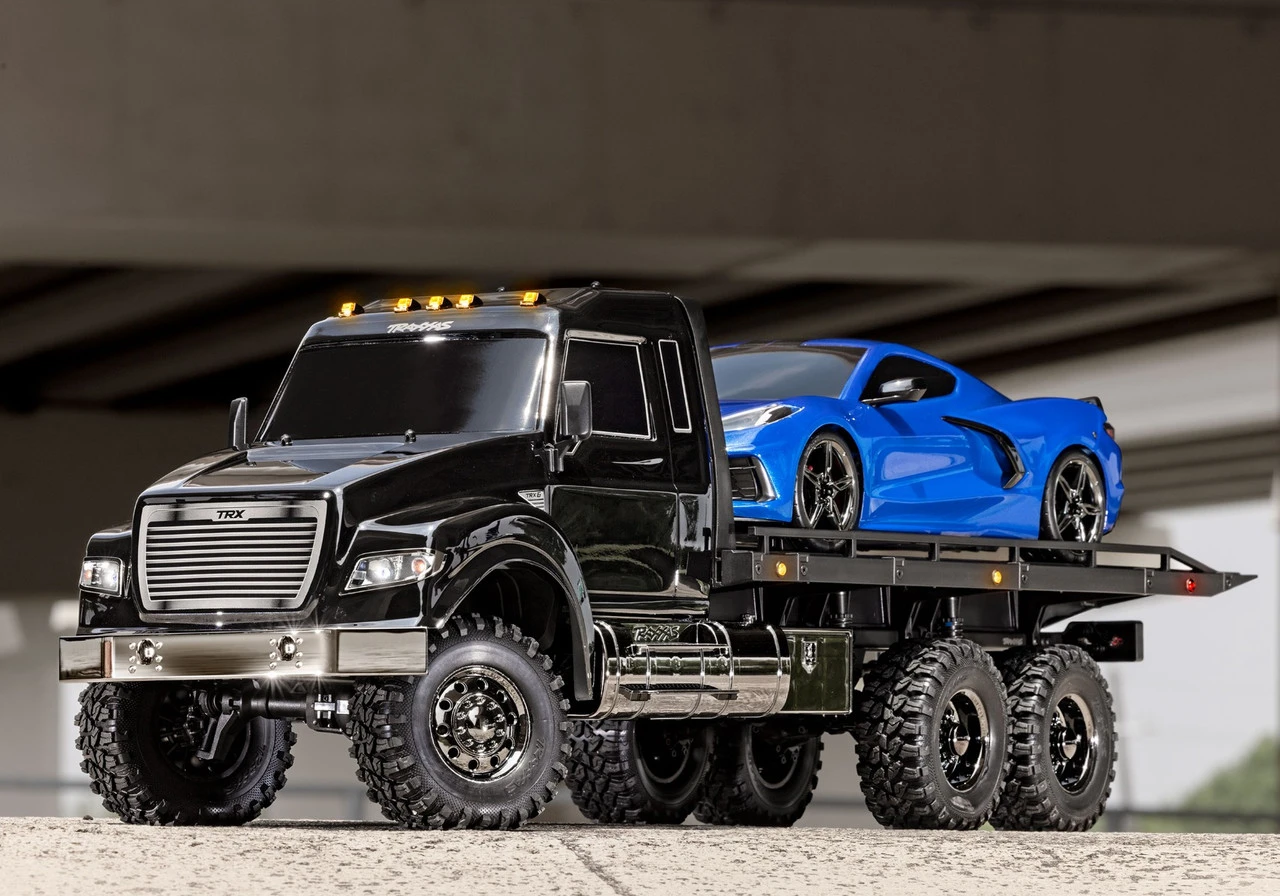

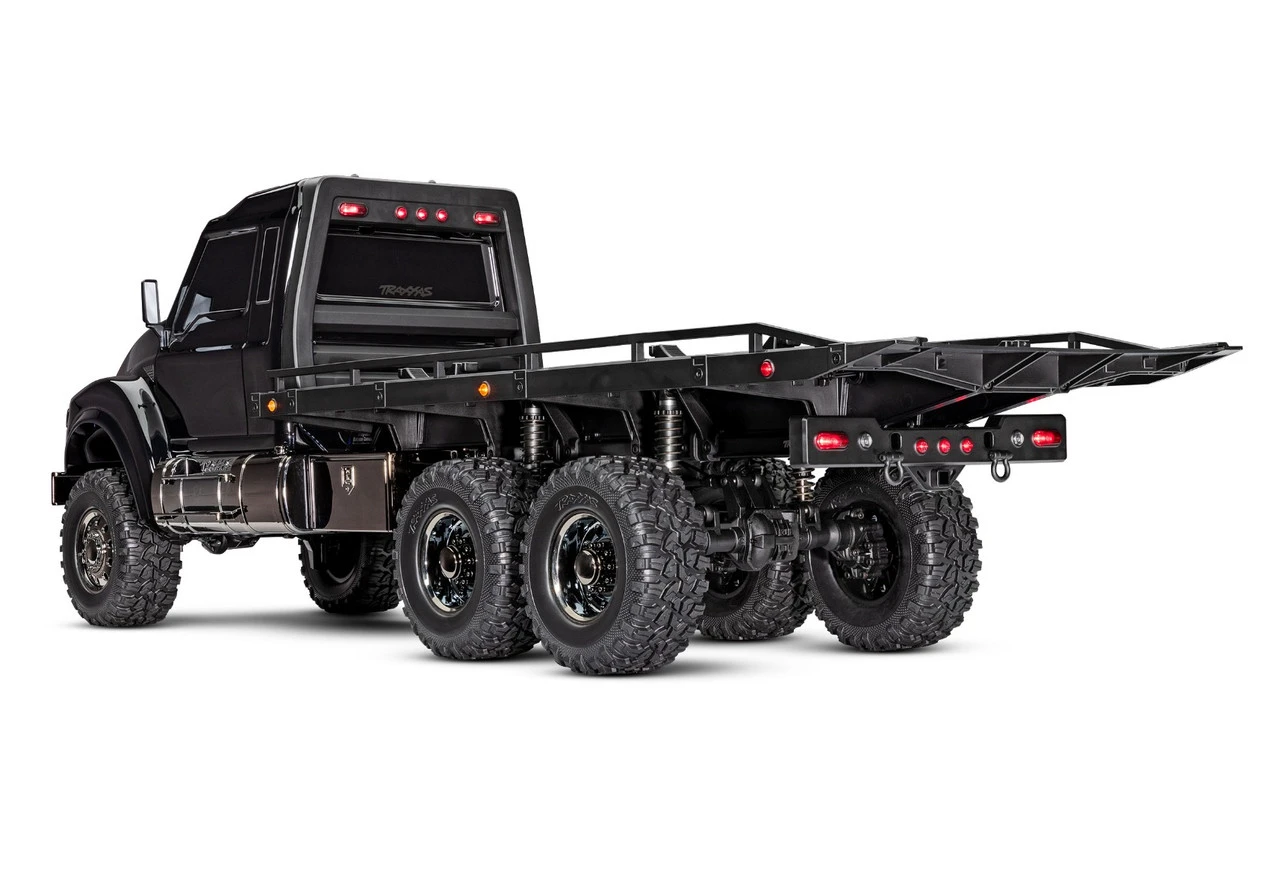

DETAILED BED AND LIGHTS

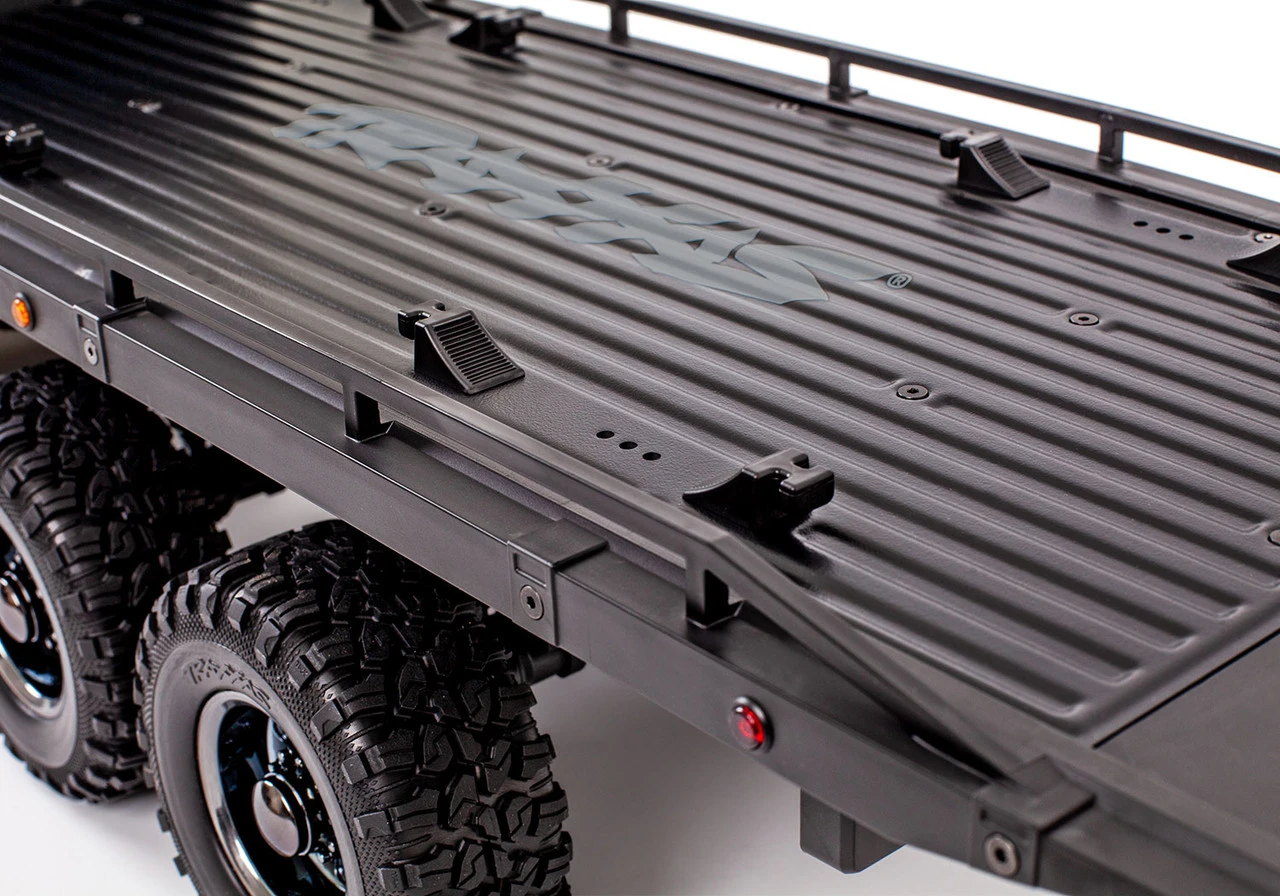

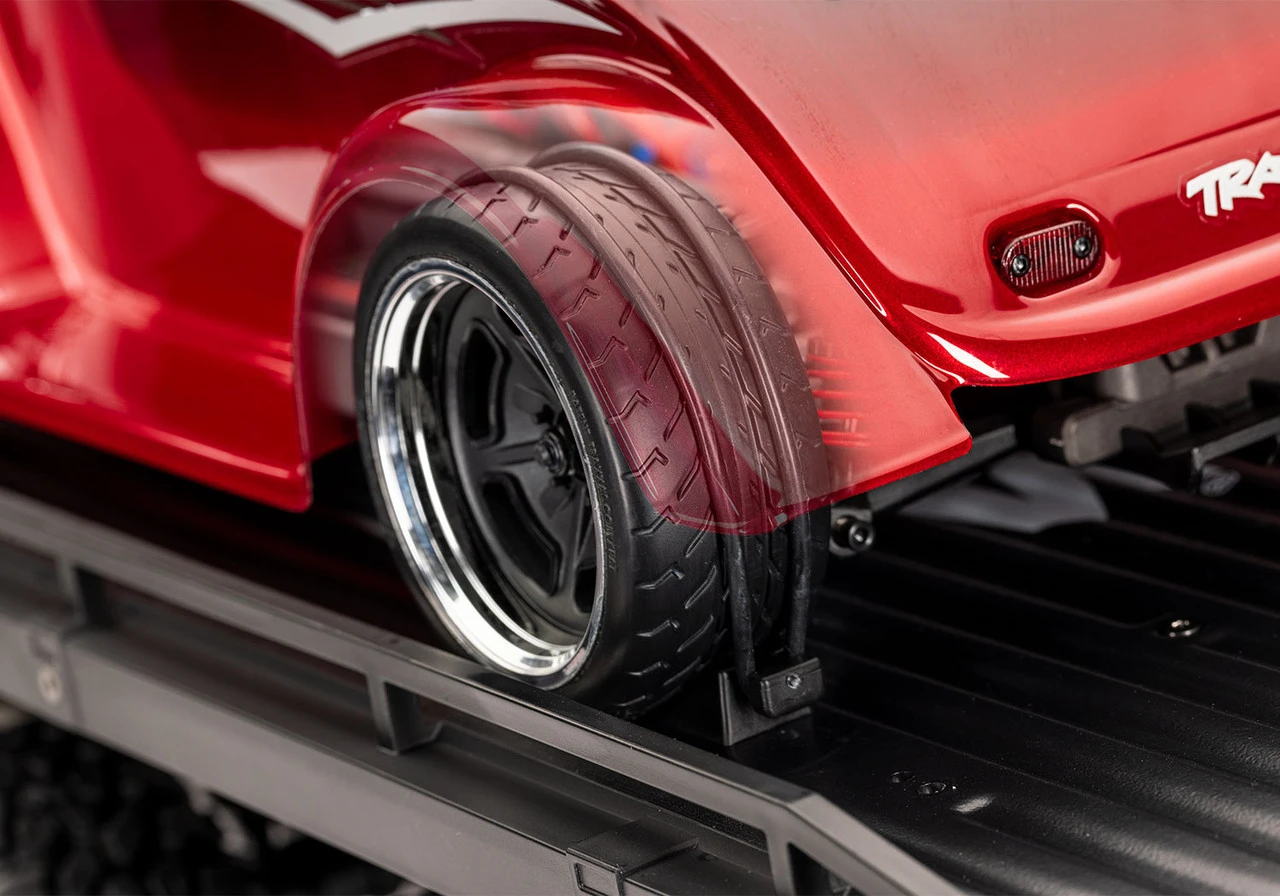

Adjustable wheel chocks with tie-down bands on the Ultimate Hauler’s tow bed accommodate any 4-Tec 2.0 or 3.0 model and keep precious cargo secure. A powerful and true-to-scale LED lighting system with 25 individual lights makes twilight adventures a reality.

TRX-6 CAPABILITY
Built on the supremely capable TRX-6 platform, the Ultimate RC Hauler uses six drive wheels to get into the action with trail-conquering grip of three remote-locking T-Lock™ differentials to get back out. A remote-shifting high-low range transmission amplifies the motor’s torque down low to move heavy loads while still providing ample cruising speed when unloaded.

Rigid Steel Frame
Designed exclusively for the TRX-4 Mercedes-Benz G 63 AMG 6×6, thick 1.5 mm steel frame rails are formed from one solid piece for maximum strength. Extra bracing and crossmembers provide exceptional torsional rigidity to resist chassis twist under load. Full inner fenders and accurately reproduced skidplates enhance the scale realism.

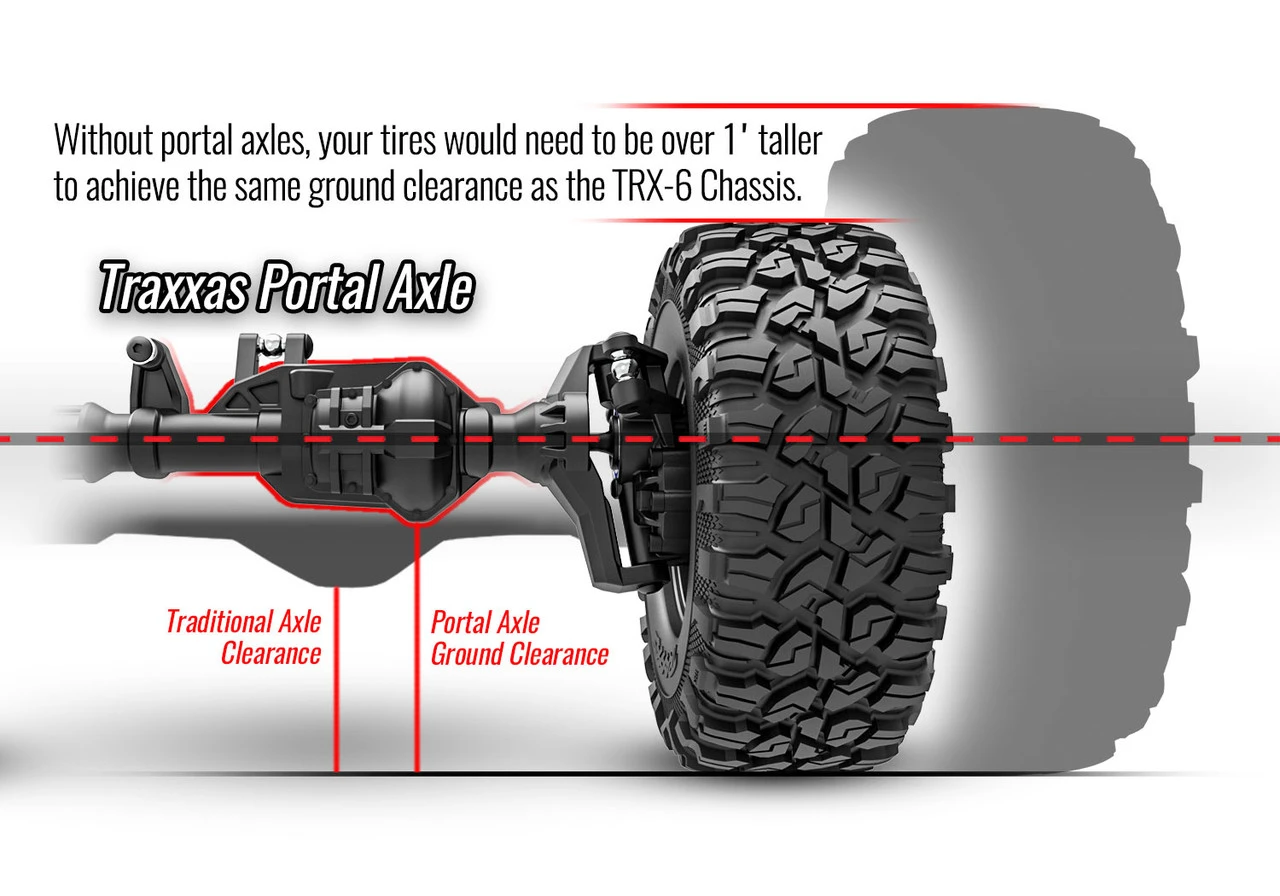

Ultimate Ground Clearance
Traxxas exclusive portal axles lift the truck at the wheels for huge ground clearance under the axles. In order to achieve the same clearance with straight axles (and not get stuck), your tires would have to be over an inch taller than the TRX-4’s tires. Straddling boulders with ease, the TRX-4 chassis definitely takes the path less travelled and simply leaves all the others behind.

High/Low Range Transmission
When the going gets tough, shift into low range and all six wheels dig in for incredible torque. Shift into high range and the Mercedes-Benz G63 AMG 6×6 transforms the desert floor into an off-road racetrack with massive roosts and 6-wheel power slides.

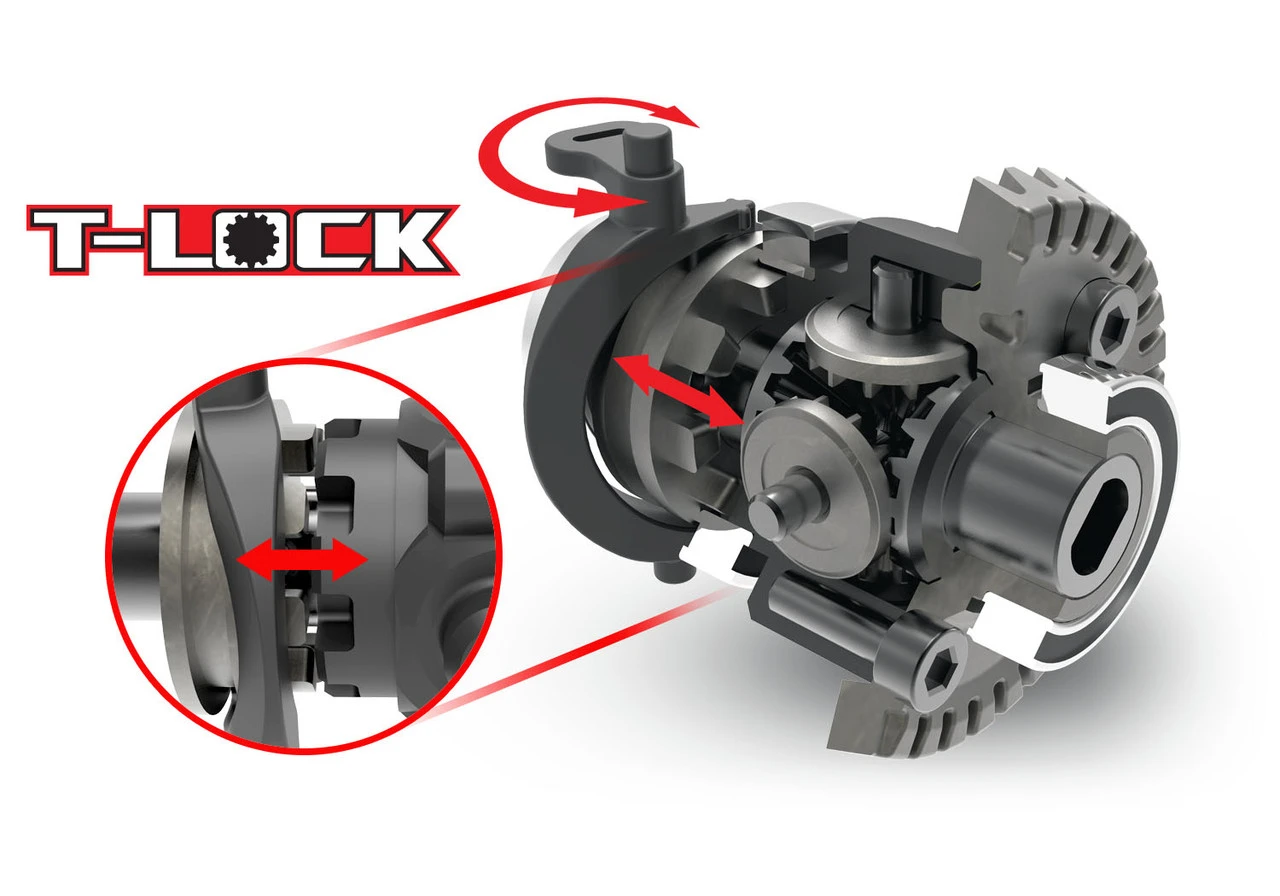

Remote Locking Differentials
Traxxas scores another RC first with three transmitter-operated locking differentials. Leave the differentials unlocked to take advantage of the TRX-4’s tight turning radius, even with 6-wheel drive and the long wheelbase. Lock the front differential or lock both rear axles in tandem for extreme 6-wheel all-wheel-drive drive traction. Sleeved micro cables control the differential action for scale appearance.

GTS Aluminum Shocks
Six oil-filled coil-over GTS shocks deliver silky-smooth damping with threaded aluminum shock bodies for easy ride height adjustments. Specially calibrated rear springs allow full articulation of both rear axles independently for optimal traction on uneven surfaces.

2.2″ Wheels
Unique 2.2” big rig-style wheels with hub ride on specially designed all-terrain tires. The sticky S1-compound 2.2″ Canyon RT tires come pre-glued and mounted for rugged climbing action. A standard 12mm steel hex is used for compatibility with the full line of TRX-4 wheels and tires.

Specifications:
Length (overall): 37.5 inches (953 mm)
Length (chassis): 34.0 inches (863 mm)
Front Track: 9.8 inches (245 mm)
Rear Track: 9.8 inches (249 mm)
Ground Clearance: 3.14 inches (80 mm)
Weight: 10.7 pounds (4.83 kg)
Height (overall): 11.9 inches (303 mm)
Wheelbase (front & intermediate axle): 18.6 inches (471 mm)
Wheelbase (front & rear most axle): 23.7 inches (603 mm)
Approach Angle: 60°
Departure Angle: 55°
Breakover Angle: 57°
Front Shock Length: 3.54 inches (90 mm)
Rear Shock Length: 3.54 inches (90 mm)
Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
Battery Tray: 158.75 L x 47 W x 23/26 mm H
Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
Hex Size: 12 mm
Speed Control: XL-5 HV
Motor (electric): Titan® 21T Reverse Rotation
Transmission: 2-speed High/Low, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 6WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1

Includes:

TRX-6 Ultimate RC Hauler, Ready-To-Drive® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQi™ 2.4GHz radio system with cruise control
High quality maintenance tools

Needed to Complete:

Batteries

TRX-6 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

Charger

Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
