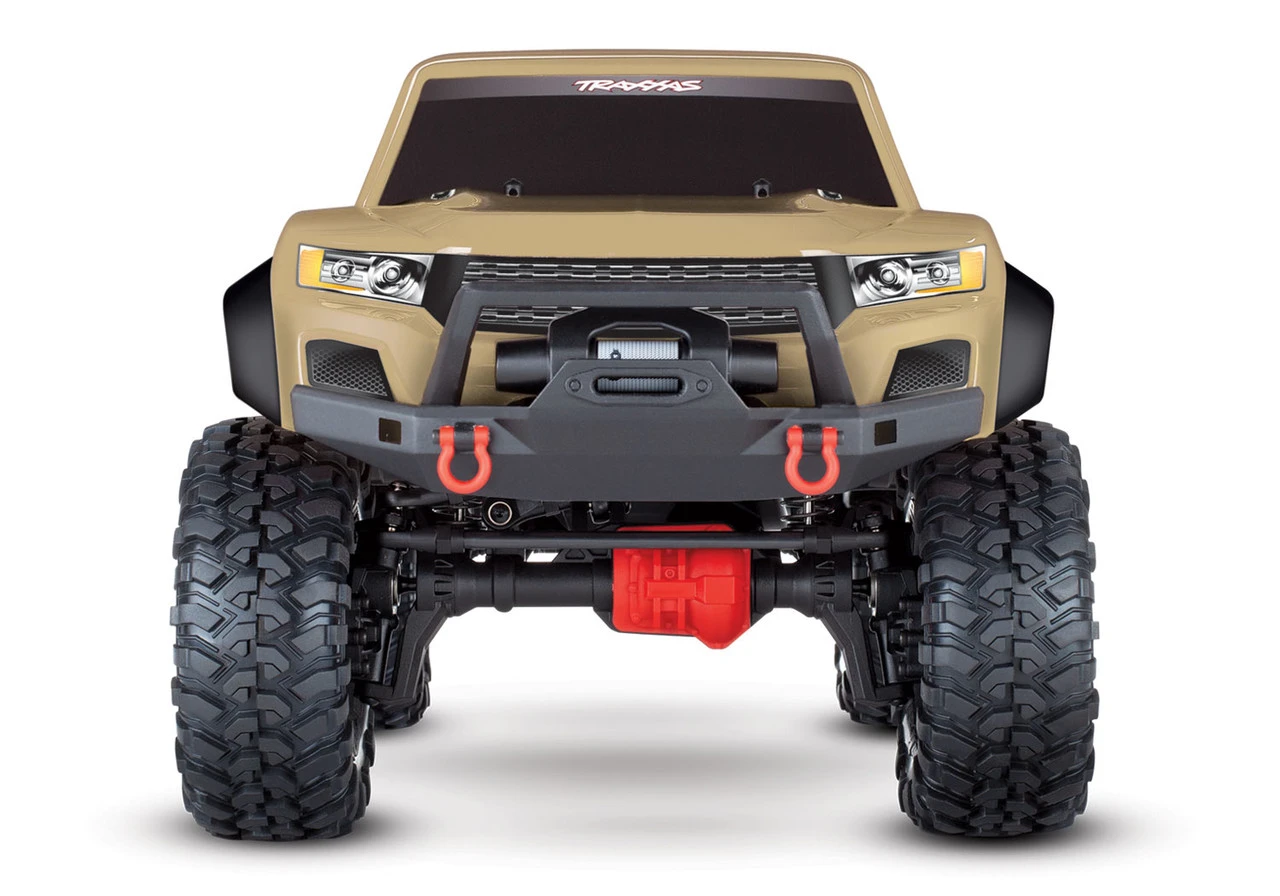

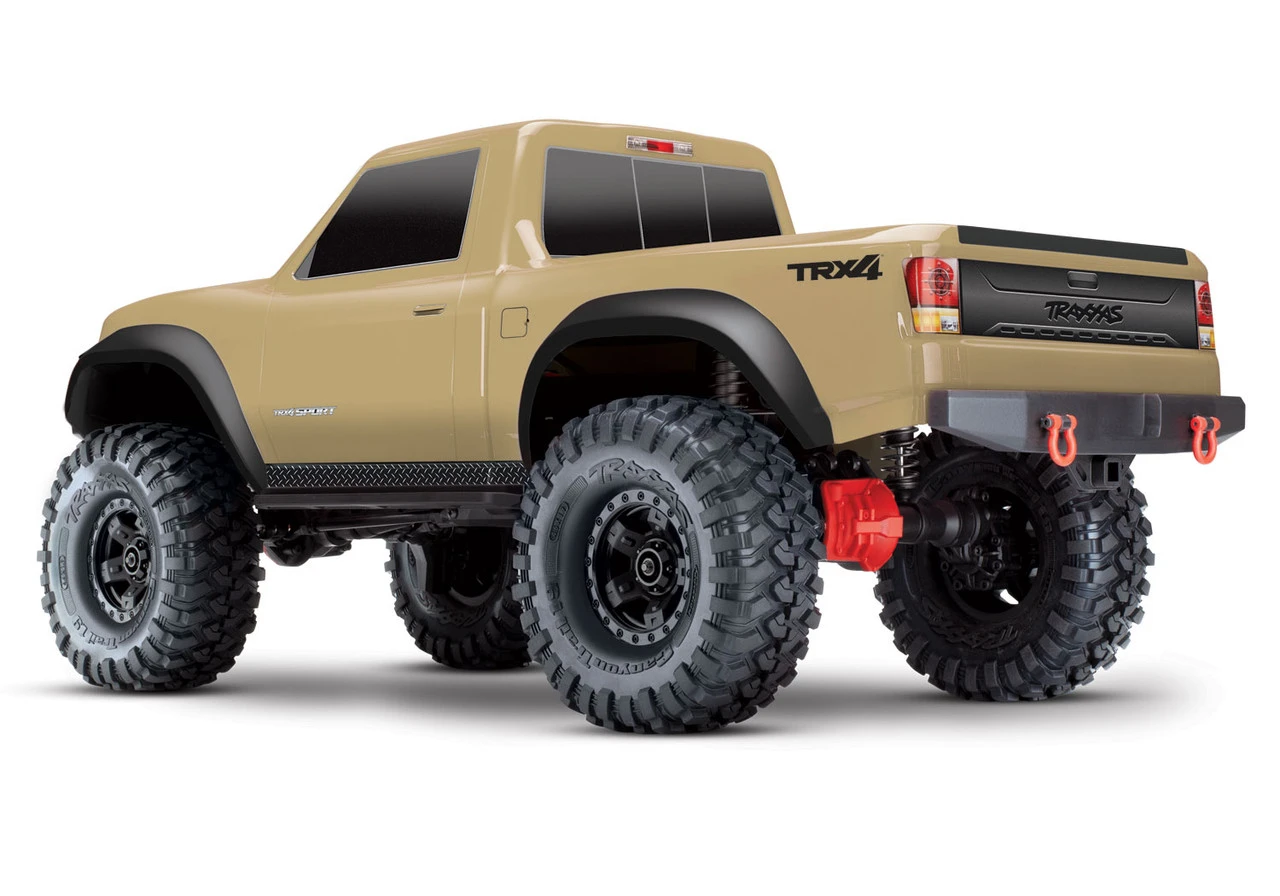

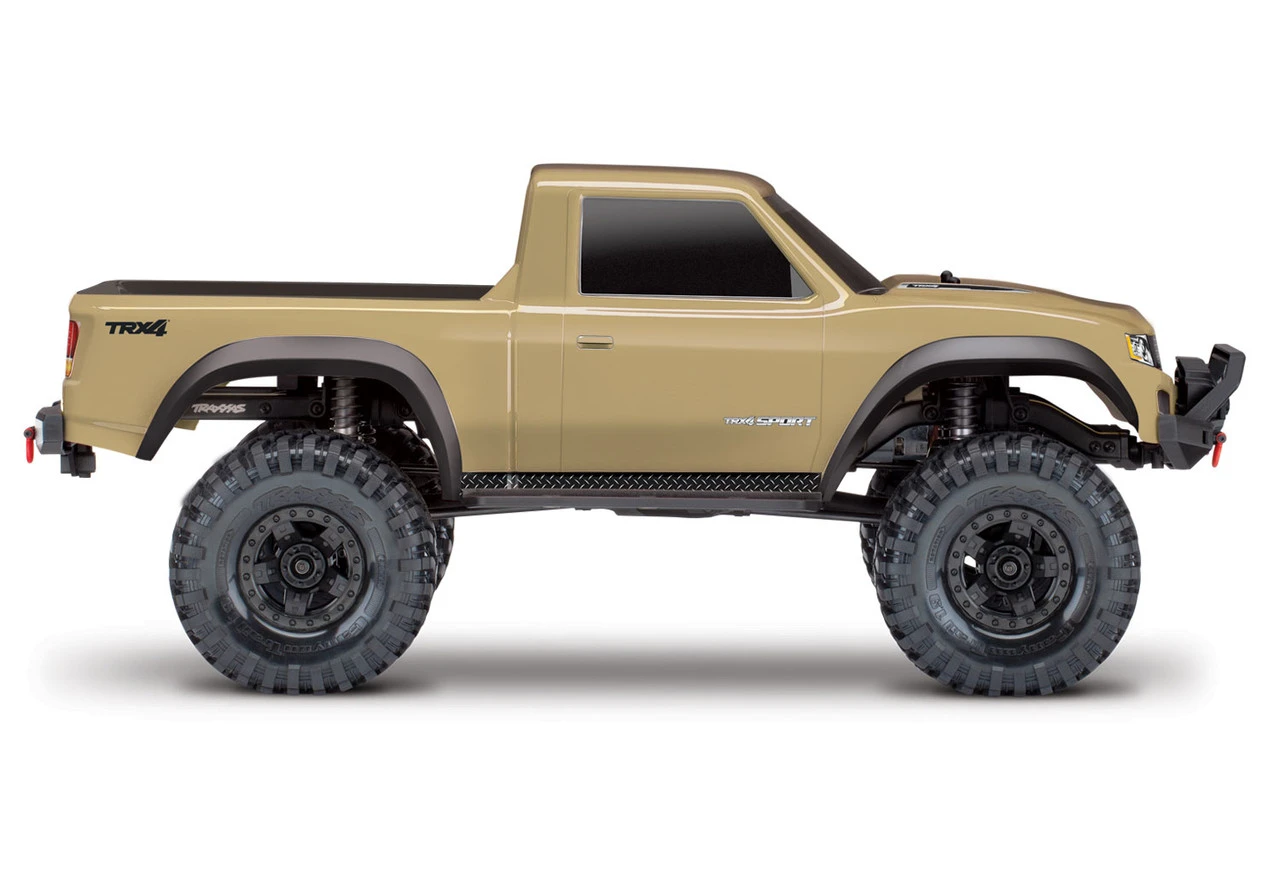

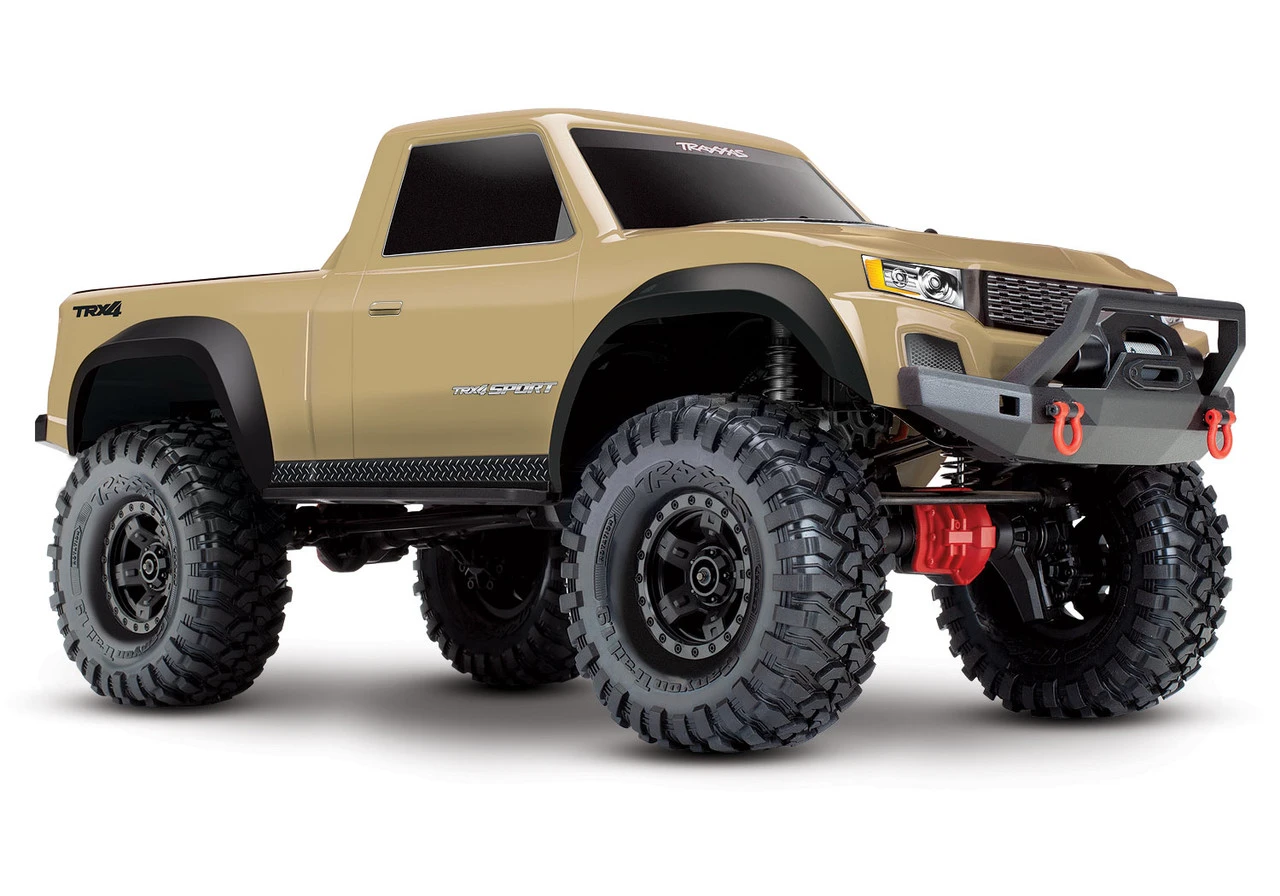

Traxxas TRX-4 Sport 1/10 Scale Trail Rock Crawler W/XL-5 ESC & TQi 2.4GHz Radio (Tan)

Product Description

Traxxas TRX-4 Sport 1/10 Scale Trail Rock Crawler w/XL-5 ESC & TQi 2.4GHz Radio (Tan)

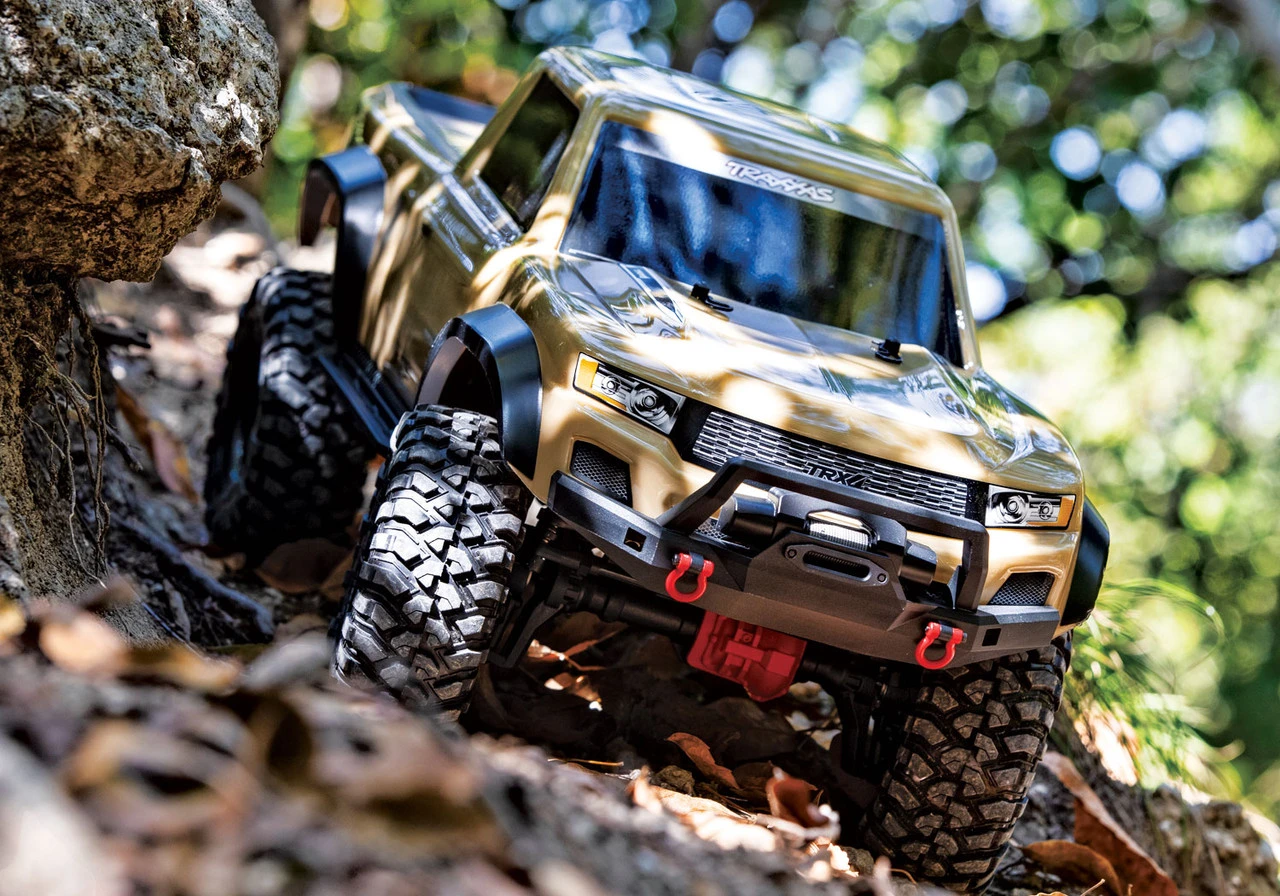

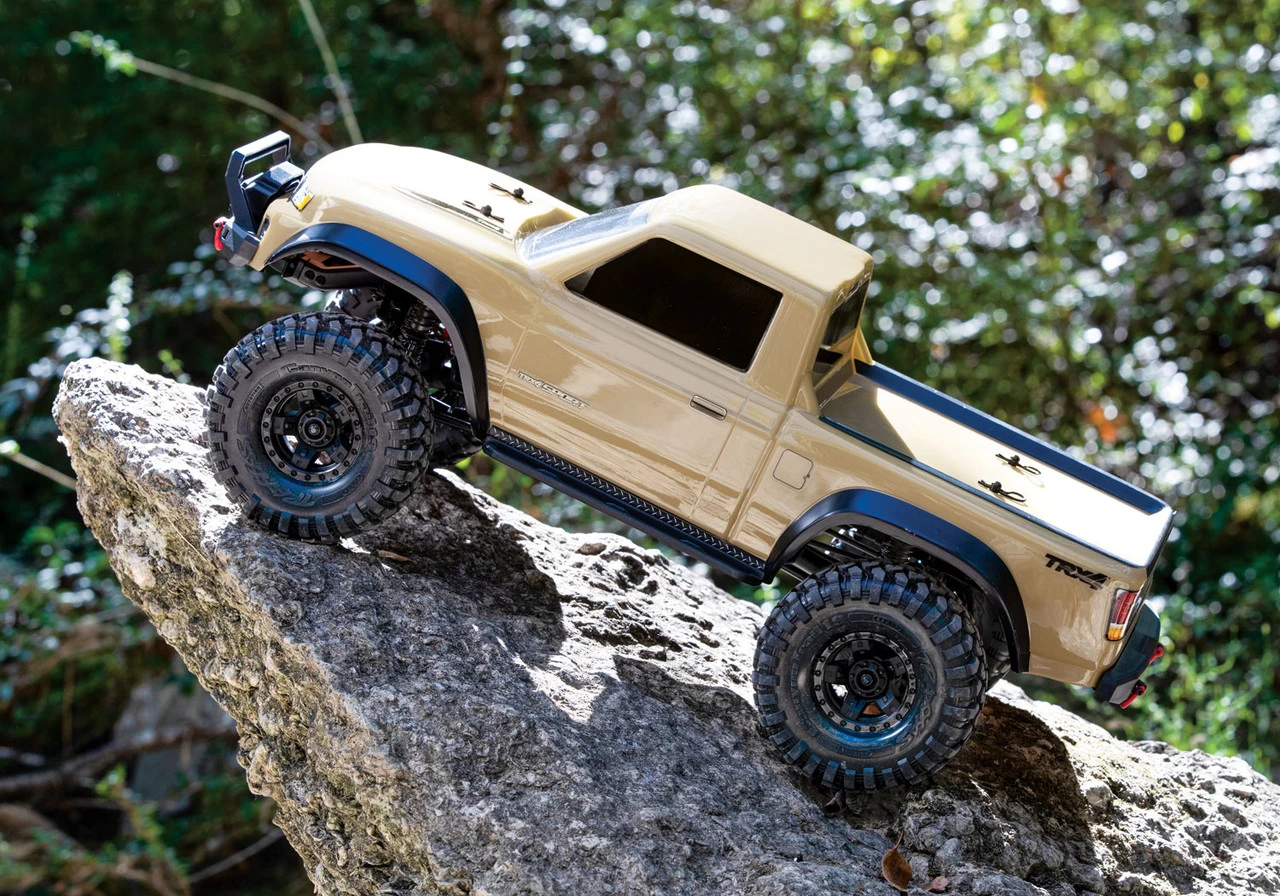

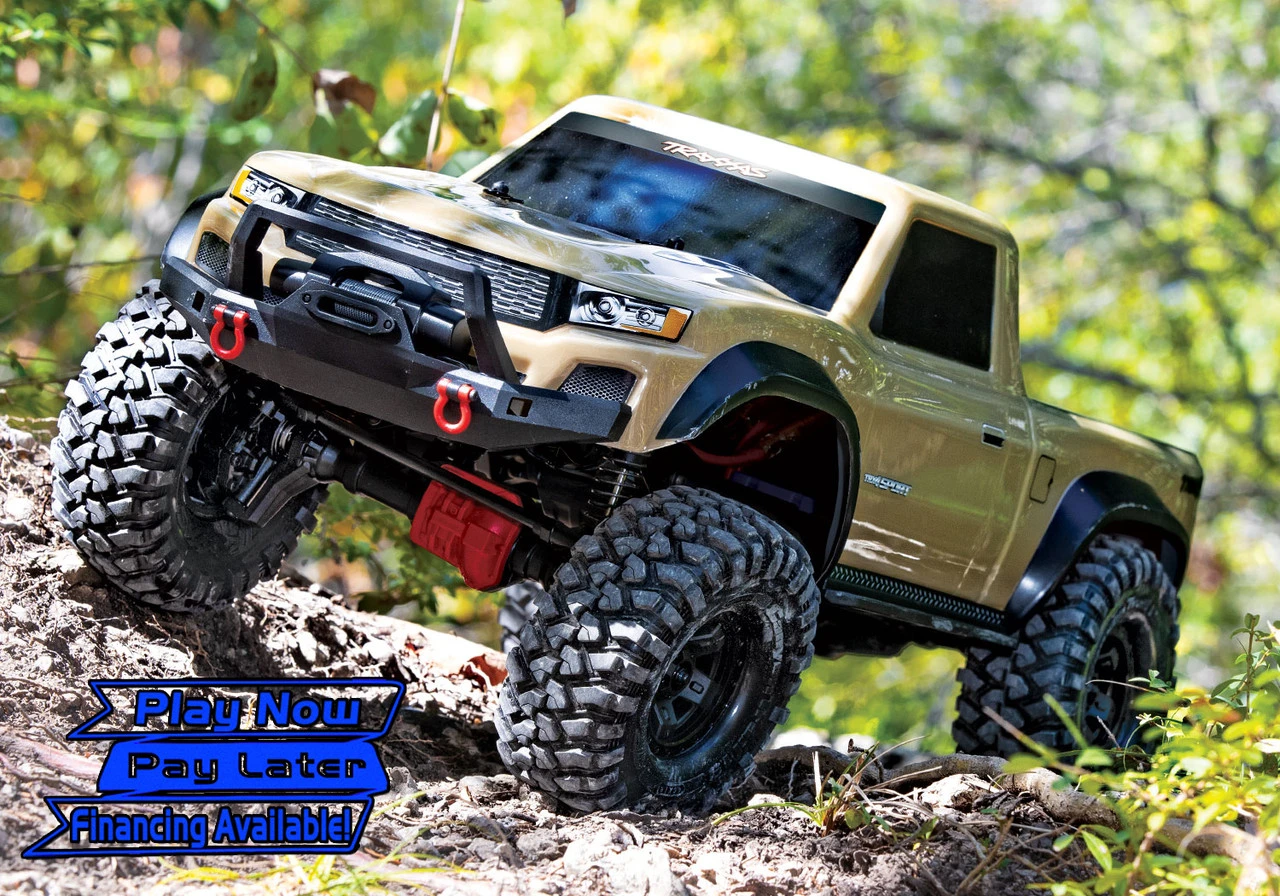

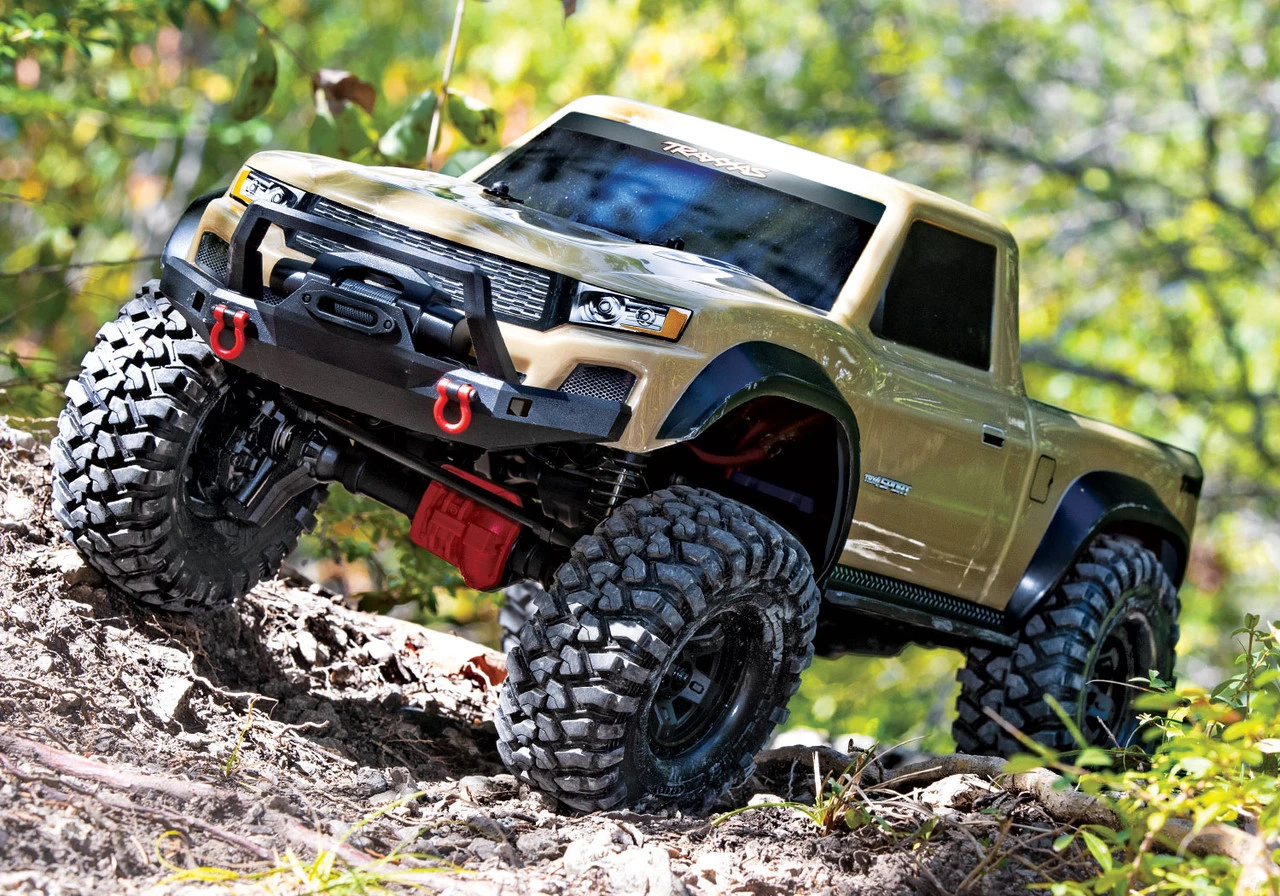

The TRX-4 Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon^® Trail tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased performance in technical sections. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and purpose-built approach takes your outdoor adventures to a new level.

Features:

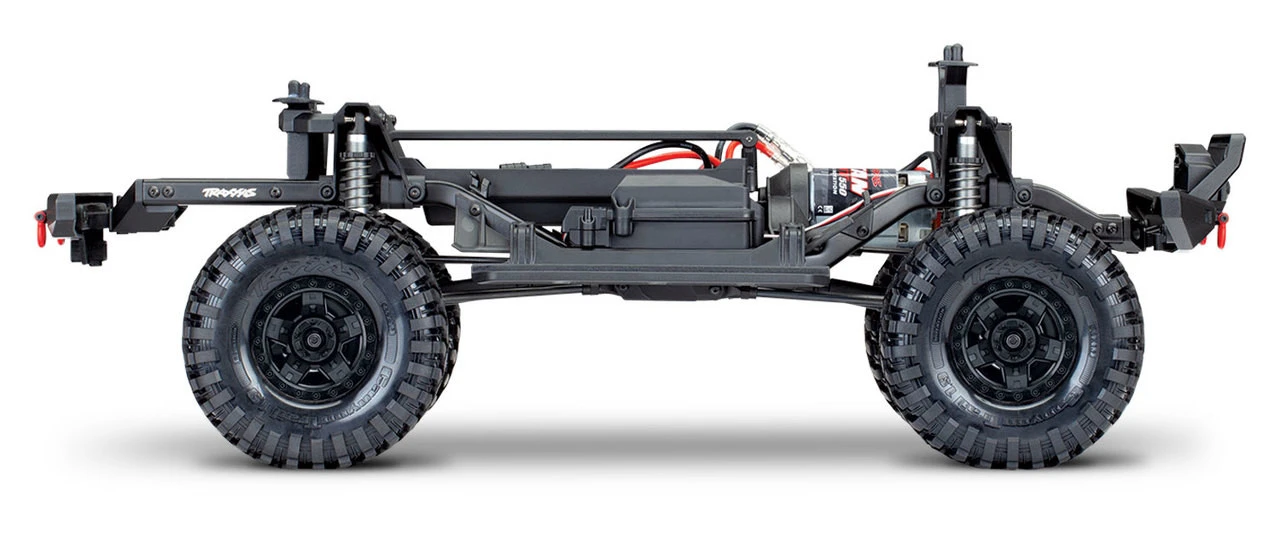

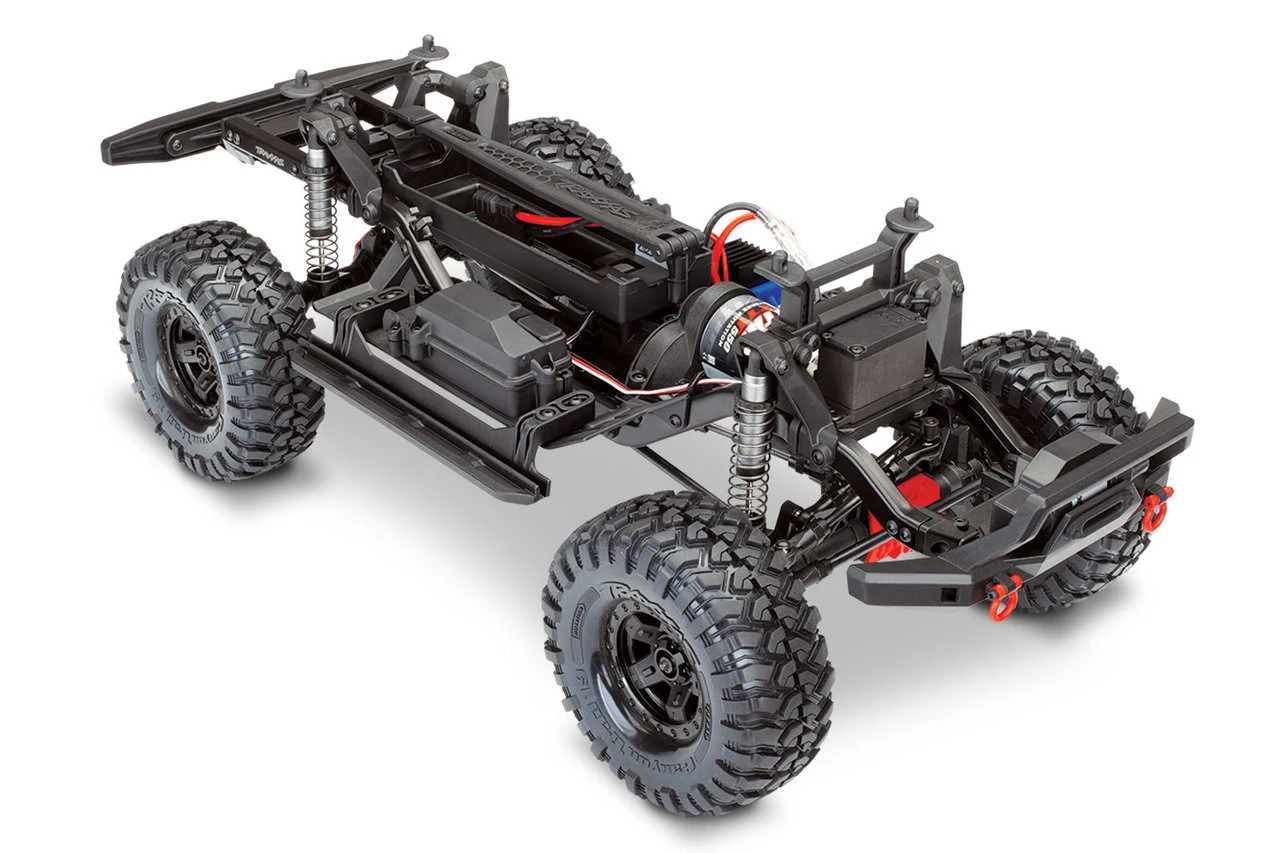

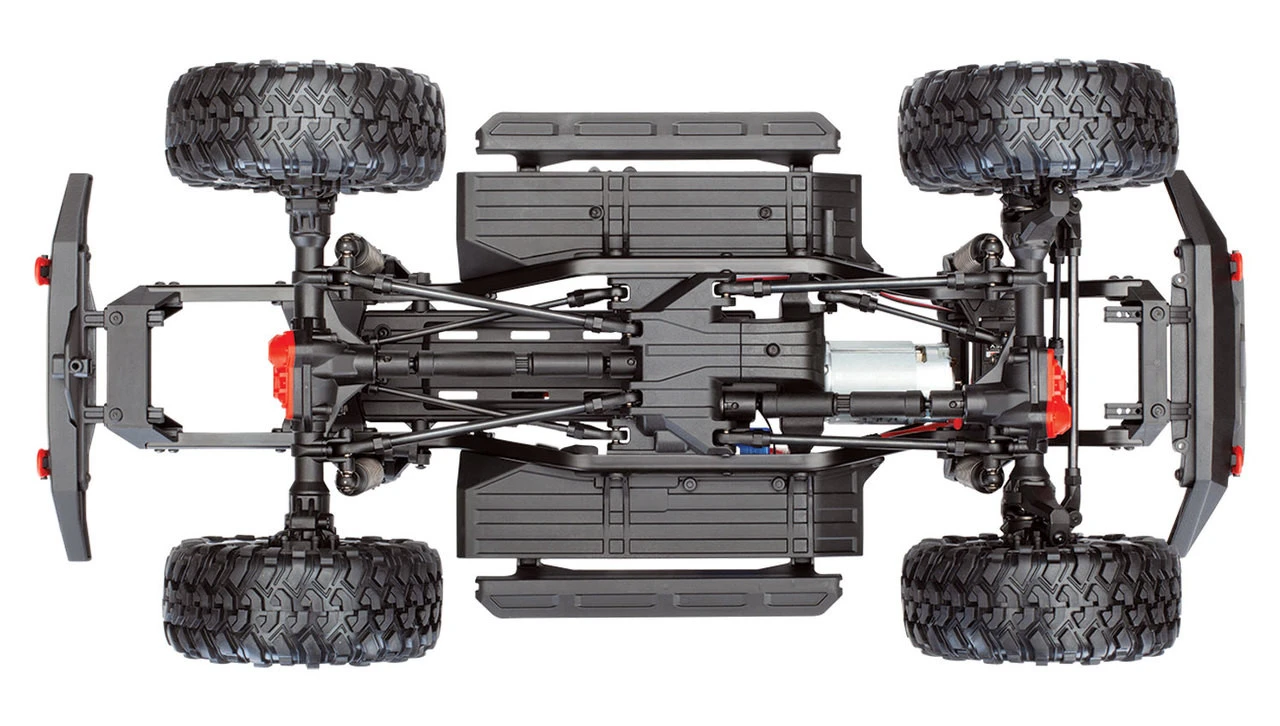

• Chassis:
• Heavy-Duty Steel Frame Rails
• Adjustable Wheelbase
• Molded Wire Retainers
• Dual Battery Tray
• Floor Pans
• Aluminum Scale Shocks
• Heavy-Duty Steel Links
• Precision Hex Hardware
• Driveline:
• Portal Axles
• Torque Twist Eliminated
• Locked Differentials
• Steel Gear Transmission
• Hardened Steel U-Joints
• Twin Friction Plate Slipper Clutch
• Sealed Ball Bearings
• Geometry:
• Raised Center Driveshafts and Suspension Links
• High Steering and Drag Links
• 45-Degree Steering Angle
• Extreme Approach Angles
• High Ground Clearance
• Front Motor Design
• Electronics:
• XL-5 HV ESC
• Titan 21T 550 Motor
• Waterproof Metal Gear Servo
• TQ™ 2-Channel Radio System

Specifications:
Length: 21.93 inches (557mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 5.79lb (2.63kg)
Height: 9.47 inches (241mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 58.93°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H

• Parts

  • Parts and Hop-ups for the Traxxas TRX-4 Sport

• Resources

  • Manual for the Traxxas TRX-4 Sport
  • Traxxas TRX-4 Sport Chassis Assembly Exploded View
  • Traxxas TRX-4 Sport Front Assembly Exploded View
  • Traxxas TRX-4 Sport Modular Assembly Exploded View
  • Traxxas TRX-4 Rear Assembly Exploded View
  • Traxxas TRX-4 Transmission Assembly Exploded View

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
