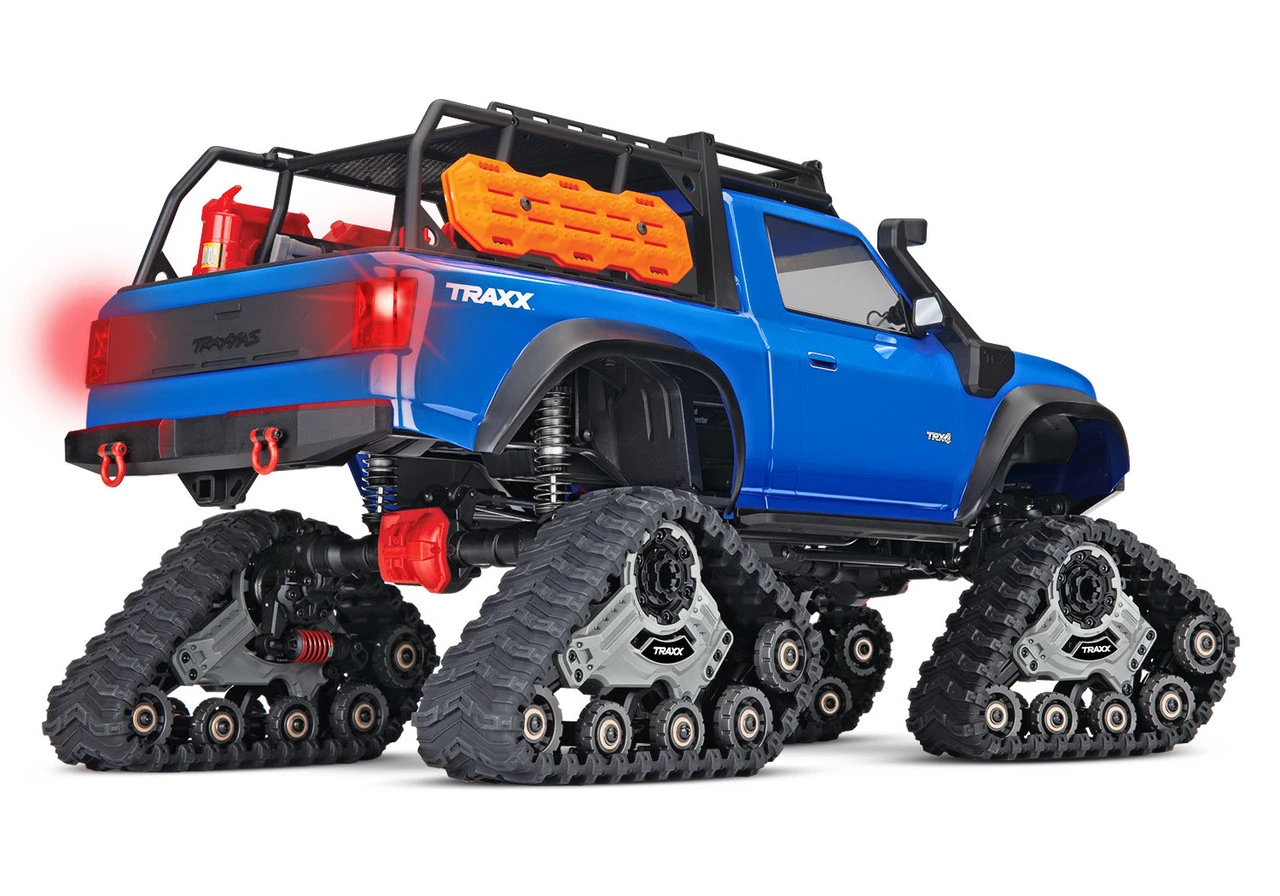

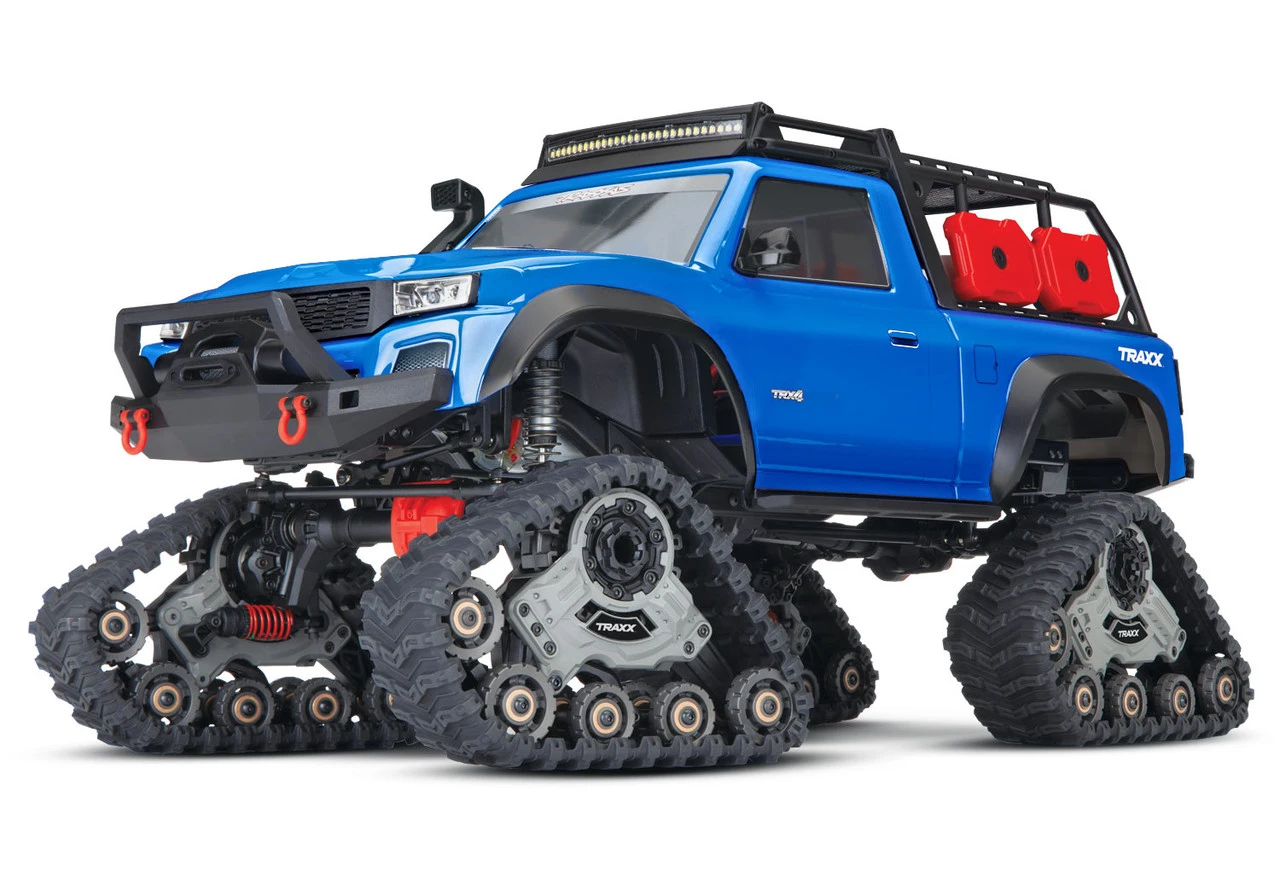

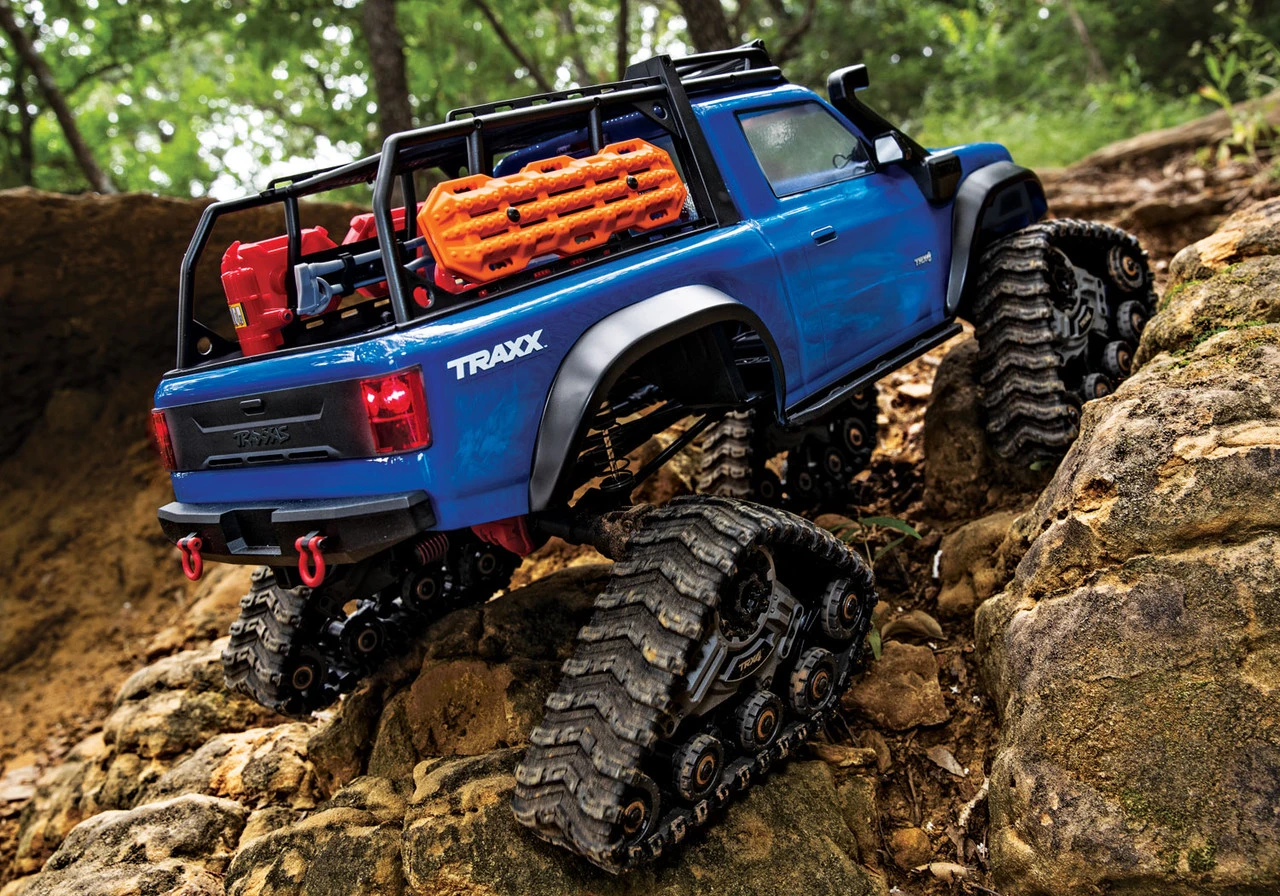

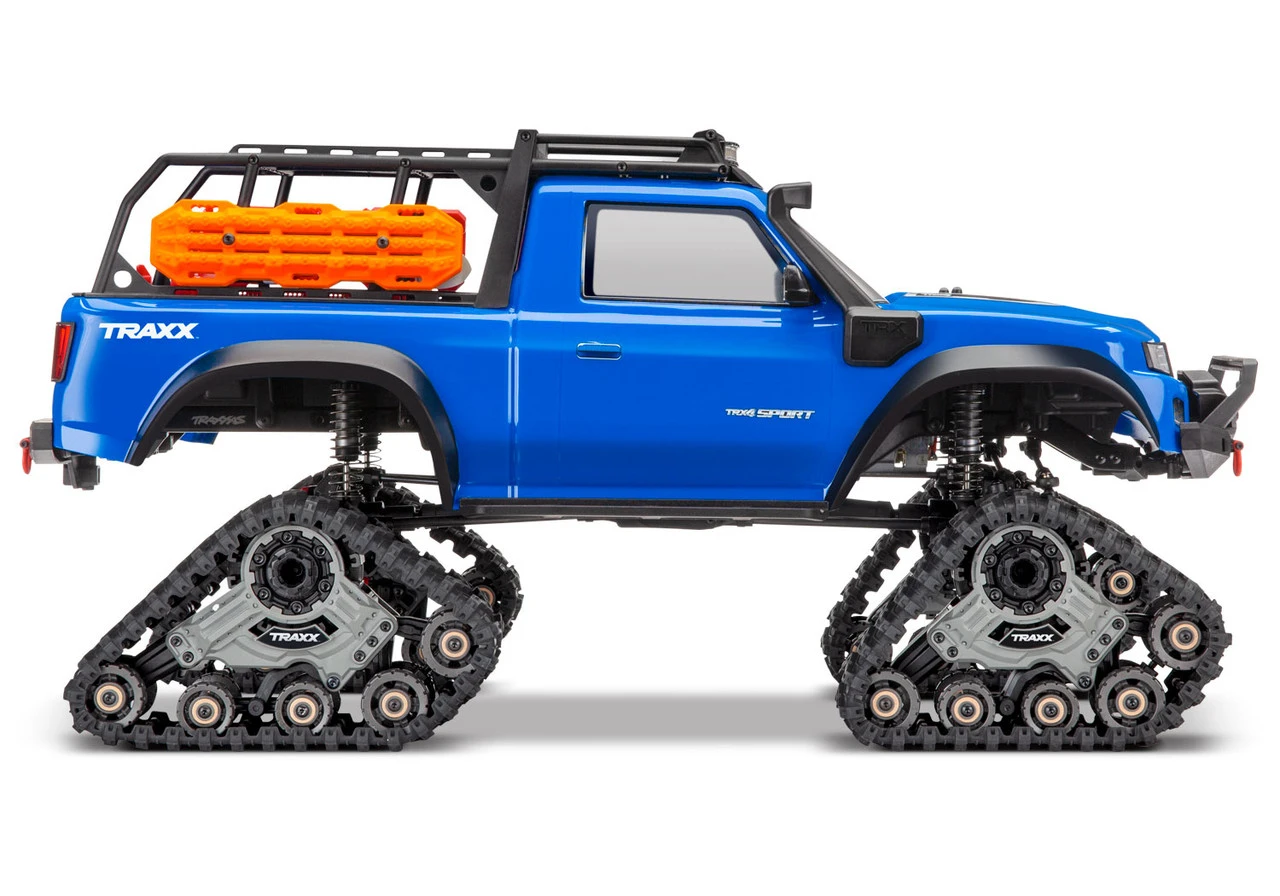

Traxxas TRX-4 1/10 Scale Trail Rock Crawler W/All-Terrain Traxx (Blue)

• Tough, Lightweight Pickup Truck Body
  • Low profile bumpers for increased clearance
  • Red differential covers and D-rings
  • Clear windows
• Scale Accessories
  • Rugged Expedition Rack with detailed accessories
  • Tough inner fenders
  • Injection-molded snorkel, side mirrors, and grilles

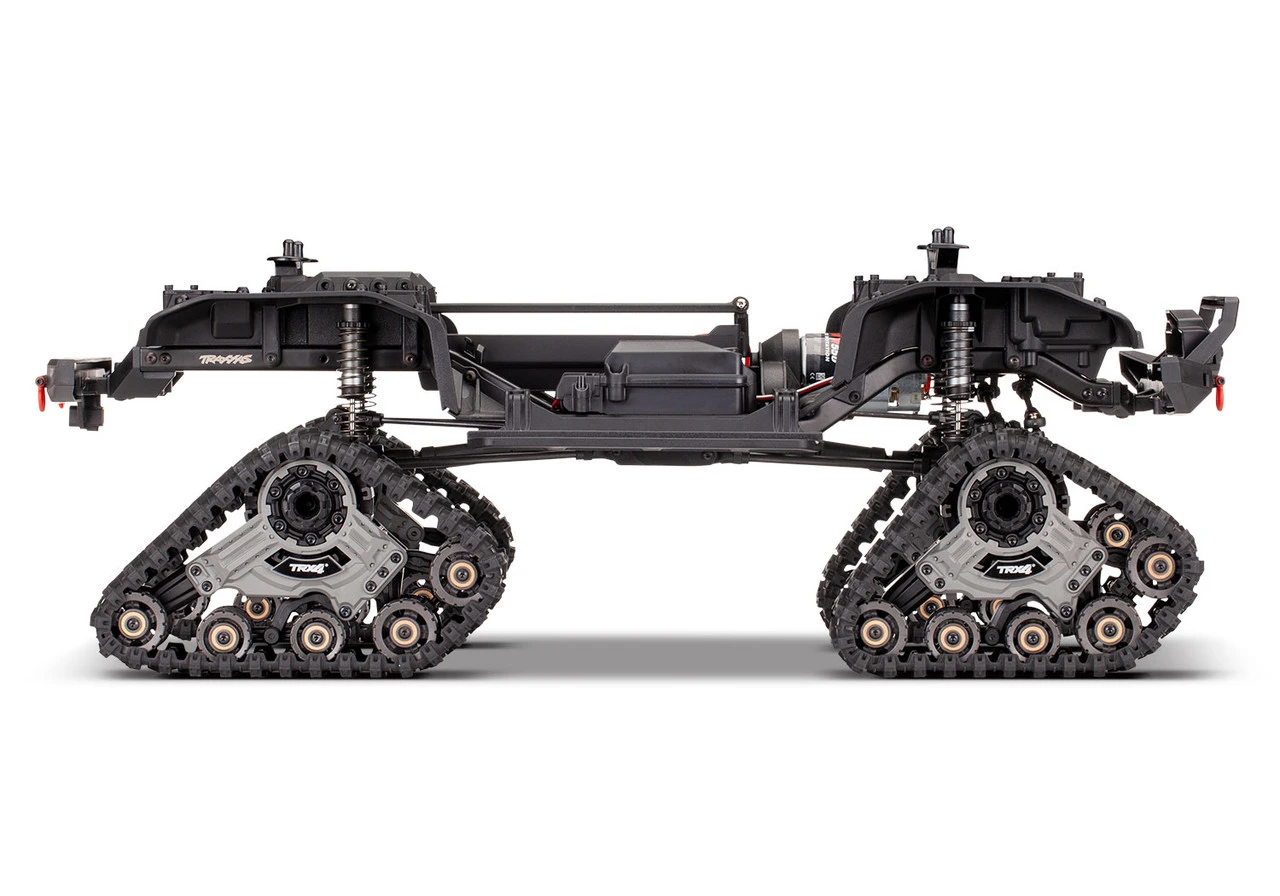

• All-Terrain Traxx
  • Virtually unstoppable traction on practically any terrain
  • Oil-filled coilover dampers to control rotational movement
  • Suspended road wheels allow treads to conform to irregular surfaces
  • Specially designed one-piece rubber treads resist de-tracking
  • Longer rear Traxx drive units for steep climbing stability
  • Designed for all-weather fun
    • Sealed bearings on drive wheels
    • Low-maintenance self-lubricating bushings on guide wheels
• LED Light Kit
  • Sealed waterproof design
  • Color-coded power distribution block for easy and secure connections
  • Traxxas LED lighting module
    • Regulated to provide consistent and reliable power output
    • Eliminates overheating, glitching, and other electronics issues
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts

• Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profilesTraxxas EZ-Set® one-button setup
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
  • Two stage low voltage protection (LVD)
• Motor
  • Powerful Titan™ 21T reverse rotation motor with internal cooling fan
  • Precise preset gear mesh adjustments
  • Motor retention separate from gear mesh

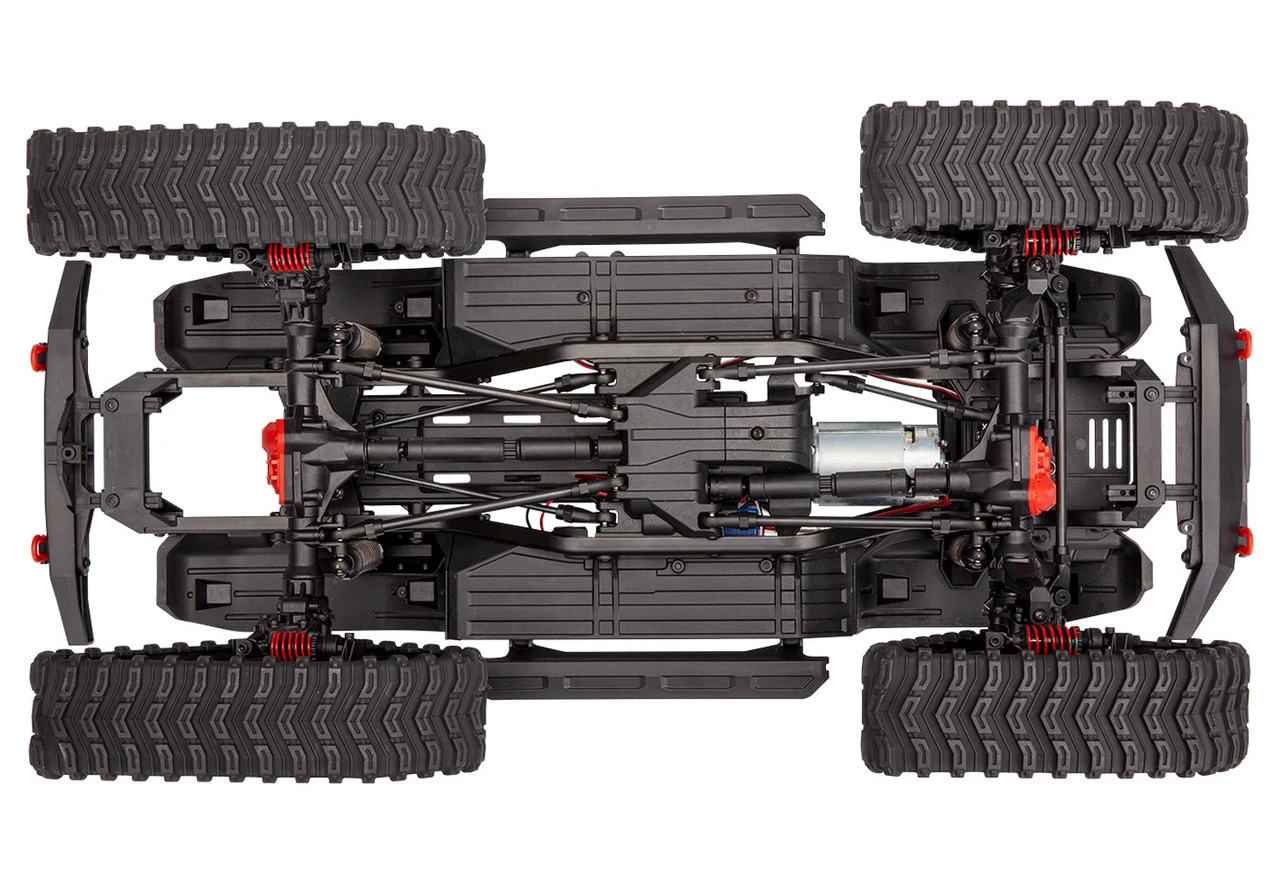

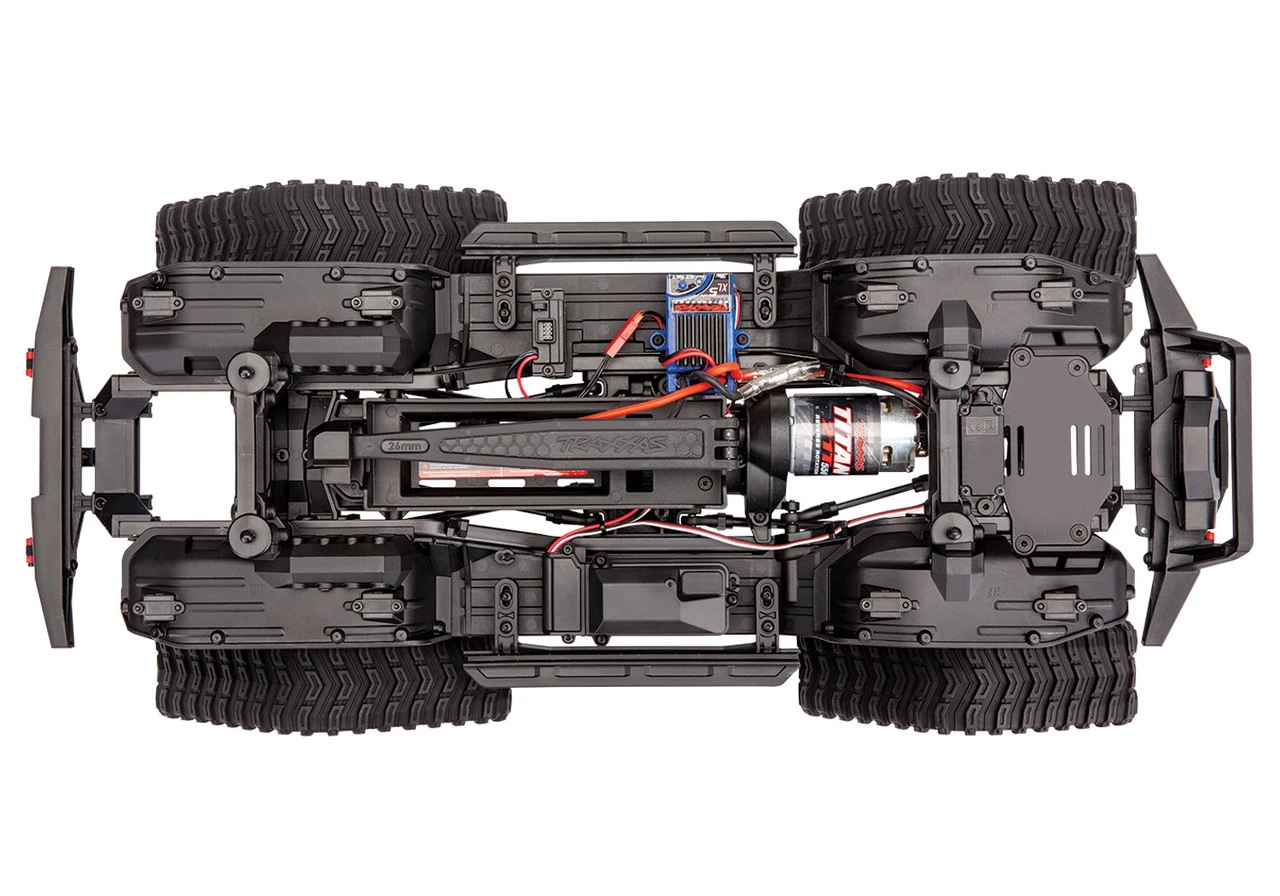

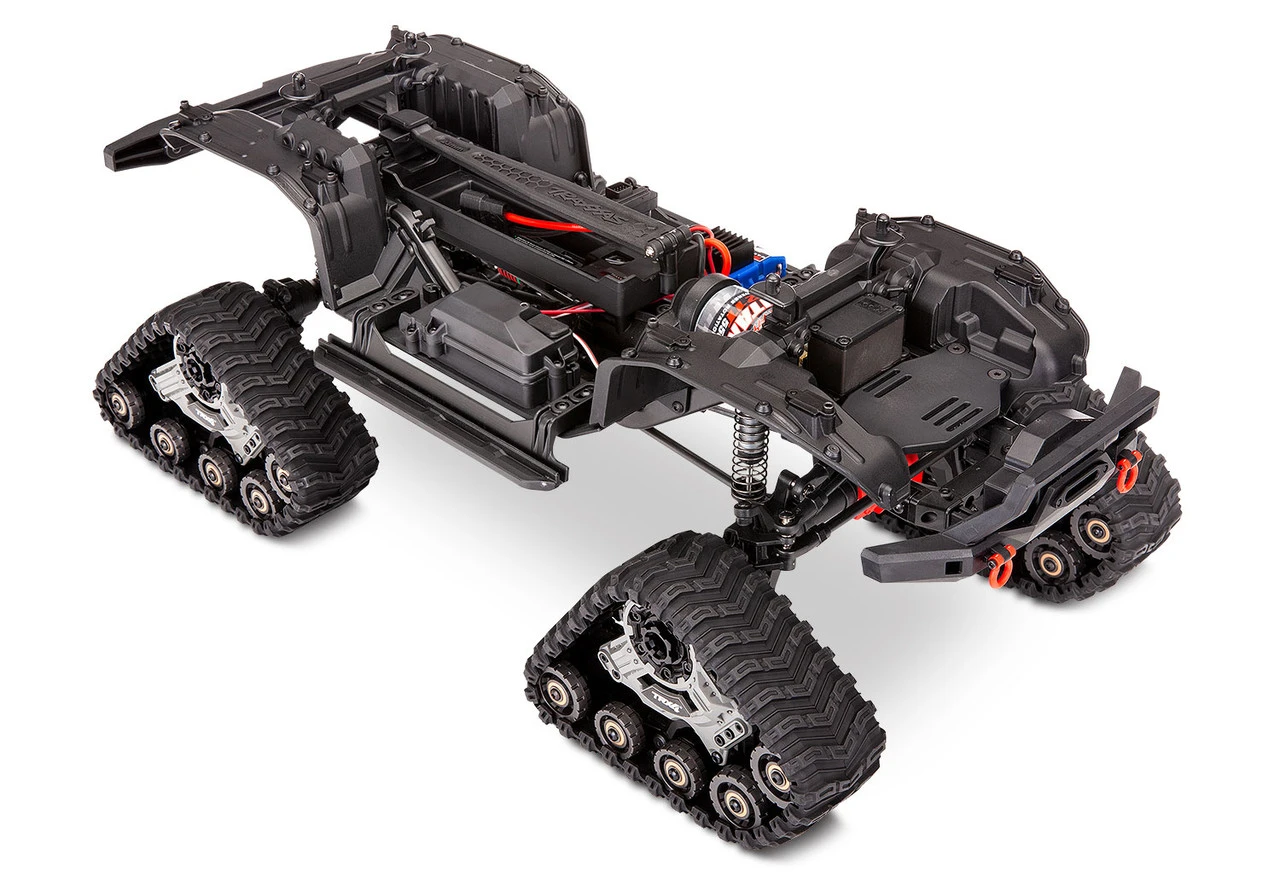

• Rigid Steel Frame
  • 1.5mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Spool-locked front and rear differentials
  • Steel gear transfer case

• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
  • Single-speed with steel gears
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS ShocksTQ™ 2.4GHz 2-channel transmitter
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating

Specifications:
Length: 21.93 inches (557mm)
Front Track: 10.48 inches (266 mm)
Rear Track: 10.48 inches (266 mm)
Ground Clearance: 3.54 inches (90 mm)
Weight: 8.71lbs (3.95 kg)
Height: 10.29 inches (261 mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 76°
Departure Angle: 76°
Breakover Angle: 81°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Battery Tray: 158.75 L x 47 W x 23/26mm H
Speed Control: XL-5 HV
Motor (Electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 2

• TRX-4, Ready-To-Drive® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQ™ 2.4GHz radio system
• High quality maintenance tools

Needed to Complete:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries w/TRX or iD connector
• Charger: Traxxas EZ-Peak charger is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
