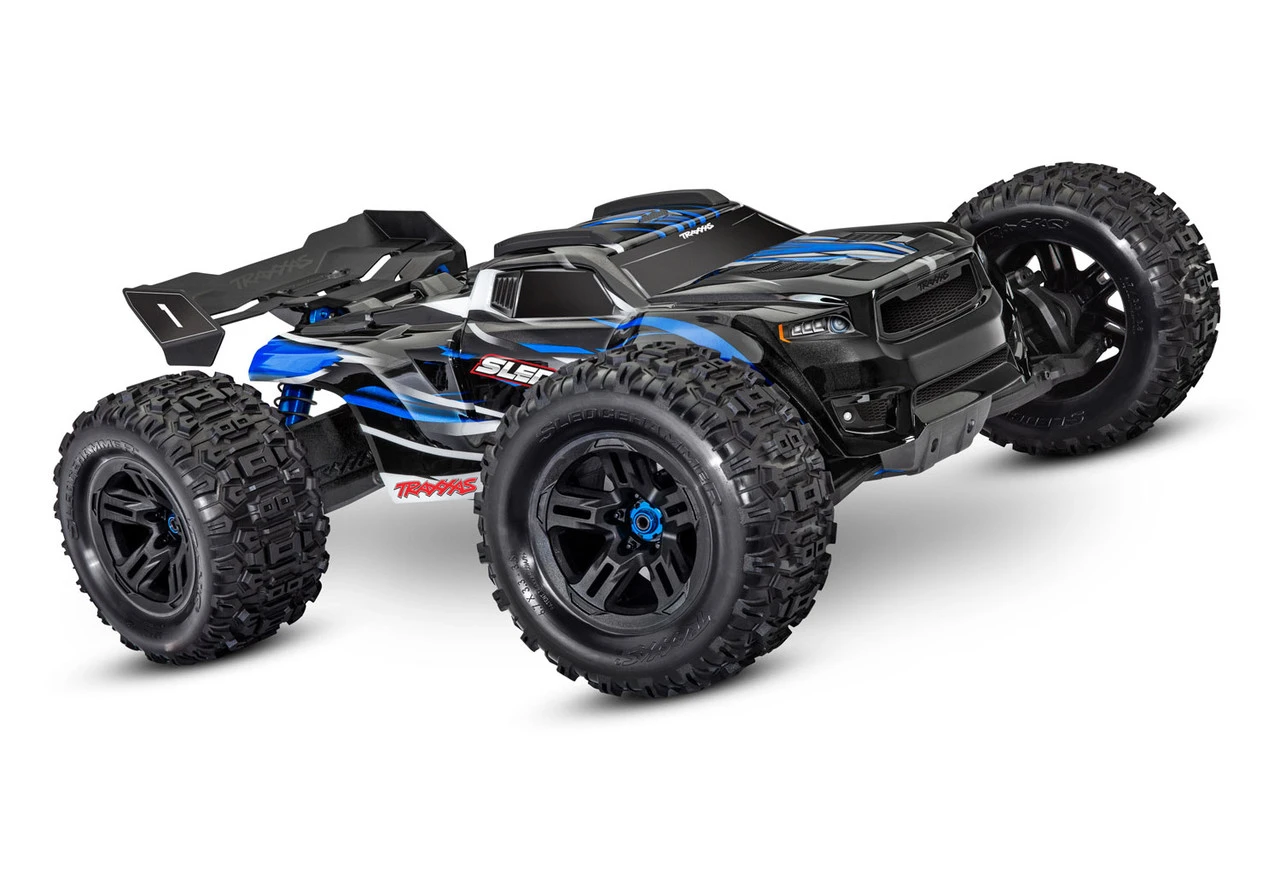

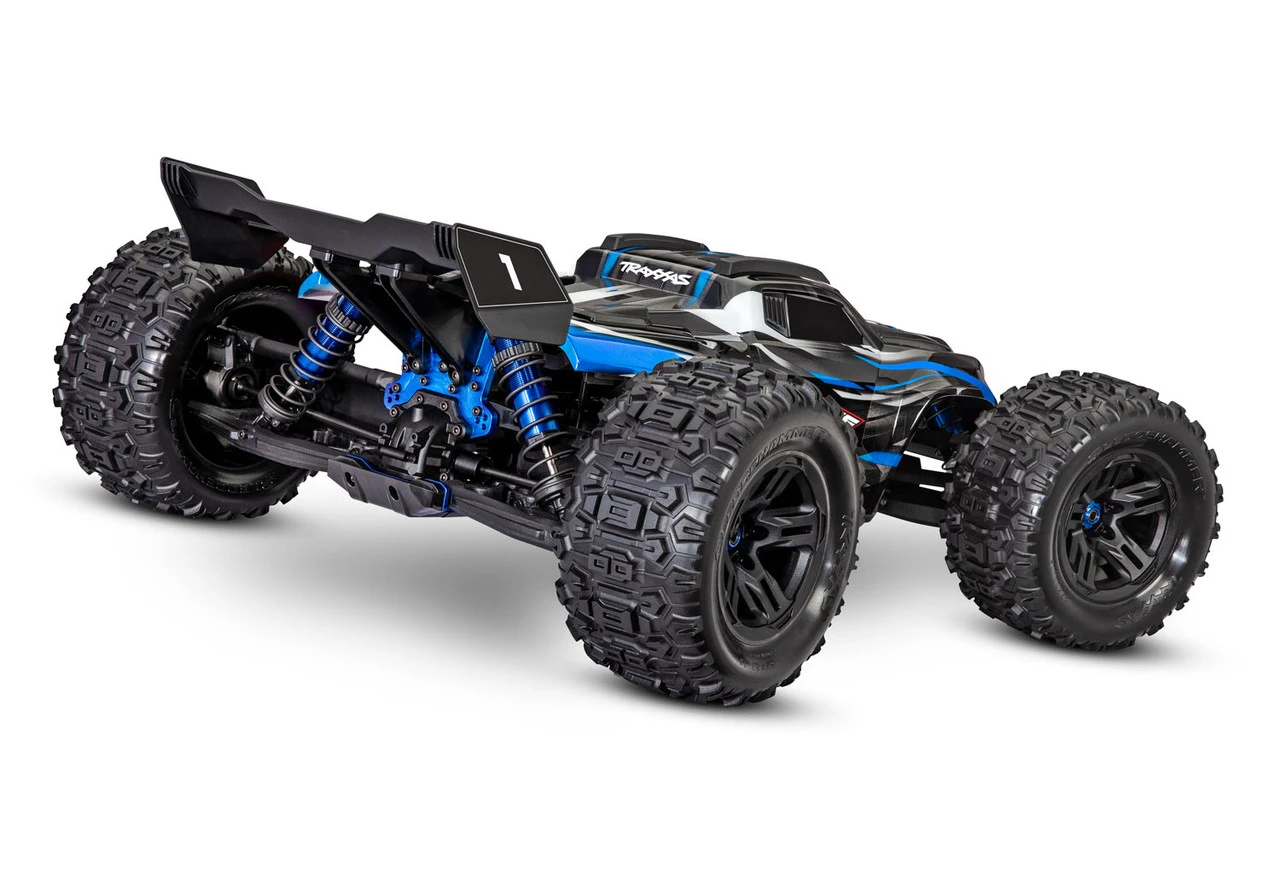

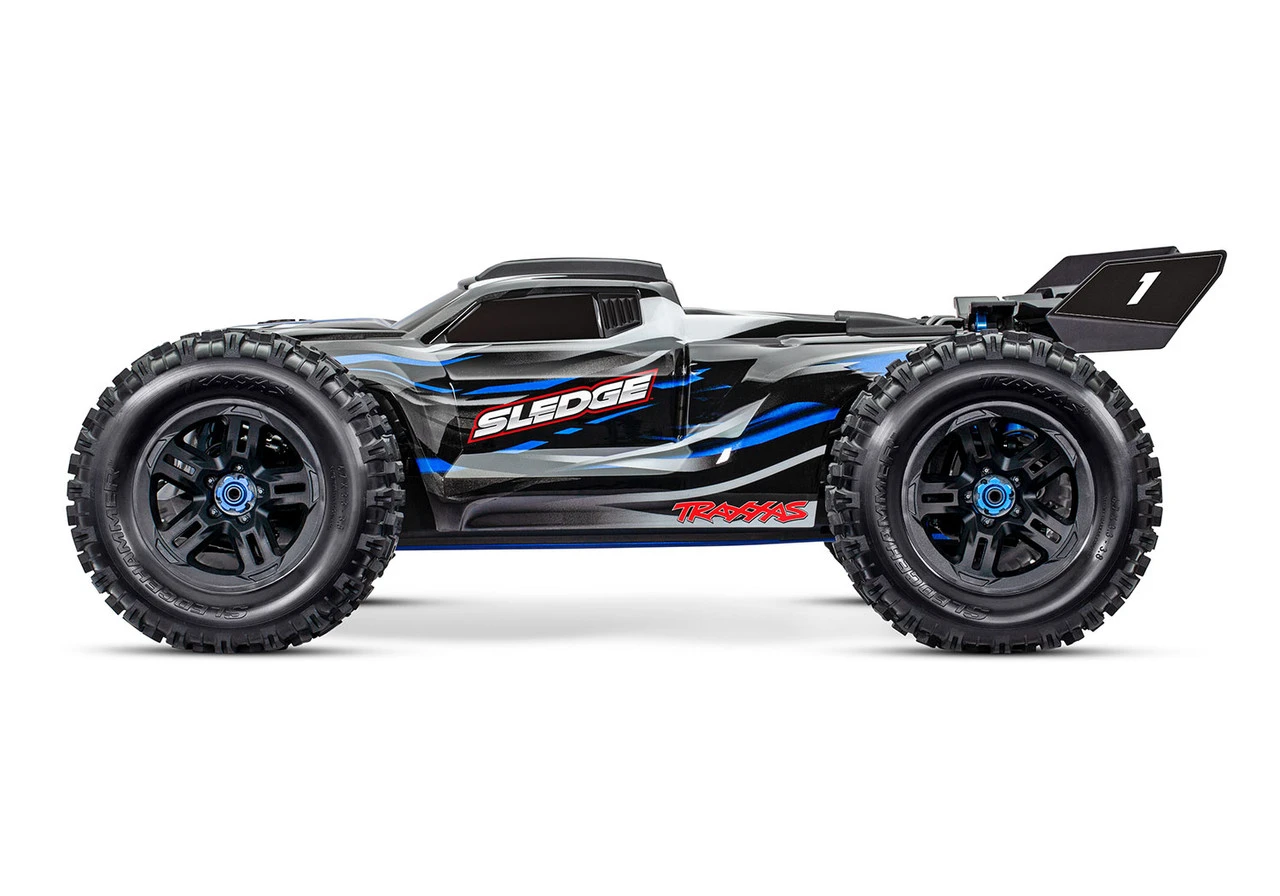

Name: Traxxas Sledge 1/8 Scale 4WD Brushless Monster Truck RTR With TQi 2.4GHz Radio With TSM, Blue
SKU: TRA95076-4-BLU
Availability: InStock

Product Description

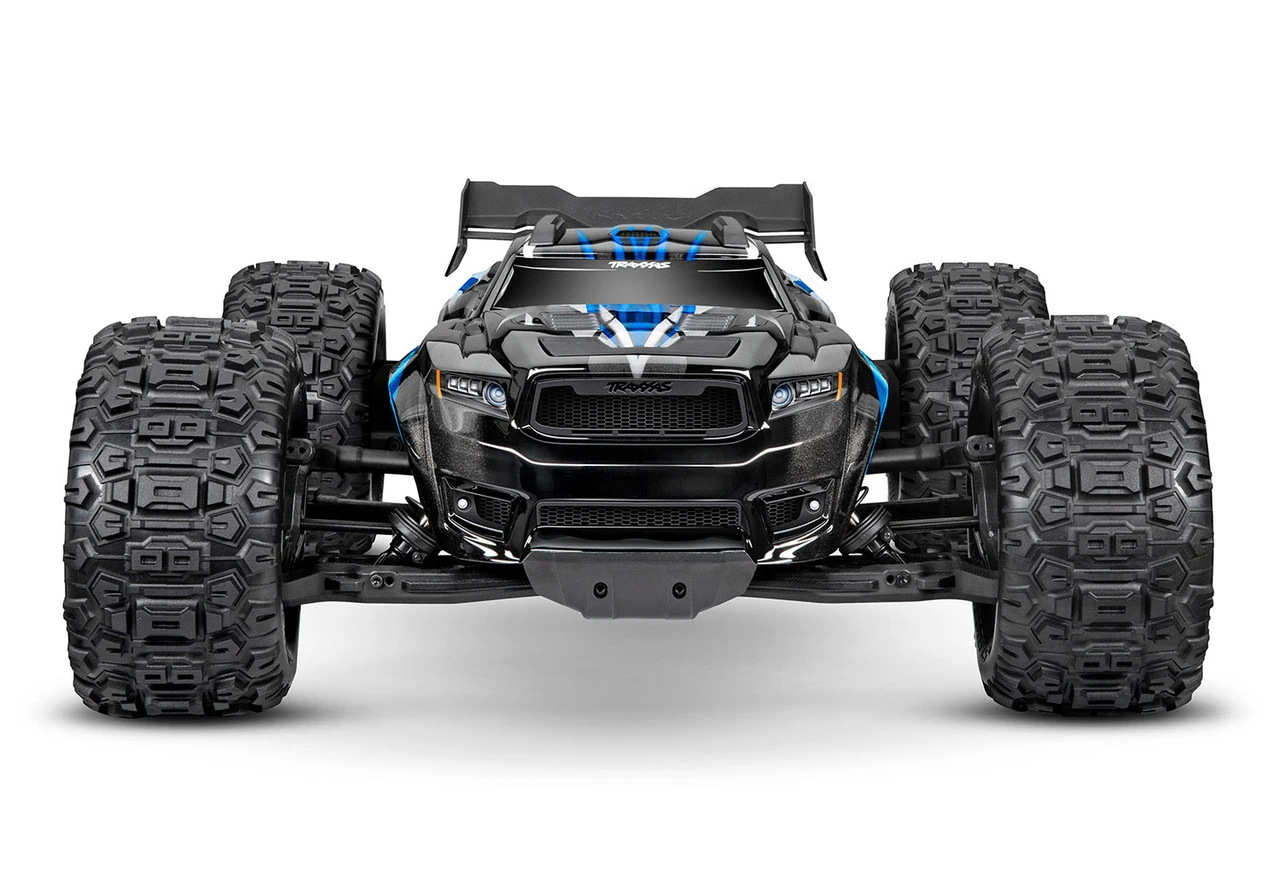

Traxxas Sledge 1/8 Scale 4WD Brushless Monster Truck RTR with TQi 2.4GHz Radio with TSM, Blue

REDEFINING 1/8 SCALE OFF-ROAD
Engineered. Tested. Built to a higher standard. The all-new Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.

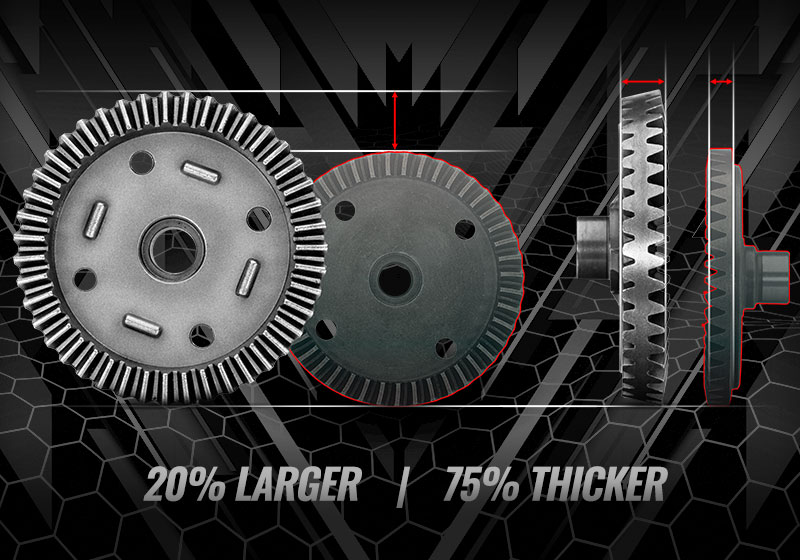

ENGINEERED FOR 6s POWER
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

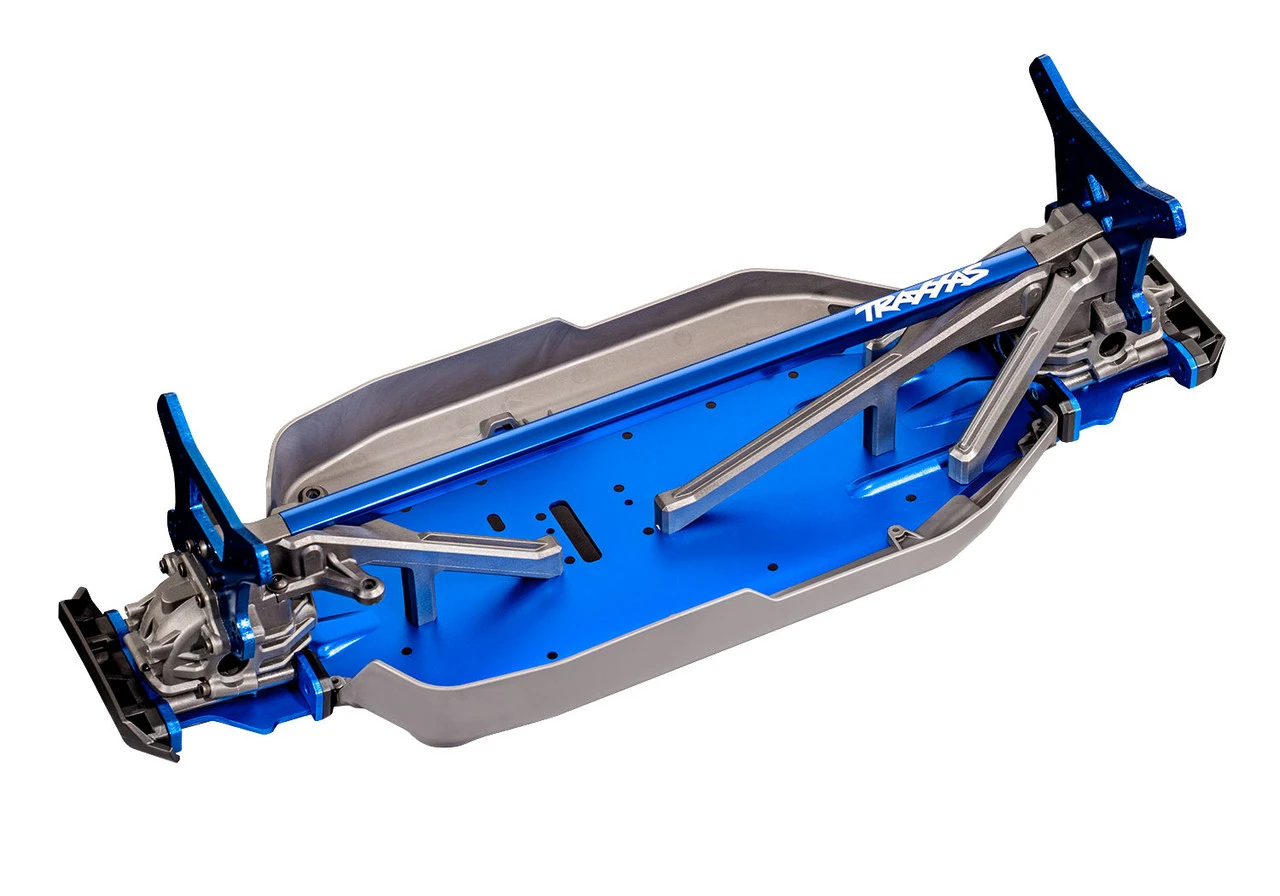

SUPERIOR CHASSIS STRENGTH

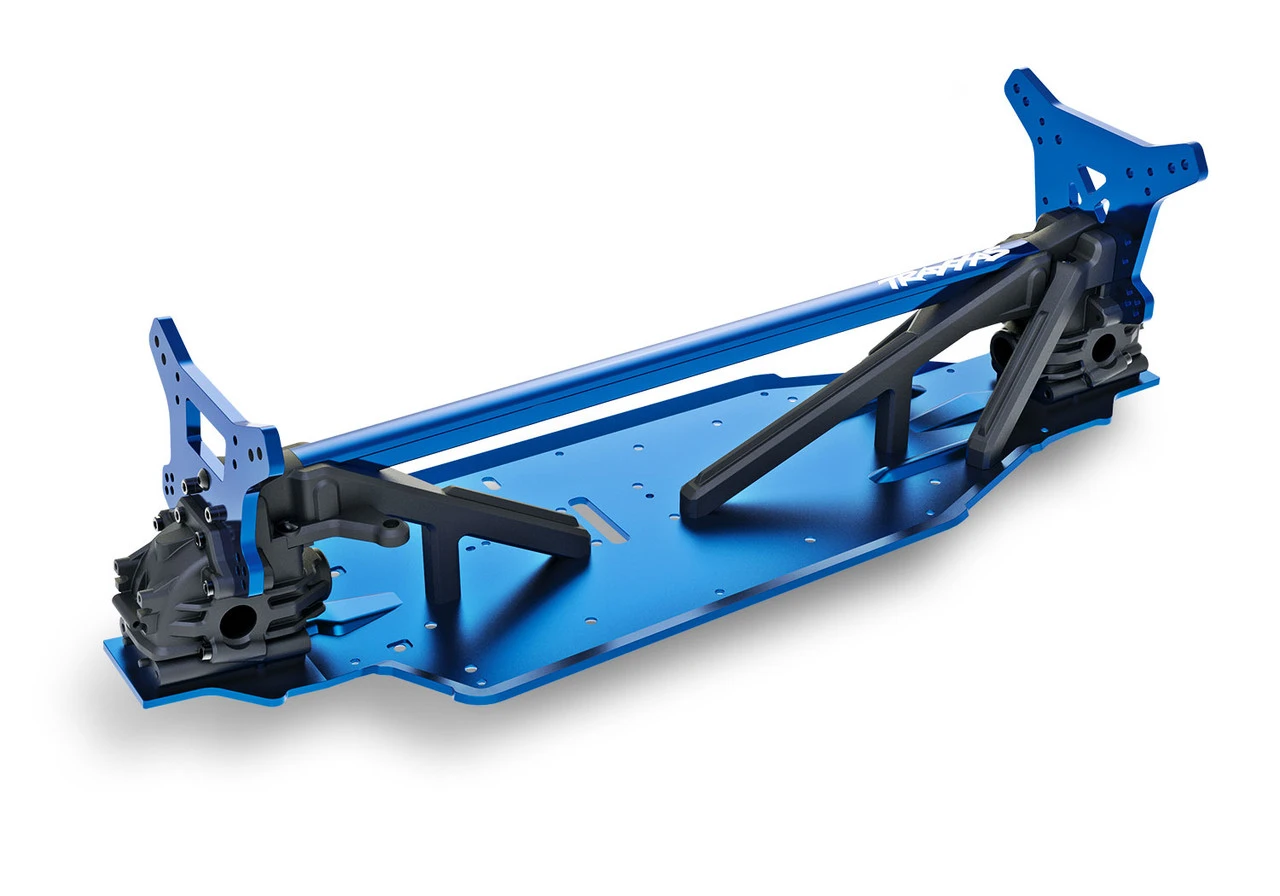

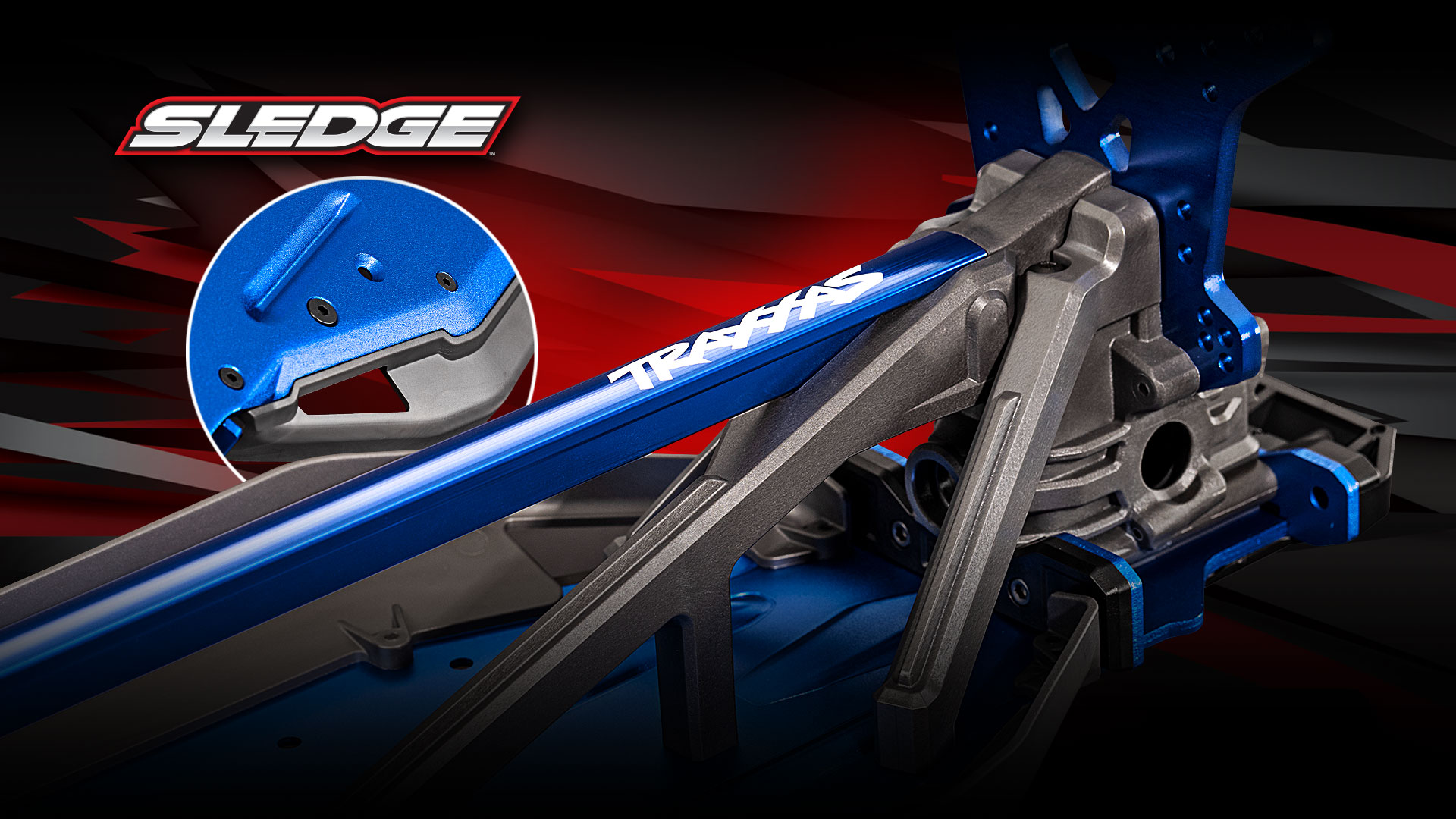

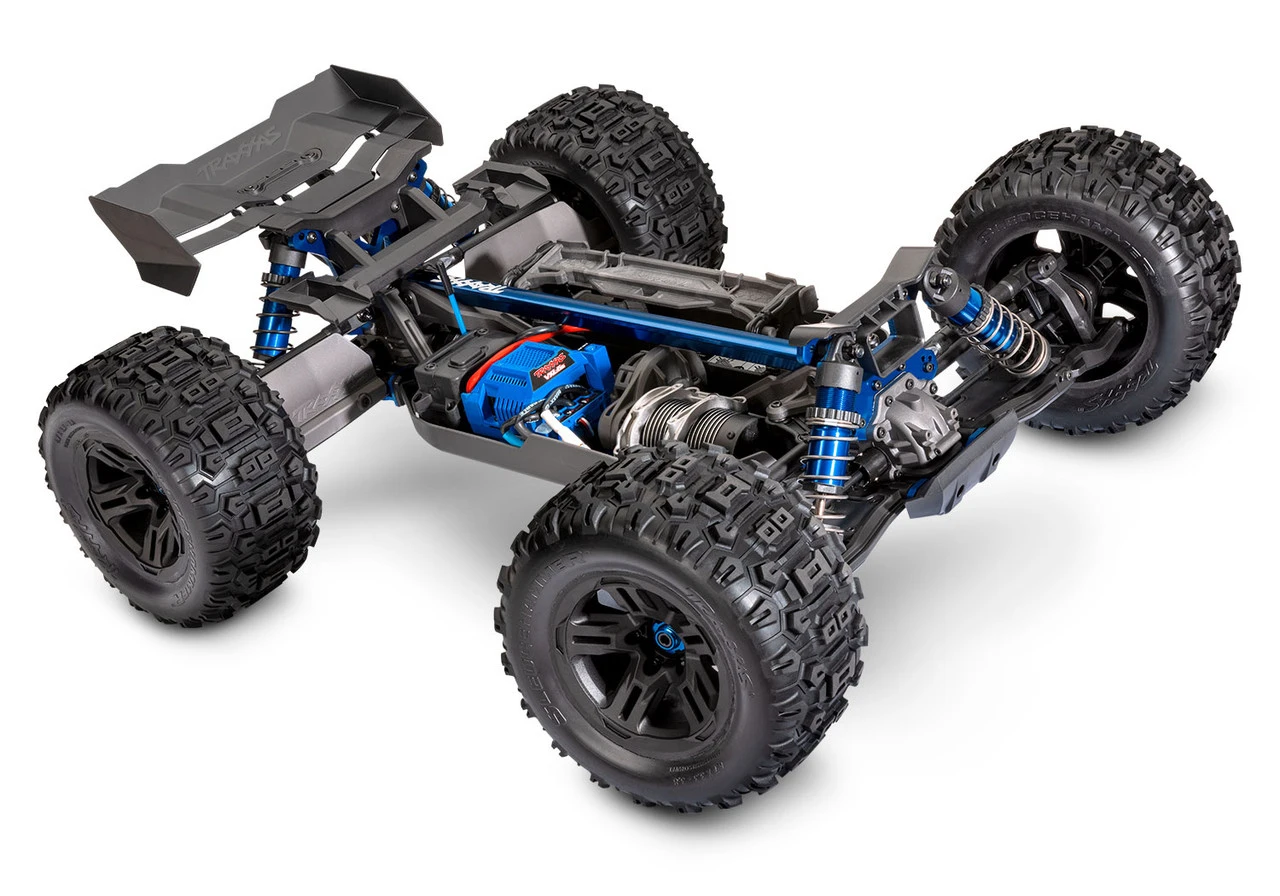

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

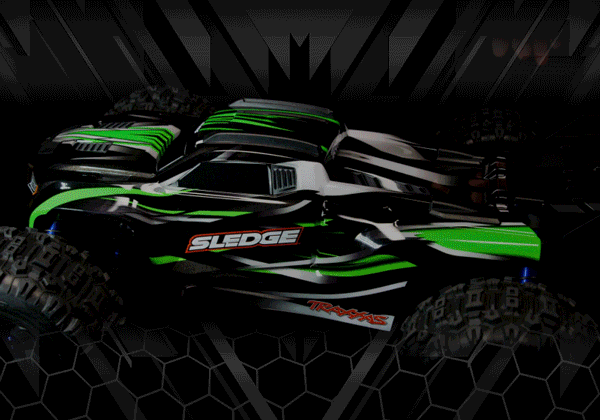

NEW CLIPLESS BODY

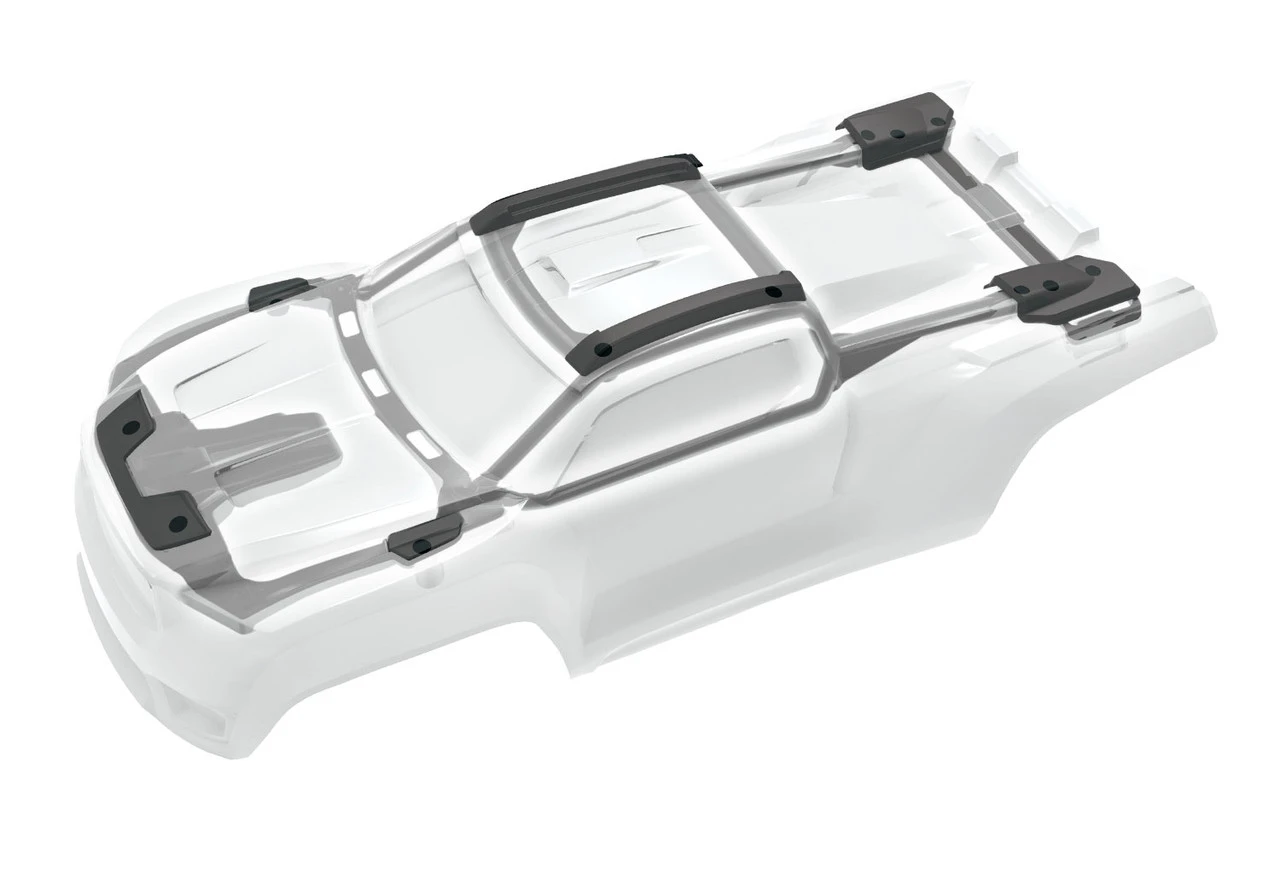

Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.

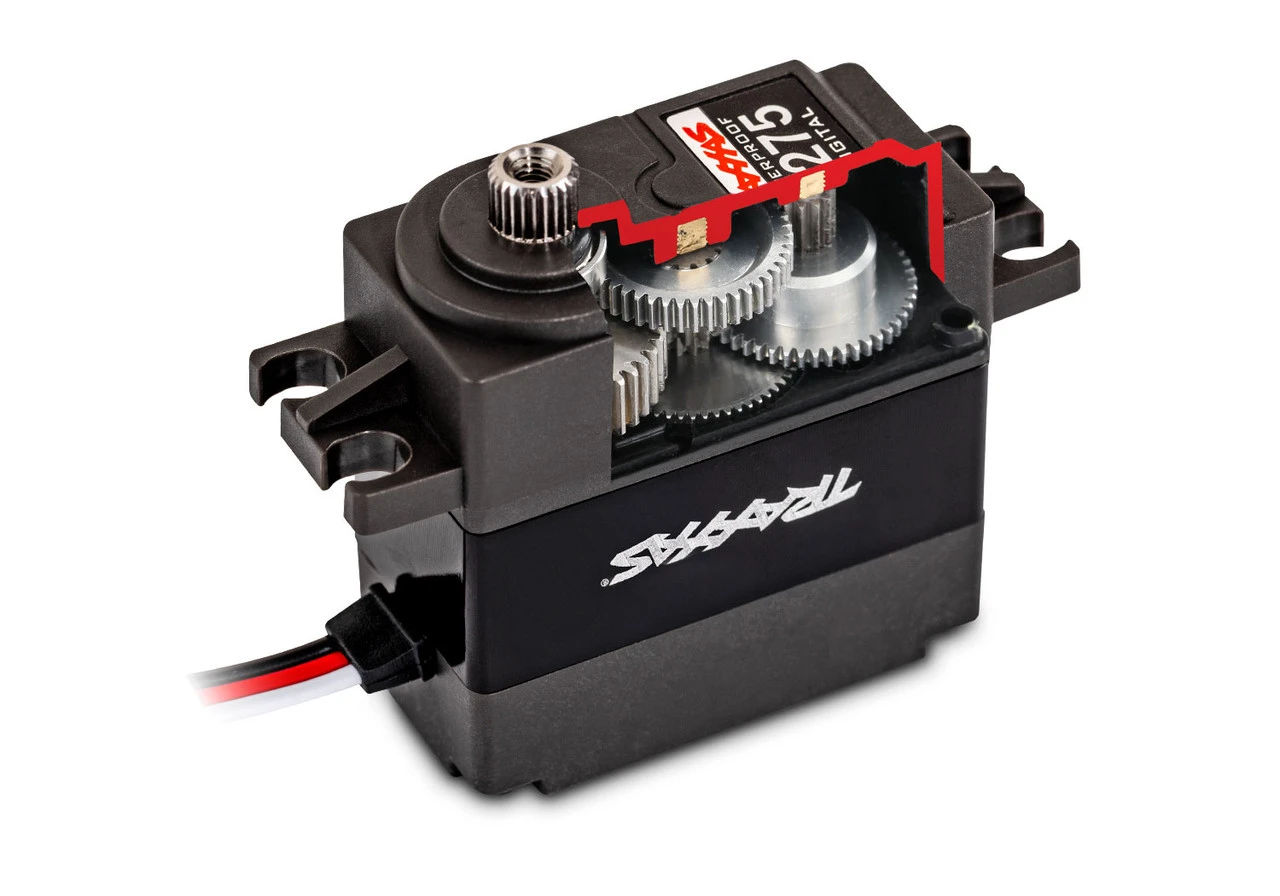

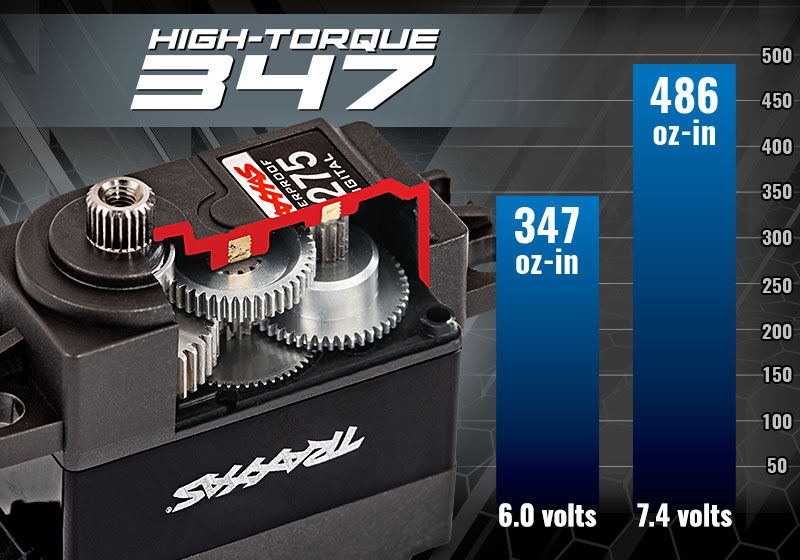

MONSTER SERVO
Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

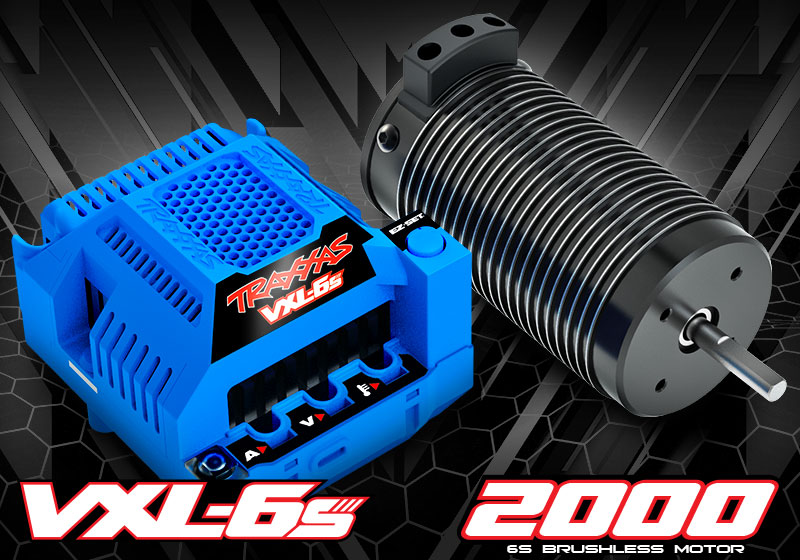

VXL-6s POWER SYSTEM
The Velineon VXL-6s features new hardware and new tuning specifically for the 2000kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

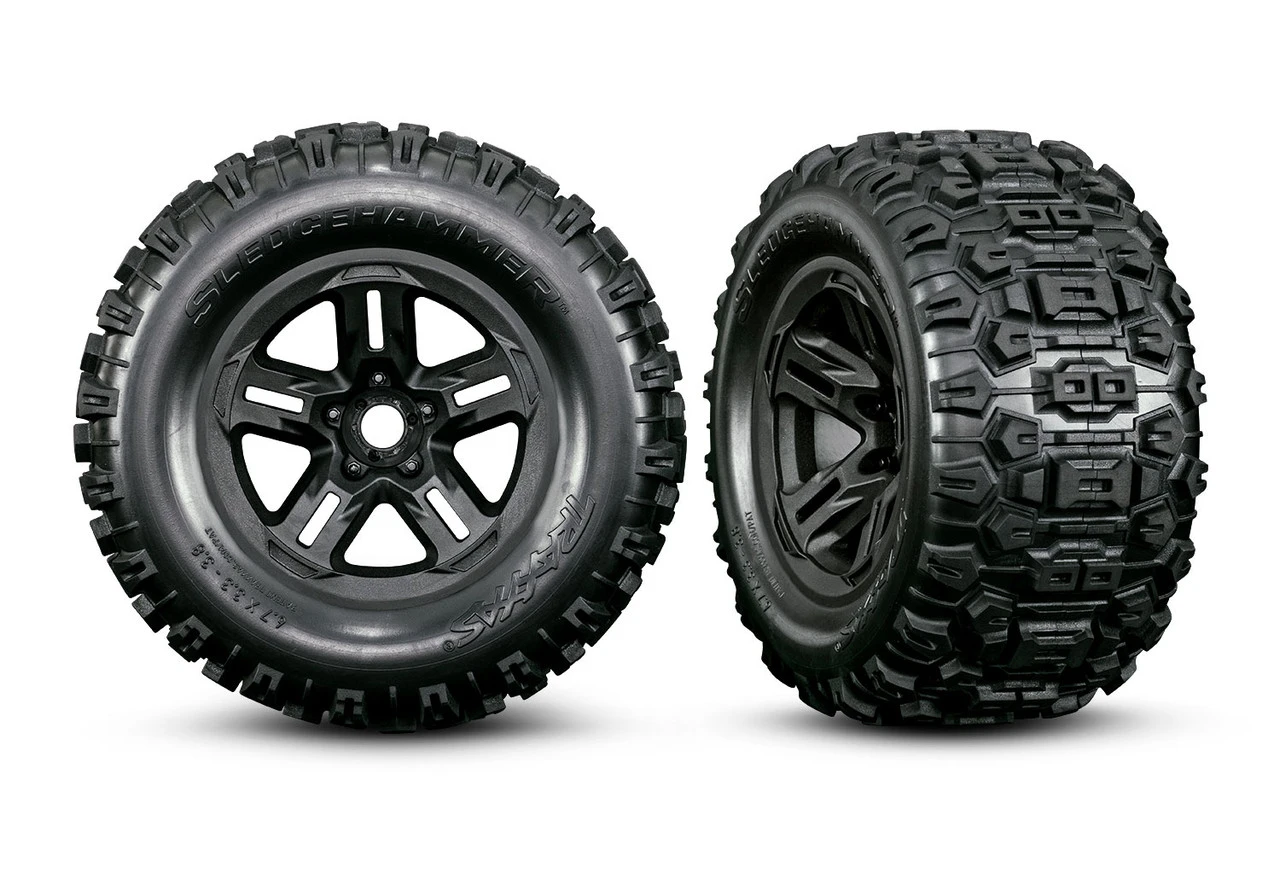

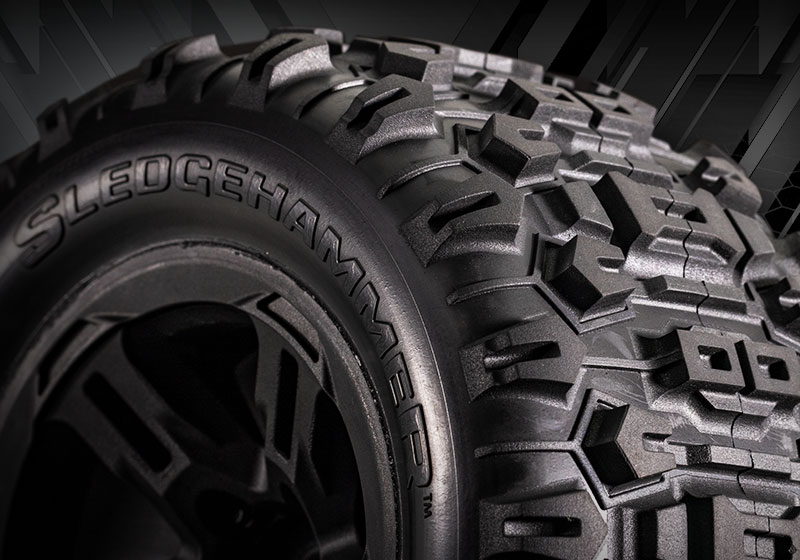

SLEDGEHAMMER TIRES
Premium Sledgehammer® tires are standard equipment. No tire upgrade required. Durable foam inserts are designed to not bunch up or break down. Patent-pending Traxxas innovation improves the tire bonding process to reduce the chance of a blown-out bead while exploring the upper range of Sledge’s capability.

THE TRAXXAS EXPERIENCE
The all-new Sledge delivers a powerful and fulfilling Traxxas experience. This means class-leading power, ultimate quality, and durability that is engineered to be second to none.

Features:

VXL-6s Waterproof Electronic Speed Control

6s LiPo compatible
Integrated cooling fan
Real-time telemetry via Traxxas Link™
3-LED status indicators
Powered accessory ports
10-gauge silicone wire
Patented Traxxas High-Current Connectors

Velineon® 2000kV Brushless Motor

5mm output shaft
Finned can for better heat dissipation

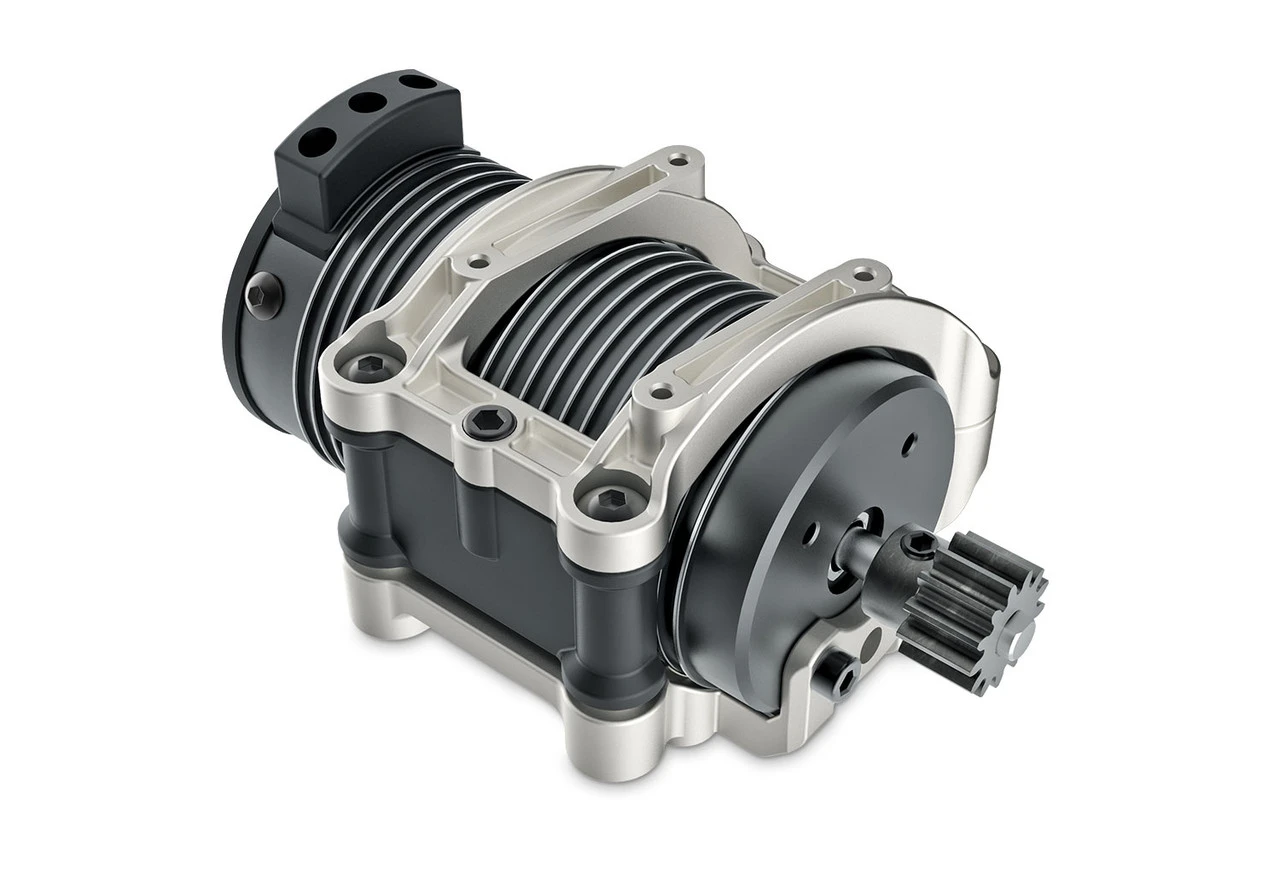

Aluminum motor cradle mount Supports entire motor
Reduces flex for longer gear life

Up to 70+ mph with Two 3s LiPo Batteries4-pole 2000kV brushless motor

Traxxas Stability Management® (TSM)

Improves straight line acceleration and braking on low-traction surfaces
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio SystemTQi™ 2-channel transmitter

Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Programmable multi-function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
High 13ms frame rate and near-zero latency for responsive control
5-channel micro receiver (#6533) with fail-safe security
Patented waterproof receiver box with easy-access plug

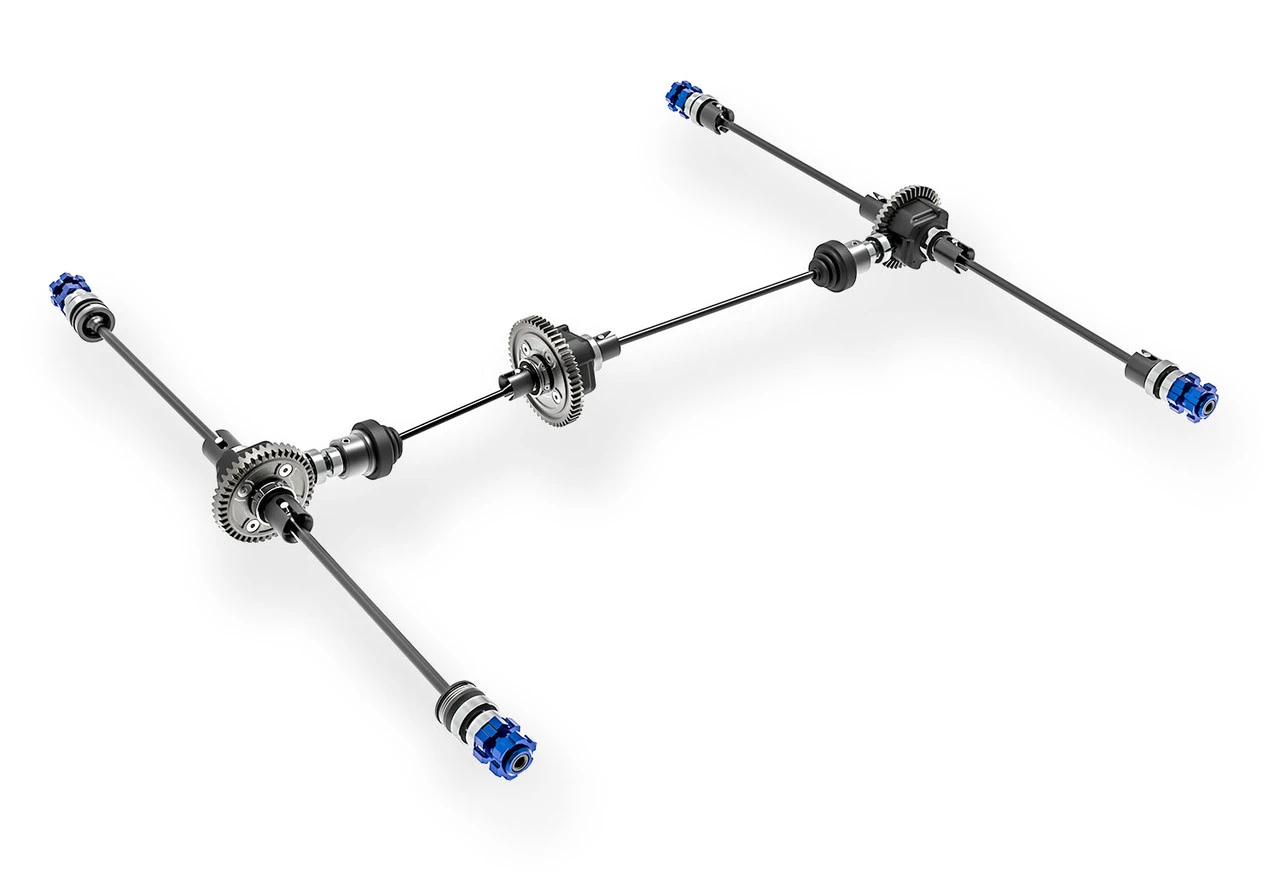

Drivetrain

Heavy-duty steel driveshafts
Large 8mm steel stub axles
Steel dogbone center driveline
Protective rubber boots on differential inputs

Transmission

Mod-1 pinion and spur gears
Fixed gear mesh system
Torque-Biasing Center Drive

Differentials

Heavy-duty sealed 4-gear design

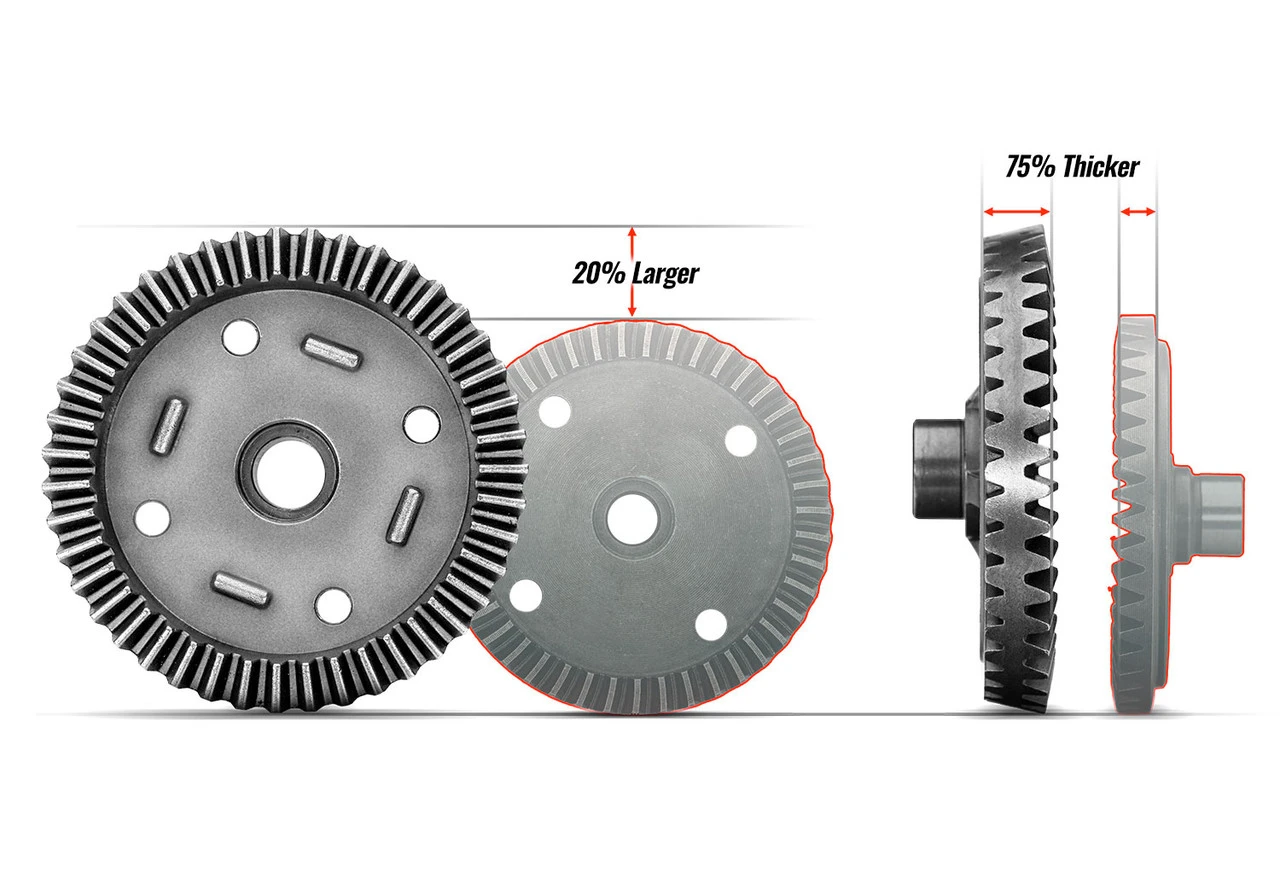

Large scale steel ring and pinion gears
Oversize 8mm output shafts
Steel drive cups
Easy-access bulkheads

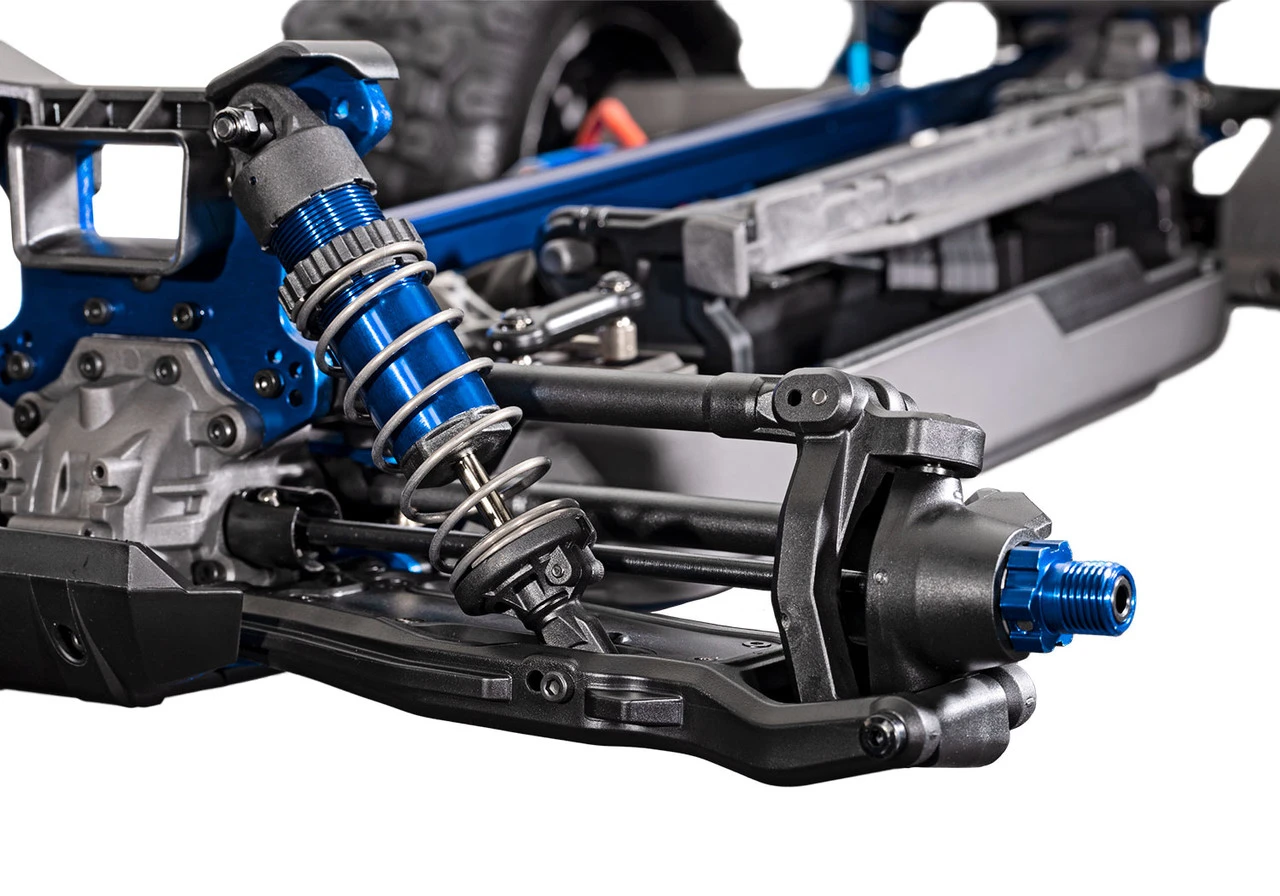

Oil-filled GT-Maxx® Shocks

Longer rear shocks for more travel
Machined aluminum threaded body
Extra-large bore and capacity
Large-diameter damper shaft
Lower cartridge with dual X-rings
Height-adjustable spring retainer
Lower spring perches bolted on

Suspension

Performance-optimized geometry
Ultra-tough composite armsMade from our strongest cold-weather material
Molded insert for clean look
Rear rock deflectors
Press-in hinge pins to reduce play
Oversize molded toe and camber links
Heavy-duty C-hubs
Stronger than conventional designs
Require no adjusments
Multiple mounting points for suspension tuning

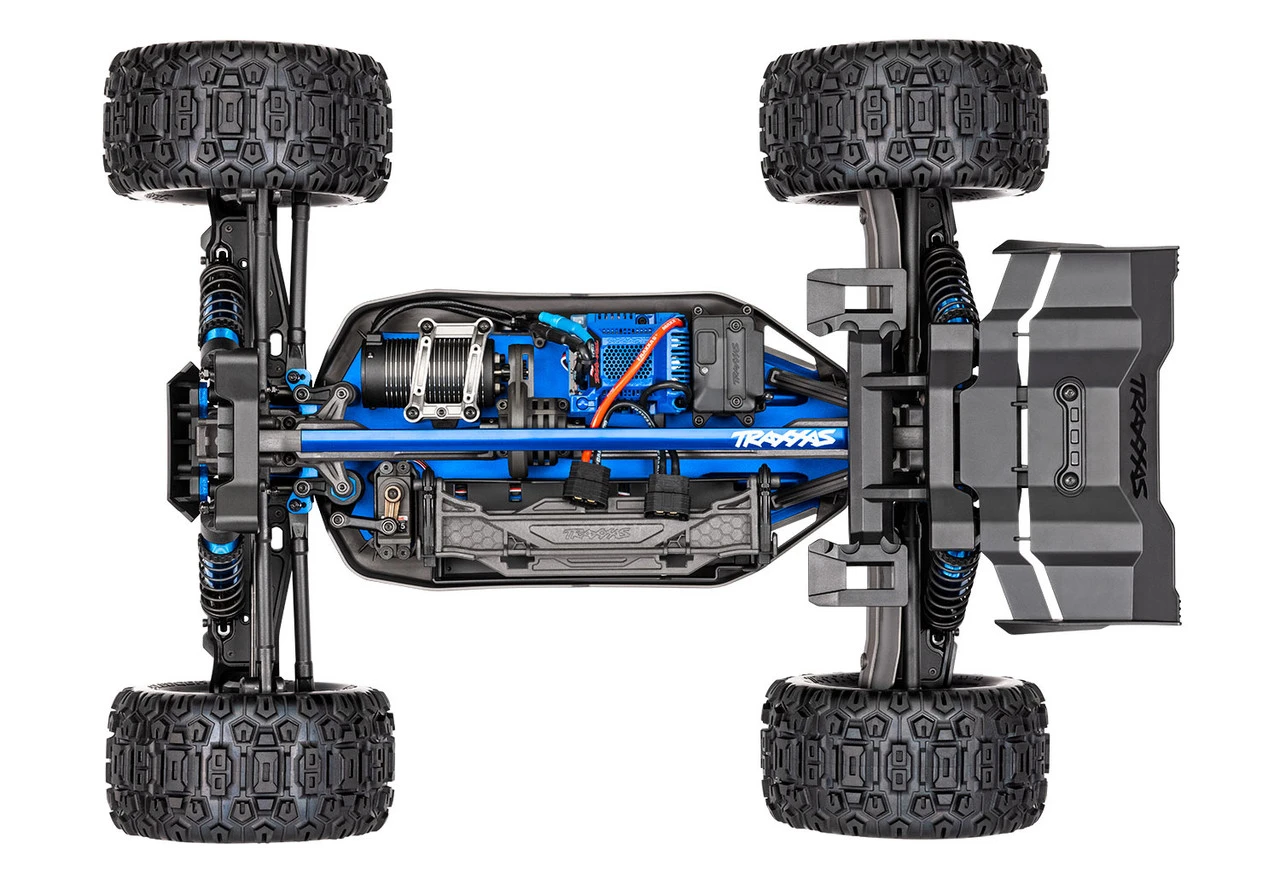

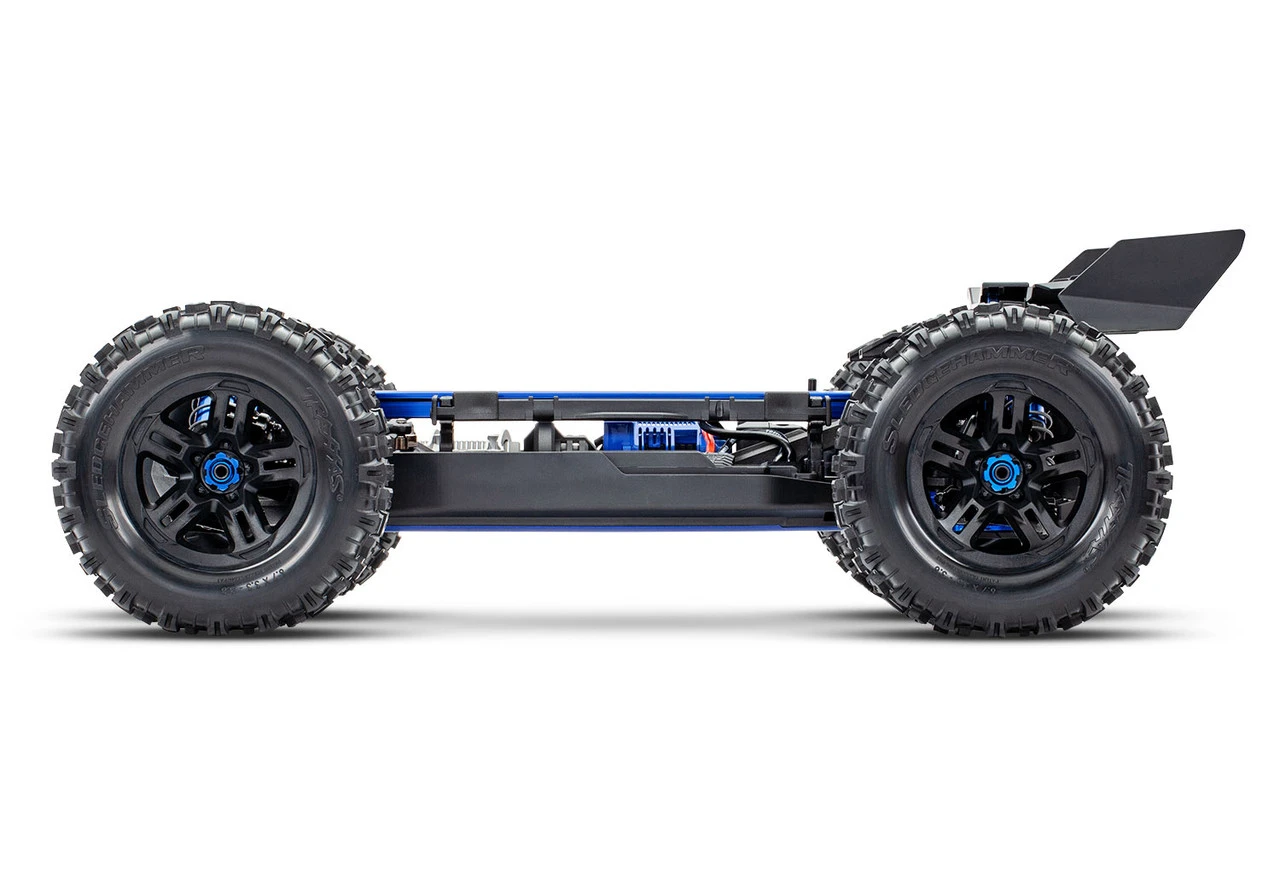

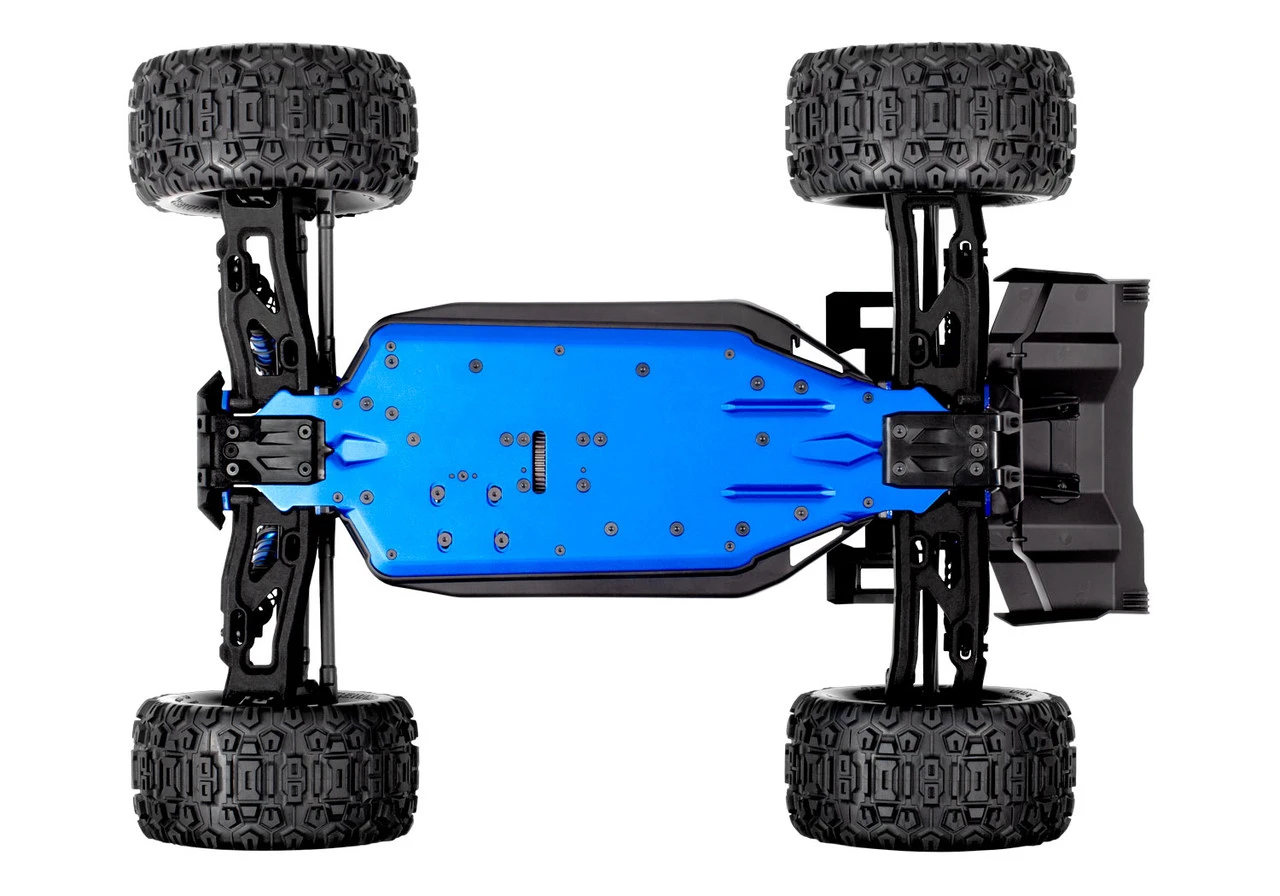

Chassis

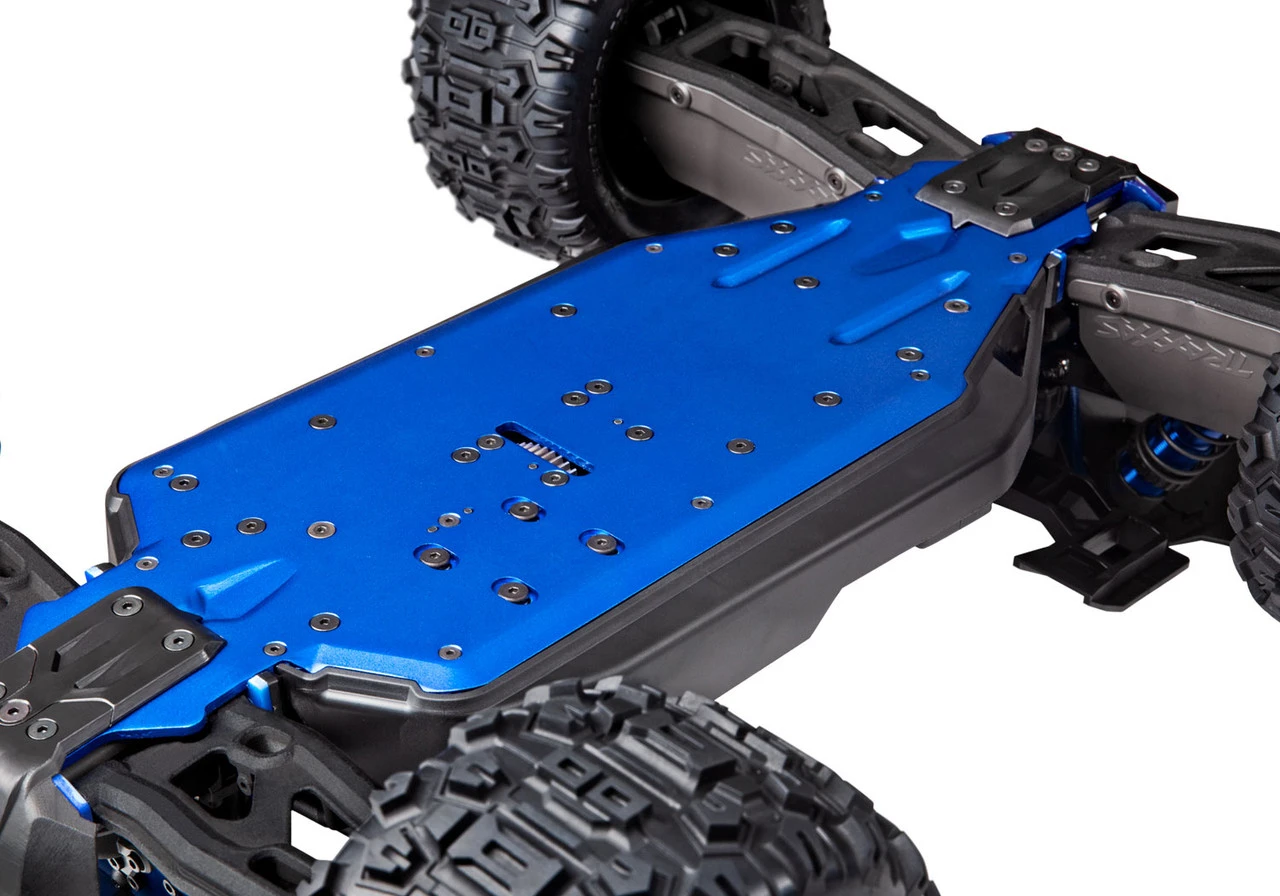

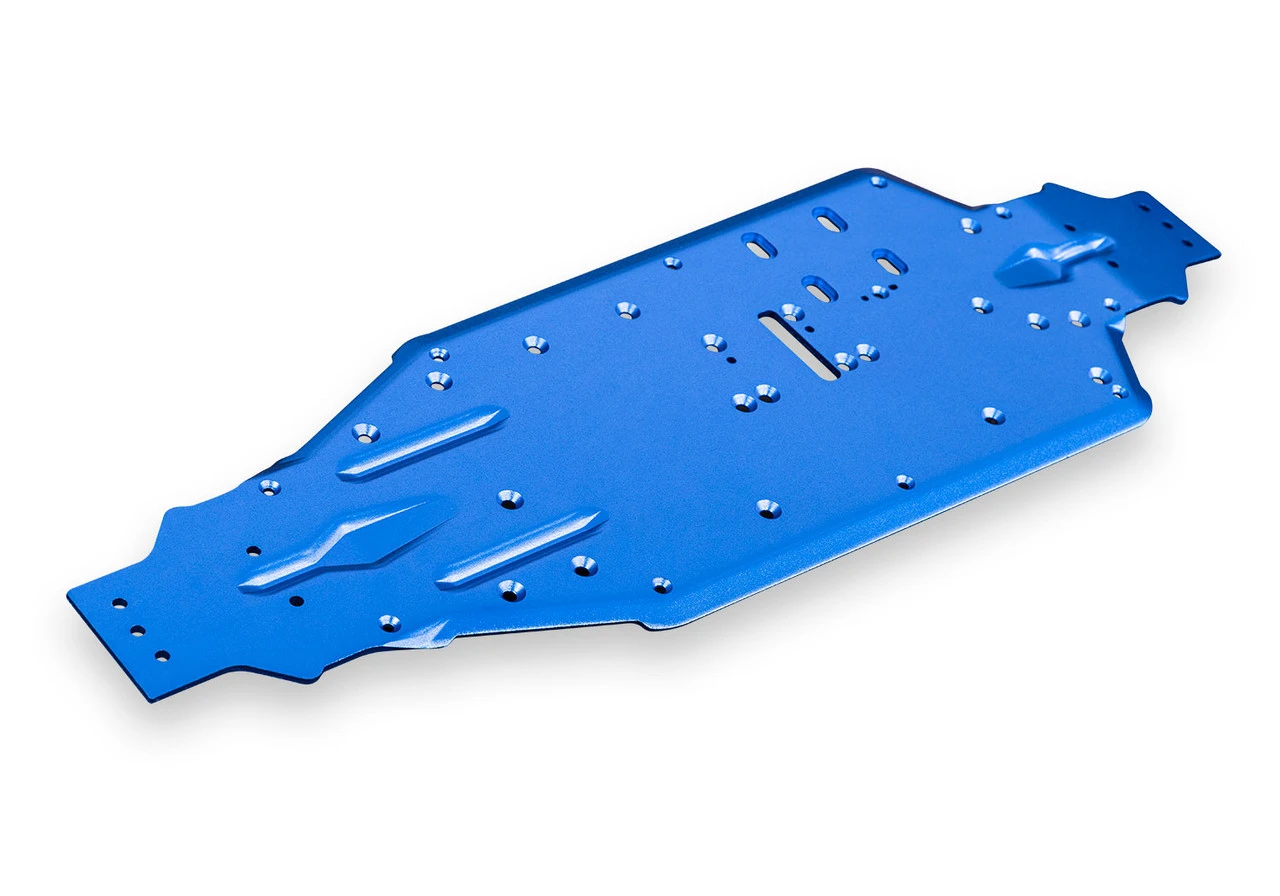

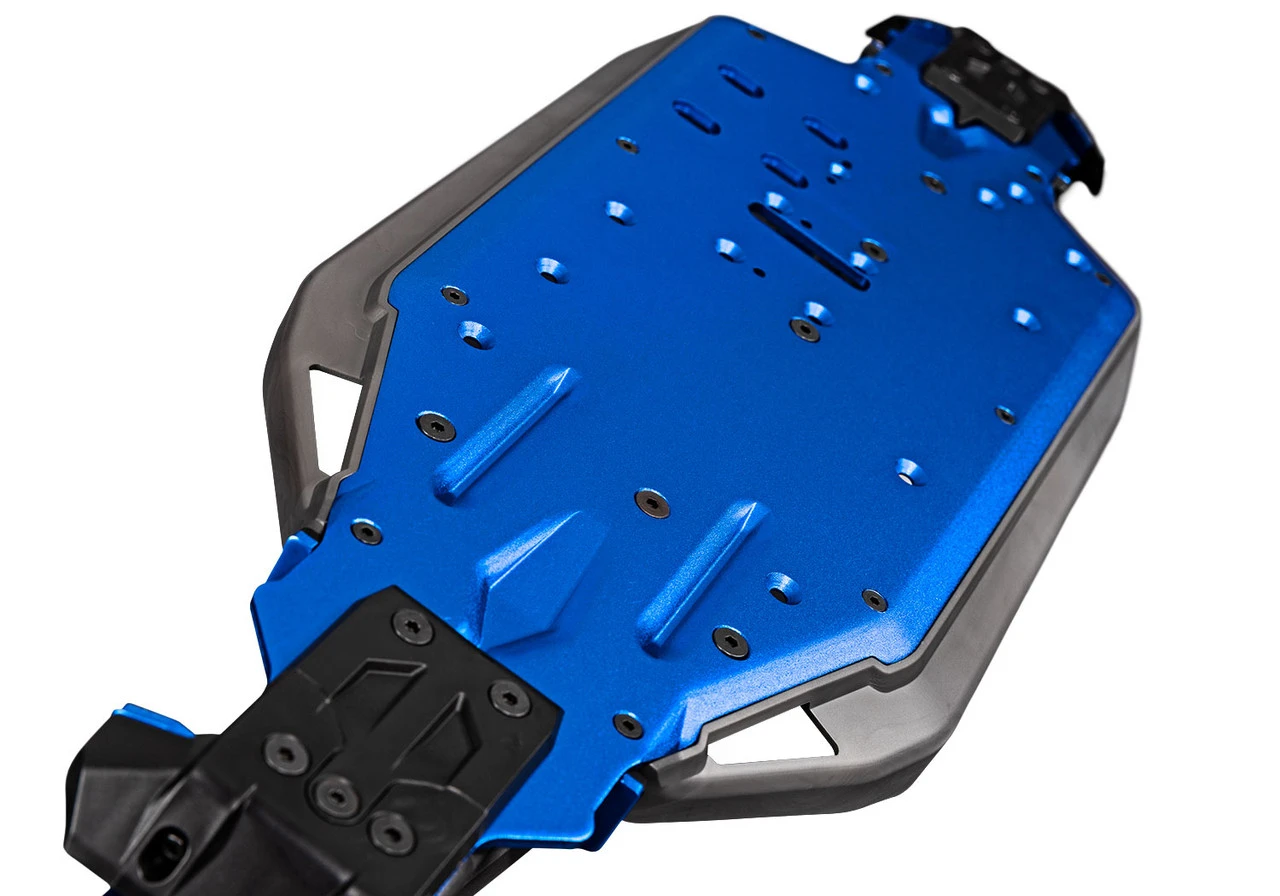

3.2mm ribbed aluminum chassis
Formed edges for improved strength

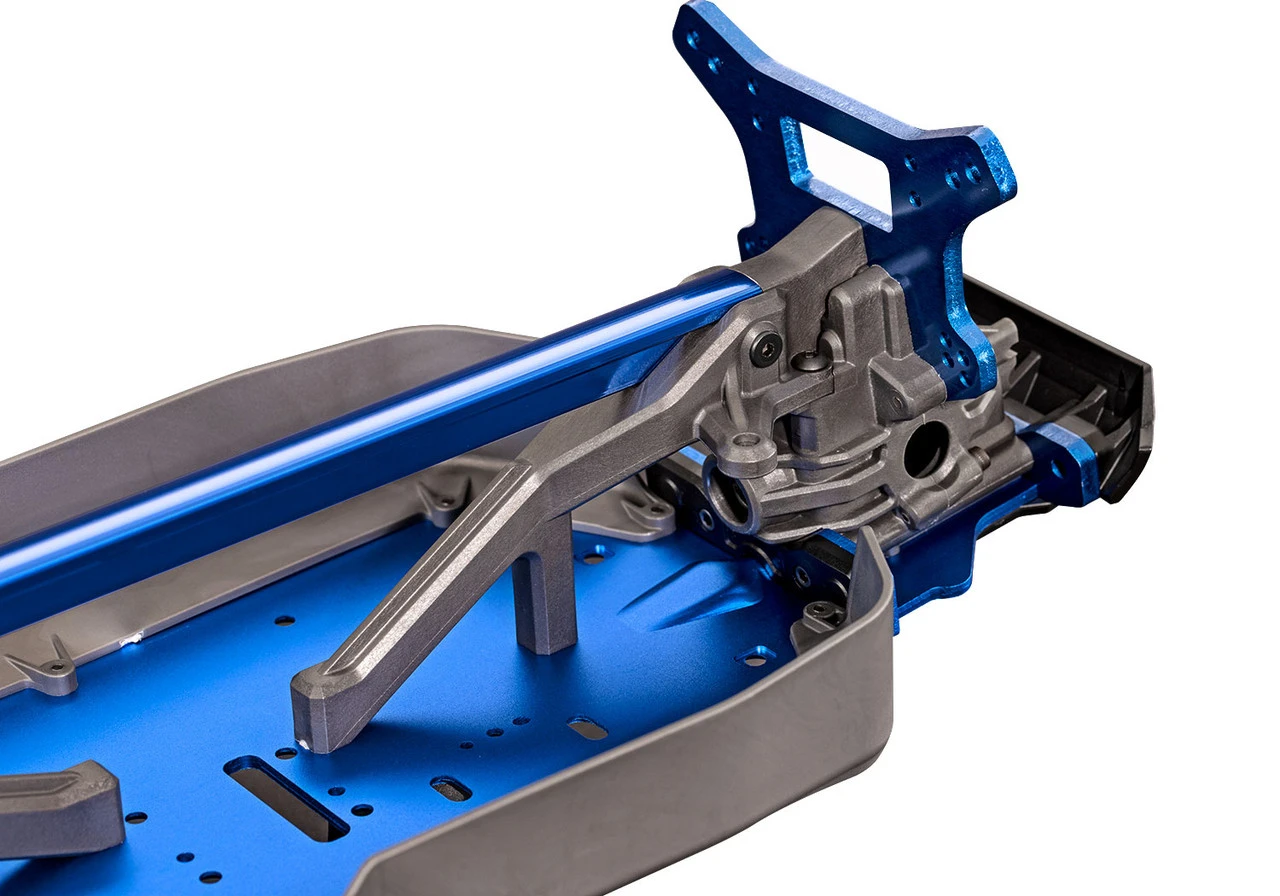

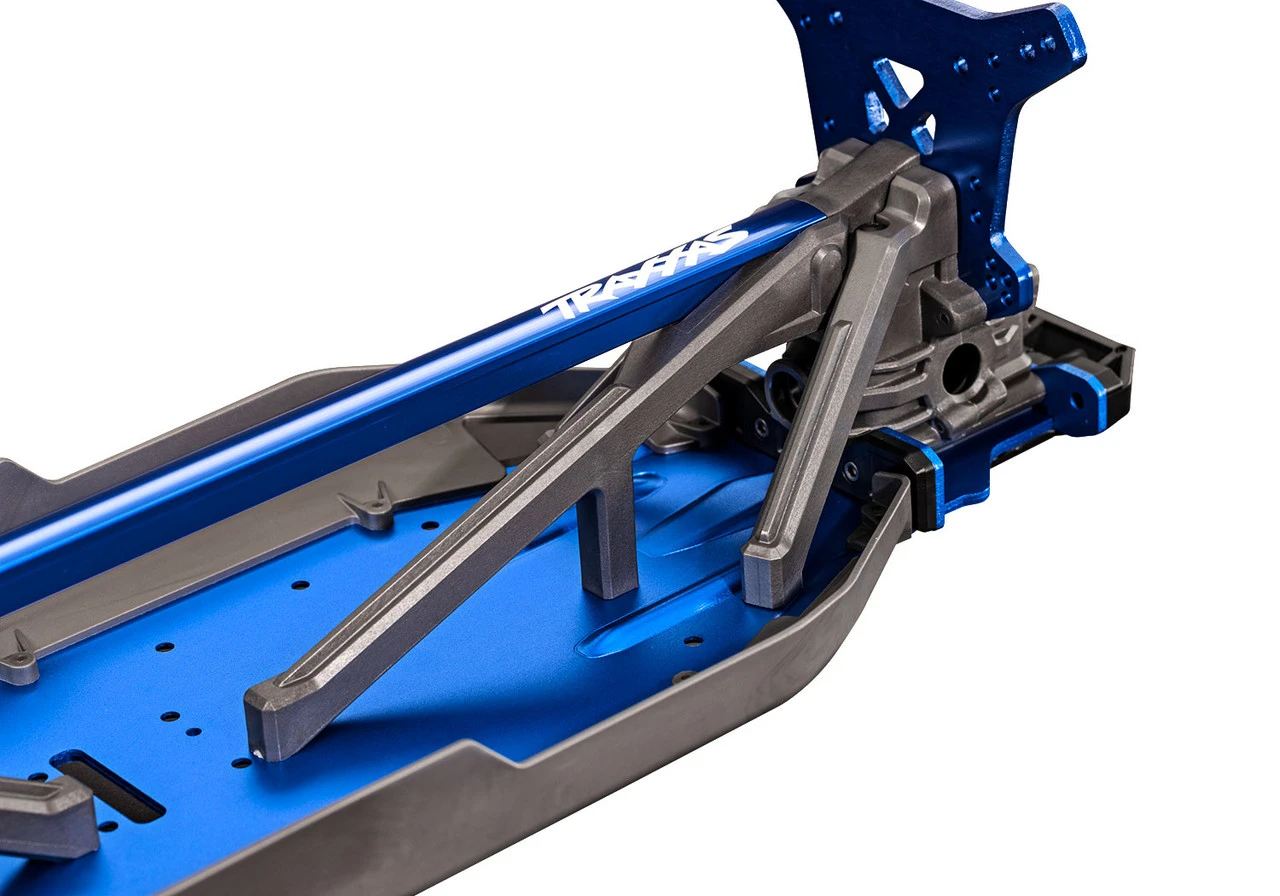

Thick T-Bar™ for added rigidity
Stronger than round bars
High-strength buttressing on shock towers

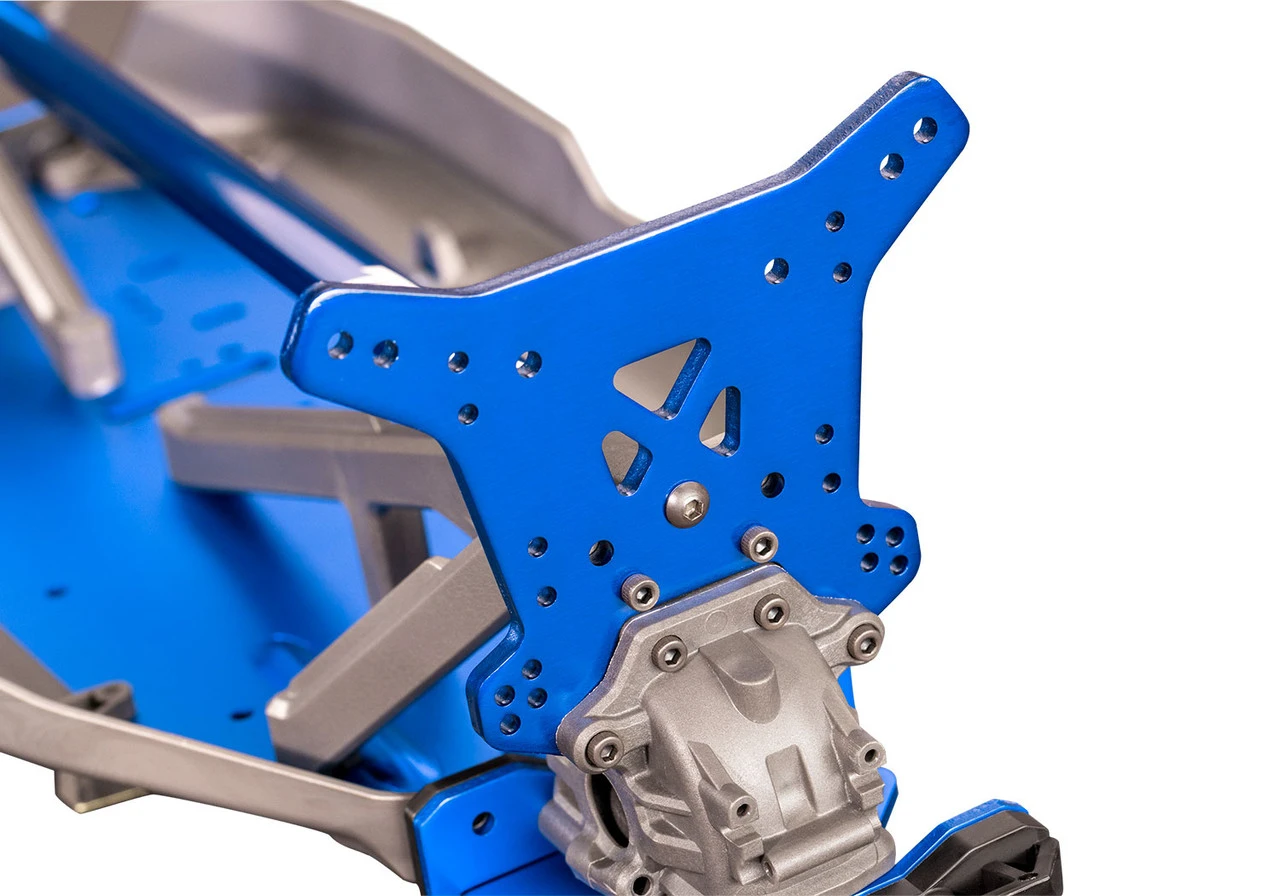

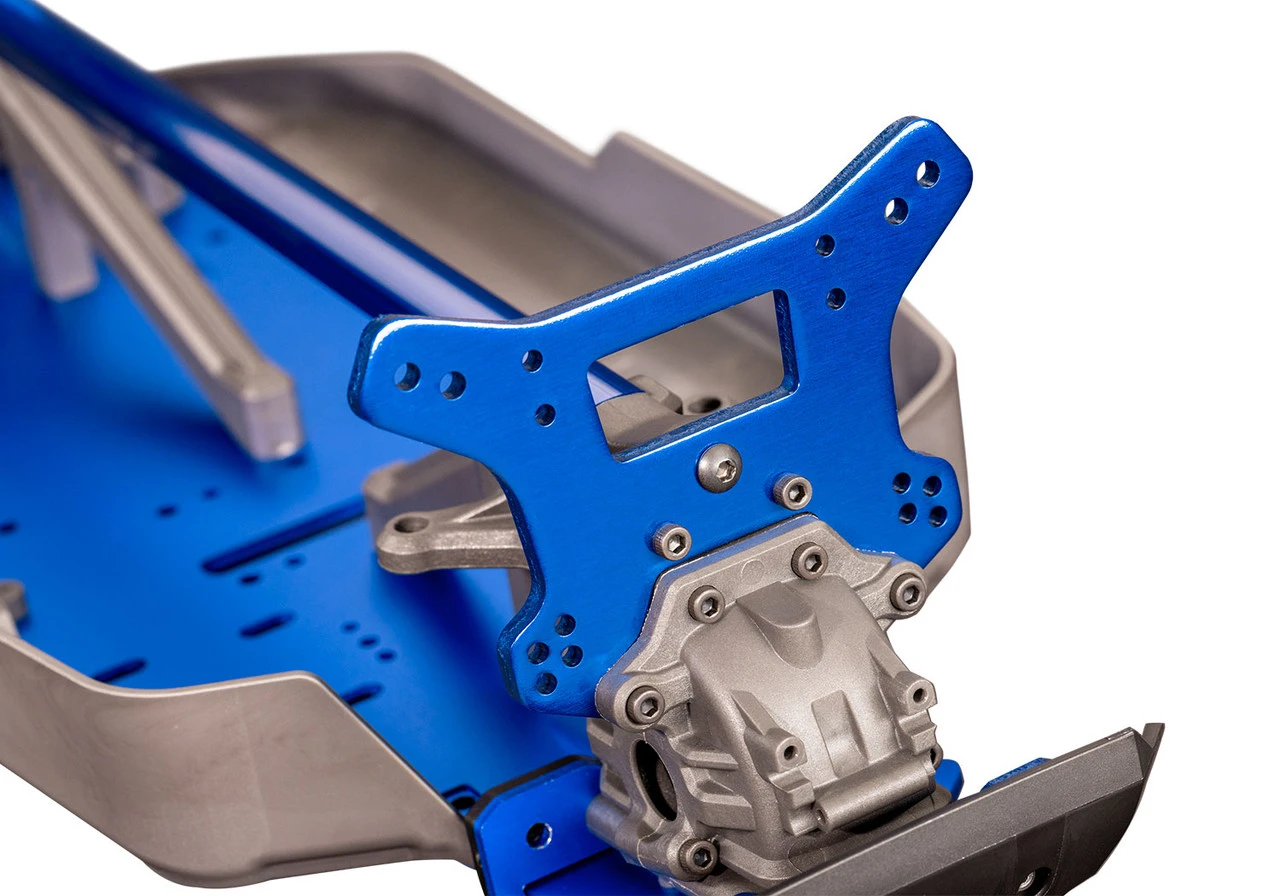

Ultra-thick 5mm 6061-T6 aluminum shock towers
Rugged locking battery compartment with quick-release door
Low-CG design for improved handling
Interlocking components for tight tolerances
Tough front and rear bumpers double as skid plates
Hidden wire management for clean appearance

ProGraphix® Body

Clipless body mounting system

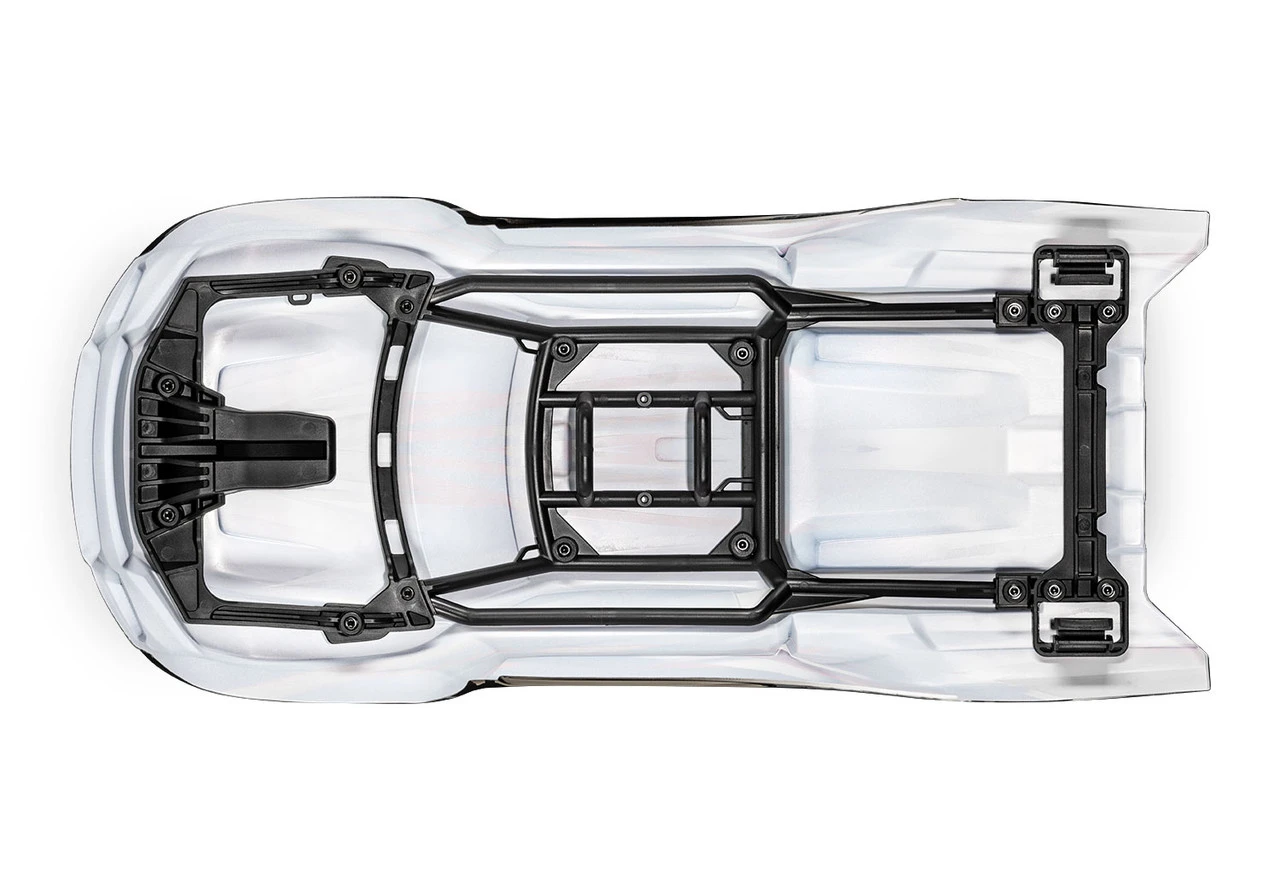

Rigid internal frame

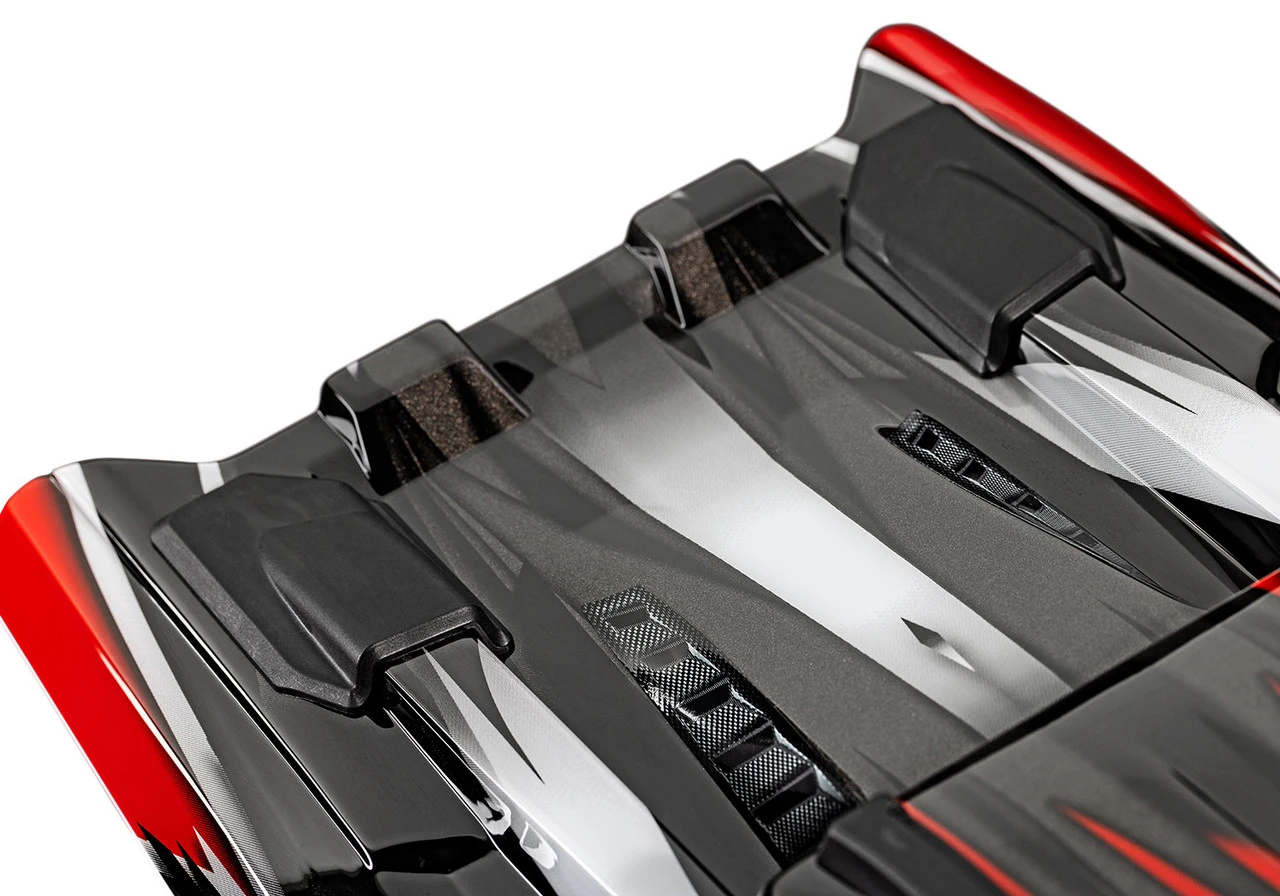

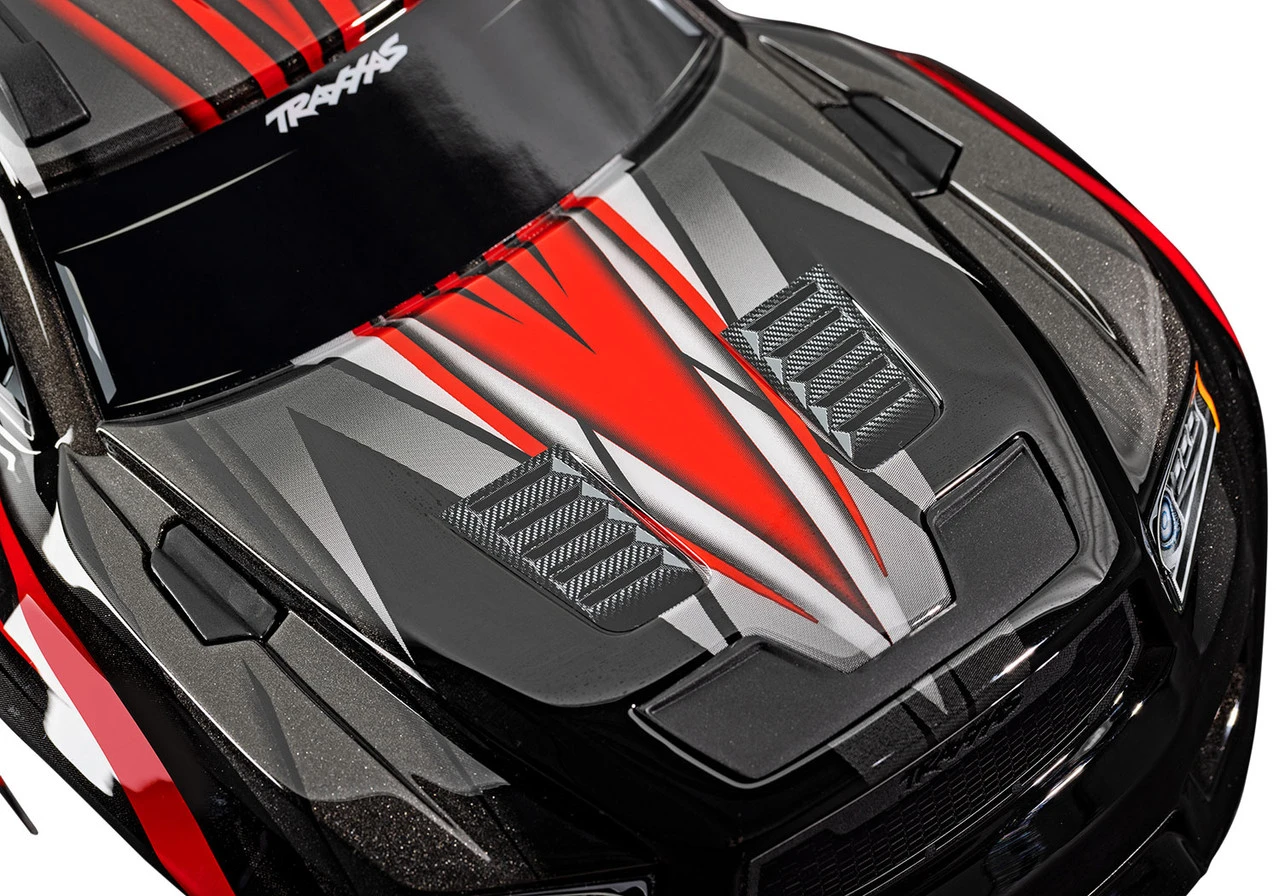

Molded body reinforcements for tear-through protection

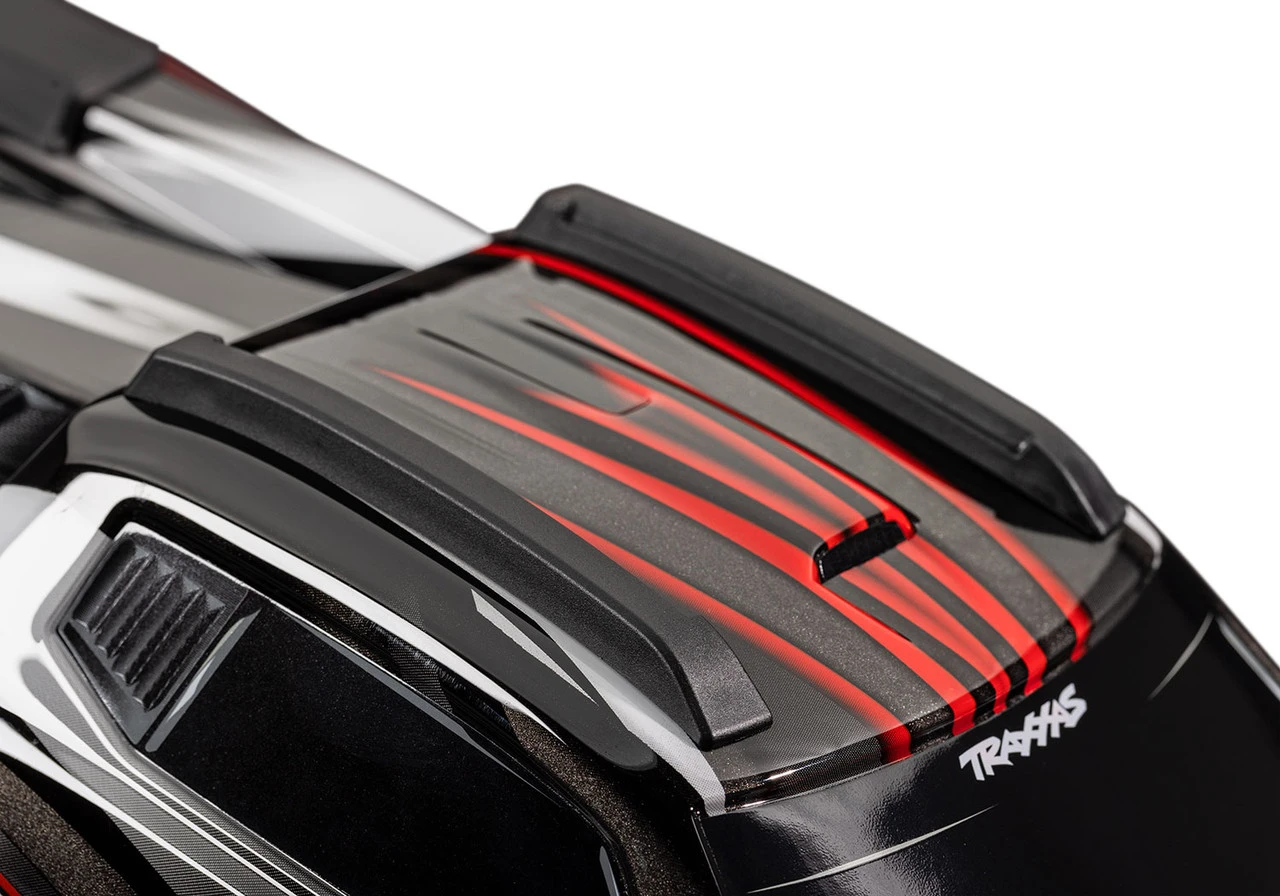

Protective roof skids
Rugged high-downforce rear wing

Wheels and Tires

Huge 6.7” Sledgehammer® all-terrain tires
TSM-rated construction resists ballooning
Tough 3.8” black wheels
Splined 17mm aluminum axle hubs

Steering

High-throw bellcrank steering design
Heavy-duty servo saver with aluminum posts
Metal servo horn
Powerful #2275 metal gear servo347 oz-in torque
Fully waterproof

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Specifications:
Truck Specs:
Length (including wing): 23.78 inches (604mm)
Front Track: 18.10 inches (459mm)
Rear Track: 18.10 inches (459mm)
Ground Clearance: 1.95 inches (50mm)
Weight (no battery): 12.74 pounds (5.77kgs)
Height (overall): 8.43 inches (214mm)
Wheelbase: 15.10 inches (384mm)
Shock Length (front): 5.12 inches (128mm)
Shock Length (rear): 5.67 inches (144mm)
Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
Wheel Diameter: 3.8 inches (97mm)
Speed Control: Velineon® VXL-6s (#3485)
Motor (electric): Velineon® 2000kV Brushless
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: 3.2mm aluminum plate
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank w/metal servo arm
Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 6.7×3.8
Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
Servo: 2275 Waterproof, metal-gear (347oz-in torque)
Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)
Skill Level: 4
Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

Motor Specs:
Type: 2000 kV sensorless brushless
Weight: 14.32oz (406g)
Length: 2.97 inches (76mm)
Diameter: 1.65 inches (42mm)
Connector Type: Traxxas 6.5mm bullet connectors

ESC Specs:
Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
Case Size: 2.28 inches (58mm) x 2.83 inches (72mm) x 1.81 inches (46mm)
Weight: 7.30oz (207g)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Reverse Delay: Yes, with lockout
Ports: RX input, auxiliary fan, Traxxas accessory port

Servo Specs:
Motor Type: Brushed
Operating Voltage: 6.0V DC 7.4V DC
Torque: 347 oz-in 486 oz-in
Speed: 0.25 sec/60° 0.16 sec/60°
Weight: 67g
Gears: Metal
Output Spline: 25T
Case: Plastic top/bottom, anodized aluminum center
Controller: Digital

What’s In The Box:
(1) Sledge, Ready-To-Race® monster truck with Traxxas 2000kV brushless motor
VXL-6s waterproof electronic speed control with integrated telemetry
(1) Quick Start Guide
(1) TQi™ 2.4GHz radio system
(1) High quality maintenance tools
(1) Jumper plug (for 4s battery use)

What You’ll Need:
LiPo Batteries

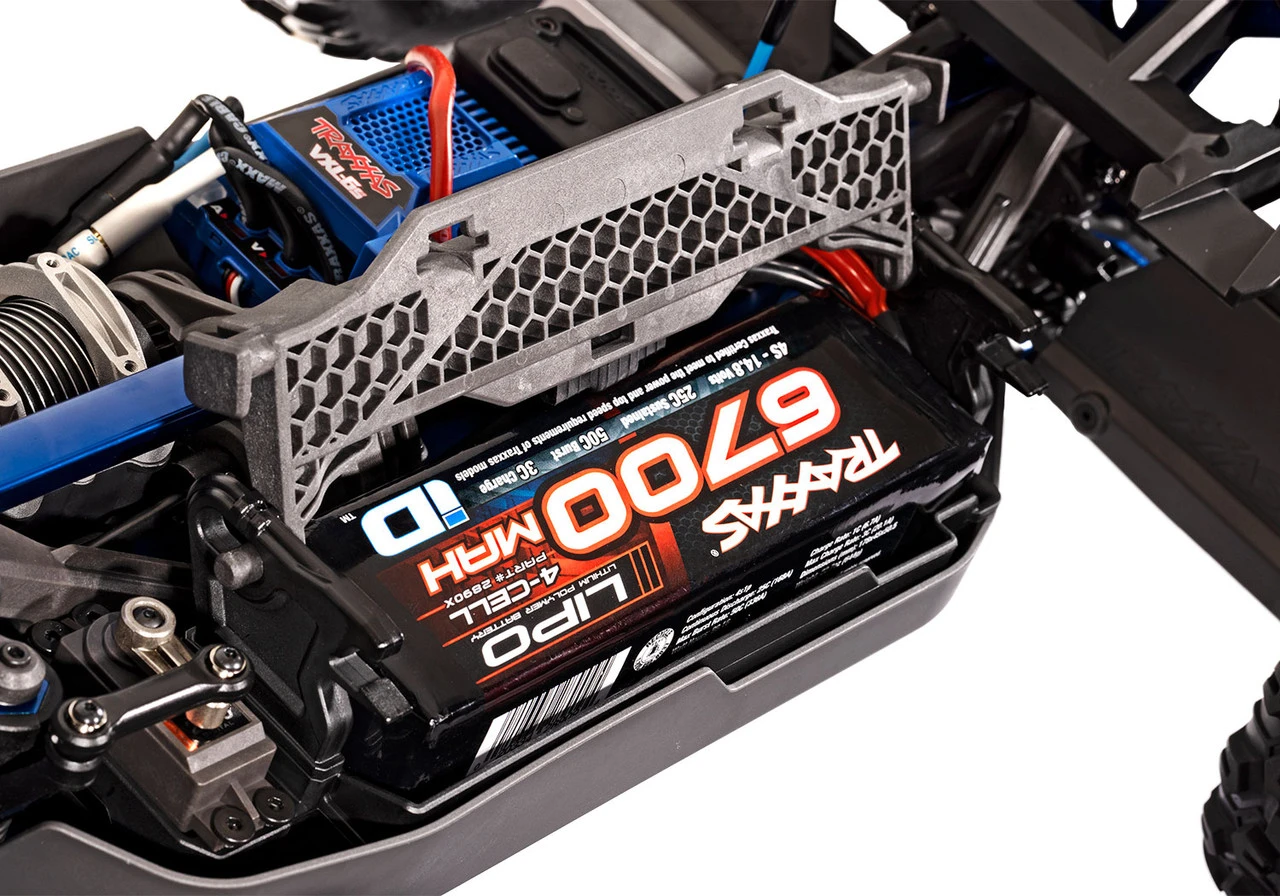

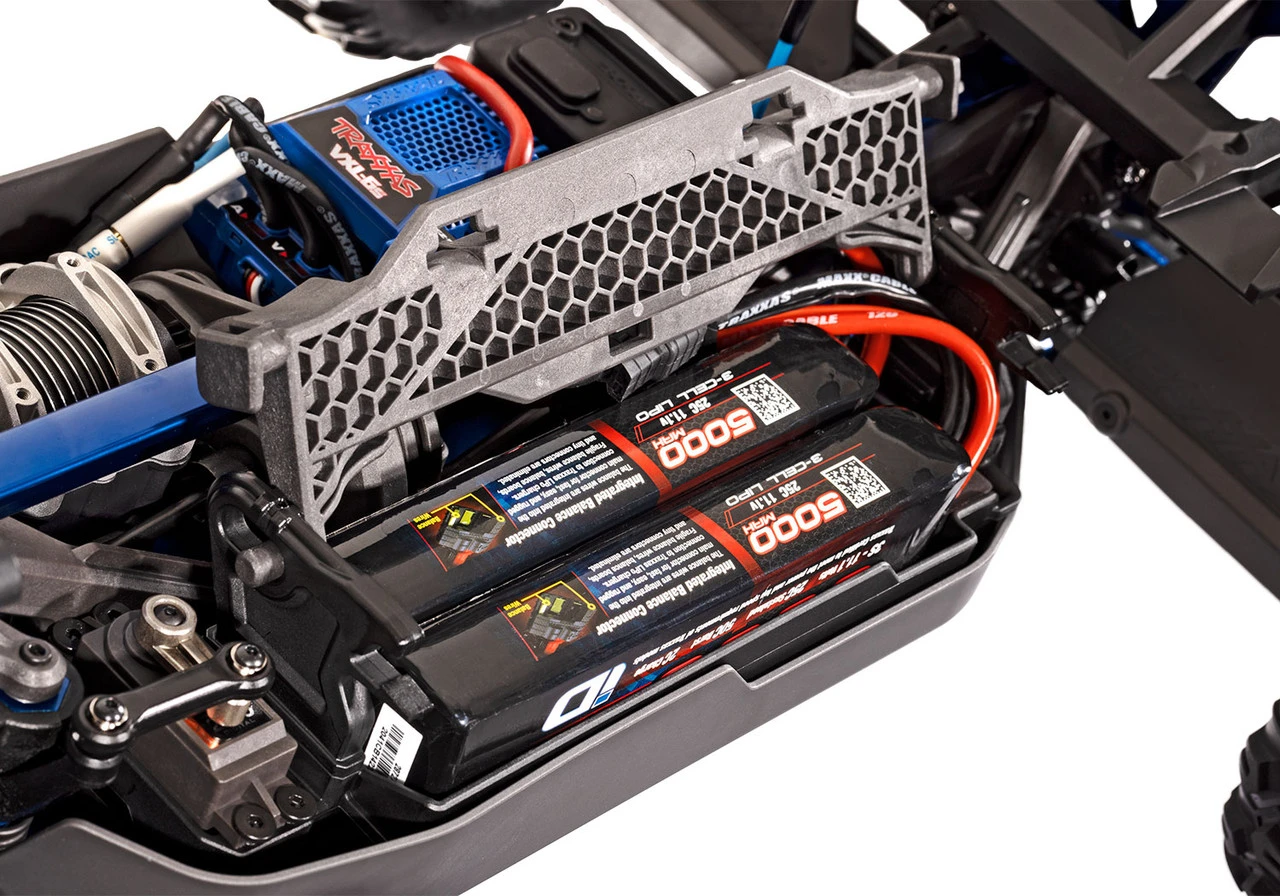

Traxxas recommends dual 5000mAh 3-cell 11.1V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4V LiPo batteries or a single 6700mAh 14.8V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
LiPo Balance Charger with iD™
Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

Resources
- Manual for the Traxxas Sledge Monster Truck
- Sledge™ Body Assembly Exploded View
- Sledge™ Chassis Assembly Exploded View
- Sledge™ Front Assembly Exploded View
- Sledge™ Rear Assembly Exploded View

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
