Name: Traxxas Maxx With Widemaxx 1/10 4wd Brushless Electric Monster Truck W/ TQi 2.4GHz Radio System, Red
SKU: TRA89086-4-RED
Availability: InStock

Product Description

Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Red) w/TQi 2.4GHz Radio & TSM

The Traxxas Maxx 1/10 Brushless RTR 4WD Monster Truck with WideMaxx Kit is the next level in ultimate basher chassis. This special chassis comes equipped with the WideMaxx suspension kit from the factory for greater stability.

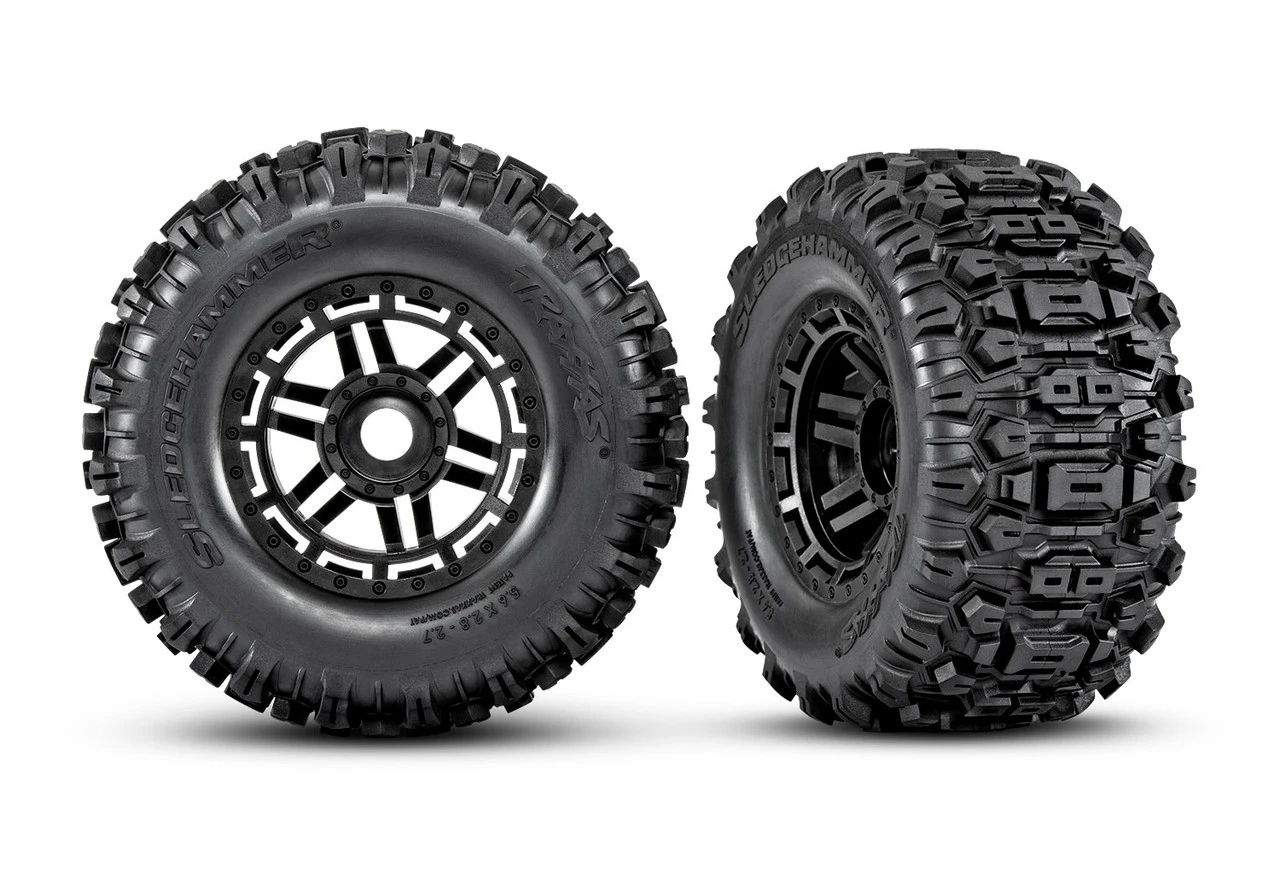

Traxxas has totally revamped the Maxx chassis for this release. Starting on the four corners, Traxxas equipped this truck with the Sledgehammer tires. These tires feature an open-block design that clears away mud allowing for unreal traction. Moving to the suspension, Traxxas then equipped the truck with the WideMaxx suspension set. This extends the width over 1.5 inches improving stability. To further add to the stability, a longer chassis is used allowing allowing the use of larger and more powerful batteries. All of these features come together to make the Traxxas Maxx an extremely durable and stable chassis. With six colors to choose from, the Traxxas Maxx with WideMaxx will be able to exceed expectation.

Features:

Refined shock tower design
Full length motor cradle
Updated wheels and tires

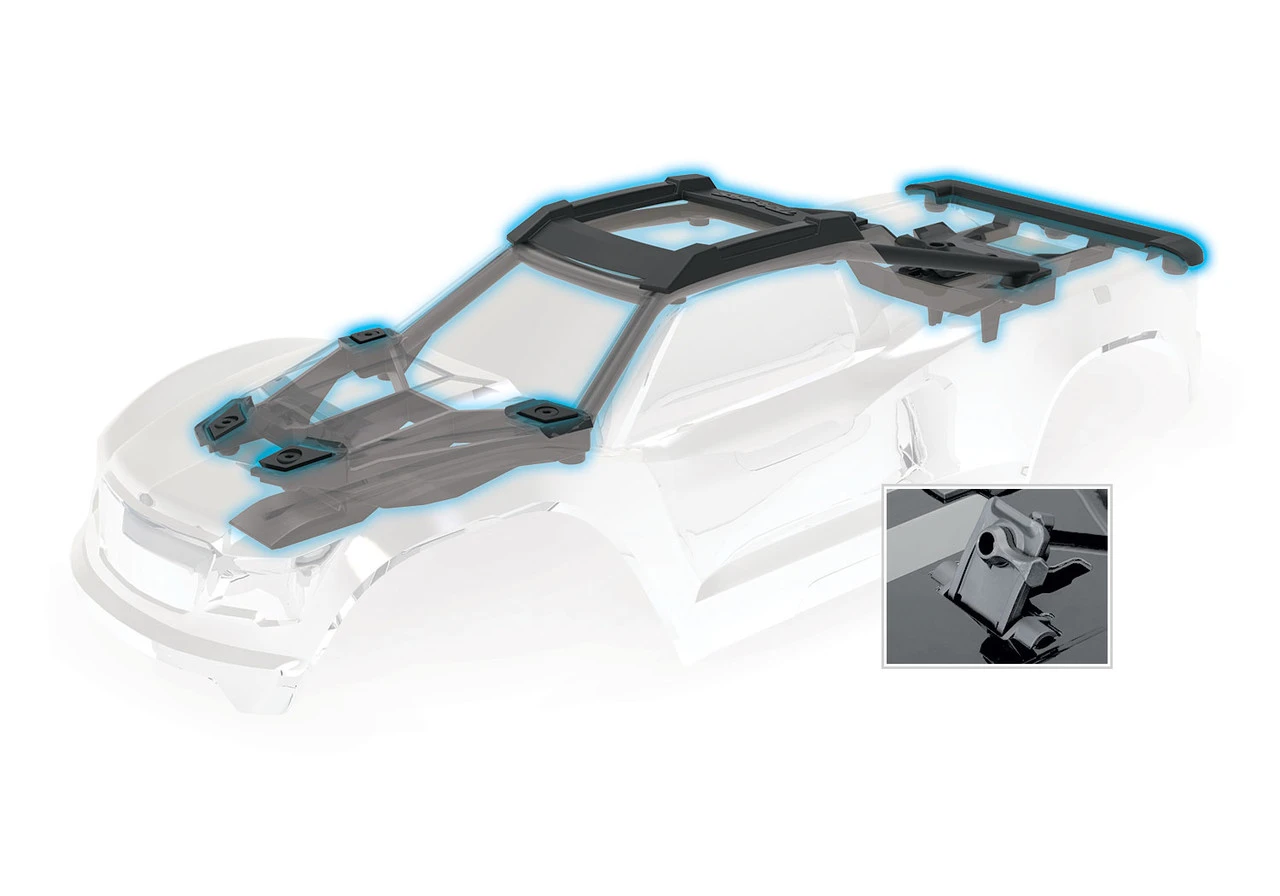

Clipless Body Mount System
Quick one-hand installation and removal
Waterproof

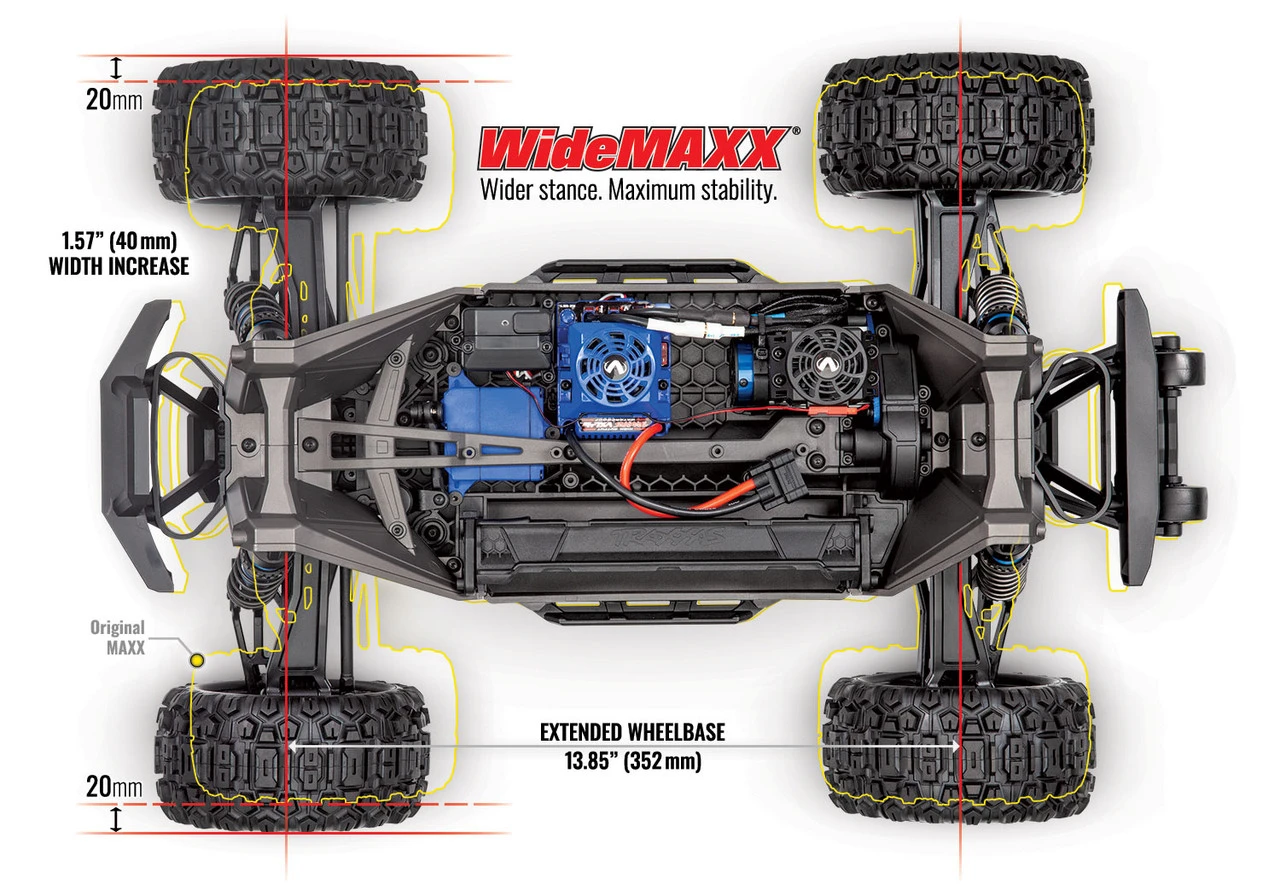

WideMaxx double-shear suspension arms
1.57” (40 mm) wider for improved handling
Tough composite formula resists impact damage, even in cold weather

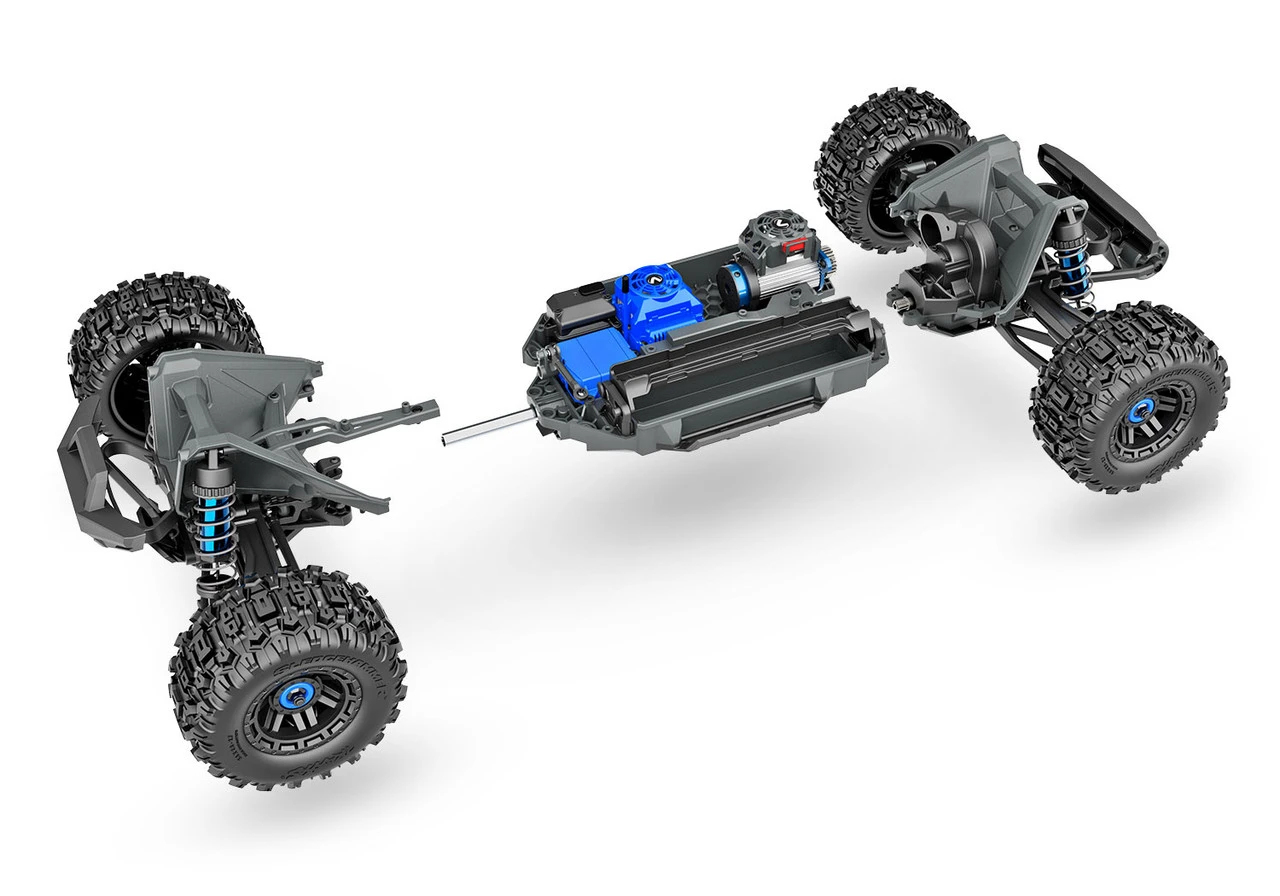

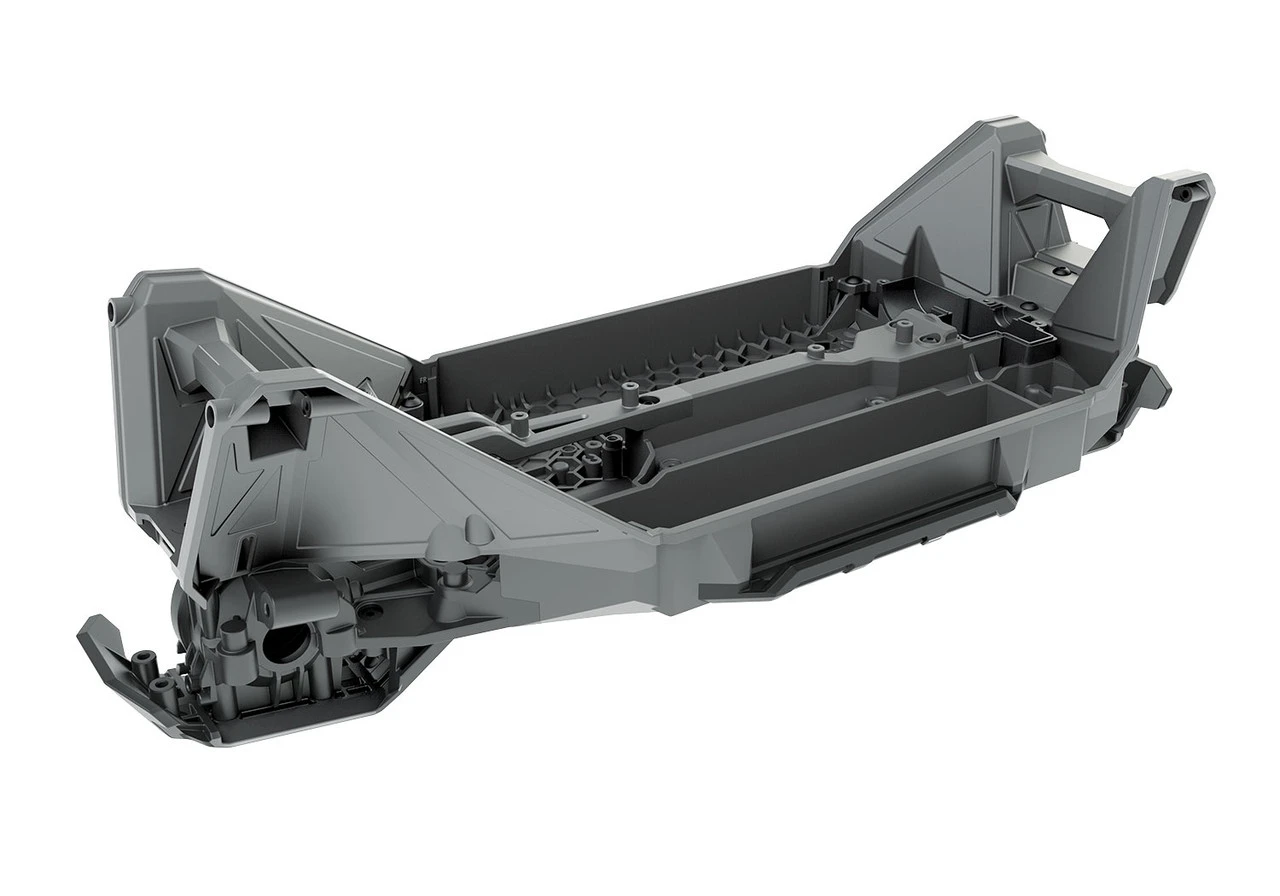

Modular chassis design
GT-Maxx Aluminum Shocks
60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
Full contact sealed bearings
Torque-biasing center drive
Easy Battery Access
Extended battery tray accepts Traxxas’ 6700mAh 4-cell LiPo battery
Aluminum splined driveshaft
Steel gear differentials
Extreme-duty telescoping driveshafts

Specifications:

Length: 22.50 inches (572mm)

Front Track: 15.95 inches (405mm)

Rear Track: 15.95 inches (405mm)

Ground Clearance (lowest skid): 1.90 inches (49mm)

Ground Clearance (center skid): 2.6 inches (67mm)

Weight: 10.40 lbs (4.7kg)

Height (ride): 9.12 inches (232mm)

Wheelbase: 13.85 inches (352mm)

Shock Length: 4.90 inches (124mm)

Tire Diameter: 5.64 inches (143mm)

Wheel Diameter: 2.8 / 3.6 inches (70 / 92mm)

Speed Control: Velineon VXL-4s

Motor (electric): 540XL (2400 kV)

Transmission: Single-Speed

Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)

Includes:

(1) Traxxas Maxx with WideMaxx and Traxxas 540XL brushless motor
(1) Quick Start Guide
(1) TQi 2.4GHz radio system
High quality maintenance tools

Needed-To-Complete:

(1) 3-4S LiPo Battery with Traxxas ID connector
(1) Compatible Traxxas LiPo Balance Charger
(4) AA Batteries

Parts
- Parts for the Traxxas Maxx
Resources
- Traxxas Widemaxx Maxx Instruction Manual
- Traxxas Maxx Body Assembly Exploded View
- Traxxas Maxx Chassis Assembly Exploded View
- Traxxas Maxx Front Assembly Exploded View
- Traxxas Maxx Modular Assembly Exploded View
- Traxxas Maxx Rear Assembly Exploded View
- Traxxas Max Transmission Assembly Exploded View

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
