Product Description

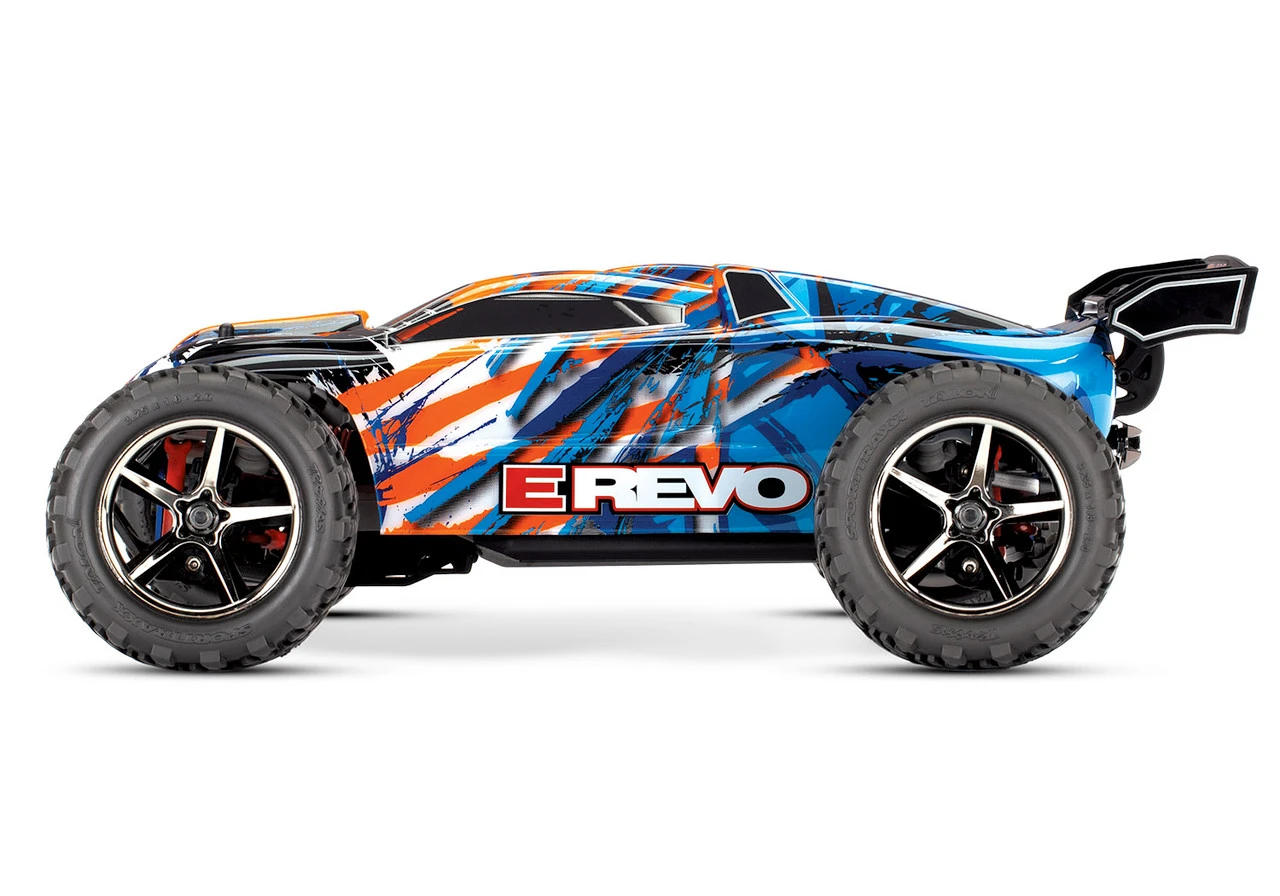

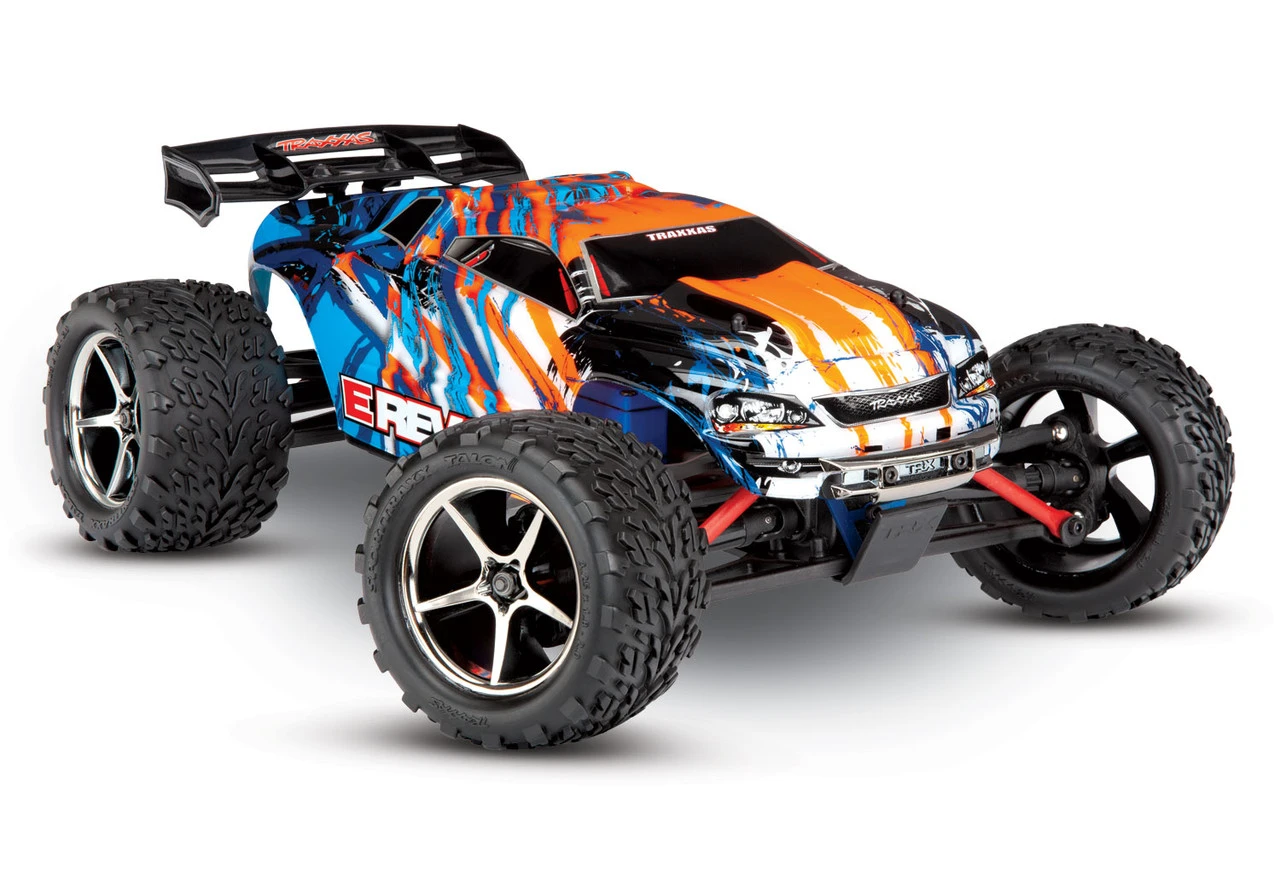

Traxxas E-Revo 1/16 4WD Brushed RTR Truck (Orange) w/2.4GHz Radio, Battery and DC Charger
The 1/16 E-Revo is fully assembled with TQ 2.4 GHz radio system, Titan 550 motor, XL-2.5 electronic speed control, painted and decaled body, pre-glued tires, and detailed instructions. An iD-Equipped Traxxas Power Cell NiMH battery and 2-amp peak detecting DC fast charger are also included, making the 1/16 E-Revo truly Ready-To-Race.
Note: The included charger requires a cigarette lighter socket found in full size vehicles to charge. If this is not your preference, Traxxas offers an adapter allowing you to charge from a standard home AC electrical socket (TRA2976).
Features:
- 2-amp Peak Detecting DC Fast Charger
- Traxxas Power Cell NiMH battery with iD®
- TQ 2.4GHz radio system
- Revo suspension technology and integrated chassis design perfectly optimized for 1/16 scale
- Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
- XL-2.5 Waterproof Electronic Speed Control
Titan® 12T Modified Motor- Innovative waterproof design
- LiPo and NiMH compatible with two-stage low-voltage detection
- Fully-proportional forward, reverse, and braking control
- Programmable with three drive profiles:EZ-Set® push-button setup
- Sport Mode – Fwd / Brake / Rev
- Race Mode – Fwd / Brake
- Patented Training Mode – 50% Fwd / Brake / 50% Rev
- Multi-color LED
- Thermal shutdown protection
- Efficient, low-loss MOSFET design
- High-capacity heat sink
- Smooth, high-frequency operation
- Easy installation in Traxxas models
- Digital High-Torque Waterproof Micro Steering Servo (#2080)
- Waterproof, o-ring sealed receiver box
- Sealed, silicone-filled differentials—an industry first in 1/16 scale
- Torque-Control™ slipper clutch system
- Heavy-duty CV-style driveshafts
- Rubber-sealed ball bearings
- External gear cover with easy slipper access
- Extended-wheelbase rear suspension arms (+10 mm)
- Rocker-actuated shocks provide true progressive damping and spring rates
- Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
- Fiber-composite monocoque chassis
- Speed control and receiver are securely fastened to chassis
- Integrated battery compartments with intake and exit cooling vents
- Quick-release battery doors for fast pack changes
- Pre-glued Talon™ Tires with foam inserts
- Black-chrome Gemini wheels
Specifications:
Length: 12.9 inches (328 mm)
Front Track: 9.4 inches (239 mm)
Rear Track: 9.4 inches (239 mm)
Weight: 44 ounces (1.24 kg)
Height (overall): 4.6 inches (117 mm)
Wheelbase: 7.9 inches (202 mm)
Wheel Diameter: 2.0″ (50.8 mm)
Shock Length (front/rear): 48 mm / 48 mm
Front/Rear Tires (glued): Talon™ 2.0″
Front/Rear Wheels: 2.0″ Gemini™ (black-chrome)
Electronic Speed Control: Waterproof XL-2.5 ESC
Motor (electric): Titan® 12T 550
Transmission: Heavy-Duty Single Speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 15.75:1 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank
Transmitter: TQ 2.4GHz Radio
Receiver: #6519 3-Channel Micro
Top Speed: 20+mph
Skill Level: 1
Battery Tray Dimensions: 89 mm x 35.5 mm x 20 mm
Included Batteries: 6-cell Power Cell iD NiMH battery with 2-amp Peak Detecting DC Charger
Required Batteries: 4 “AA” (transmitter)
- TQ™ 2.4GHz radio system
- Titan® 12T 550 motor
- XL-2.5 electronic speed control
- 7.2 volt NiMH Battery with Traxxas iD Connector
- 2-amp DC peak detecting fast charger
- ProGraphix® painted body
Needed to Complete:
(4) AA Batteries
-
Parts
- Parts for the Traxxas 1/16 E-Revo
-
Resources
- Traxxas 1/16 E-Revo Instruction Manual
- Traxxas 1/16 E-Revo Chassis Assembly Exploded View
- Traxxas 1/16 E-Revo Driveshafts Assembly Exploded View
- Traxxas 1/16 E-Revo Front Assembly Exploded View
- Traxxas 1/16 E-Revo Rear Assembly Exploded View
- Traxxas 1/16 E-Revo Transmission Assembly Exploded View
Other Details
Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
