Traxxas Bandit VXL 1/10 Scale 2wd Buggy With Magnum 272R Transmission, Purple

Product Description

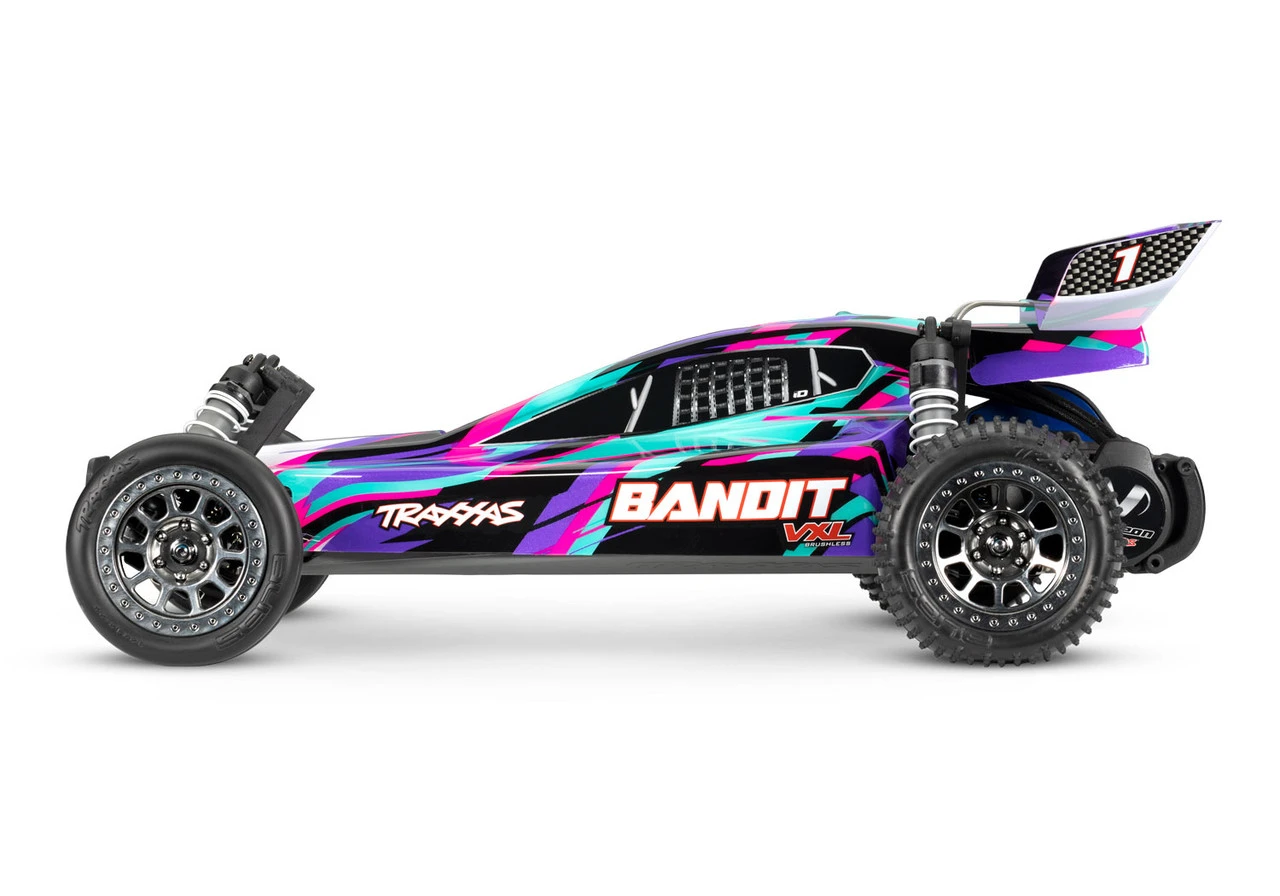

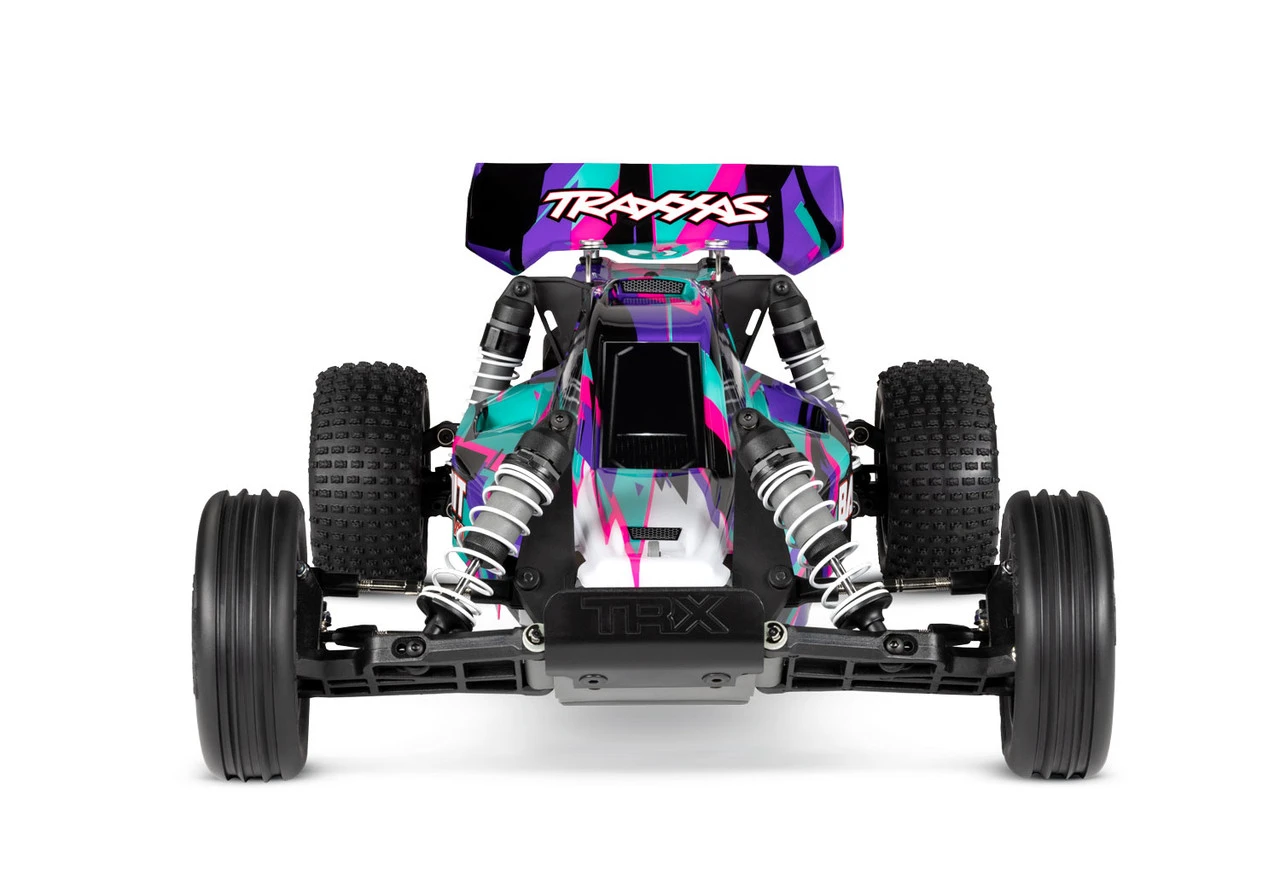

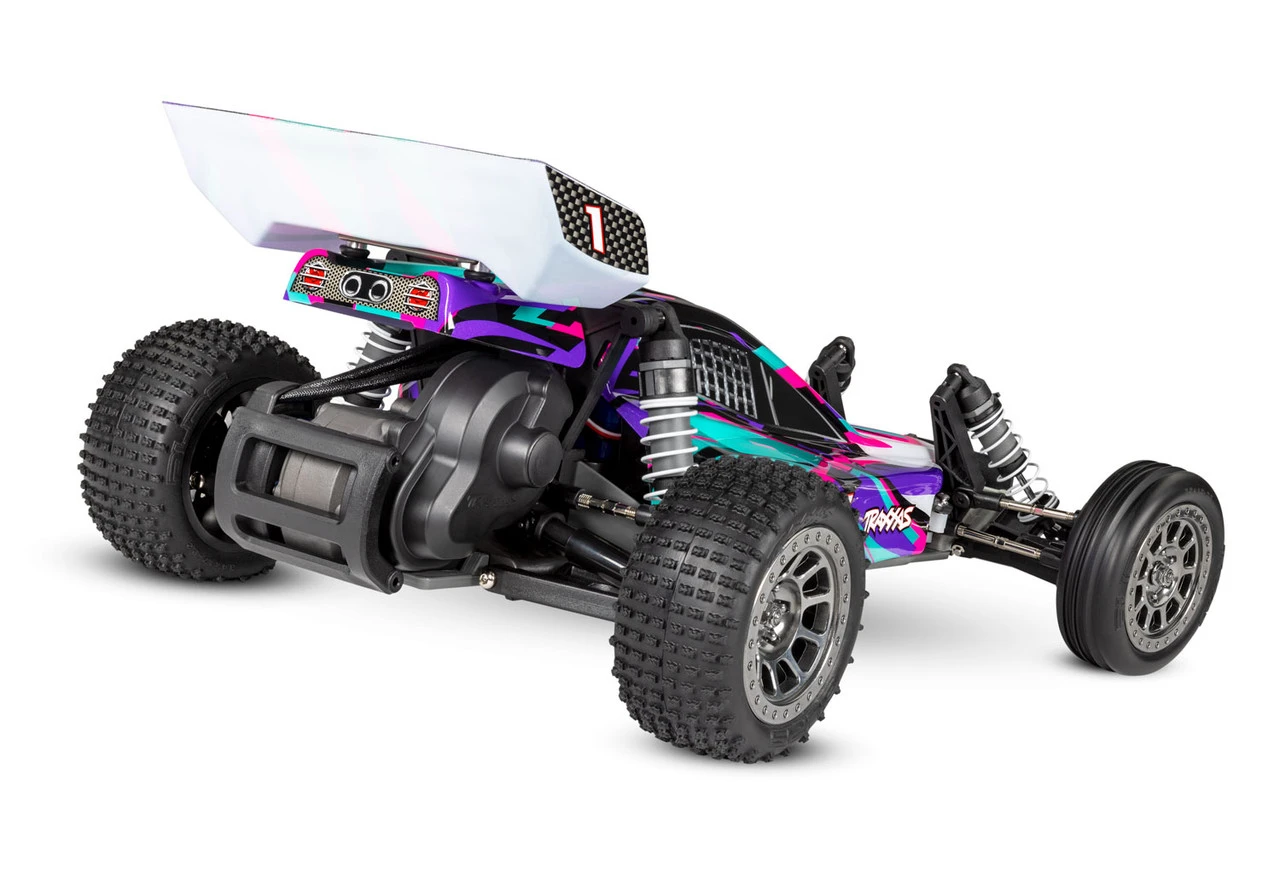

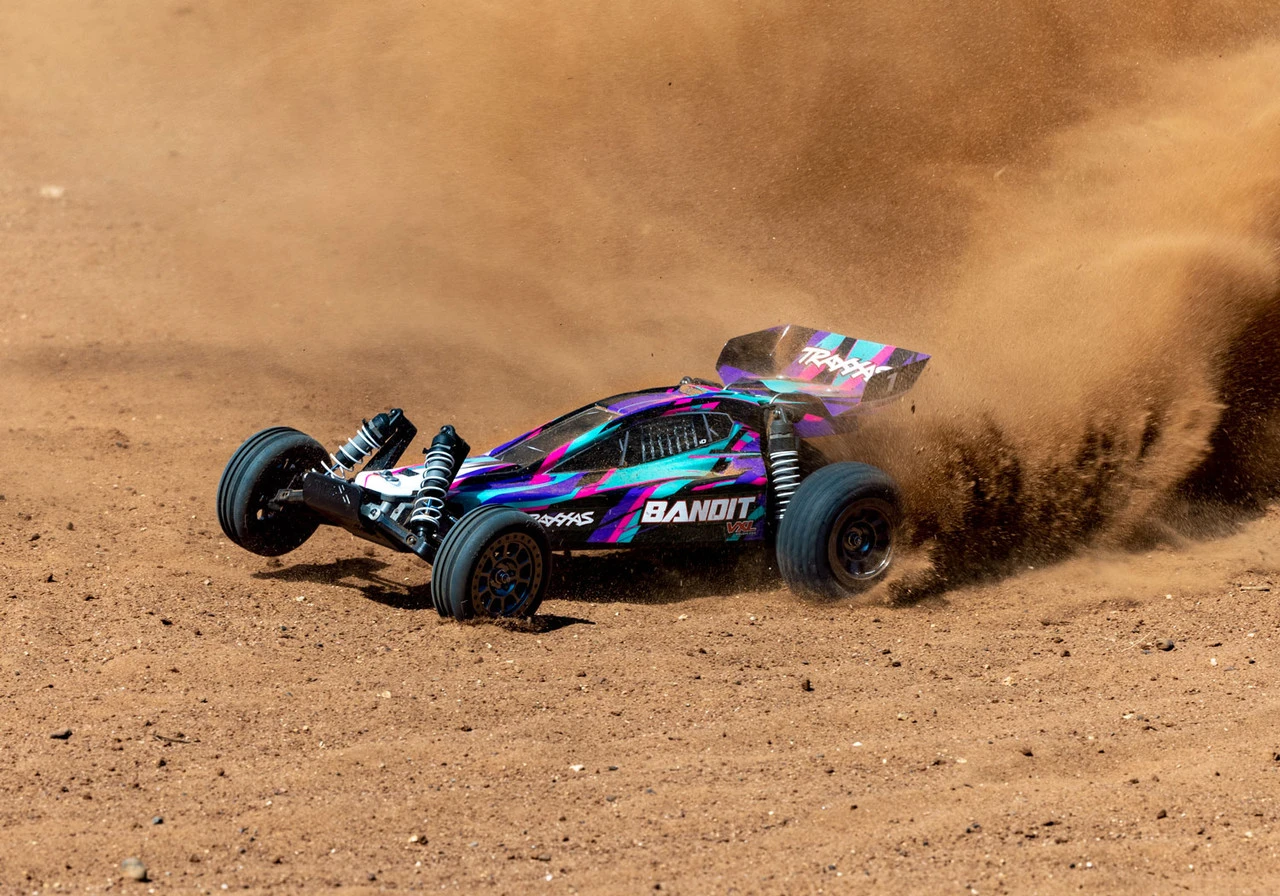

Traxxas Bandit VXL 1/10 Scale 2wd Buggy with Magnum 272R Transmission, Purple

The Bandit™ VXL is a low-slung, lightweight speed machine that scorches pavement with wheelie-popping acceleration and rips incredible roost off-road. Bandit VXL is a driver’s machine that puts your skills to the test with its mind-blowing 70+ mph top speed and lightning-quick handling. The Bandit VXL elevates buggy performance to the next level with incredible Velineon™ brushless horsepower and the sure-footed control of Traxxas Stability Management®. Bandit’s fully waterproof electronics make even the wildest all-weather adventures possible as you shatter speed limits and discover a new world of RC excitement.

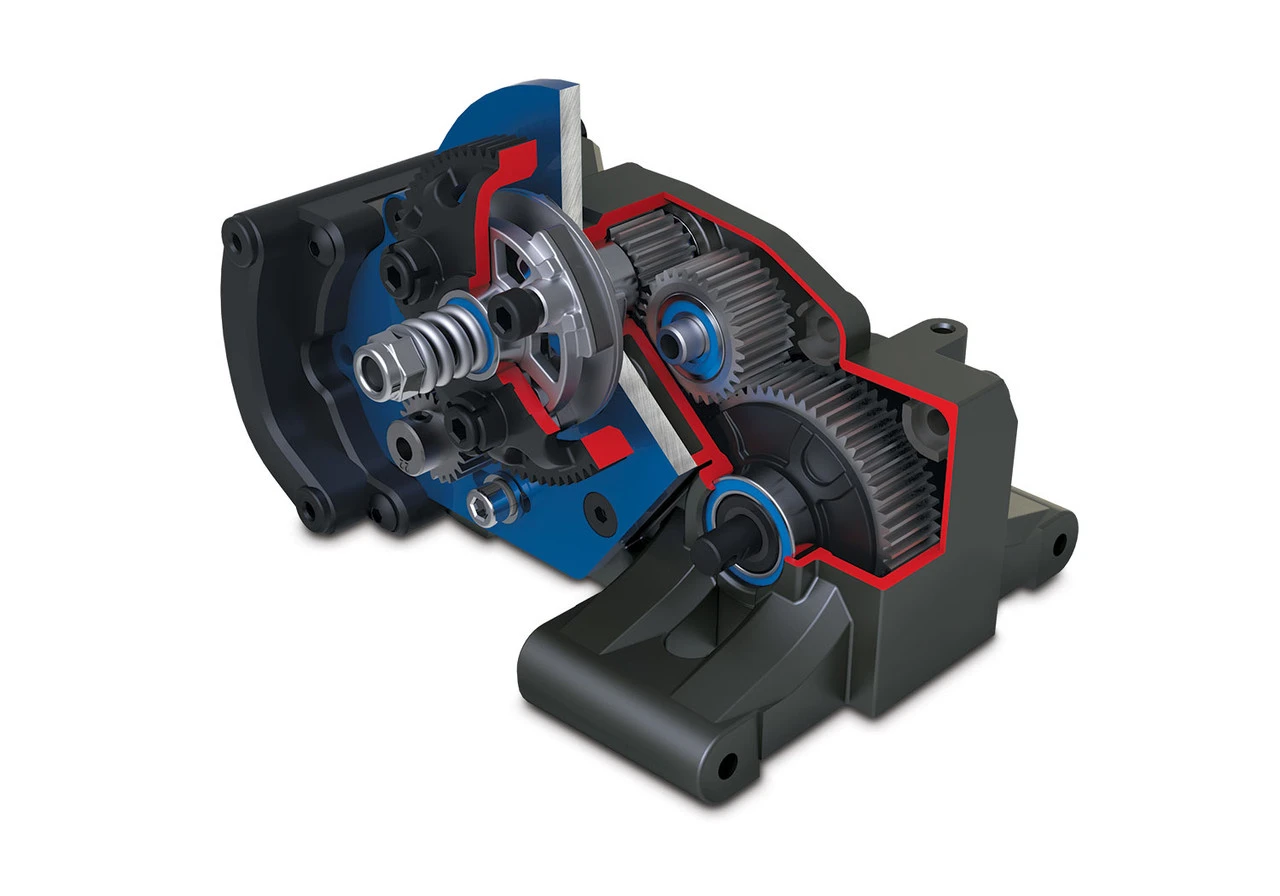

Pro Series Magnum 272R™ Transmission

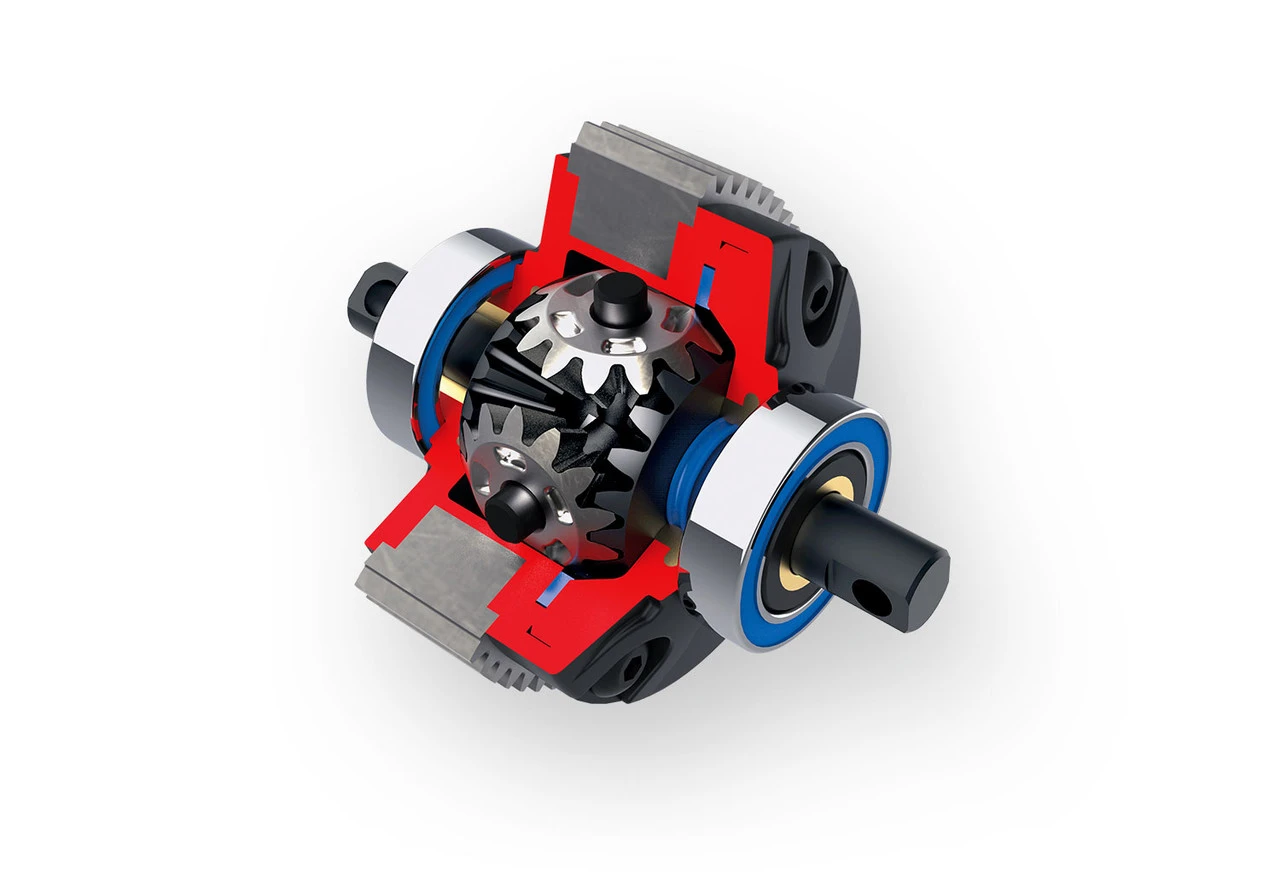

The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Bandit VXL.

Proven, Class-Leading Velineon Brushless Power

The Velineon brushless motor and electronic speed control (ESC) deliver the ultimate in efficiency, speed, and run time. With the Bandit VXL, your battery selection determines your speed and skill level. Velineon accepts a wide range of batteries, including powerful 3-cell LiPo packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 70 mph! Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo packs in top condition.

Traxxas Stability Management®
Micro Receiver, TQi 2.4GHz with Traxxas Link and TSM (5-channel) (#6533) (three-quarter view)Traxxas Stability Management (TSM) works behind the scenes to help prevent spinouts and loss of control on slippery surfaces. TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the vehicle’s line for faster exit speeds. Learn more

New Beadlock-Style Wheels and Alias Tires
The Bandit rides on aggressive black and chrome multi-spoke wheels with pre-glued tires and foam inserts. Alias step-pin rear tires and ribbed front tires keep the Bandit firmly planted on extreme off-road terrain.

The standard 2.2″ wheels accept a wide array of accessory tires including the Traxxas Anaconda® 2.2″ street tires for Bandit and other buggies.

Included Optional Pinion Gear
The Bandit VXL reaches a scorching 70+mph top speed using an optional 33-tooth pinion gear and a 3-cell 11.1V Lithium-polymer battery pack (sold separately). Out of the box, the installed 26-tooth pinion gear is just right for all-around, on or off-road action. Installing the included optional 28-tooth pinion gear opens the door to 60+mph speeds.

Features:

• Traxxas Stability Management TSM^®
• Powered by the Velineon^® Brushless Power System
• Bandit VXL reaches speeds in excess of 70mph!*
• Waterproof electronics extend brushless power and performance to water, mud, and snow
• Velineon VXL-3s Electronic Speed Control
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • Sport Mode – forward / brake / reverse
  • Race Mode – forward / brake
  • Training Mode™ – 50% forward / brake / 50% reverse (patented)
• Velineon 3500 brushless motor
  • Consistent high-power output
  • Low-maintenance design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
• TQi 2.4GHz transmitterDigital high-torque Traxxas
  • Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
• Durable steel turnbuckles and captured rod ends
• 2075 waterproof steering servo
• High Performance Magnum 272R transmission
• All-metal internal gears
• Sealed beveled-gear differential
• 3.2 mm aluminum motor plate
• Low-profile case
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch
• External gear cover with easy slipper access
• Updated heavy-duty telescoping U-joint driveshafts and yokes

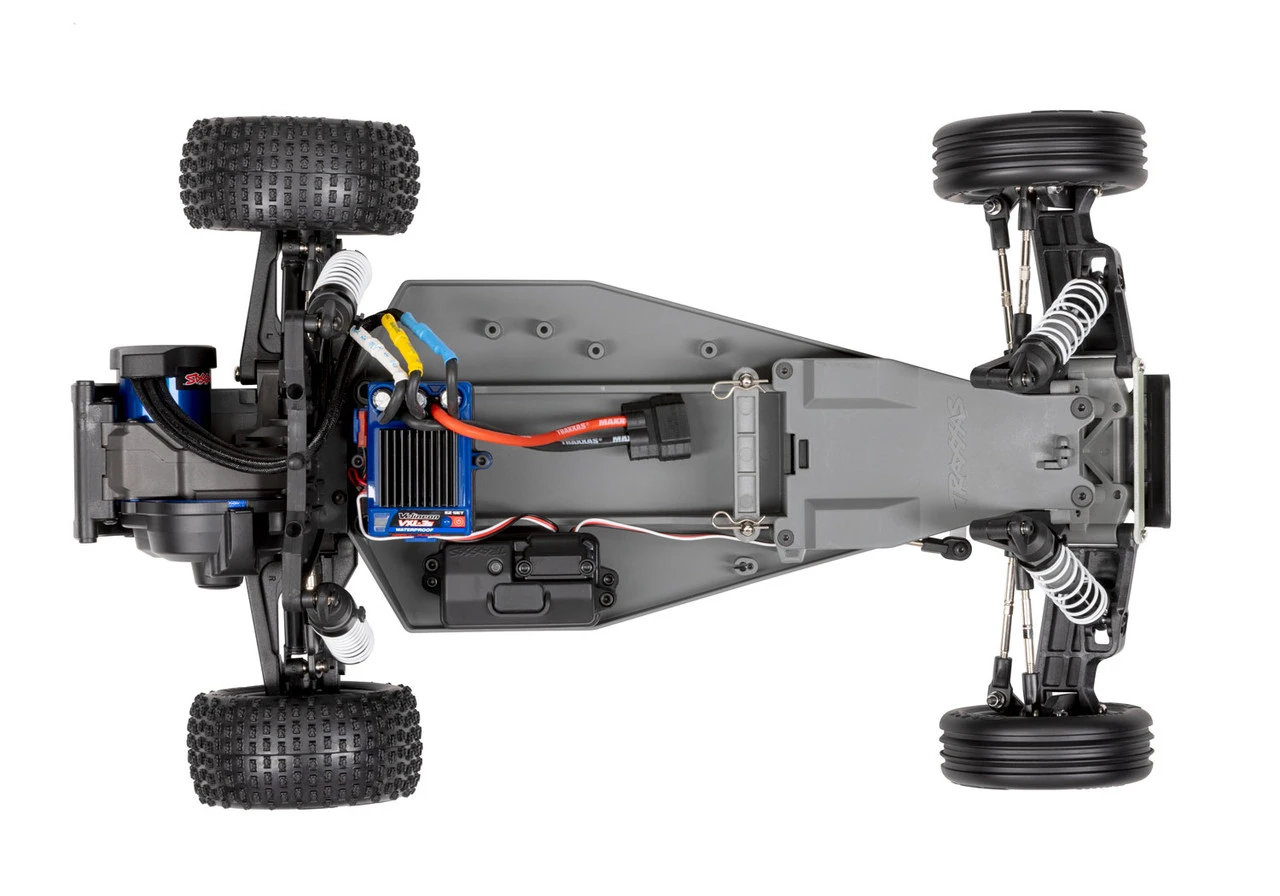

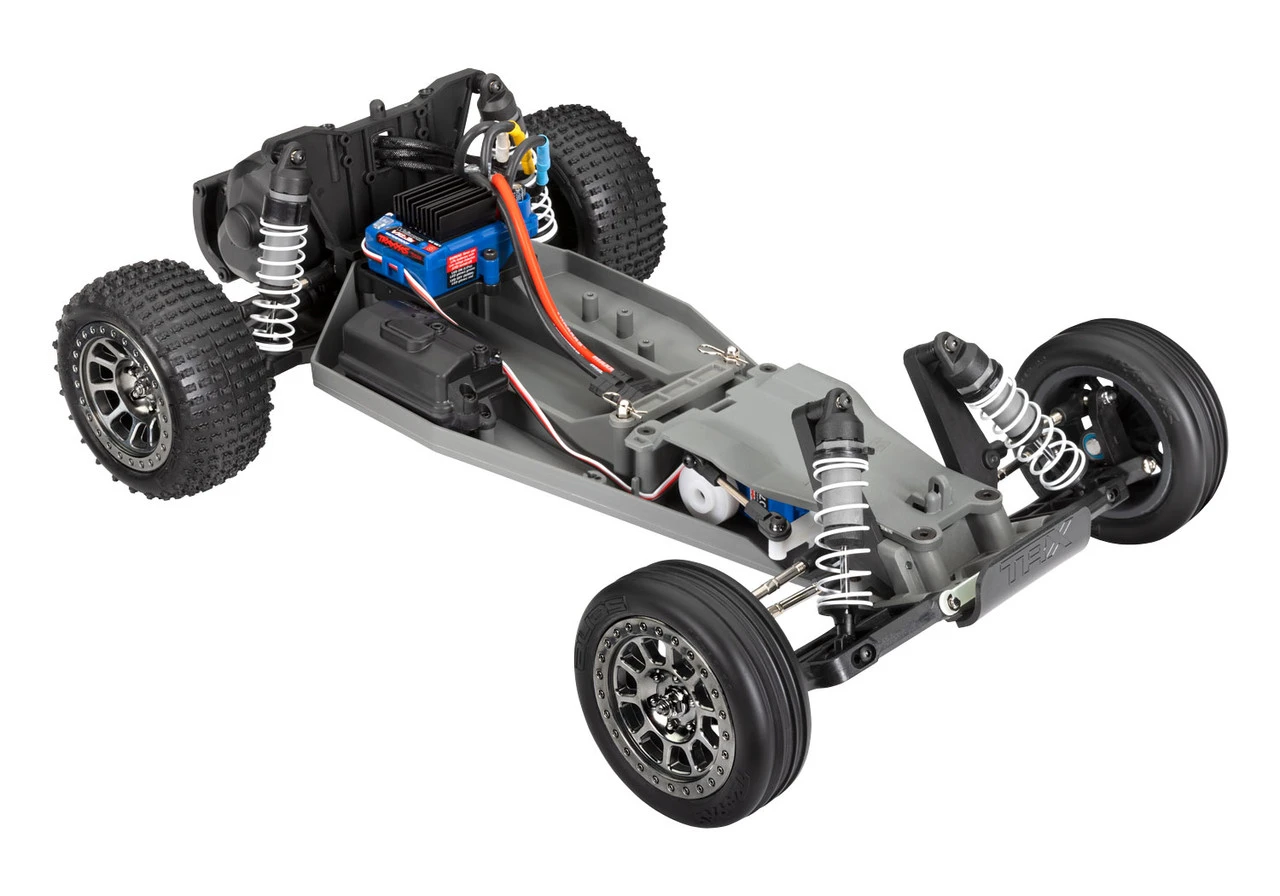

• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias^® Step-Pin rear and ribbed front tires offer superior off-road traction
• Performance-tuned foam inserts
• Pre-glued on black-chrome 2.2″ multi-spoke wheels

Specifications:

Length: ­ 16.25 inches (413 mm)
Front Track: ­ 9.84 inches (250 mm)
Rear Track: ­ 9.84 inches (250 mm)
Weight: ­ 48 ounces (1.36 kg)
Height (overall): ­ 7 inches (178 mm)
Wheelbase: ­ 11.25 inches (286 mm)
Front Shock Length: ­ Long
Rear Shock Length: ­ XX-Long
Front Tires (Pre-Glued): ­ Alias® Ribbed 2.2″
Rear Tires (Pre-Glued): ­ Alias® Step-Pin 2.2″
Front Wheels: ­ 2.2″ Black-Chrome Multi-Spoke
Rear Wheels: ­ 2.2″ Black-Chrome Multi-Spoke
Electronic Speed Control: ­ VXL-3s™ Electronic Speed Control
Motor (electric): ­ Velineon® 3500 Brushless
Gear Ratio (Internal): ­ 2.72 (Final Drive: 7.97)
Differential Type: ­ Planetary Steel Gear
Gear Pitch: ­ 48-Pitch
Transmission: ­ Magnum 272™
Steering: ­ Bellcrank
Chassis Type: ­ Modified Tub
Chassis Material: ­ Fiber-Composite
Radio System (Transmitter): ­ TQi™ 2.4GHz (2-Channel)
Radio System (Receiver) ­ Traxxas Stability Management® (#6533)
Top-Speed: ­ 70+MPH**
Skill Level: ­ 2
Battery Tray Dimensions: ­ 166 mm x 47.5 mm x 28 mm

VXL-3s WATERPROOF ESC SPECIFICATIONS
Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: 39 mm x 55 mm x 33 mm
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
BEC Voltage: 6.0 V
BEC Current: 2.5A
Power Wire: 12-Gauge Maxx® Cable
Input Harness Wire: 26 Gauge / 100 mm
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Profile selection:
Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:*
50% FWD, 100% BRAKES, 50% REV
Single-Button Setup: Yes, Traxxas EZ-Set®
Battery Input Connector : Traxxas High-Current Connector
Motor Types : Brushless
Ports: RX Input, auxiliary fan

Needed to Complete:

• (4) AA Batteries
• (1) NiMH or 2s LiPo Battery

• Parts

  • Parts for Traxxas Bandit

• Resources

  • Manual and Exploded Views for the Traxxas Bandit VXL

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
