Product Description

Team Losi Racing 22 5.0 DC Elite 1/10 2WD Electric Buggy Kit (Dirt & Clay) (TLR03022)

The TLR 22 5.0 DC Elite 1/10 2WD Electric Buggy Kit gives drivers a professional grade, full team-level kit all in one box! Optimized for dirt and clay tracks, the ELITE kit features fully adjustable rear pivots, adjustable height rear hubs, carbon fiber option parts throughout, and all the aluminum parts have been changed to a sharp black anodizing with silver chamferred edges to pop against the hard anodized chassis and shock bodies.

Building on the improvements to the 22 5.0, the ELITE kit is significantly easier to drive while still giving the car more mid-corning steering with the revised steering geometry, smoother G3 shocks, and the optimized flex of the 2mm chassis plate. Designed to win straight out of the box, the 22 5.0 DC ELITE maximizes performance and is podium ready.

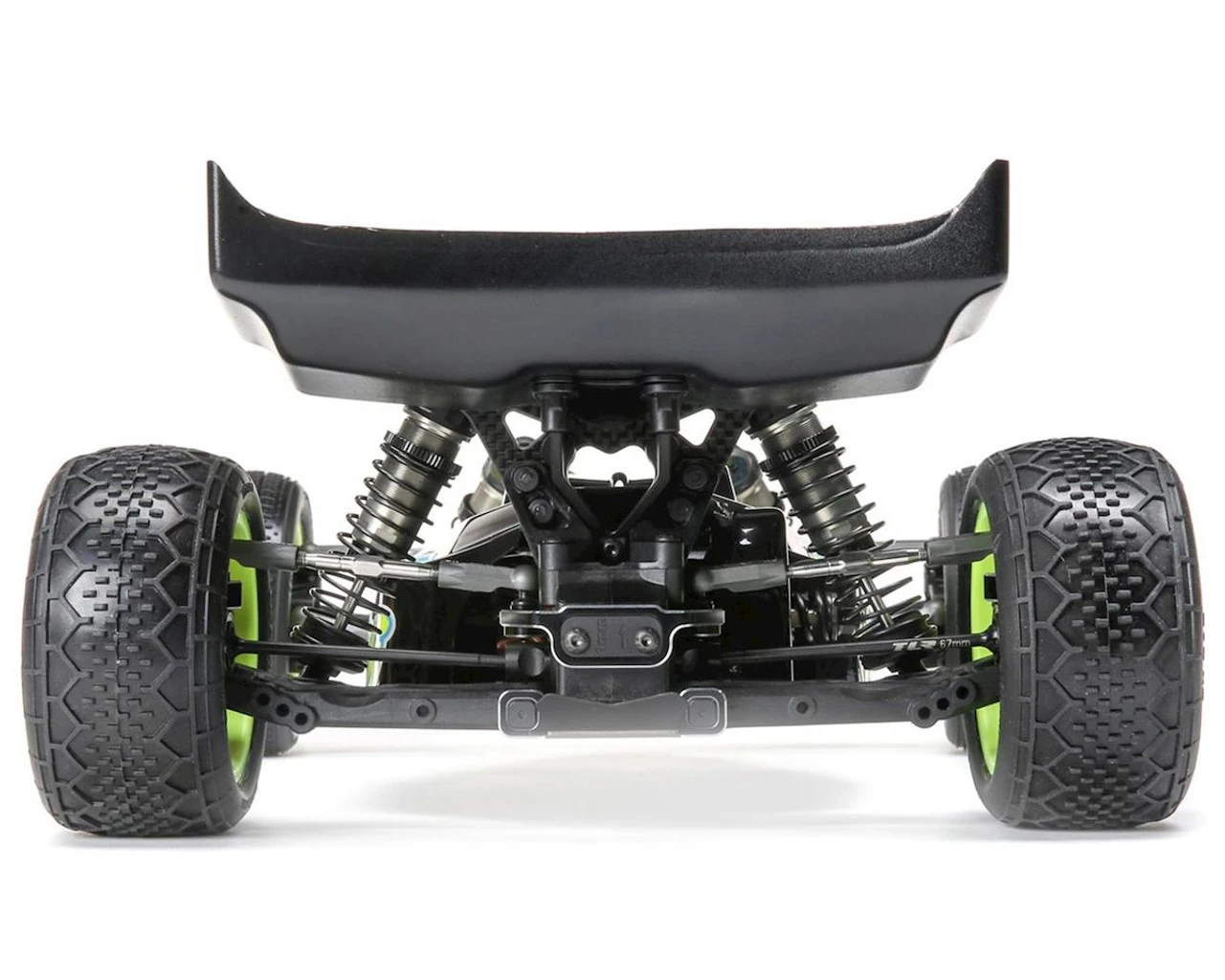

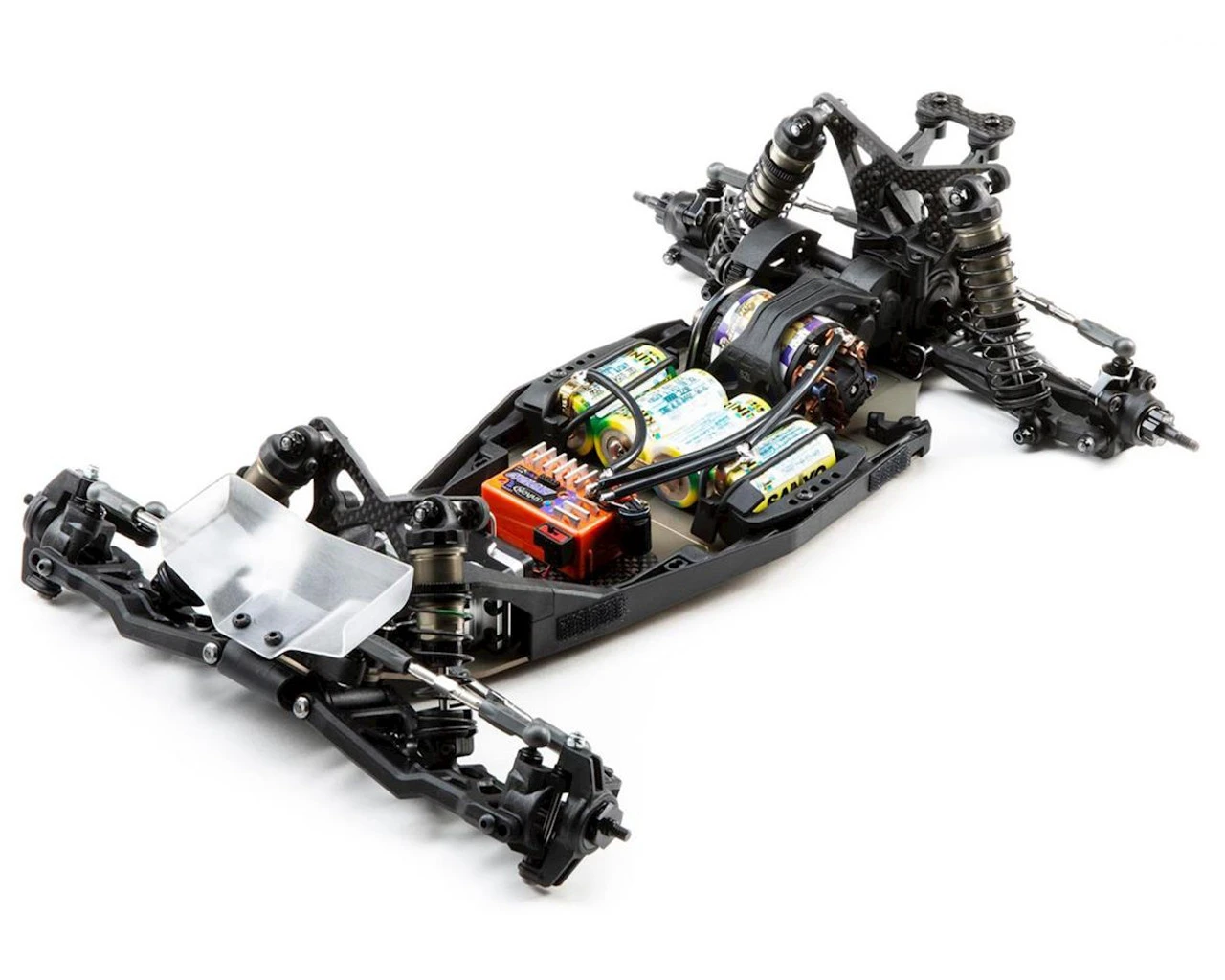

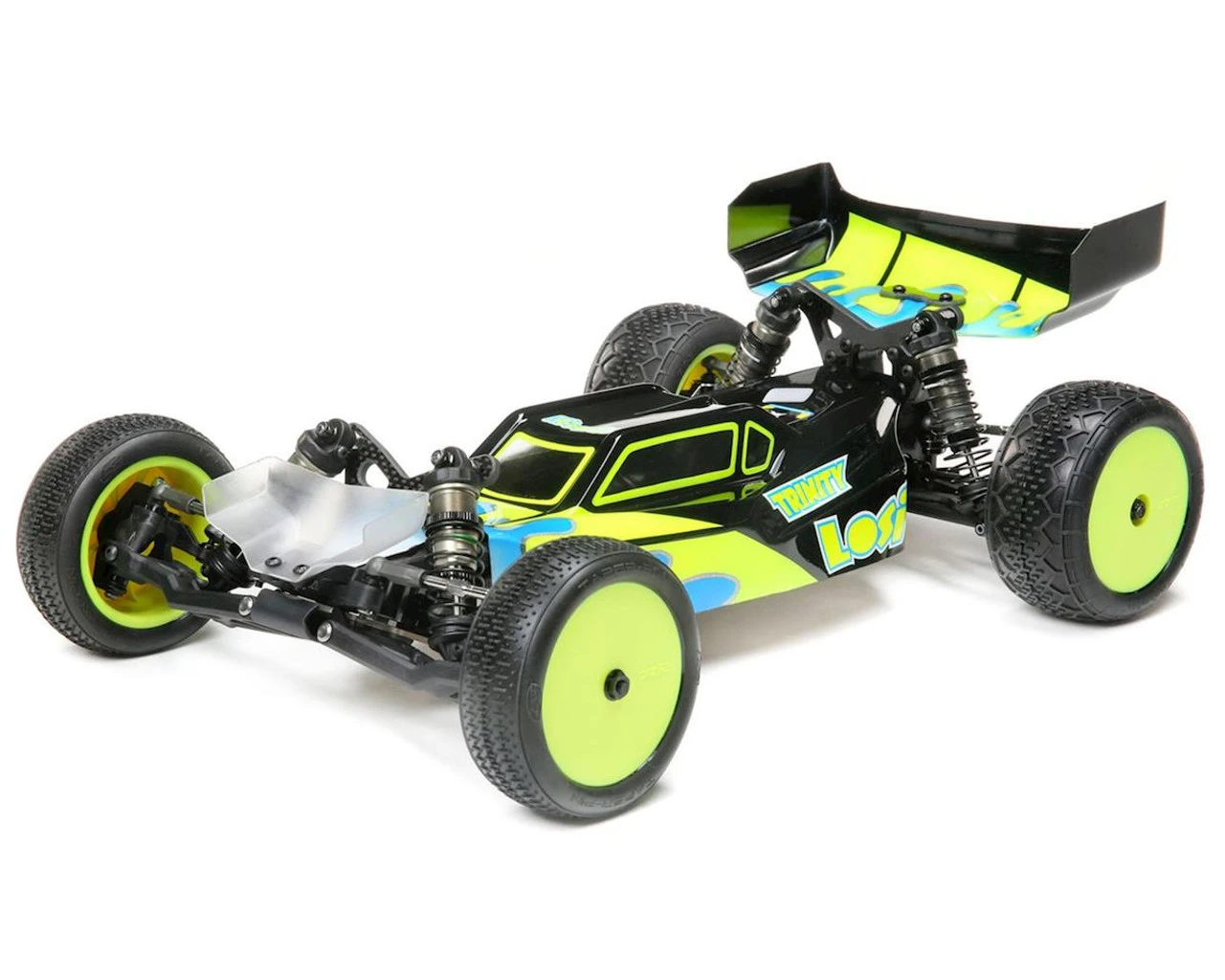

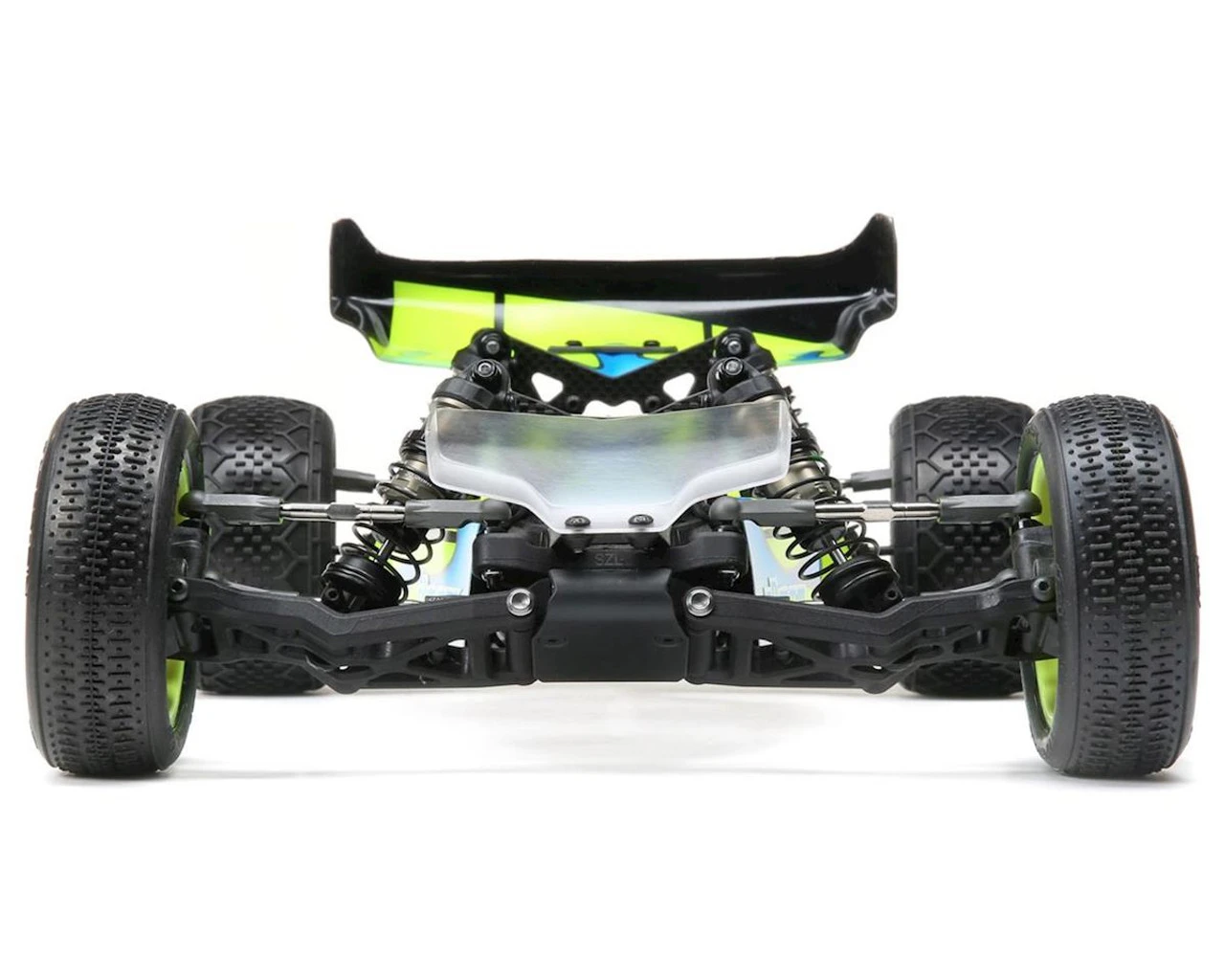

NOTE: Painted body, wheels, tires and electronics shown in photos are for illustrative purposes only and are not included. See needed to complete list below for a full list of items required to complete the model.

Features:

Pro Level Ready
Carbon Fiber Options Included
Aluminum Options Included
New Adjustable Rear Hub and Pivots
Titanium Turnbuckles Included
Revamped steering geometry
Super Heavy Duty Slipper (SHDS)
Laydown transmission configuration
Stiffezel suspension components
Fully Updated Differential
Built-In Motor Fan Mount
Lightweight body
2.0 Milled aluminum chassis
Gen3 12mm big-bore shocks
Front Roll Center Adjustment
New Front Camber Block and Battery Hold Down
Ballast tuning options (ballast sold separately)
Carbon Fiber Parts
G3 12mm Big Bore Shocks
Built in Motor Fan

Specifications:

Approximate Assembly Time: 3-5 Hours
Ball Bearings: Full set, rubber sealed
Batteries: Sold separately
Body: Cab forward, 0.03″ (0.7mm) thick
Bushing Material: Metal
Charger: Sold separately
Chassis: 7075-T6 Aluminum Milled Plate 0.08″ (2mm) thick
Completion Level: Kit
Differential: Ball Type
Drivetrain: 2WD
Gear Pitch: 48-Pitch
Height: 5.8″ (148mm)
Internal Gear Ratio: 2.43:1
Length: 15″ (382mm)
Max Battery Dimensions: 5.5 x 1.8 x 0.96″ (139.7 x 46 x 24.5mm)
Motor Type: Brushless (sold separately)
Pinion: Not Included
Radio: 2-channel sold separately
Servos: High torque steering servo (sold separately)
Shock Type: Oil filled 12mm Big Bore
Size/Scale: 1/10
Spur Gear: 78T,72T
Suspension: Stiffezel Front Suspension Arms, Soft Rear Suspension Arms
Track: Front and Rear 9.8″ (249mm), distance from outer edges of tires measured side-to-side
Vehicle Type: 2WD Dirt and Clay Racer
Water-Resistant: Yes
Wheel Diameter: 2.2″ (56mm) sold separately
Wheel Hex Size: 12mm Hex
Wheelbase: 11″ (280mm)
Width: 9.8″ (250mm)

Includes:

(1) 22 5.0 DC ELITE Kit
(1) 22™ 5.0 Cab Forward Body
(1) Product Manual

Needed to Complete:

Motor
Electronic Speed Control
Servo
Radio System
48 Pitch Pinion Gear
Battery and Charger
Wheels and Tires
Paint
Tools – Please refer to the manual for more details

Resources
- Team Losi Racing 22 5.0 DC Elite Buggy Manual
- Team Losi Racing 22 5.0 DC Elite Buggy Exploded View
- Parts
  - Parts and Hop-ups for Team Losi Racing 22 5.0 DC Elite Buggy
