Team Corally 1/8 Shogun XP 4WD Truggy 6S Brushless RTR

Product Description

Team Corally 1/8 Shogun XP 4WD Truggy 6S Brushless RTR (No Battery or Charger)

Few driving experiences can surpass a well-tuned 1/8 scale Monster Truggy for incredible top speeds and the ability to handle virtually any type of track, surface, or terrain. Able to handle massive 6S LiPo power and including a 2050KV brushless motor, you can utterly dominate lesser models at your local track, skate park, or bash spot. With its aggressive appearance, race-inspired design, high-traction tires, and plush suspension, the Shogun XP can tackle the most challenging terrain or conditions, while asking for more.

With a durable, all-metal four-wheel drivetrain, fully independent suspension, racing chassis, stump-pulling power, and aerodynamic racing bodyshell design, the Shogun XP may be the ultimate electric 1/8 scale monster truggy for drivers looking for an unmatched driving experience.

The Team Corally Shogun XP Monster Truggy features a full suite of water-resistant electronics, so it’s ready for driving in most any conditions. Not only is the ESC resistant to splashes of water and mud, but the steering servo and receiver are also protected from the elements by special water-resistant PCB coatings. The receiver is further protected by a sealed enclosure to protect against dust, mud, and moisture. Of course, aerospace-quality rubber sealed ball bearings are standard on the Shogun XP, meaning you can drive virtually anywhere and in most any conditions
(Please note: no RC vehicle should be driven or submerged in water or mud. Take care when driving in extreme conditions, and proper maintenance such as cleaning and lubricating should take place after driving in mud, water or near salt water.)

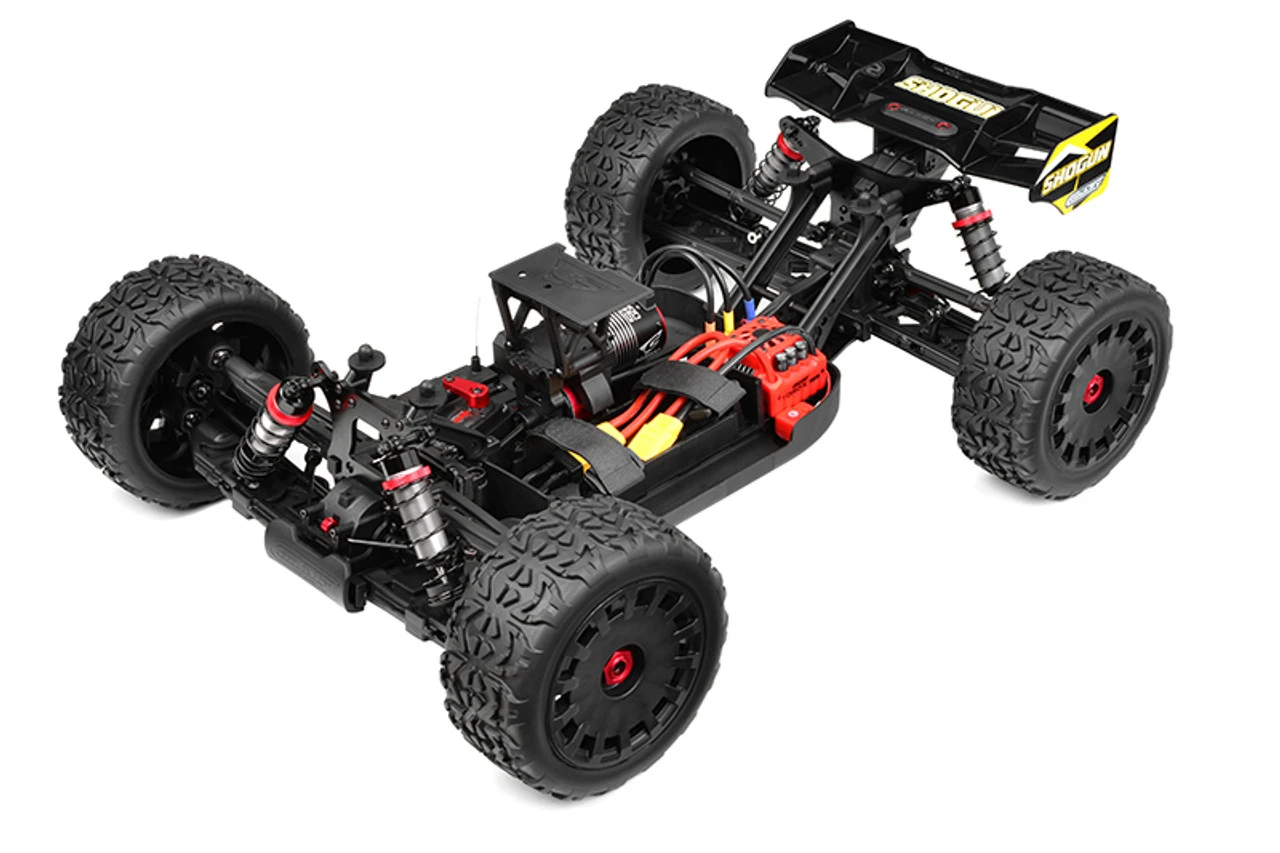

The Shogun XP utilizes an aluminium pan-style chassis for the most efficient and durable chassis layout. With an optimized forward weight bias, the heaviest drivetrain components and other systems are kept as close to the front as possible. Robust, triangulated front and rear chassis braces provide additional rigidity that allows the aluminium big bore shocks and HiCC8 composite suspension parts to perform without the negative effects of chassis plate flex. The reinforced composite chassis side guards have integrated front brackets to provide additional protection for the polycarbonate body and electronics. The exclusive Team Corally’s exclusive SPL system secures the shock spring perches, which prevents spring misalignment during extreme compression/rebound, while the innovative RSP Sway Bar system keeps the Shogun planted in corners and ensures consistent handling on all surfaces.

Massive 2050KV Brushless Power
With a Team Corally Kuron 2050KV 4-pole motor mounted on a torsion-resistant aluminium 2-piece sliding mount, you can be confident of attaining maximum speeds for big-air stunts! The motor is fitted with a hardened steel pinion gear, which mates to a hardened steel spur gear on the center differential.
Looking to achieve remarkable top speeds with a pull of the trigger? Speeds of over 110 km/h (70+ mph) are easy – just fit the appropriate battery!

LiPo Power Ready
The battery holder of the Shogun can fit batteries packs in all the popular sizes and is adjustable for maximum versatility. The versatile Team Corally Kuron 2050KV motor can utilize 4S-6S LiPo batteries to optimize performance on any surface or in any conditions!

Durable Steel Drive System with Three Fluid-Filled Differentials
The Shogun is fitted with front, center, and rear silicone fluid-filled and sealed limited-slip differentials that ensure the full amount of power from the 2050KV Kuron motor gets to the ground. With easy removal and maintenance, you can even alter each differential individually to fine-tune the amount of traction at either end of the truggy! Inside, you’ll find a complete set of metal gears and outdrive cups that connect to steel central driveshafts. The front end is driven by CVD driveshafts, while the rear is driven by robust metal dogbones, with the entire drivetrain supported by aerospace-quality 8x16x5mm rubber sealed ball bearings for maximum efficiency and durability.

Premium Alloy/Steel Center Differential Assembly
The critical center diff used on the Shogun XP features an aluminium alloy case and durable, steel spur gear for unsurpassed performance and reliability. The metal case allows optimal alignment of the internal gear assembly through improved heat dissipation and reducing fluid loss, while the steel spur gear ensures maximum power delivery and resistance to damage from dirt or debris.

Optimized Racing Suspension
The Shogun XP features a robust pivot ball-style front suspension, utilizing steel pivots and steering turnbuckles in addition to durable composite suspension arms. The rear suspension features composite outboard hubs and one-piece composite upper suspension links. At each corner, durable HiCC8 composite suspension arms and threaded, adjustable 16mm big bore oil-filled shock absorbers produce plush, compliant handling.

Innovative All-Terrain Tires
Low-profile, high-grip rubber tires feature inner foam liners, are and adhered to turbine-blade wheels on 17mm hex drive hubs. The optimized multi-surface tread pattern, with exceptionally strong sidewalls, minimizes ballooning and offers maximum control at any speed on any surface.

Varioprop S2R Steering Wheel Controller
The Shogun is fully controlled by the ergonomically designed pistol-grip style radio transmitter, which features the latest 2.4GHz technology for interference-free control at a distance of 300m.

The Shogun XP RTR is an exciting, impressive all-terrain machine! If you’re looking to make an all-out assault on lesser cars, with speed and jumping capability that other cars simply cannot duplicate, then look no further than the Shogun XP RTR from Team Corally.

Features at a Glance:

• Alloy Center Diff
• 50T Steel Main gear
• Updated Suspension Arm Front Lower
• Updated Suspension Arm Rear Lower
• Updated Servo Saver Plate
• Updated Rear Chassis Brace
• Updated Front Shock Stay Brace
• Updated Rear Shock Stay Braces
• Updated Wing Stay
• New Ackerman Plate 7075 material 3mm
• Updated Wing Connecting Brace
• Alloy Front Upper Arm Stiffener Plate
• Extra Hardened Drive Joints
• Composite Steering links
• Composite Rear Upper Links
• Front and Rear Bumpers w/ integrated Skid Plate
• 25 KG Digital Servo – HV – Steel Gears – CRHV-7225″

Specifications:
Scale: 1/8 Scale
Motor Type: 2050kV 2-6S 4-pole brushless motor
Car Model Type: Electric Powered 4WD Truggy RTR – 6S Brushless Power
Weight (g): 4350 g
Wheel base (mm): 384 mm
Length (mm): 570 mm
Width (mm): 405 mm
Transmission: 4WD Shaft Driven
Ball Bearing: Full set of ball bearing
Height (mm): 190 mm
ESC Type: Waterproof 7.2 – 22.2 V brushless – programmable with LiPo cut off
Servo Type: Digital – High Voltage – Metal Gear – 25 Kg Torque
Battery Type: Not included
Battery tray dimensions: (LxWxH): 161x51x50
RC functions: Right/left/forward/brake/reverse
Charger: Not included
Required items: Four (type AA) batteries; 7.2-22.2 V battery with XT90-connector; Charger

Includes:

• (1) Shogun 1/8 Truggy XP 4WD 6S Brushless RTR with Transmitter
• Instruction Manual

Needed to Complete:

• (4) AA Batteries
• (1) 7.2-22.2 V Battery with XT90 Connector
• Suitable Battery Charger
