Name: Spektrum Smart S2200 G2 AC Charger, 2x200
SKU: SPMXC2010
Availability: InStock

Product Description

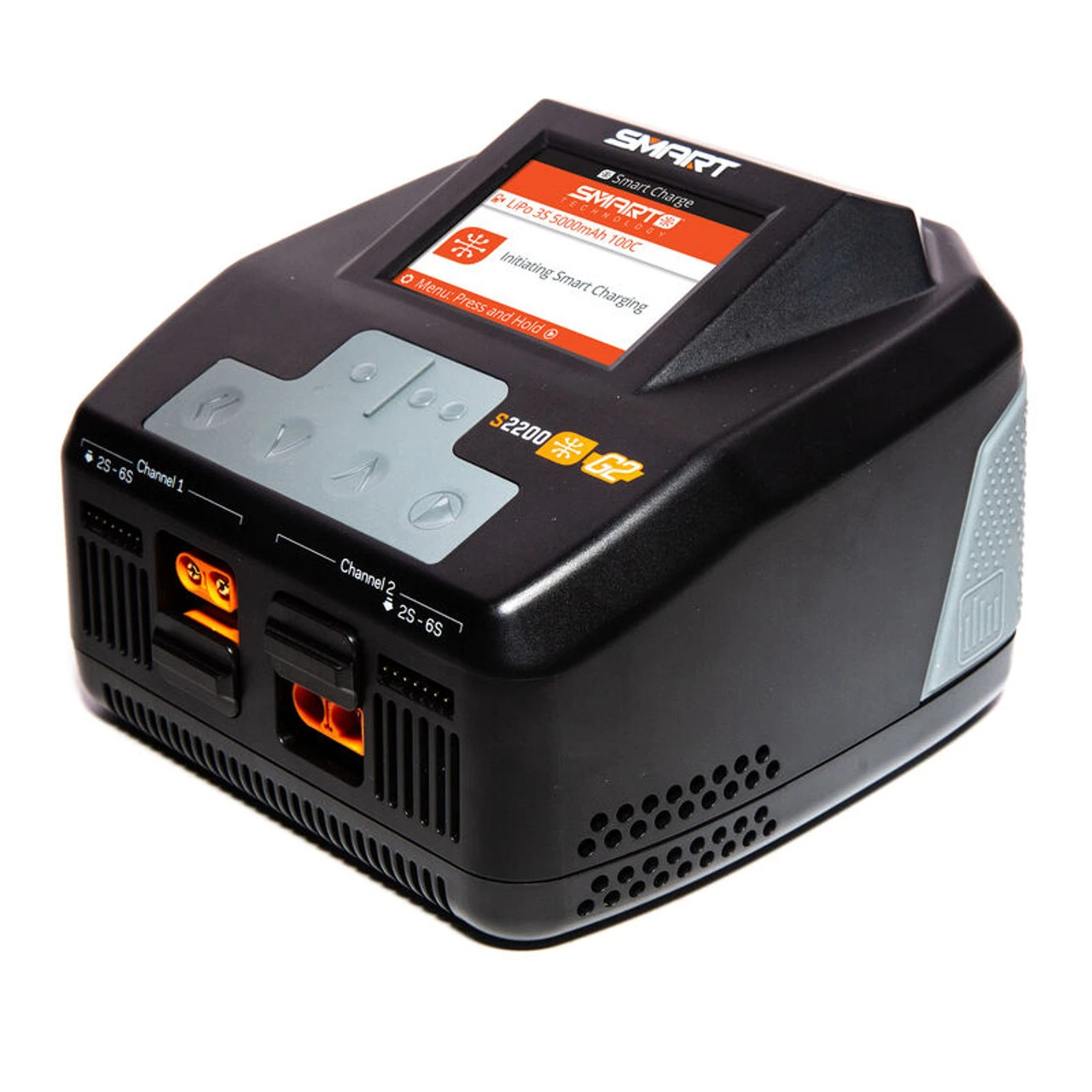

Spektrum Smart S2200 G2 AC Charger, 2×200

With 2 channels and up to 200W per channel, the Spektrum™ S2200 Smart G2 AC Charger offers fast, easy charging, especially for modelers using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3® or IC5® output ports, and more.

With up to 200W power per channel or 380W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2200 charger delivers a versatile and truly hassle-free charging experience. The S2200 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart G1 or G2 batteries and you’ll be amazed by its incredible functionality and performance.

The S2200 Smart G2 AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery’s parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger’s screen counts down the time until your Smart battery is fully charged and ready to use.

Balancing Smart G2 batteries is just as simple. The S2200 charger will balance your Smart G2 LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required.

The S2200 Smart G2 AC Charger’s updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track.

USB input and output ports enable you to charge secondary devices and to update the charger’s firmware so you always have the latest version. The S2200 Smart G2 AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.

Features:

Up to 200W power per channel or 380W on one channel for fast charging
Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Charges virtually any RC battery (use Smart batteries to benefit from all charger features)

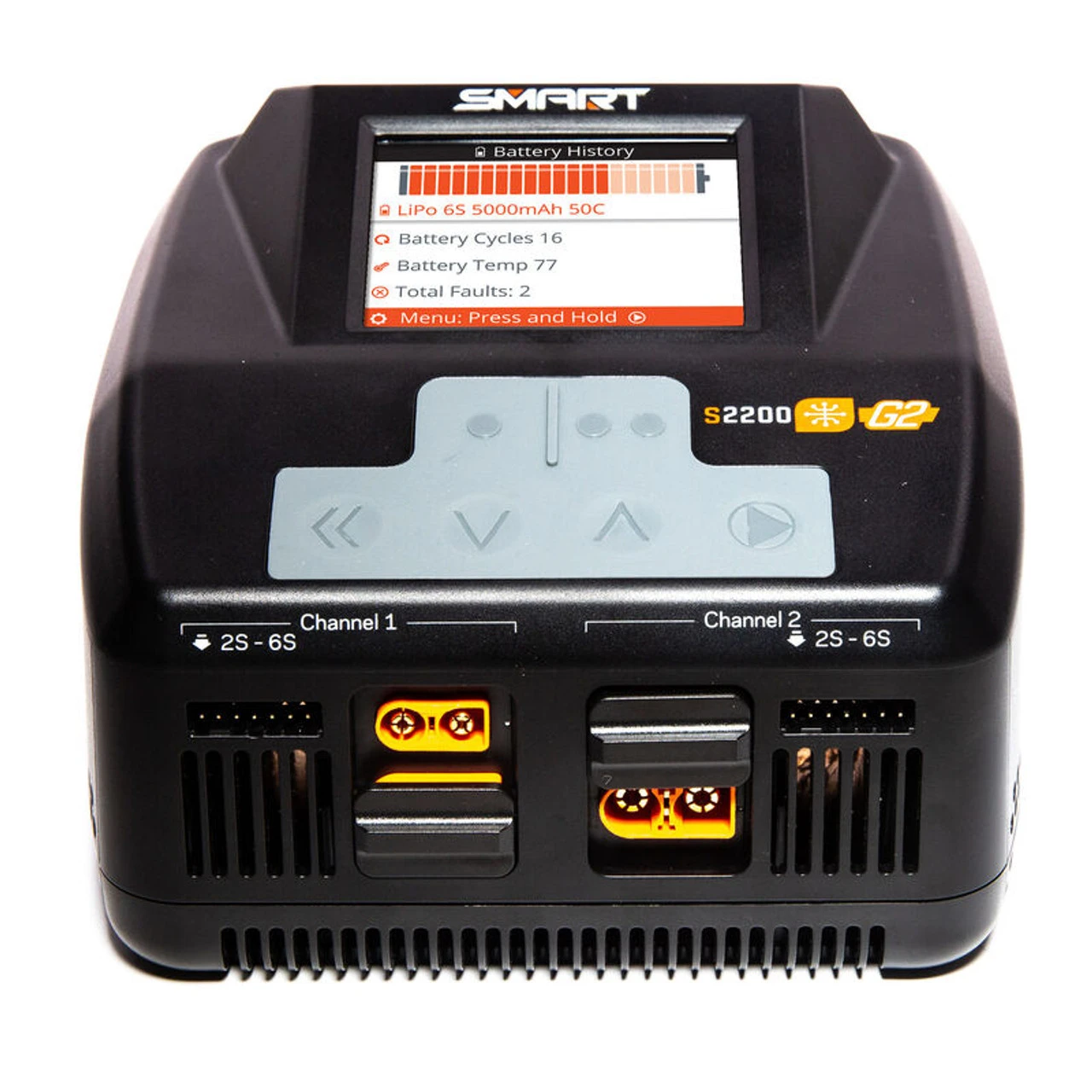

Smart software tracks and stores numerous smart battery data
Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
Large, 2.8″ display screen
An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use

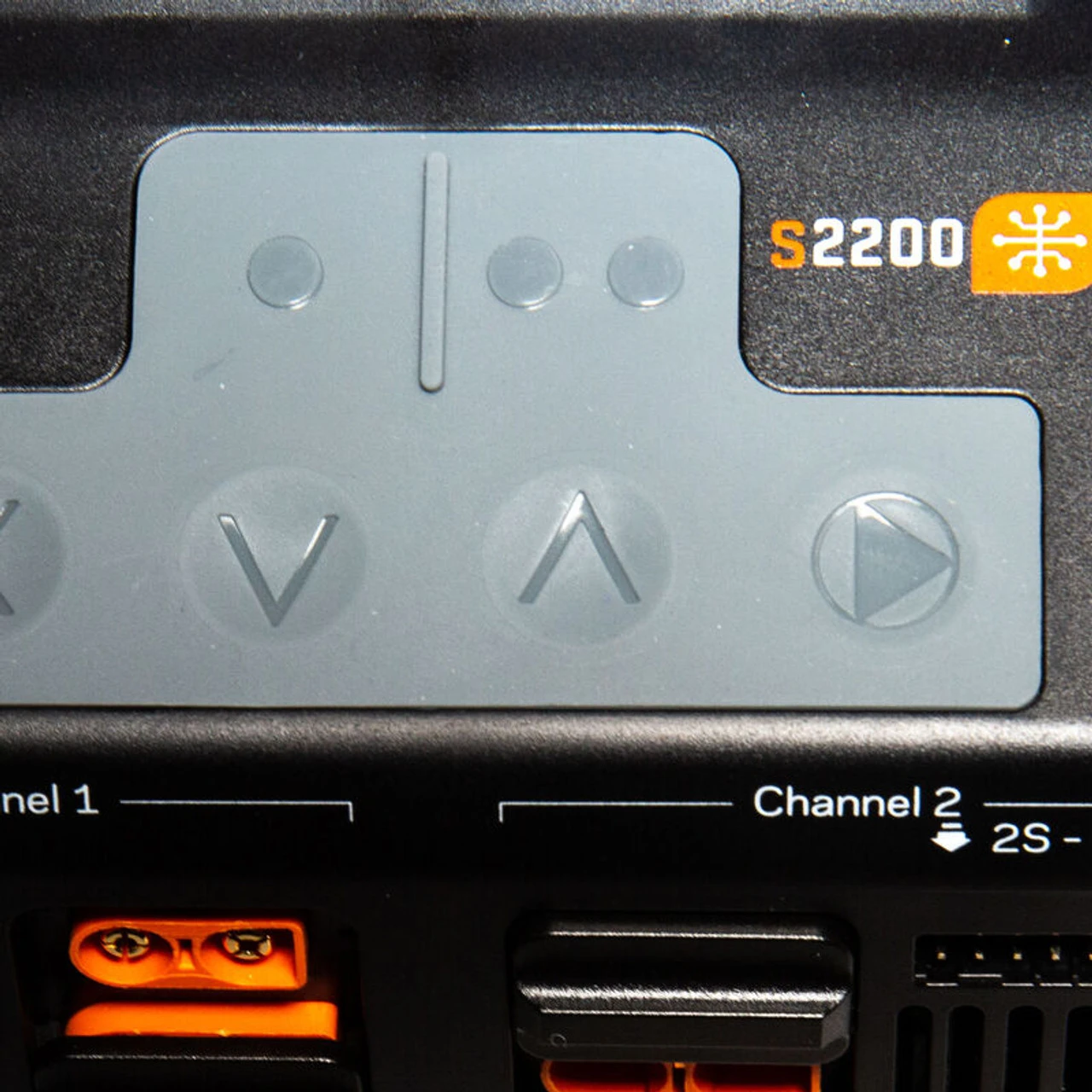

Updated user interface features fresh, intuitive menus, icons and navigation tools, plus non-slip, easy to use buttons

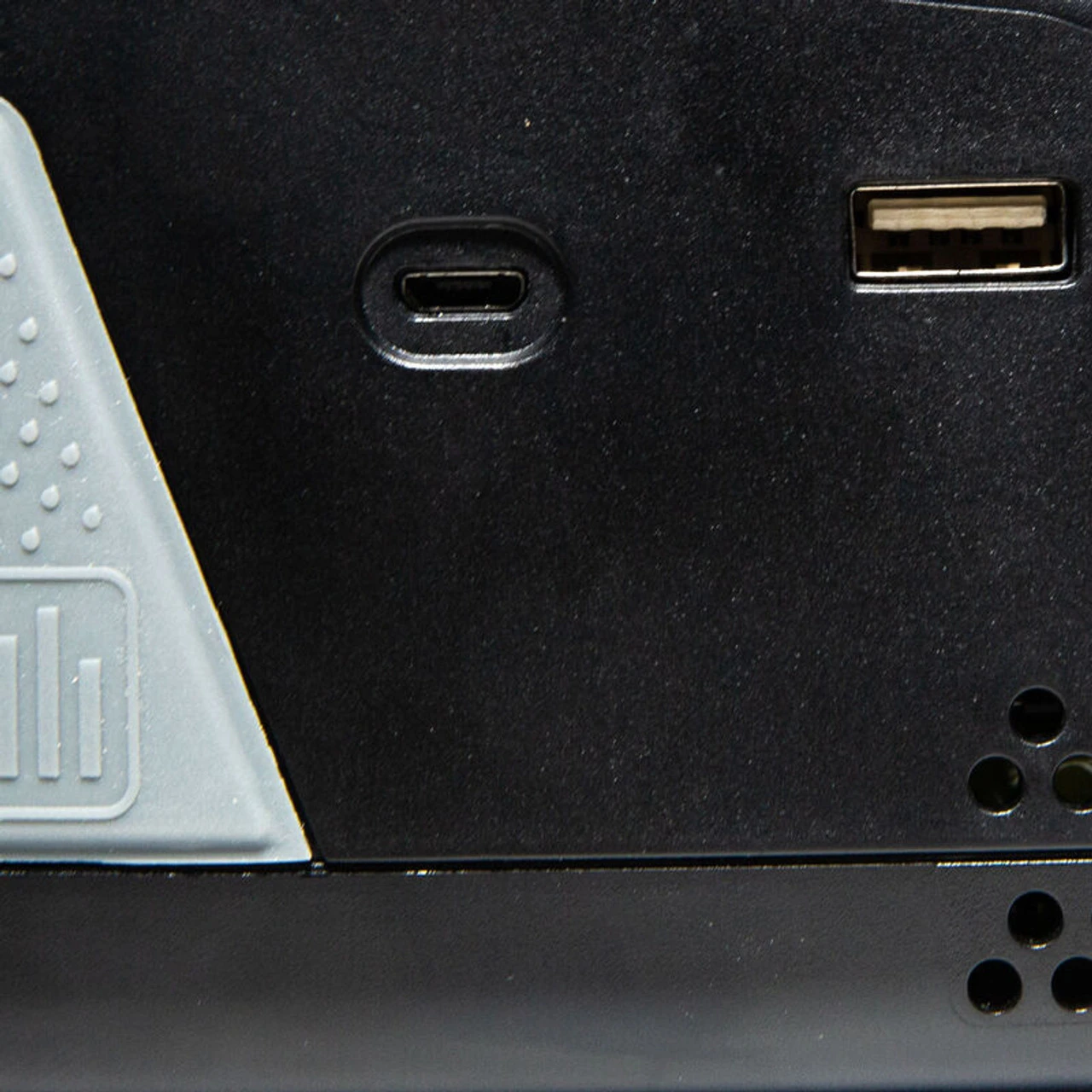

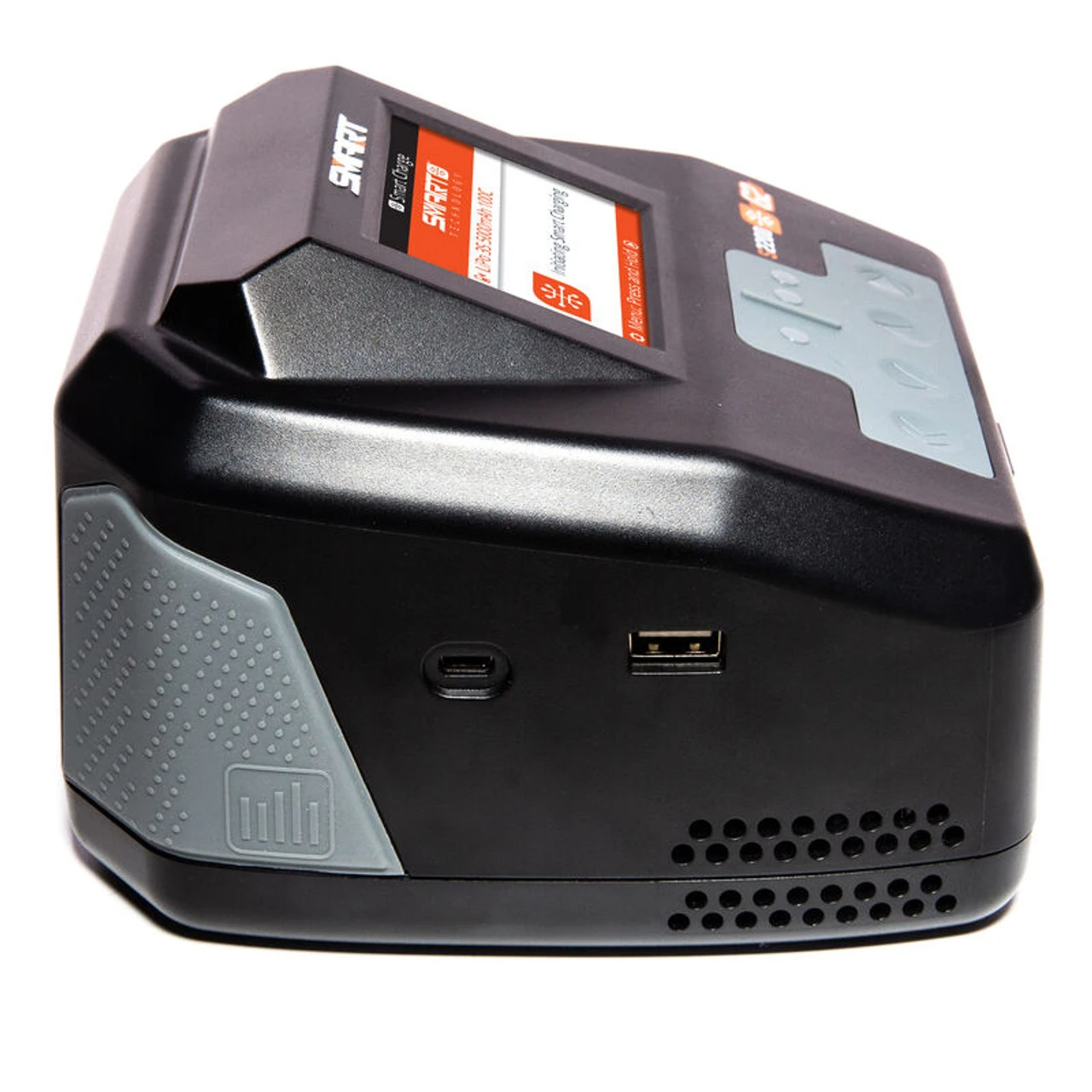

USB input and output ports are included for updating firmware and charging secondary devices
ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
Detachable power cord makes transporting more convenient

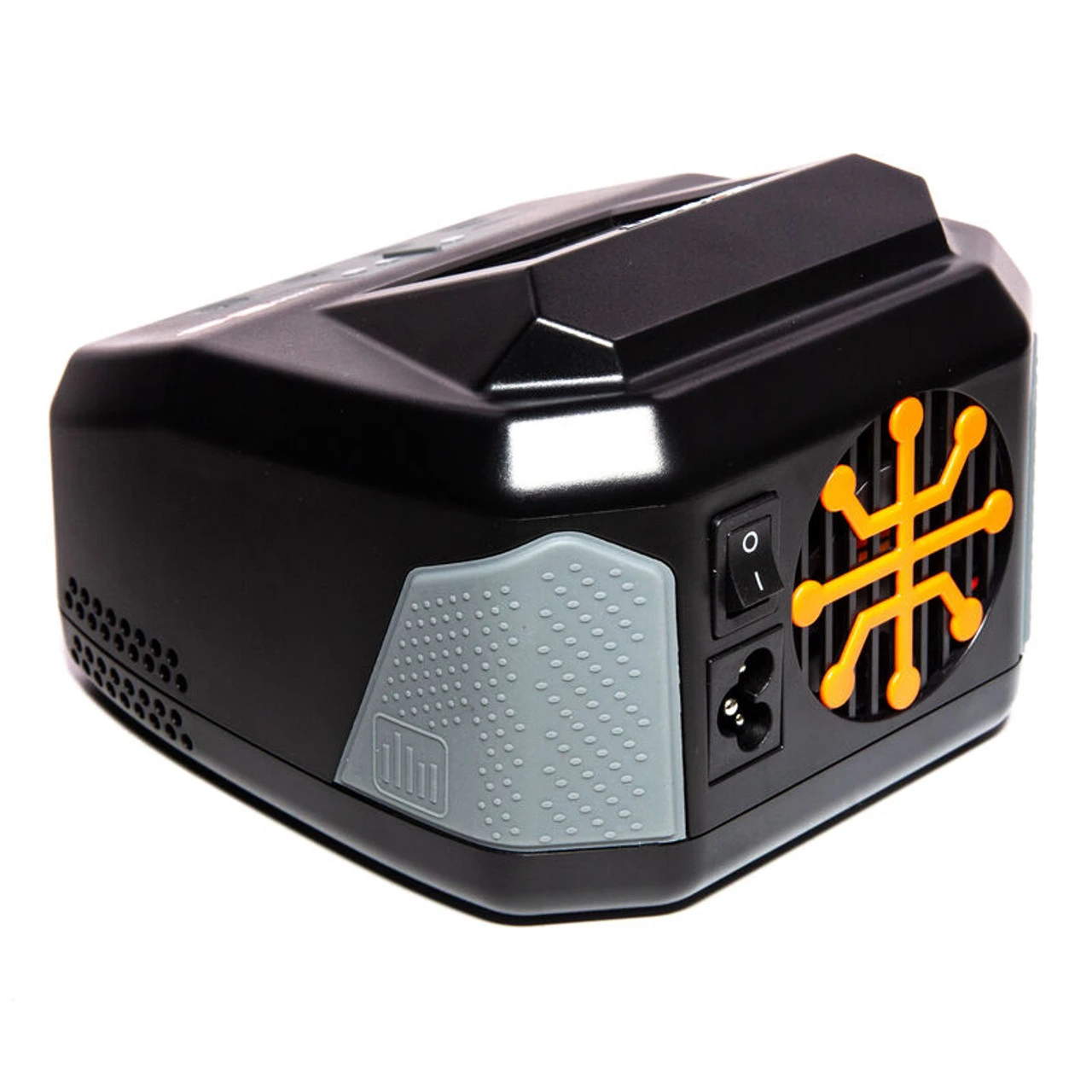

Includes an efficient, low-noise cooling fan
Sleek, sturdy case fits well on a workbench and in pit or field bags
Handy rubber grips on case make it easier to plug in and remove batteries
IC3® and IC5® connectors are backwards compatible with EC3™ and EC5™ connectors

Specifications:

Amp Meter: Yes
Application: RC Model Battery Charger
Battery Balance Connector: JST_XH
Battery Temperature Monitoring: Yes
Charge Protection Circuitry: Yes
Cooling Method: Fan
Discharge: 0.1 – 1.5A
Display: 2.8″ LCD
Hard Case: Yes
Input Voltage: 100 – 240V AC
Integrated Balancing: Yes – Internal Balancer & Internal Adapter
Low Input Voltage Protection: Yes
Maximum Charge Rate: 20A
Maximum Continuous Discharge Rate: 1.5A
Normal/Standard Charge Rate: 0.1 – 20.0A
Number of Cells: 1 – 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb
Output: 2 x 200W, or 380W on one channel
Output Connector: IC3 and IC5 selectable
Over Current Protection: Yes
PC Connectivity: Yes
Peak Detection: Yes
Product Height: 4.13″ (105 mm)
Product Length: 5.7″ (145 mm)
Product Weight: 37.7oz (1070g)
Product Width: 5.67″ (144 mm)
Programmable: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes
Short Circuit Protection: Yes
Software Updates: Yes
Technology: Smart
Thermal Protection: Yes
Voltage Meter: Yes
