Spektrum Smart G2 Powerstage Bundle For Surface 8S

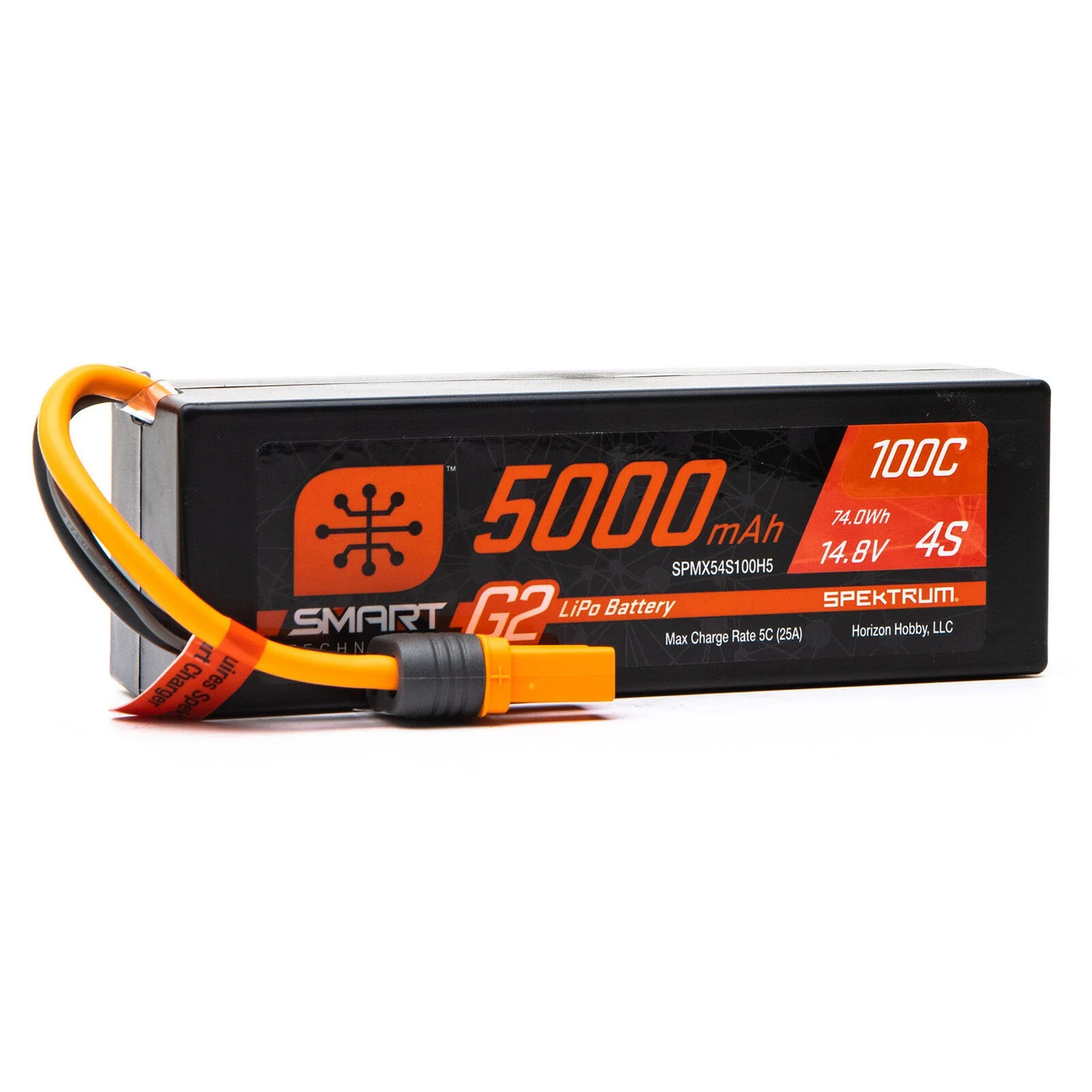

SPEKTRUM SMART G2 BATTERY

Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 100C LiPo batteries to power their vehicles. New “Generation 2” features make these LiPo packs — featuring a 100C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.

For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery’s innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.

Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that’s three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com

Features:

• Simpler and safer to use
• Powerful 100C continuous discharge rating to deliver maximum performance and longevity
• Balance charge through the IC5® connector data wire — with only one connection, no balance lead required
• Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
• Integrated microchip stores unique parameters for each battery
• IC5® connectors are also compatible with EC5™ styles

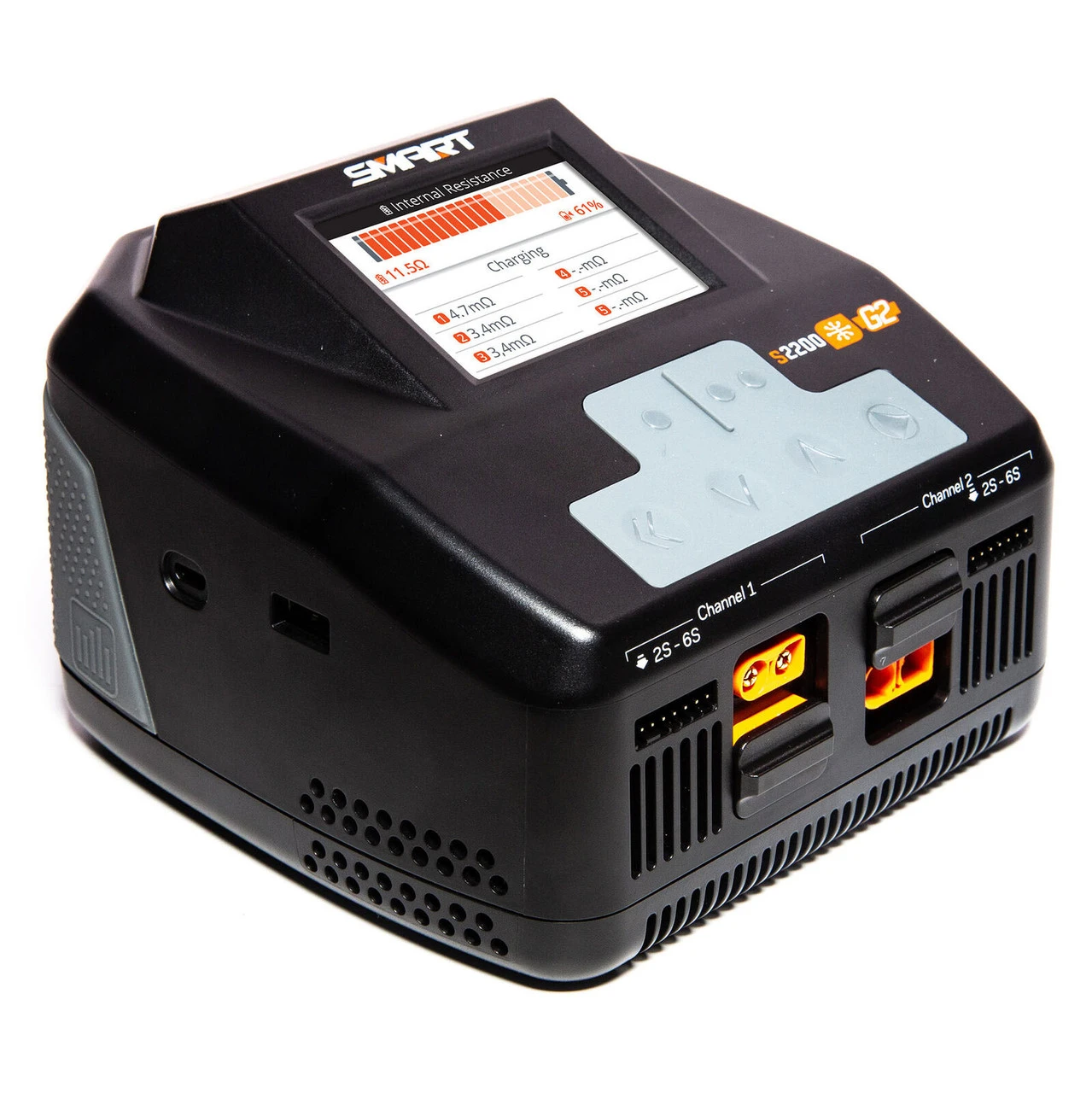

SPEKTRUM SMART CHARGER

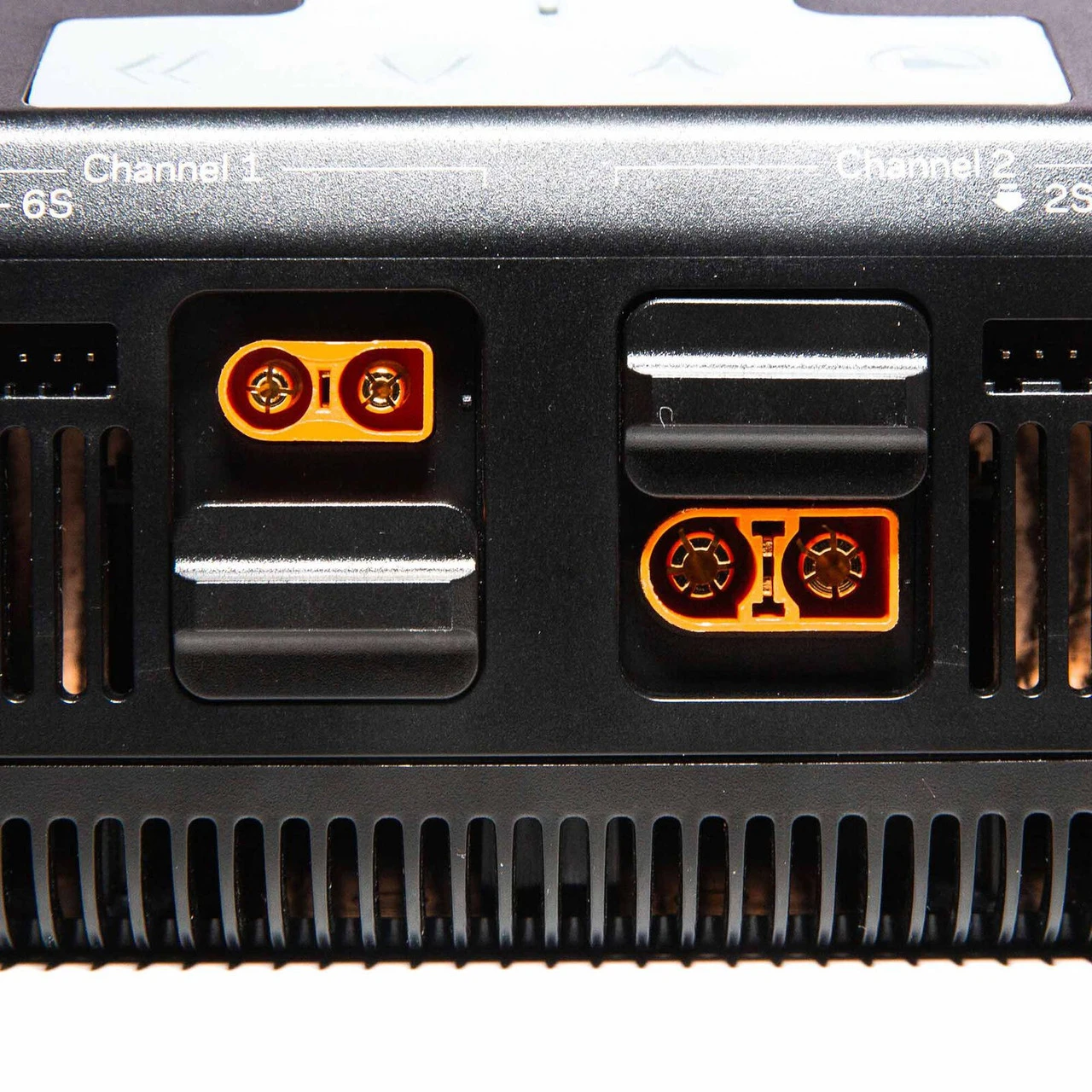

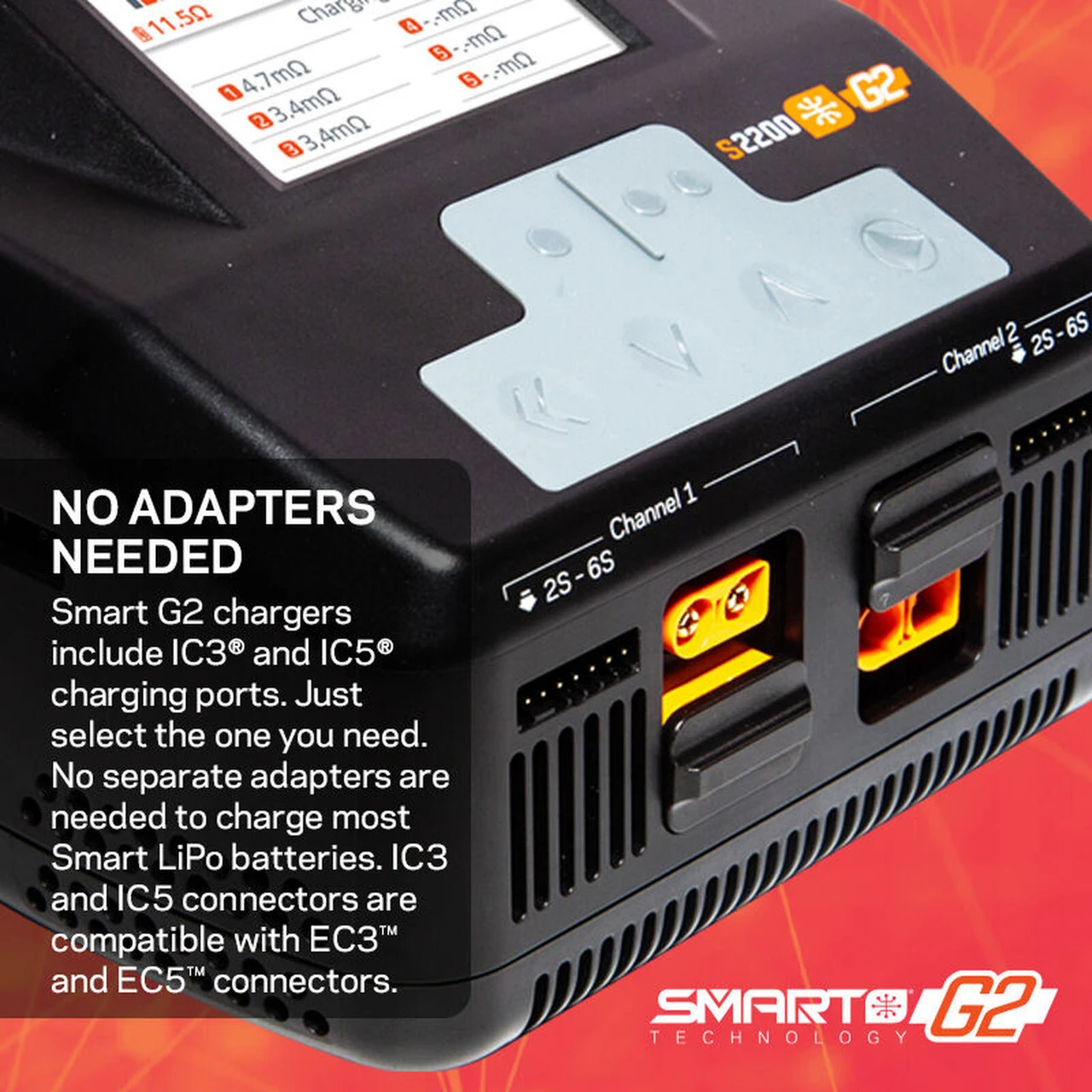

With up to 200W power per channel or 380W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2200 charger delivers a versatile and truly hassle-free charging experience. The S2200 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart G1 or G2 batteries and you’ll be amazed by its incredible functionality and performance.

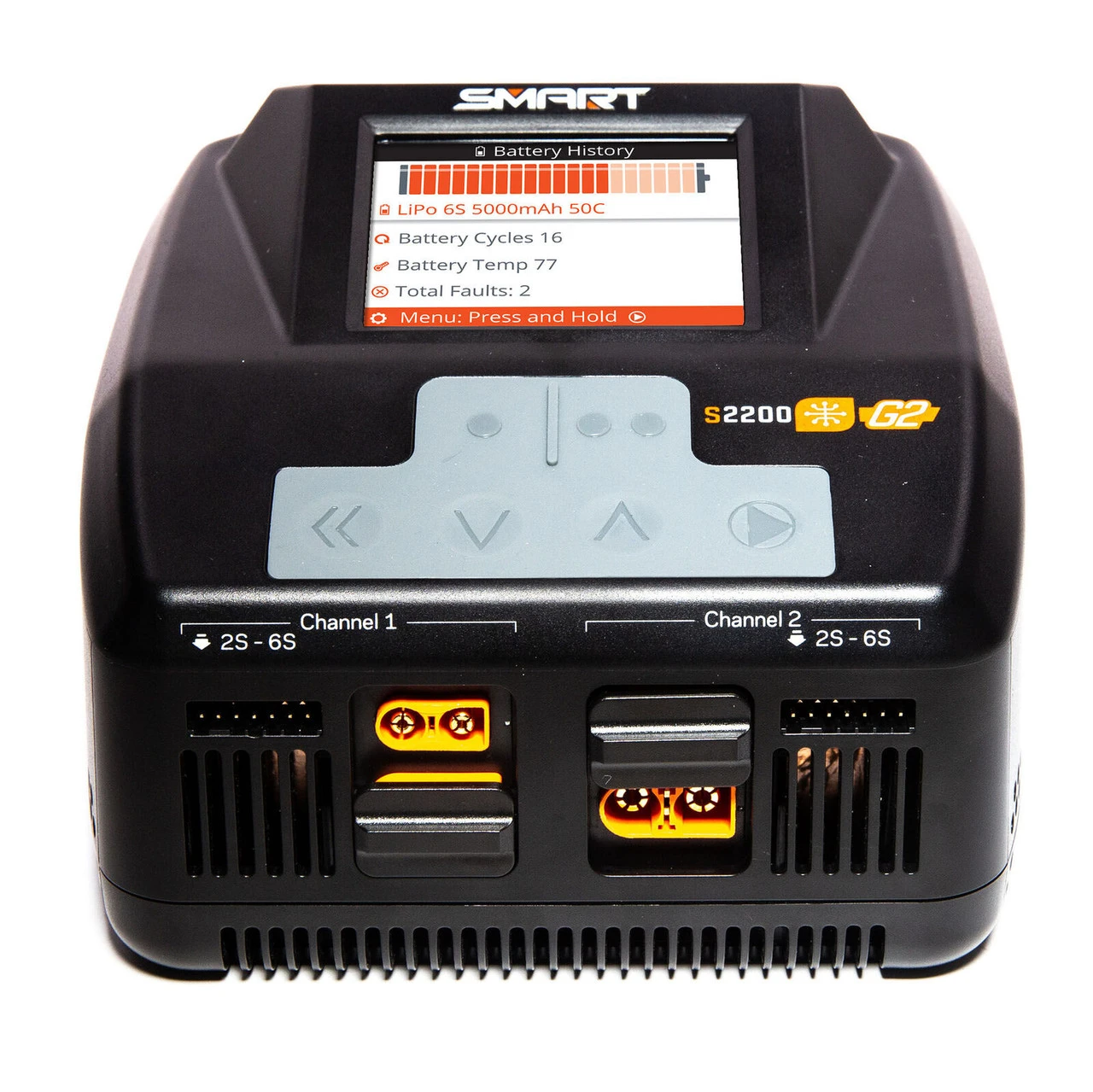

The S2200 Smart G2 AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery’s parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger’s screen counts down the time until your Smart battery is fully charged and ready to use.

Balancing Smart G2 batteries is just as simple. The S2200 charger will balance your Smart G2 LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required.

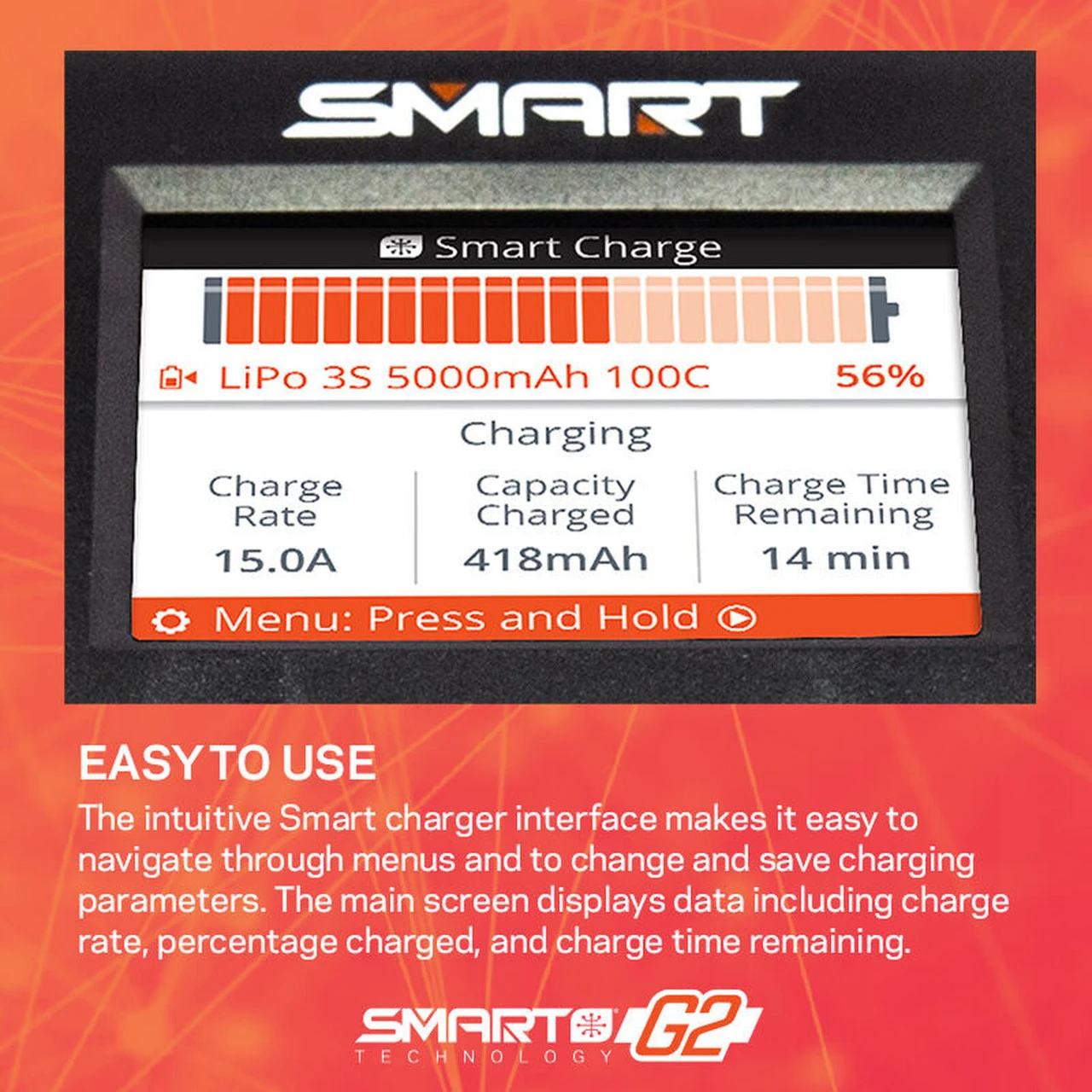

The S2200 Smart G2 AC Charger’s updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track.

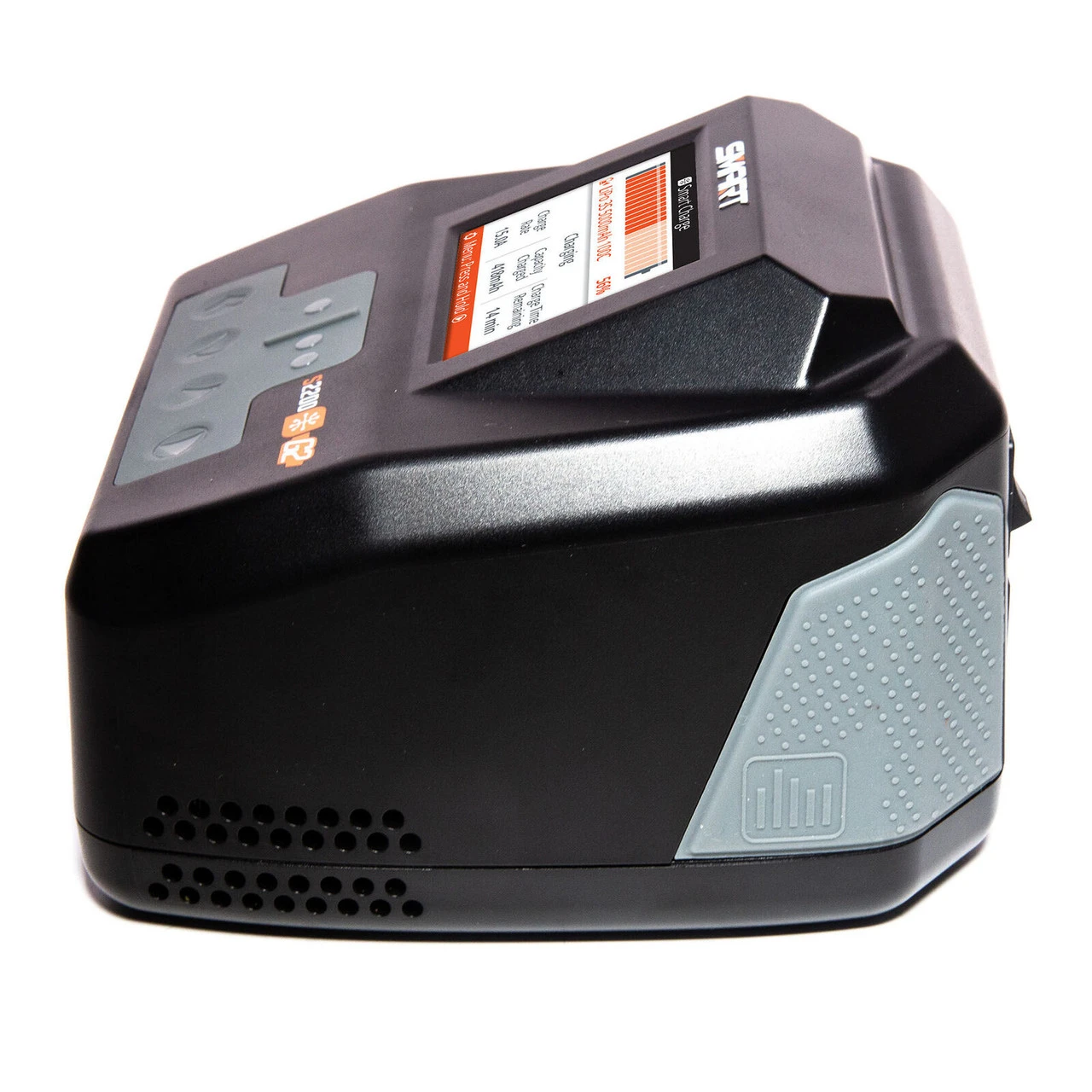

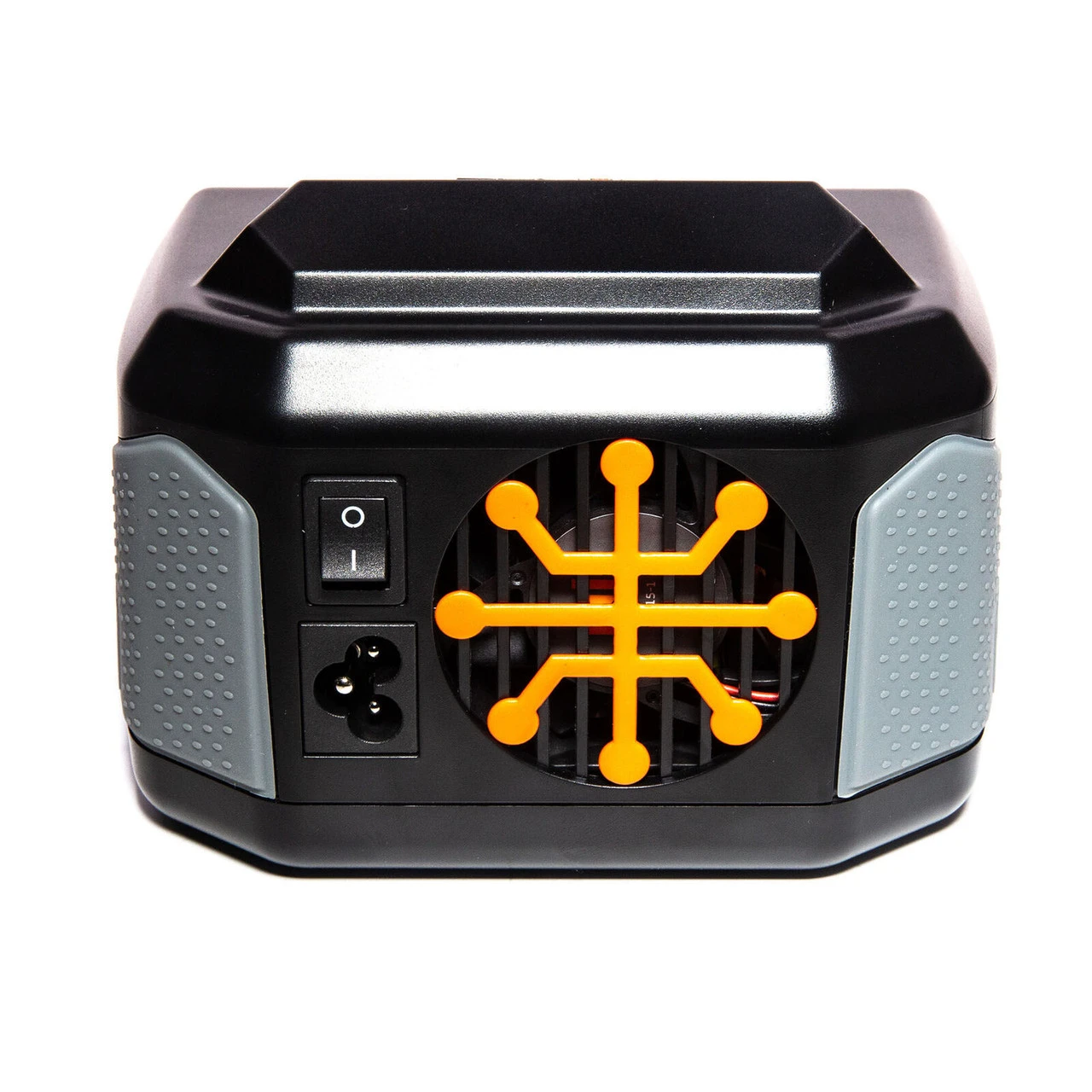

USB input and output ports enable you to charge secondary devices and to update the charger’s firmware so you always have the latest version. The S2200 Smart G2 AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.

Product Specifications
Amp Meter Yes
Battery Temperature Monitoring Yes
Battery Type LiPo (3.7V per cell)
Charge Protection Circuitry Yes
Discharge 0.1 – 1.5A
Display 2.8″ LCD
Hard Case Yes
Input Voltage 100 – 240V AC
Integrated Balancing Yes – Internal Balancer & Internal Adapter
Low Input Voltage Protection Yes
Maximum Burst Discharge Rate 20A
Maximum Continuous Discharge Rate 1.5A
Normal/Standard Charge Rate 0.1 – 20.0A
Number of Cells 1 – 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb
Output 2 x 200W, or 380W on one channel
Output Connector IC3 and IC5 selectable
Over Current Protection Yes
PC Connectivity Yes
Peak Detection Yes
Product Height 4.13″ (105 mm)
Product Length 5.7″ (145 mm)
Product Weight 37.7oz (1070g)
Product Width 5.67″ (144 mm)
Programmable Yes
Reverse Polarity Protection Yes
Safety Timer Yes
Selectable Charge Rate Yes
Short Circuit Protection Yes
Software Updates Yes
Technology Smart
Thermal Protection Yes
Voltage Meter Yes

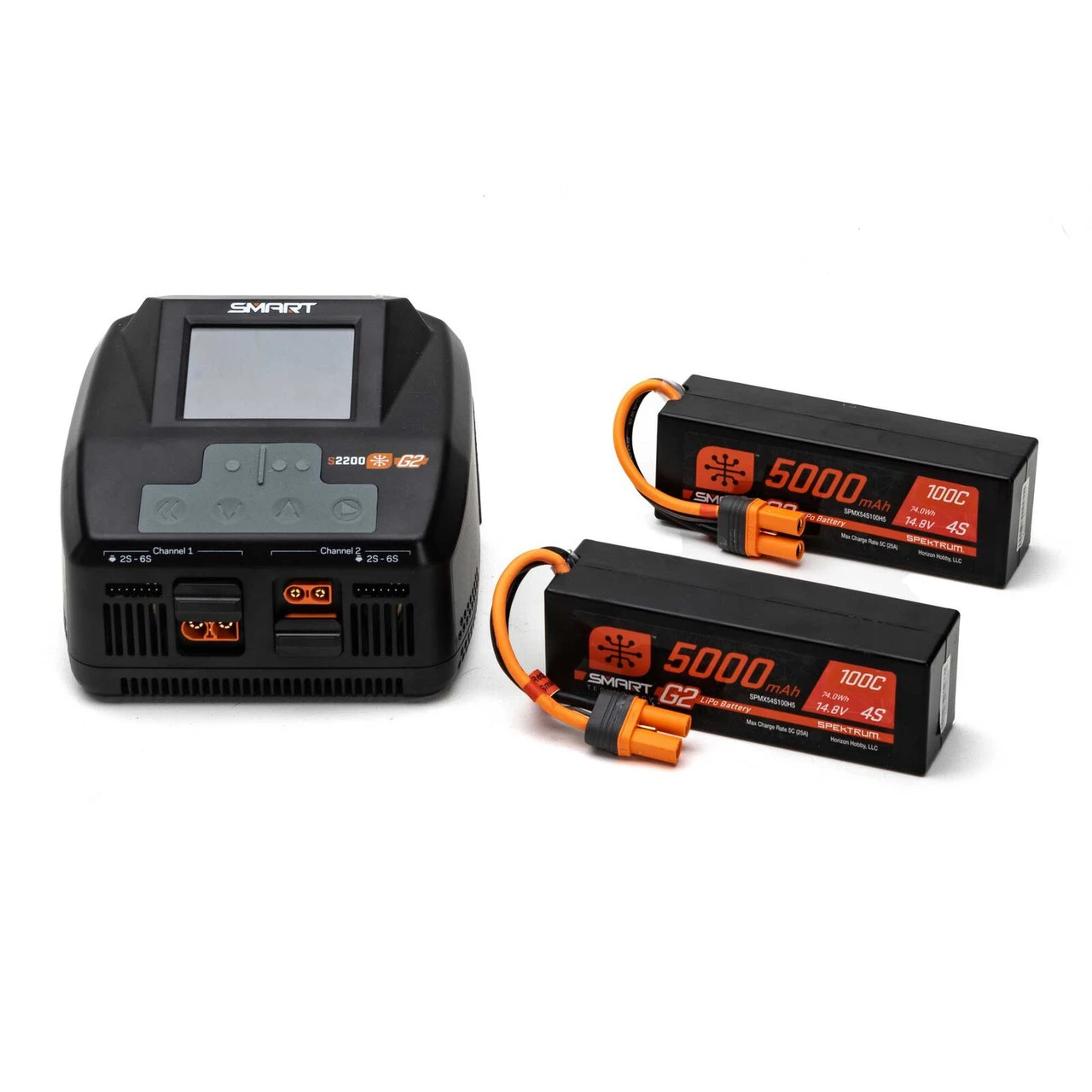

Includes:

(1) S2200 Smart G2 Dual Port AC Charger

(2) 5000mAh 4S 100C Smart G2 LiPo Batteries
