Product Description

Spektrum Smart G2 Powerstage Bundle for Surface 2S (SPMXG2PS2)

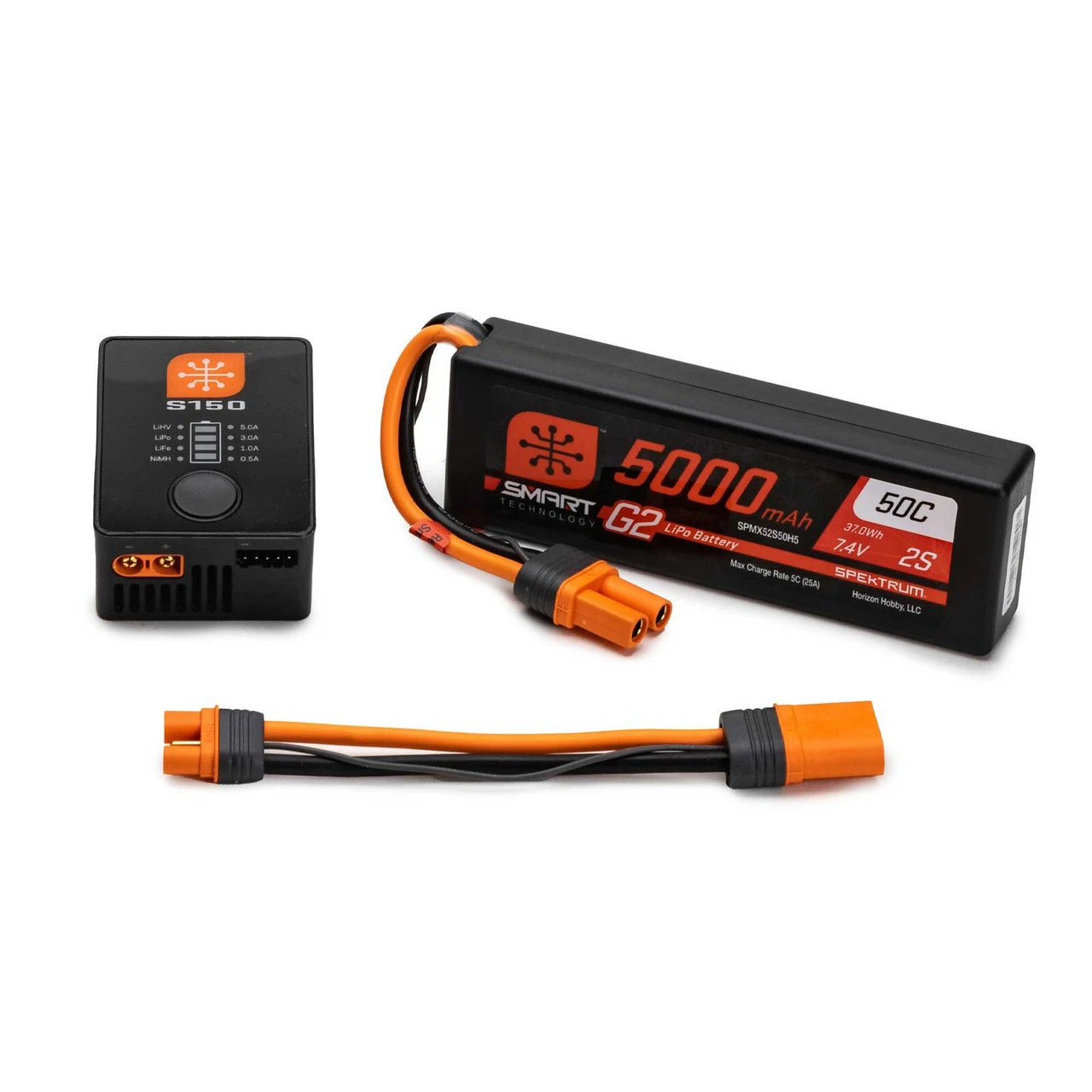

The Smart G2 Powerstage bundle is a one-box solution for vehicles requiring top performance. Designed with the simplicity of Smart G2 Technology, this bundle includes (1) 5000mAh 2S 50C Smart LiPo battery, (1) S150 Smart AC/DC Charger, and (1) IC3 Battery / IC5 Device adapter.

Battery:

Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. “Generation 2” features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.

For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery’s innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.

Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that’s three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com

Charger:

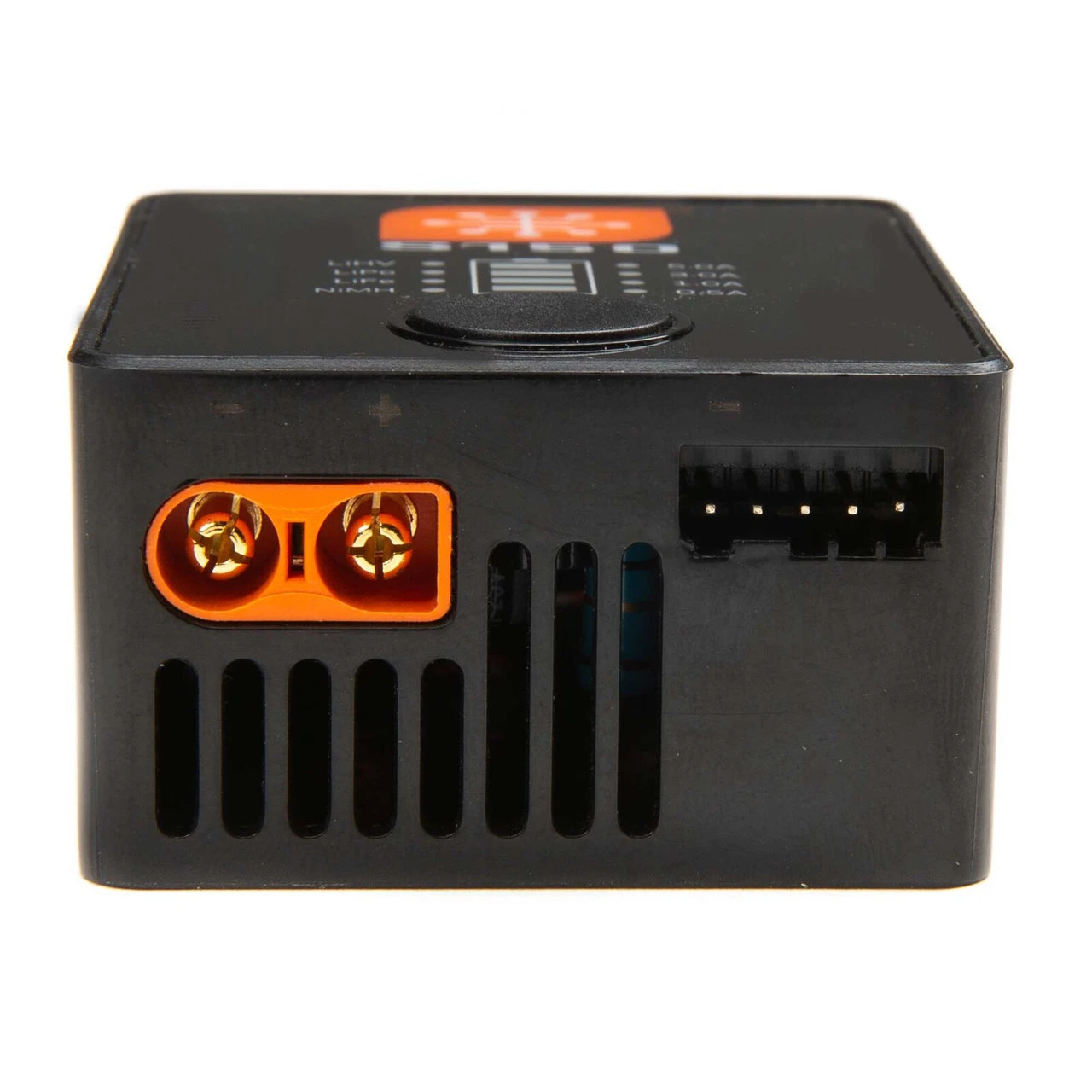

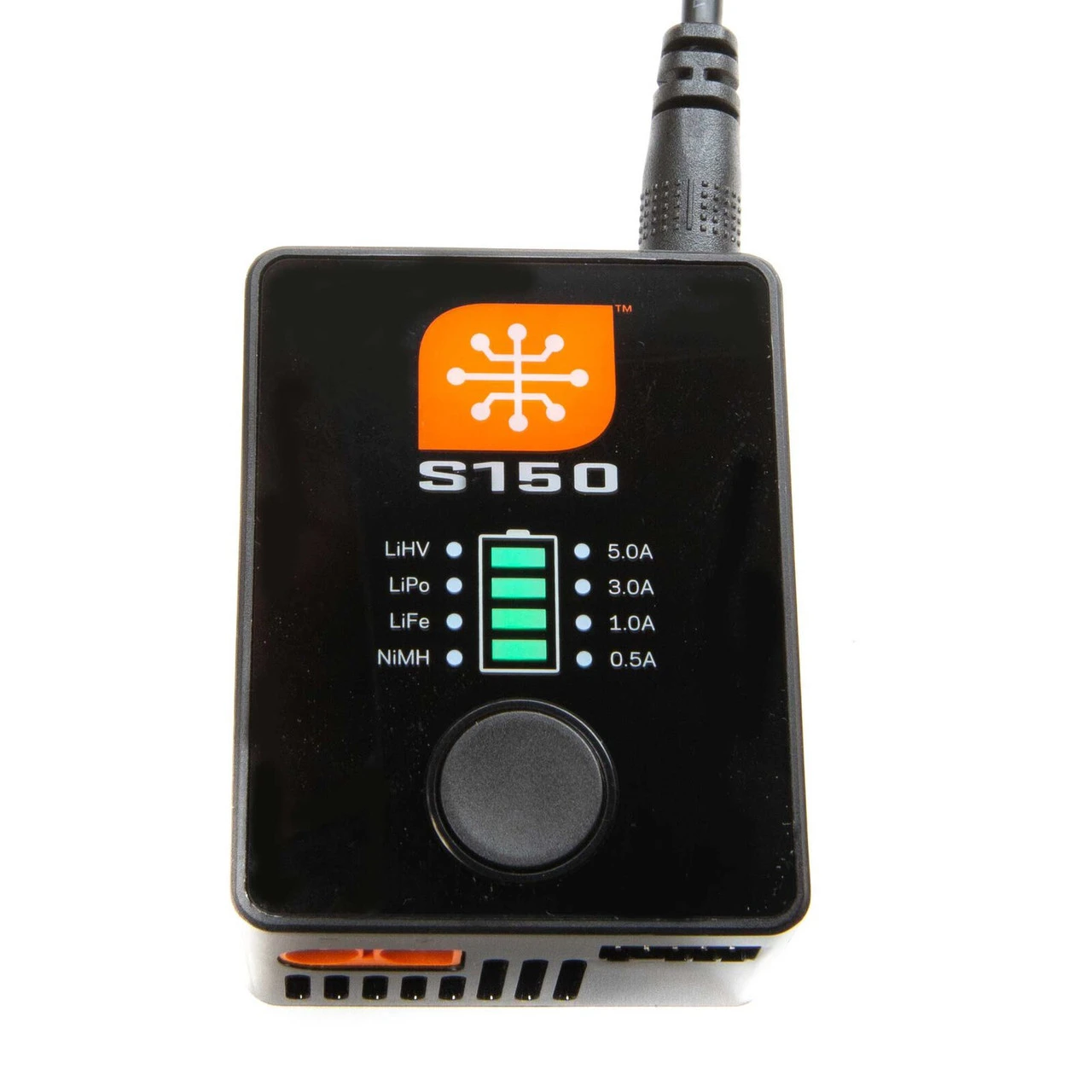

With the compact S150 AC Mini Smart Charger, modelers of all experience levels can enjoy the charging advantages of innovative Spektrum™ Smart technology. This 50 watt charger brings advanced Smart charging capabilities and features to an affordable platform that features an easy-to-use, one-button interface.

When used with Spektrum Smart batteries with an IC3™ or IC5™ connector, the S150 uploads charging data from each battery’s integrated memory chip. That pack-specific data helps you evaluate battery health and makes charging a snap — because the S150 can read and make the correct chemistry setting automatically. The S150 AC Mini Smart Charger is compatible with LiPo, Lilon, LiHV, and NiMH battery types.

Features:

Battery:

Simpler and safer to use
Powerful 50C continuous discharge rating to deliver high performance and longevity
Balance charge through the IC5® connector data wire — with only one connection, no balance lead required
Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
Integrated microchip stores unique parameters for each battery
IC5® connectors are also compatible with EC5™ styles

Charger:

Recognizes unique Smart battery data for safe, easy charging
Charges 2-4S LiPo, Lilon, LiHV, LiFe batteries 300mAh and above
Also charges 2-12 cell NiMH batteries
Can also be used to charge batteries without Smart technology
50 watts of charging power, up to 5 amps of charge current
Compact, easily portable design
One-button interface and simple to understand charging indicator
Adaptable for AC power input (includes AC to 20V DC power supply)

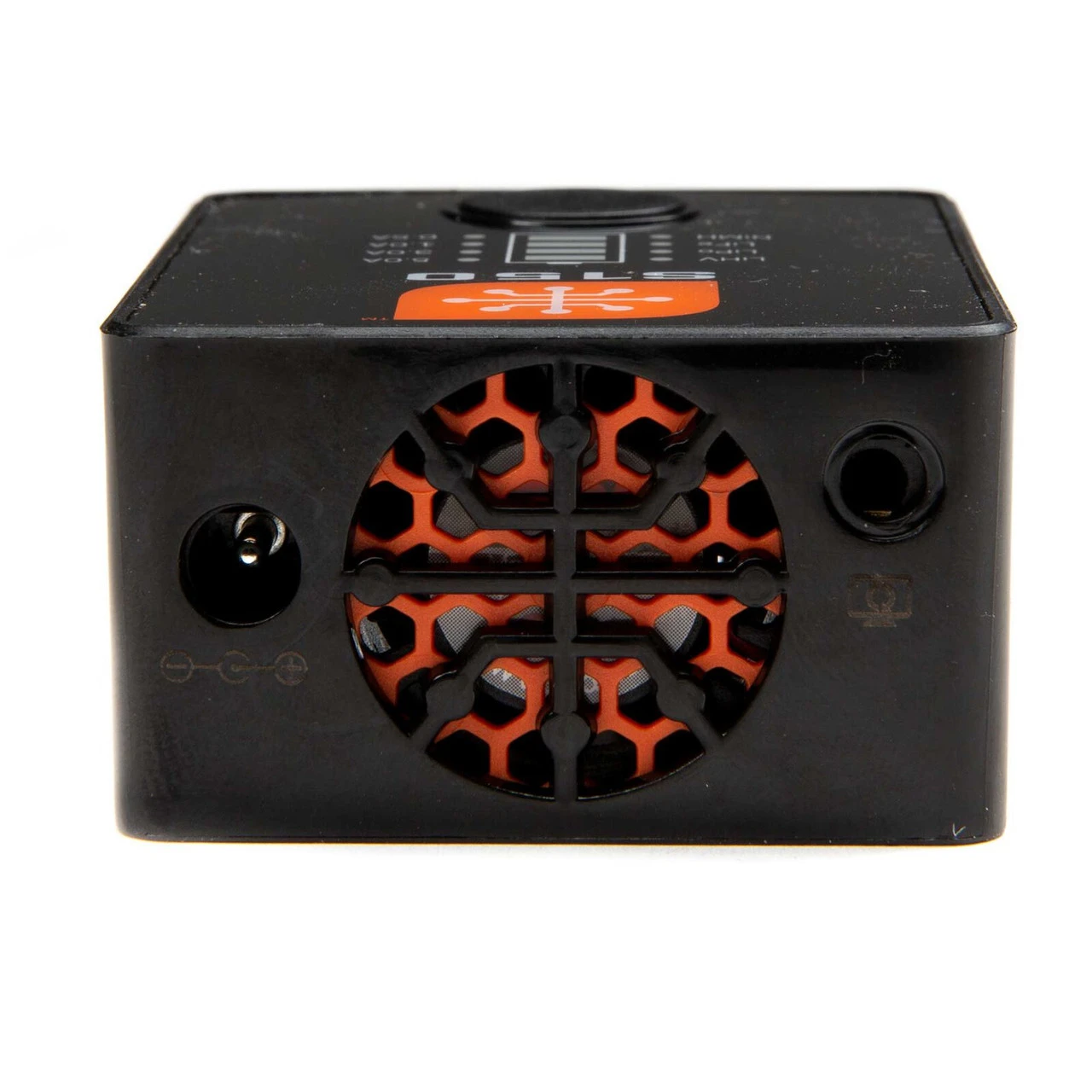

Quiet internal cooling fan maintains a safe, efficient operating temperature
Accepts future Smart technology updates

Specification:

Amp Meter: No
Application: Battery Charger for Electric Powered RC Vehicles and Aircraft
Battery Balance Connector: JST-XH
Battery Temperature Monitoring: No
Battery Type: LiPo (3.7V per cell)
Cell Configuration: Stick
Connector Type: IC3
Discharge: Yes
Hard Case: Yes
Input Voltage: 100-240V AC
Integrated Balancing: Yes – Internal Balancer & Internal Adapter
Low Input Voltage Protection: Yes
Maximum Charge Rate: 17.4V, 5A, 50W
Normal/Standard Charge Current: 1.0 – 5.0A
Number of Cells: 2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH
Output: 5A
Output Connector: IC3 (compatible with EC3)
Over Current Protection: Yes
Peak Detection: Yes
Product Height: 1.12″ (28 mm)
Product Length: 2.5″ (64 mm)
Product Weight: 2.2oz (63g)
Product Width: 1.9″ (48 mm)
Programmable: No
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes
Short Circuit Protection: Yes
Software Updates: Yes
Technology: Smart
Thermal Protection: Yes
Voltage Meter: No

Includes:

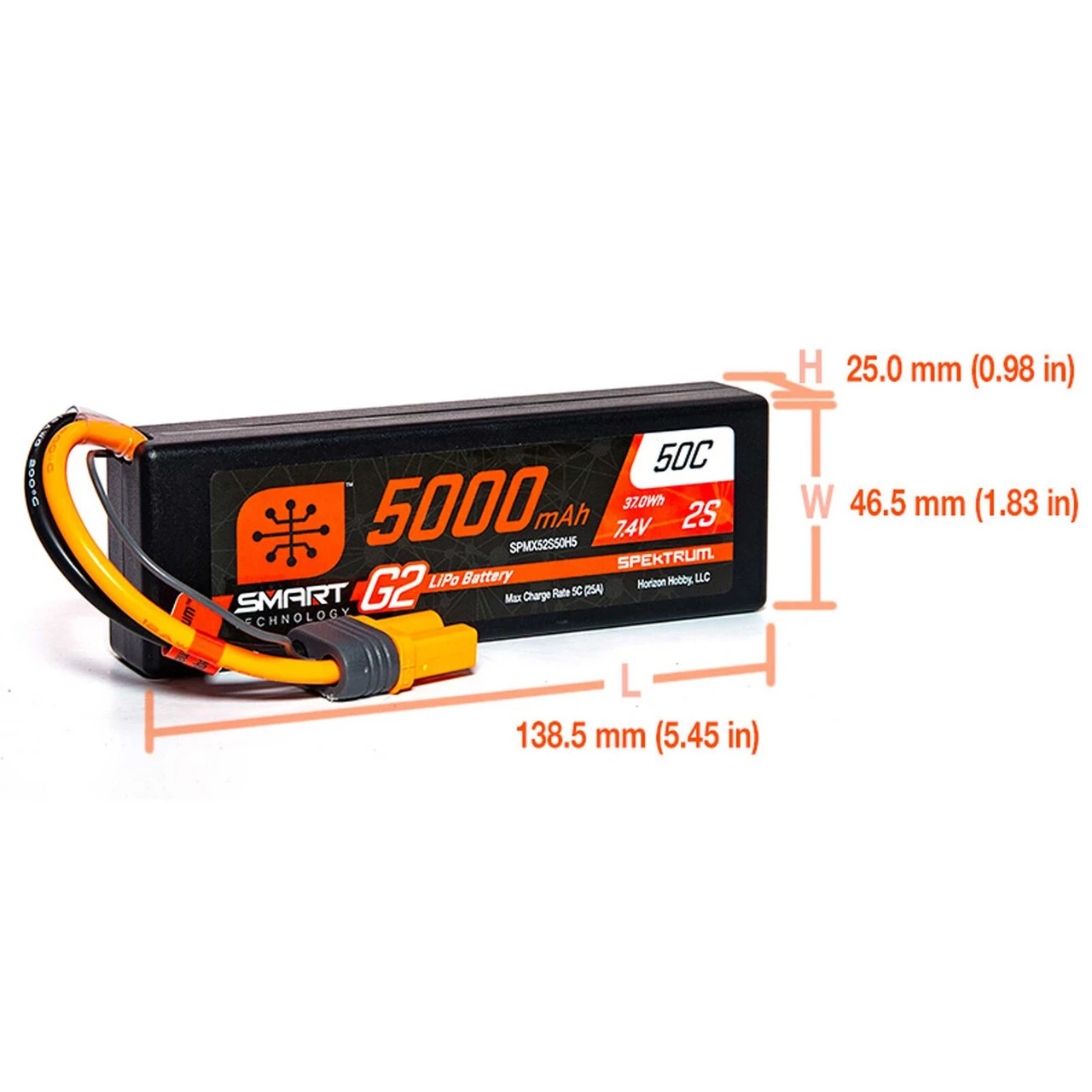

(1) Spektrum 5000mAh 2S 7.4V 50C Smart G2 LiPo Battery Hardcase, IC5
(1) Spektrum S150 AC/DC Smart Charger, 1x50W
(1) Spektrum Adapter: IC3 Battery / IC5 Device, 4” 10AWG

Resources
- Spektrum Smart G2 PowerStage Bundle for Surface 3S Manual
