Product Description

Spektrum S2100 G2 2x100W AC Smart Charger (SPMXC2000)

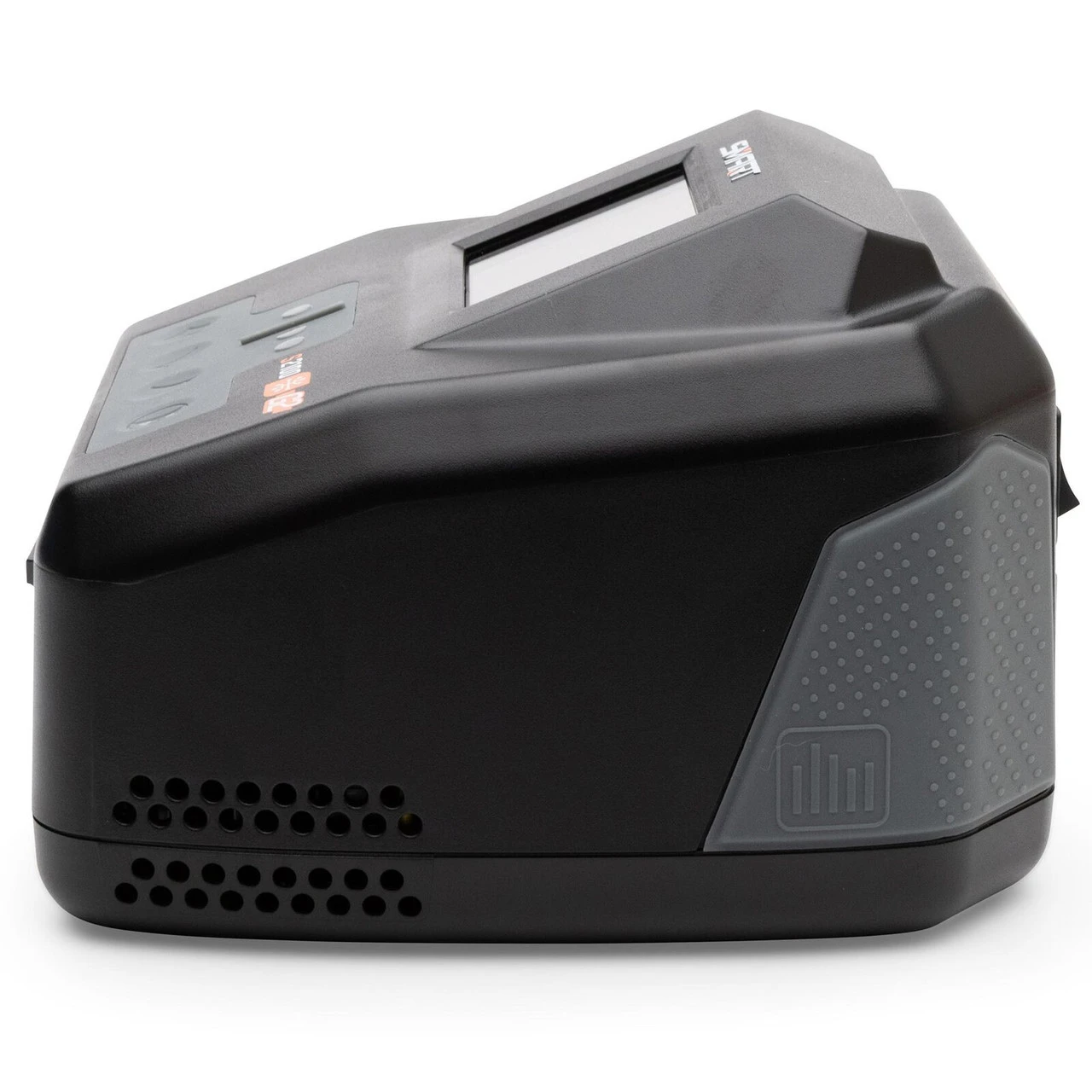

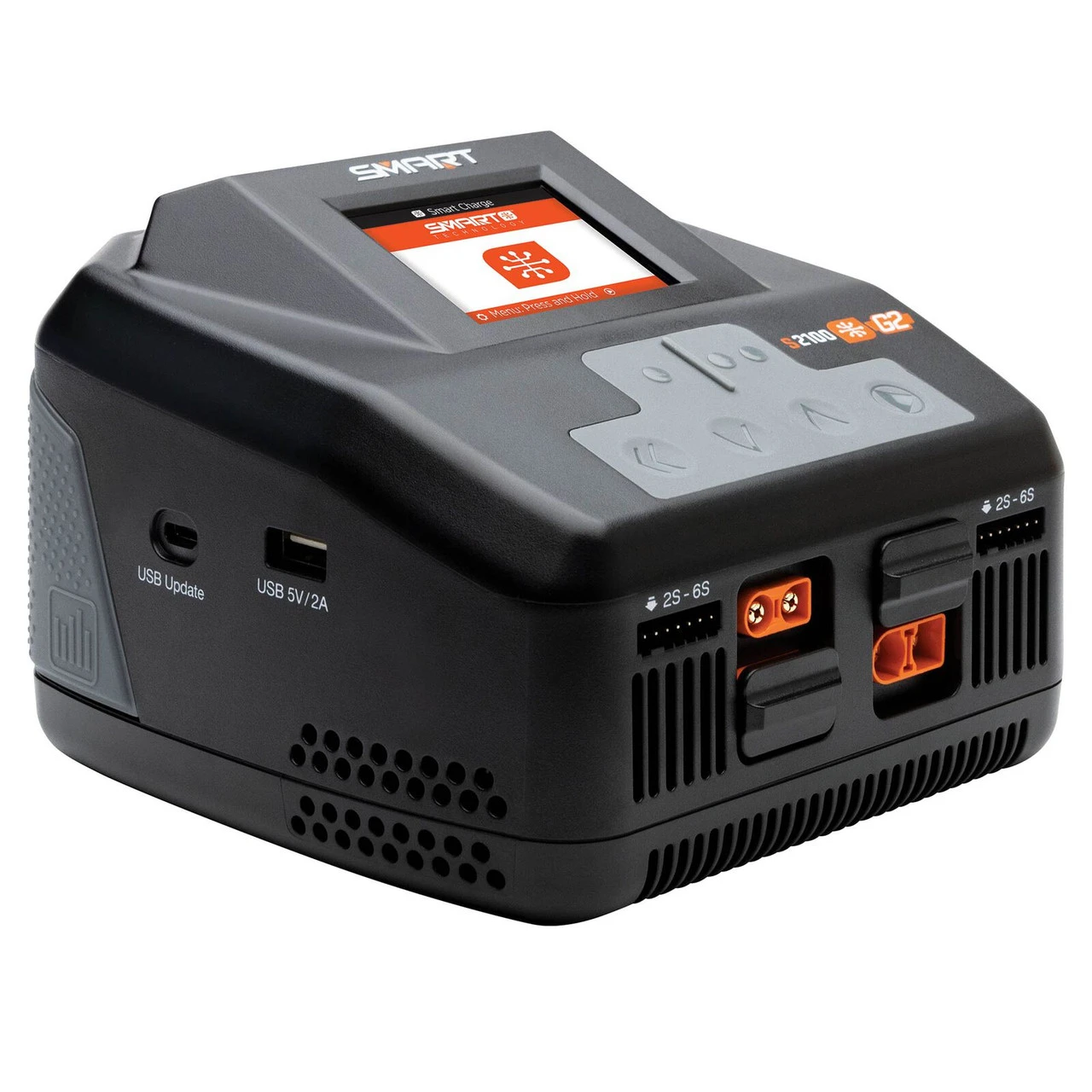

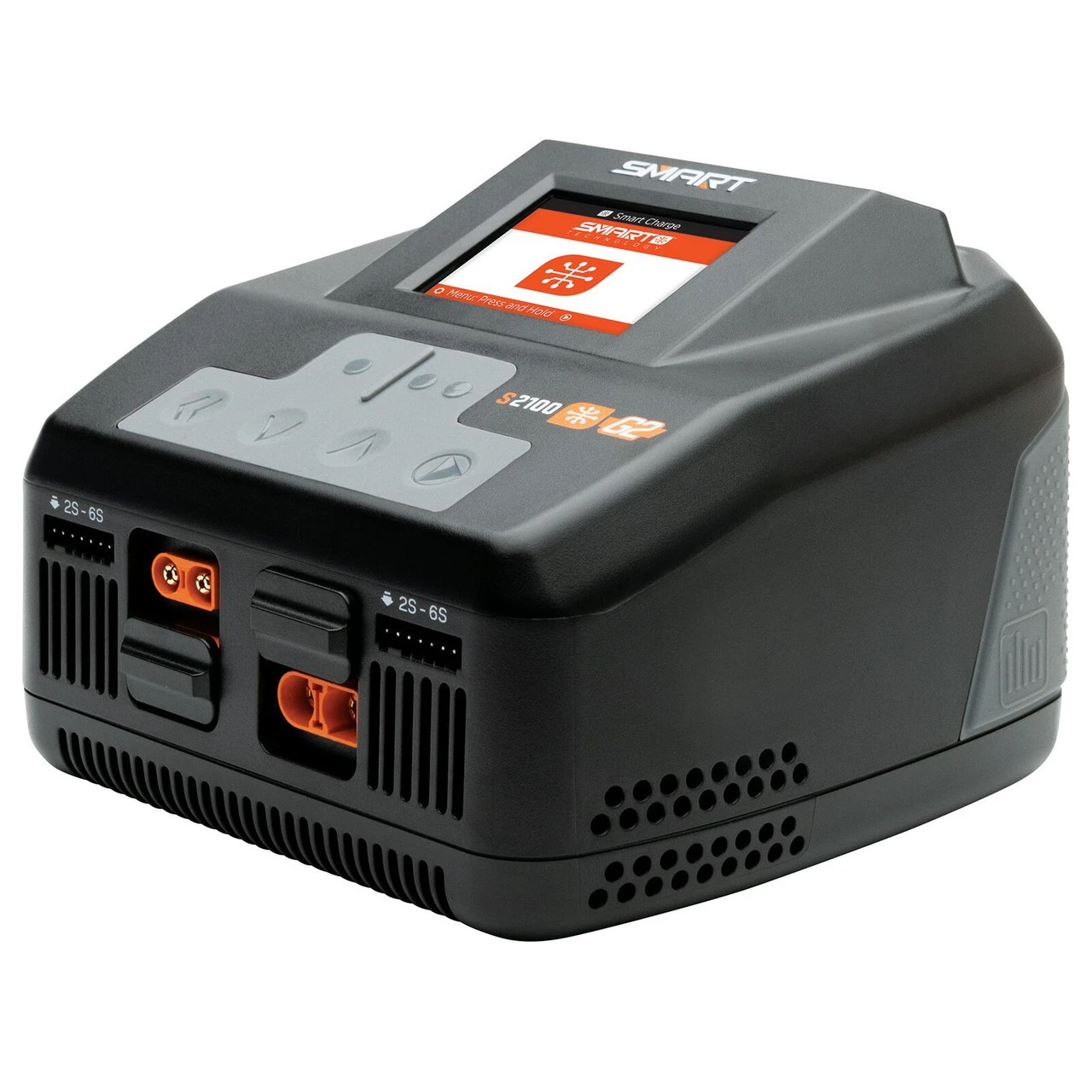

The 2-channel S2100 Smart AC Charger — from the new generation of Spektrum™ Smart electronics — brings today’s most advanced and user-friendly charging technology to RC pilots and drivers of all skill levels. With up to 100W power per channel or 200W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2100 charger delivers a versatile and truly hassle-free charging experience. The S2100 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart batteries and you’ll be amazed by its incredible functionality and performance. The S2100 Smart AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery’s parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger’s screen counts down the time until your Smart battery is fully charged and ready to use. Balancing Smart batteries is just as simple. The S2100 charger will balance your Smart LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required. The S2100 Smart AC Charger’s updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track. USB input and output ports enable you to charge secondary devices and to update the charger’s firmware so you always have the latest features. The S2100 Smart AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.

Features:

Up to 100W power per channel or 200W on one channel for fast charging

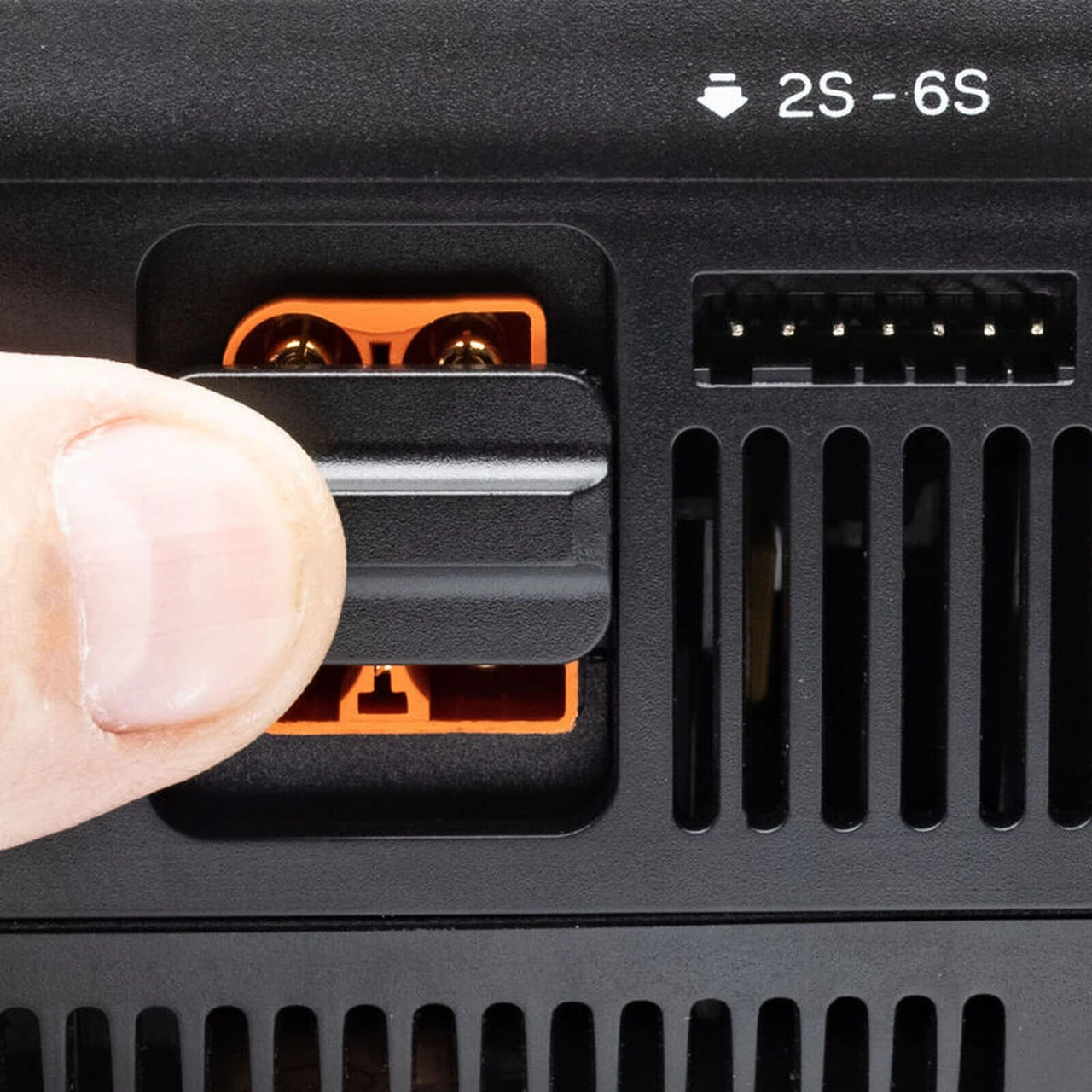

Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
Smart software tracks and stores numerous Smart battery data
Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter

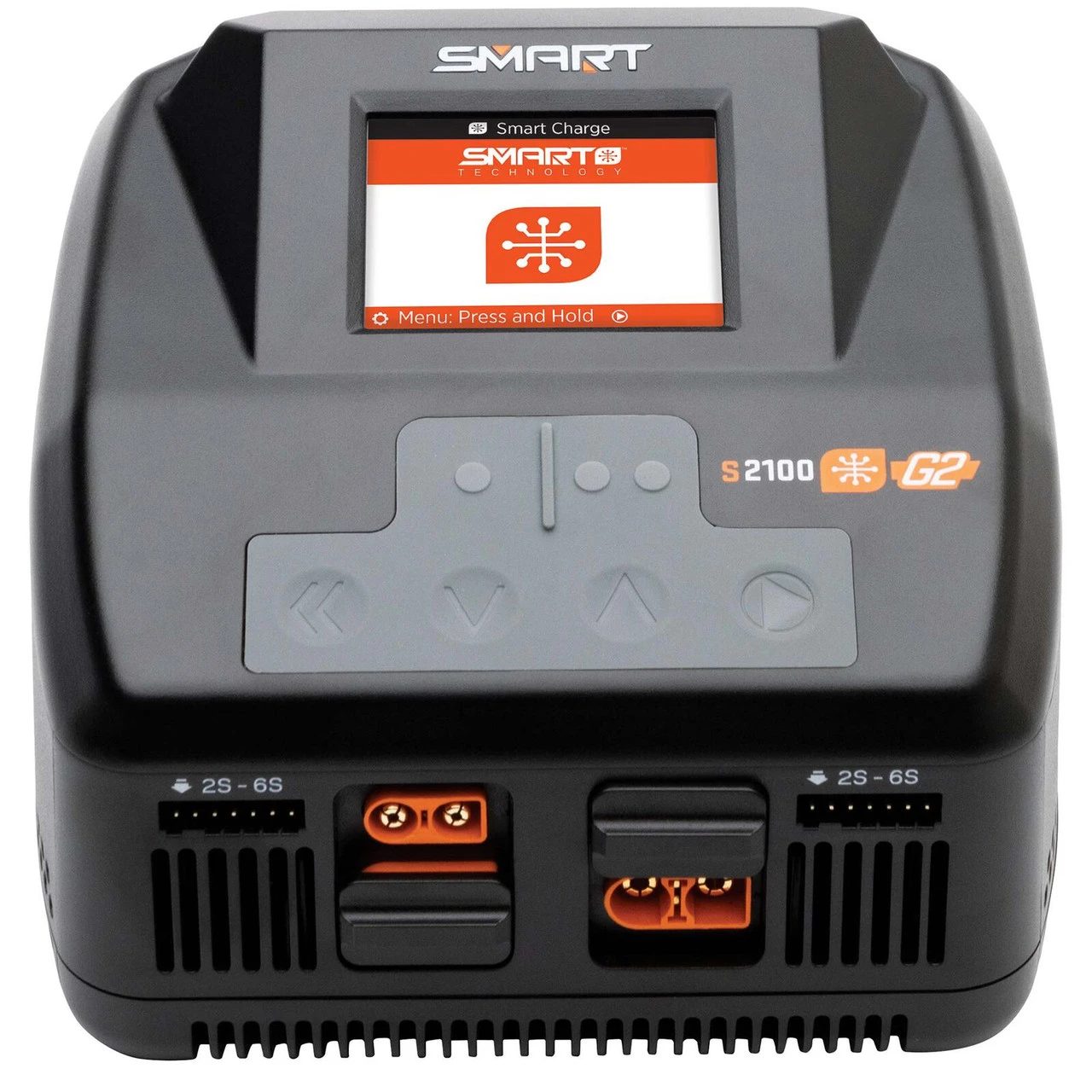

Large, 2.4″ display screen
An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use
Updated user interface features fresh, intuitive menus, icons and navigation tools, plus non-slip, easy to use buttons

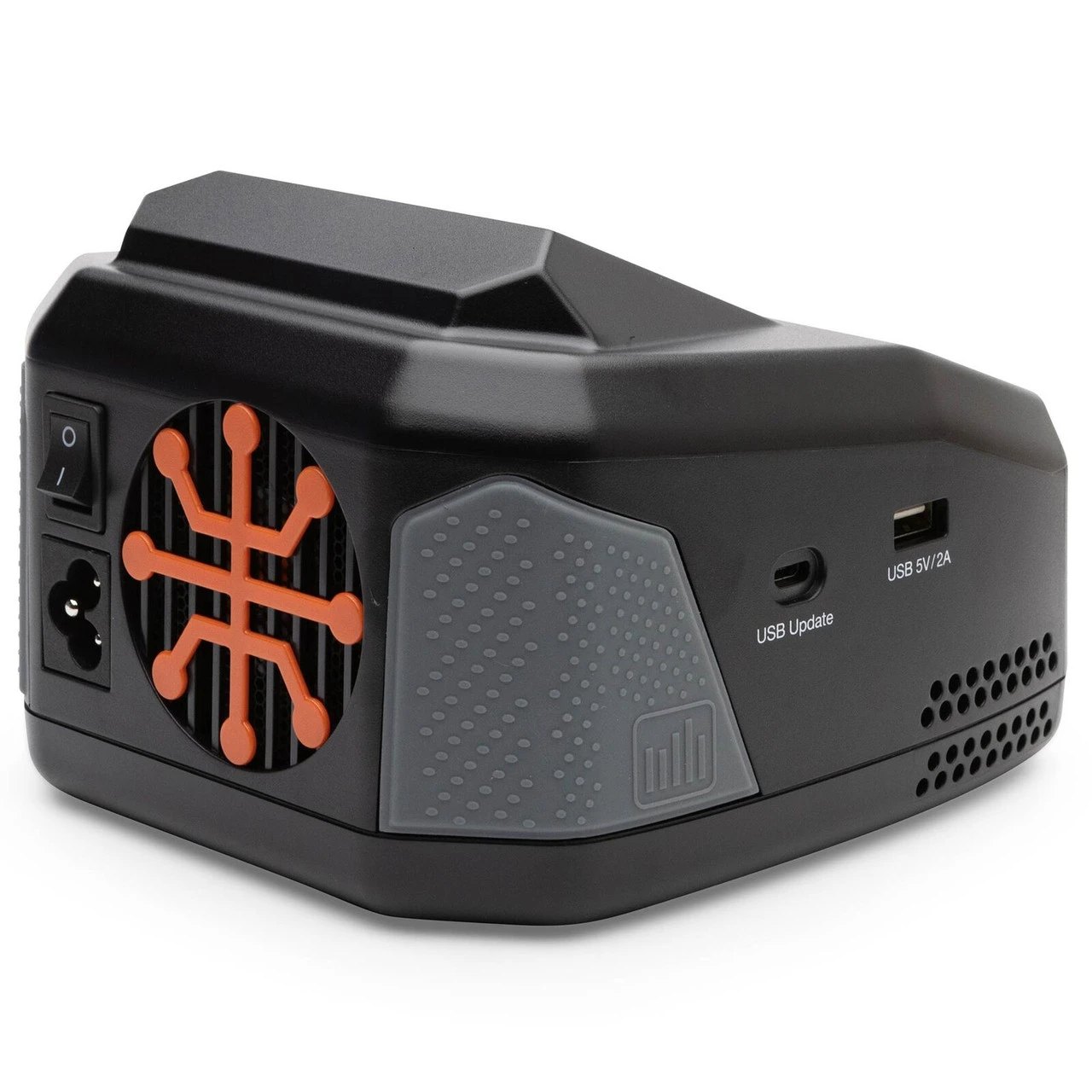

USB input and output ports are included for updating firmware and charging secondary devices

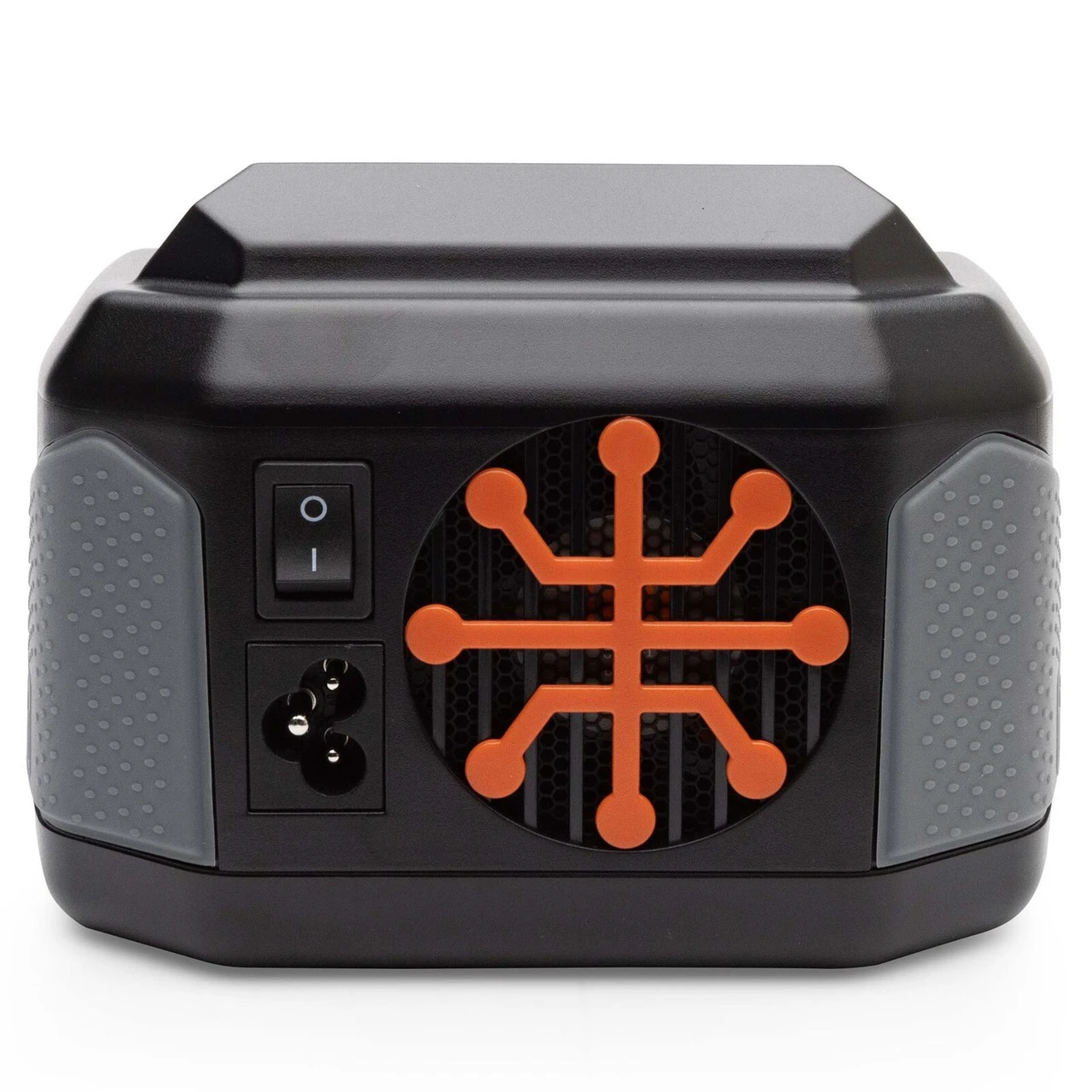

ON/OFF switch eliminates the need to plug in and unplug the power cord for ON/OFF control
Detachable power cord makes transporting more convenient

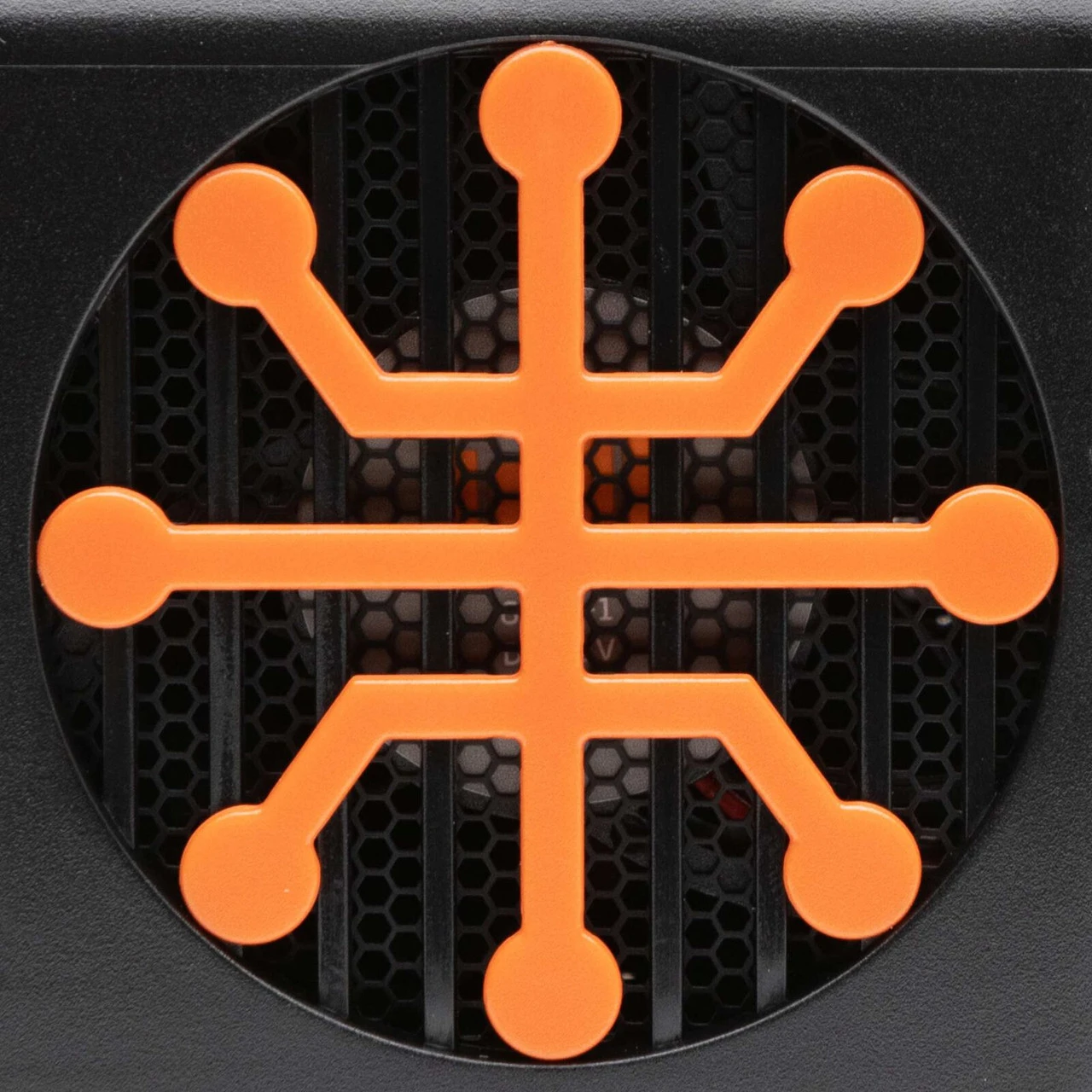

Includes an efficient, low-noise cooling fan
Sleek, sturdy case fits well on a workbench and in pit or field bags
Handy rubber grips on case make it easier to plug in and remove batteries
IC3® and IC5® connectors are backwards compatible with EC3™ and EC5™ connectors

Specification:

Display: 2.4″ 320 x 240 IPS LCD
Input Voltage: 100 – 240V AC, 50 – 60 Hz
Power (watts): 100 – 199W
Product Height: 4.1″ (104 mm)
Voltage Meter: Yes
Amp Meter: Yes
Application: RC model battery charger
Output Connector: IC3, IC5
Peak Detection: Yes
Product Weight: 2.4 Lb (1070 g)
Short Circuit Protection: Yes
Over Current Protection: Yes
USB Power out: Yes
Connector Type: IC3, IC5
Discharge: 0.1 – 1.5A, adjustable in 0.1A increments (15W Max)
Maximum Charge Rate: 10 to 14 Amps
Product Length: 5.7″ (145 mm)
Reverse Polarity Protection: Yes
Thermal Protection: Yes
Number of Output Ports: 2
Power Source: AC
Selectable Charge Rate: Yes
Battery Temperature Monitoring: Yes
Charge Protection Circuitry: Yes
Number of Cells: 1 – 6S Li-Ion/LiPo/LiFe, 1 – 16S NiCd/NiMH, 1 – 12S Pb
Battery Balance Connector: JST-XH
Integrated Balancing: Yes – Internal Balancer & Internal Adapter
Normal/Standard Charge Rate: 0.1 – 12.0A, adjustable in 0.1A increments (200W Max)
Product Width: 5.7″ (145 mm)
Software Updates: Yes
Technology: Smart
Battery Type: Smart, Non Smart
PC Connectivity: Yes
Programmable: Yes
Safety Timer: Yes

Includes:

(1) S2100 Smart AC Charger (1) Power Cord (1) Manual
