Name: Spektrum S1500 DC 500W Smart Charger
SKU: SPMXC1050
Availability: InStock

Product Description

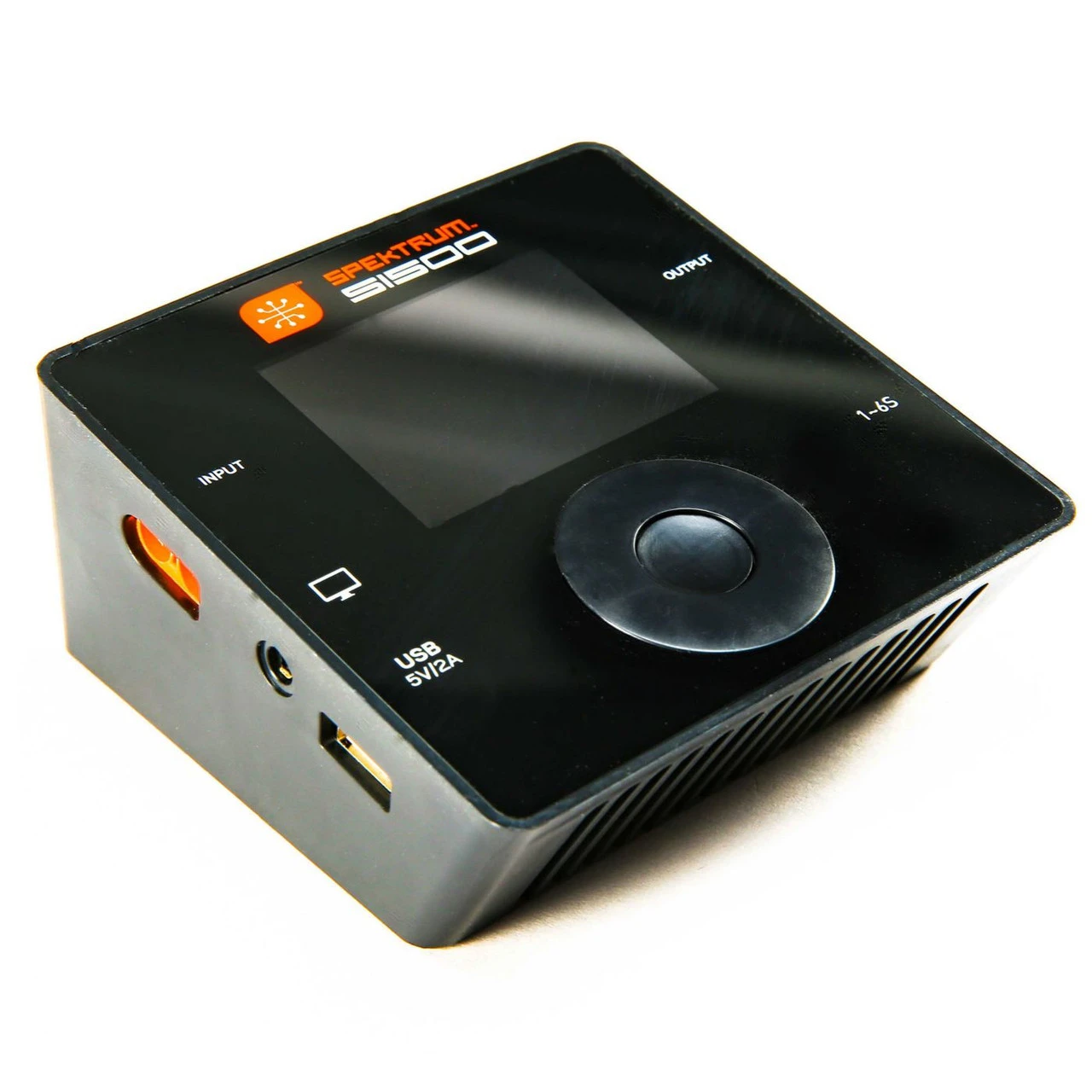

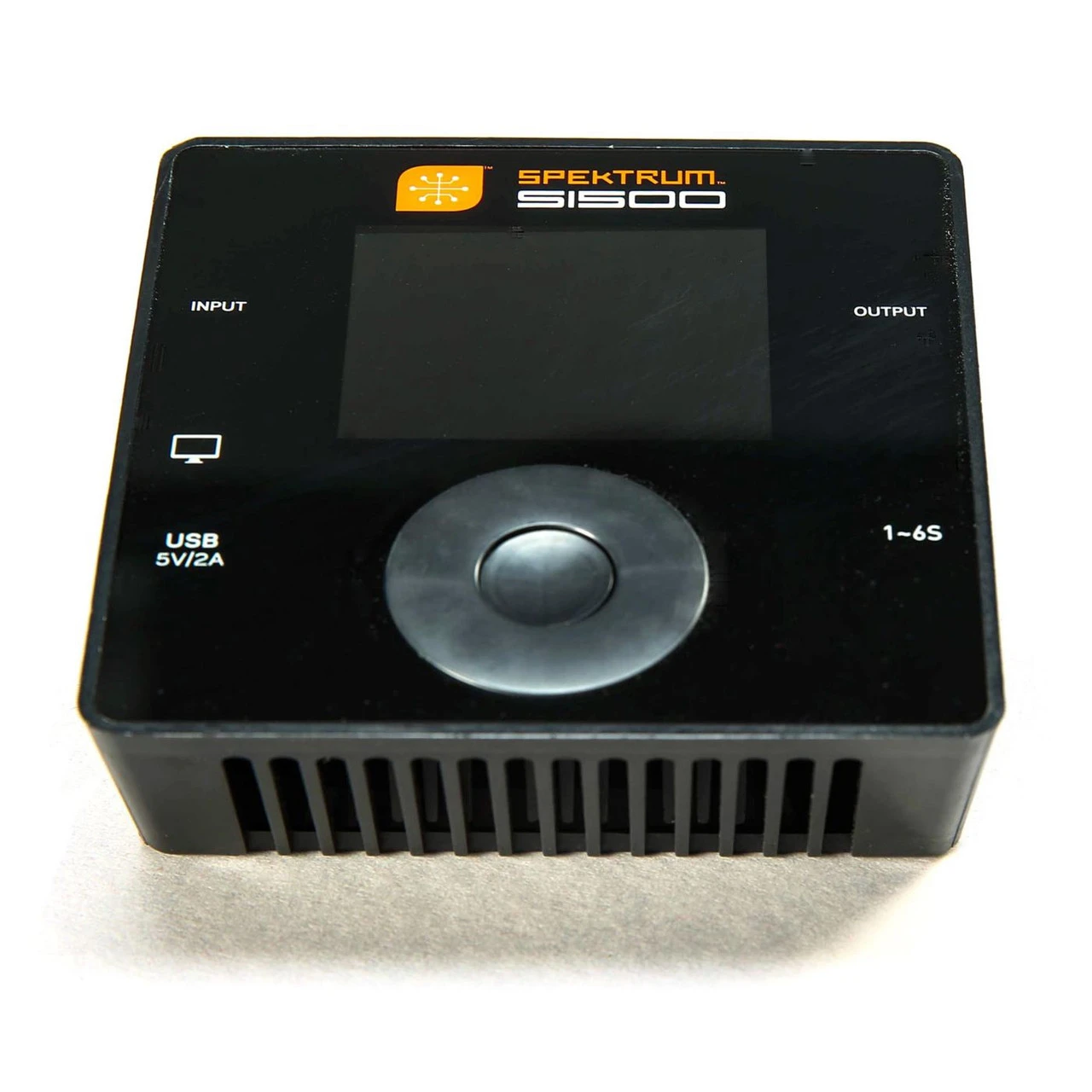

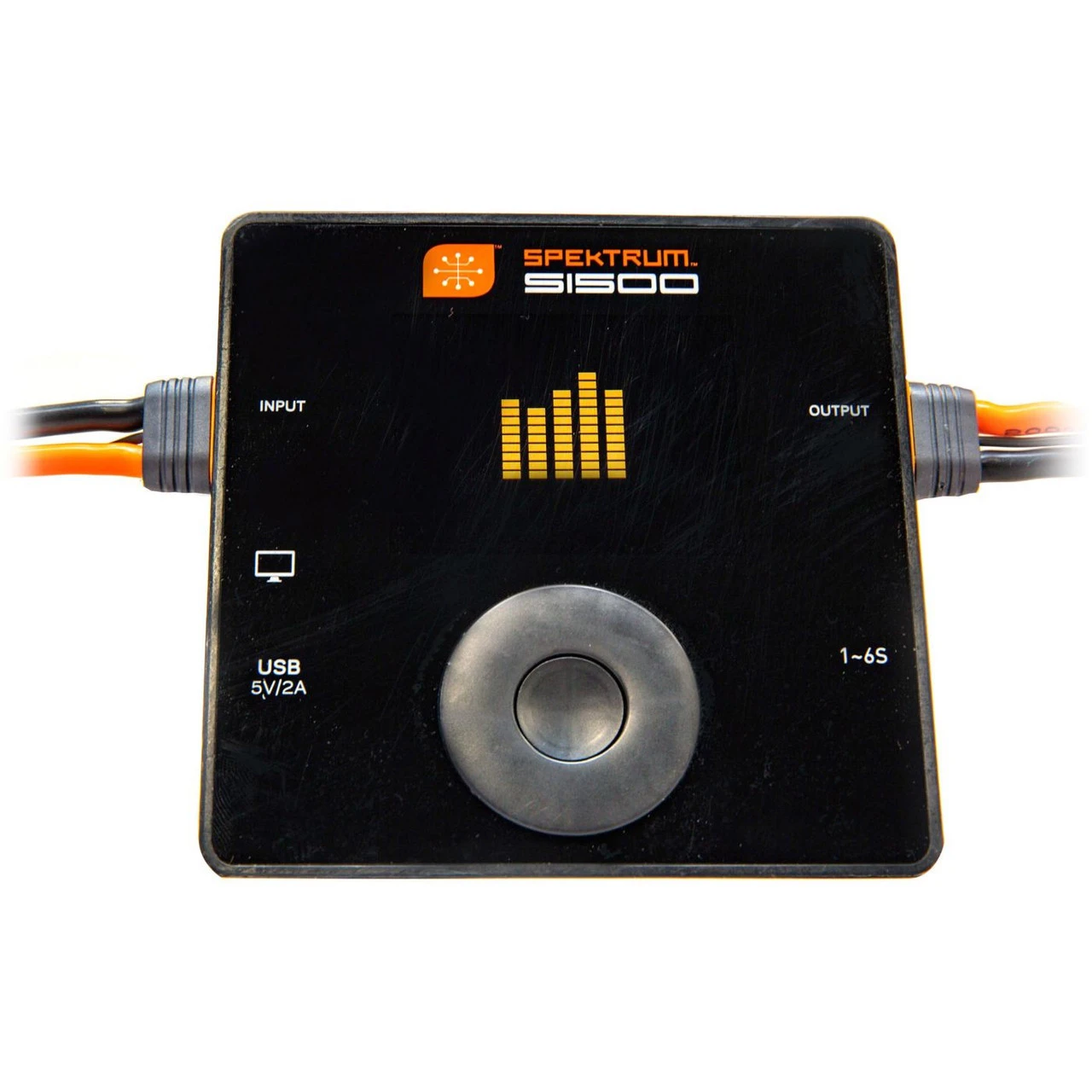

Spektrum S1500 DC 500W Smart Charger

If you use large batteries that require high charging power, the 500W Spektrum™ S1500 DC Smart Charger is up to the challenge. Compact enough to carry in a pocket or field bag, the S1500 easily goes with you to the field, track, or any place where you need to charge your LiPo and NiMH batteries.

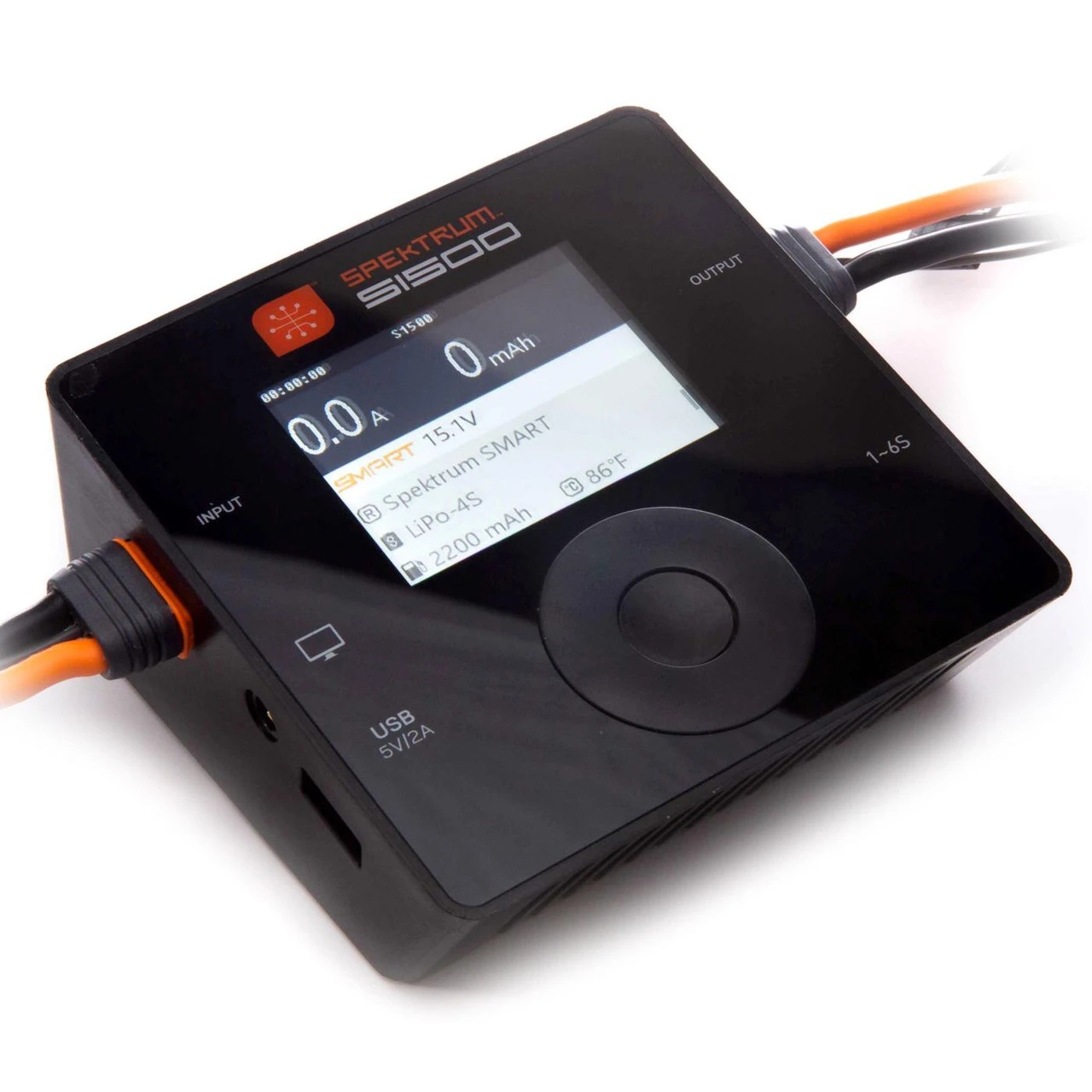

The S1500 charger’s improved, extra-precise scroll wheel interface simplifies setup. When used with Spektrum Smart LiPo batteries having IC3™ or IC5™ connectors, the S1500 also uploads specific parameters and health data from the battery’s integrated memory chip and displays it on the bright LCD screen for review — giving you the information you need to evaluate your packs and make the best charging decisions.

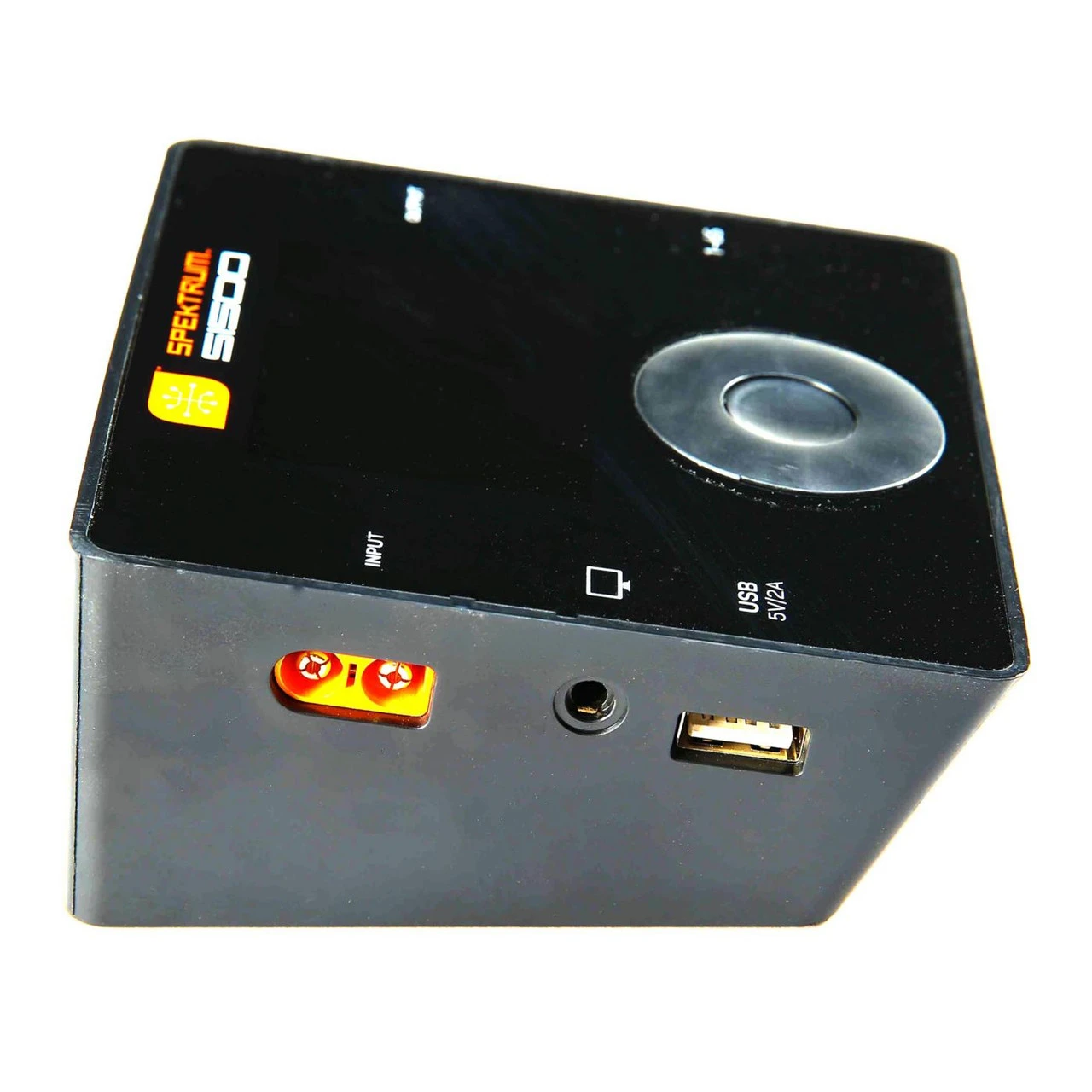

For input power, use a Spektrum Power Supply unit (SPMXC10201, available separately) or any compatible DC power source with the included IC3 power cable adapter. The S1500 charger has a USB port, a software update port, plus a safety timer and protection against heat, reverse polarity, short circuit, over-current, and low input voltage.

Smart Technology — More connected for more confidence and control

Spektrum™ Smart Technology is about offering a higher connection to your hobby. It’s an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model’s electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component’s status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.

Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press “Start.” Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.

Features:

High 500W output quickly charges large, high-capacity and high cell count batteries with ease
Ideal for use with Spektrum™ Smart batteries featuring the IC3™ or IC5™ connector
Smart Technology recognizes unique Smart battery data for safe, convenient charging
Can also be used to charge batteries without Smart Technology
Enhanced touch wheel interface improves setup ease and precision

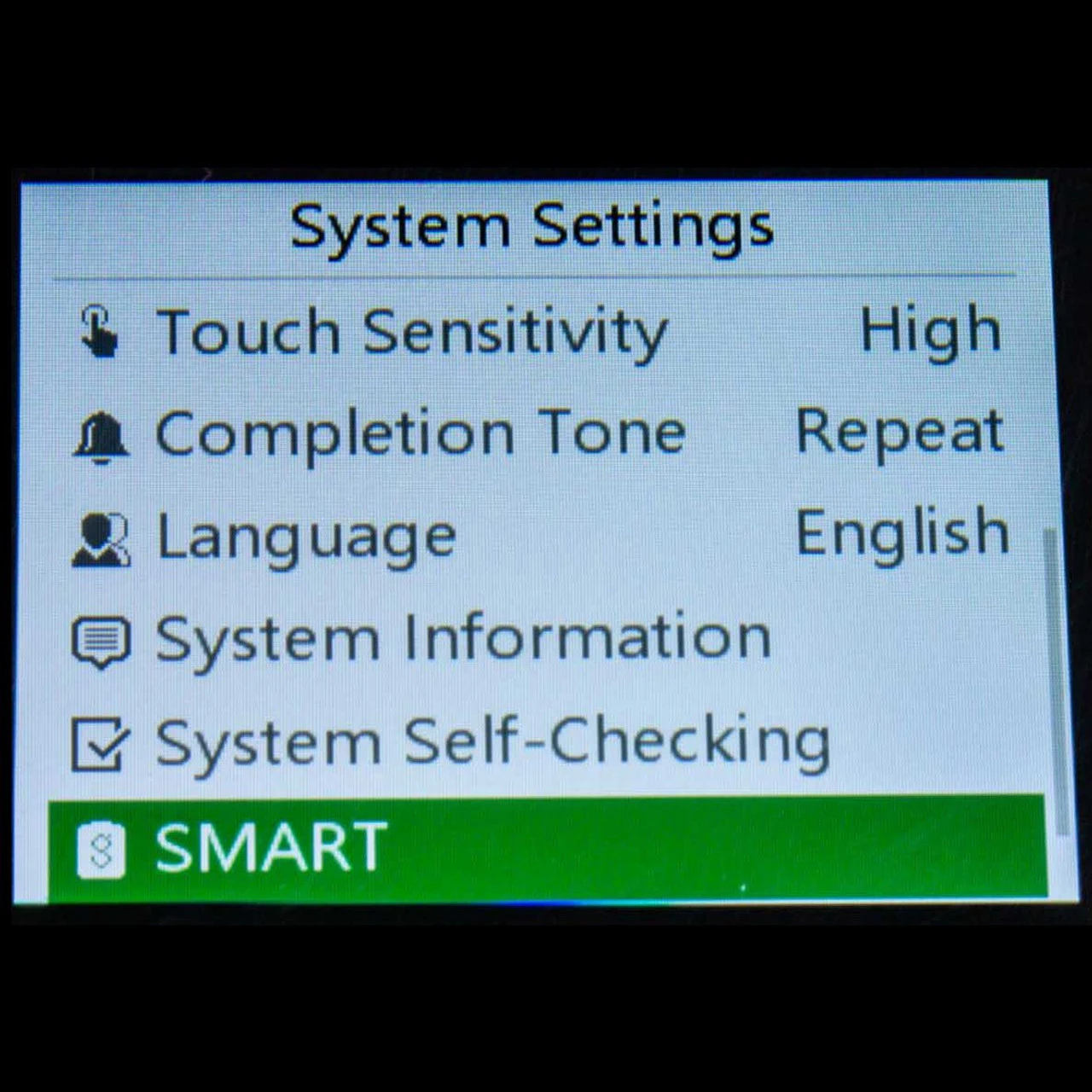

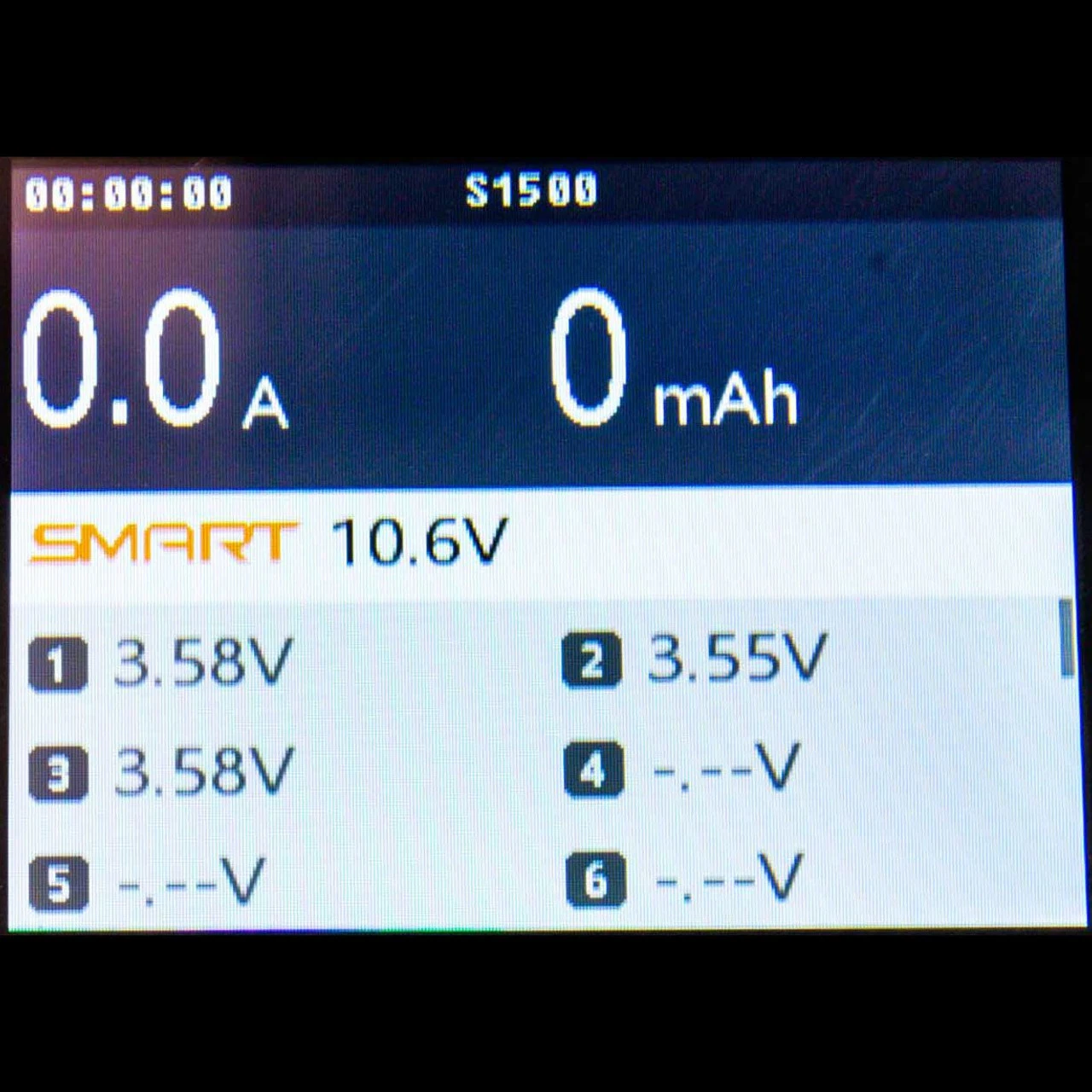

2.4-inch LCD screen with auto-brightness is easy to read even in extreme sunlight
Compact design with rounded edge fits in a bag or pocket for easy carrying

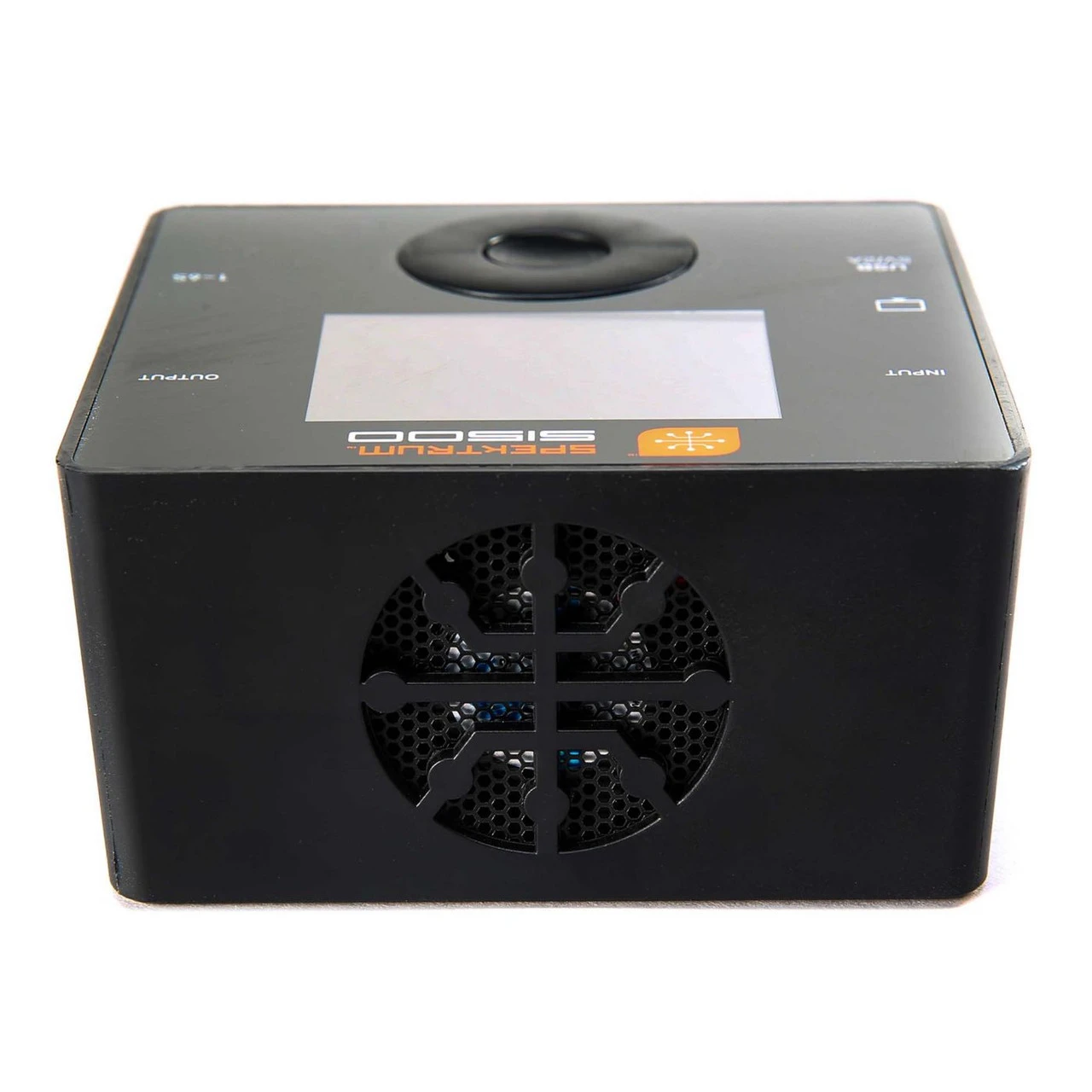

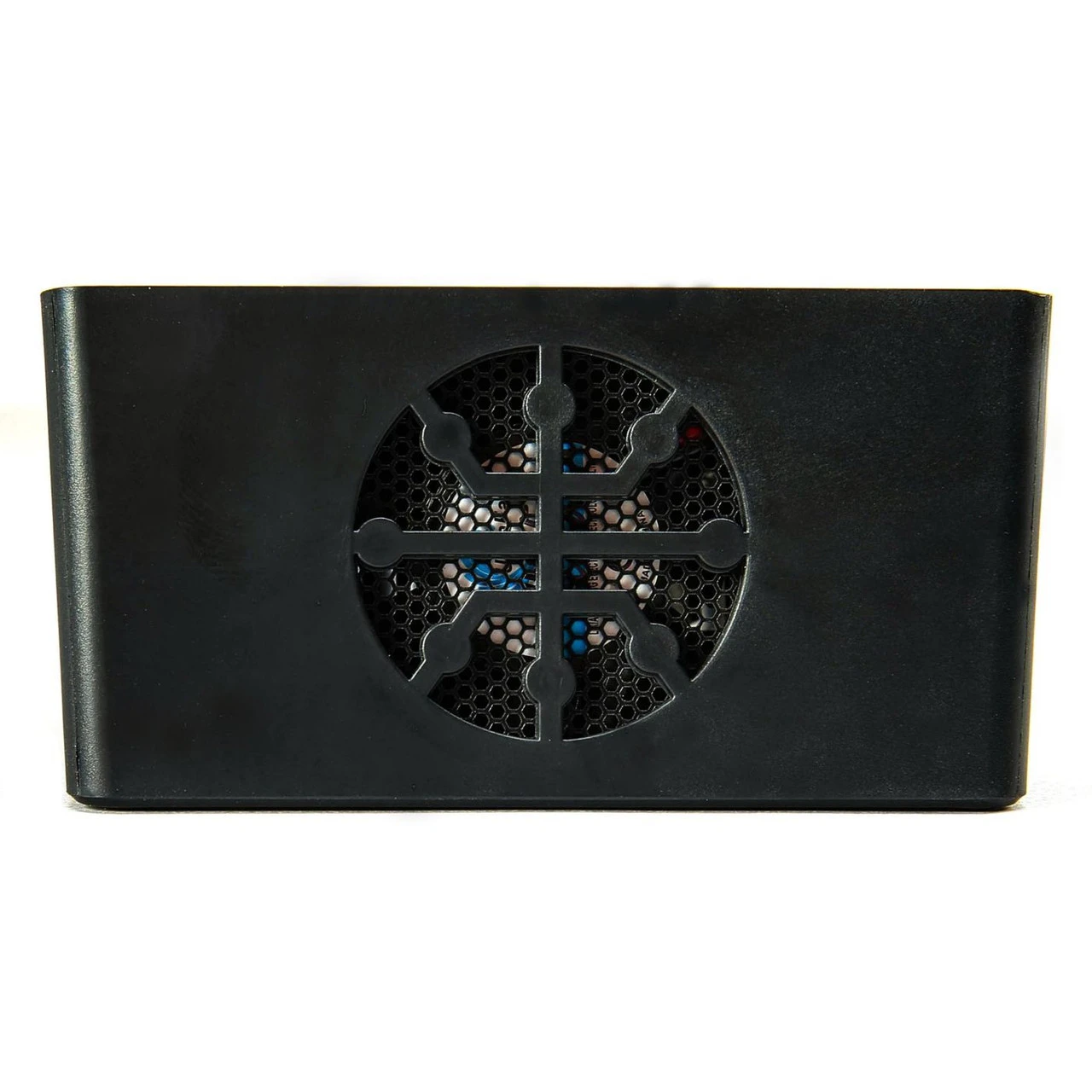

Internal cooling fan maintains a safe, efficient operating temperature

Specifications:

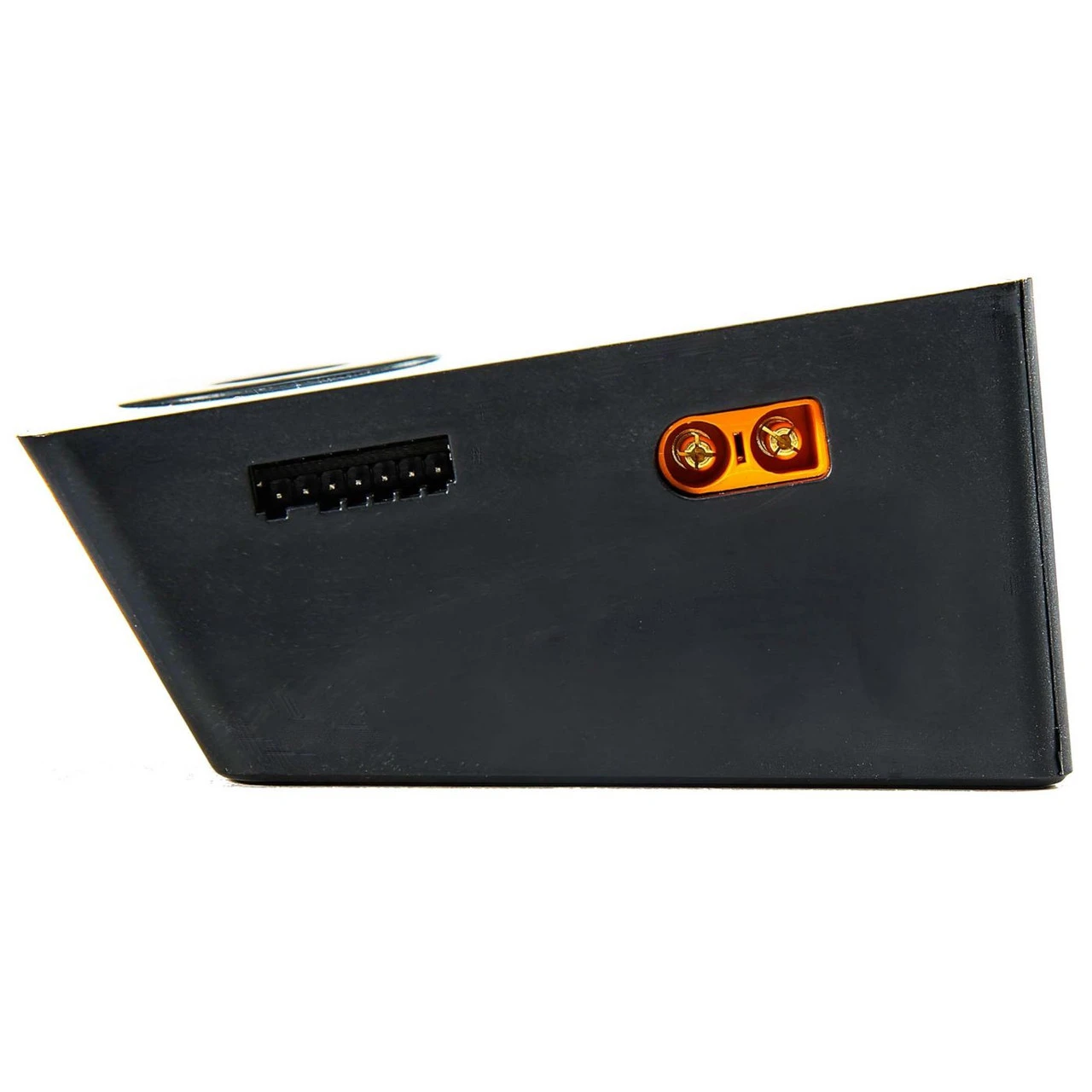

Battery Balance Connector: JST-XH
Battery Temperature Monitoring: Yes, Temperature Sensor Included
Battery Type: 1-6S LiPo, LiFe, LiHv/1-16C NiMH, NiCd, Pb
Circuit Breaker: Yes
Cooling Method: Fan
Display: 2.4″ 320×320 IPS LCD
Height: 1.9″ (50mm)
Input Voltage: 8-30V
Integrated Balancing: Y-Internal Balancer & External Adapter
Length: 3.7″ (95mm)
Low Input Voltage Protection: Yes
Material: Plastic Case
Maximum Charge Rate: 26.1V, 20A
Model Memory: Smart ID
Output Connector: IC3 (Compatible with EC3)
Over Current Protection: Yes
PC Connectivity: Yes – USB, External Adapter Required
PC Required: No
Peak Detection: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes – Incremental (0.1A Increments)
Short Circuit Protection: Yes
Software Updates: Yes, Via USB Port
Thermal Protection: Yes
Type: DC Powered Smart Battery Charger
Weight: 8.5oz (240g)
Width: 3.8″ (97mm)

Includes:

(1) Spektrum™ S1500 DC Smart Charger
(1) IC3™/Banana Power Supply Cable
(1) Product Manual

Needed to Complete:
Spektrum™ Power Supply unit (see Completion Guide or Optional Accessories) or any compatible DC power source

Resources
- Spektrum S1500 DC Smart Charger Instruction Manual
