Product Description

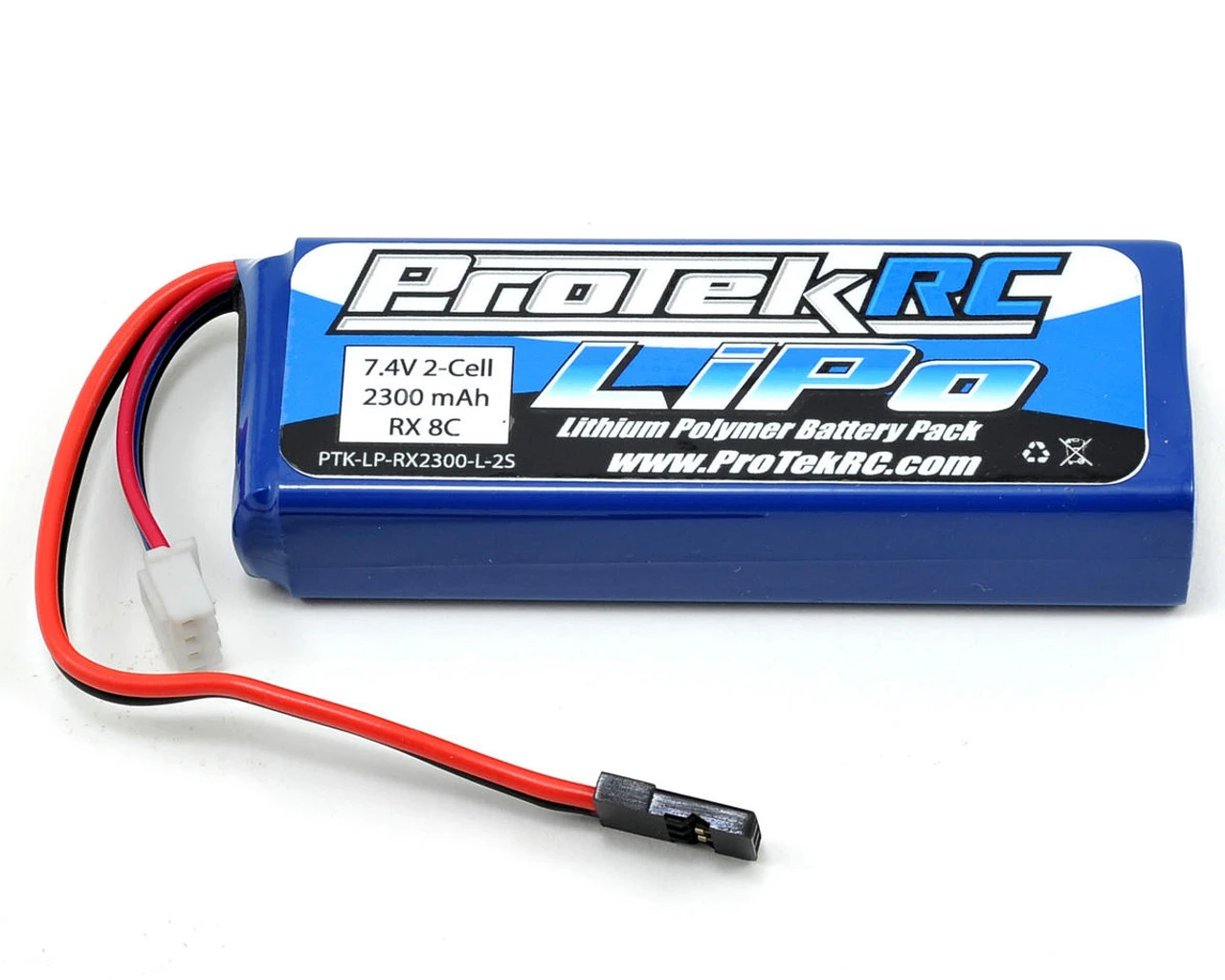

ProTek RC LiPo Receiver Battery Pack (7.4V/2300mAh) (Mugen/AE/8ight-X) w/ Balance Plug (PTK5196)

This is a Li-Poly 2300mAh receiver battery pack from ProTek R/C, made with super thick 20awg silicone wire! This super light weight Li-Poly battery is designed to power the electronics of 1/10th & 1/8th scale nitro powered race cars. There are many advantages to using a Li-Poly receiver battery, but the biggest advantage is that the battery voltage to your receiver and servos will remain constant throughout the race with the use of a voltage regulator (required). A constant voltage level to your servos will ensure consistent performance at the start and end of your race compared to typical NiMH receiver battery packs. Additionally, the overall weight of your race car will be significantly reduced over the use of typical NiMh receiver packs.

These packs are built with a lexan plastic shell around the outside of the battery, and then covered in blue heat shrink. The lexan shell is designed to protect the battery cells while in the vehicle, for longer life. Note that due to the lexan shell, sometimes the battery may feel soft to the touch on the outside of the battery; this is normal as there is a small air gap between the lexan shell and the battery cells inside.

Features:

LiPo Receiver Battery

Specifications:

Capacity: 2300 mAh
Weight: 87 grams (including wire and connector)
Li-Po cell arrangement: 2S1P
Nominal voltage: 7.4 Volts
Discharge capability: 8C continuous (18.4A), 16C max (36.8A)
Dimension(mm): 85 x 30 x 17mm
Connector: JR Style with thick 20AWG Silicone Wire
Balancer Plug: ProTek R/C XH style (Align, E-Flite compatible)
Recommended Application: 1/10th & 1/8th scale vehicles that normally use a flat stick pack receiver battery, Helicopters and Airplanes

IMPORTANT:

1) DO NOT leave the battery in your model when charging
2) DO NOT leave unattended when charging
3) ALWAYS balance charge the battery
4) ALWAYS use a LiPo charging bag
5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
6) YOU MUST not over discharge the Li-Poly battery pack
7) READ & UNDERSTAND the instructions carefully before operating this battery

Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.

Includes:

(1) Battery
(1) Balance Plug

Mugen MBX6
Mugen MBX6R
Mugen MBX6T
Mugen MBX7
Team Associated RC8B3
Team Associated RC8B3.1
Losi 8IGHT-X

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing!
Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer.
Verify vehicle fit-ment before purchase.
Returns will only be accepted on items that are returned in new, factory-sealed packaging. Used, damaged (unless damaged when it arrived to you), and opened items will not receive a full refund. Any and all warranty claims will be handled through the manufacturer directly.
