Name: ProTek RC 1S 120C Low IR Si-Graphene + HV LiPo Battery (3.8V/6800mAh) W/ 4mm Connectors (Roar Approved)
SKU: PTK512520
Availability: InStock

Product Description

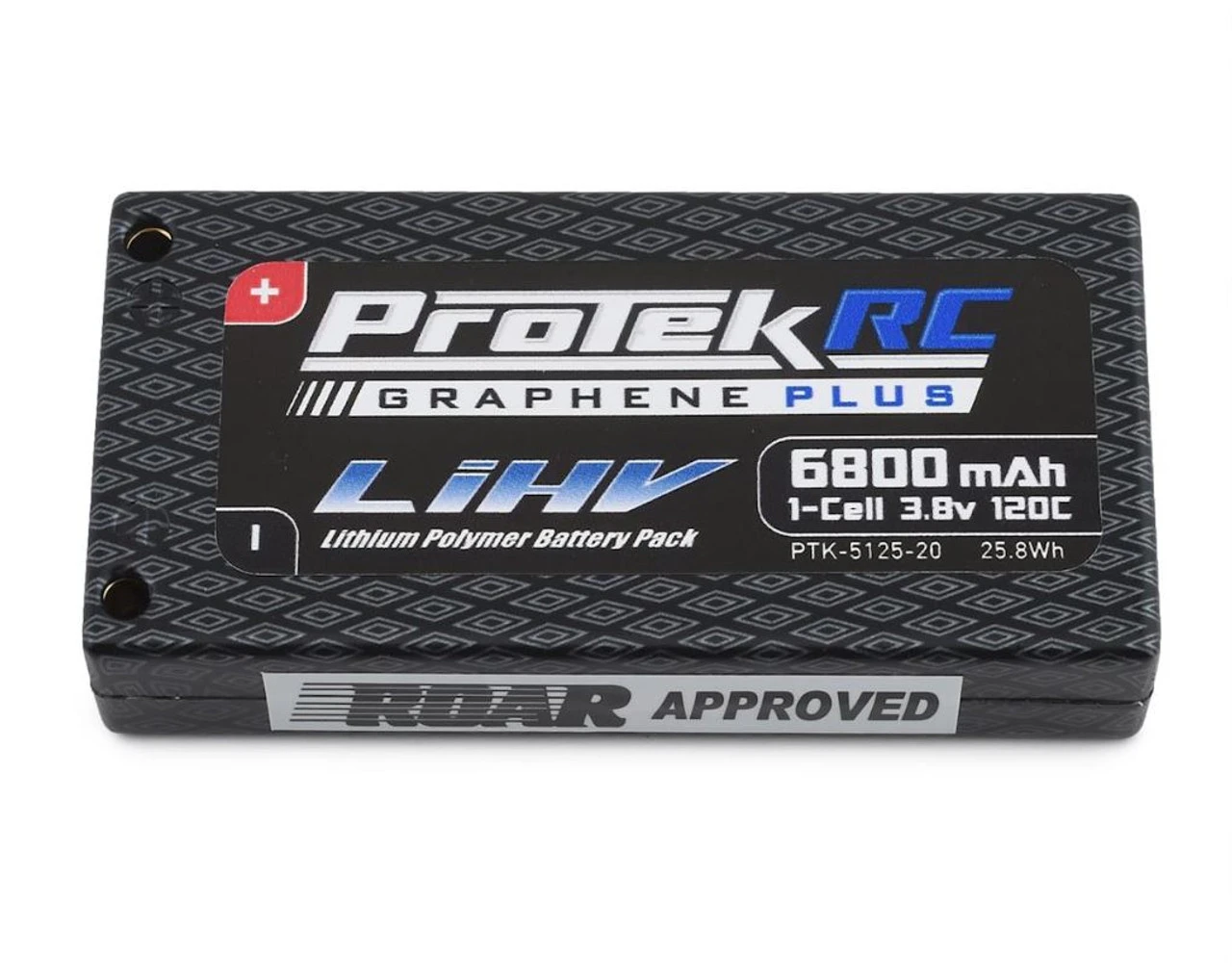

ProTek RC 1S 120C Low IR Si-Graphene + HV LiPo Battery (3.8V/6800mAh) w/ 4mm Connectors (Roar Approved)

The ProTek R/C 1S 120C Graphene + HV 6800mAh LiPo Battery is a great battery option for any racer looking for a lightweight, 1S battery. Weighing 157 grams, the 6800mAh capacity 1S HV offers huge current delivery that provides the punch needed for demanding 1S classes.

When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, better run time, increased cycle life and increased voltage – but Graphene + 120C LiPo batteries take that a step further with more power and lower internal resistance when compared to the previous ProTek LiHV Graphene packs!

Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates, with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 3.7V nominal voltage, 120C discharge ratings, incredibly high charge rates and ten different models to choose from, ProTek R/C 120C Graphene + packs are perfect for racers and bashers that demand the absolute best.

Features:

Lighter and more capacity than standard 1S packs
Delivers high current rates necessary for demanding 1S classes
Improved power to weight ratio and a lower overall CG
Silicone Graphene can handle more abuse and deliver more current than a standard LiPo battery
Improved efficiency, lower operating temperatures, and lower internal resistance!
Increased run time, increased cycle life and increased voltage!
More capacity gram for gram when compared to standard LiPo cells
10C max charge rates – 1C charge rate recommended for longest life
3.8V nominal voltage
4mm bullets included

Note: While these batteries are LiHV cells, they can still be charged the same as a standard LiPo with a standard LiPo charger. The overall voltage and capacity will be slightly less than when charged to LiHV specs, but the performance will be better than a standard LiPo thanks to the flat discharge curve, reduced weight and low internal resistance. When charged to 4.2V, these packs will still offer a noticeable advantage when compared to a standard LiPo pack.

Specifications:
Battery Model: 1S HV Shorty
ROAR Approved: Yes
Type: Silicon Graphene
Voltage: 3.8V nominal
Capacity @7.4V: 6100mAh
Capacity @7.6V: 6800mAh
Weight: 157g
Connector Type: 4mm Bullet
Balance Connector: N/A
Number of Cells: 1 Cell
Configuration: 1S2P
Dimensions (WxLxH): 47x93x18.5mm
Maximum Charge Rate: 10C (68A)
Burst Current: 120C
Watt Hour @7.6V: 25.8 Wh

Includes:

(1) ProTek R/C Battery

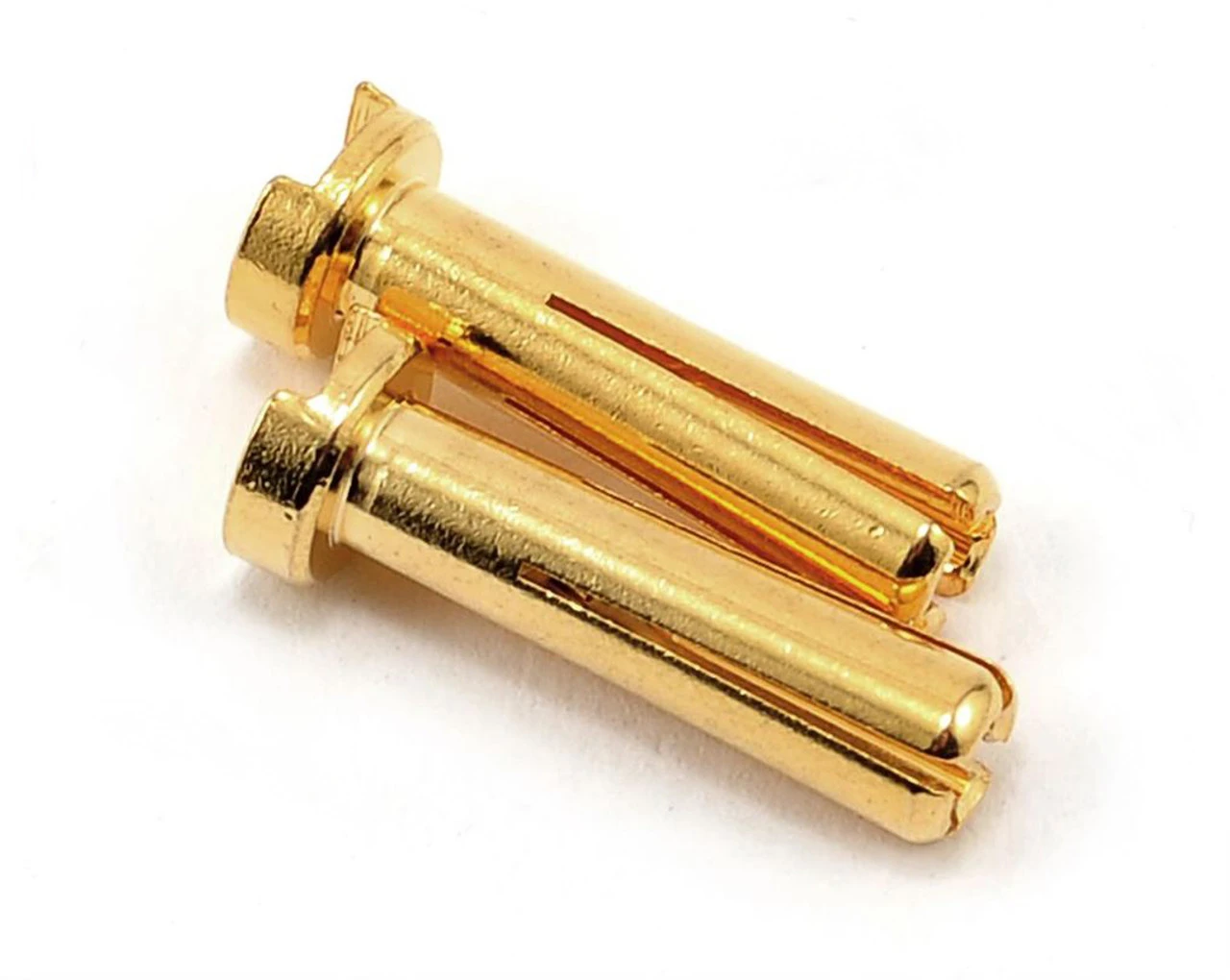

(2) 4mm Bullet Connectors
(1) 2mm Balance Bullet Connector

LITHIUM POLYMER SAFETY INFORMATION

IMPORTANT:
1) DO NOT leave the battery in your model when charging
2) DO NOT leave unattended when charging
3) ALWAYS balance charge the battery
4) ALWAYS use a LiPo charging bag
5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
6) YOU MUST not over discharge the Li-Poly battery pack
7) READ & UNDERSTAND the instructions carefully before operating this battery

Note: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can’t exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage.

Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.

Resources
- ProTek RC Warranty Information
- Li-Poly Battery Manual

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
