Product Description

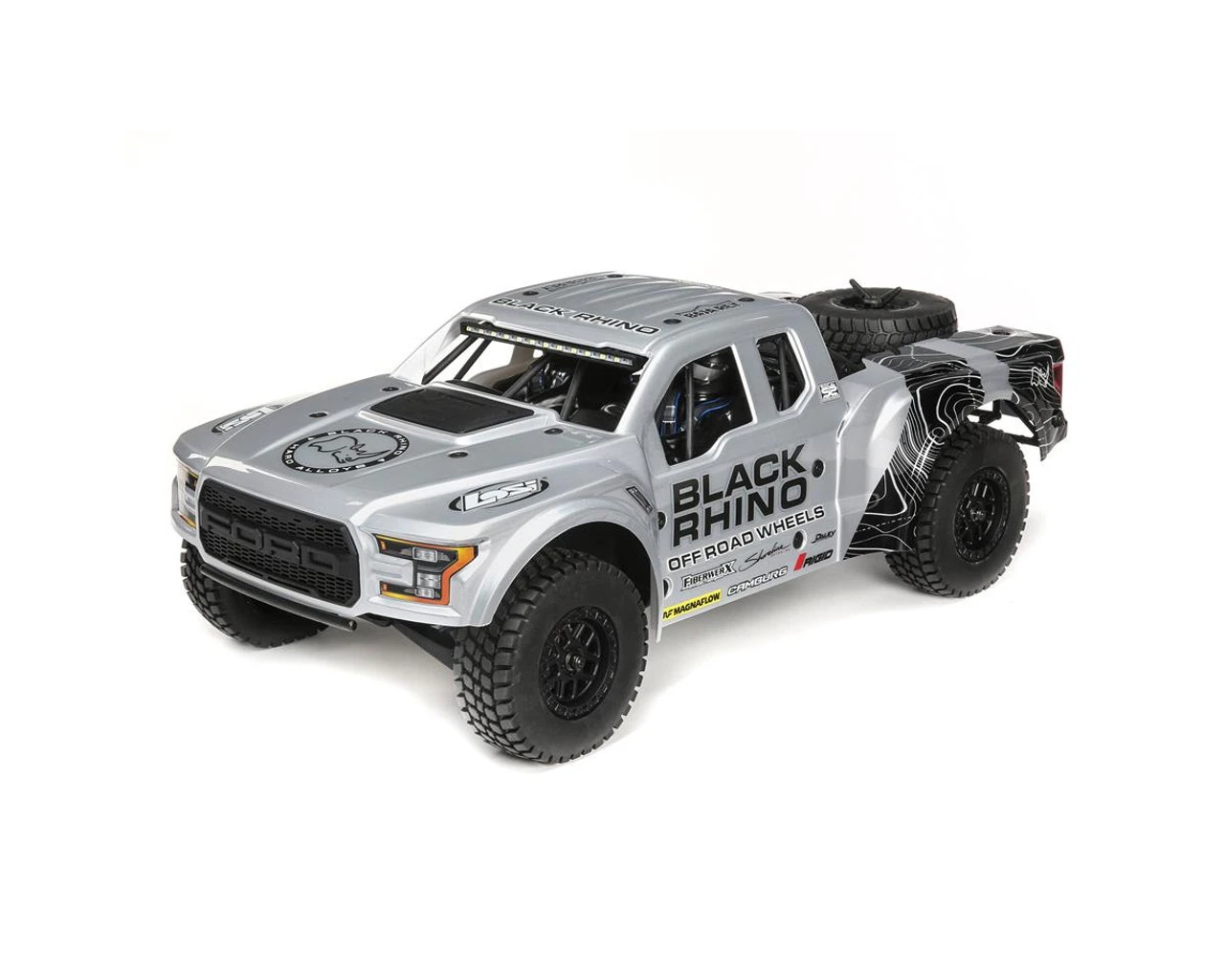

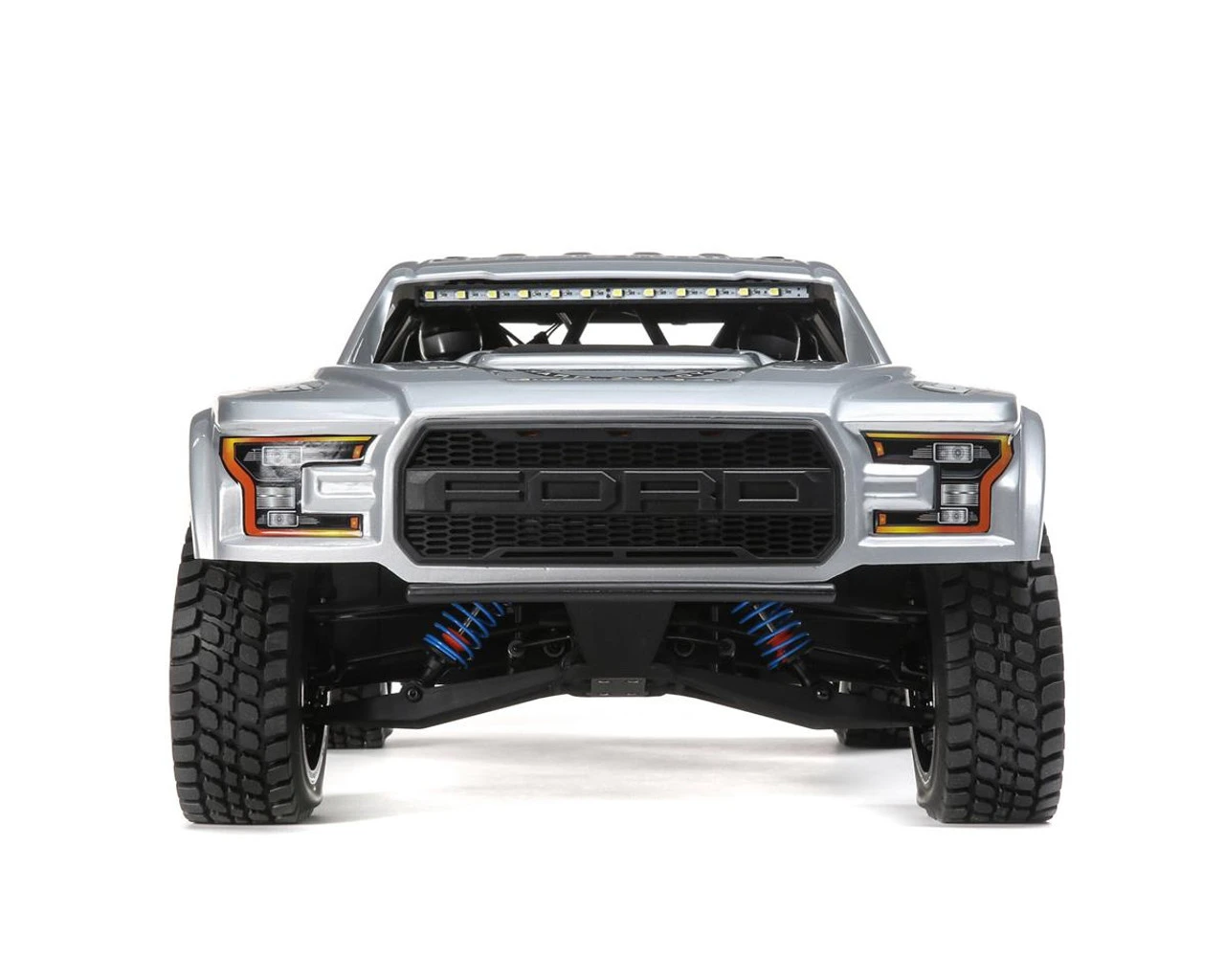

Losi Baja Rey Ford Raptor 1/10 RTR 4WD Brushless Desert Truck (Black Rhino) w/2.4GHz Radio, AVC & SMART (LOS03020V2T2)

The Losi Baja Rey Ford Raptor 1/10 RTR 4WD Brushless Desert Truck is an officially licensed rig that comes out of the box with a Spektrum 3800Kv brushless power system, a solid rear axle, independent front suspension, and roll cage with upright shocks, giving you the gear you need to tear across the desert. And you’ll do it with the control that AVC technology delivers. Just like the full-scale Ford Raptor, the onboard traction control allows you to drive at speeds in excess of 50mph all while in complete control. You get an authentic off-road racing experience with injection molded details, light bars and two licensed trim schemes. The Ford Raptor Baja Rey has just raised the bar another level.

Features:

Officially Licensed Ford Body Panels and Trim Schemes
Over the top scale details including custom body, 4-link suspension and more.
Spektrum™ 3800Kv Brushless Power System
Spektrum™ Smart Firma™ 130A ESC with IC5 Connector
SR6200 AVC Receiver
S614 Steel Gear Servo
Long Travel 4-link Live Rear Axle
Long Travel Independent A-Arm Front Suspension
Easy-Access Motor
Rear-Loading Battery
Sealed Metal-Gear Transmission and Diffs

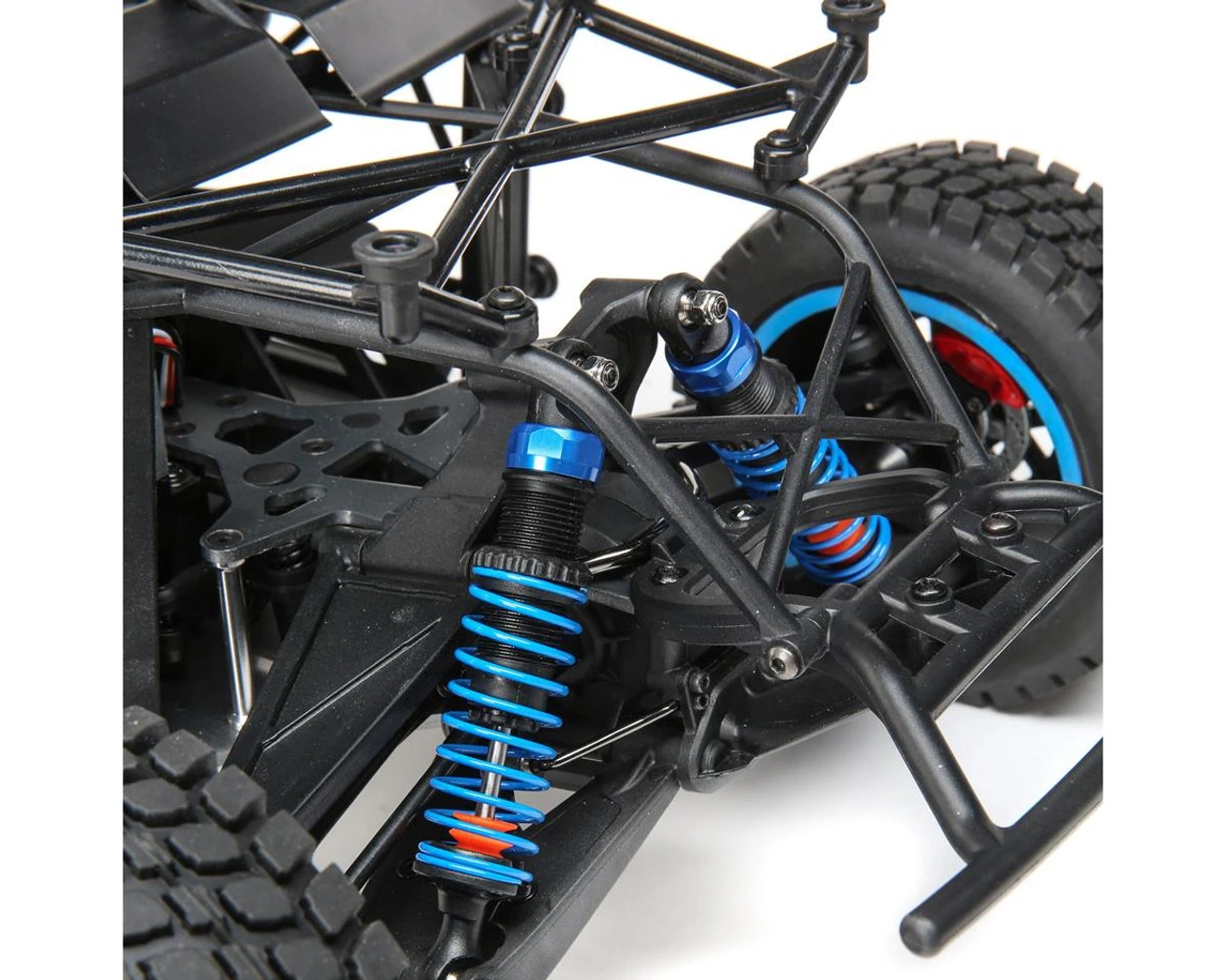

Coil-over Oil-Filled Shocks
Waterproof Electronics
Bolt-On Body Panels and Detailed Interior
LED Light Bar (Front and Rear)

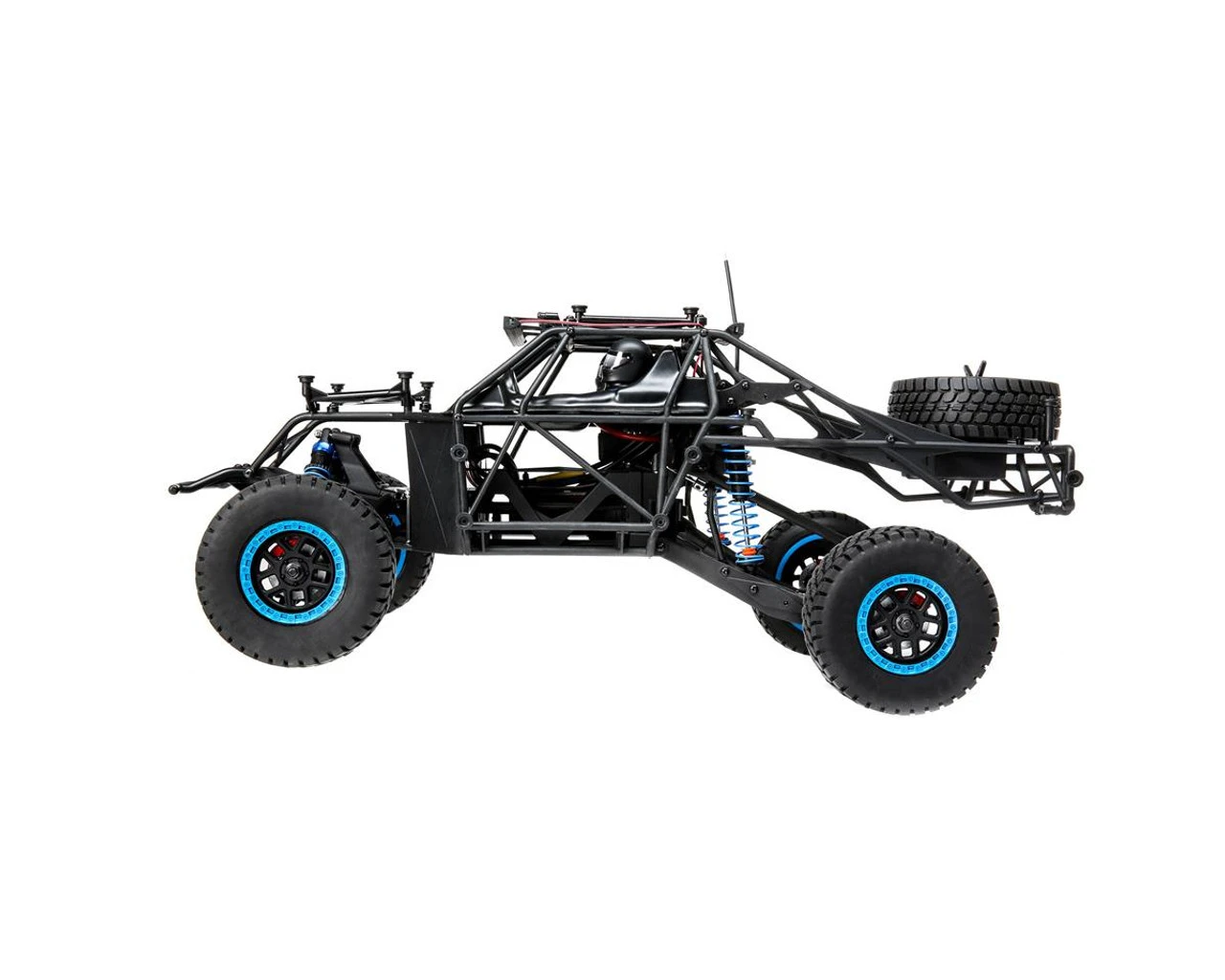

Aluminum Chassis
Full-Size Spare Tire
Spektrum™ DX3™ 3ch Transmitter with DSMR® and Smart Technology
AVC Traction Control

Specifications:

Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Battery: Sold Separately
Battery Tray Dimensions: 5.45 x 1.81 x 0.98″ (138.5 x 46 x 25mm)
Body: Screen printed licensed 2018 Ford Raptor body
Brakes: Integral with ESC
Charger: Sold Separately
Chassis: 0.12″ (3mm) aluminum
Completion Level: Ready-To-Run
Differential: Sealed Bevel Front/Locked Rear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 10.99:1
Front Track: 11.6″ (295mm)
Power Type: Electric
Gear Pitch: Mod 1
Ground Clearance: 2.2″ (55mm)
Internal Gear Ratio: 3.8:1
Motor Type: Brushless – Sensorless
Pinion: 13T
Product Height: 7.6″ (193 mm)
Product Length: 21.6″ (549 mm)
Product Weight: 6.1 lb. (2.8kg)
Product Width: 12.6″ (320 mm)
Radio: Included
Rear Track: 11.6″ (295mm)
Receiver: Included
Scale: 1/10
Servos: Included
Shock Type: Oil-filled 4.8″ (122mm) Rear, 3.9″(100mm) Front
Speed Control: Included
Spur Gear: 40T
Suspension: Independent Front/4-link Rear
Technology: Smart
Vehicle Type: Desert Truck
Water-Resistant: Yes
Wheelbase: 14.6″ (371 mm)

Includes:

(1) 1/10 Ford Raptor Baja Rey 4WD Brushless RTR with SMART
(1) SR6200 AVC Receiver
(1) Spektrum™ DX3™ 3ch Transmitter with DSMR® and Smart Technology
(1) Spektrum™ 3800Kv Brushless Power System
(1) Spektrum™ Smart Firma™ 130A ESC with IC5 Connector
(1) Product Manual

Needed to Complete:

2S or 3S Hardcase LiPo battery with EC5 or IC5 connector
Appropriate LiPo Charger

Resources
- Losi Baja Rey Ford Raptor Manual
- Parts
  - Parts and Hop-ups for Losi Baja Rey Ford Raptor

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing!
Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer.
Verify vehicle fit-ment before purchase.
Returns will only be accepted on items that are returned in new, factory-sealed packaging. Used, damaged (unless damaged when it arrived to you), and opened items will not receive a full refund. Any and all warranty claims will be handled through the manufacturer directly.
