Product Description

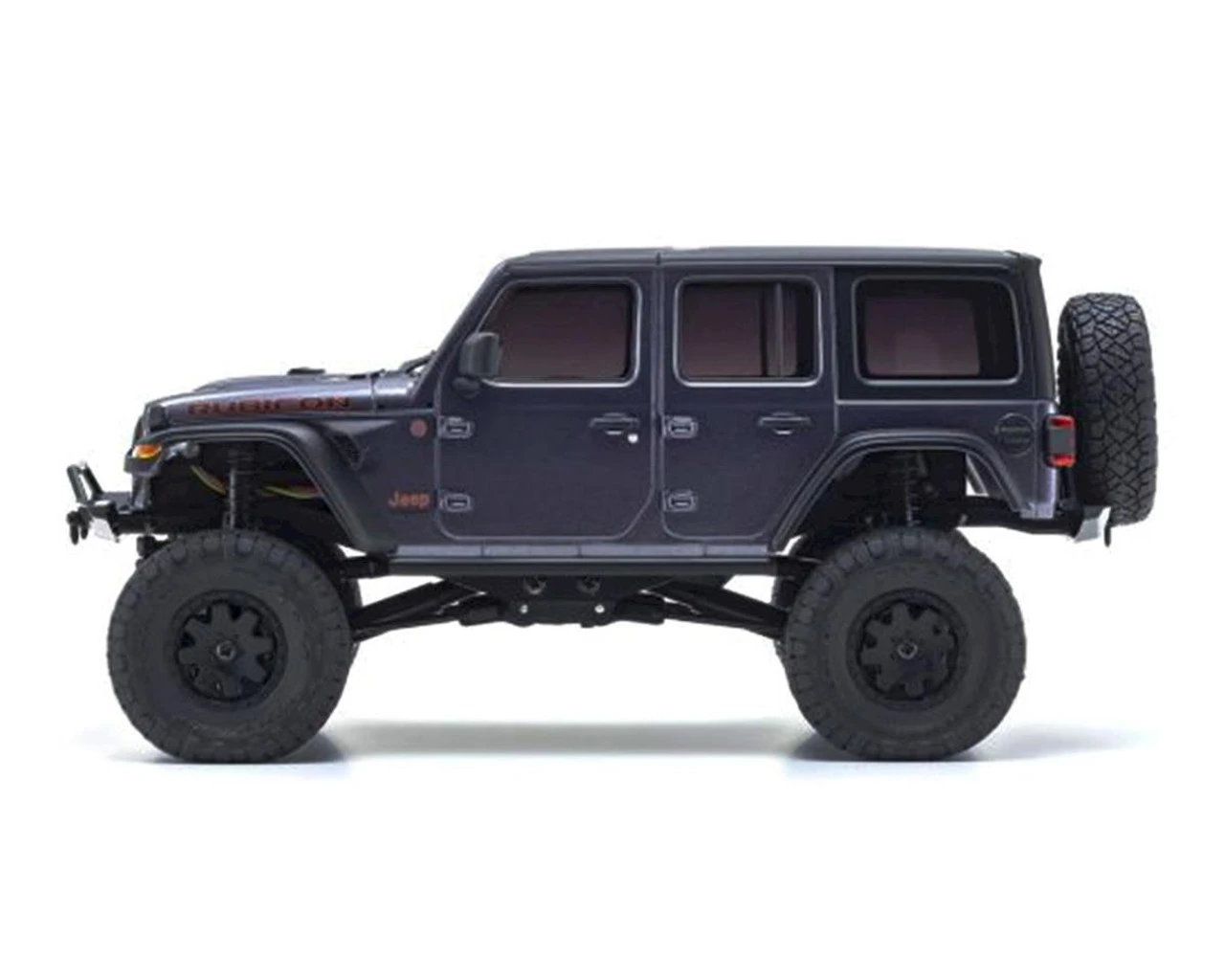

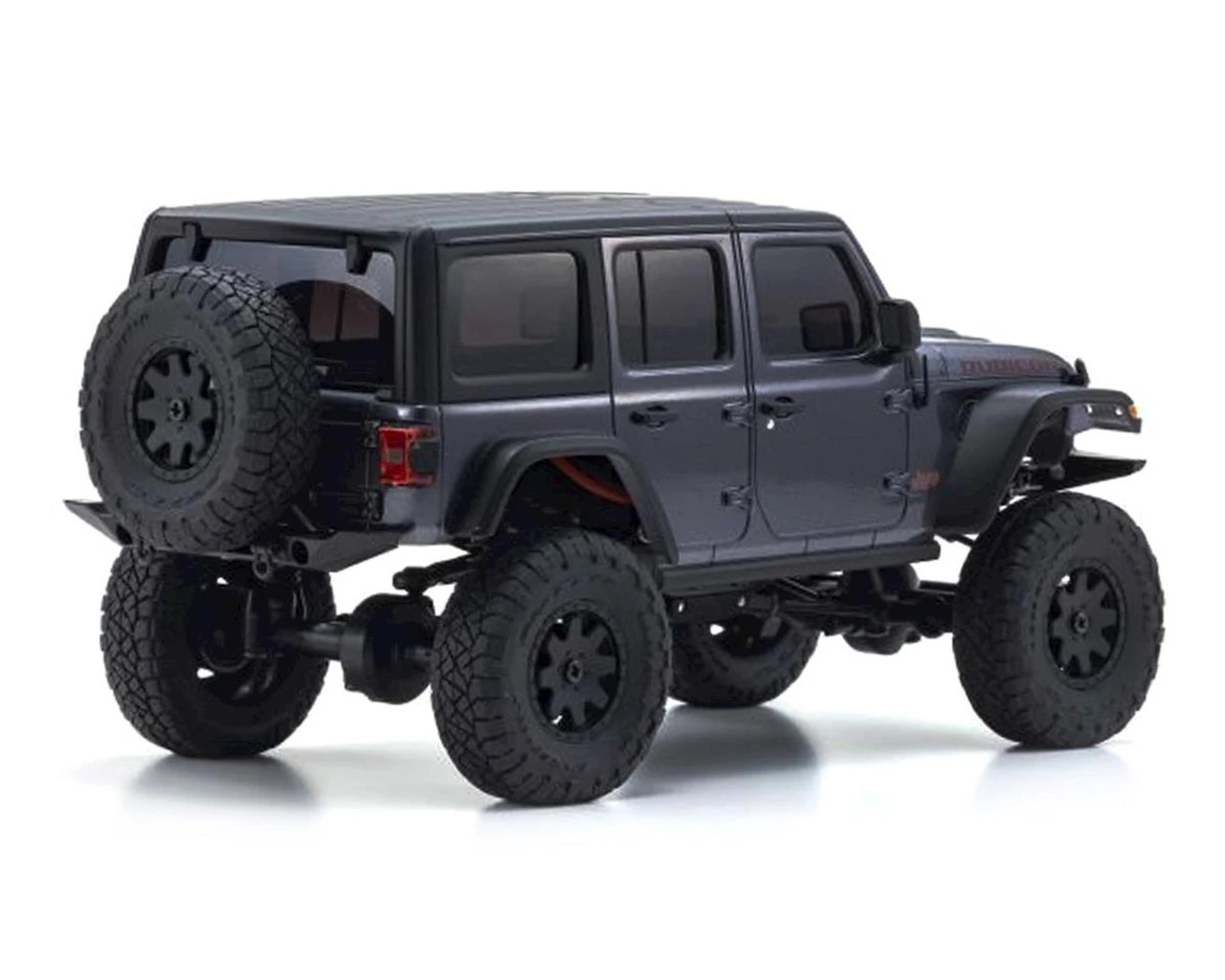

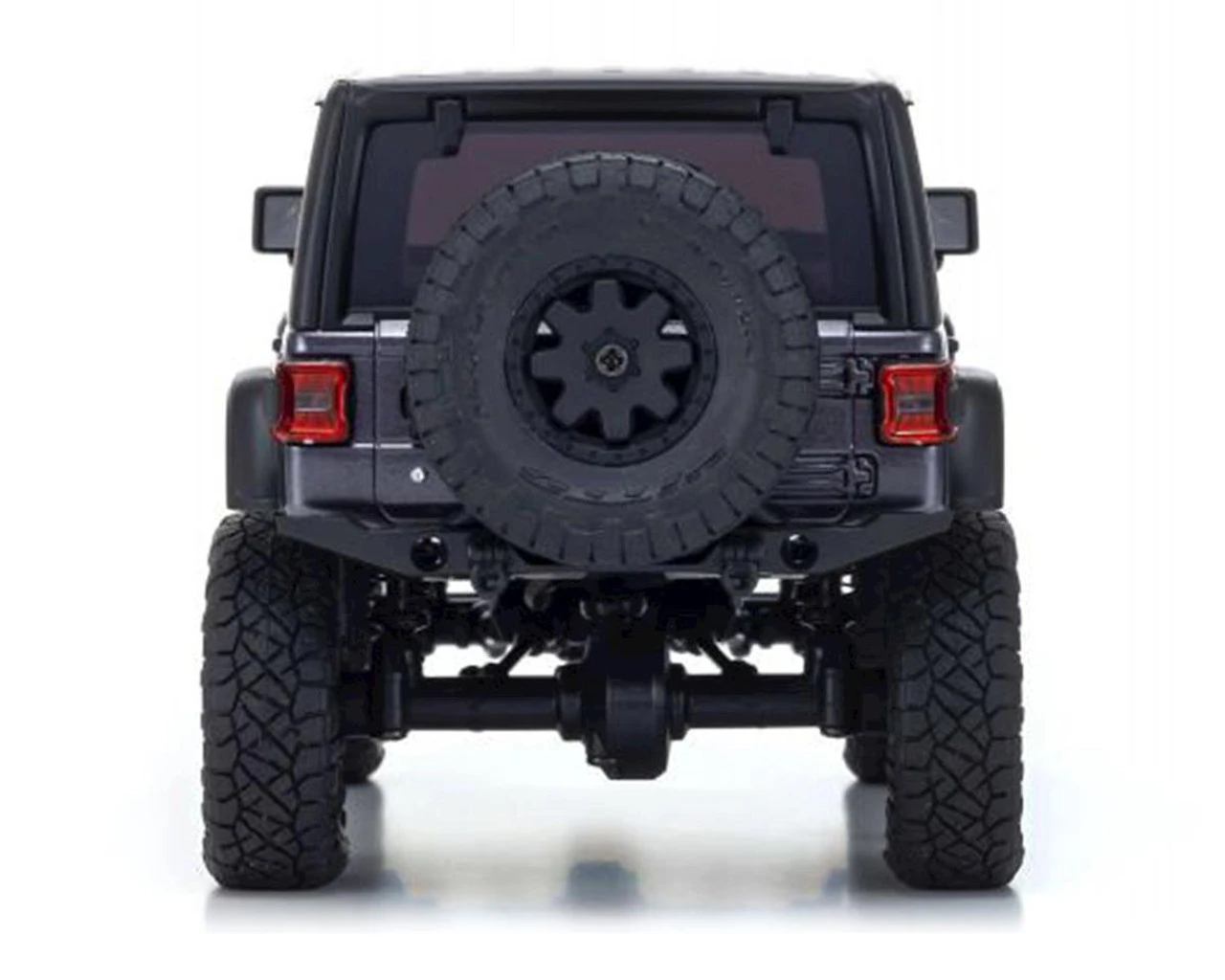

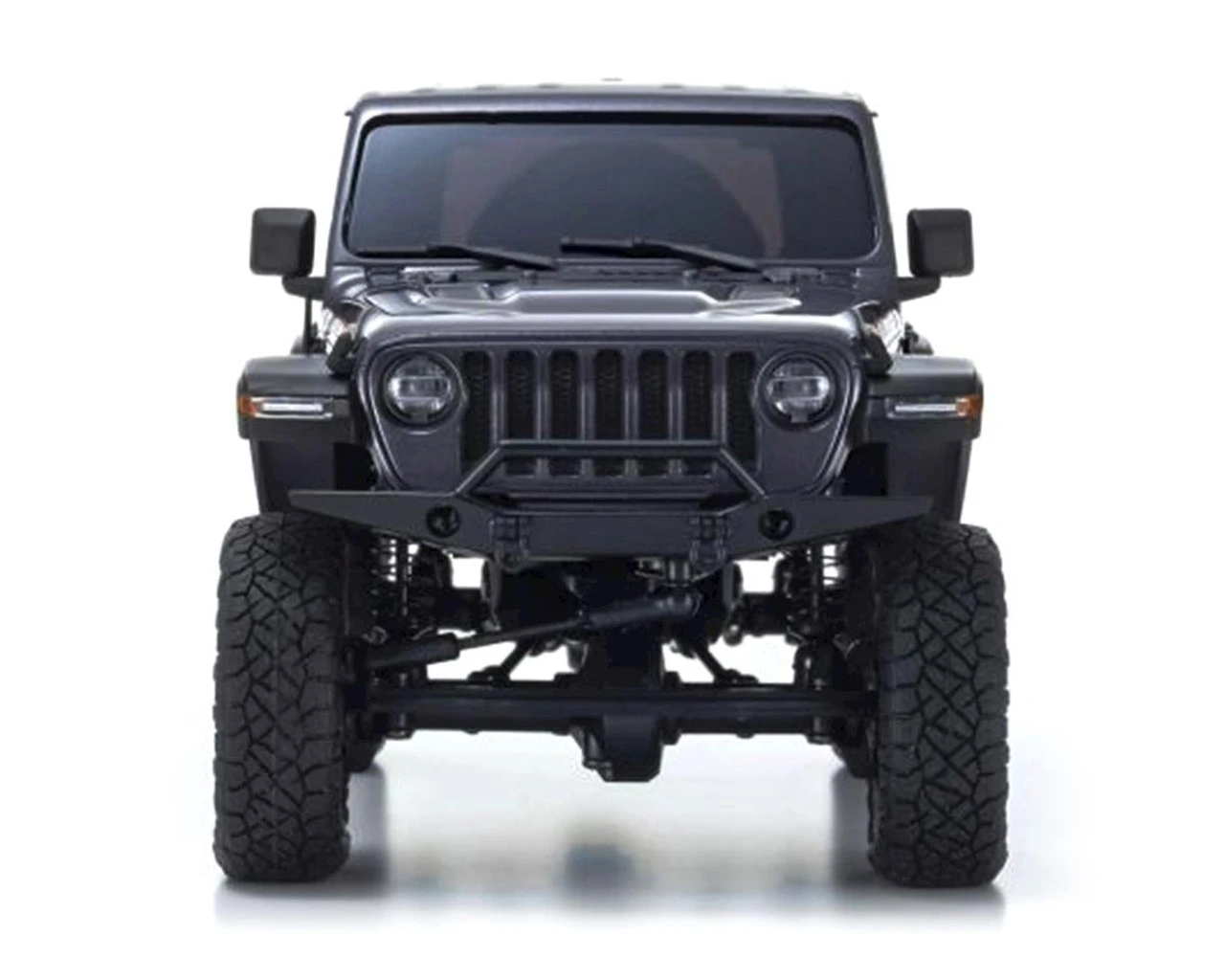

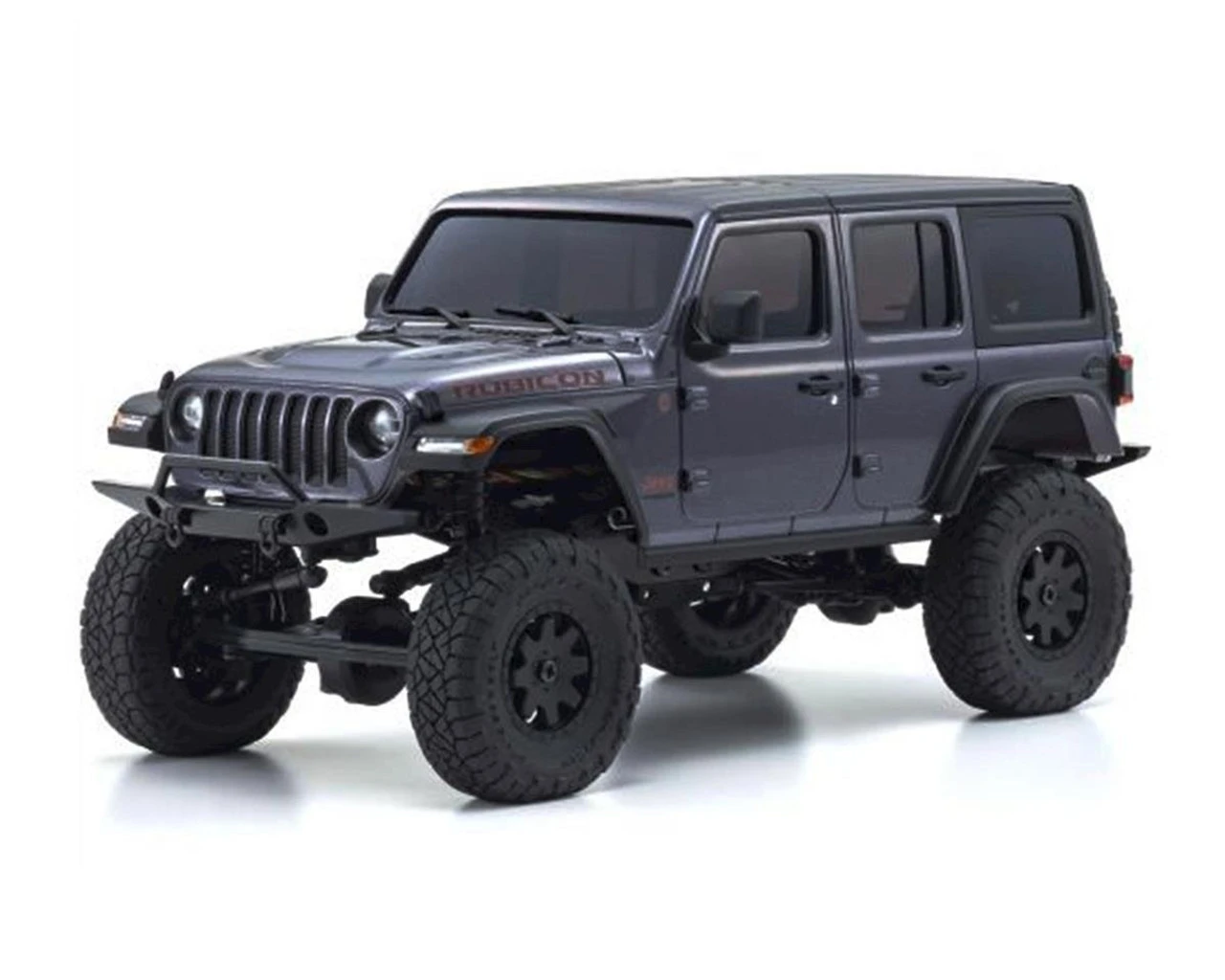

Kyosho Mini-Z 4×4 Jeep Wrangler Unlimited Rubicon, Granite Crystal Metallic, Ready Set (KYO32521GM)

The Kyosho MX-01 Mini-Z 4X4 Readyset, complete with 2.4GHz Radio System and Green Jimny Sierra Body, is a totally different addition to the popular MINI-Z series that is built with the attention to scale detail and quality design expected of Kyosho. Introducing the “MINI-Z 4×4”, a design that allows MINI-Z fans to expand their horizons with climbing and crawling capabilities. This scale 4×4 beauty features a fine-tuned overall design, superior driving performance and high-quality injection-molded scale body construction.
One of the main draws of the MINI-Zs has always been the greater emphasis of body detail and quality of finish, and the 4×4 surpasses existing benchmarks set by the MINI-Z series. The body is molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is eight AAA alkaline batteries (sold separately). Whether you take your MINI-Z 4×4 to your local park or just crawl across your own desktop, the Mini-Z 4×4 is a mini crawler that delivers a full range of scale crawling performance in a smaller, compact package.

Features:

Molded with a thick body material for a crash resistance
Extreme scale detail of Jimny Sierra Body
Incorporated ladder- style frame of real 4WD vehicles
3-link rigid axle suspension
Specially designed high-torque steering servo
High-torque 130-size motor

Specifications:

Length: 200.5mm
Width: 87mm
Weight: 86.0mm
Chassis Type: MX-01
Wheel Base: 110mm
Tread F/R: 72.7mm
Weight: 223g (excl. battery)
Motor/Engine: 130 Class
Gear Ratio: 55.44:1/ 30.80:1/ 46.20:1/ 27.72:1/ 39.60:1/ 34.65:1
Front Tire Diameter: 42.0mm
Rear Tire Diameter: 42.0mm
Front Tire Width: 14.3mm
Rear Tire Width: 14.3mm
Battery: (4) AAA alkaline
Transmitter: Syncro KT-531P
Speed Approx.: 3.3km/h-6.6km/h (Pinion gears 10T- 20T)
Running Time: Approx. 60 mins

Includes:

(1) Complete chassis with built in electronics
(1) Factory painted body complete with fine details

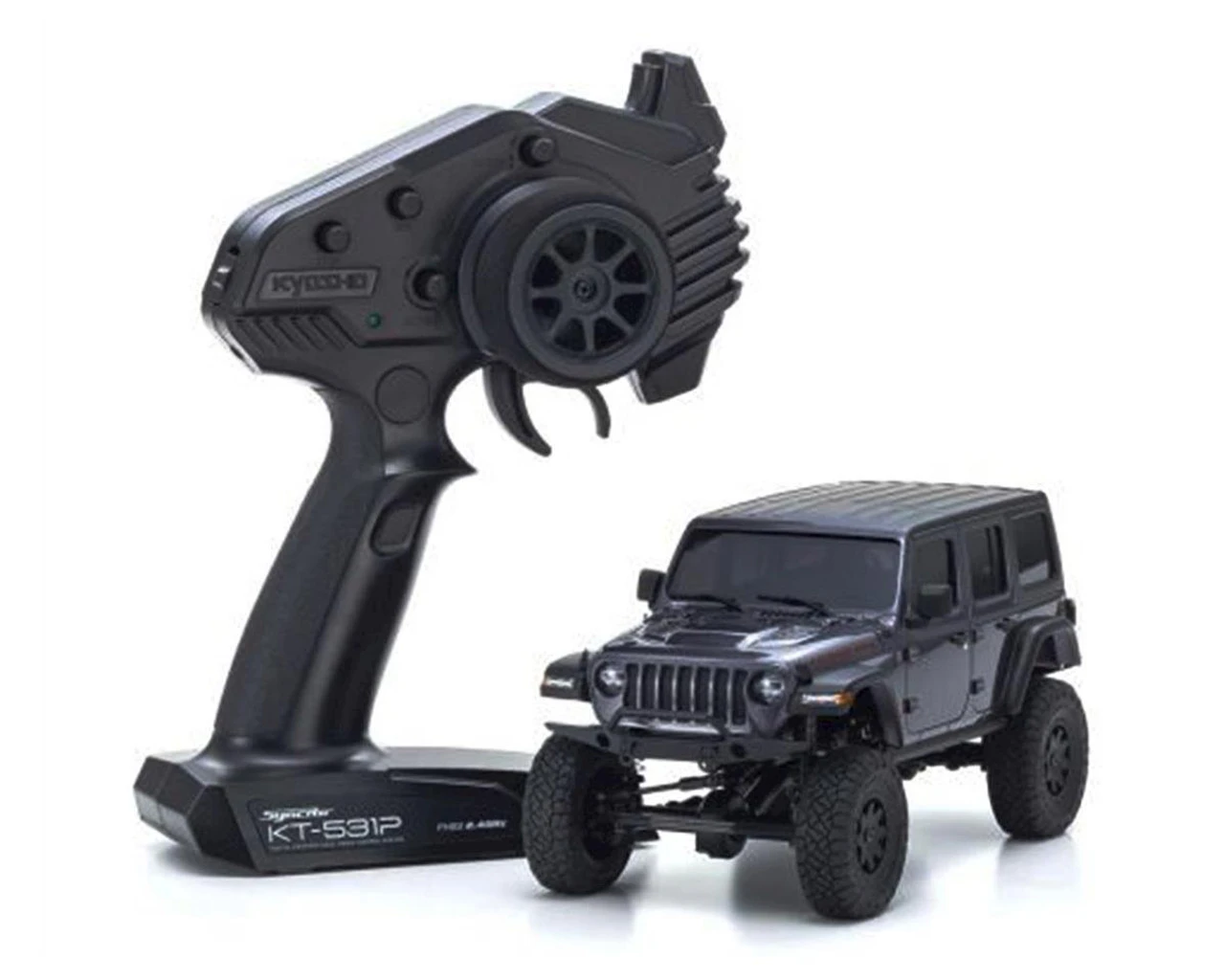

(1) KT531P 2.4GHz transmitter
(6) Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
(3) Pinion gear spacers

Needed to Complete:

(4) AAA batteries for the transmitter
(4) AAA batteries for the chassis

Parts
- Parts and Hop-ups for Kyosho Mini-Z 4×4 Jeep Wrangler Unlimited Rubicon
- Resources
  - Kyosho Mini-Z 4×4 Jeep Wrangler Unlimited Rubicon, Granite Crystal Metallic, Readyset Manual
  - Kyosho Mini-Z 4×4 Jeep Wrangler Unlimited Rubicon, Granite Crystal Metallic, Readyset Exploded View
