Product Description

Kyosho 1/10 4WD Fazer Mk2 Mad Van VE (KYO34491T1)

Enhanced scale features of the American street van styled FAZER Mk2 MAD VAN are combined with a 50% increase in maximum speed due to the change to brushless motor power in this 1/10 scale VE model. In place of the conventional G14L brushed motor, this model combines the powerful TORX 10E brushless motor with BRAINZ 10 speed controller to lift the maximum speed from 40km/h to 60km/h. To manage the extra power and RPM, gears have been reinforced and reduction ratio optimized on the FZ02L-BT chassis base, which now incorporates the previously optional aluminum HD center shaft L. In addition to chassis improvements, the body styling has also received a 3-D enhancement with molded resin grille and lights replacing decals, and a roof guard has been added to protect the body from rollovers. With elevated performance and appearance, you can experience the exhilaration of running wild at high speed with the MAD VAN VE.

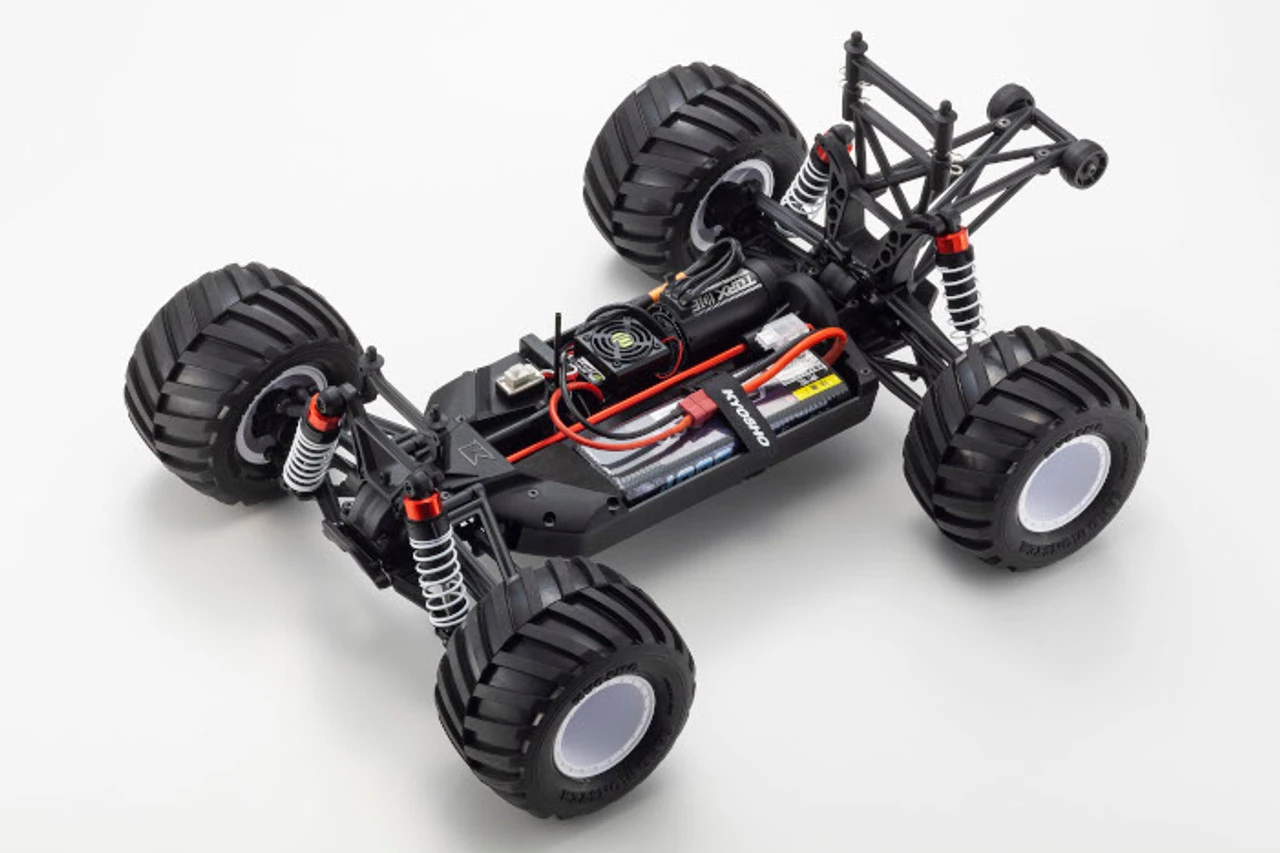

Long-type upper and lower suspension arms equipped with oil shocks for front and rear provide a sufficient stroke and secure damping force. Ball-connected left-right interchangeable steering knuckles realize smooth operation and crash resistance. Aluminum HD center shaft (No. FAW210) is standard equipment to support the power of brushless motor.

The TORX 10E brushless motor generates enough power for gentle wheelies with the big body and tires. Sealed motorcase prevents dirt and dust from getting into the motor and gearbox.

Features:

Pre-assembled chassis is sold as a Readyset including installed R/C system and pistol-grip transmitter. Battery for the chassis and charger are sold separately
Includes Syncro KT-231P+ pistol-grip transmitter with various custom setting adjustments
Robust construction of the full-time 4WD FZ02L-BT chassis is tough enough to handle the hard punishment of rough-road bashing
Full ball bearing specifications improve drive efficiency and durability

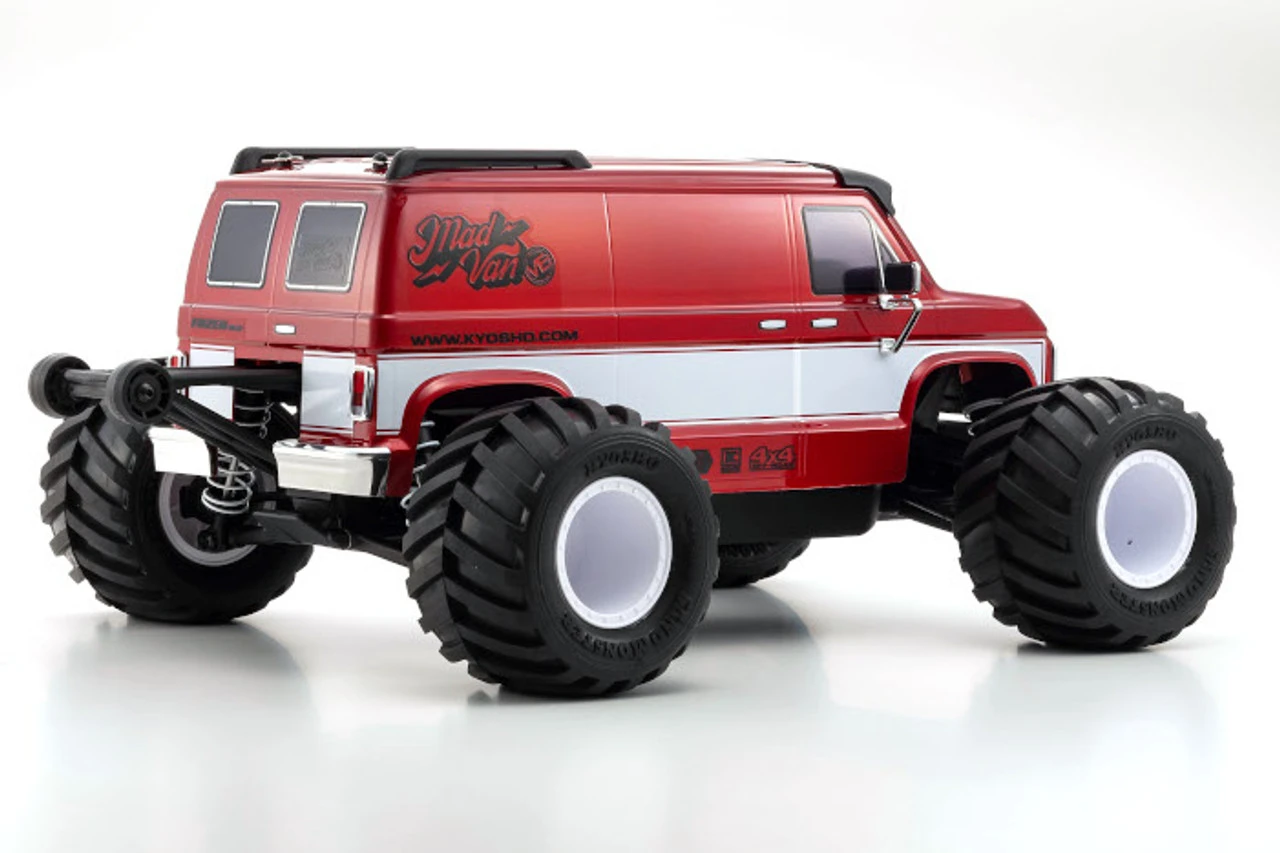

Includes American-style van body that has been enhanced with an even greater level of scale detail.
Equipped with Front and Rear light buckets compatible with optional No. 97054-4CR LED Light unit which is sold separately.By installing the LED light unit, improves scale realism for body shell.

Specification:

Length 460mm
Width 323mm
Height 197mm
Wheelbase 274mm
Gear Ratio 11.803:1
Tires (F/R) F:110x70mm/R:110x70mm

Needed to Complete:

4 x AA batteries for transmitter
2 Cell (7.4V) LiPo or a 7.2V NiMH Battery With a Super (Deans) Plug Connector
Charger for battery for chassis
Tools

Included:

Completed chassis with R/C radio installed
Factory assembled body complete with color scheme
Syncro KT-231P+ transmitter
Installed 60A electronic speed controller
Spanner
Customization decals

Parts
- Parts and Hop-ups for Kyosho Fazer 1/10 4WD Mad Van
- Resources
  - Fazer Mk2 Mad Van VE Manual
  - Fazer Mk2 Mad Van VE Exploded View
