Name: Hitec RDX2 Mini AC Dual Multi Charger (4S/5A/50W)
SKU: HRC44299
Availability: InStock

Product Description

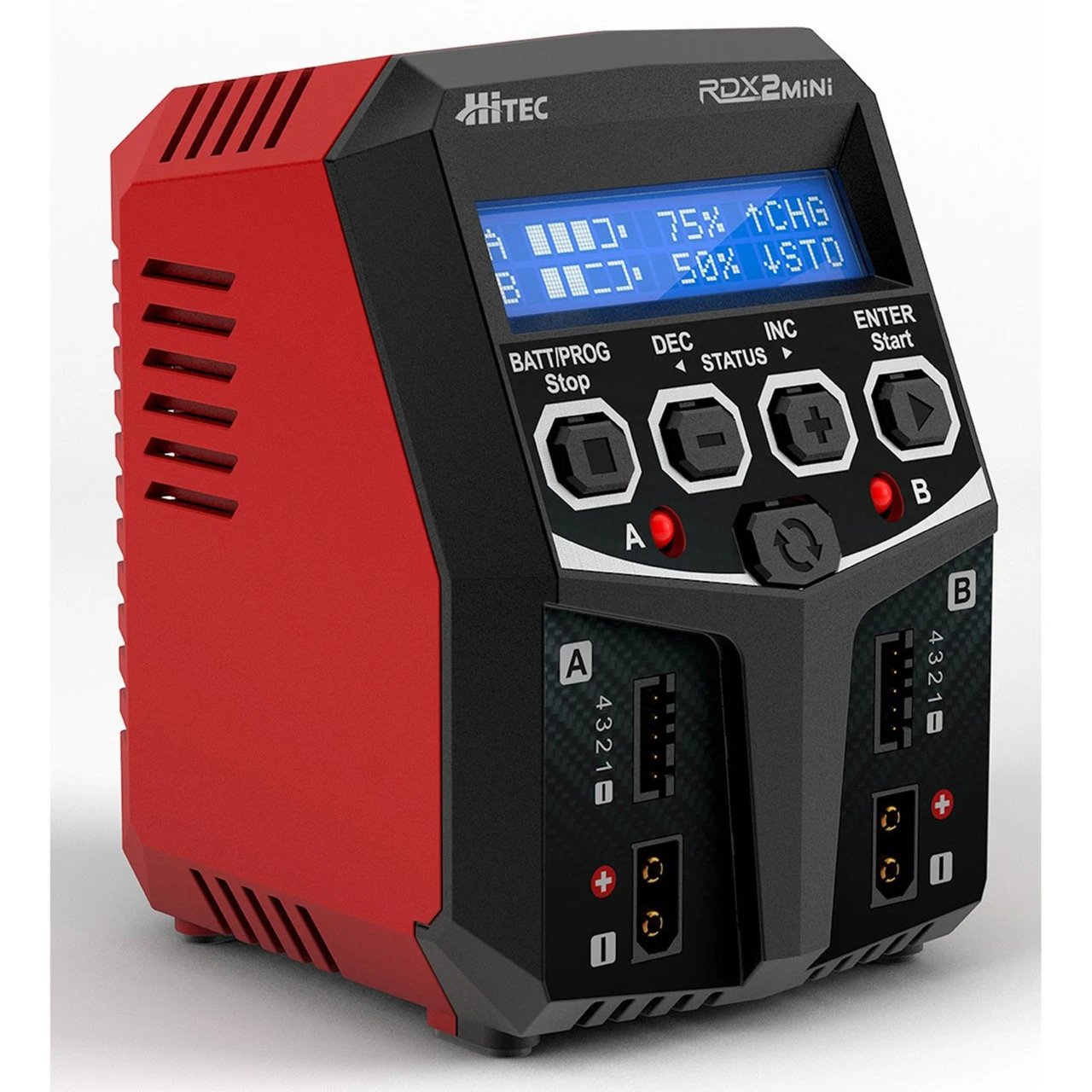

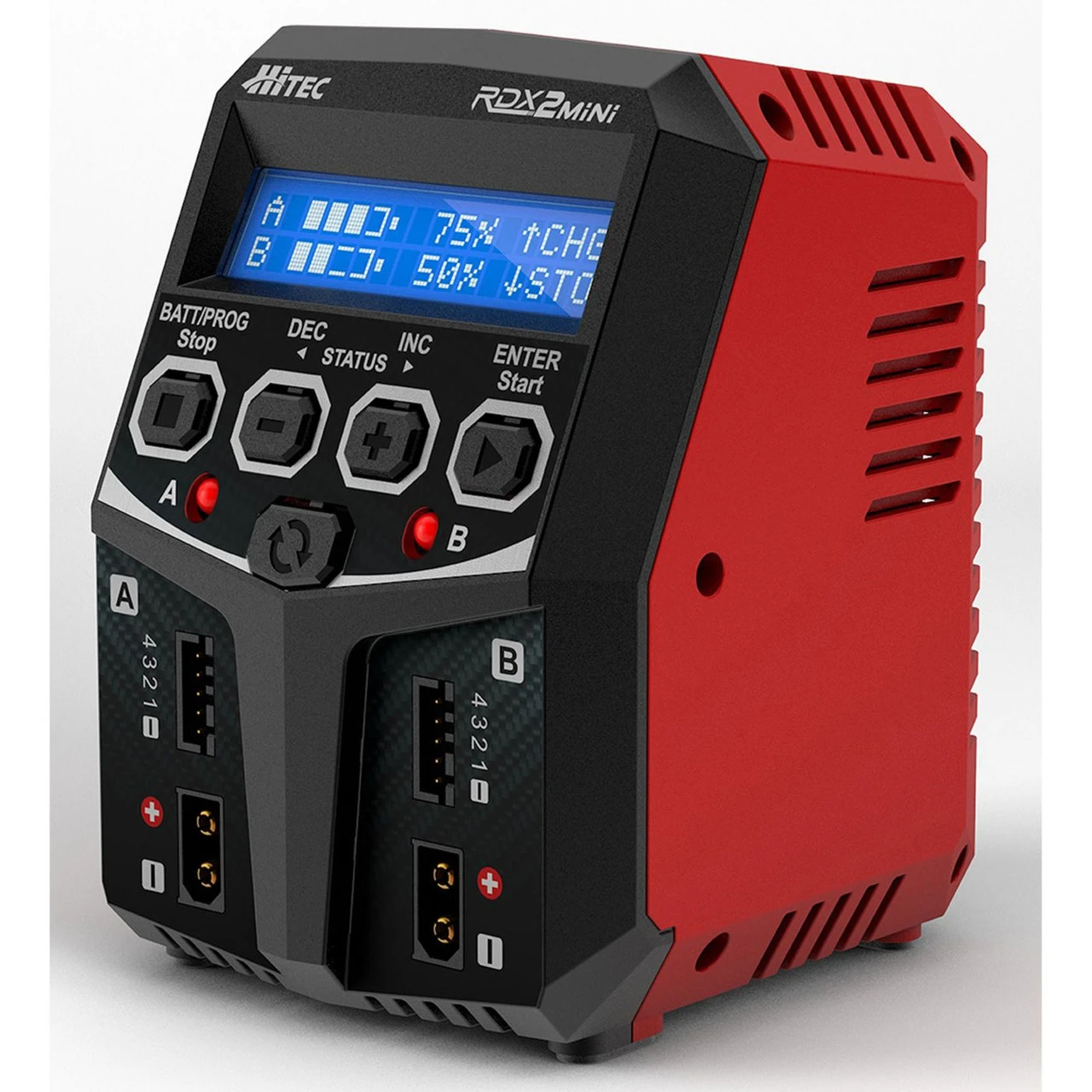

Hitec RDX2 Mini AC Dual Multi Charger (4S/5A/50W)

The RDX Battery Charger line offers an array of efficient, sleekly-designed chargers for all discerning hobbyists. The new RDX2 Mini is a two-channel charger, featuring independent circuits which allow the user to charge two batteries simultaneously, regardless of chemistry or capacity. With a powerful, combined 100 watt charging output and 5A current, the RDX2 Mini offers the punch needed to charge 2-4 cell packs at an affordable price. The convenient front-loading design has the balancing and XT60 ports readily accessible for ease of operation at your workshop, flying field or raceway. Additional features include AGM and Cold Charge Modes to safely and easily charge conventional lead-based and absorbed glass mat batteries in cold conditions.

Features at a Glance:

User-friendly LCD Interface
Stores 10 Different Battery Memory Charge/Discharge Profiles
AGM And Cold Charge Modes
Terminal Voltage Control
Built-in Balance Connector
Balance, Standard, Fast And Storage Modes For All Lithium Battery Chemistries
Re-peak Charge Mode And Delta-peak Sensitivity For NiMH/NiCd Batteries
Optional Temperature Sensor For NiCd/NiMH Charging
Two (2) Built-in XT60 Connectors
Smart Ventilation Fan

In-Depth Features:

Optimized Operating Software
The RDX2 Mini features the user-friendly AUTO function that sets the feeding current during the process of charging or discharging. For lithium batteries especially, it can prevent overcharging and any resulting consequences. With the AUTO function, users can disconnect the circuit automatically and trigger a single alarm to sound if any malfunction has been detected. All programs unique to the RDX2 Mini are controllable through a two-way linkage and communication system intended to maximize safety and minimize the trouble. Every setting is customizable according to user preference.

Battery Memory (Data Store/Load)
The RDX2 Mini is capable of storing up to 10 different charge/discharge profi les for your convenience. Users can keep the data pertaining to any program setting for any battery to facilitate seamless charging or discharging. Saved profi les can be accessed and recalled as necessary.

Terminal Voltage Control (TVC)
For experienced users, the charger’s end voltage can be reset.

Twin-Channel Charger
Hitec’s RDX2 Mini allows you to plug two batteries into one charger simultaneously; and it will intelligently and automatically initiate the charging of two batteries at once to their maximum capacity. Better yet, the batteries being charged do not need to have the same configuration. You can connect different battery chemistries (NiMH/NiCd/LiPo/LiFe/Lilon/LiHV/Pb) into any of the charging ports.

AGM and Cold Charge Modes
With the new AGM and Cold Charge modes, the user is free to charge their Lead-based (PB) and AGM batteries in cold days and cold conditions.

Battery Icon & Percentage of Charge Display
It’s more intuitive to indicate the current real-time battery power with the Battery Icon and Percentage of Charge Display.

Internal Independent Lithium Battery Balancer
The RDX2 Mini employs an individual-cell-voltage balancer. It is not necessary to connect an external balancer for balance charging.

Adaptable to Various Types of Lithium Battery
The RDX2 Mini is adaptable to various types of lithium batteries, including LiPo, LiIon, LiFe and the new LiHV batteries.

Re-Peak Mode of NiMH/NiCd Battery
In re-peak charge mode, the charger can peak charge the battery once, twice, or three times in a row automatically. This function is useful for ensuring a full battery charge.

Delta-Peak Sensitivity for NiMH/NiCd
This automatic charge termination program is based on the principle of the Delta-peak voltage detection. When the battery’s voltage exceeds the threshold, the process will be terminated automatically.

Battery Meter
The user can check the battery’s total voltage, the highest voltage, the lowest voltage and the voltage of each cell. The user can also check the battery’s total internal resistance and the internal resistance of each cell.

Capacity Limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will automatically terminate according to the maximum value previously set.

Processing Time Limit
Protect your battery by setting a maximum time limit for charging and discharging.

Charging Specifications:
AC Input: 100-240 Volts AC
Charge Power: 100 Watts (2x 50 Watts)
Charge Current Range: 0.1 – 5.0 Amps
Discharge Power: N/A
Current Drain for LiPo Balancing: 300mA per Cell
NiCd/NiMH Battery Cell Count: 6 – 8 Cells
LiPo/LiHV/LiFe/Lilon Cell Count: 2 – 4 Cells
Pb Battery Voltage: 6 – 12 Volts
Dimensions: 3.5 x 3.9 x 5.0 in. (90 x 100 x 127mm)
Weight: 1.1 lbs. (50kg)

Unit Specifications:
Application: Hobby battery charger
Height: 5.0″ (127mm)
Input Voltage: 100-240V AC
Integrated Balancing: Y – Internal Balancer & Internal Adapter
Length: 3.9″ (100mm)
Maximum Charge Rate: 50W per port
Output Connector: Two XT60
Selectable Charge Rate: Yes – Incremental (0.1A Increments)
Weight: 1.1lbs (50kg)
Width: 3.5″ (90mm)

Includes:

(1) RDX2 Mini Charger
(1) AC Cord
(2) T-type Connectors
(1) Product Manual
