Name: FMS Pitts 1400mm PNP V2 With Reflex
SKU: FMM126PX
Availability: InStock

Product Description

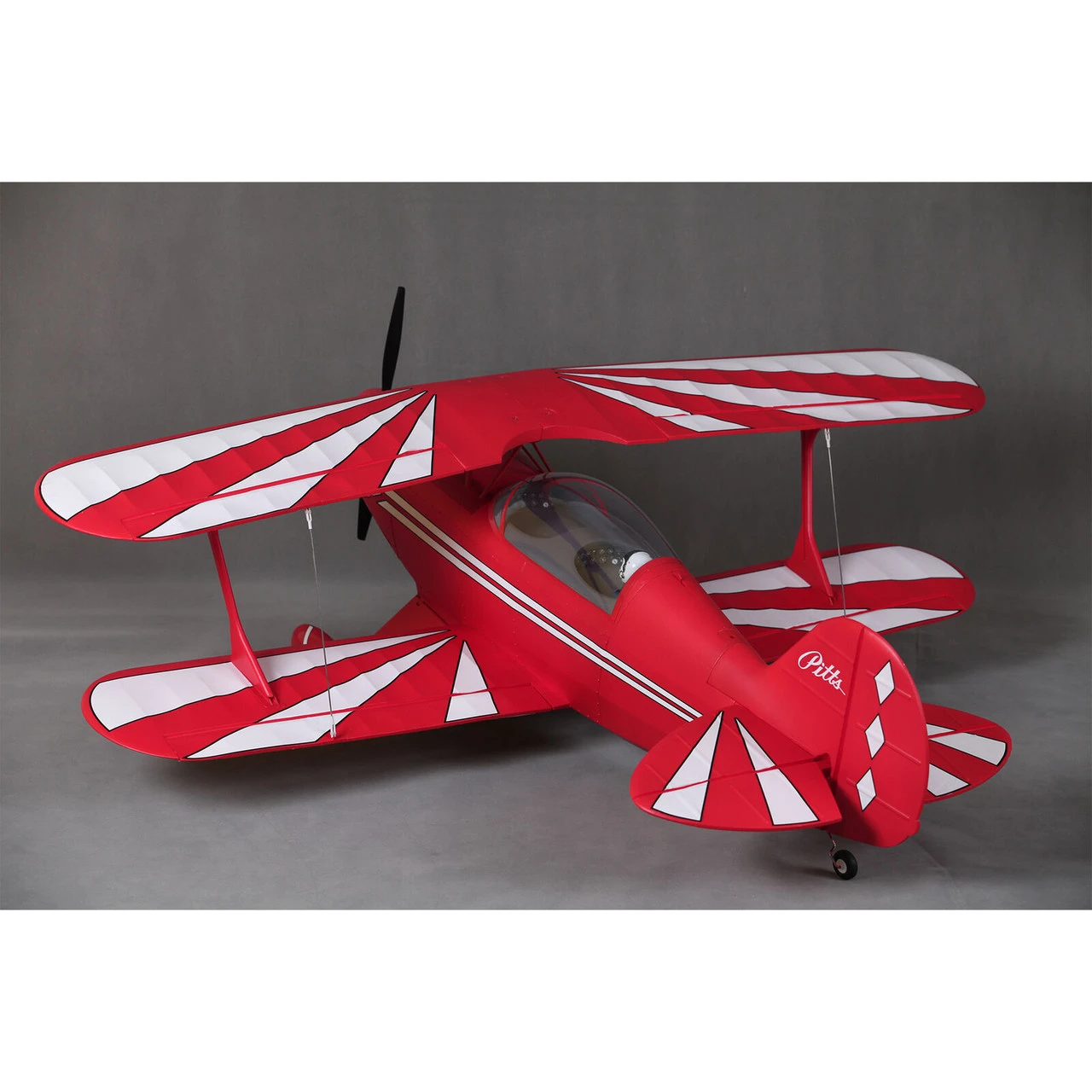

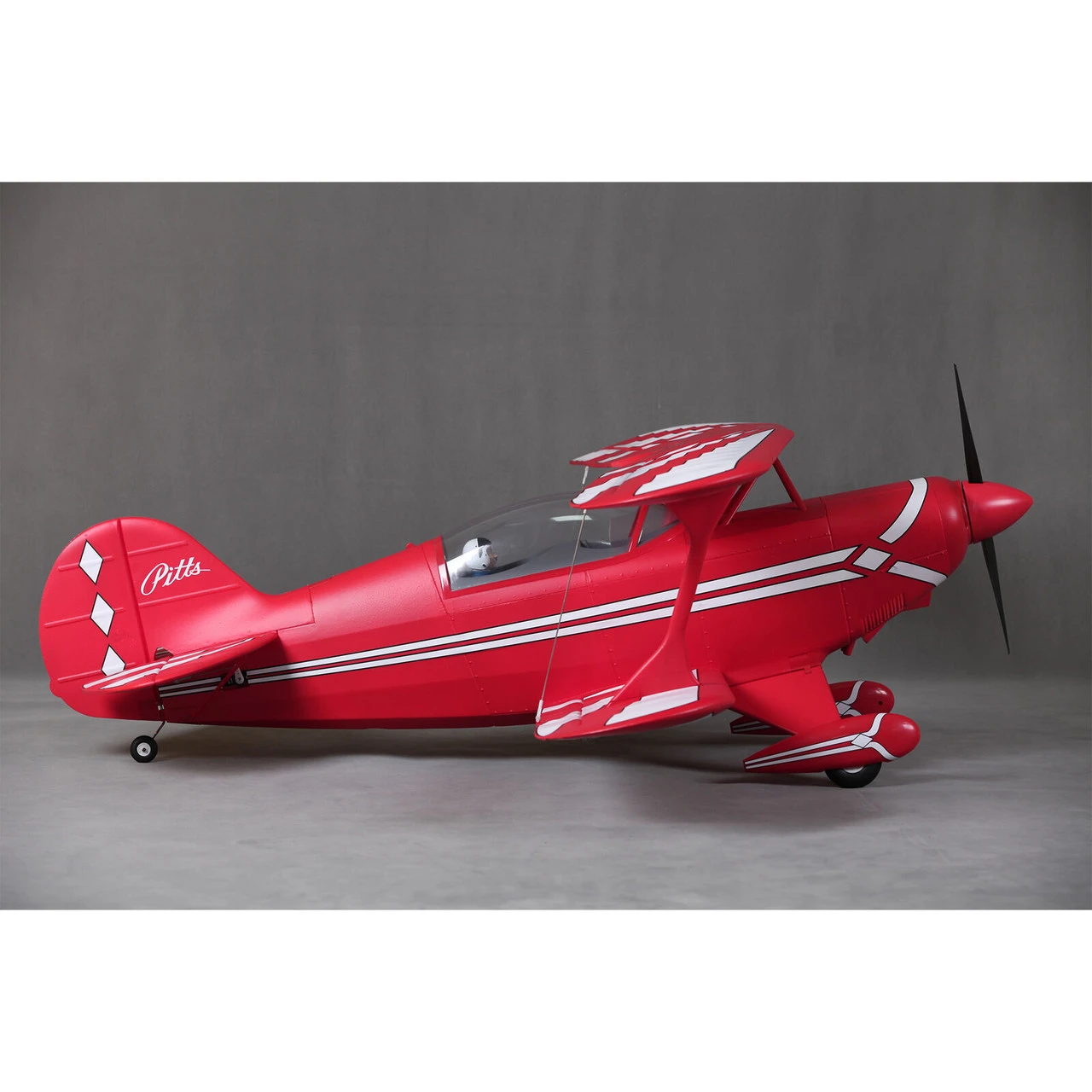

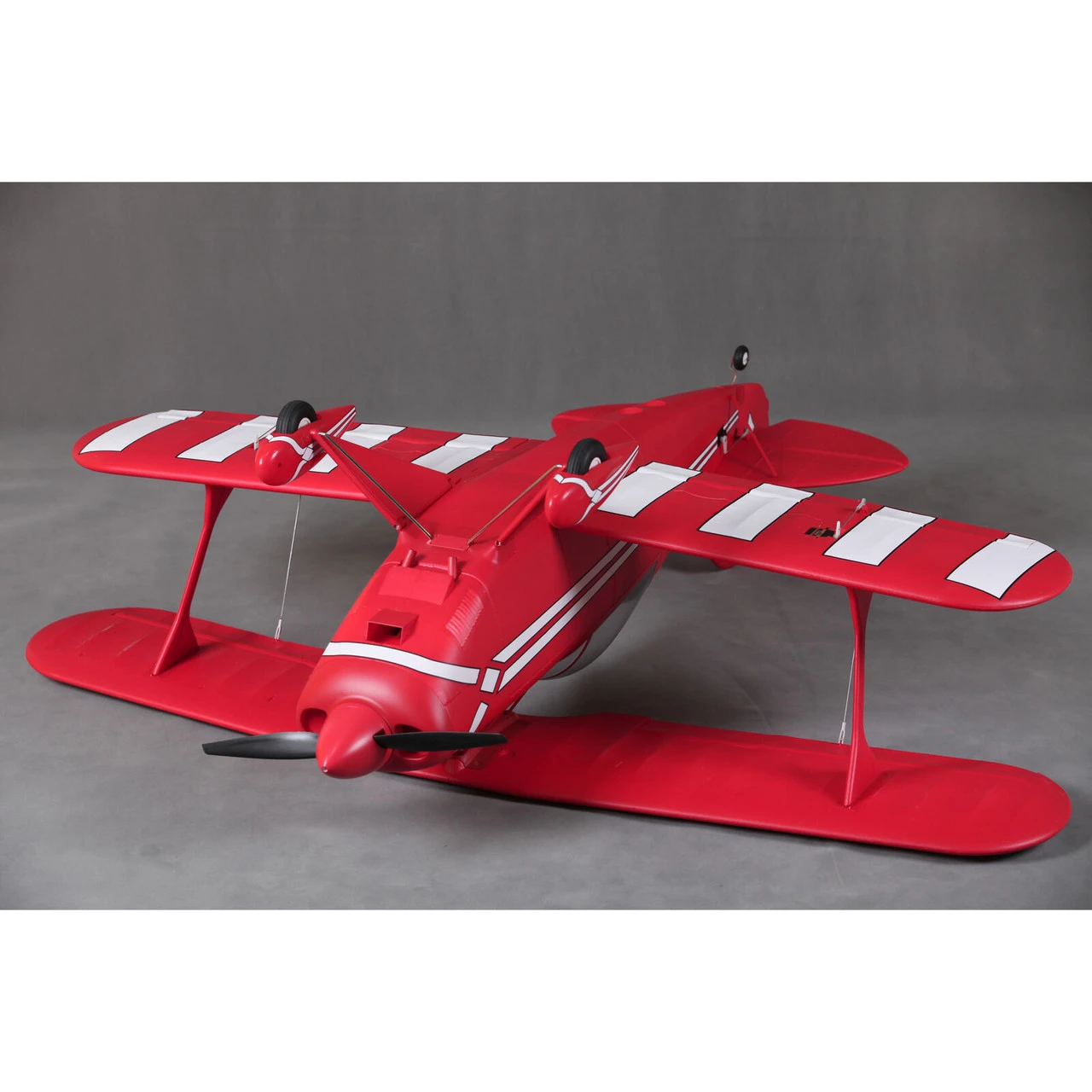

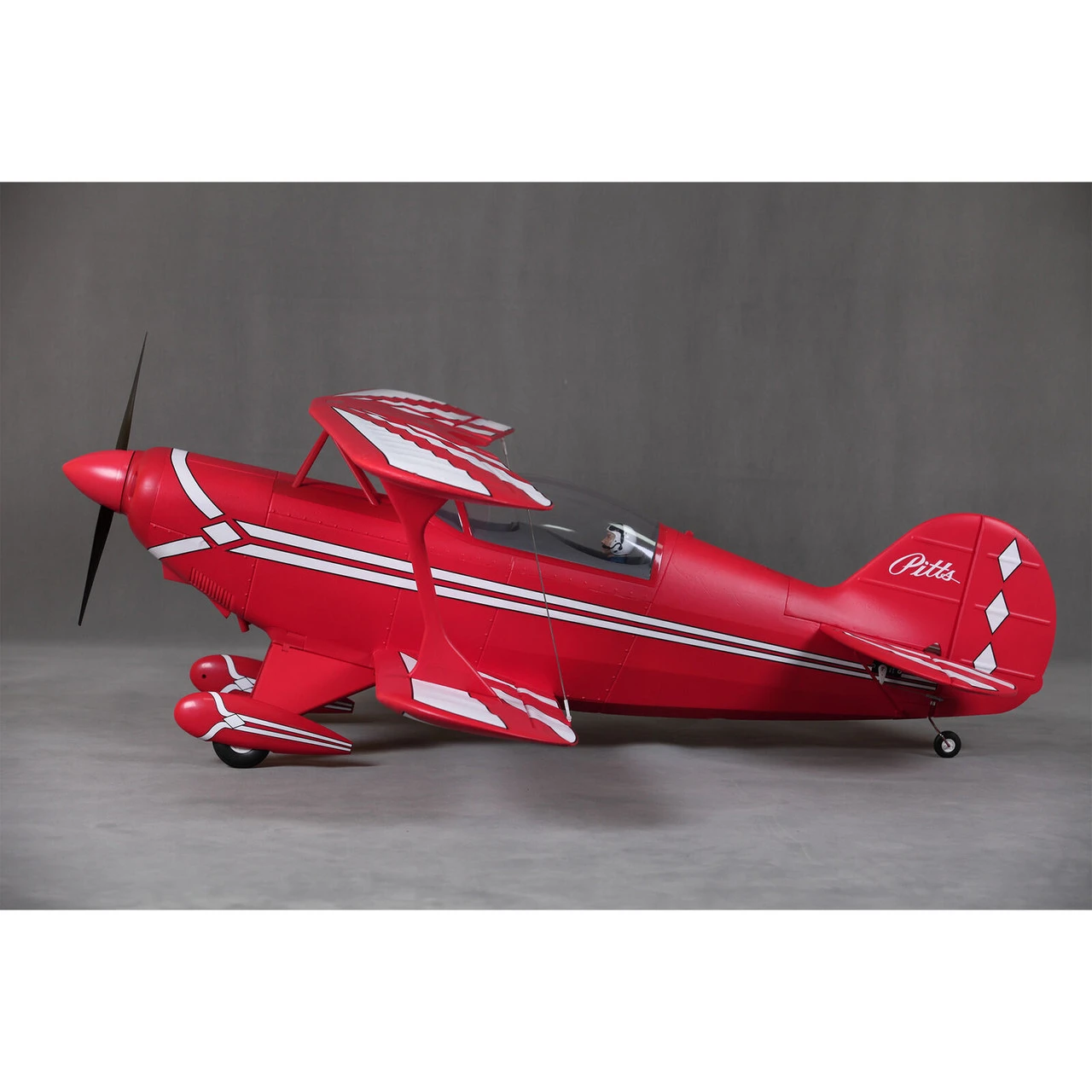

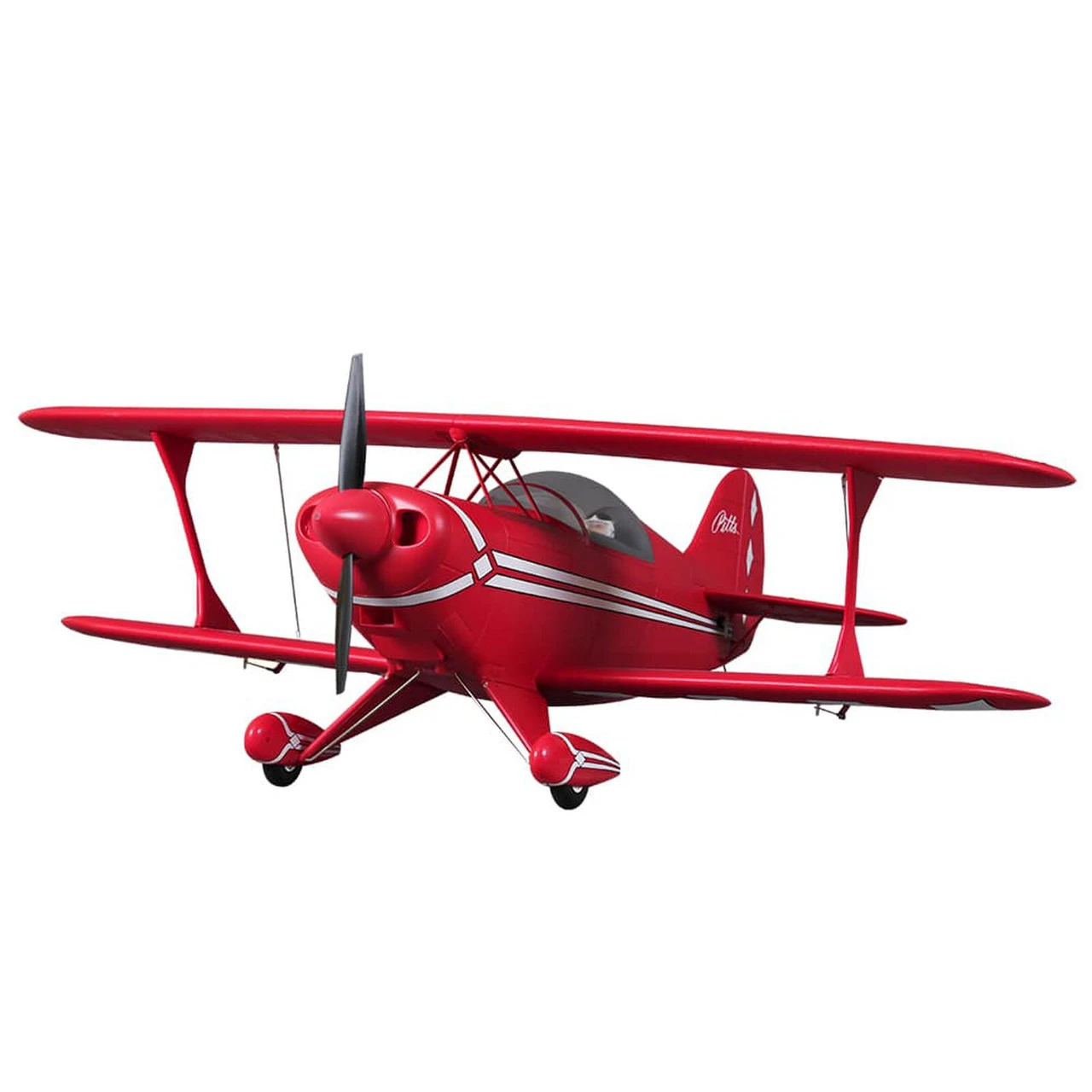

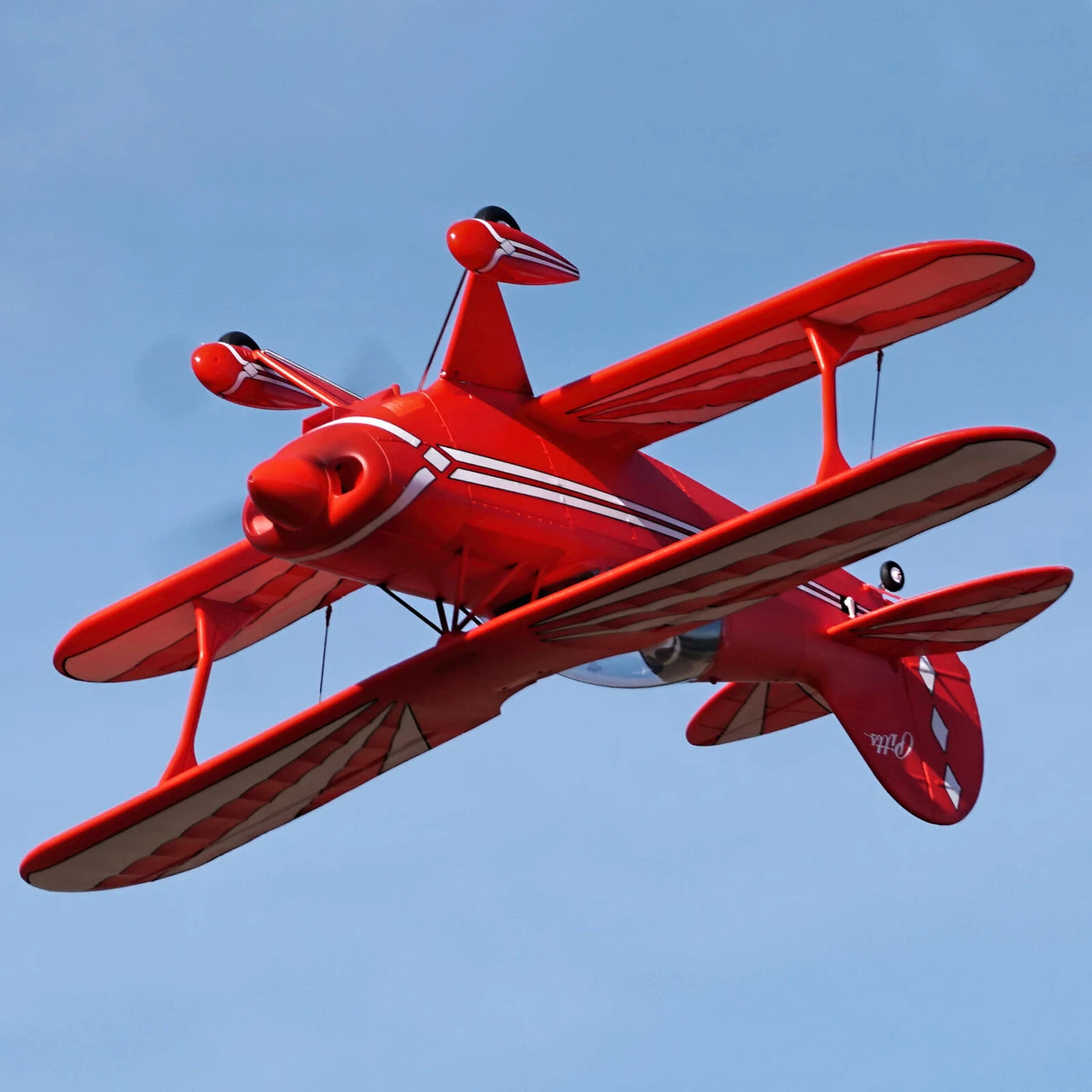

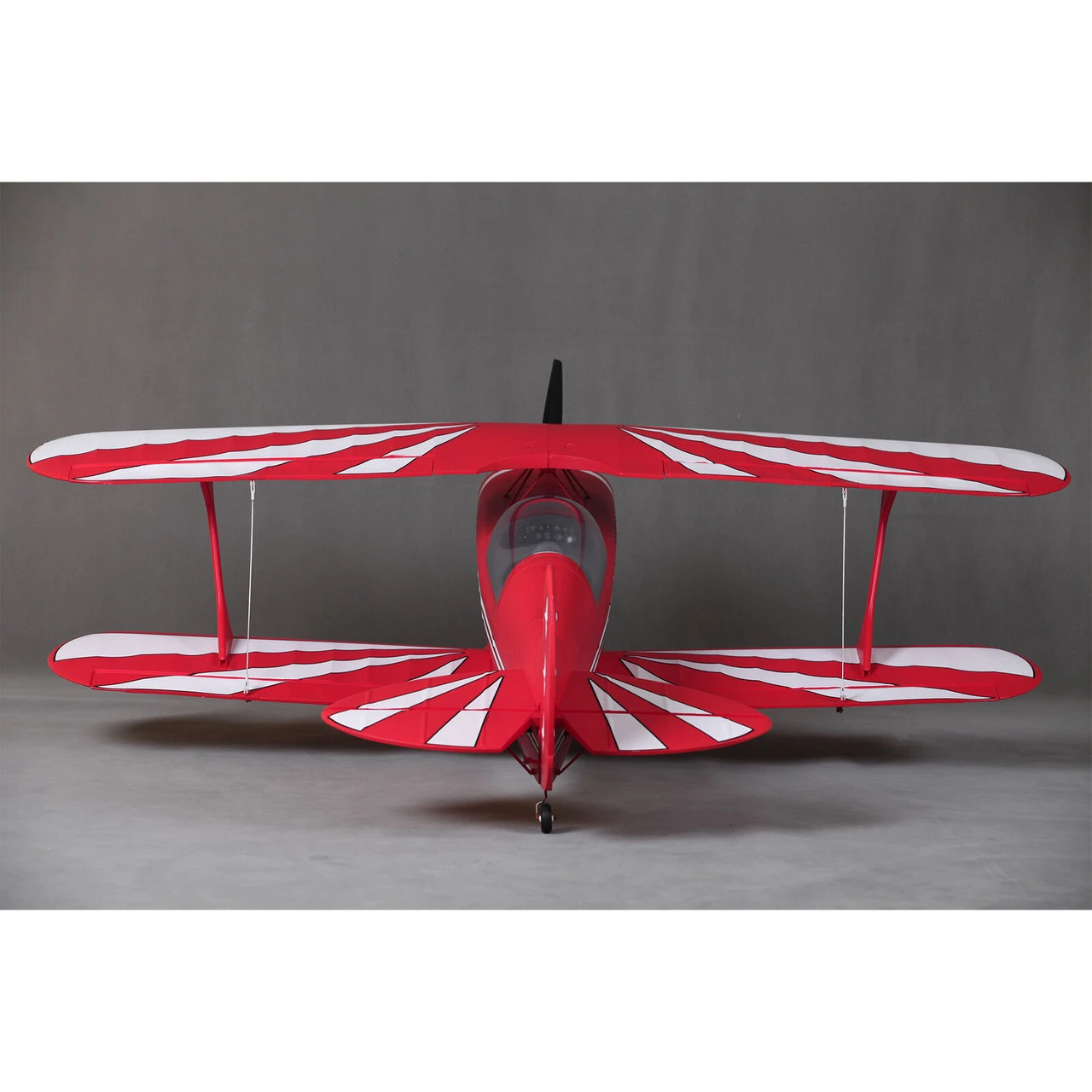

FMS Pitts 1400mm PNP V2 with Reflex

The Pitts Special is a light aerobatic biplane designed by Curtis Pitts. It has accumulated many competitions wins since its first flight in 1944. The Pitts biplanes dominated world aerobatic competition in the 1960s and 1970s and, even today, remain a potent competition aircraft in the lower categories.

Built upon the successful V1 Pitts biplane, FMS is proud to announce the brand-new Pitts V2. Redesigned with a massive 1400mm wingspan, the Pitts V2 is constructed of lightweight and robust EPO foam material. Proprietary connector plugs built into the wing structure means that the wings can be attached to and detached from the fuselage using just a few screws. The slide-fit wing struts are just as simple, slide them on in just a few seconds and the wing is securely braced!

An oversized battery bay accommodates most 6S packs with ease- giving the pilot ample power to attempt all aerobatic maneuvers. Hobbywing 50A ESC provides bulletproof performance!

Faithfully recreated with graceful lines from a bygone era, robust airframe and a state-of-the-art power system, the Pitts V2 is a model you shouldn’t miss!

Features

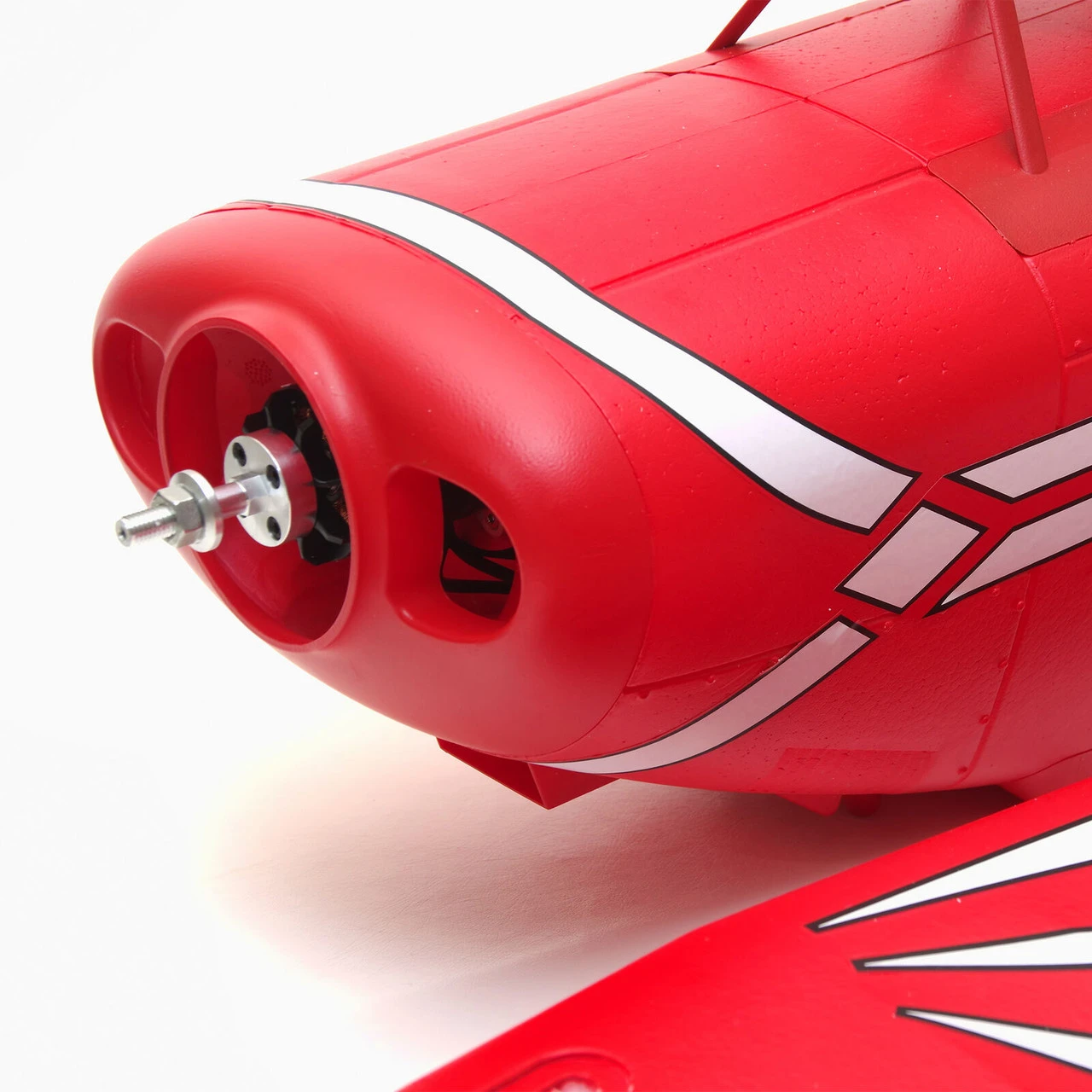

4258 brushless motor, 50A Hobbywing-sourced ESC, 17g servos
Realistic trim scheme, rivets, panel lines and pilot figure

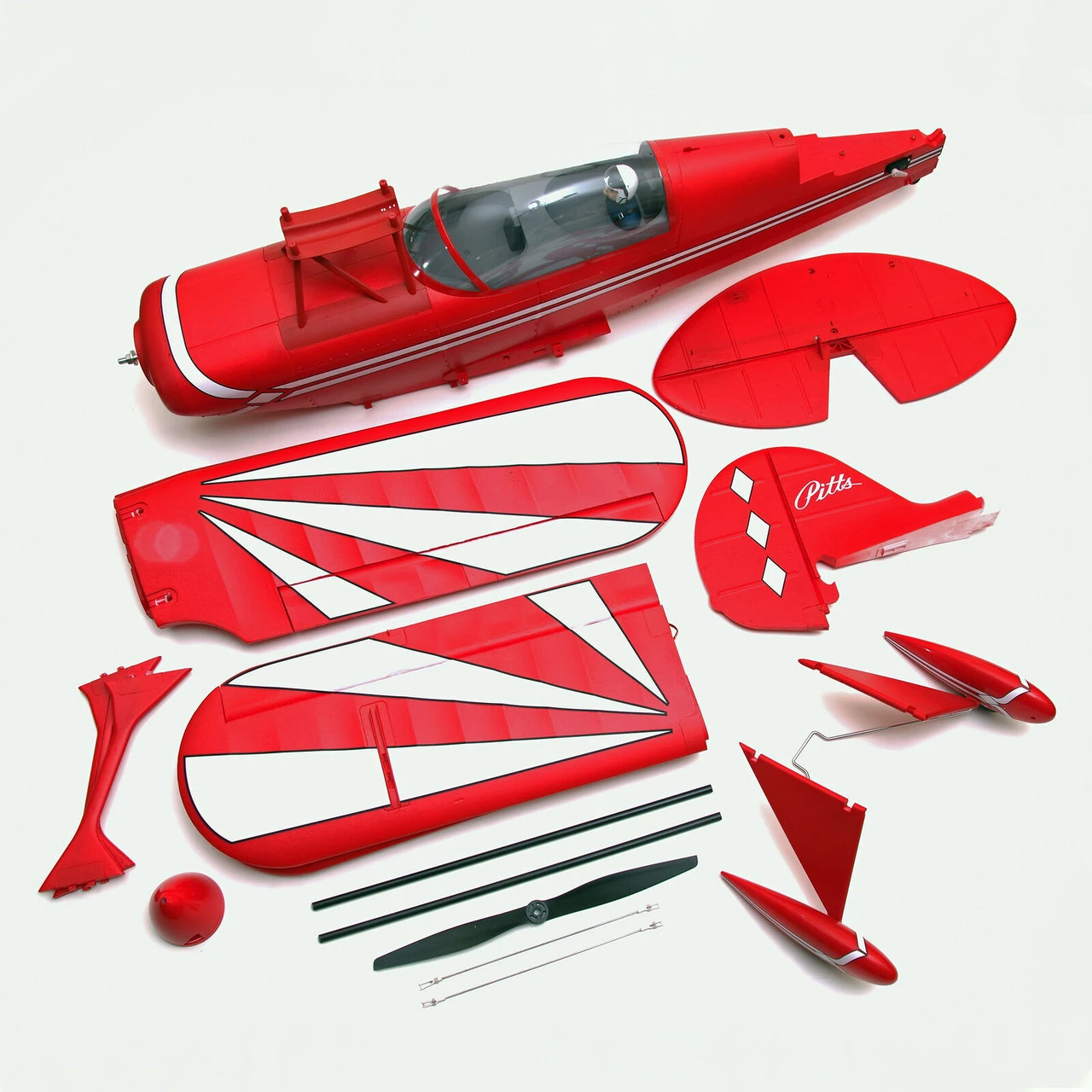

Screw-together assembly greatly reduces assembly time
Oversized battery compartment for larger, more powerful 6S packs
Robust and durable EPO construction

Complete System Upgrade – Reflex V2 is Compatible with Most FMS Aircraft

The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software – allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!

Reflex Functions

Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.

Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released – giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.

Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets – for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Specifications
Minimum Required Radio 6-channel
CG (Center of Gravity) 6.1 – 6.5″ (155 – 165mm) back from leading edge of wing at fuselage side
Completion Level Plug-N-Play
Propeller Size 15 x 9
Recommended Battery 22.2V 4000mAh 35C
Wing Loading 0.15 oz-sq in (72.5 g-sq dm)
Wingspan 55.1″ (1400 mm)
Material EPO
Wing Area 748.5 sq in (48.3 sq dm)
Motor Size 4258
Product Length 51.1″ (1298 mm)
Power Type Electric

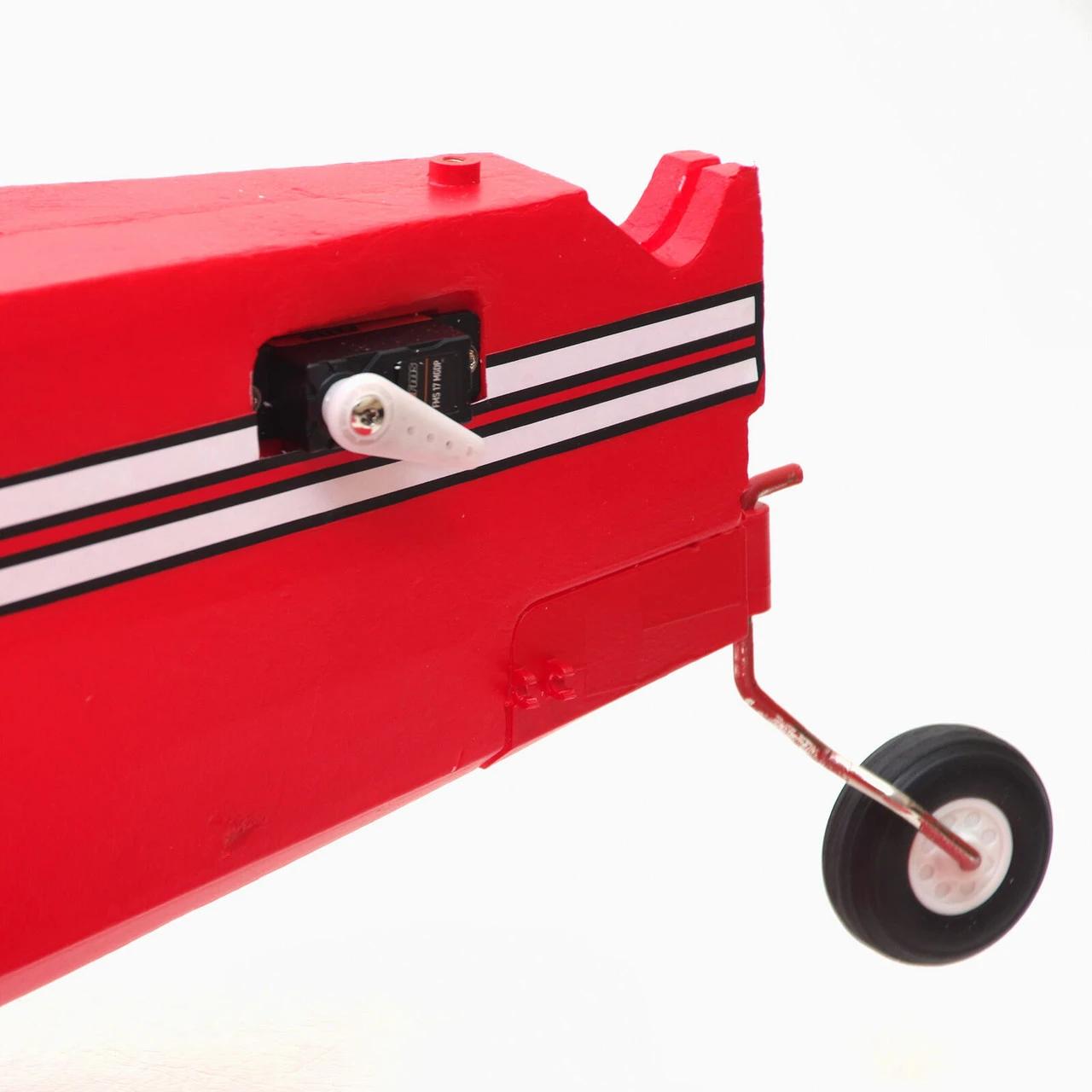

Landing Gear Fixed main LG with steerable tail wheel
