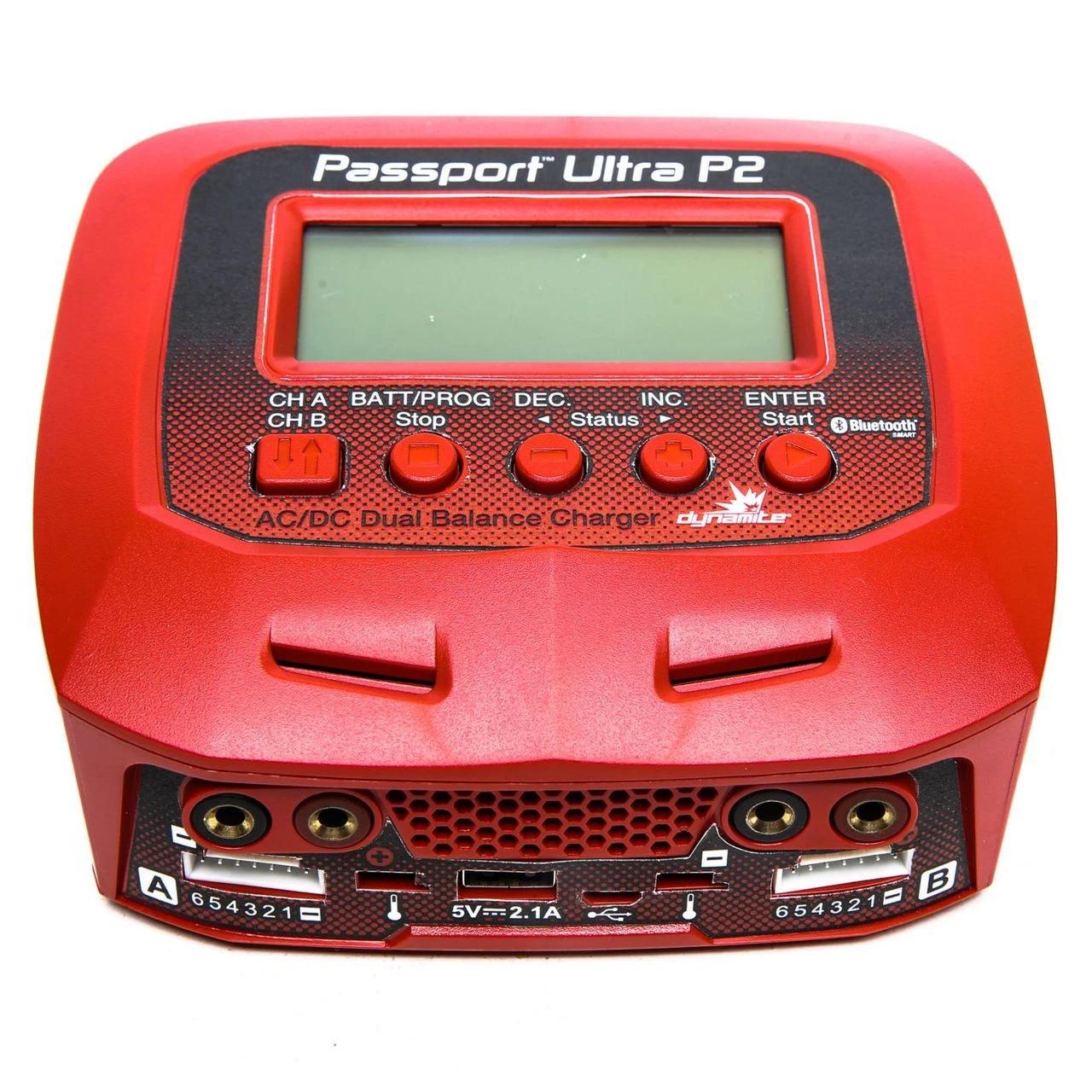

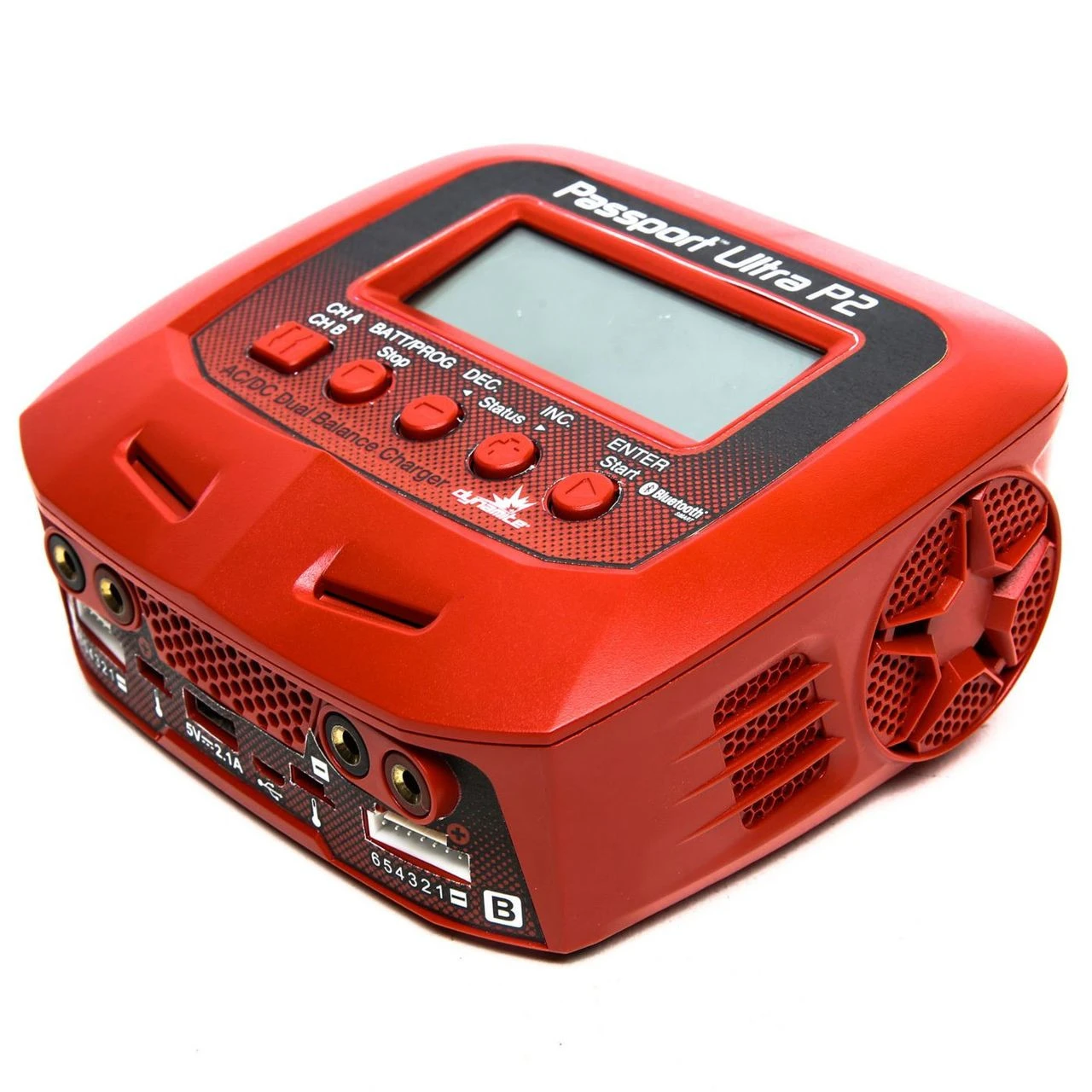

Dynamite 3016 Passport Ultra P2 100W AC Plus 2-Port AC/DC Multi-Charger

Product Description

Dynamite 3016 Passport Ultra P2 100W AC Plus 2-Port AC/DC Multi-Charger

The Dynamite® Passport™ P2 AC Plus 2 Port AC/DC Multi-Charger represents the pinnacle of premium, high-performance chargers. With dual 100W output capability, the Passport P2 can charge Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.

Features:

• Powerful 100W AC/DC Multi-Charger
• Two channels charge two different kinds of batteries simultaneously
• Charges Lipo, LiHV, LiFe NiMH/NiCd, and Pb batteries
• Charges 1-6 cell Lipo/ LiHV/LiFe, 1-15 cell NiMh/NiCd, and 2-20V Pb
• Dynamite Dashboard-Smart phone control and monitor via Bluetooth

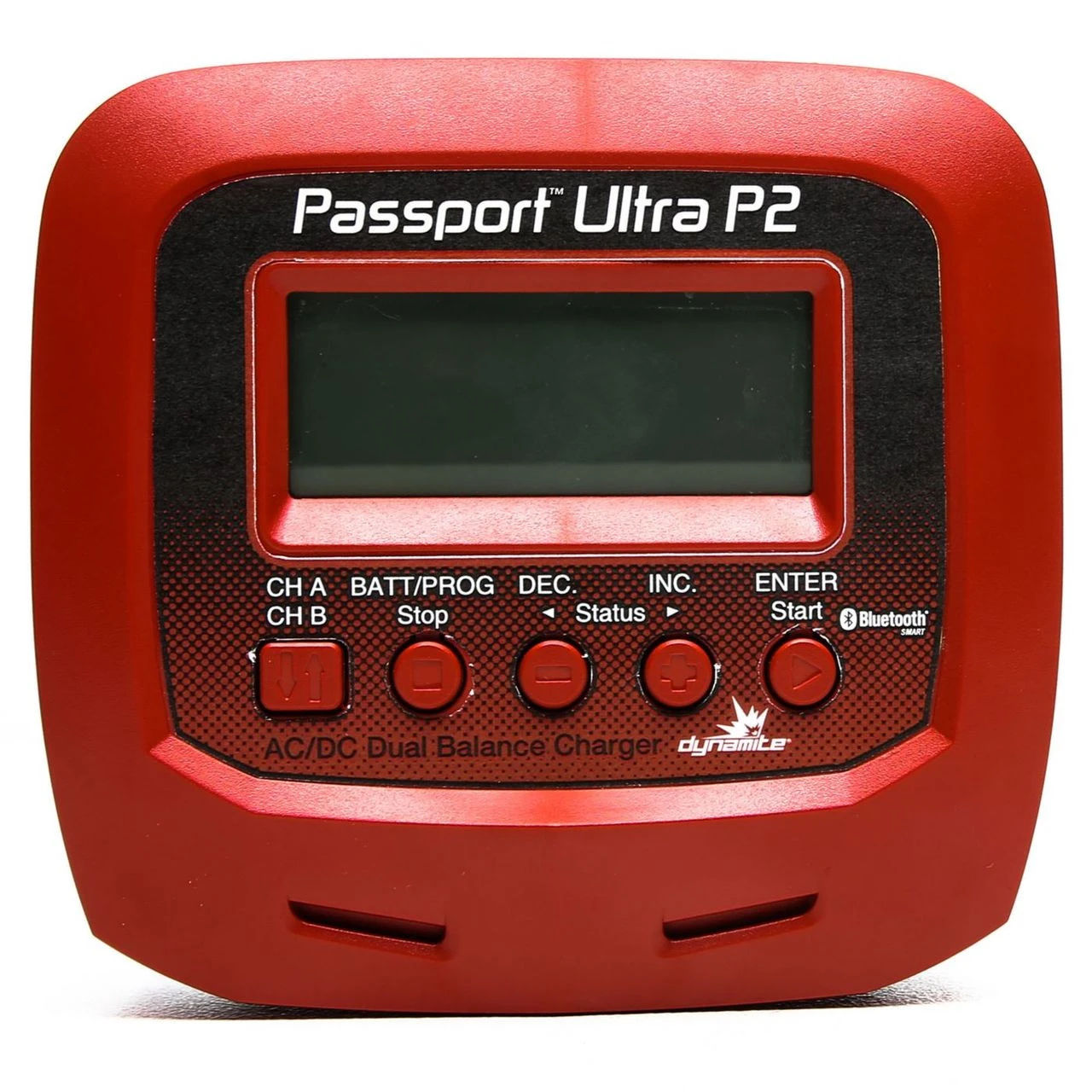

• High visibility, simplified LCD interface

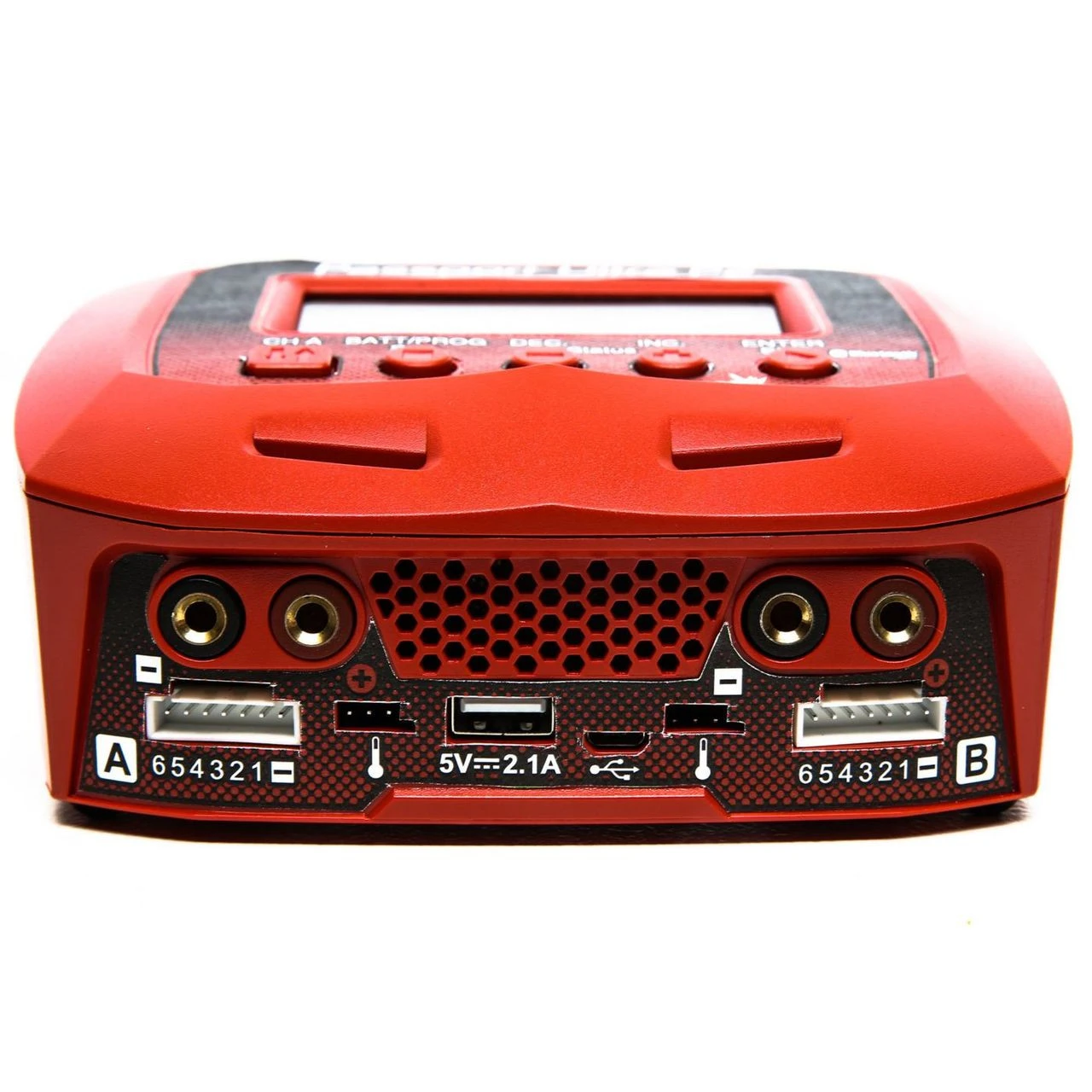

• Built-in balancing ports
• Integrated voice functionality
• 5-year limited warranty

Specifications:
Ampere Meter: Yes – on main LCD Display
Battery Balance Connector: XH Balancing Adapter Board
Battery Temperature Monitoring: Yes – Temperature Sensor not included
Battery Type: 1-2S LiFe, LiIon, LiPo; 1-2C NiCd, NiMH; 2-12V Pb

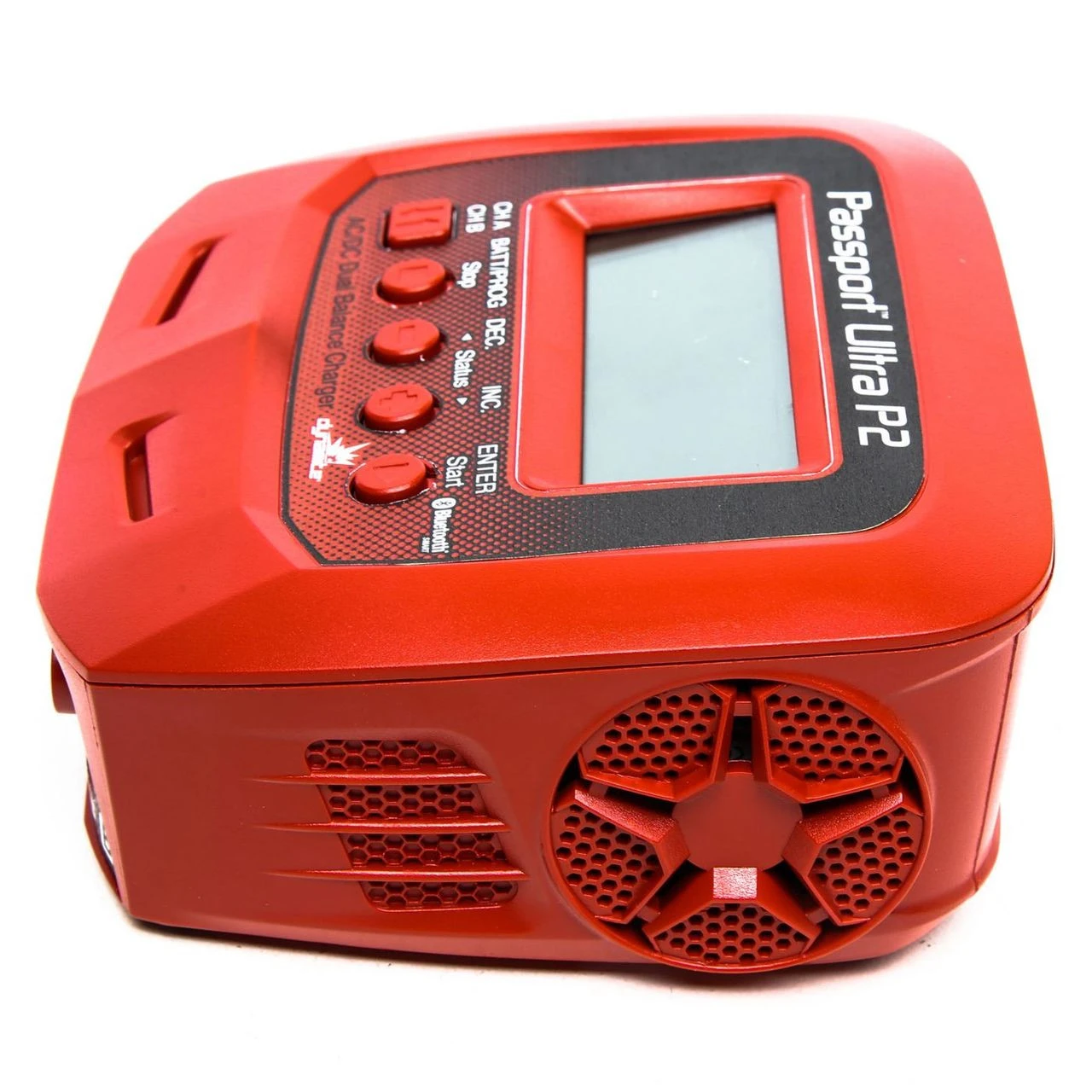

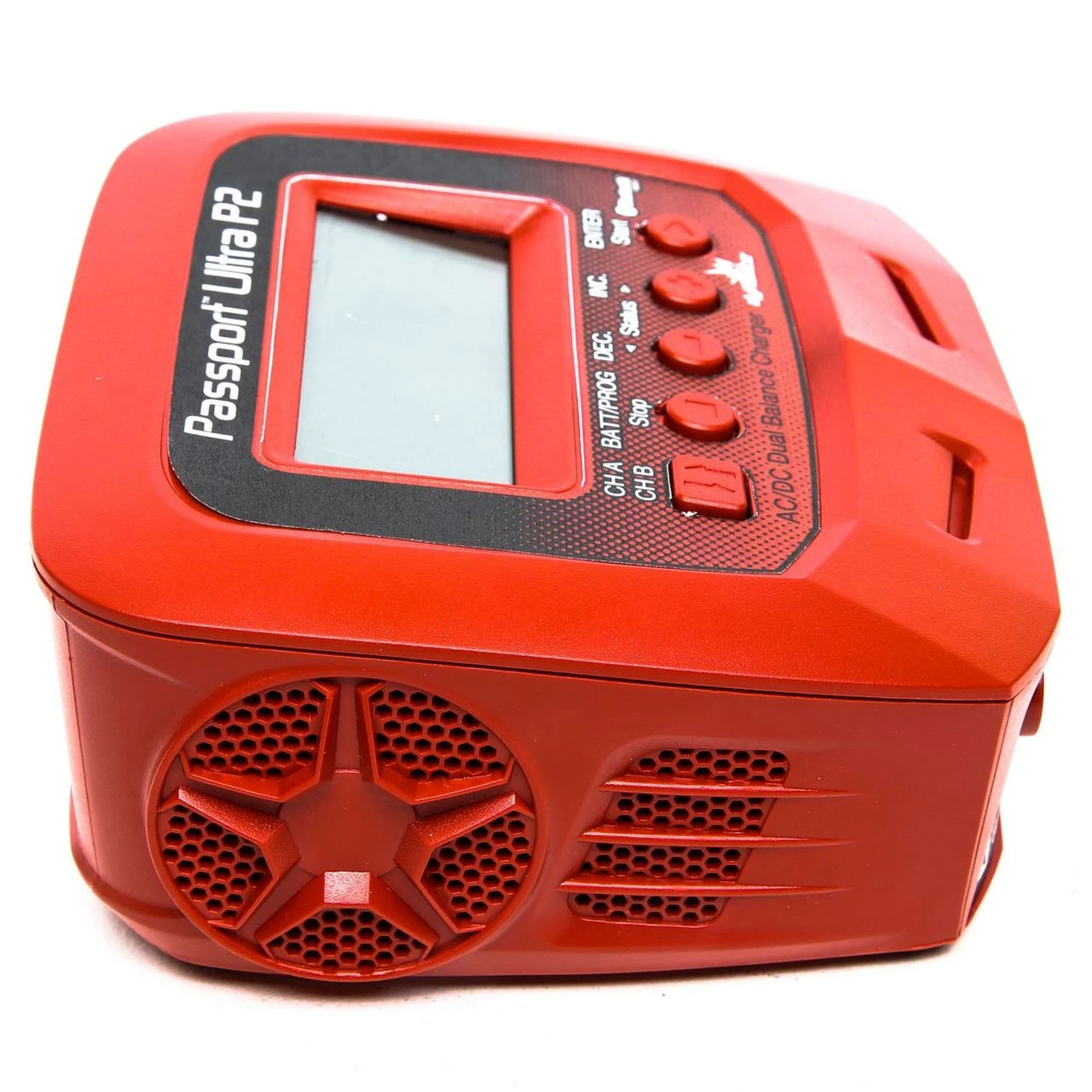

Cooling Method: Cooling Fan
DC Output: 100W max AC, 200W DC
Discharge: Yes
Display: Yes
Height: 2.6″ (67mm)
Input Connector: AC cord, detachable, North American Plug
Input Voltage: 100-240V AC or 11-18V DC
Integrated Balancing: Yes – Internal Balancer & External Adapter
Length: 5.5″ (140mm)
Low Input Voltage Protection: Yes
Maximum Charge Rate: 0.1A – 10A x 2
Maximum Continuous Discharge Rate: 0.10A – 2.0A x 2
Model Memory: Yes

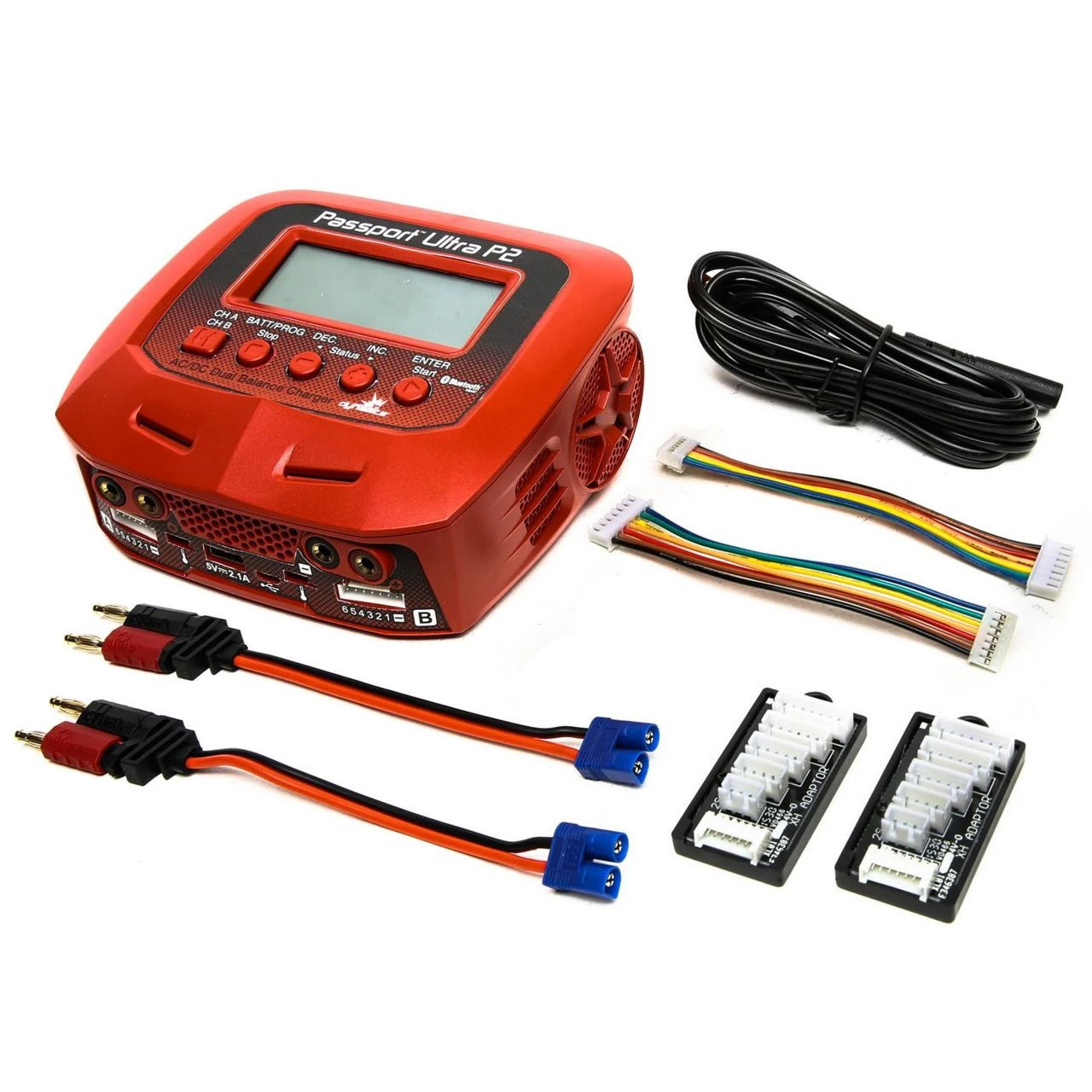

Output Connector: Banana Plug to EC3
Over Current Protection: Yes
PC Required: No
Peak Detection: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes – Fixed Rate
Short Circuit Protection: Yes
Thermal Protection: Yes
Voltage Meter: Yes – on main LCD Display
Weight: 1.4lbs (668g)
Width: 6.0″ (135mm)

• Resources

  • Dynamite Passport P2 AC Plus 2 Port AC/DC Multi Charger Instruction Manual
  • Dynamite Passport P2 AC Plus 2 Port AC/DC Multi Charger Instruction Manual Addendum
