CEN RACING FORD F450 SD American Force Edition V2 – Blue Galaxy

Product Description

CEN RACING FORD F450 SD American Force Edition V2 – Blue Galaxy

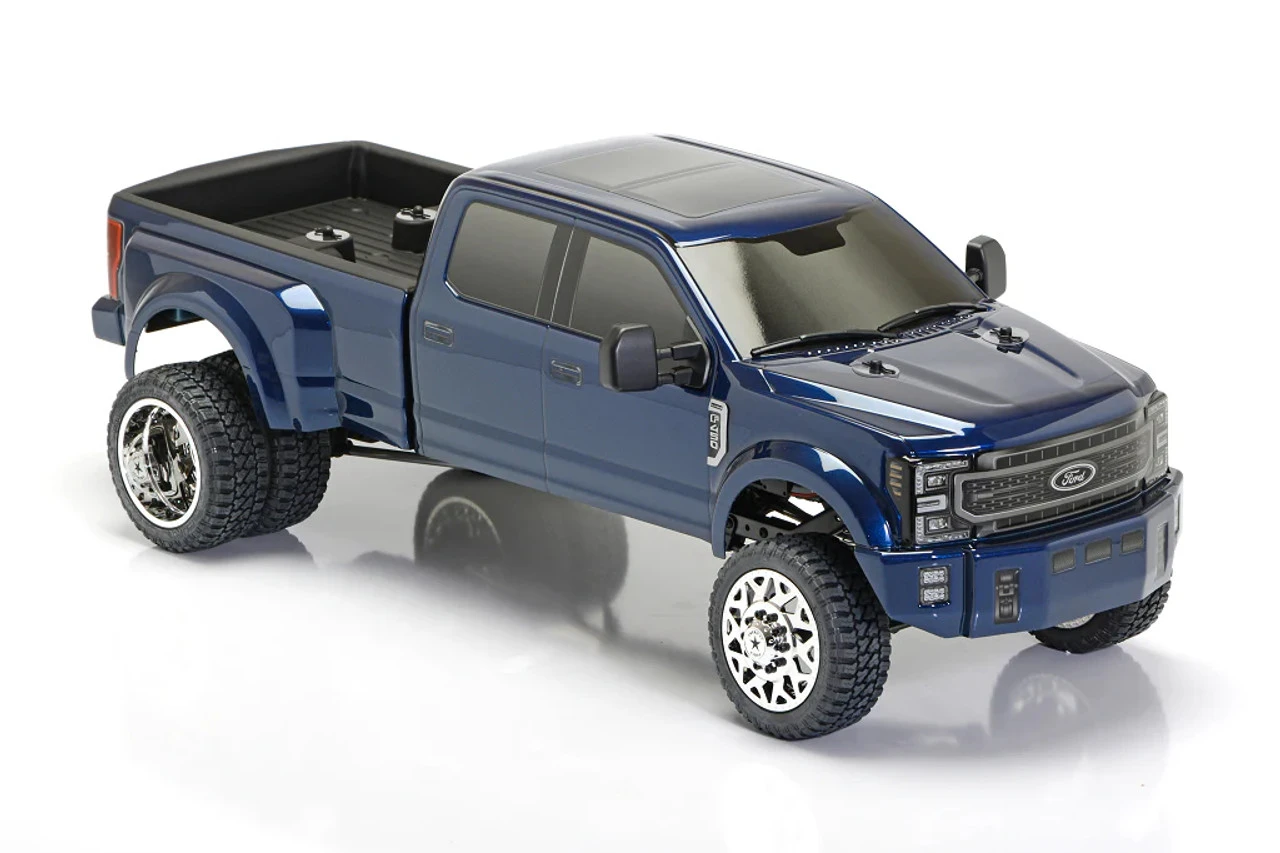

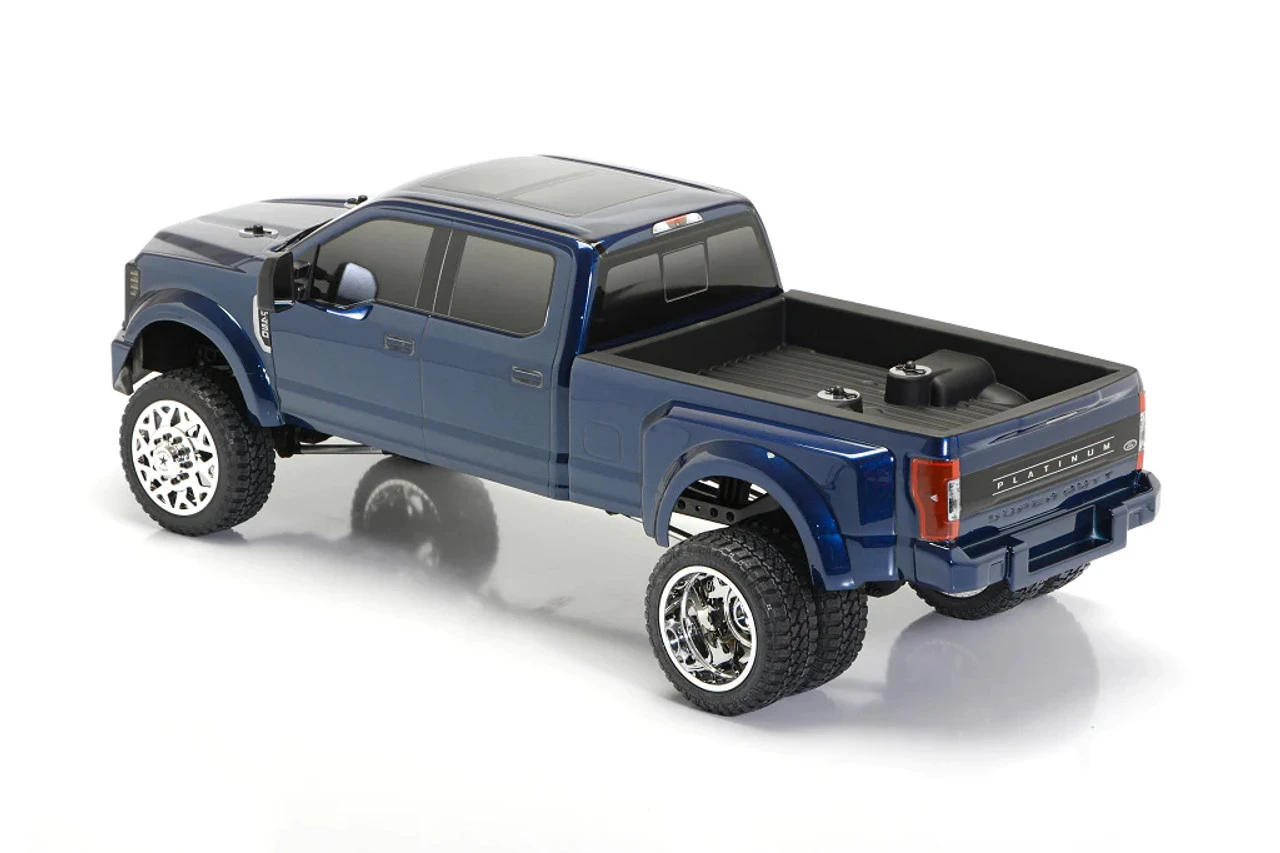

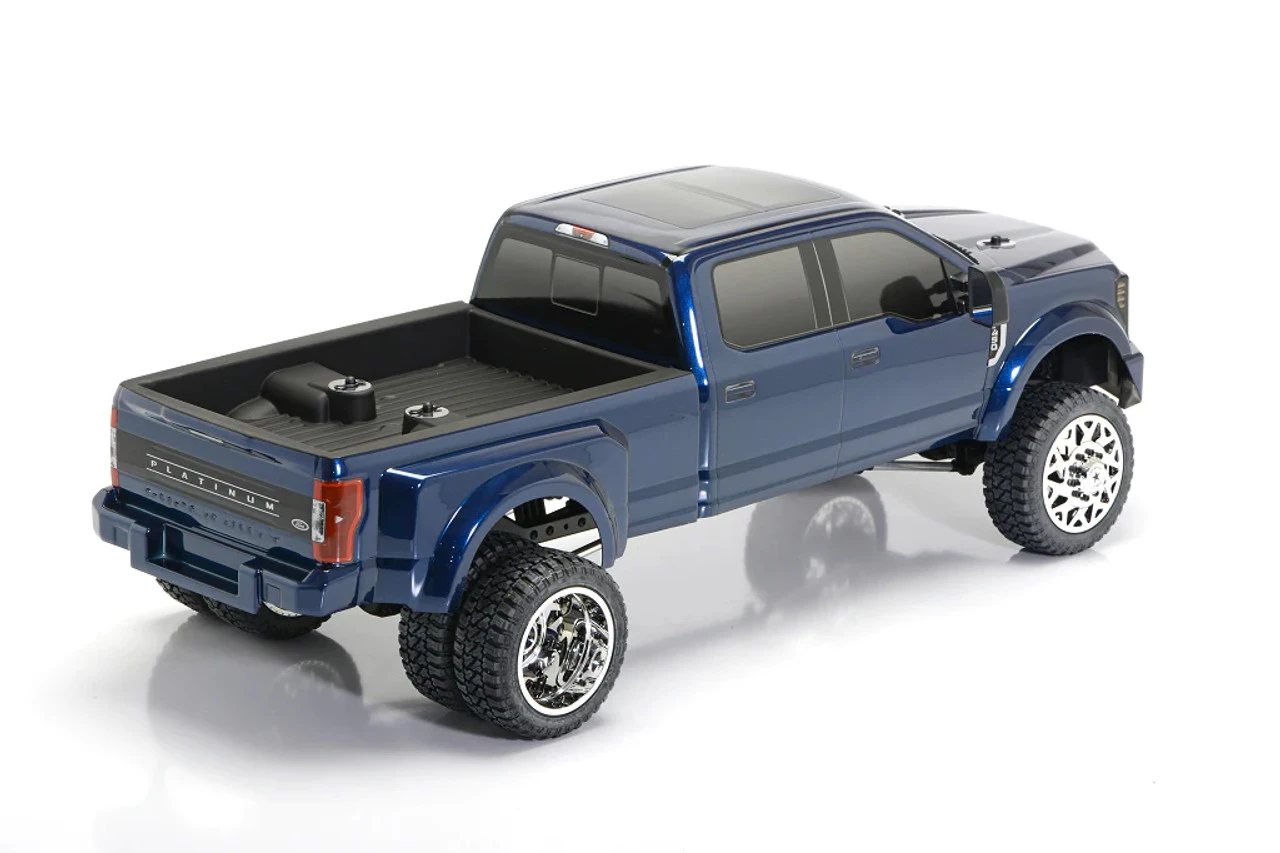

The CEN Officially Licensed Ford F450 1/10 RTR Custom Truck is a exciting, unique True Scale contender to the RC Truck scene. This dually truck was developed with the driver in mind, with features designed to keep you on the road and driving longer.

This truck was made dust and water proof to protect the components on any track or trail. Over heat protection and throttle signal loss prevention give you the feedback needed to not over-do a good time or lose control of your truck. A Pistol-Grip AMP 30 3 Channel Transmitter is included in this Ready to Run, featuring digital trimming, and a built in fail-safe to help you dial in the kit. CEN paid attention to detail with the guts of this machine, with hardened steel components and features designed to allow easy customization of the finished product. Get in on the action with this solid True 1/10 scale Ready to Run

New Features Of V2

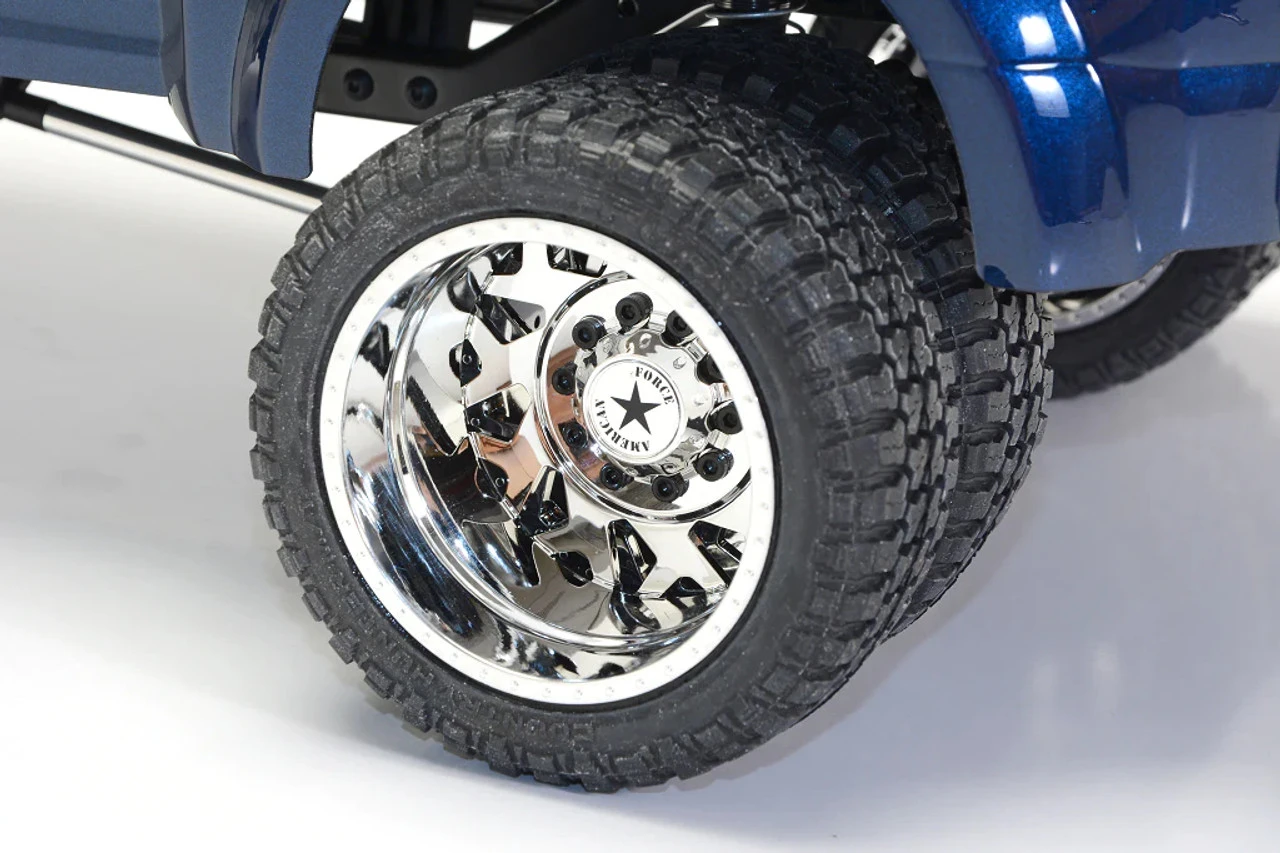

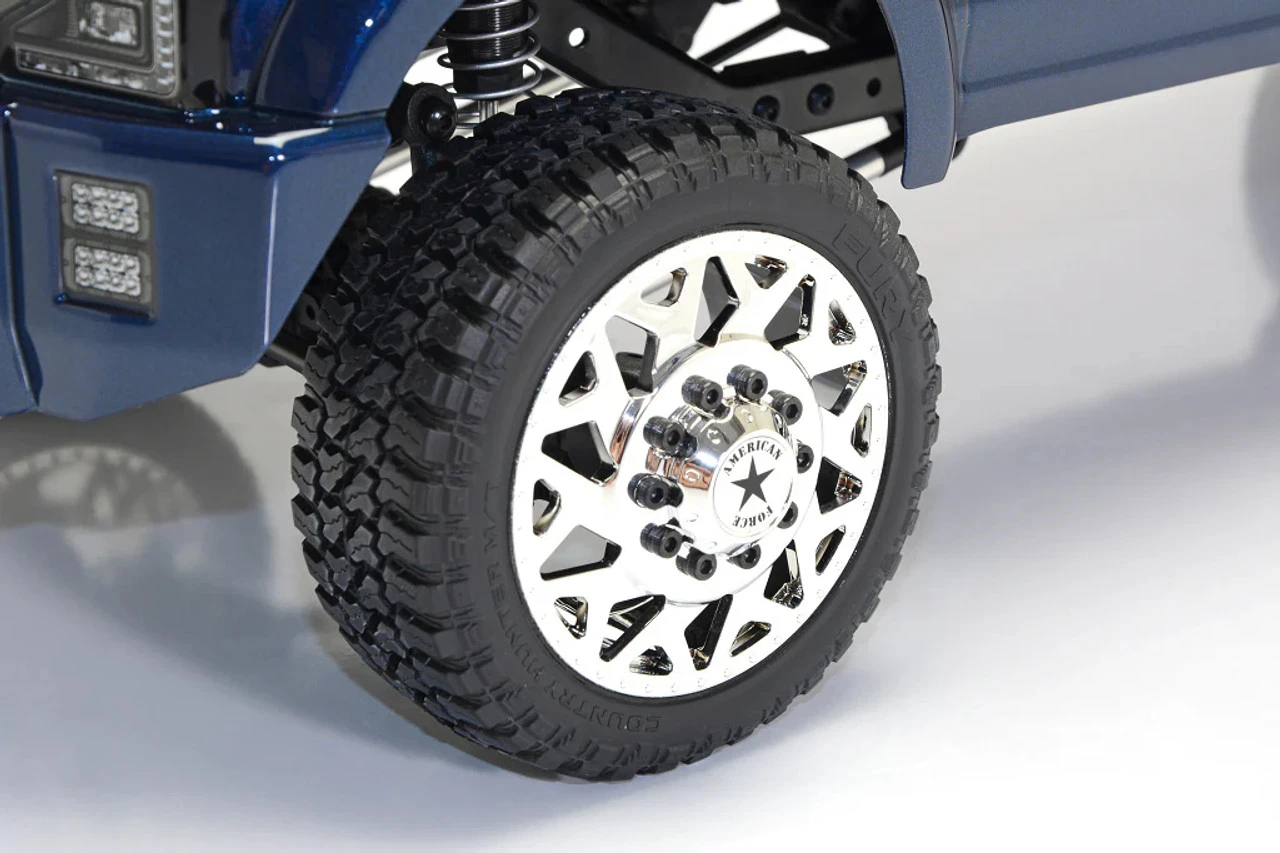

•  American Force H01 CHROME Contra wheels.

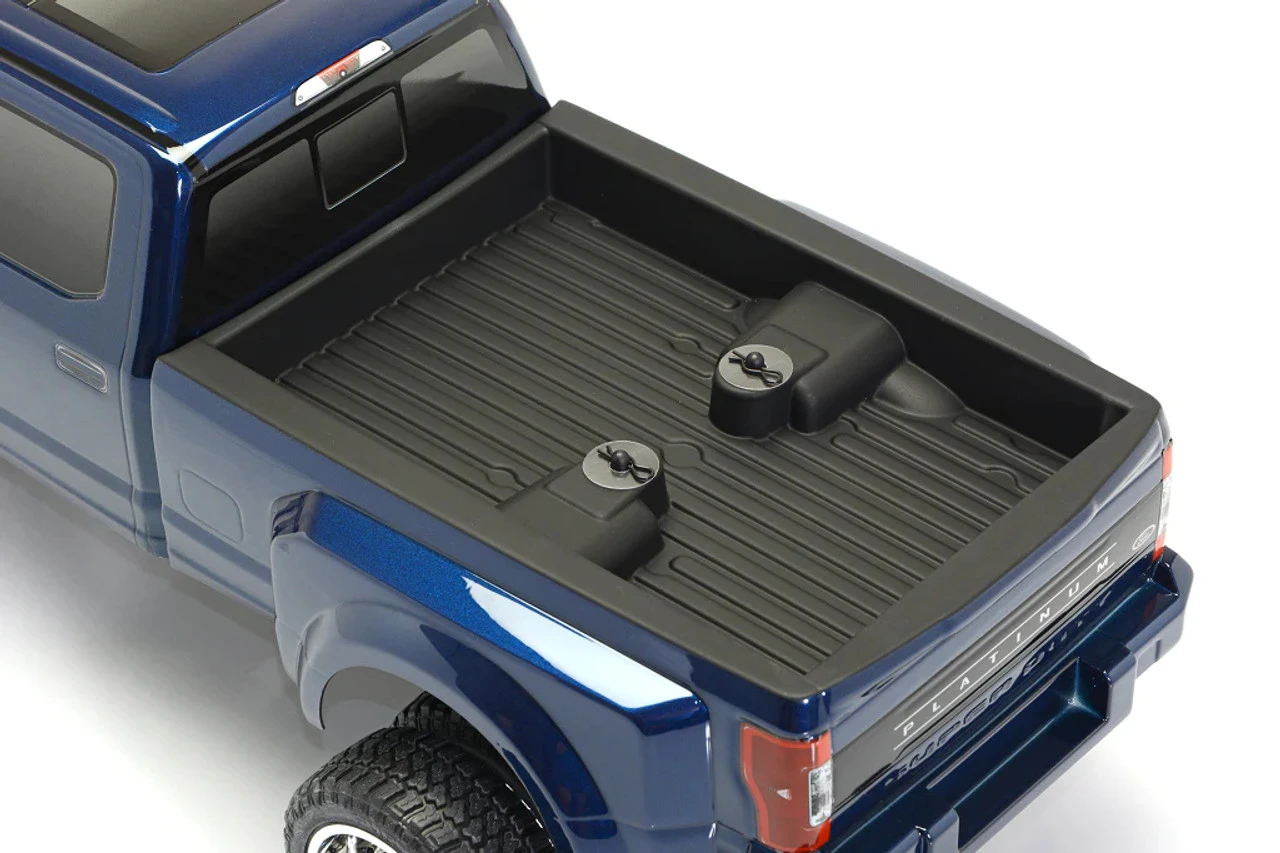

•  REALISTIC textured bed linear coating

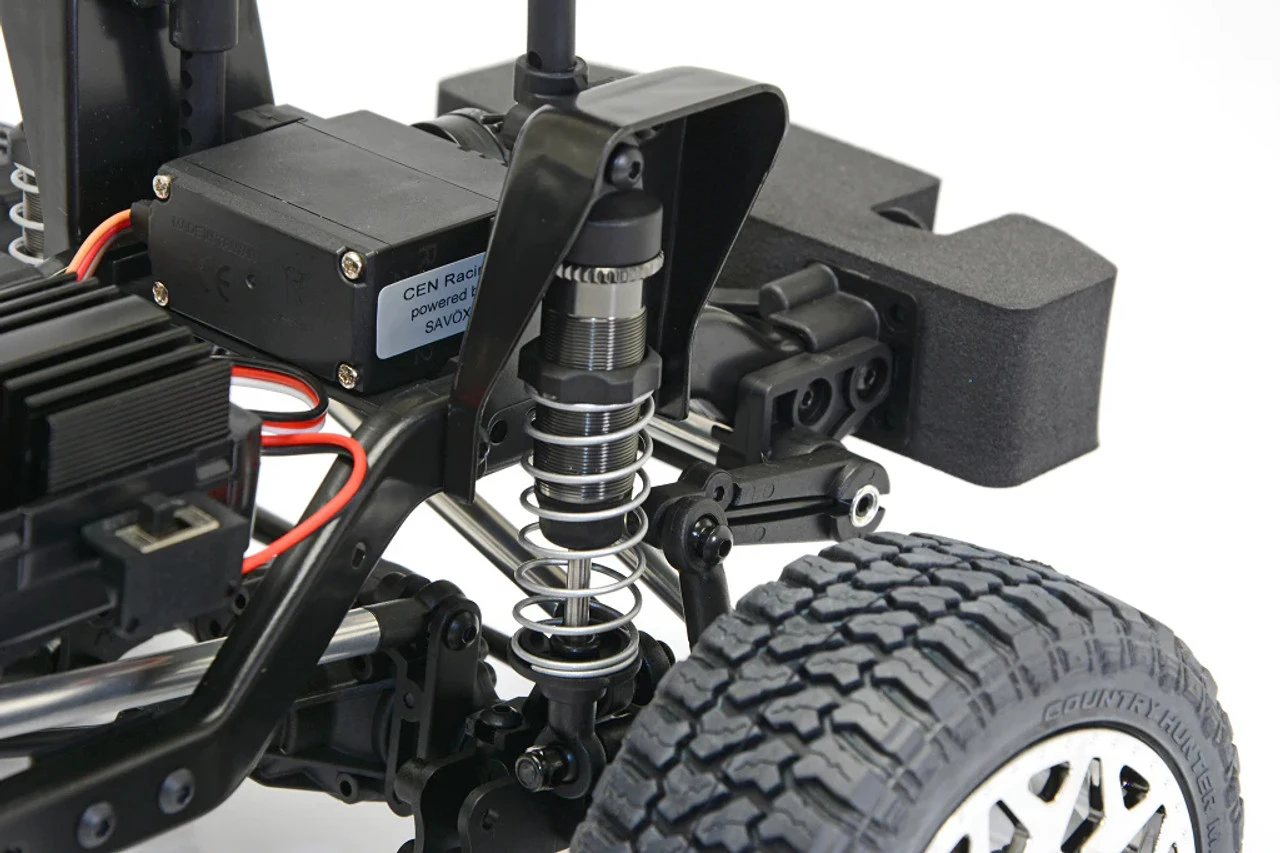

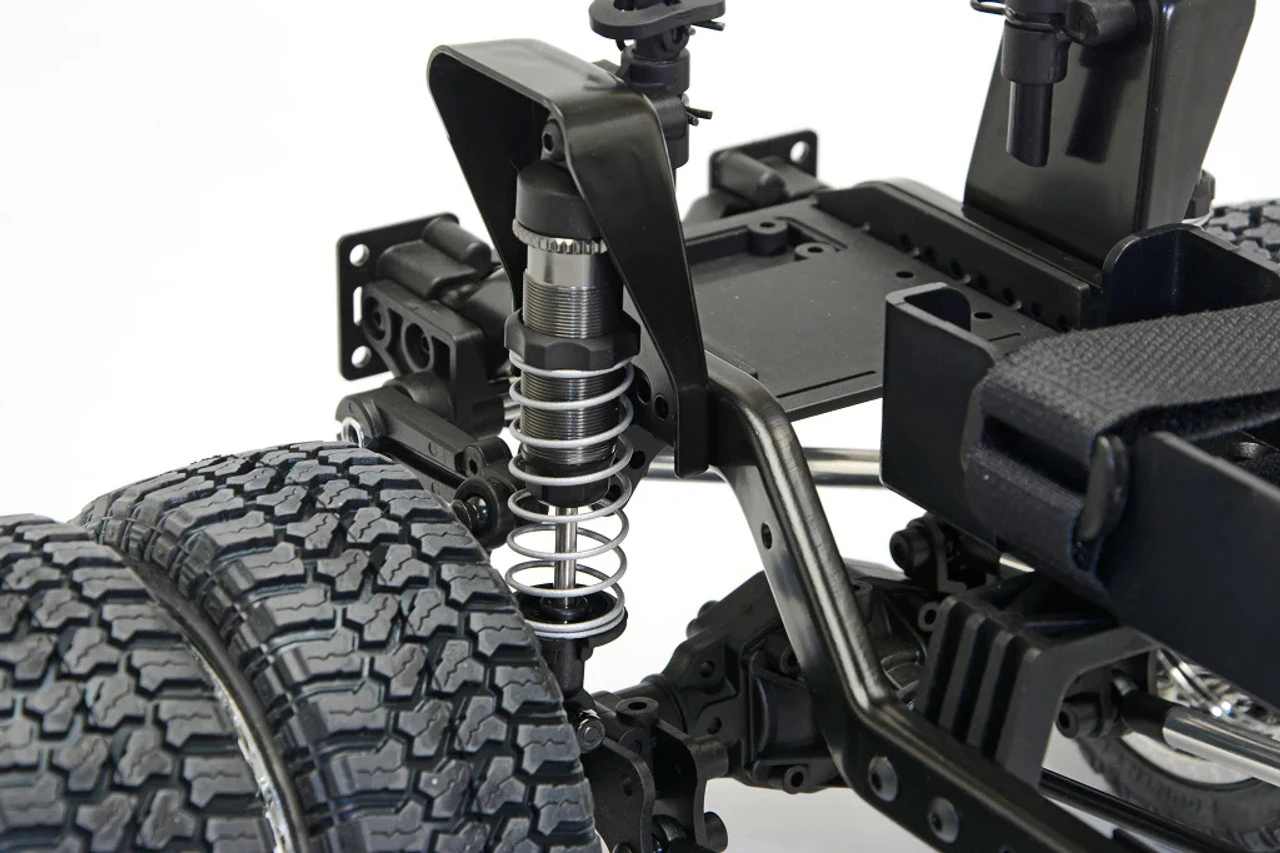

•  90mm Aluminum pewter anodized shock housing
•  Black Anodized lower and upper links
•  Anodized shock springs

Features:

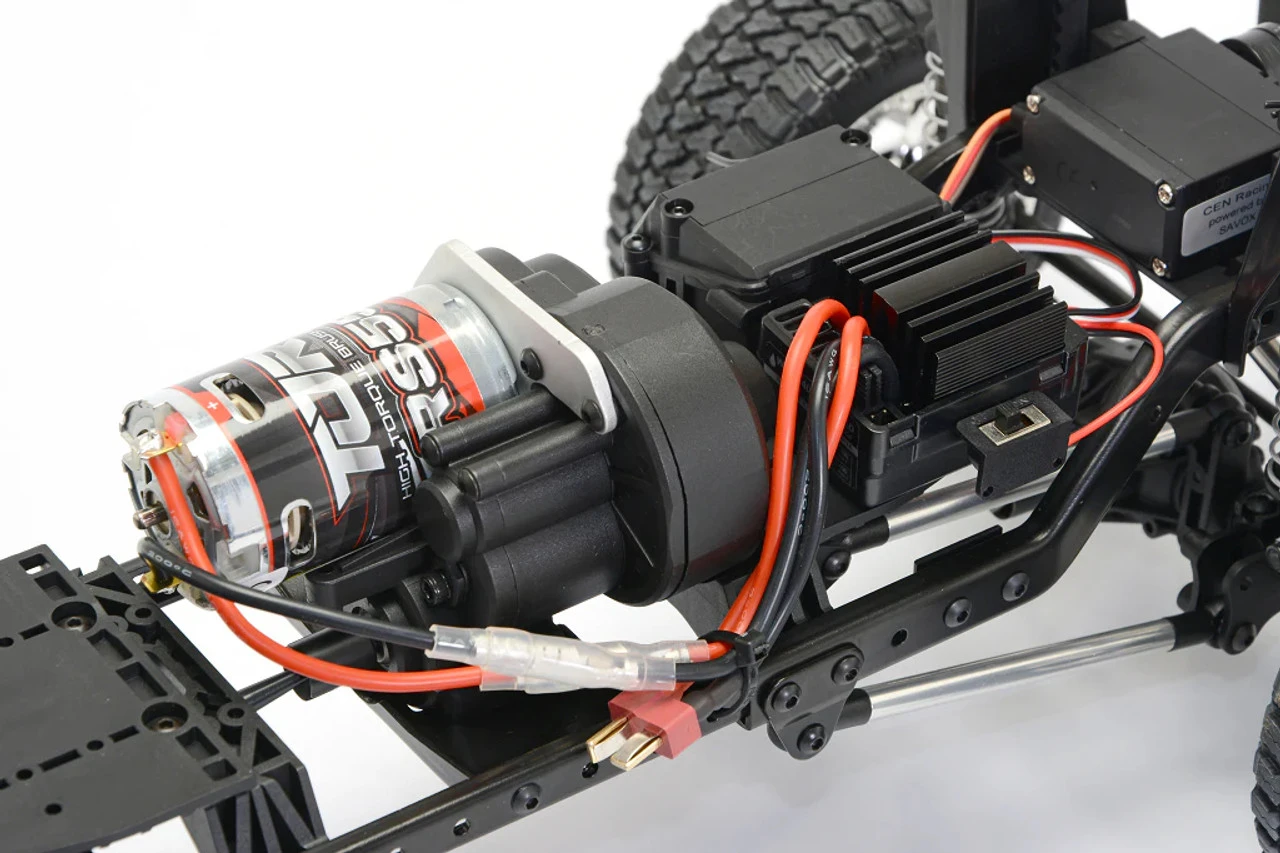

ESC:

• 40A WP-1040-Brushed (Powered by HobbyWing)
• Water-proof and dust-proof for all weather
• Built-In Capacitor Module
• Automatic throttle range calibration
• Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
• Over-Heat protection and throttle signal loss protection
• Easily programmed with jumpers
• Motor-RS-550 high Torque Motor – Power By Mabuchi Motor

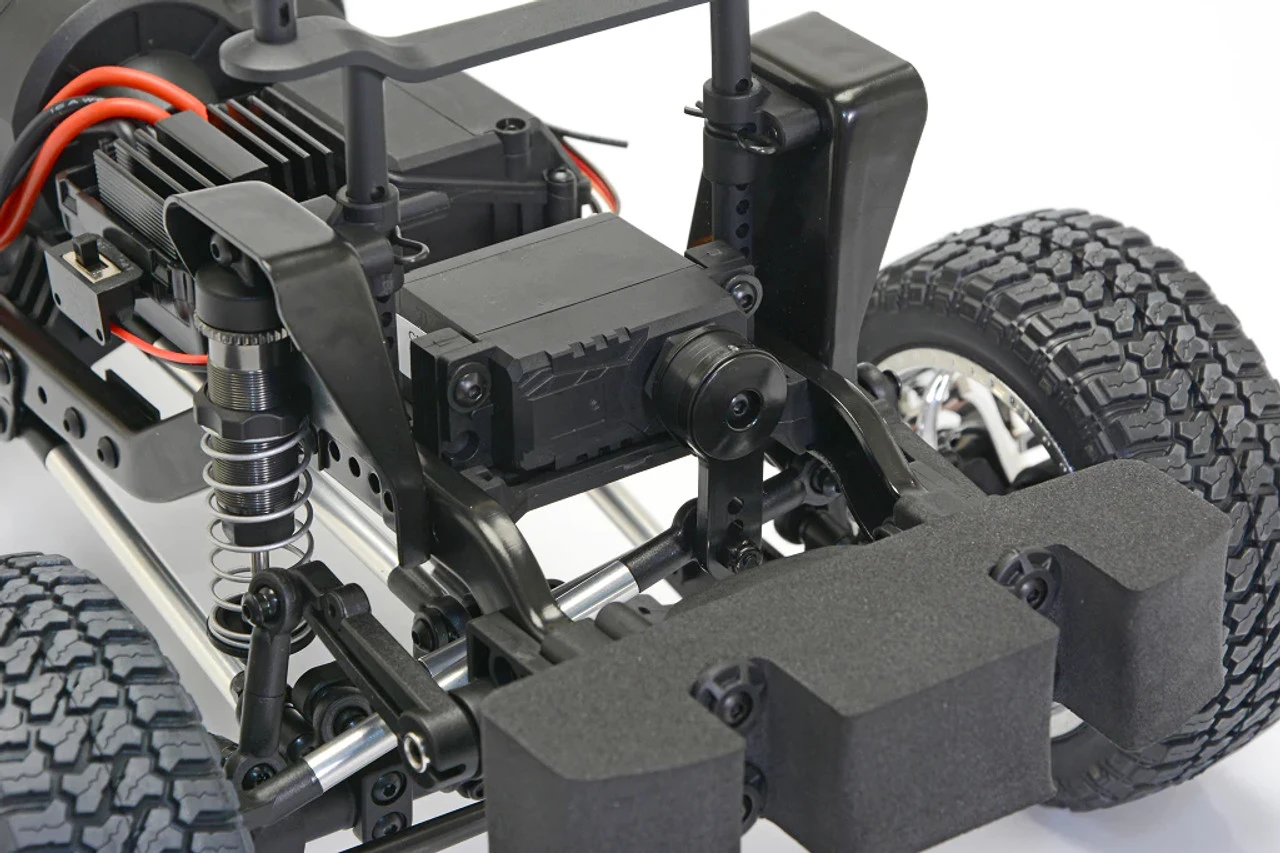

Servo:

• 12Kg Servo O.E.M. by Savox:
• 4.8V 0.26 sec/60deg 10.0 kg-cm
• 6.0V 0.23 sec/60deg 12.0 kg-cm
• 25T Horn Gear Spline

Radio System:

• Pistol-Grip AMP 30 3 Channel Transmitter
• Digital Trimming
• Steering Dual-Rate (ST D/R) Adjustment
• End Point Adjustment (EPA)
• Built in Failsafe

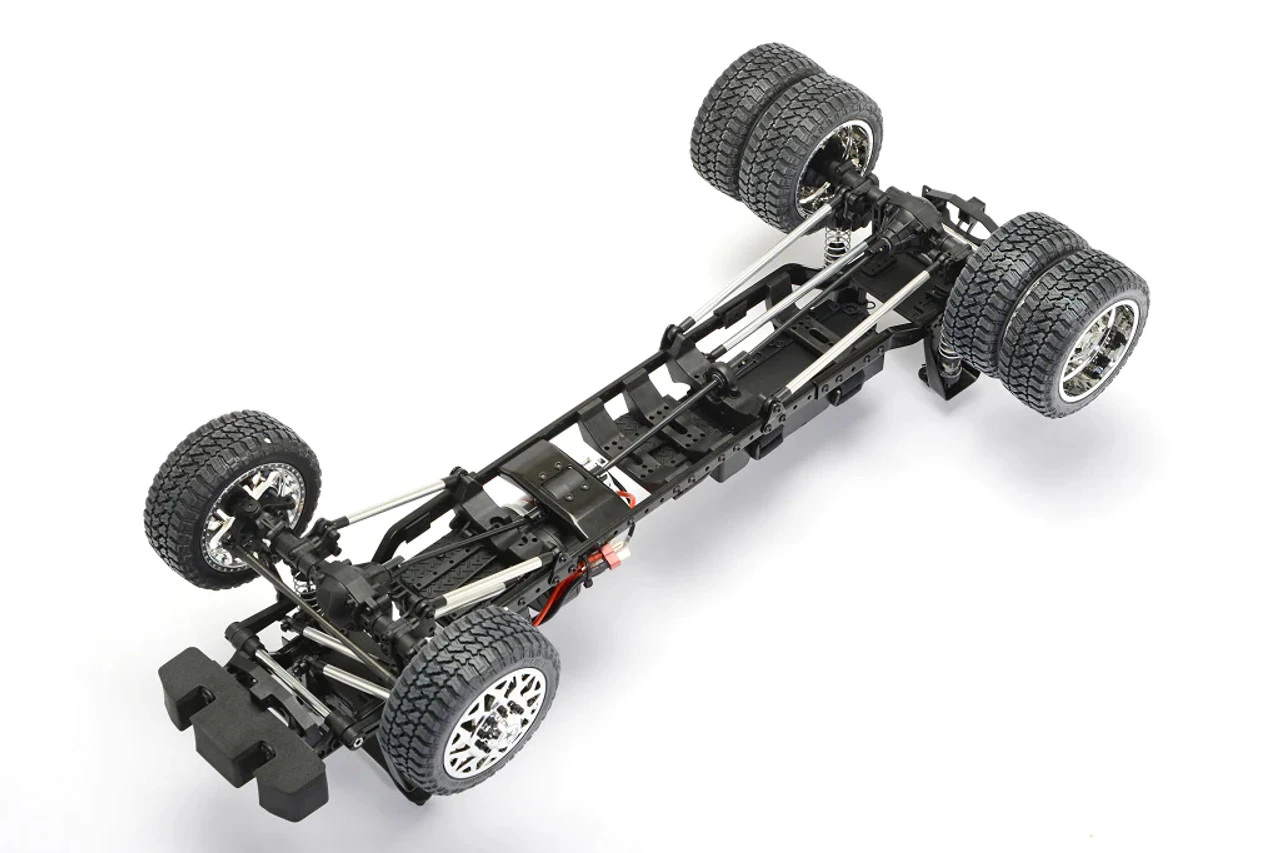

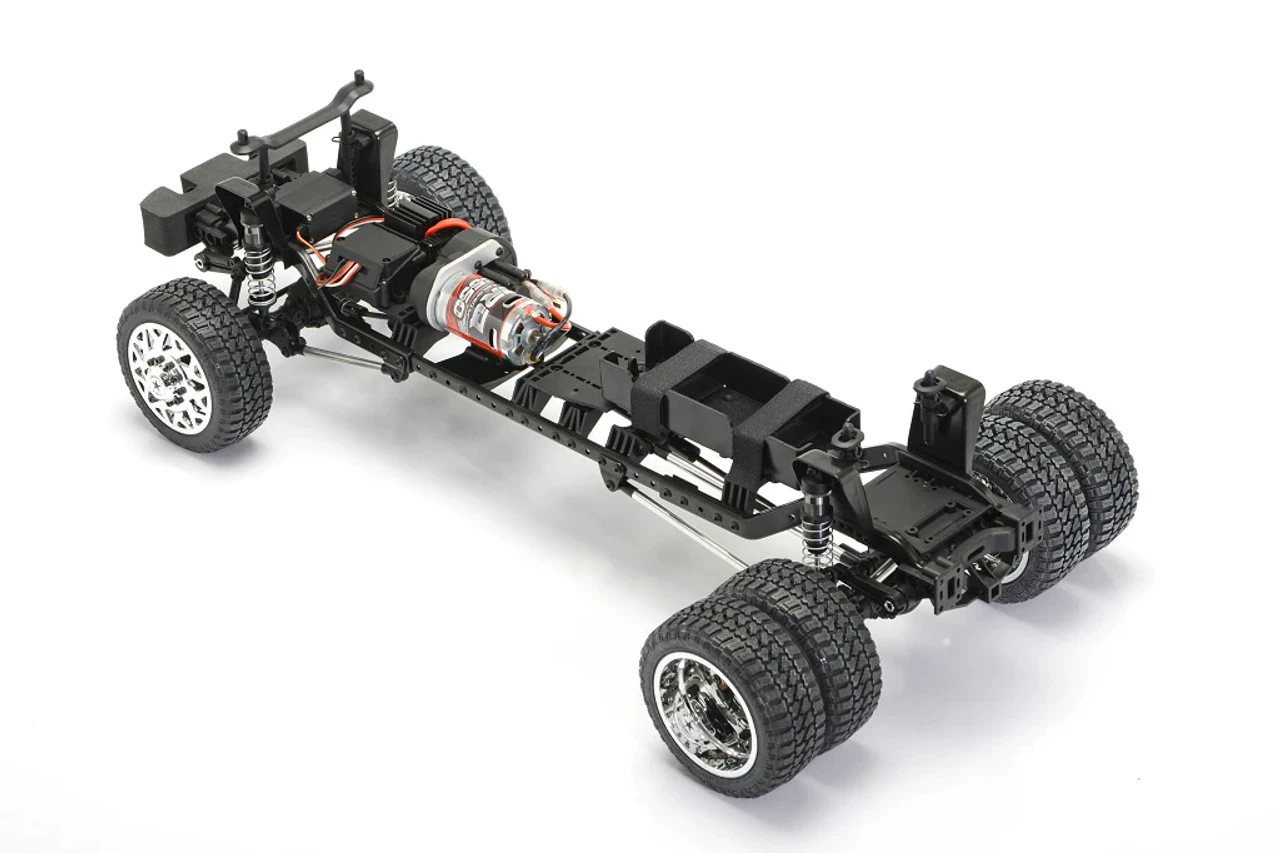

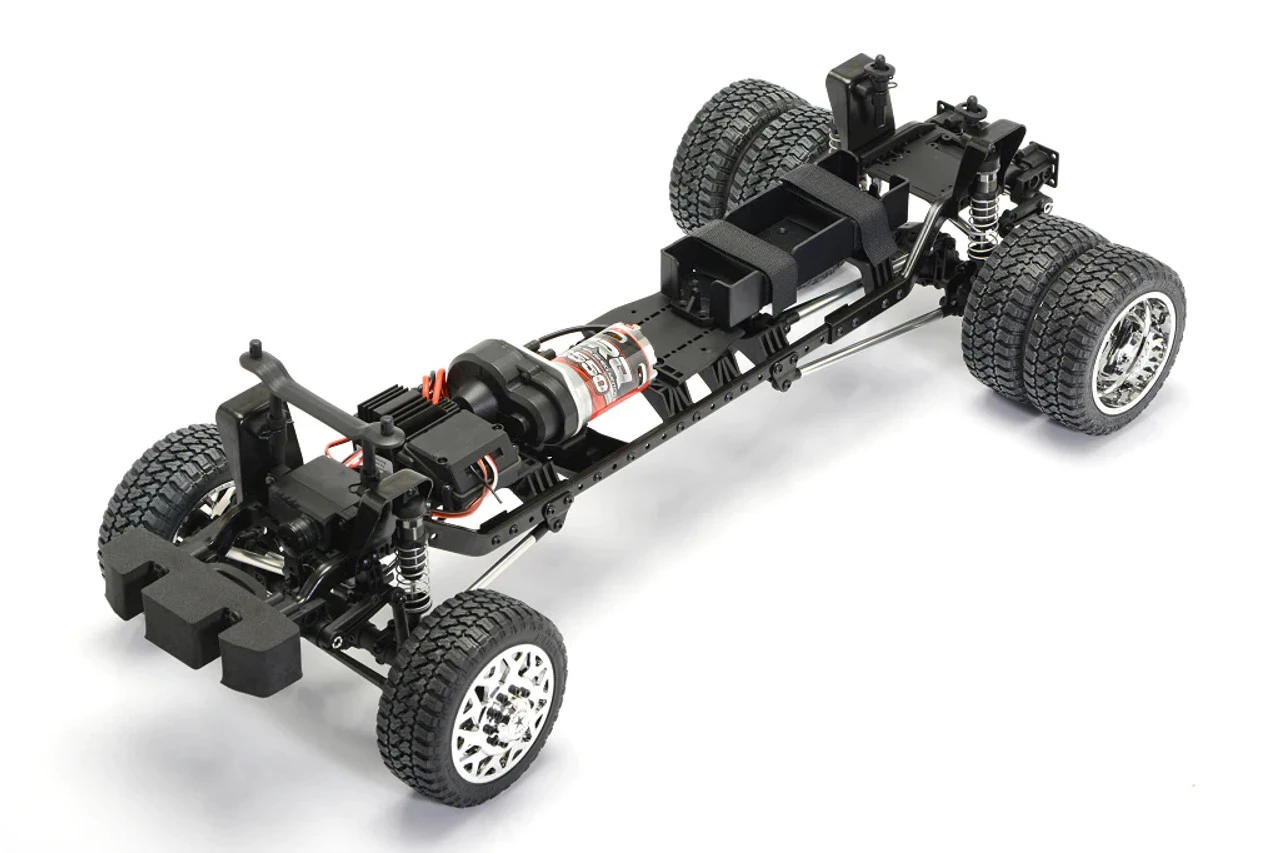

Chassis:

• Steel Frame Rails
• CMS (Chassis Mounted Servo) Chassis Design
• Stamped Steel Shock Hoops
• Steel Skid Plate
• Full Precision Ball Bearing Support
• Adjustable Turnbuckles
• High Torque Servo Horn Safer

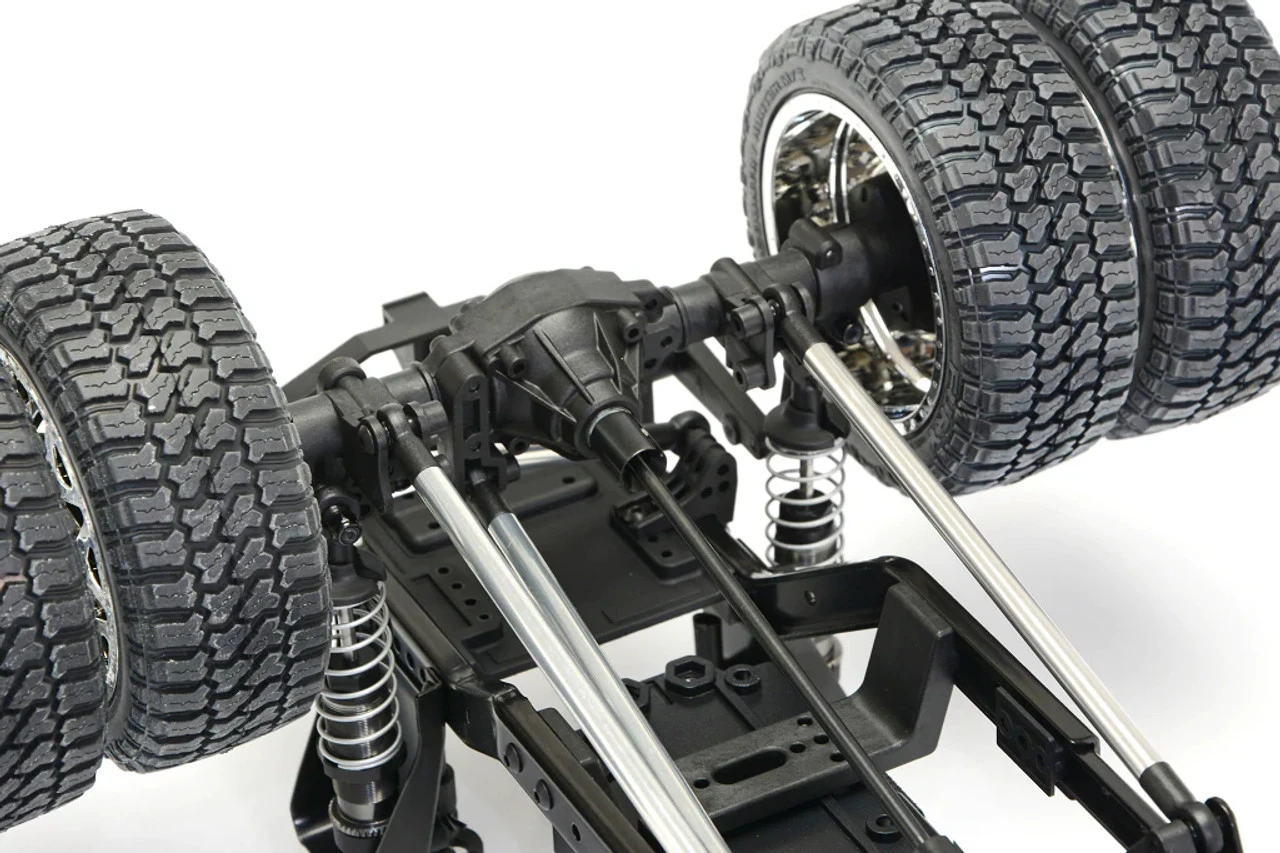

Suspension:

• 3 Links Suspension with Panhard Bar Design
• Big Bore Oil Filled Adjustable Coil Over Shocks
• Harden Steel Steering Drag Link
• 6mm Aluminum Linkage

Drivetrain:

• Sway bar included
• 4 Wheel Drive
• Center Shaft Drive Train for more power transferred to the wheels
• Highly Efficient Transmission System
• Wide Range Easy Changeable Gear Box Design
• Sealed transmission eliminates dirt and dust
• Sealed Axle housing
• 5mm Hardened Steel Axle shaft
• Differential Center Locker Front/Rear Planetary Gear Type
• Metal Transmission Gears
• Planetary Gear type Differential

Specifications:
Length: 26.70inch (678.18mm)
Width: 11.41inch (290mm)
Wheelbase: 17.60inch (447mm)
Ground Clearance: 2.52inch (64mm)
Weight: 2.51 lb. 2.5kg
Battery: 2-3s Lipo

Includes:
(1) 1/10 Scale RTR Ford F450 Custom Truck V2 Blue Galaxy

Needed to Complete:
2-3S LiPo w/T-Style (Deans) Connector
Compatible Battery Charger
(4) “AA” Batteries for Transmitter
