Axial SCX6 Jeep JLU Wrangler 1/6 4WD RTR Electric Rock Crawler (Green) W/DX3 Radio & Smart ESC

Product Description

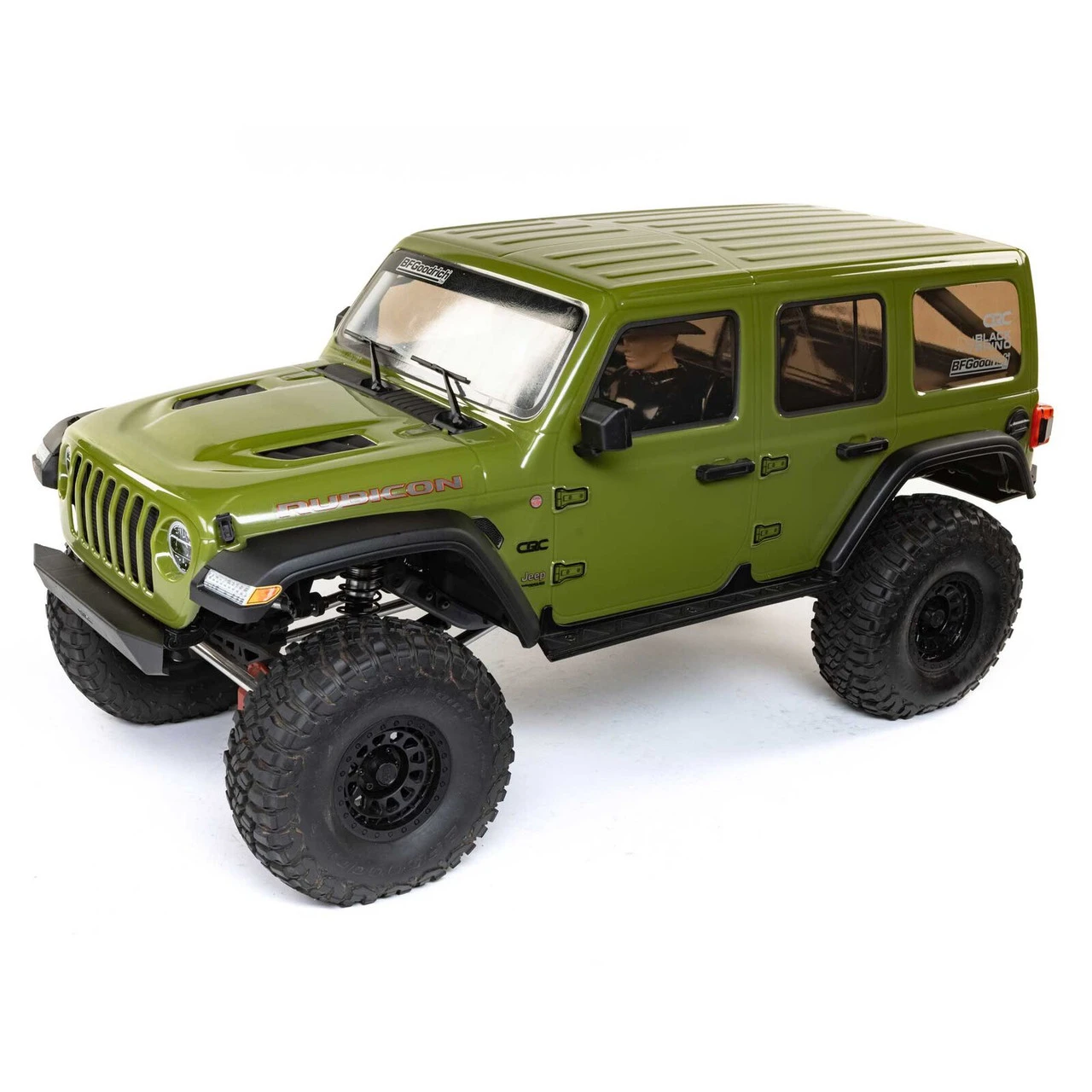

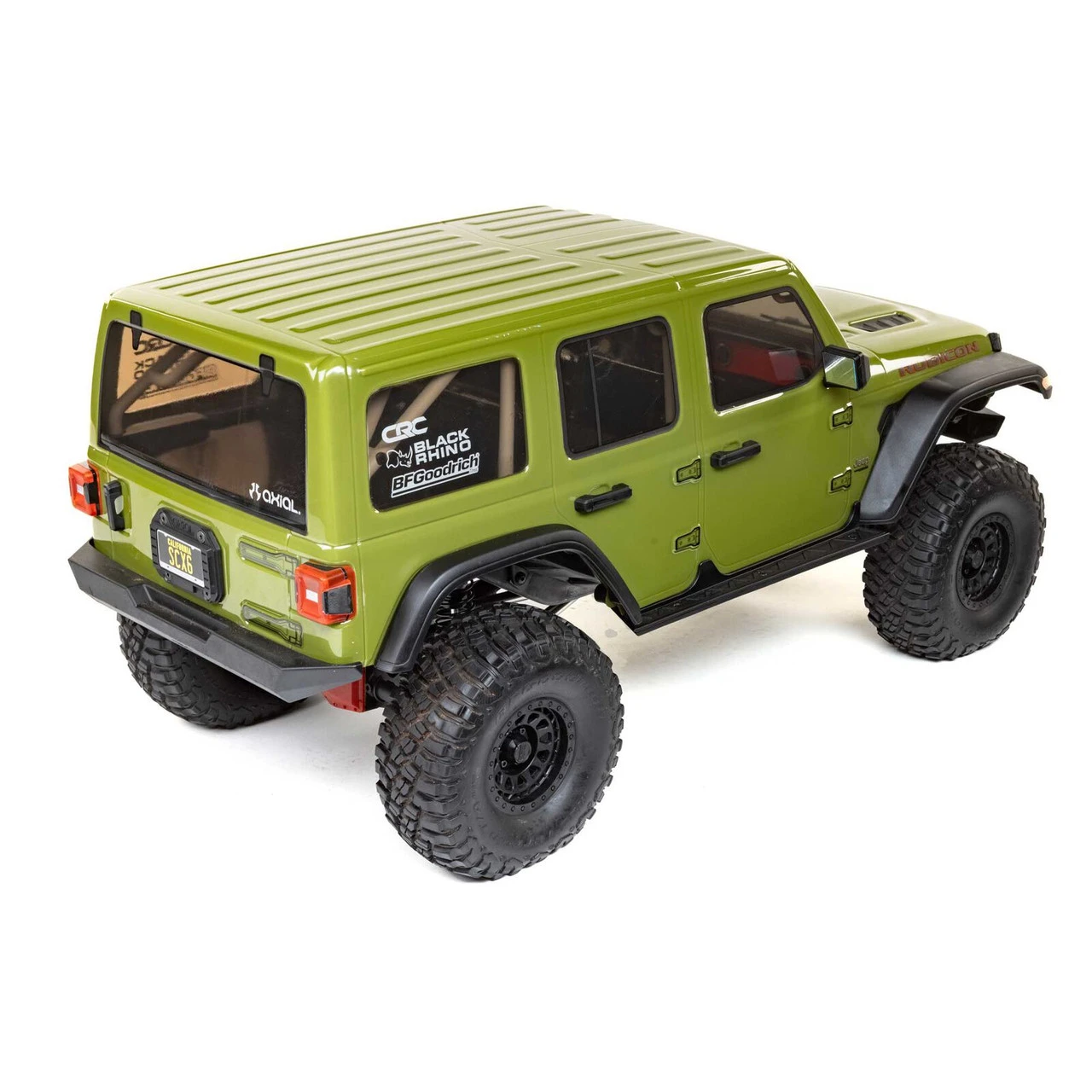

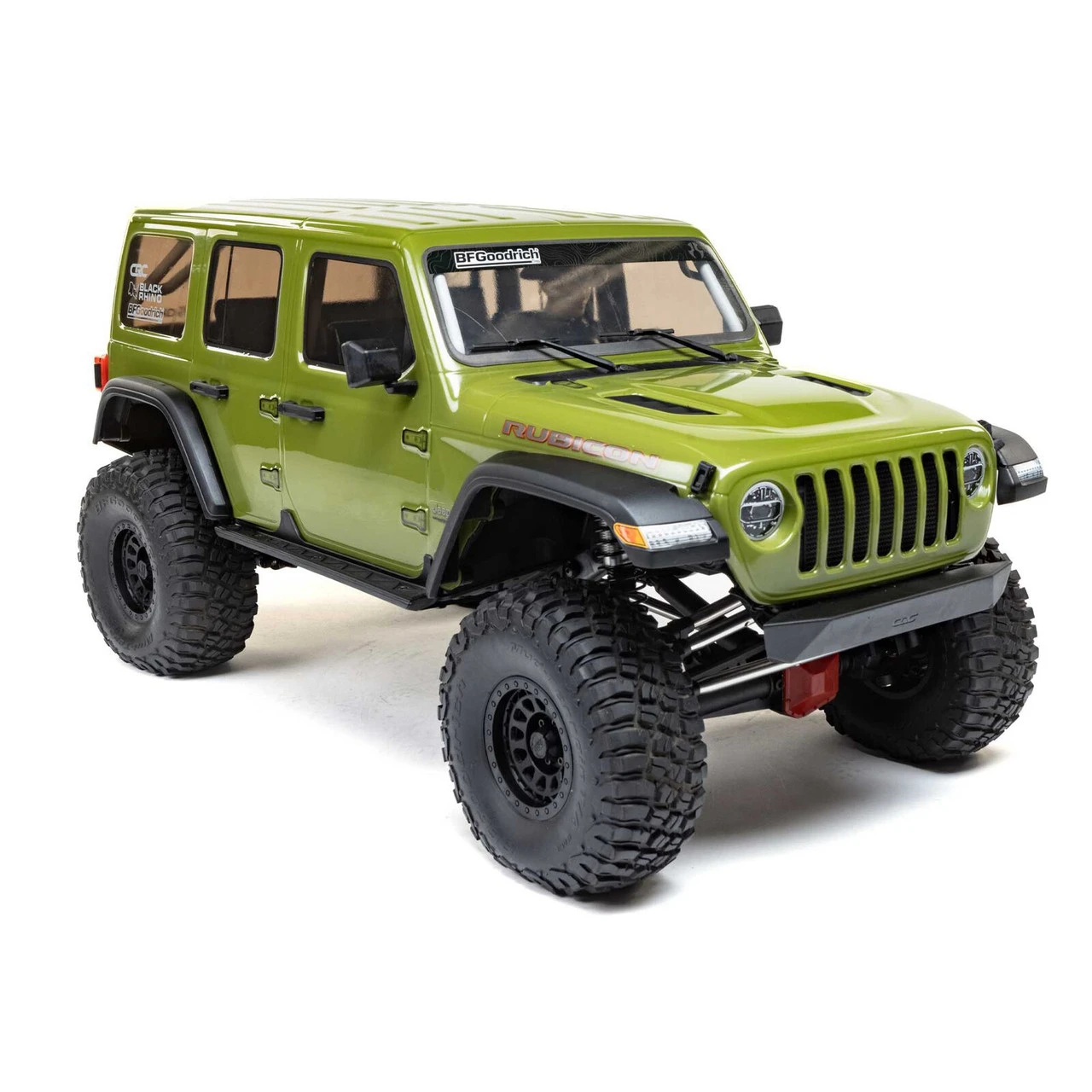

Axial SCX6 Jeep JLU Wrangler 1/6 4WD RTR Electric Rock Crawler (Green) w/DX3 Radio & Smart ESC



At 1/6 scale, the ready-to-run SCX6 Jeep® JLU Wrangler 4WD brings a whole new dimension to RC crawling — and Axial® engineers have done it right. Whether you’re a fan of full-size Jeep® vehicles, rock crawling, large-scale models, or all of the above, you’ll be thrilled by the amount of realistic detail and high-performance functionality found here.

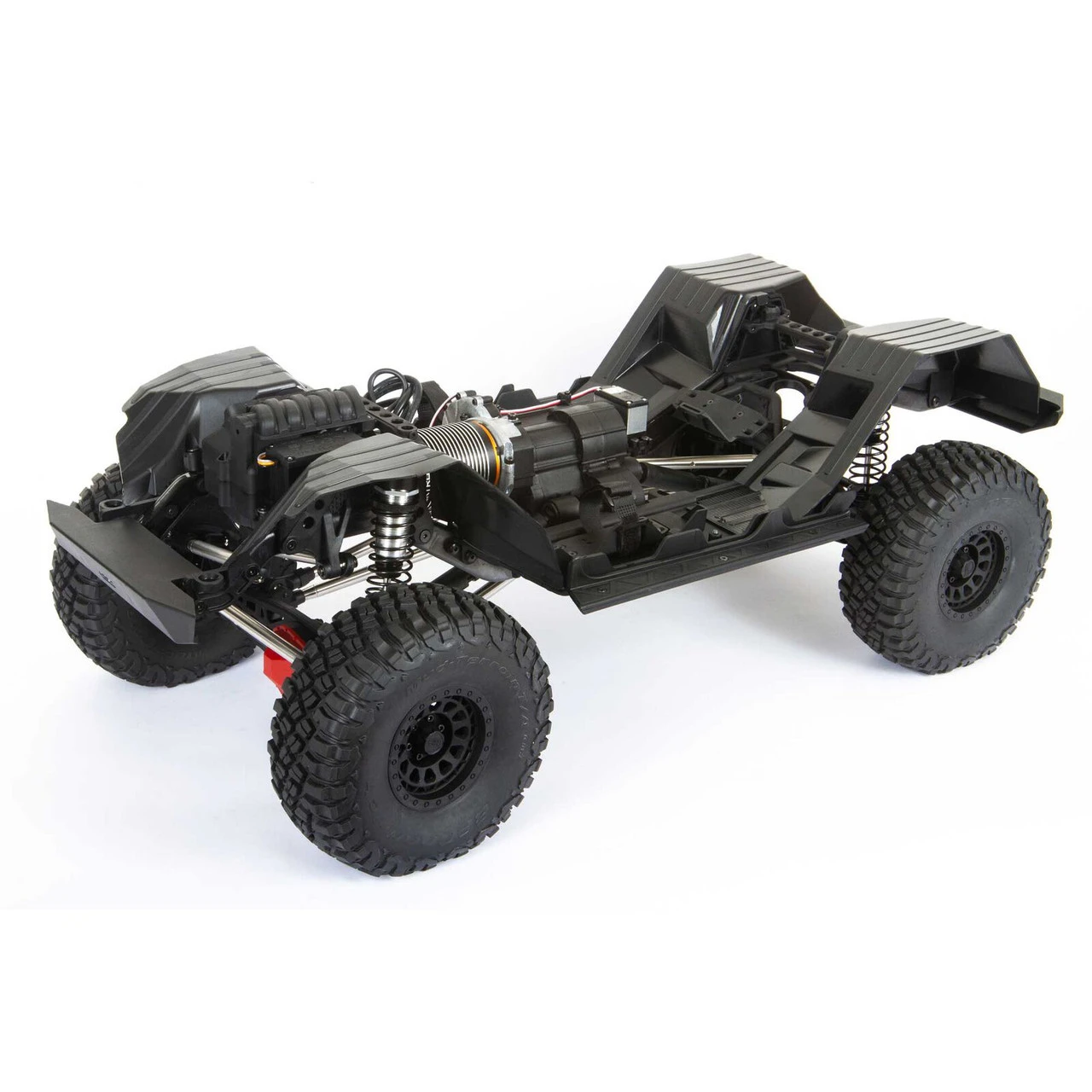

The SCX6 Jeep® JLU Wrangler 4WD takes Axial® “scaling” to the next level. Based on the proven SCX10™ III, the SCX6 chassis might be considered its big brother. It’s engineered for extreme durability and performance with AR90 axles. For optimal handling, the chassis has a three-link Panhard front and four-link rear suspension setup. The transmission offers high and low gears out of the box, with a Spektrum™ S614 Metal-Gear Servo included and installed for the two-speed linkage.

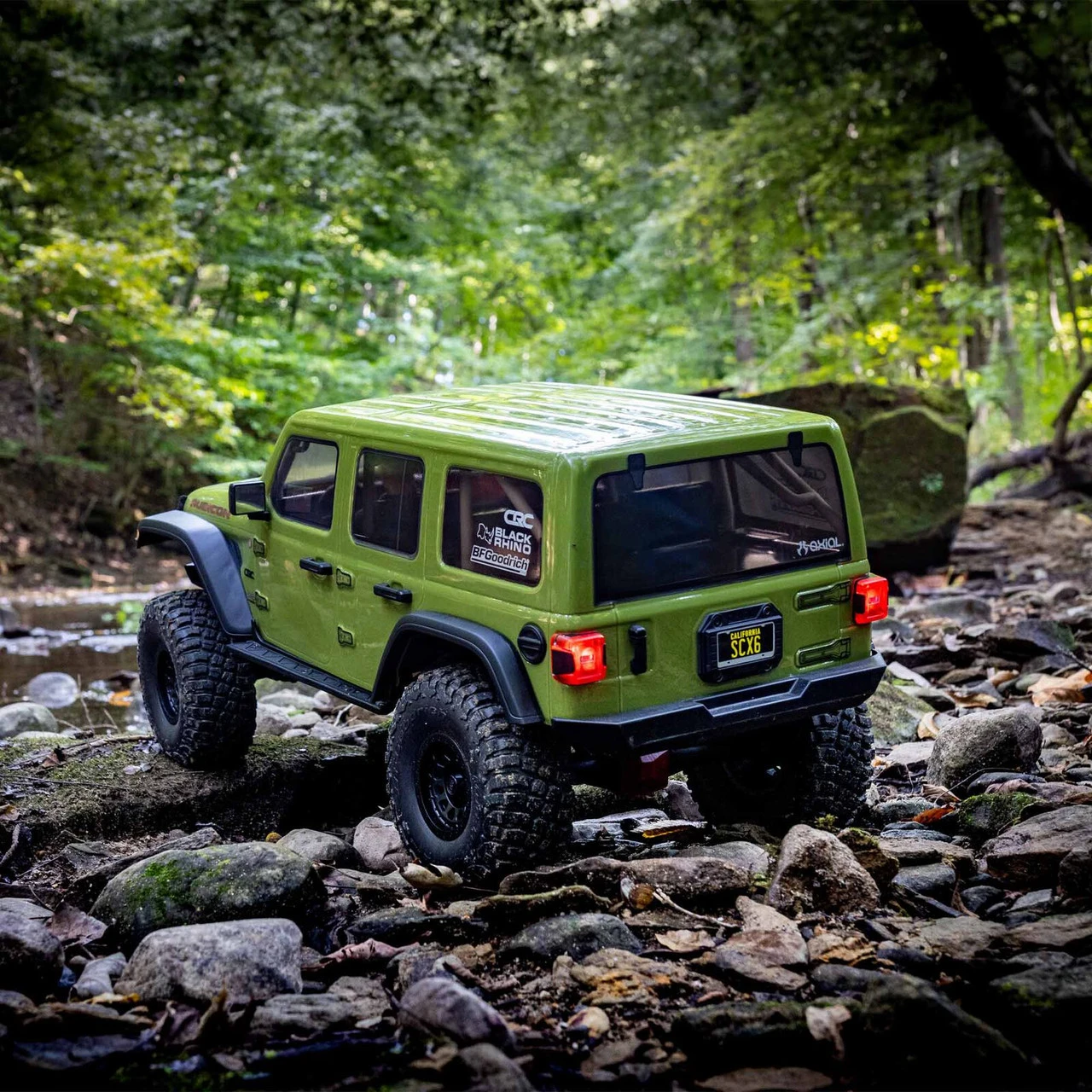

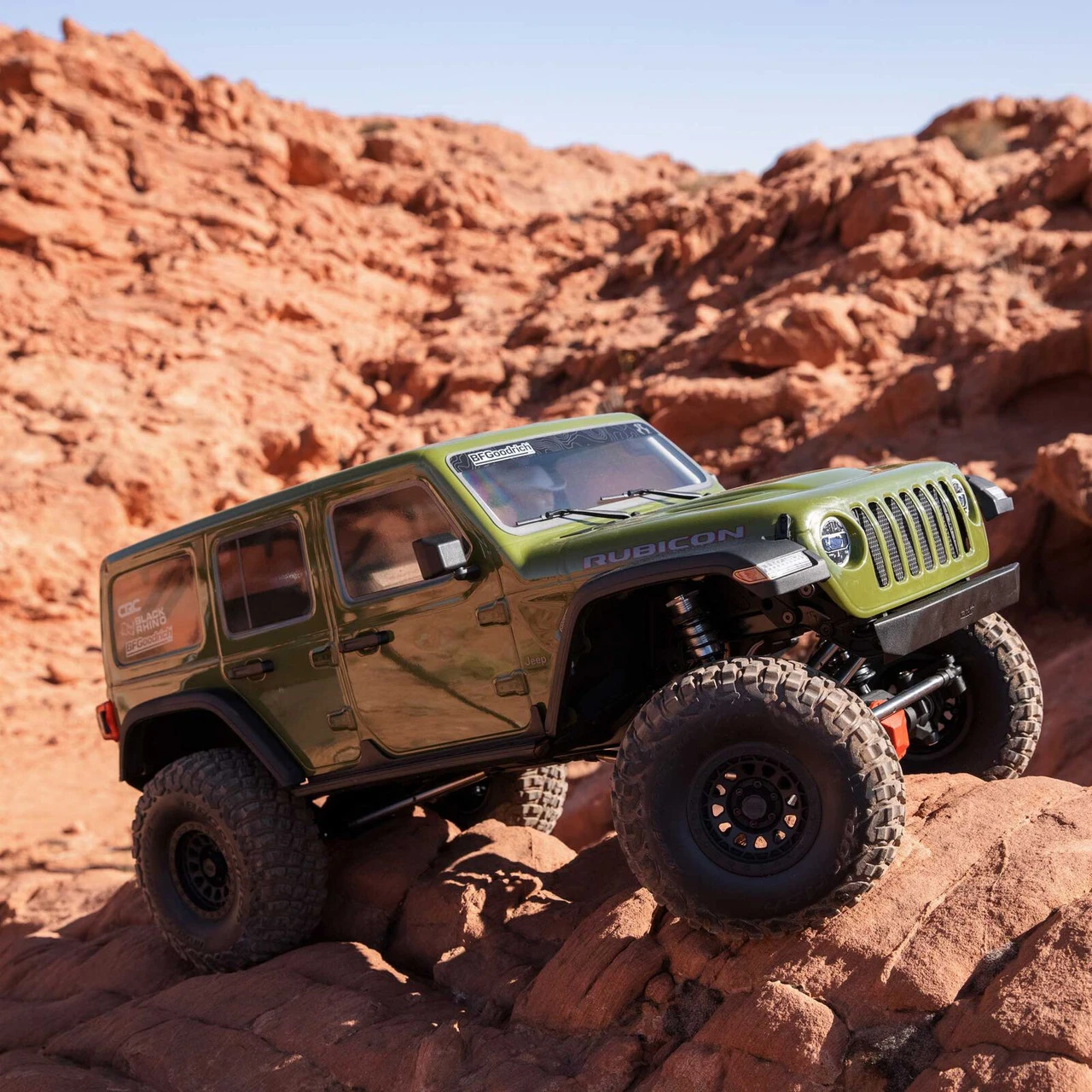

While the 1/6 scale size allows more room for impressive detail, the SCX6 Jeep® JLU Wrangler 4WD still fits conveniently into the trunk of your car — and most rock gardens and hiking trails provide plenty of exciting challenges to overcome. As you navigate the trails, you’ll admire how well the Jeep® JLU Wrangler body reproduces its full-size counterpart. Even the most demanding Jeep® enthusiasts will appreciate the accuracy of the details molded throughout. When the sun goes down, functioning LED headlights and taillights add even more realism.
Massive, 7” tall BFGoodrich® KM3 tires provide excellent grip and ground clearance for dirt, rocks, and all other off-road surfaces. They’re mounted on licensed Black Rhino “Primm” injection-molded, 3-piece beadlock wheels so that the tires can be removed and replaced easily without gluing. Forest, desert, lake, mountains…the SCX6 Jeep® JLU Wrangler 4WD is ready to go anywhere.

With the included Spektrum™ DX3™ radio, you’ll enjoy the superior range, response, and interference resistance of exclusive DSMR® technology. Together with the installed Firma™ Crawler 120A Smart Sensored-Brushless ESC, it also comes ready to deliver the telemetry advantages of exclusive Spektrum™ Smart technology. Install a Spektrum™ Smart LiPo battery and you can view vehicle battery capacity on the transmitter’s voltage level indicator. Outfit the DX3™ with the optional BT2000 Bluetooth module, download the free Spektrum™ Dashboard app to your smart device, and you’re ready to use more Smart real-time telemetry — without needing on-board sensors or modules.

With its 1/6 scale size, popular Jeep® styling, and unstoppable Axial® engineering, the SCX6 Jeep® JLU Wrangler 4WD takes RC scaling to an exciting new level. Just add your choice of suitable battery and take on the rocks!

Features:

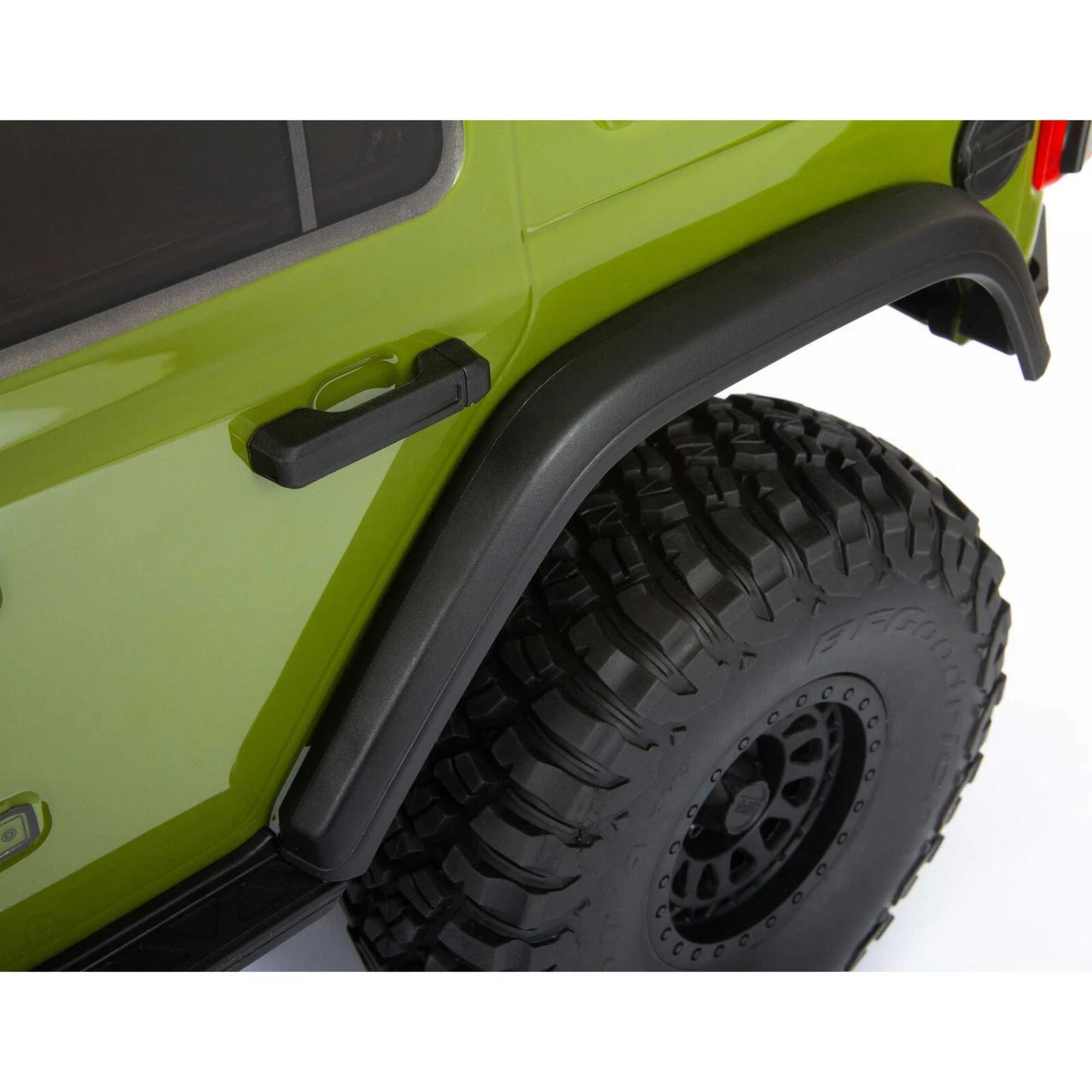

• BFGOODRICH® KM3 TIRES
  Massive, 7” tall BFGoodrich® KM3 tires provide excellent grip and ground clearance for dirt, rocks, and all other off-road trails. They’re mounted to licensed Black Rhino “Primm” injection-molded, 3-piece beadlock wheels so that tires can be removed and replaced easily without gluing.

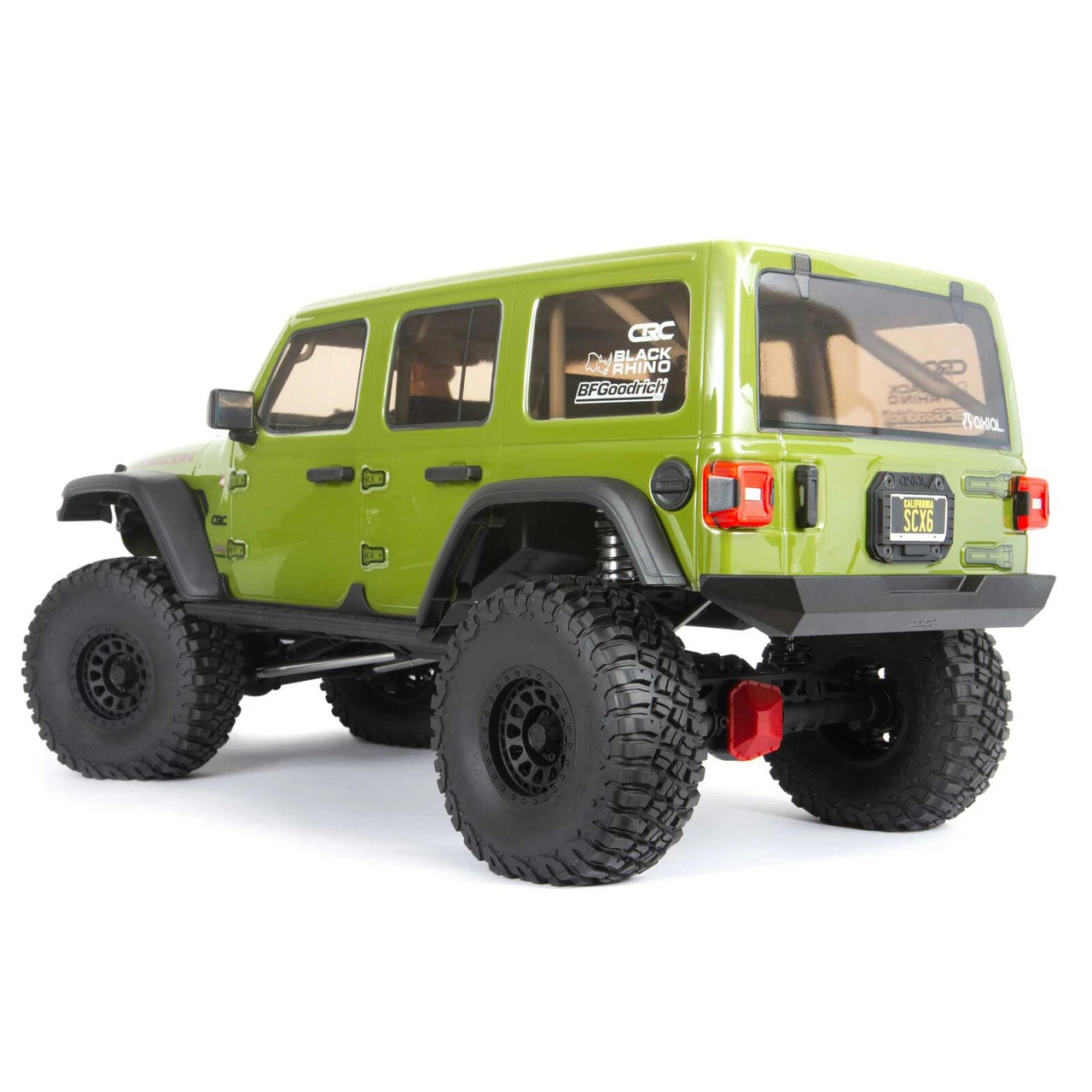

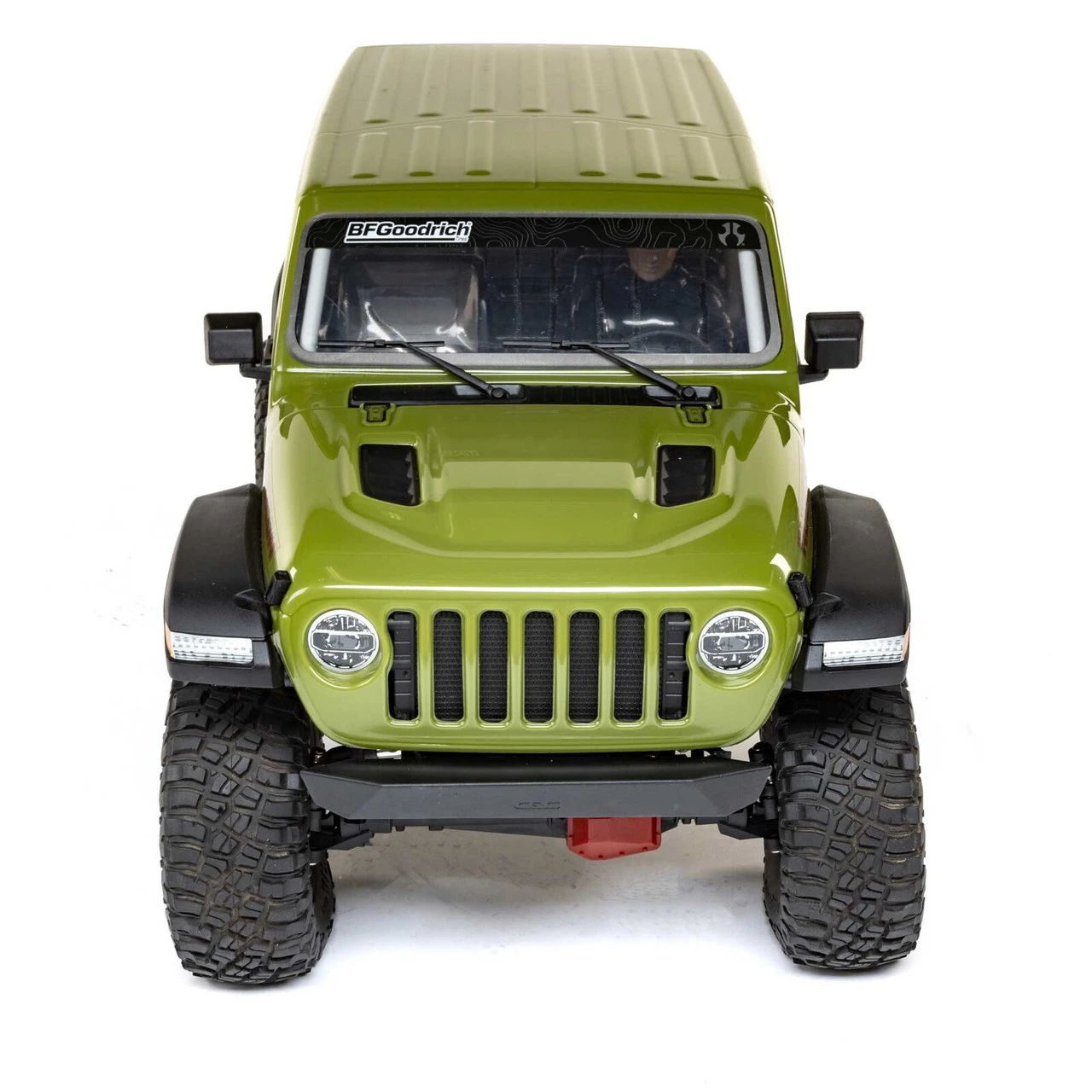

• JEEP® JLU WRANGLER SCALE BODY

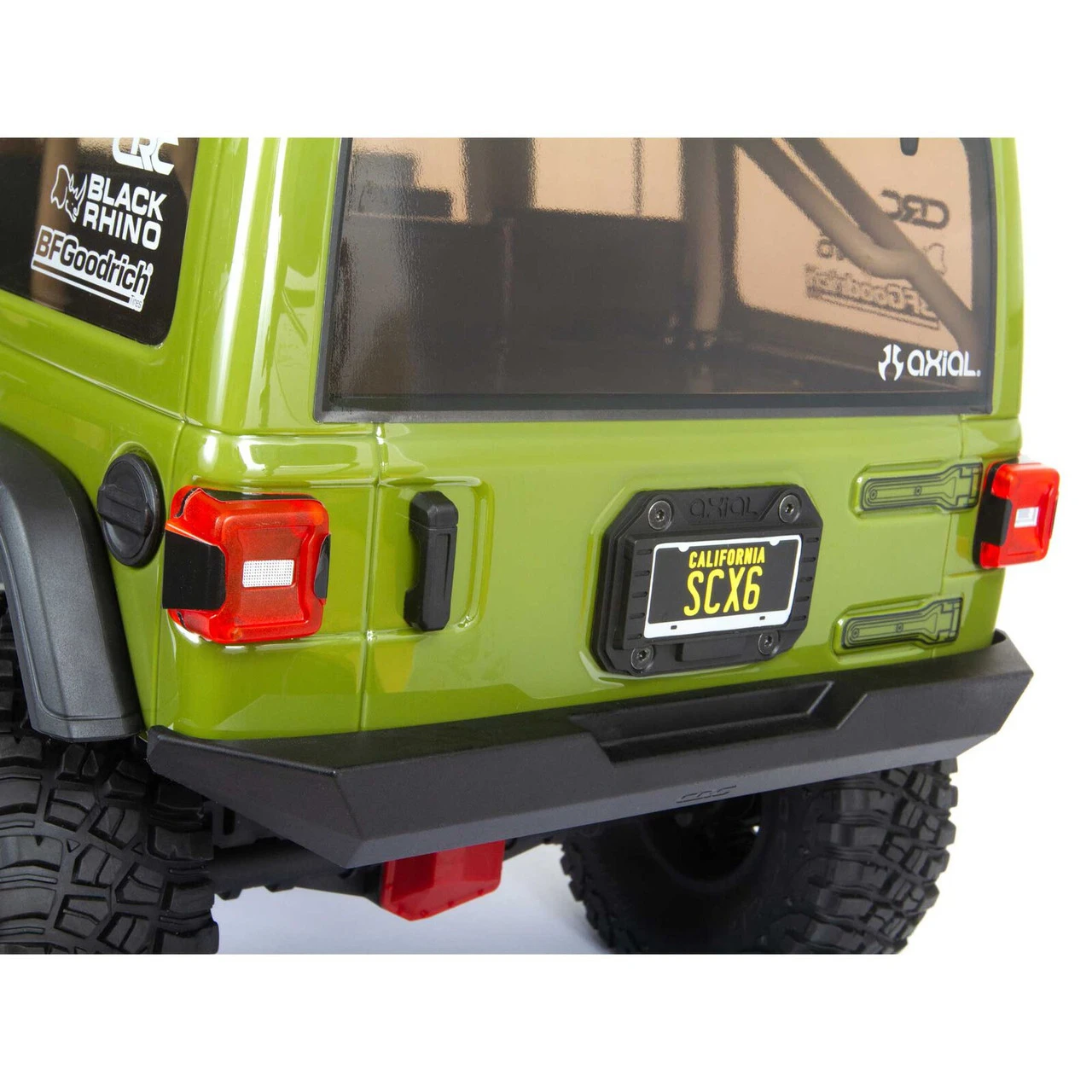

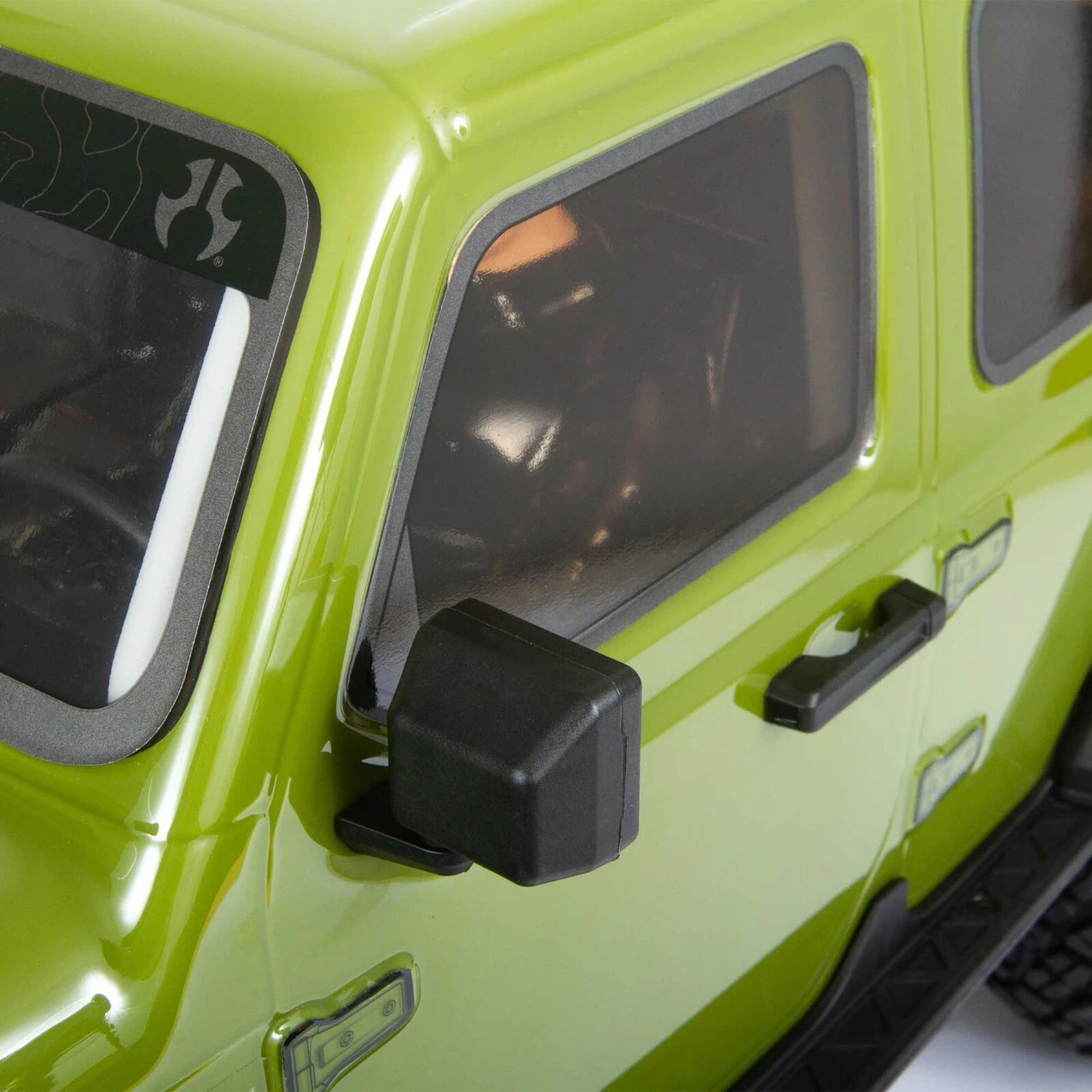

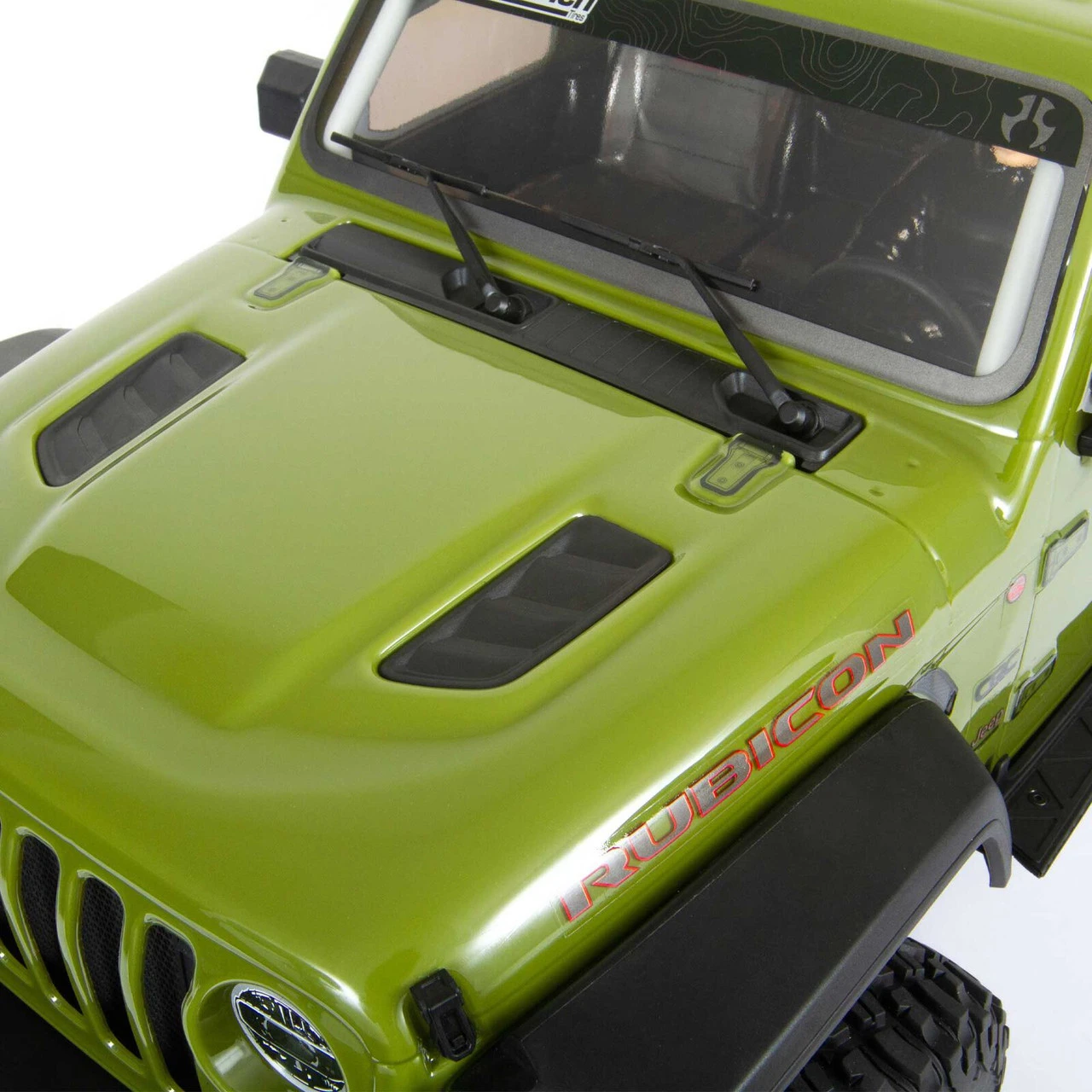

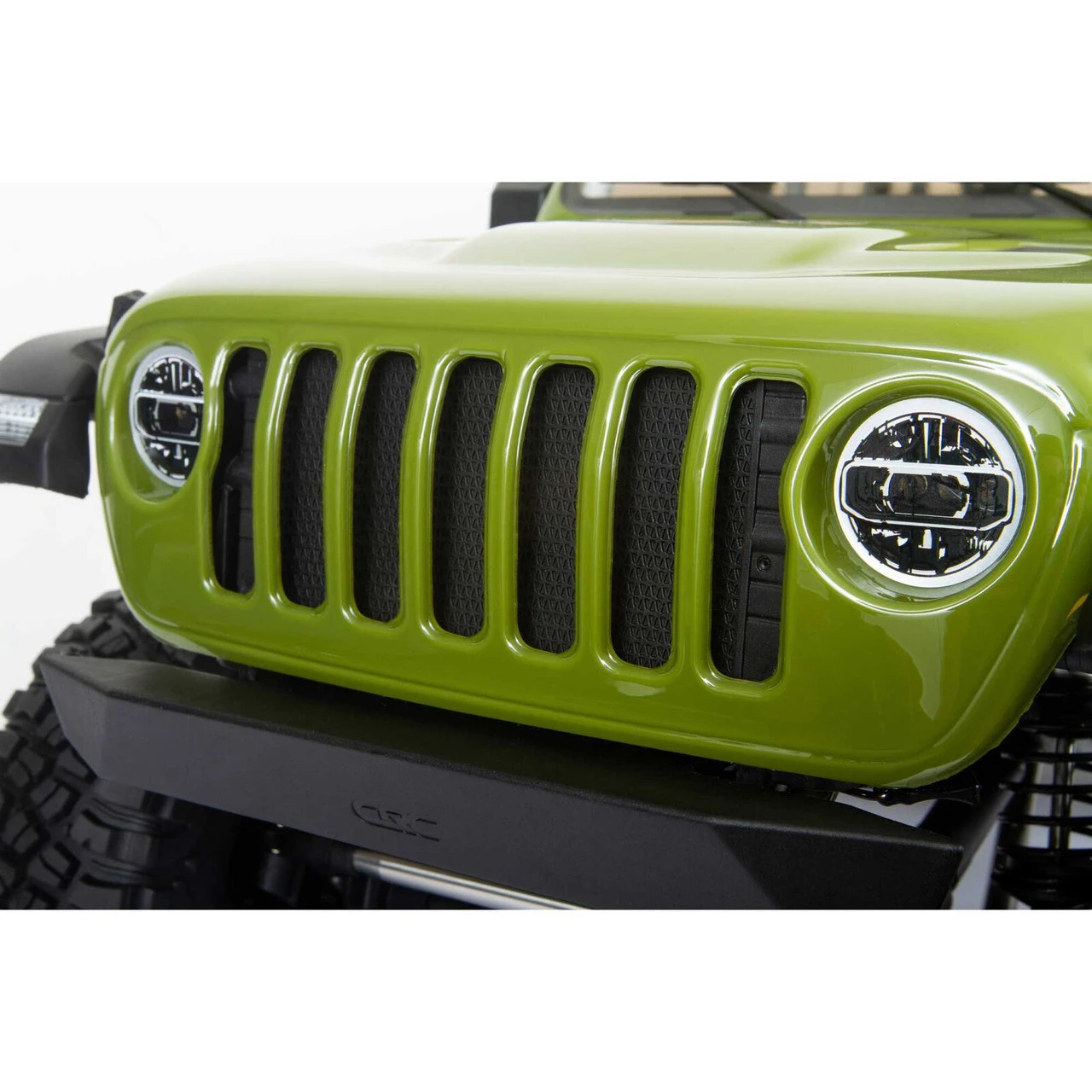

  The Jeep® JLU Wrangler body mirrors its full-size counterpart, with many molded scale details throughout the interior and exterior that even the most demanding Jeep® enthusiasts will admire. LED headlights and taillights add to the realism after dark.
• LED LIGHTS INCLUDED!
  LED headlights and tail lights are included.
• AR90 STRAIGHT AXLES

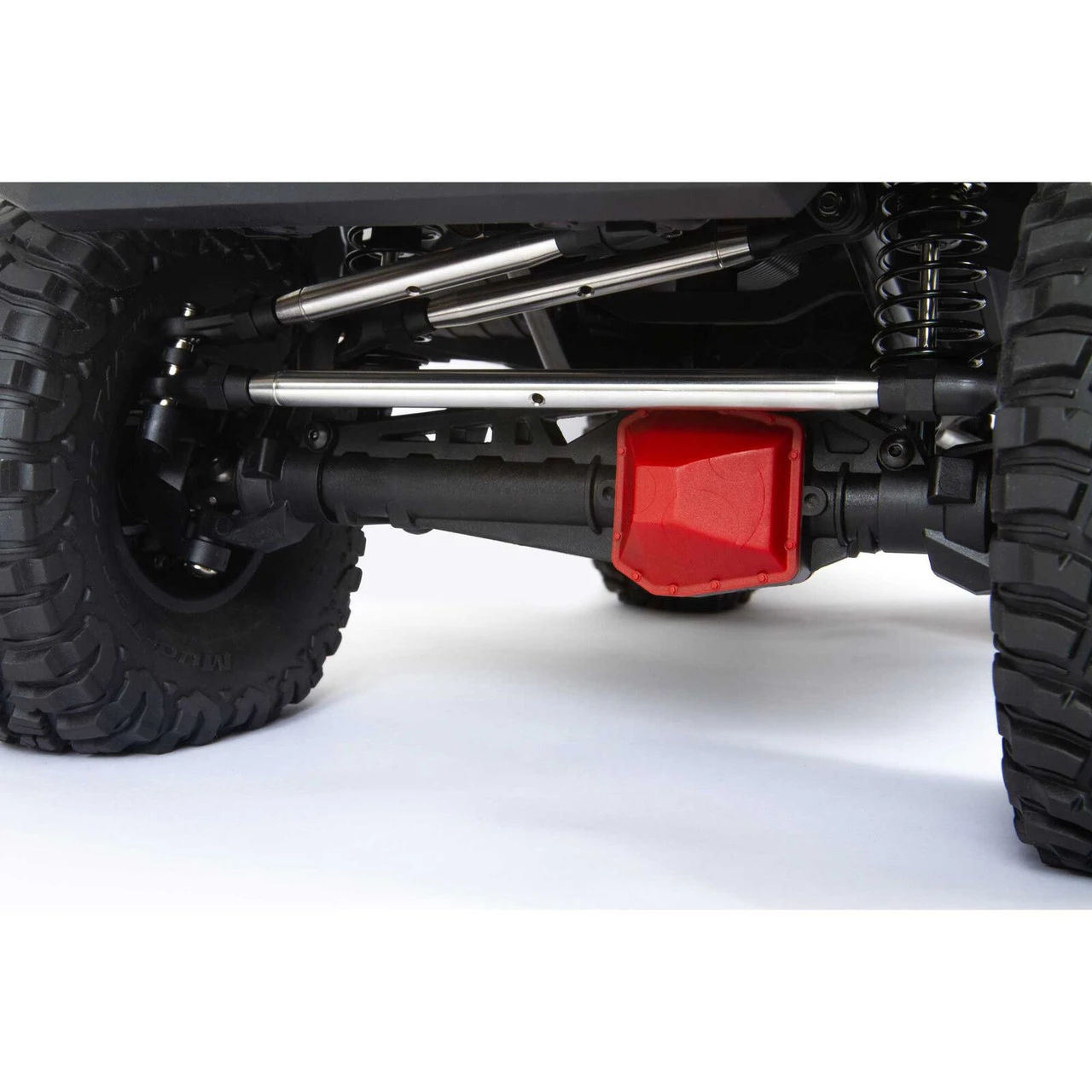

  The SCX6™ includes AR90 “Standard” axles with a heavy-duty spool. The durable, three piece axle housing is reinforced by a molded truss up top, and extra triangulation below, making this a solidly built, rugged design.

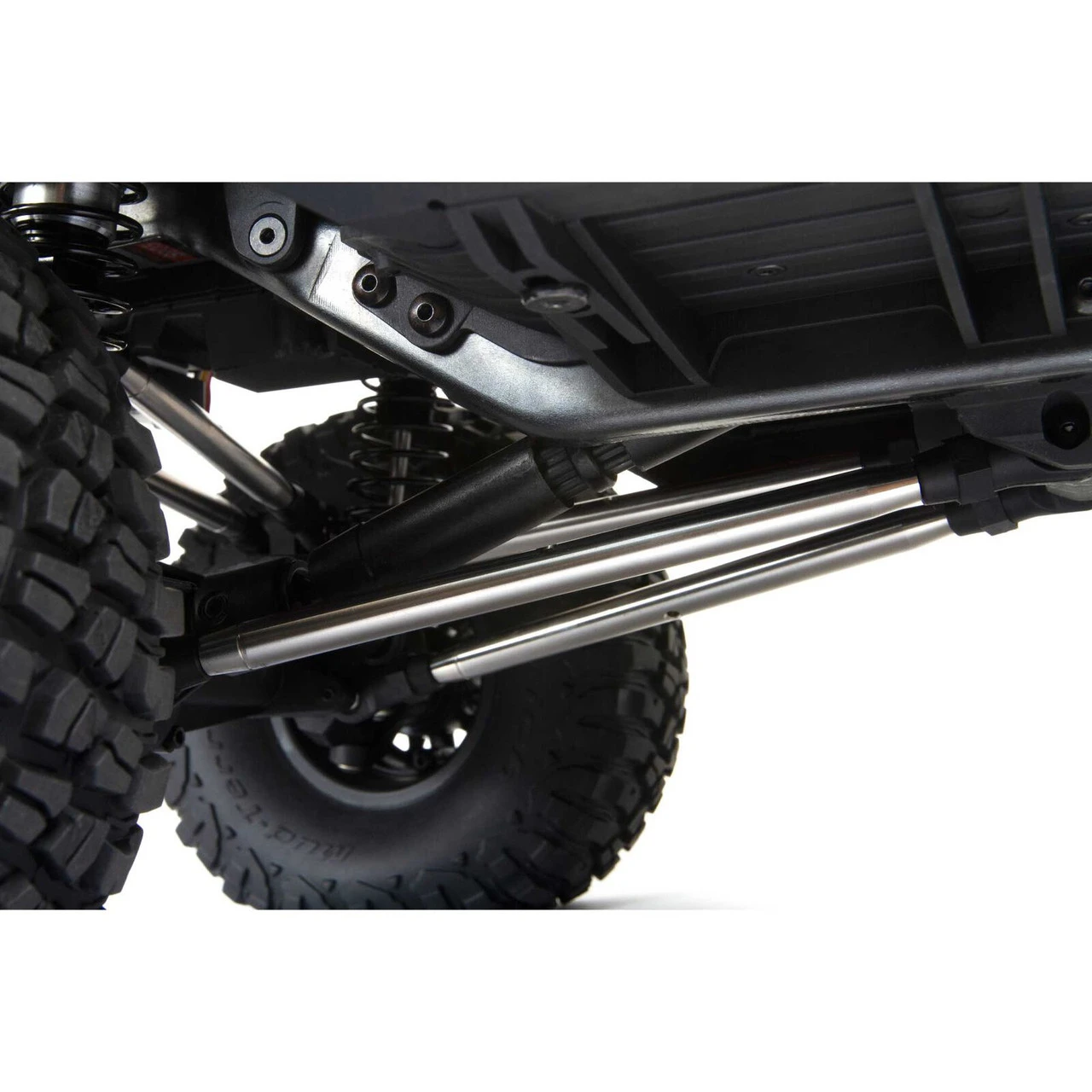

• 3-LINK FRONT/4-LINK REAR SUSPENSION
  For optimal handling, the SCX6™ suspension has a three-link Panhard front and four-link rear suspension setup. The front suspension has been optimized to reduce bump steer, while the rear four-link reduces torque twist. It also helps with steep off-camber climbs by having the proper amount of anti-squat and roll characteristics. The four-link system also aids against suspension wrap-up in high power applications. All links are metal including the steering. All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.

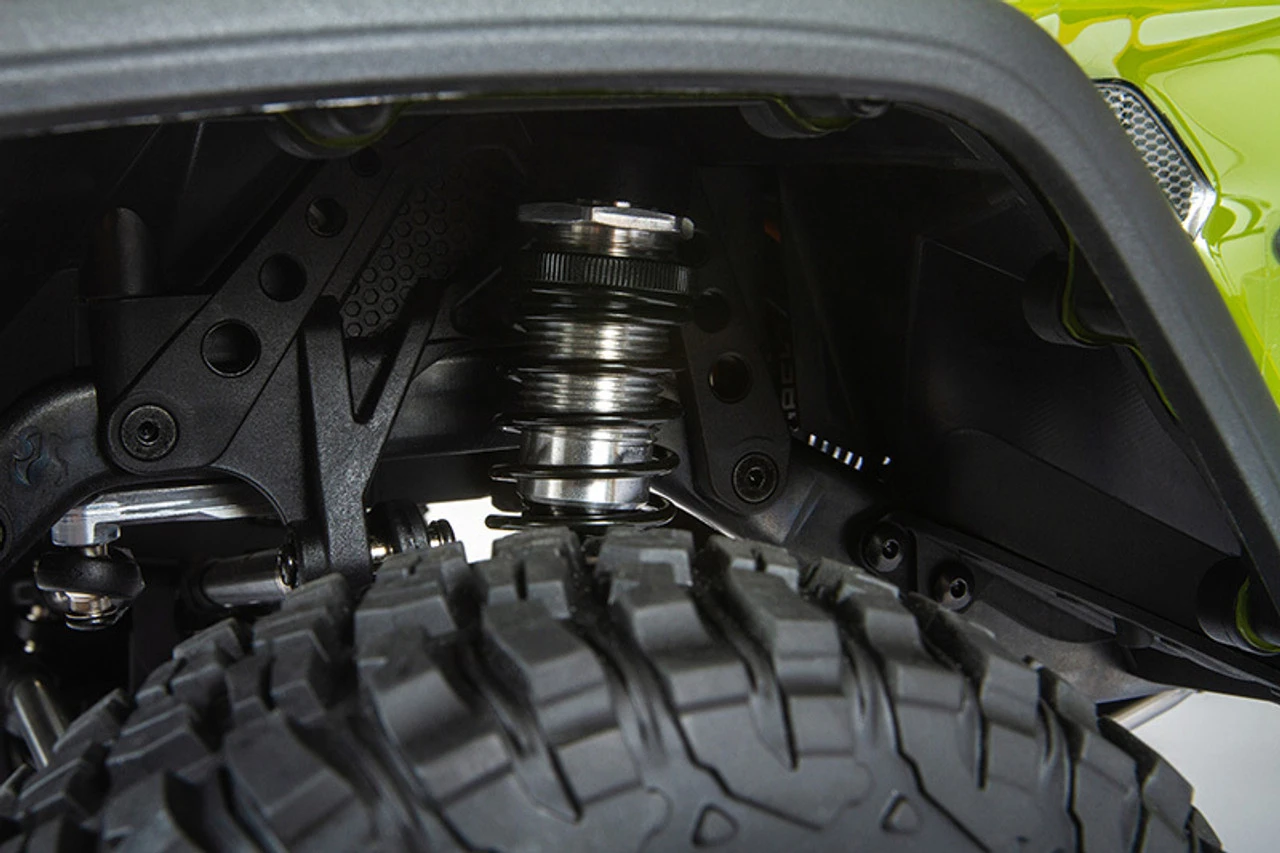

• ALUMINUM ADJUSTABLE COILOVER SHOCKS
  The oil-filled shocks have aluminum threaded bodies and a single coilover spring. The shocks are tunable for achieving the best dampening rate. The large bore size creates more fluid volume for better performance. Additional mounting points allow you to further fine tune your suspension settings.
  • Adjustable, threaded aluminum shock bodies
  • Large bore, fluid-filled shocks with a single coil-over spring
  • Change mount points to fine tune your suspension

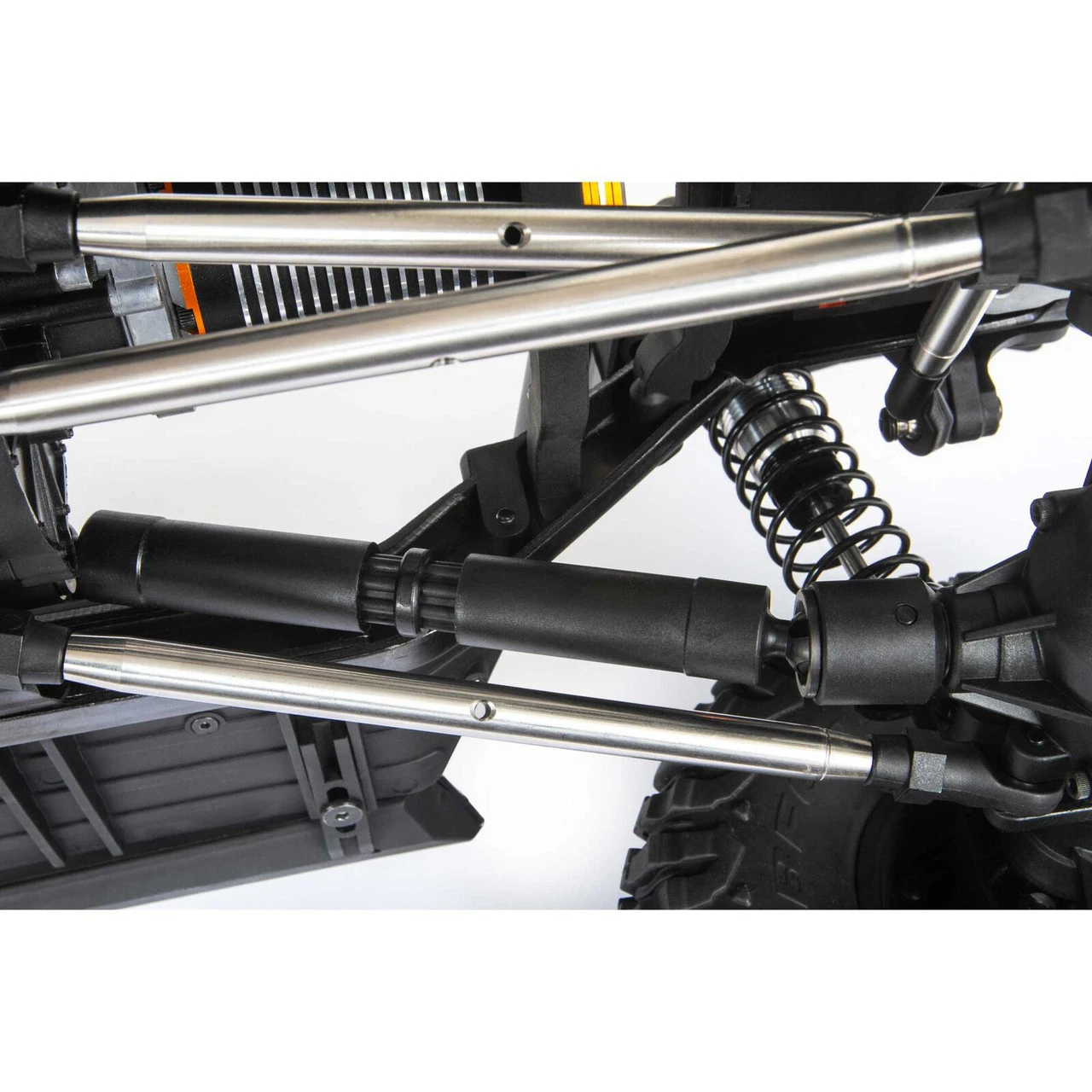

• WILDBOAR™ DRIVESHAFTS
  SCX6 front and rear driveshafts feature a design with a large diameter cross pin (3.5x17mm) along with an M6 Screw Shaft for added strength. A center splined slider floats between each end of the monster 17mm Diameter drive shafts!
  • Large scale version of the Wildboar™ HD8 driveshafts
  • 3-piece 17mm diameter driveshaft with a center slider-floater tube
  • Each giant 3.5 x 17mm cross pin adds more surface area providing additional strength for the ball joint
  • Captured cross pin design provides more durability and ease of maintenance
• UNIVERSAL JOINT AXLES
  The front universal joint axles provide more steering, and smoother action for a higher performing, efficient drivetrain.
  • Up to 45 degrees of steering
  • Compact yet durable design
  • Smooth action for an efficient drivetrain
  • Hardened steel construction

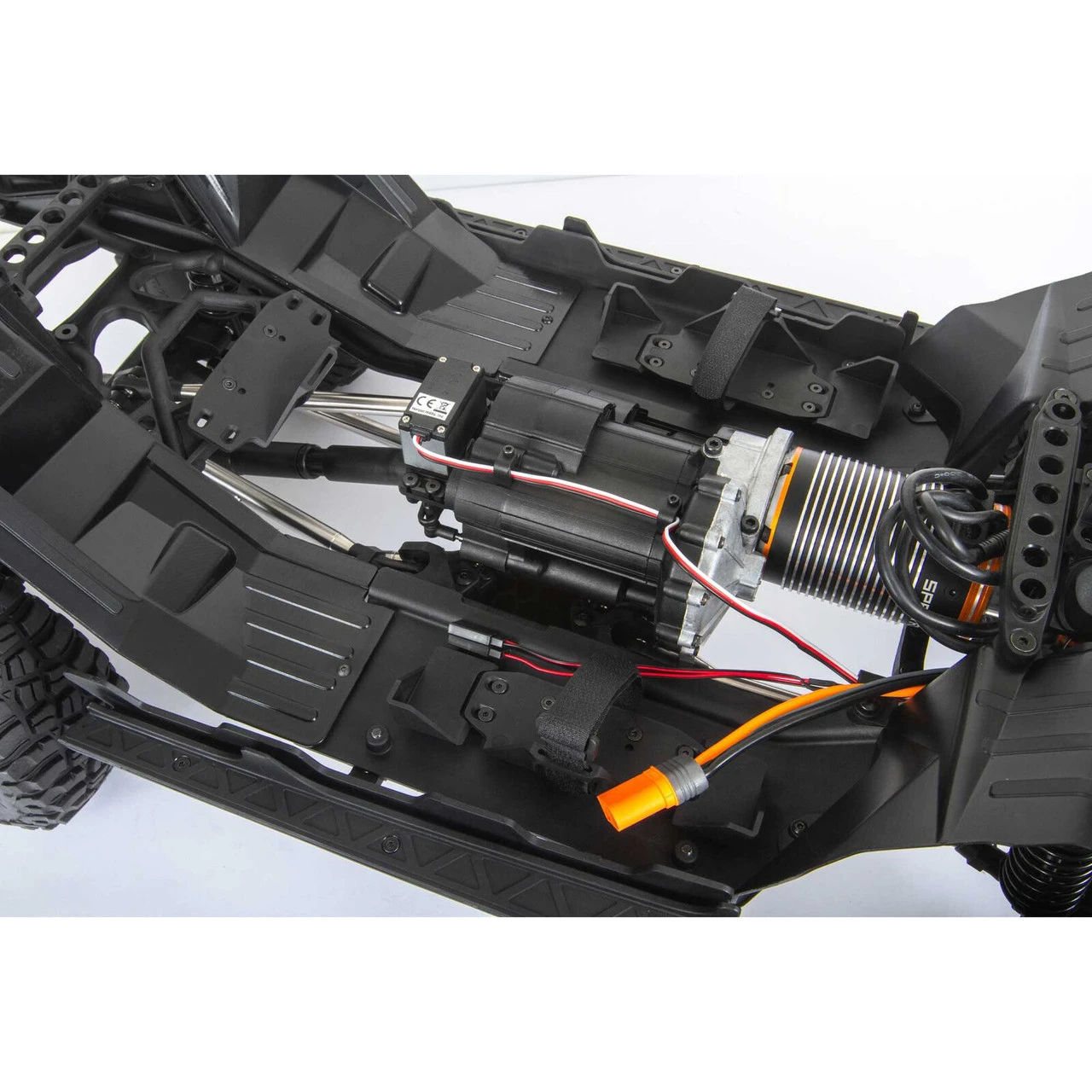

• SPEKTRUM™ 1200KV SENSORED BRUSHLESS MOTOR
  The included Spektrum™ system includes a waterproof sensored motor and ESC, developed especially for the SCX6 and its crawler style application. The ESC is rated at 120A, and is fully programmable with the use of our optional Spektrum™ Smart ESC Programming Update Box (SPMXCA200). The 1200Kv motor is larger than most sensored motors with dimensions of 56mm in diameter and 84mm in length.
• TWO-SPEED METAL GEAR TRANSMISSION
  Out of the box, the Axial® SCX6 Jeep® JLU Wrangler 4WD RTR is configured for two speeds with high and low gears. A Spektrum™ S614 Metal-Gear Servo is included for the two-speed linkage.
• SPEKTRUM™ S905 STEERING SERVO
  Included and installed, the waterproof Spektrum™ S905 Large-Scale Metal-Gear Servo produces impressive torque (537.72 oz-in at 6V, 555.50 oz-in at 7V) for responsive, dependable steering control. The chassis will also accept larger 1/5 scale servos, if desired, with the included adapter.
• SPEKTRUM™ FIRMA™ CRAWLER 120A SENSORED BRUSHLESS SMART ESC
  The factory-installed, waterproof Firma™ Crawler 120A Smart ESC delivers power and intelligence all-in-one — no additional vehicle modules or links required. This brushless ESC gives your SCX6 Jeep® JLU Wrangler 4WD the ultimate drive while feeding important telemetry data straight to your DX3™ transmitter in real time.
• SPEKTRUM™ DX3™ 2.4GHz DSMR® TRANSMITTER
  The included Spektrum™ DX3™ radio features exclusive DSMR® technology for superior range, response, and interference resistance. It’s also fully compatible with the Smart telemetry potential provided by the vehicle’s installed Spektrum™ Firma™ 120A Smart ESC.
• SR515 DSMR® RECEIVER
  Built around frequency-agile DSMR® technology, the SR515 receiver delivers superb range and response, especially in noisy RF environments where a solid 2.4GHz link is crucial. Not only is the 2.4ghz link solid, this model also implements our lightning fast 5.5ms frame rate, providing a quicker , low-latency connection for the pro-level enthusiast.

Specifications:

• Length: 33.55in (776mm)
• Width: 14.88in (378mm)
• Height: 14.55in (370mm)
• Weight: 25 lbs

In The Box

• (1) Axial® SCX6™ Jeep® JLU Wrangler 1/6 Scale 4WD RTR
• (1) Spektrum™ DX3™ Smart Transmitter with Thumb Steer
• (1) Spektrum™ 5-Channel DSMR® Sport Receiver
• (1) Spektrum™ 1/6 40kg Waterproof Digital Servo
• (1) Spektrum™ 15kg Servo for 2-speed Shifting
• (1) Spektrum™ Firma™ Crawler 120A Sensored Brushless Smart ESC
• (1) Spektrum™ Firma™ 1200Kv Sensored Brushless Motor
• (1) Servo Adapter for Large Scale Servos

Needed to Complete

• (1) 2S-3S Standard or “Shorty” LiPo Battery with EC5 or IC5 connector
• (1) Compatible Battery Charger
