Axial 1/24 SCX24 Deadbolt RTR Scale Mini Crawler W/2.4GHz Radio (Red)

Product Description

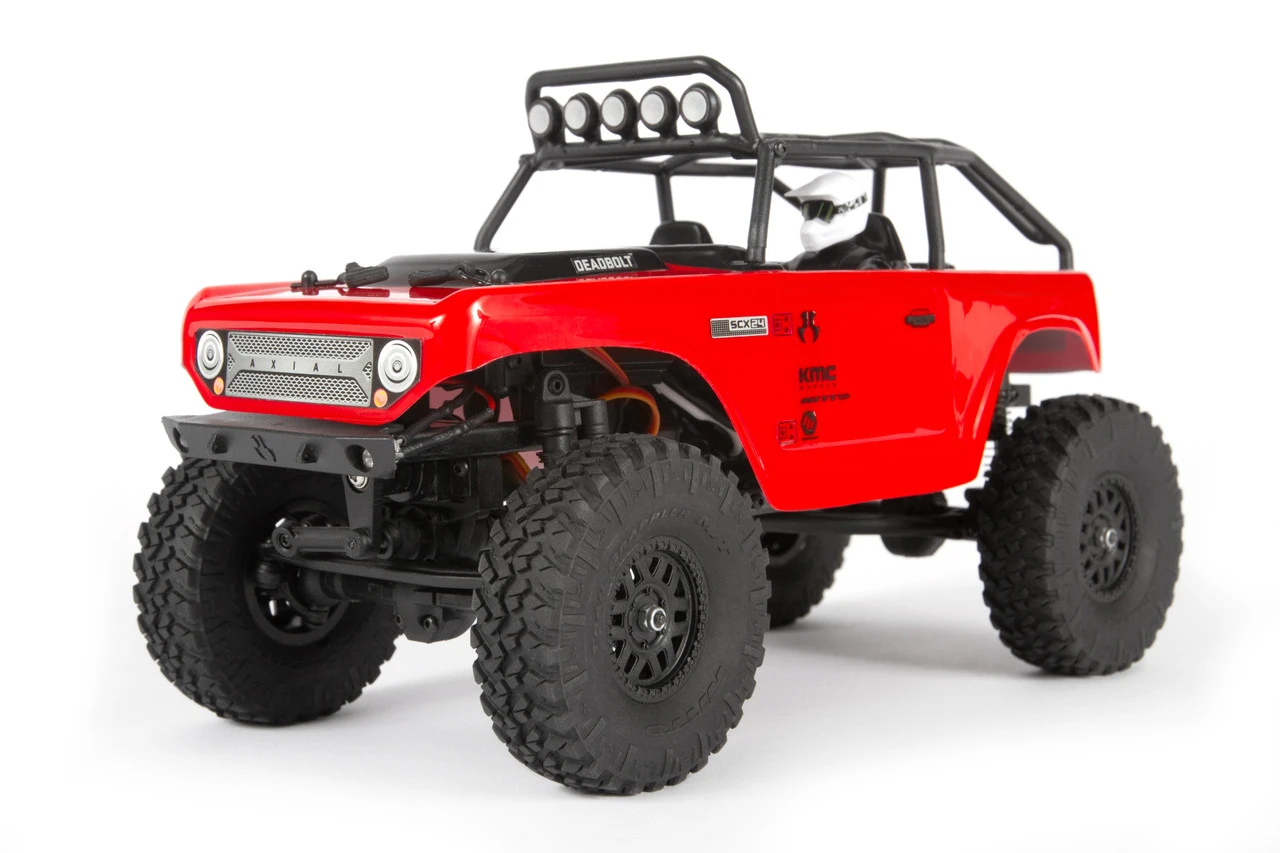

Axial 1/24 SCX24 Deadbolt RTR Scale Mini Crawler w/2.4GHz Radio (Red)

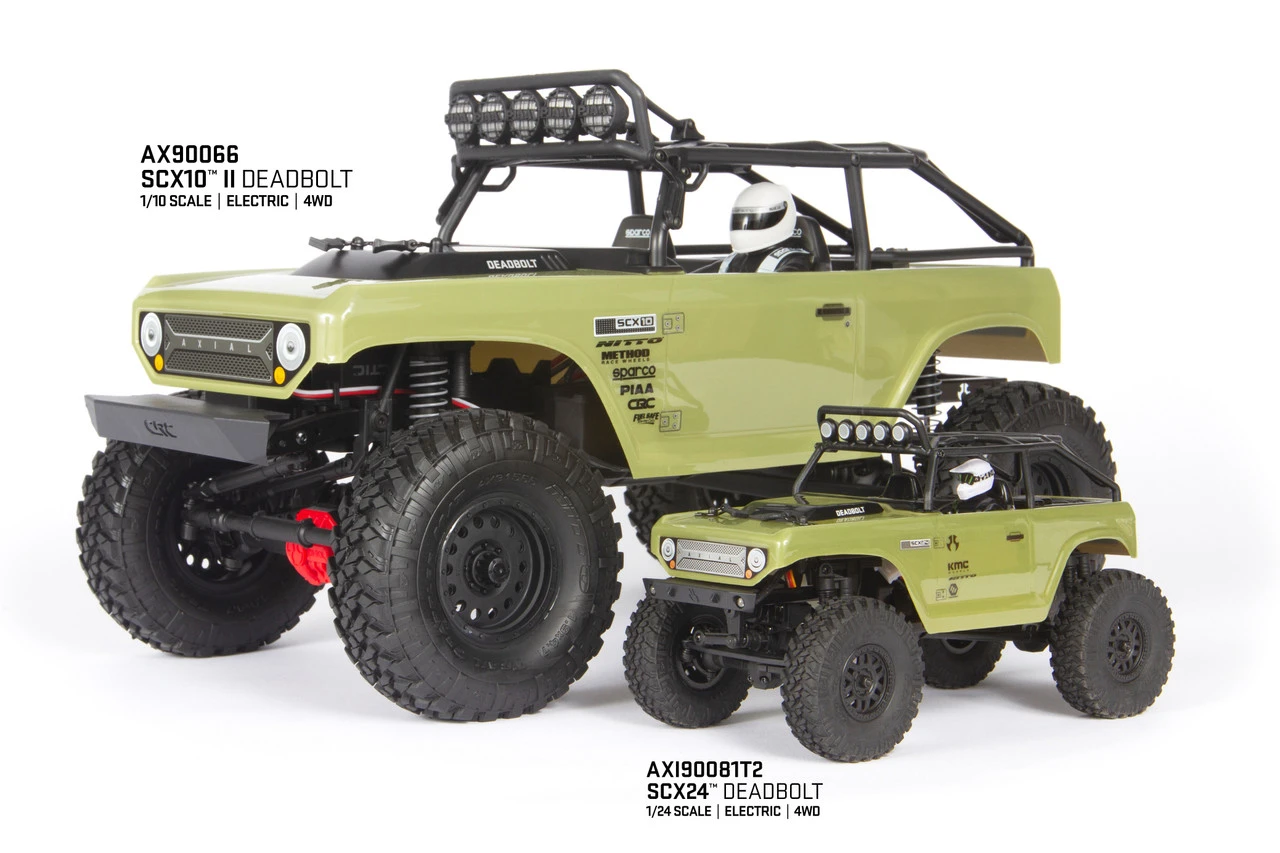

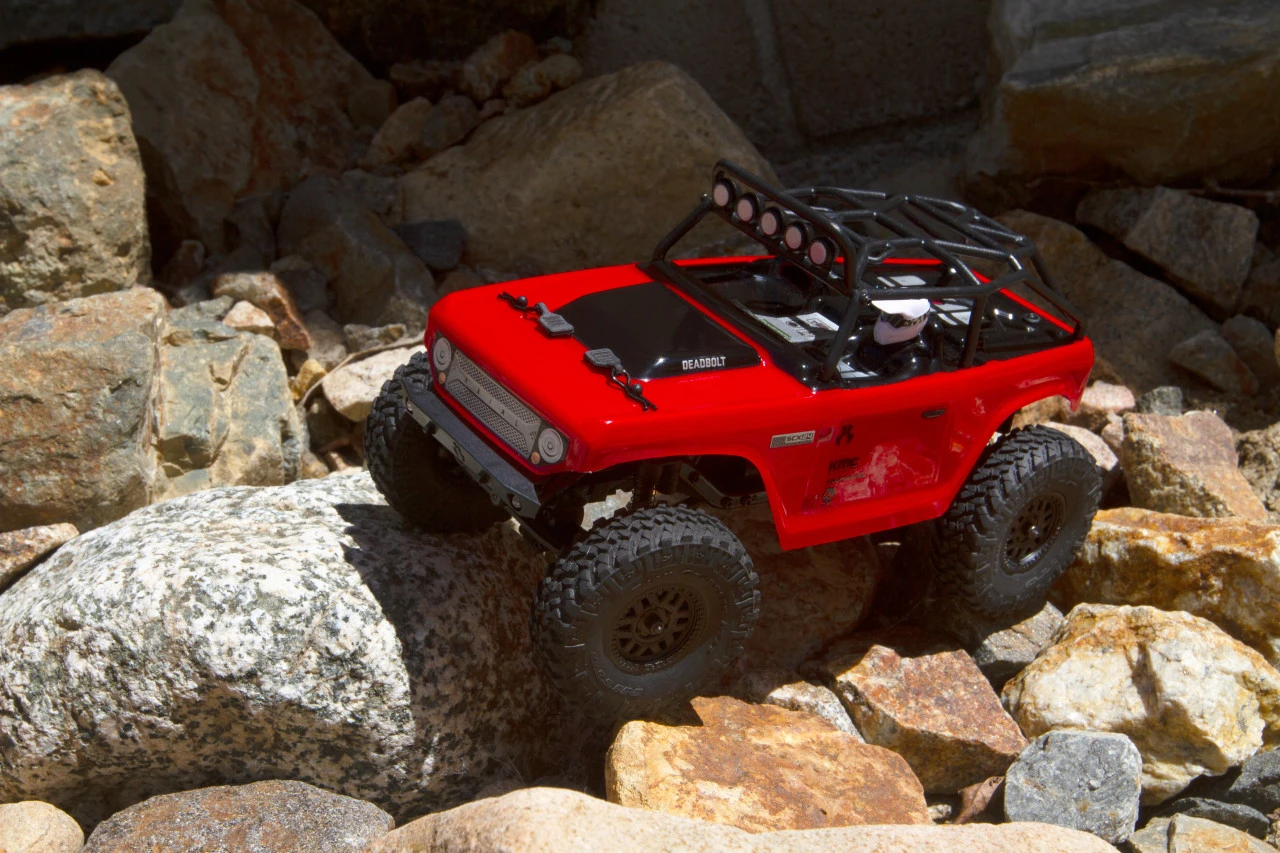

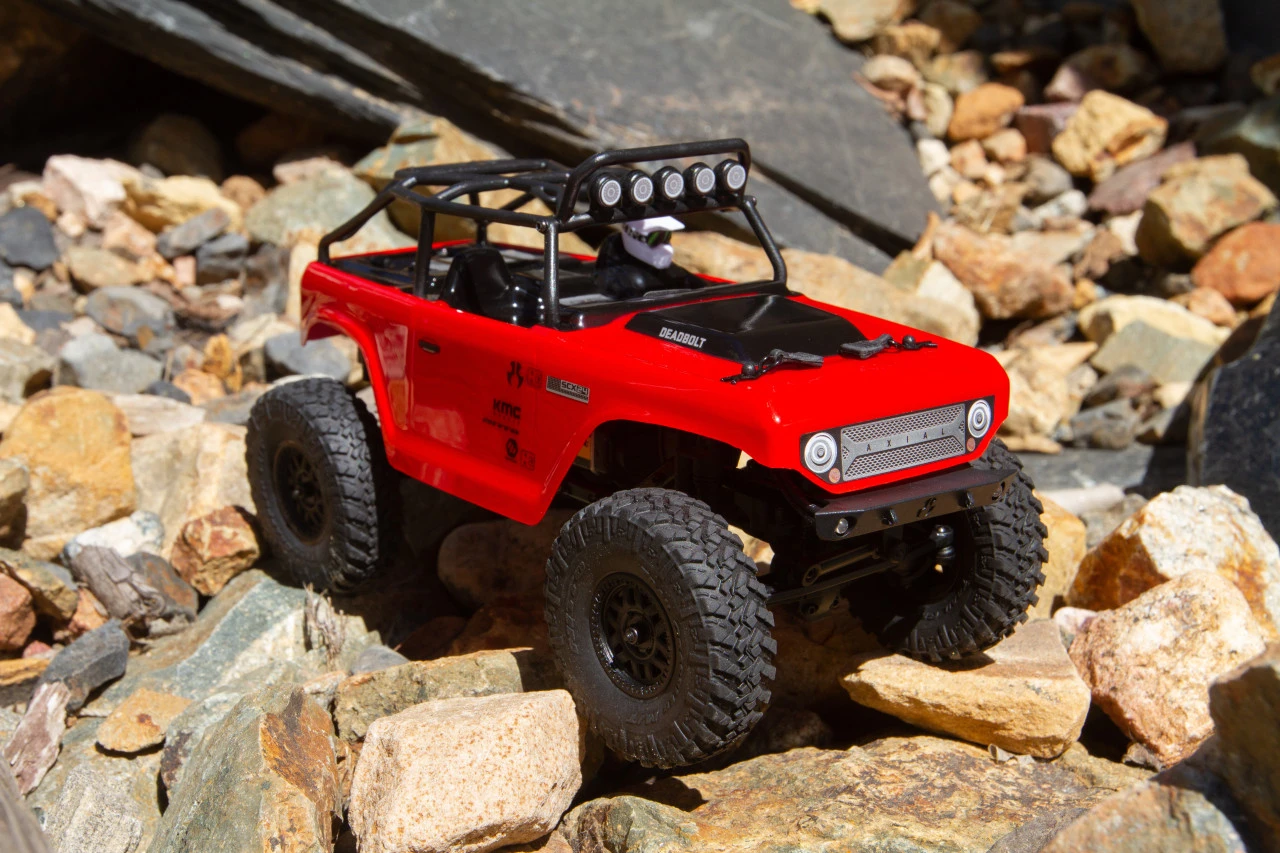

Equally at home on creative indoor trails and challenging outdoor terrain, this Deadbolt™ is eager for adventure almost anywhere — the 1/24 scale SCX24™ chassis proves that BIG fun comes in small packages! The chassis shares many familiar features with its highly successful 1/10 scale SCX10™ inspiration. It has rugged steel C-channel frame rails with bracing and officially licensed Nitto® Trail Grappler tires on KMC® XD Machete wheels, providing the toughness and tread to tackle off-road challenges (and the freedom to face them down on-road, too). The SCX10 hinged body system has been carried over into this rig as well…so you can change the battery or check out other on-board components with barely a break in the action.

You expect solid performance from Axial® and the SCX24™ Deadbolt™ delivers, with engineering and equipment that pulls the greatest potential from its compact size. The included Dynamite™ 88T brushed electric motor supplies the torque you need to get up and over most obstacles. And despite the dimensions, it’s a pretty capable rock crawler, too! Axial has also included extra suspension links for adjusting your wheelbase length.

The AX-4 transmitter features a throttle trim knob for low, medium, and high speed setting, a switch for steering servo reversing, steering dual rate, a switch for third channel applications (aux port on the ESC/Receiver), steering trim, battery level indicator, a bind button, and on/off switch.

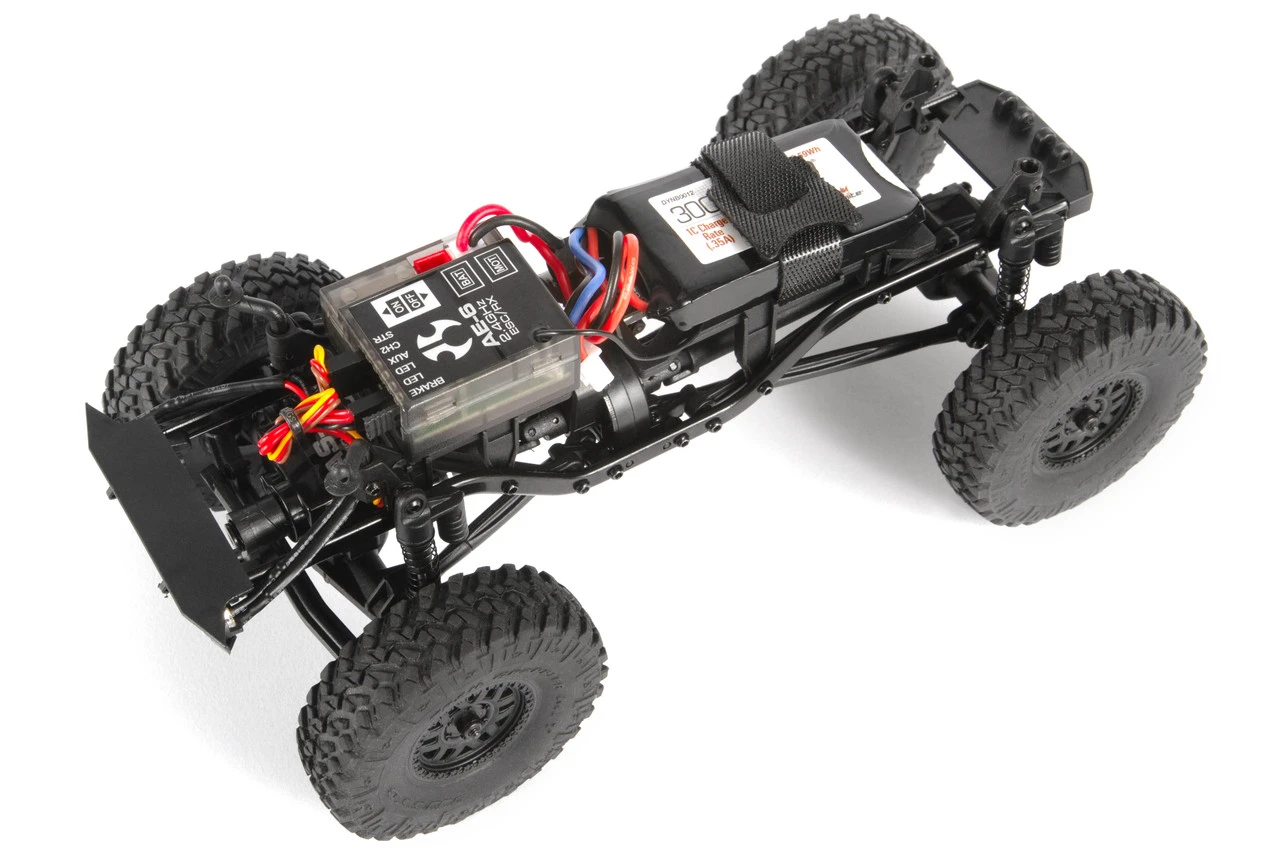

The AE-6 ESC/Receiver features a jumper for setting one of two brake options (brakes, or instant reverse), two LED light ports, an auxiliary port (channel 3), a channel 2 port, and a steering servo port.

Features:

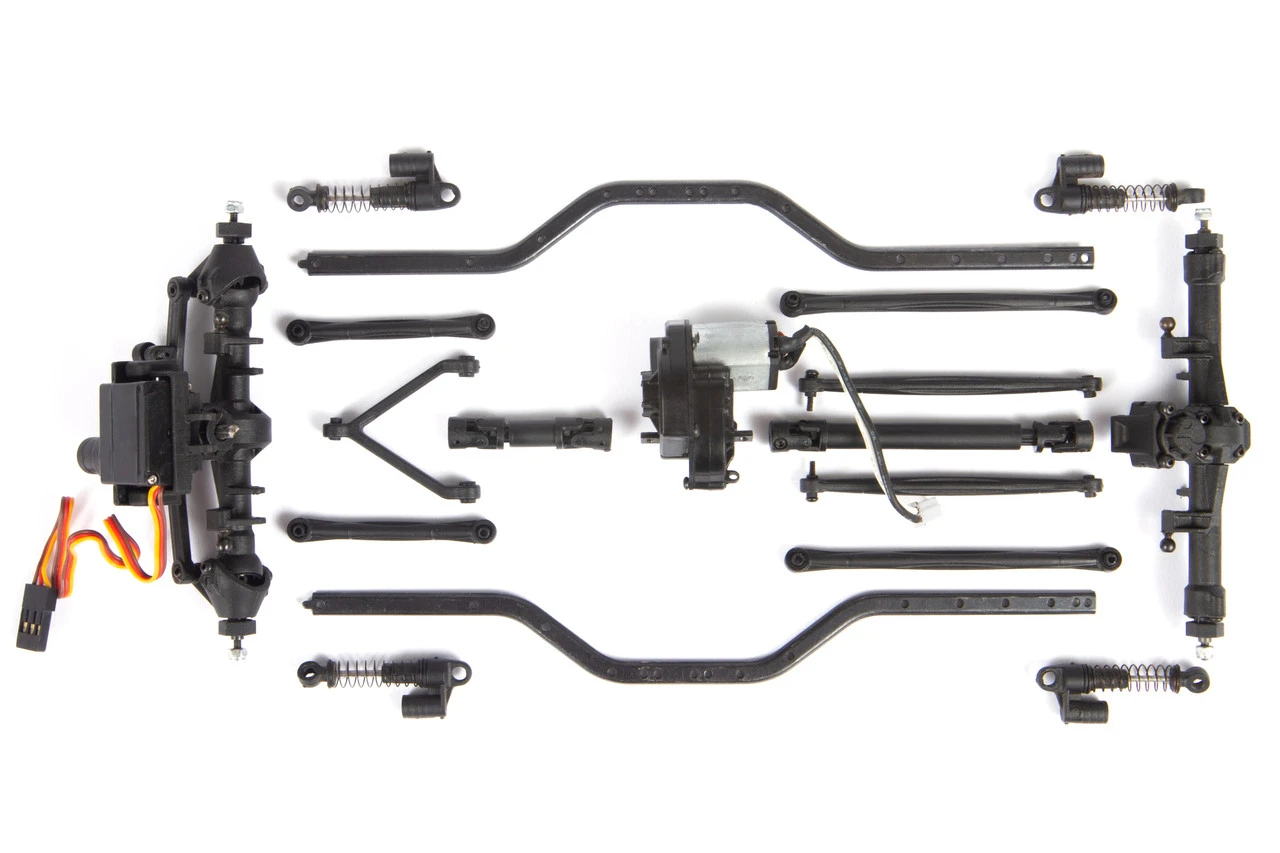

• Front and Rear Solid Axles:
• The front and rear axles consist of a two piece, molded plastic solid axle design. For optimal handling, the SCX24™ suspension features a three-link front and four-link rear setup.

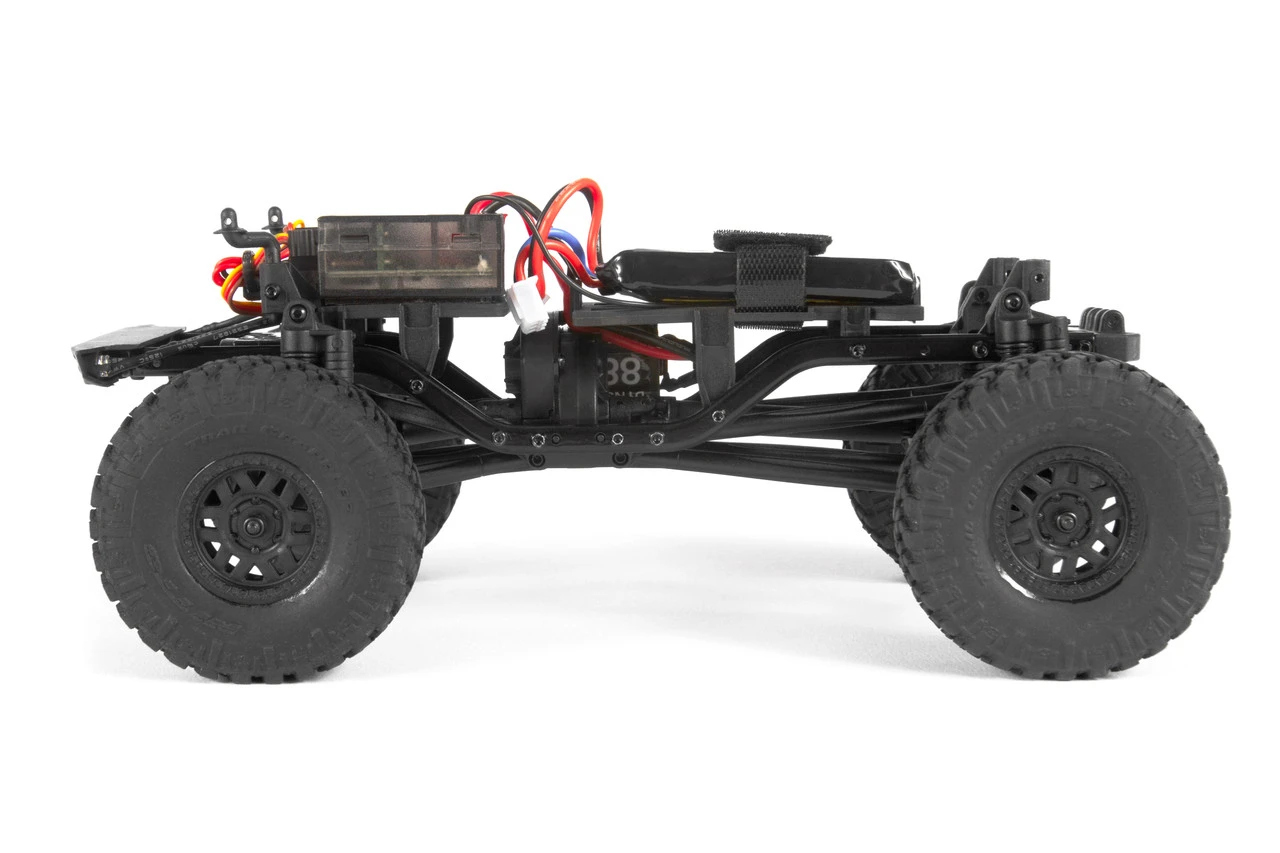

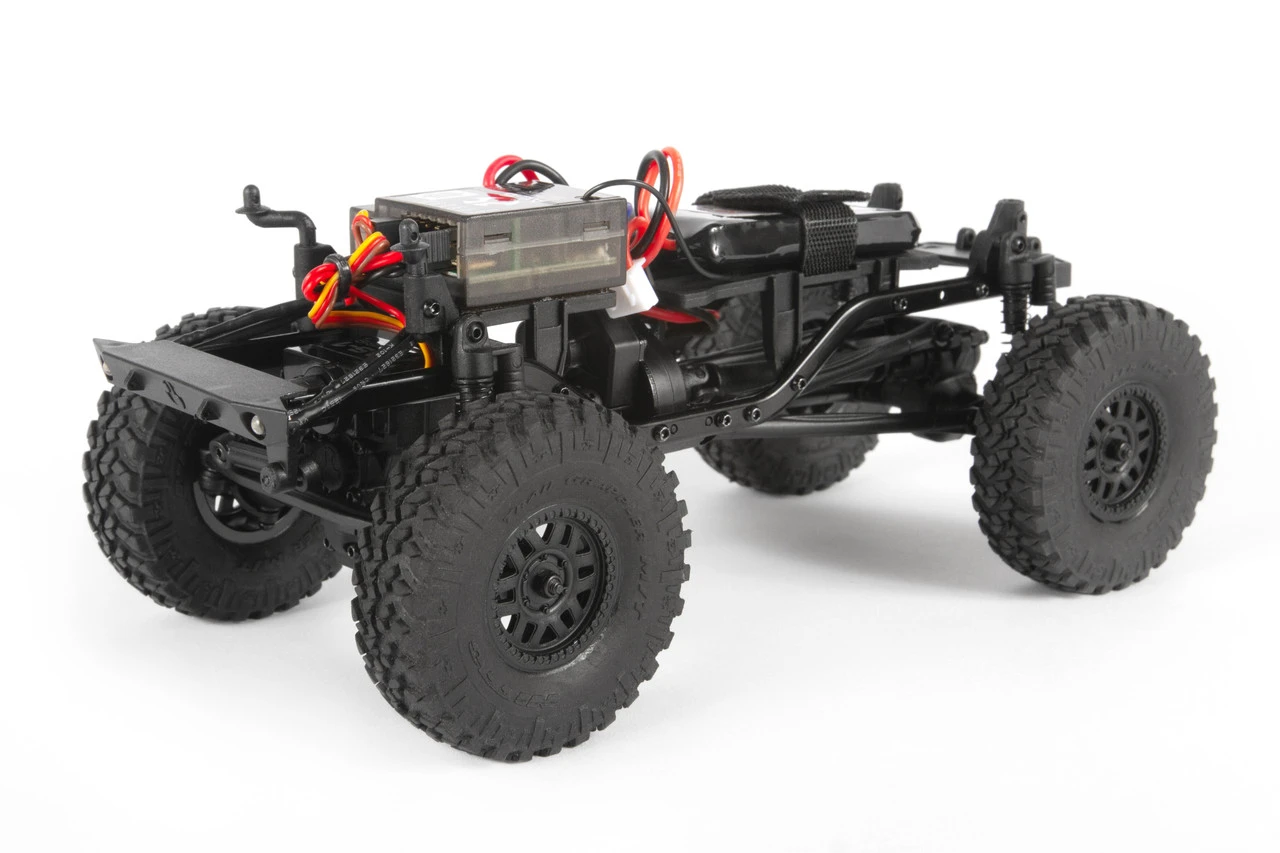

• Steel C-Channel Chassis Frame Rails:
• Just like the 1/10th scale SCX10™ platform, the SCX24™ chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.
• Dynamite 88T Brushed Motor:
• The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It’s mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.
• Worm Gears:

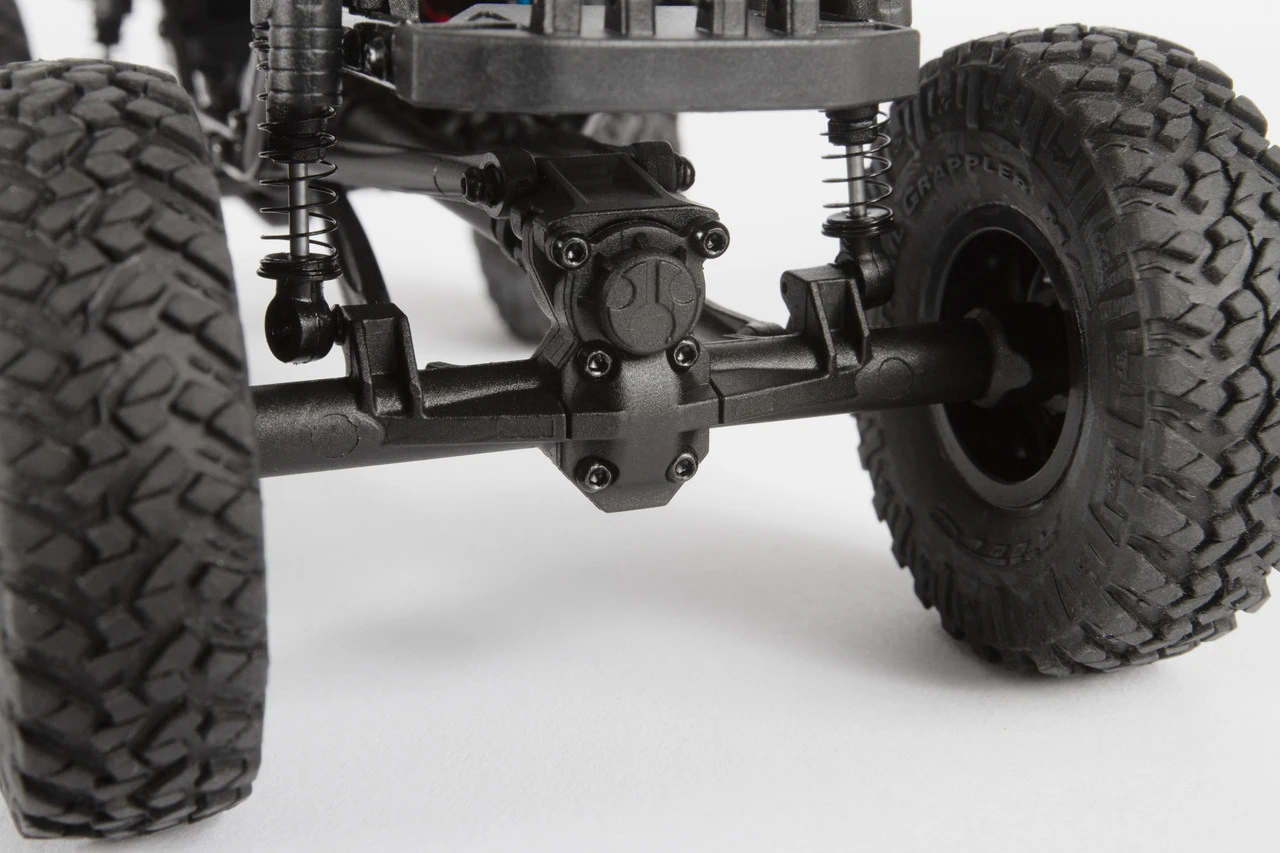

• The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.
• Durable Steel Axles:
• Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep things running during tough climbs and rough trails.
• Splined Drive Shafts:
• The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
• Coilover Shock Absorbers:
• Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you’ve known and expect from Axial.
• LED Lights:
• Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
• 4-Link Rear Suspension:
• The suspension geometry utilizes a 4-Link design for the rear which is optimized to reduce axle steer and torque twist. We’ve also included extra suspension links for adjusting your wheelbase length.

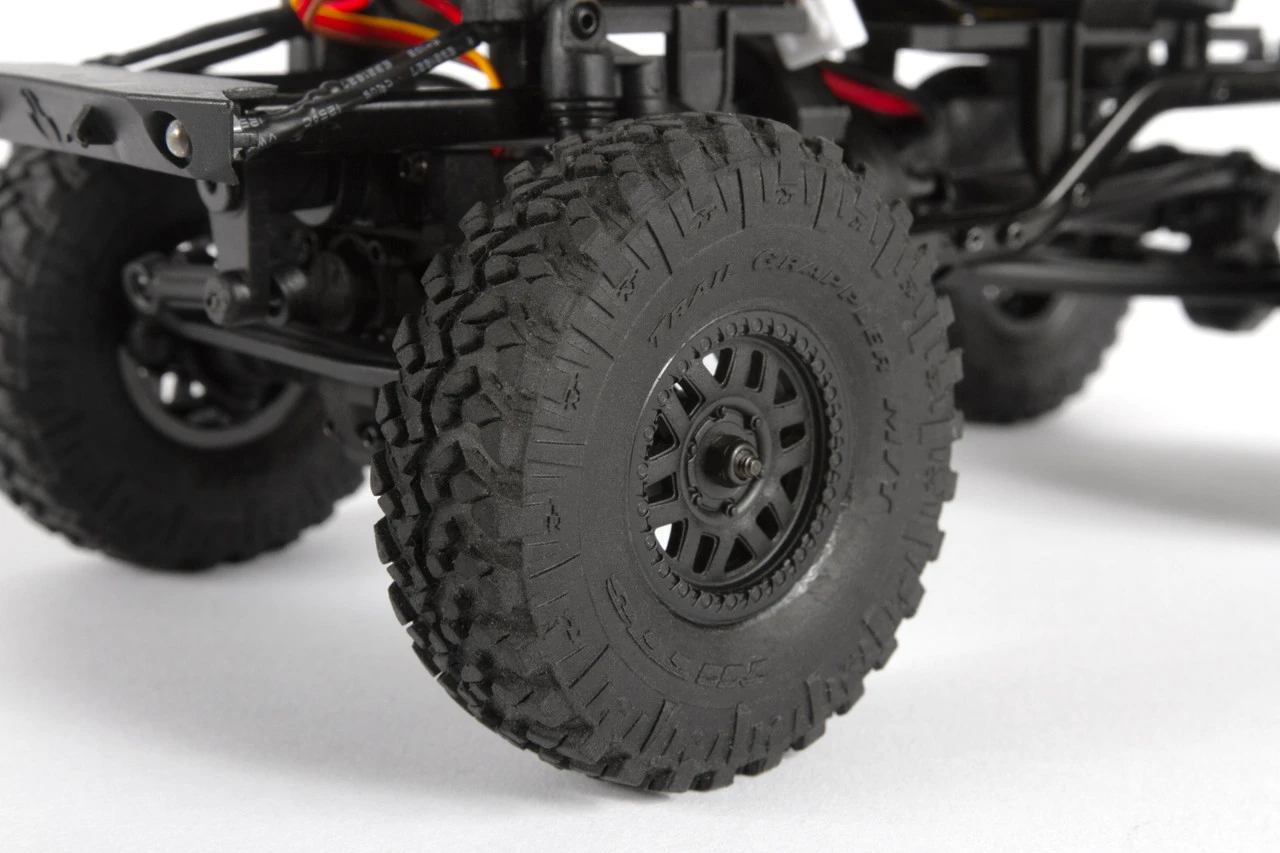

• KMC XD229 Machete Crawl Wheels:
• Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in black and feature stunning scale details, despite the small scale.
• Nitto Trail Grappler M/T Tires:
• The officially licensed Nitto Trail Grappler M/T Tires offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use.

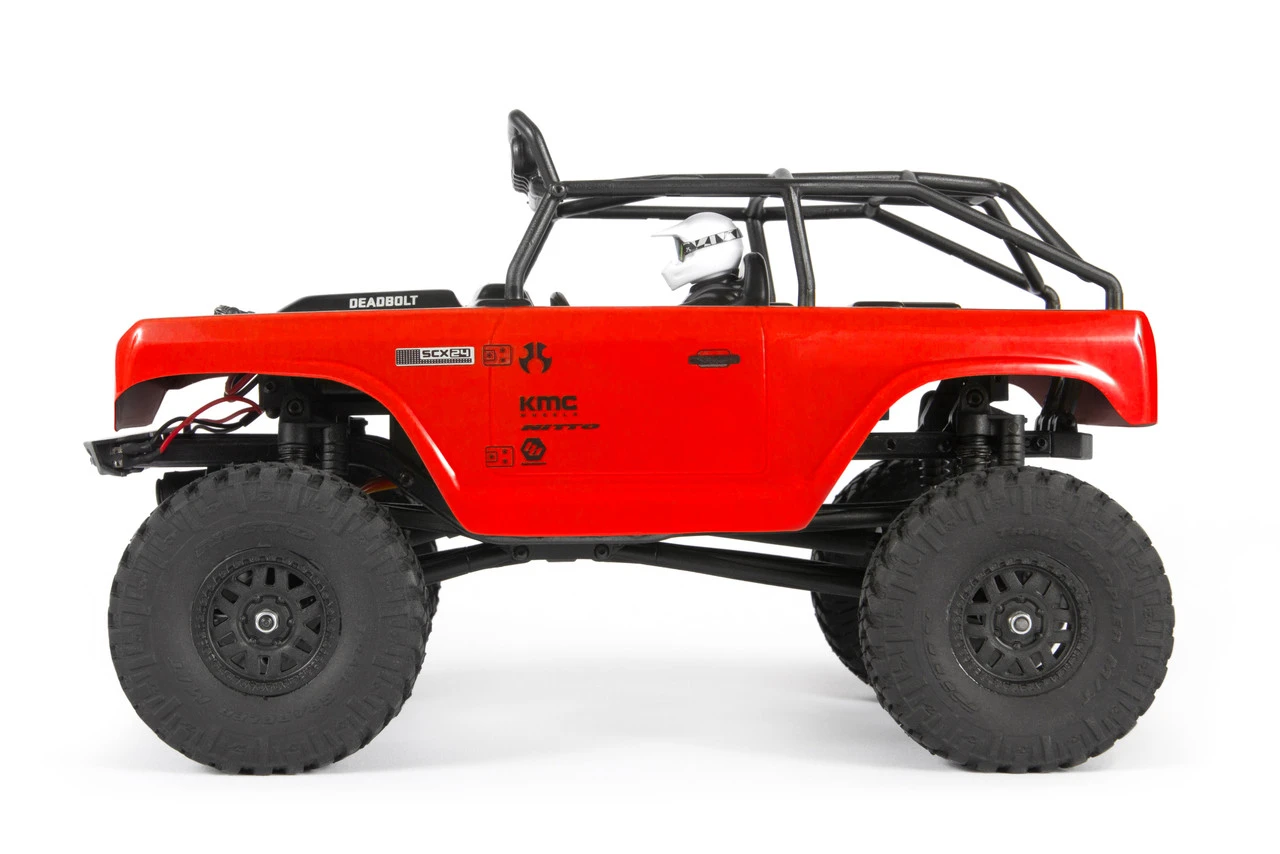

• Hinged Body System:
• The hinged body system offers easy access to on-board components. You can quickly reach the battery and chassis by removing just two body clips and swinging the body up.
• Full Ball Bearings:
• Just because the SCX24™ is smaller in size doesn’t mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entire vehicle.
• Axial AS-1 Servo:
• Mounted just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also providing protection for the servo gears in the event of a bind or impact.

Specifications:
Length: 7.8″ (198mm)
Width: 3.9″ (100mm)
Height: 4.3″ (110mm)
Wheelbase: 5.2″ (133mm)
Ground Clearance: 0.7″ (18mm)
Weight: 0.5lb (0.22 kg)

Everything Is Included!
The SCX24™ includes everything you need to get going. The product is fully assembled, and they’ve included batteries for the transmitter, and a LiPo battery pack and USB charger.

Includes:

• Axial AX-4 2.4GHz, 3 Channel Radio System
• Axial AS-1 Servo
• Axial AE-6 ESC/Receiver Combo
• USB Charger (DYNC1062)
• Dynamite 88T 030 Brushed Electric Motor
• Dynamite 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)
• 4AA Batteries for the Transmitter



• Parts

  • Parts for the Axial SCX24

• Resources

  • Axial 1/24 Scale Deadbolt Instruction Manual
