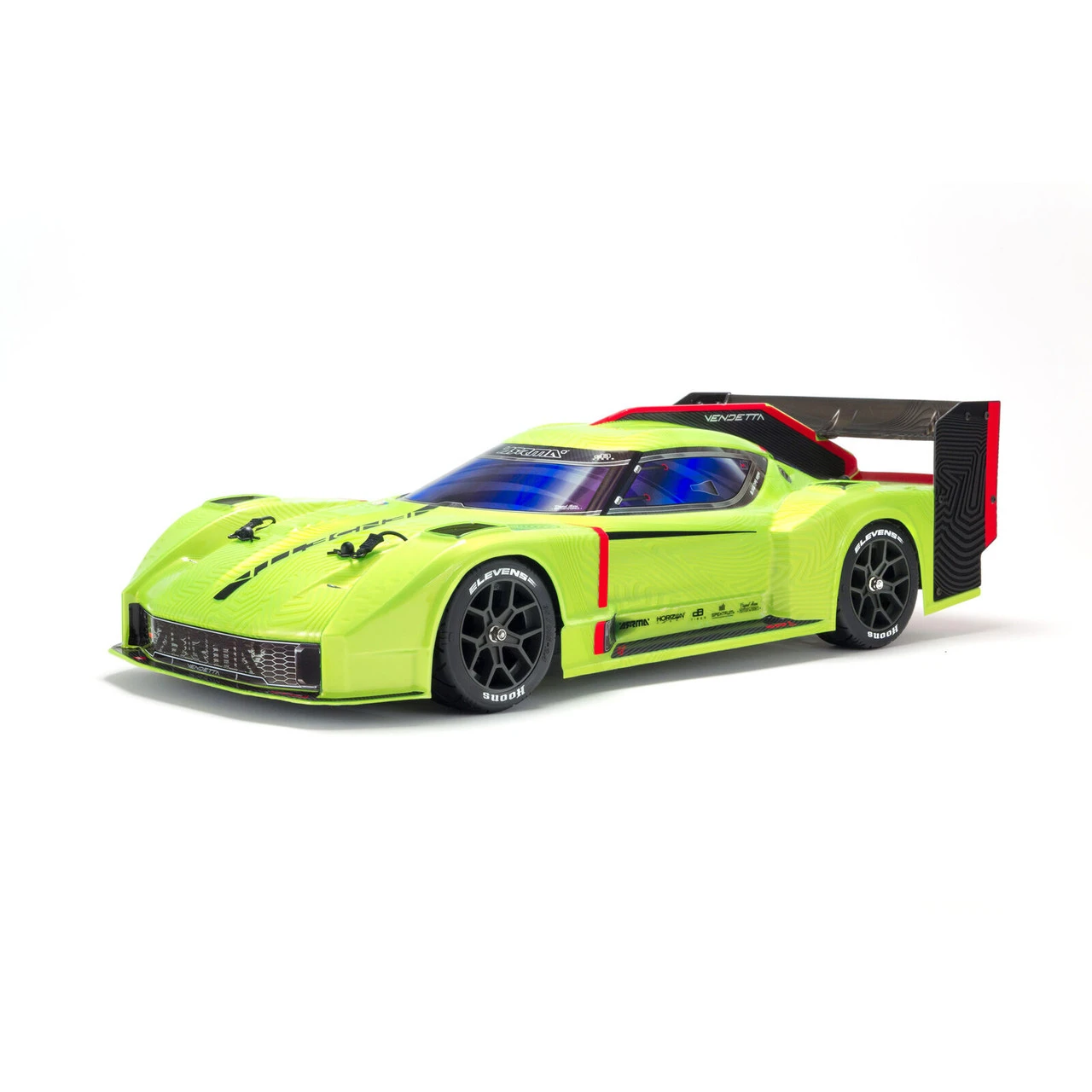

Arrma Vendetta 1/8 4×4 3S BLX Speed Racer, Green

Product Description

Arrma Vendetta 1/8 4×4 3S BLX Speed Racer, Green

All-Road Speed Bashing at Its Best

The ready-to-run, 1/8 scale ARRMA® VENDETTA™ 4X4 3S BLX Speed Racer makes it easy for any driver with intermediate experience to enjoy the thrill of blasting at incredible speeds over on-road and light off-road surfaces. Just install your 3S LiPo battery and the supplied optional speed pinion to reach 70 mph+ speeds in optimum conditions — while ARRMA® engineering and Spektrum™ electronics provide exceptional durability and control.

Its proven ARRMA® 4X4 platform features a strong composite chassis with extended height dirt defenders, oil-filled shocks with silicone O-rings, metal geared differentials and more. That makes the VENDETTA™ 4X4 3S BLX Speed Racer rugged enough for bashing at high speeds over loose gravel, dirt, and oval tracks. When maintenance is due, the signature ARRMA® easy-access modular design keeps it simple with separate, easily removable chassis modules for the power system, electronics and differential components.

While you’re maximizing the speed potential of the powerful Spektrum™ Firma™ 3660 3900Kv brushless motor, high and low downforce wings on the aerodynamically tuned body help keep your tires glued to the surface. The dBoots® Hoons Elevens vented all-road tires are mounted on tough, gun-metal colored nylon wheels and deliver incredible traction in all surface conditions, while a large rear double diffuser reduces turbulence and drag.

ARRMA® engineers combine the VENDETTA™ 4X4 3S BLX Speed Racer’s speed and toughness with the exclusive control advantages of Spektrum™ electronics. The included DX3 DSMR® 2.4GHz radio system, SR6200A receiver and Firma™ 100A ESC work together to provide the benefits of AVC® (Active Vehicle Control®) and Smart technology straight out of the box.

Using the AVC® system’s on-demand traction control, you can dial-in extra stability as needed to carve corners or nail jumps without backing-off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt. When you don’t want the extra traction, just dial back the stability. The DX3 radio’s AVC® system works behind the scenes, making hundreds of minute steering and throttle adjustments per second to keep the VENDETTA™ 4X4 3S BLX Speed Racer precisely on the line you want to hold.

Download the optional Spektrum™ Dashboard™ app to your mobile device — it’s available free from the iPhone App Store and Google Play — to take full advantage of the Smart electronics’ telemetry capabilities. Once you connect your mobile device wirelessly via Bluetooth to the VENDETTA™ 4X4 3S BLX Speed Racer’s DX3 transmitter, you can use it to view top speed, battery voltage and other essential data in real time (requires an optional BT2000 Bluetooth Module, available separately).

The VENDETTA™ 4X4 3S BLX Speed Racer body is available factory-finished in your choice of green or blue matte and gloss effect paint schemes with scale decals. Only a 2S or 3S hardcase LiPo battery, compatible charger and four AA transmitter batteries are required.



STRONG COMPOSITE CHASSIS

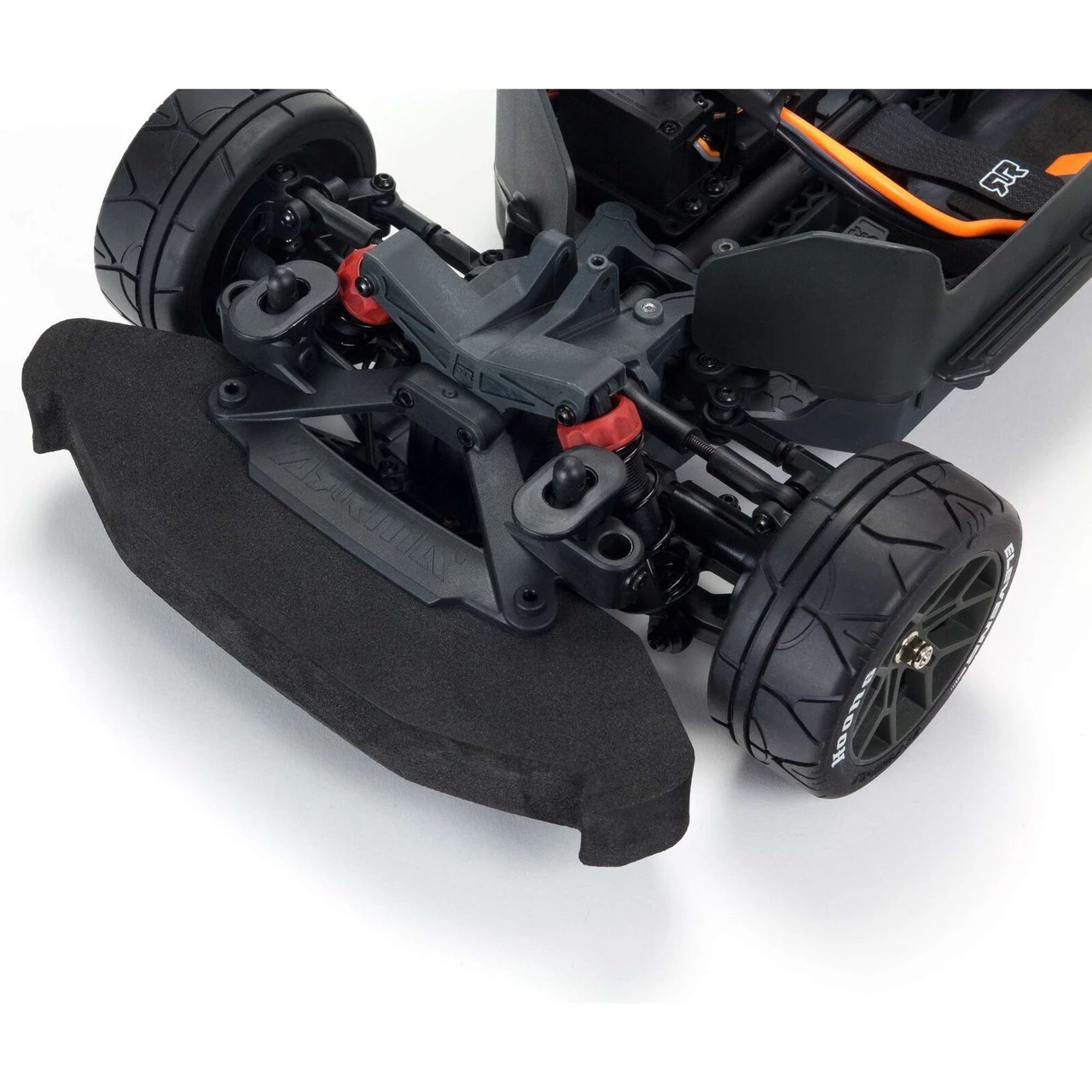

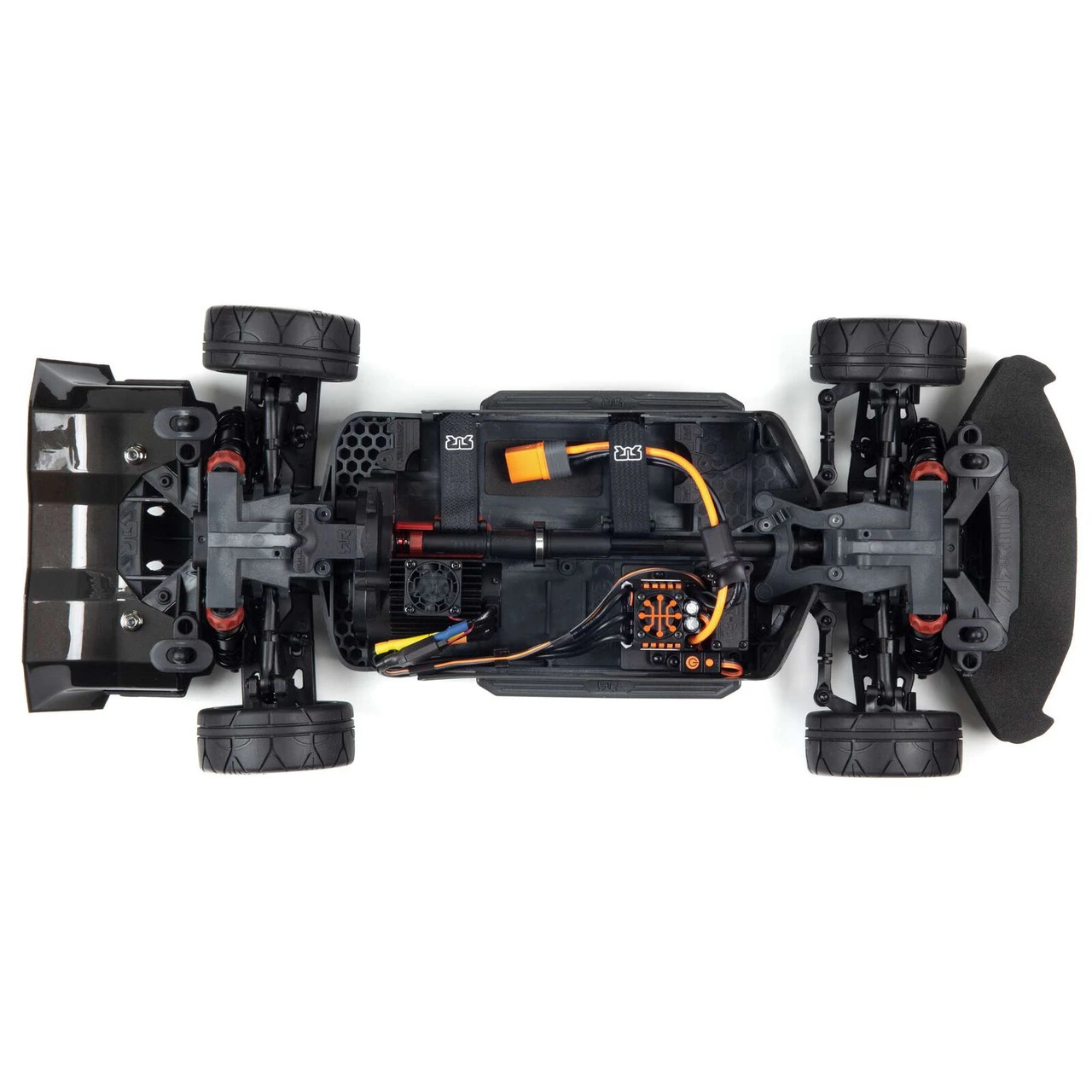

Features that contribute to the 4X4 3S BLX platform’s unstoppable performance include a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. A large front foam bumper integrates with body for maximum protection.

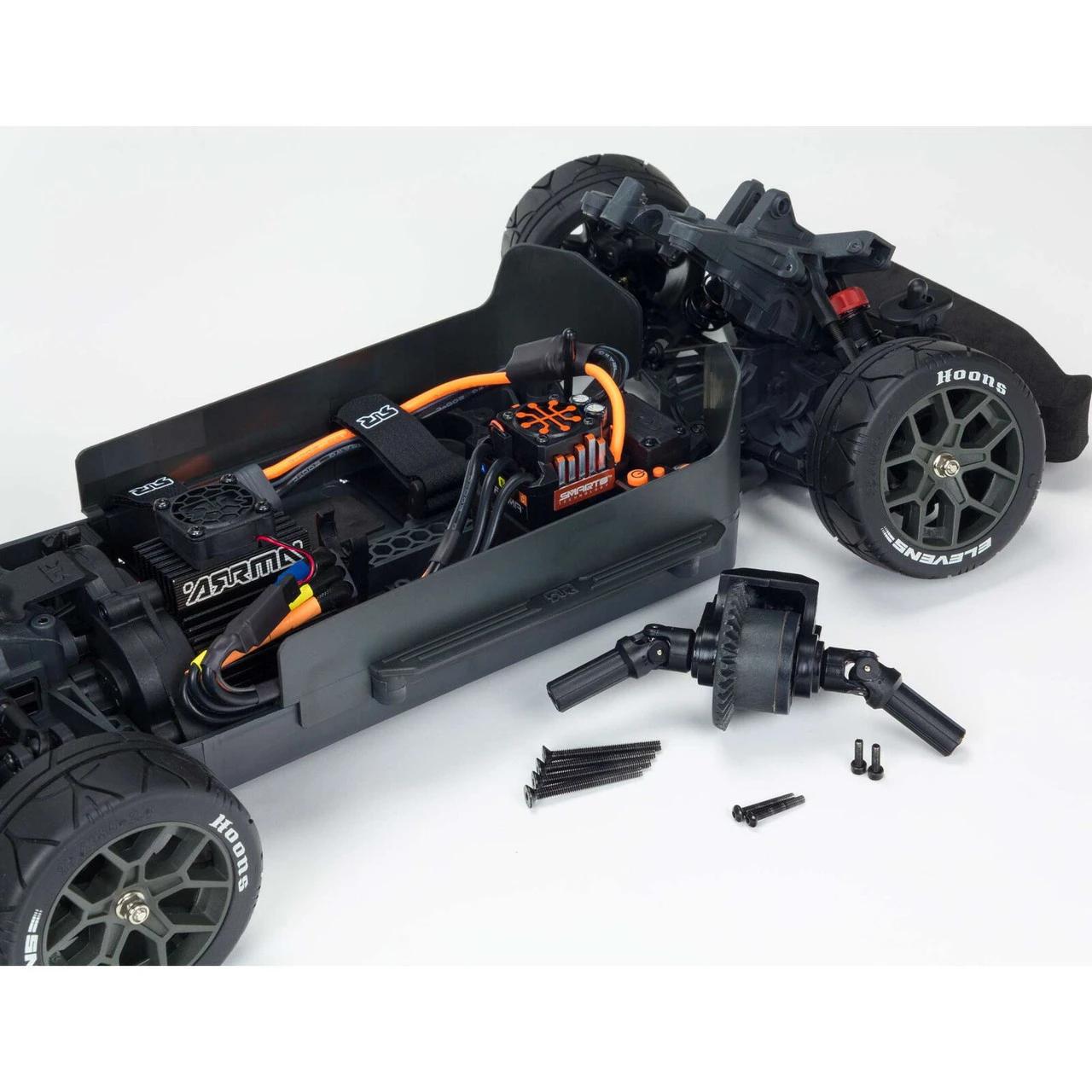

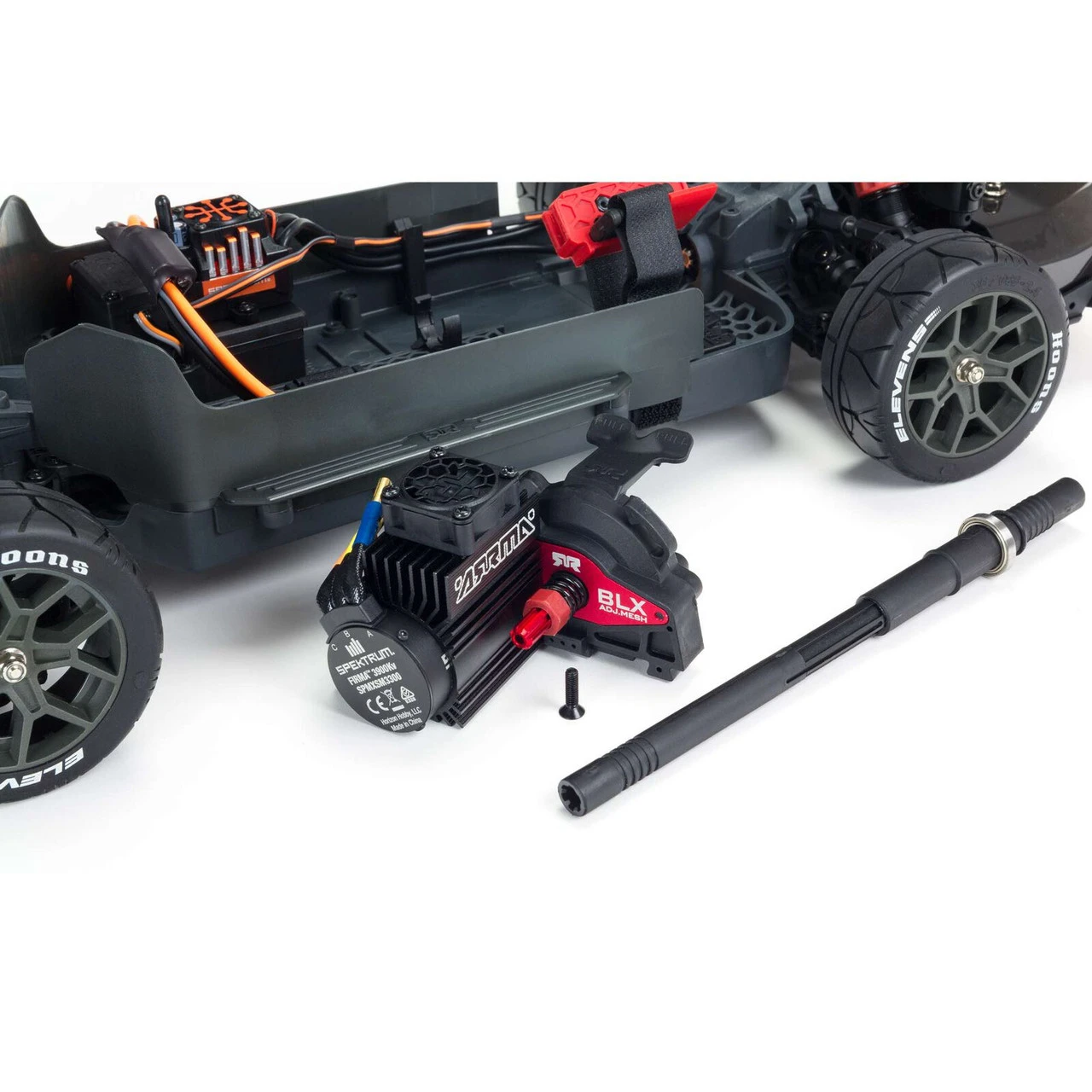

SIGNATURE EASY-ACCESS MODULAR DESIGN

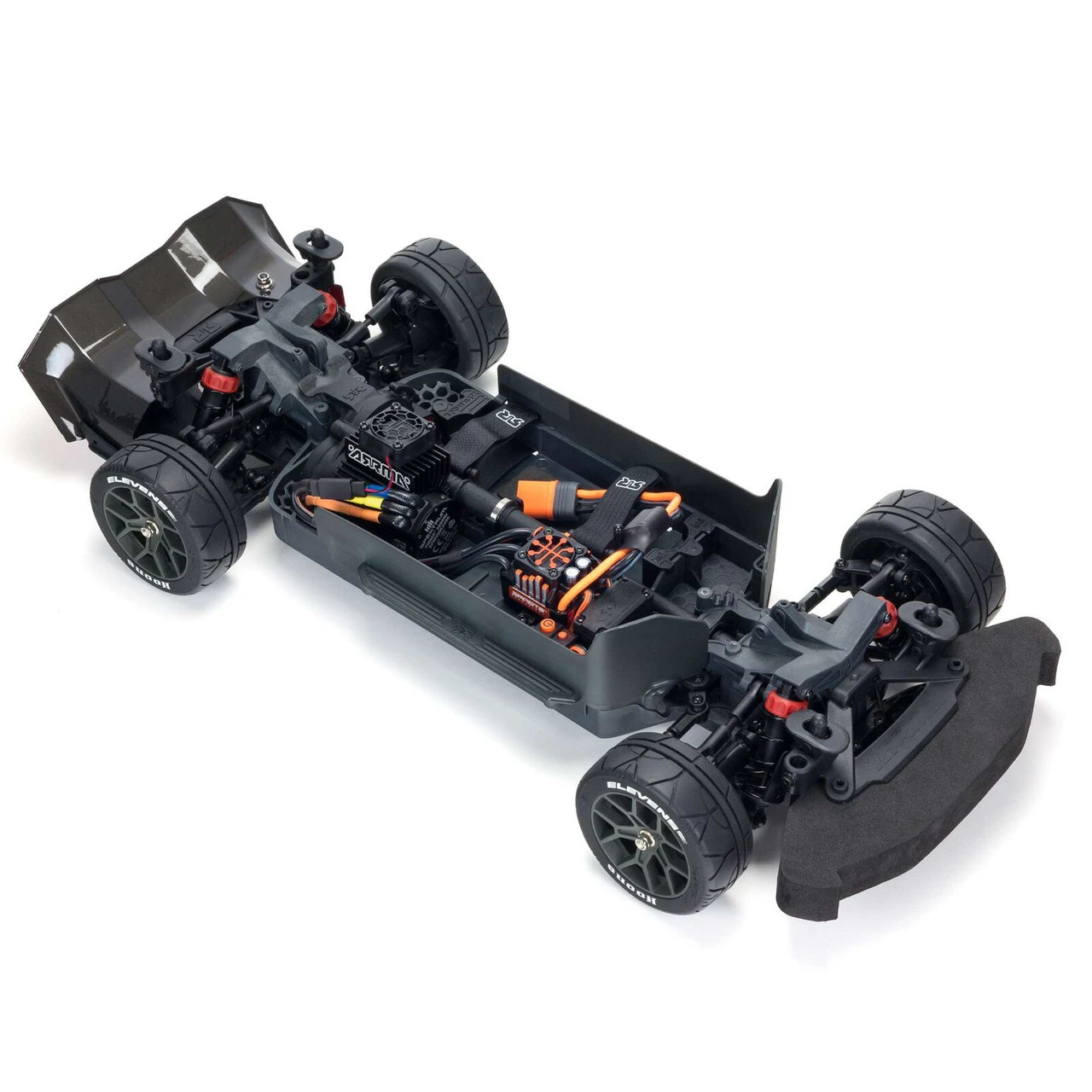

The VENDETTA™ 4X4 3S BLX Speed Racer RTR incorporates the signature ARRMA® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.

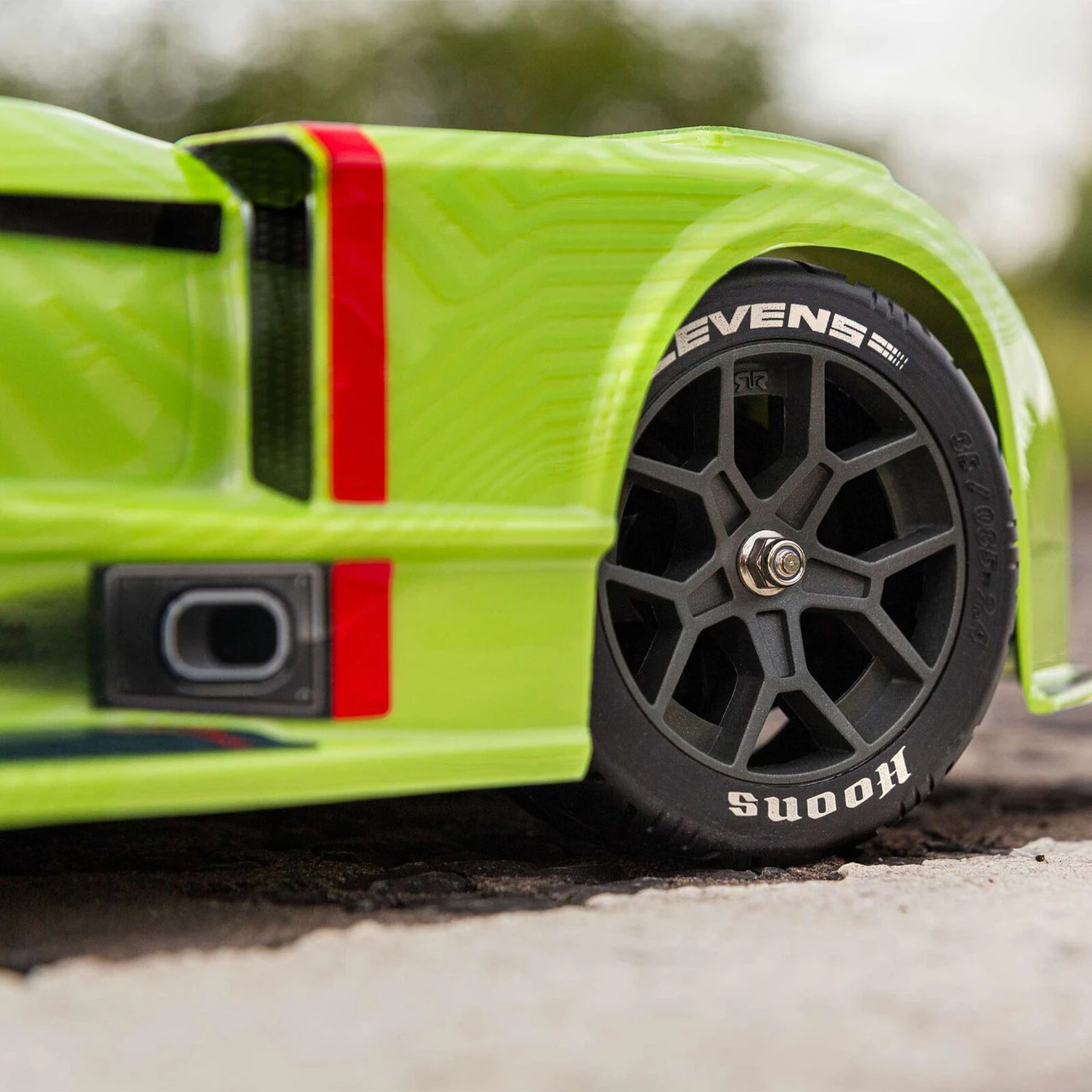

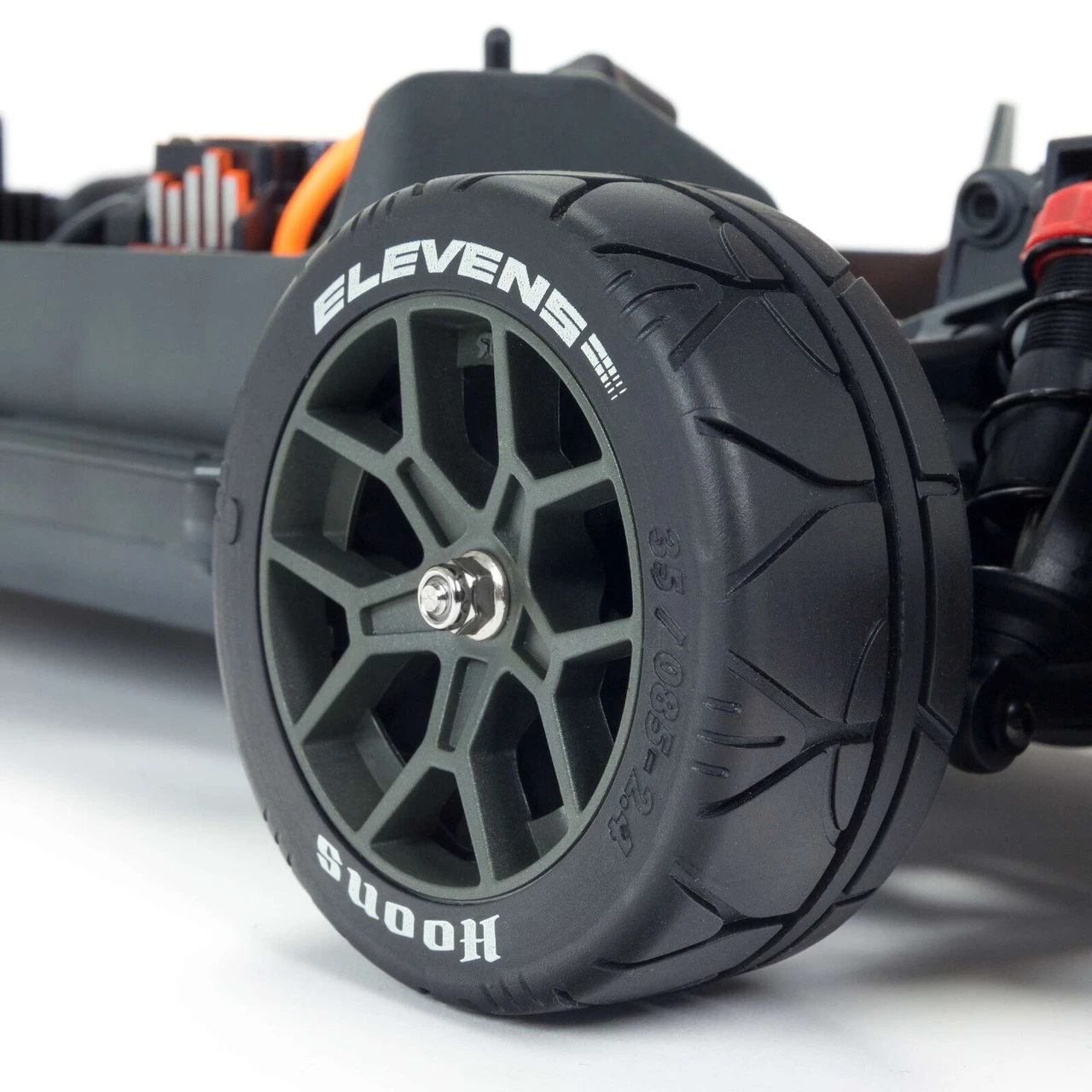

WHEELS & TIRES

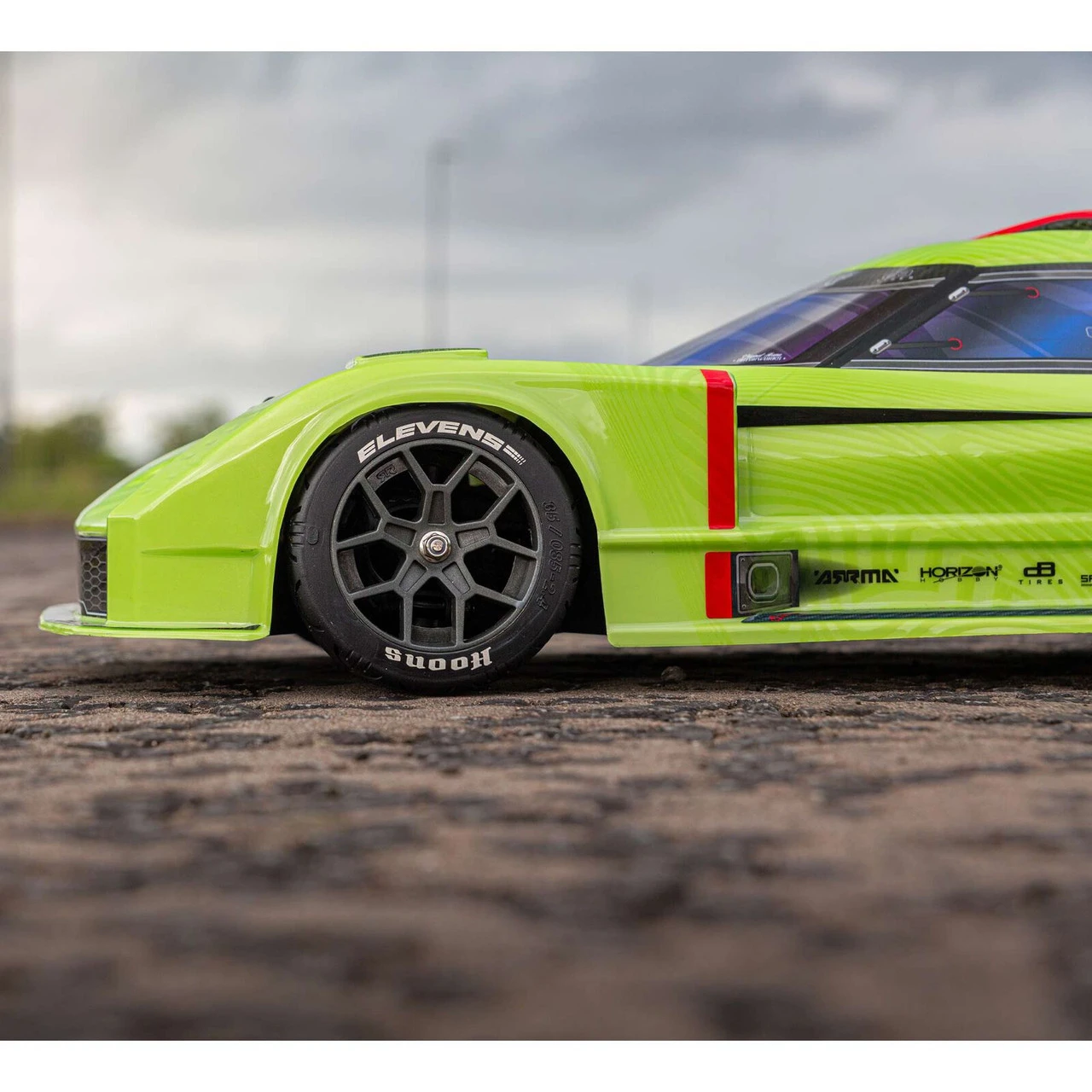

The dBoots® Hoons Elevens vented all-road tires are made of high-quality rubber for long-lasting durability and provide incredible traction in all surface conditions. The tires are glued to tough, gun-metal colored nylon wheels and include high-quality inserts for excellent tread support.

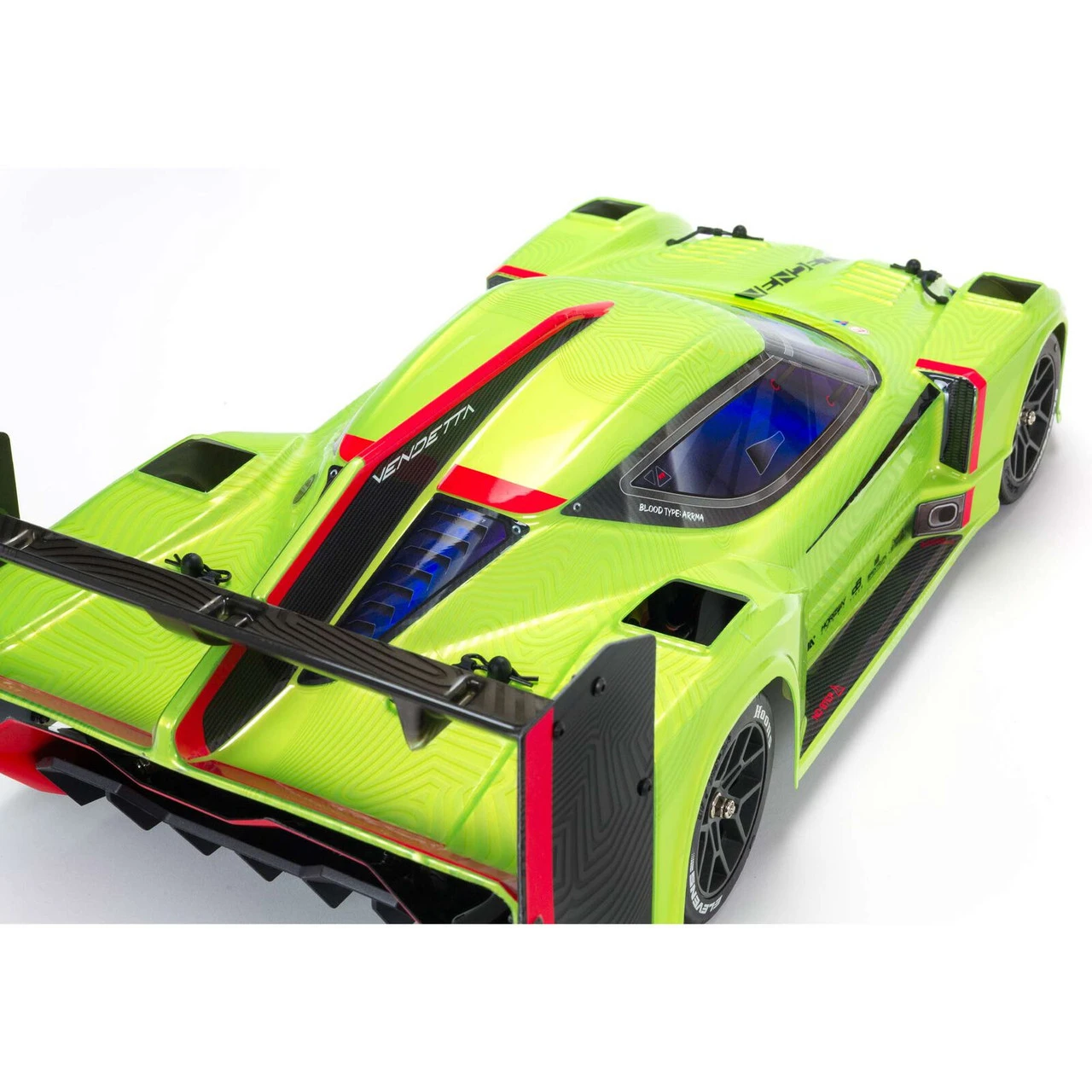

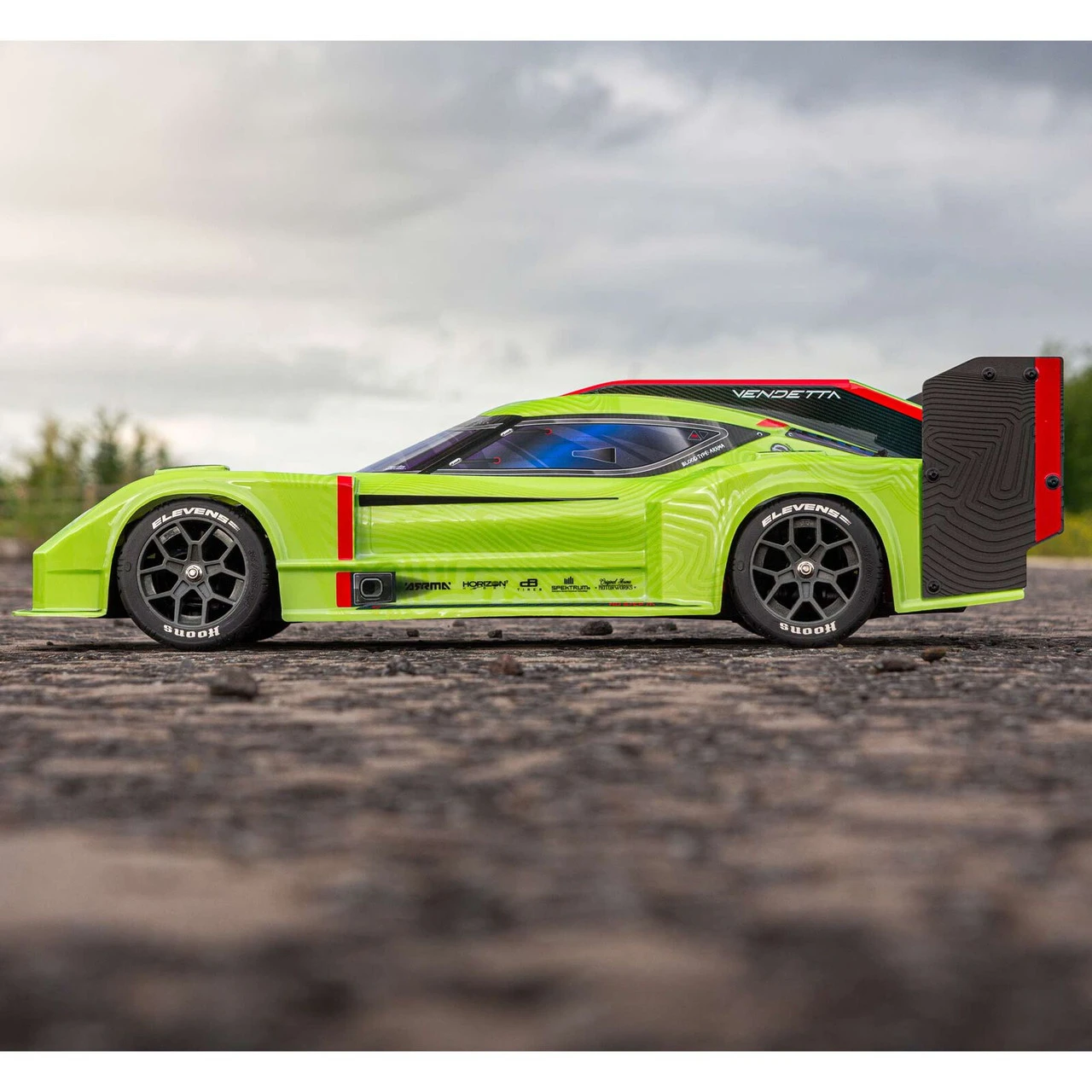

AERODYNAMIC BODY

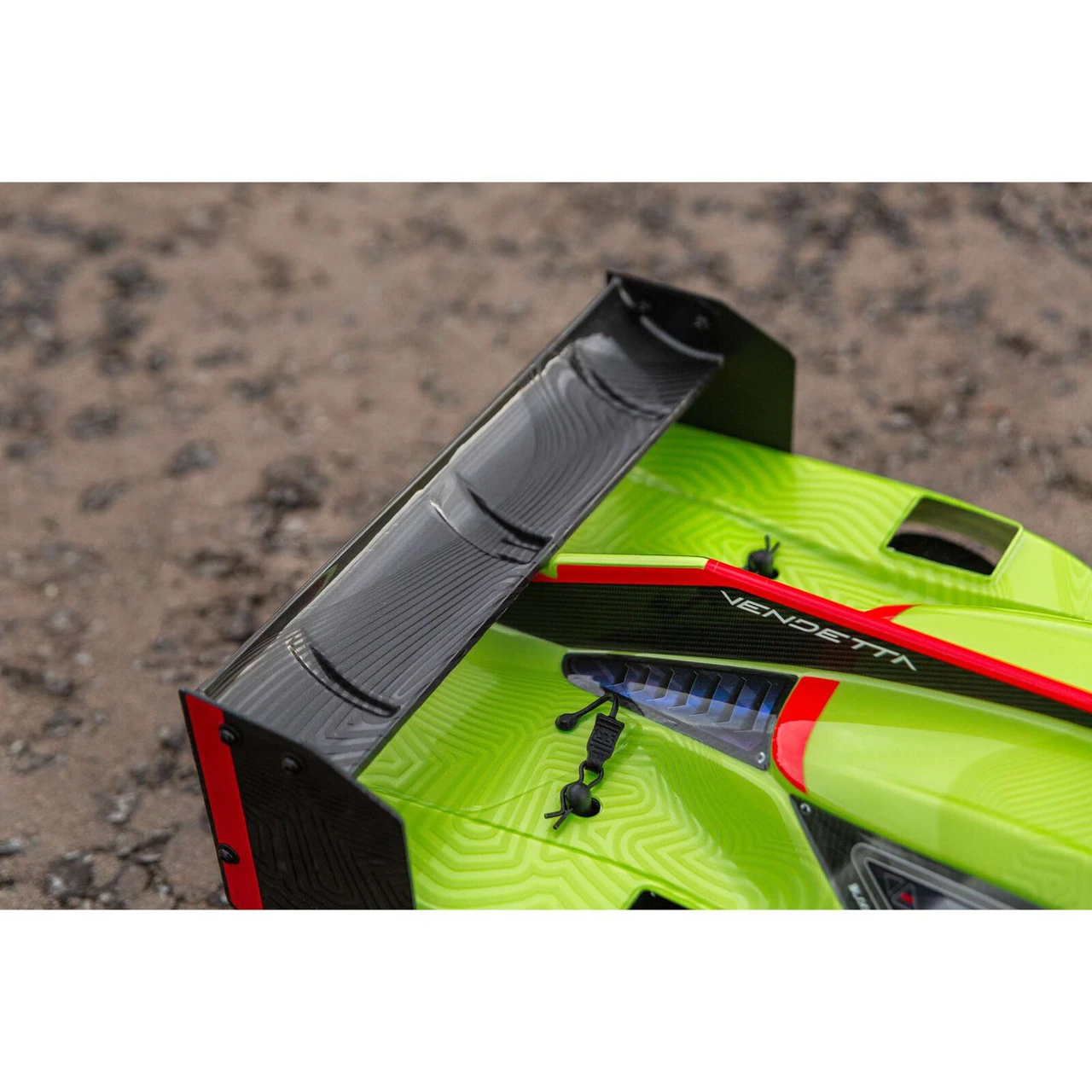

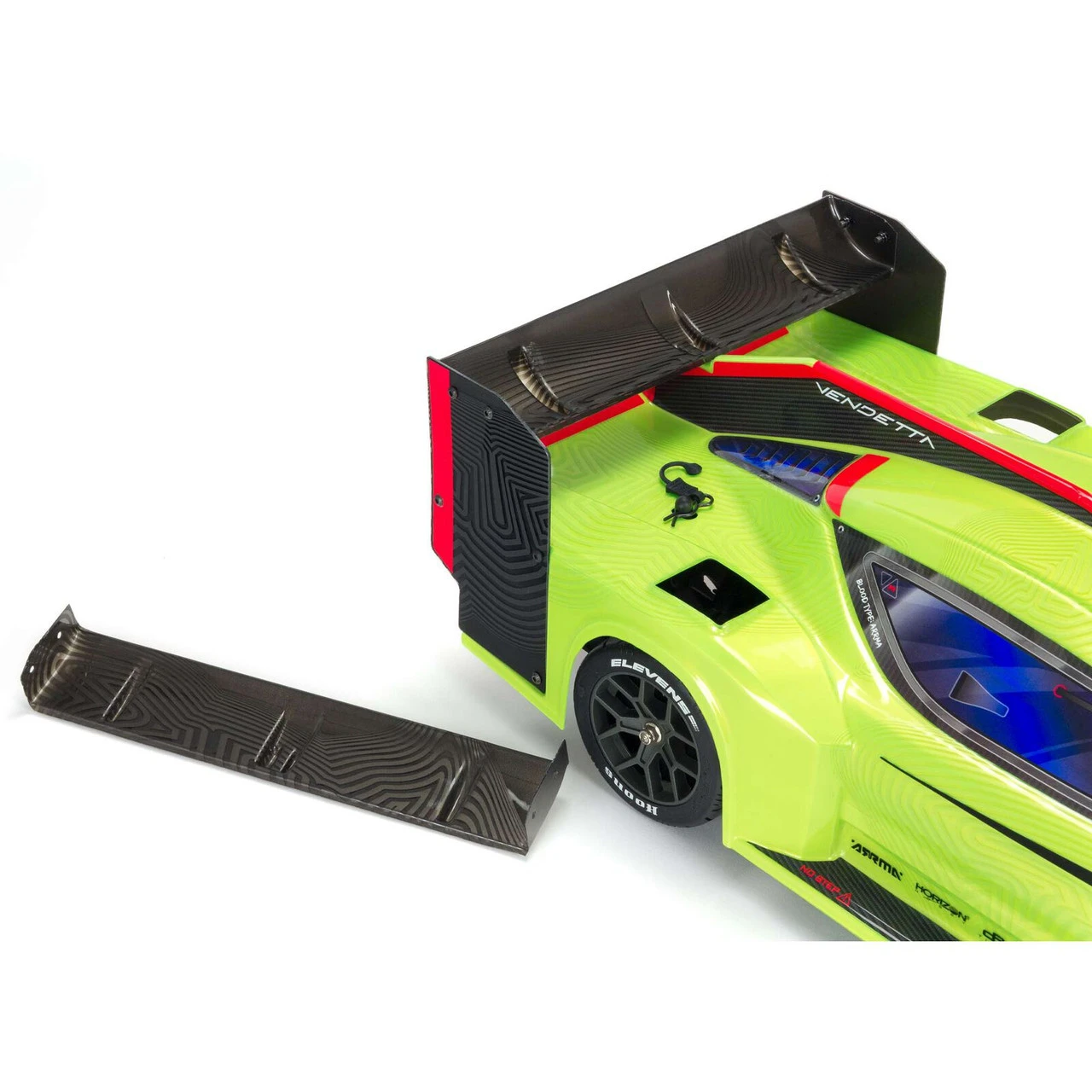

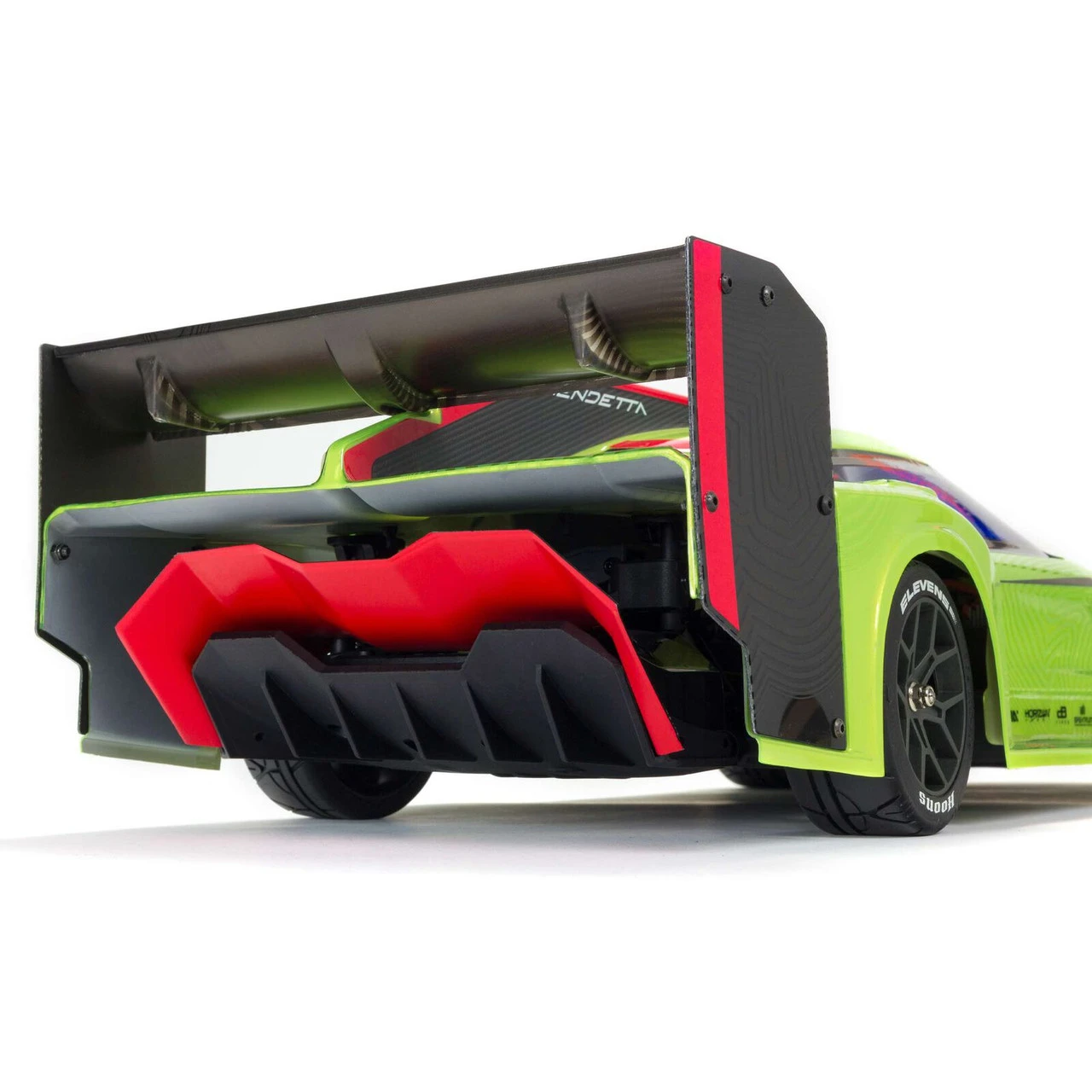

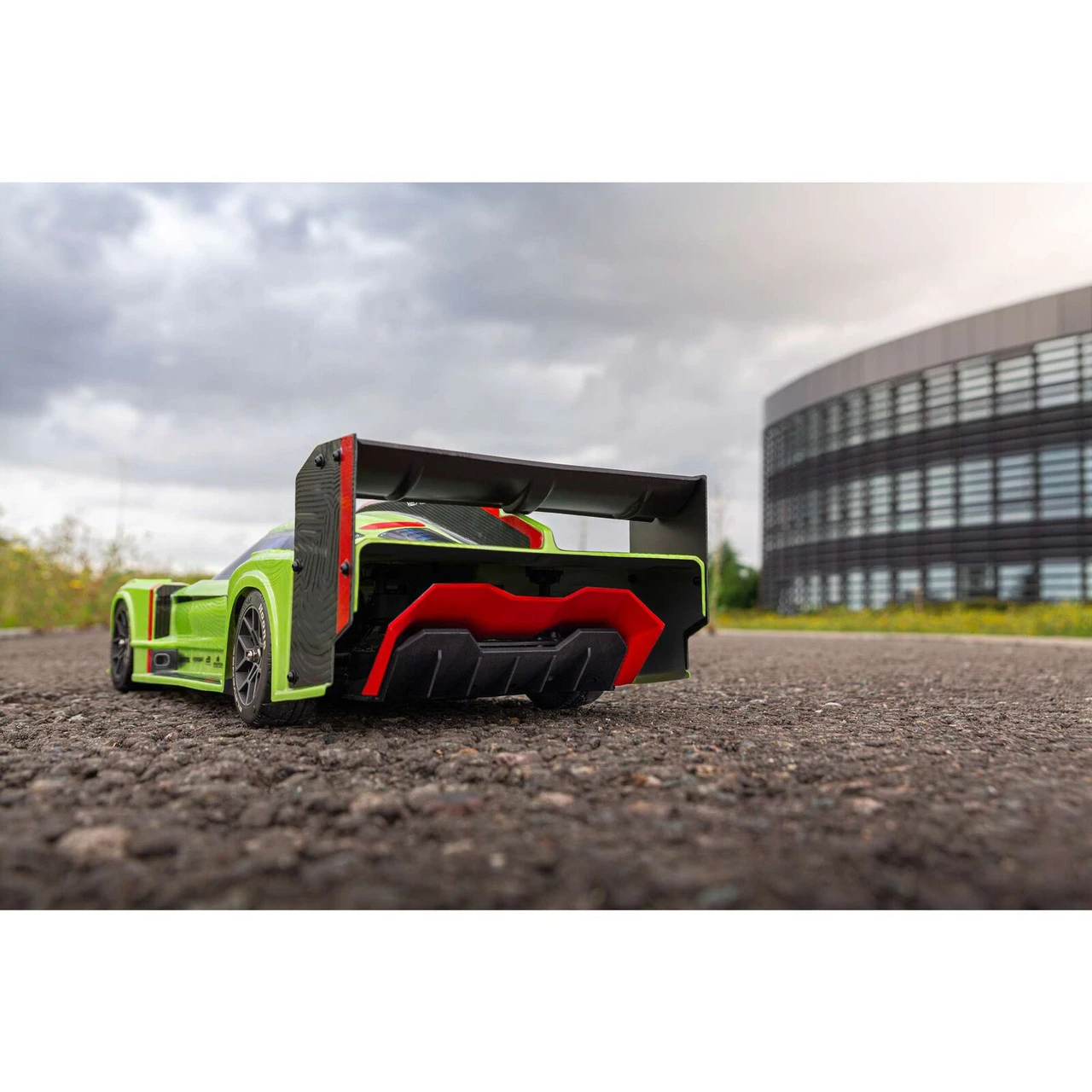

The aerodynamically tuned VENDETTA™ Speed Racer body includes tough high and low downforce wings. It’s available factory-finished in your choice of stunning green or blue matte and gloss effect paint schemes with scale decals. The body features fender vents to relieve built up air pressure from inside the body to reduce aerodynamic lift and reduce drag. Aerodynamics at work. At the high speeds the VENDETTA™ Speed Racer can achieve, the aerodynamic elements play a significant part in the performance of the vehicle. The huge rear diffuser, rear wing and wing endplates ensure the VENDETTA™ Speed Racer is stable at all speeds.



SPEKTRUM™ RADIO AND ELECTRONICS
The VENDETTA™ 4X4 3S BLX Speed Racer RTR comes equipped with a Spektrum™ DX3 DSMR® 3-channel transmitter and a factory-installed SR6200 receiver with AVC® on-demand traction control. These, plus the installed Spektrum™ Firma™ 100A Smart ESC, provide telemetry capability for following speed, battery voltage, and other data in real time.

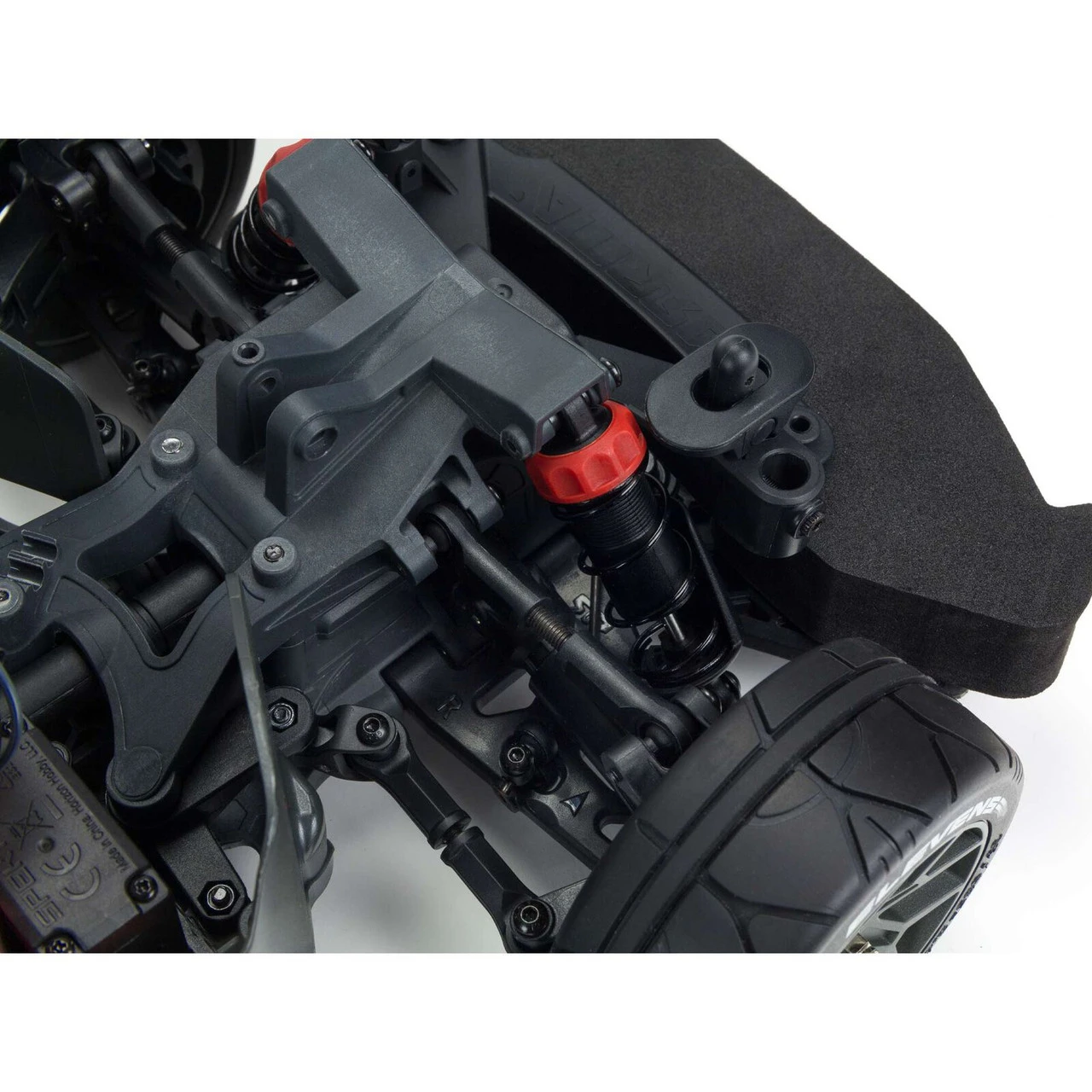

OIL-FILLED SHOCKS

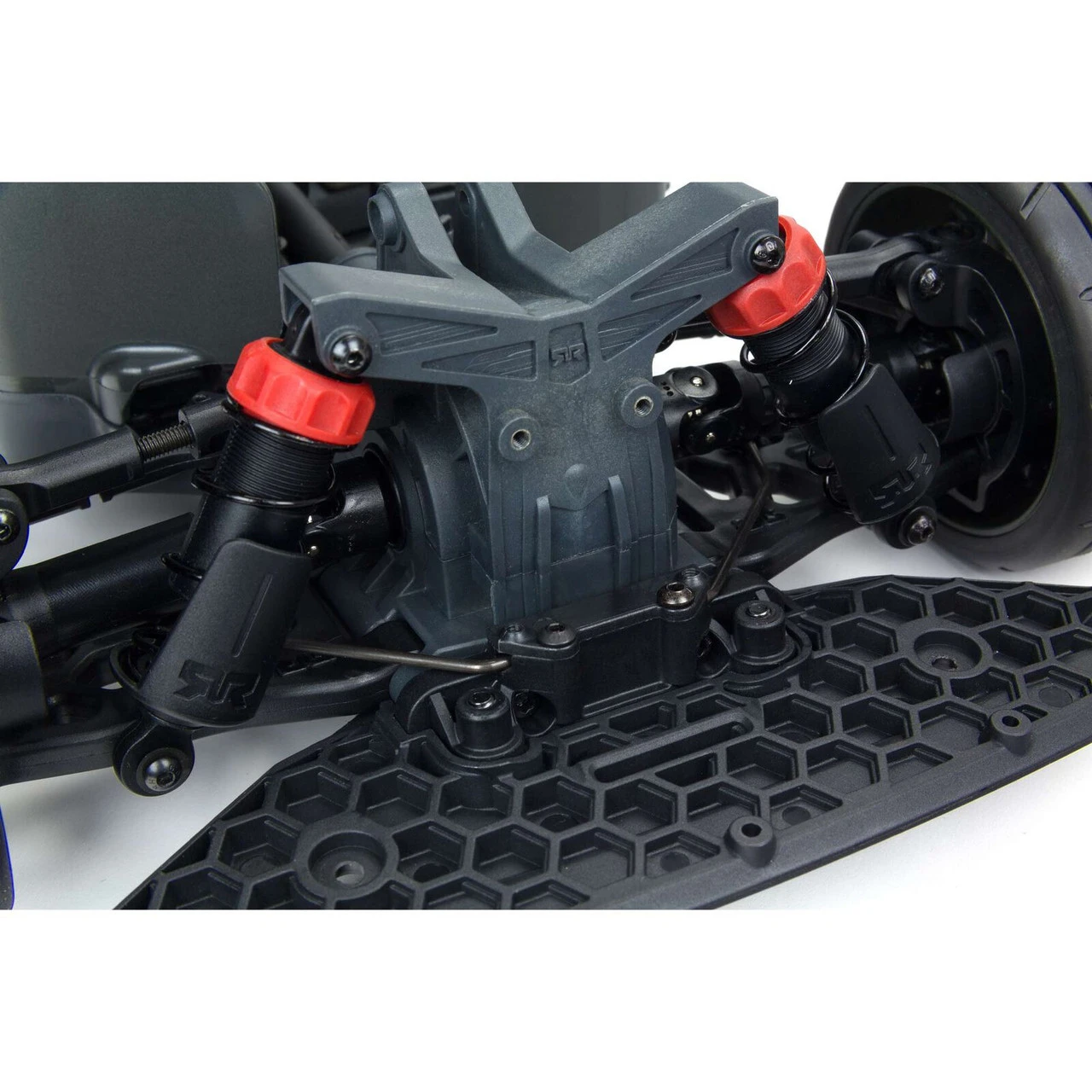

The oil-filled shocks include silicone O-rings and are threaded to allow for easy ride height adjustments. Combined with the front and rear double wishbone suspension, front and rear sway bars, and large rear double diffuser, they give the VENDETTA™ 4X4 3S BLX Speed Racer the ultimate all-road handling.



Proven 4X4 platform features

Product Specifications

• Ball Bearings Rubber shielded bearings throughout
• Battery Tray Dimensions 6.49×2.01×1.89 in
• Body Painted, decaled, and trimmed
• Chassis Molded Composite
• Differential 2 Gear Diffs
• Drivetrain 4WD
• Drive Type Forward/Brake/Reverse
• Final Drive Ratio 7.125
• Front Track 10.31 in (262mm)
• Power Type Electric
• Gear Pitch 0.8m
• Inner Tire / Outer Wheel Diameter 2.6 in
• Internal Gear Ratio 2.85
• Motor Size 3660
• Motor Type Brushless – Sensorless
• Pinion 20T
• Product Height 6.22″ (158 mm)
• Product Length 23.43″ (595 mm)
• Product Weight 6.38 lb (2.9kg)
• Product Width 10.43″ (265 mm)
• Rear Track 10.55 in (268mm)
• Scale 1/8
• Shock Type Oil-Filled, Coil-Over Springs
• Spur Gear 50T
• Suspension Independent
• Tire Compound White
• Tire Tread dBoots® Hoons Elevens
• Vehicle Type On-Road
• Wheelbase 13.11″ (333 mm)
• Wheel Hex Size 14mm
• Wheel Width 1.38 in (35mm)

In The Box

(1) ARRMA® VENDETTA™ 4X4 3S BLX 1/8 Scale Speed Racer 4WD RTR
(1) Spektrum™ Firma™ 100A Smart Waterproof* ESC
(1) Spektrum Firma 3660 3900Kv Brushless Motor
(1) Spektrum 2.4GHz DX3 Smart DSMR® 3-Channel Transmitter
(1) Spektrum SR6200A AVC® Receiver
(1) Spektrum SPMS651 7kg Waterproof Metal-Geared Digital Servo
(1) Product Manual

Needed to Complete

(1) 2S or 3S Hardcase LiPo Battery with IC5 or EC5 connector
(1) Compatible Charger
(4) AA Batteries
