Arrma 1/8 KRATON 6S BLX 4WD Brushless Speed Monster Truck (Blue)

Product Description

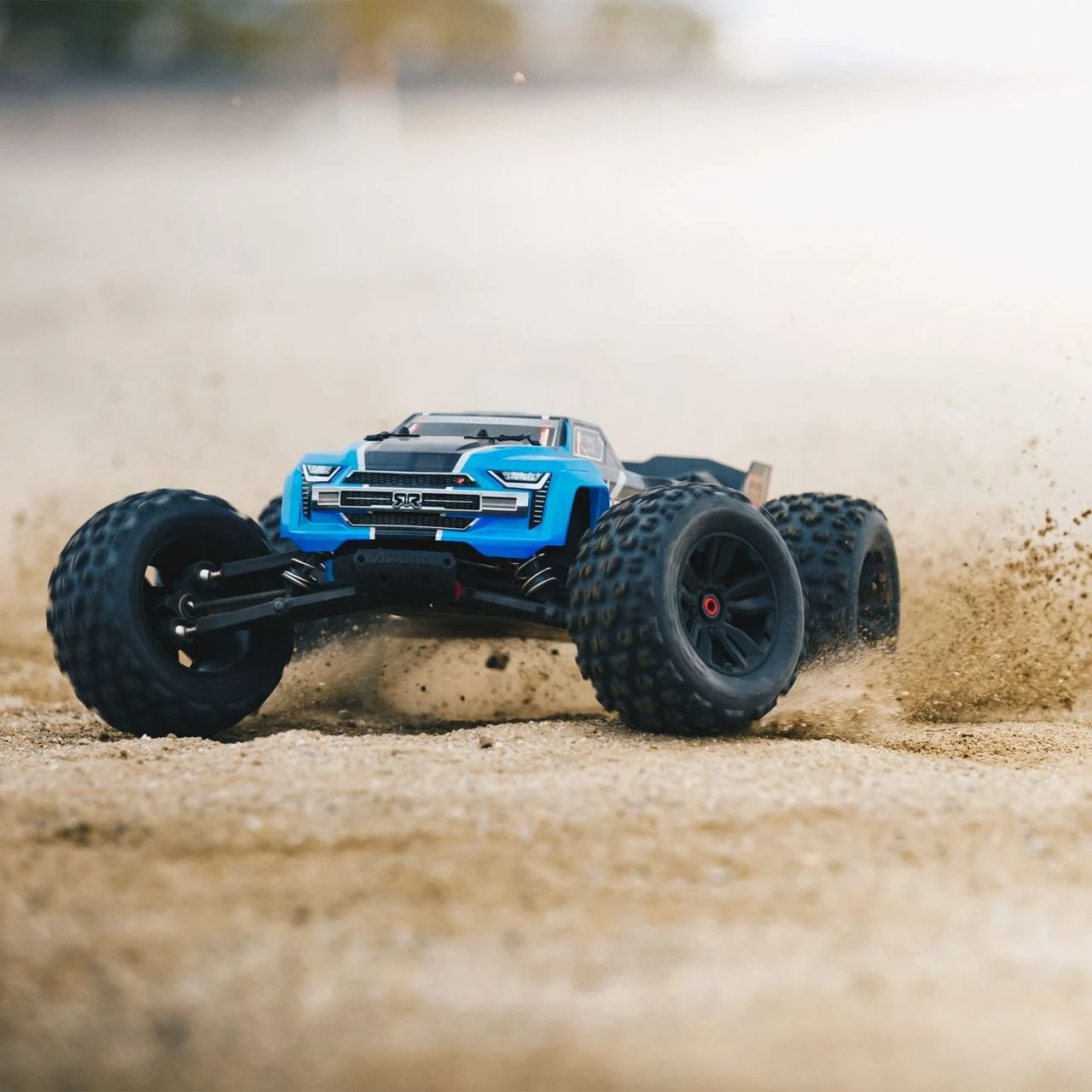

Arrma 1/8 KRATON 6S BLX 4WD Brushless Speed Monster Truck RTR (Blue)

ARRMA® engineers have outfitted the KRATON™ 6S BLX 4WD with a brushless power system that now features the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination delivers incredible torque, acceleration and speed. Heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo which is 32% stronger and 5% faster than the previous version’s ADS-15M servo. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations — up to 60+ MPH in optimum conditions with a 6S LiPo battery and the included optional speed pinion gear.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them. Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With adjustable oil-filled shocks soaking up the bumps, the KRATON™ 6S BLX 4WD Speed Monster Truck blasts over dirt, asphalt, grass – all terrain and all conditions. The shocks are mounted on black-anodized aluminum towers. New, multi-split spoke wheels come outfitted with super-aggressive, multi-surface DBoots® COPPERHEAD 2 tires. A high downforce wing helps keep the vehicle grounded. Everything contributes to confident control and responsive handling at thrilling high speeds.

For the durability needed to support intense brushless performance, ARRMA® uses a strong anodized aluminum chassis as the foundation. A center body support and new aluminum center brace plus composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing. A new “never loose” aluminum steering servo saver and “never pop” ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just seven bolts. Topping it all off is a monster truck body with streamlined good looks, featuring a red/black or blue/black trim and ultra-detailed decals.

The ready-to-run KRATON™ 6S BLX 4WD Speed Monster Truck includes the new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo already factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and 4 x AA transmitter batteries. ARRMA® recommends the Dynamite® Powerstage™ Stage 6 bundle (DYN1540), which includes a Passport™ Ultra P2 100W AC/DC Multi-Charger and two Reaction HD 5000mAh 3S hardcase LiPo batteries with EC5™ connectors.

Features at a Glance:

• Ready-to-Run
• 60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear
• Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
• Spektrum™ SR315 Dual Protocol 3-Channel Receiver
• Spektrum™ S652 Digital Servo
• Spektrum™ Firma™ 150A Smart ESC
• Spektrum™ Firma™ 4074 2050Kv Brushless Motor
• Safe-D pinion gears
• EXB front brace compatible top plate
• Stronger chassis design
• Heavy-duty arms front and rear
• Updated rear shock tower geometry
• Large volume waterproof* receiver box
• Anodized aluminum chassis
• Strong composite chassis side pods
• Center body support and brace for maximum durability
• High downforce wing
• Oil-filled adjustable shocks
• Black-anodized aluminum front and rear shock towers
• Durable steel driveshafts throughout
• Heavy-duty drivetrain
• All-metal diff outdrives and gearbox internals
• Never-loose red aluminum servo saver
• Never-pop ball ends
• 4-Bolt center diff removal
• Easy-access sliding motor mount for quick motor removal
• Multi-split spoke wheels
• Durable wheel hubs for increased strength
• Hub nut O-rings
• Multi-terrain dBoots® COPPERHEAD 2™ tires
• Detailed decals
• Body print style in red/black or blue/black
• IC5® connectors (EC5™ compatible)
• 2-year limited warranty (see manual for details)

* For details on waterproof standards, please refer to the product instruction manuals

In-Depth Features:

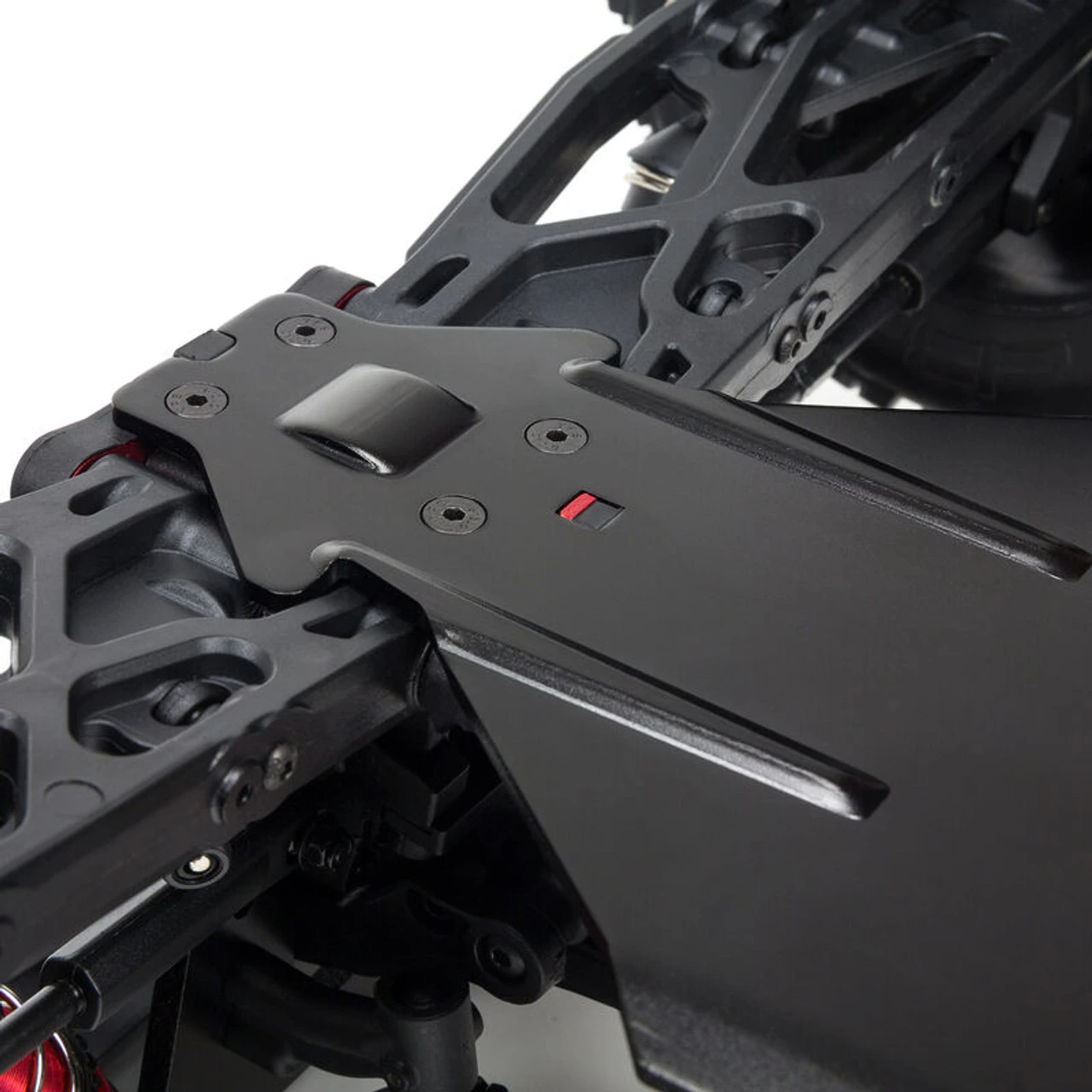

Updated Chassis Design
Wider rear section and 3D form introduced in key areas to greatly improve strength.

Safe-D First
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup per screw.

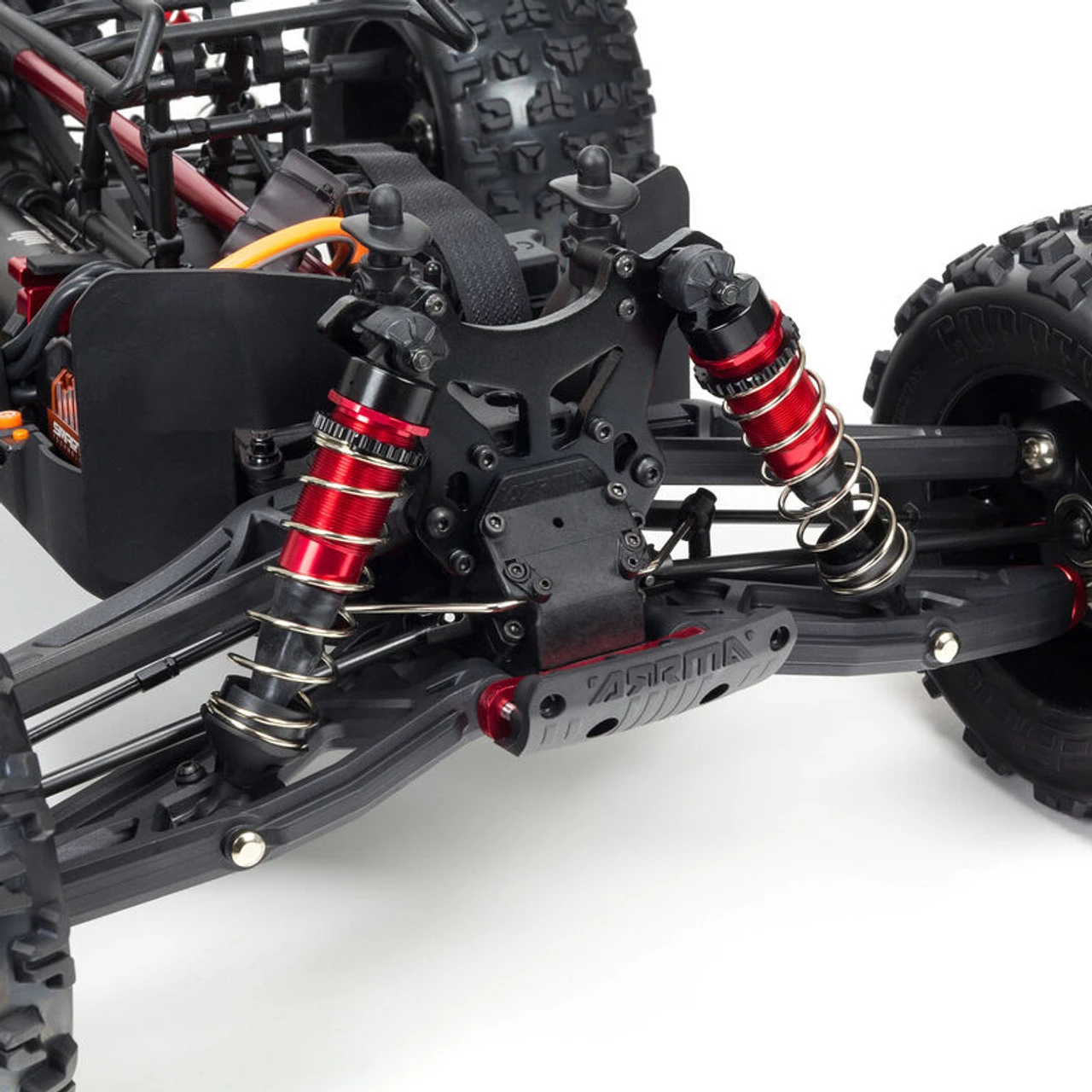

Updated Rear Suspension Geometry

• Updated rear shock tower geometry works in conjunction with updated rear suspension arm geometry to provide a plusher rear end
• More compact rear shock tower, being less exposed, is better protected from being bent during upside-down impacts

Easy-Access Differentials
Front and rear diffs are quickly and easily accessed for rapid tuning and maintenance.

Front Pivot Ball Suspension
For precise handling at top speeds

Quick Maintenance
7 bolt center diff removal for easy access

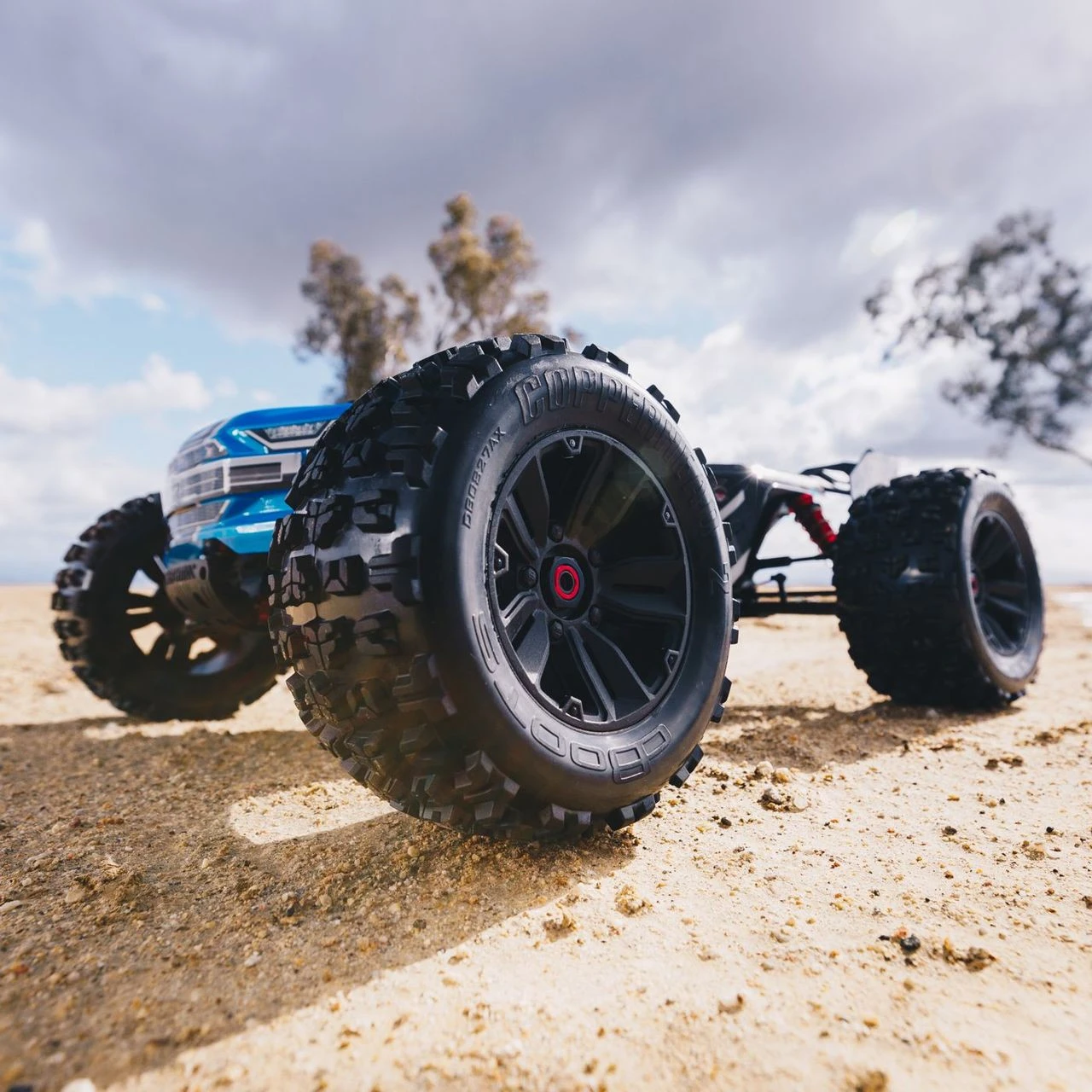

Maximum Grip
DBoots® COPPERHEAD 2 tread pattern designed for extreme all-terrain traction and multi-split spoke wheels.

Spektrum SMART Technology Included
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

Rubber Shielded Bearings
Longer life, less maintenance

Go Large
Large volume waterproof receiver box

Optional Speed Pinion Included
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

Spektrum SPMS652 Digital Servo

• All Steel Gears
• Waterproof*
• 19.08kg-cm/265oz-in Torque @7.4V
• 32% More Torque & 5% Faster than ADS-15M Servo

*For details on waterproof standards please refer to the product instruction manual

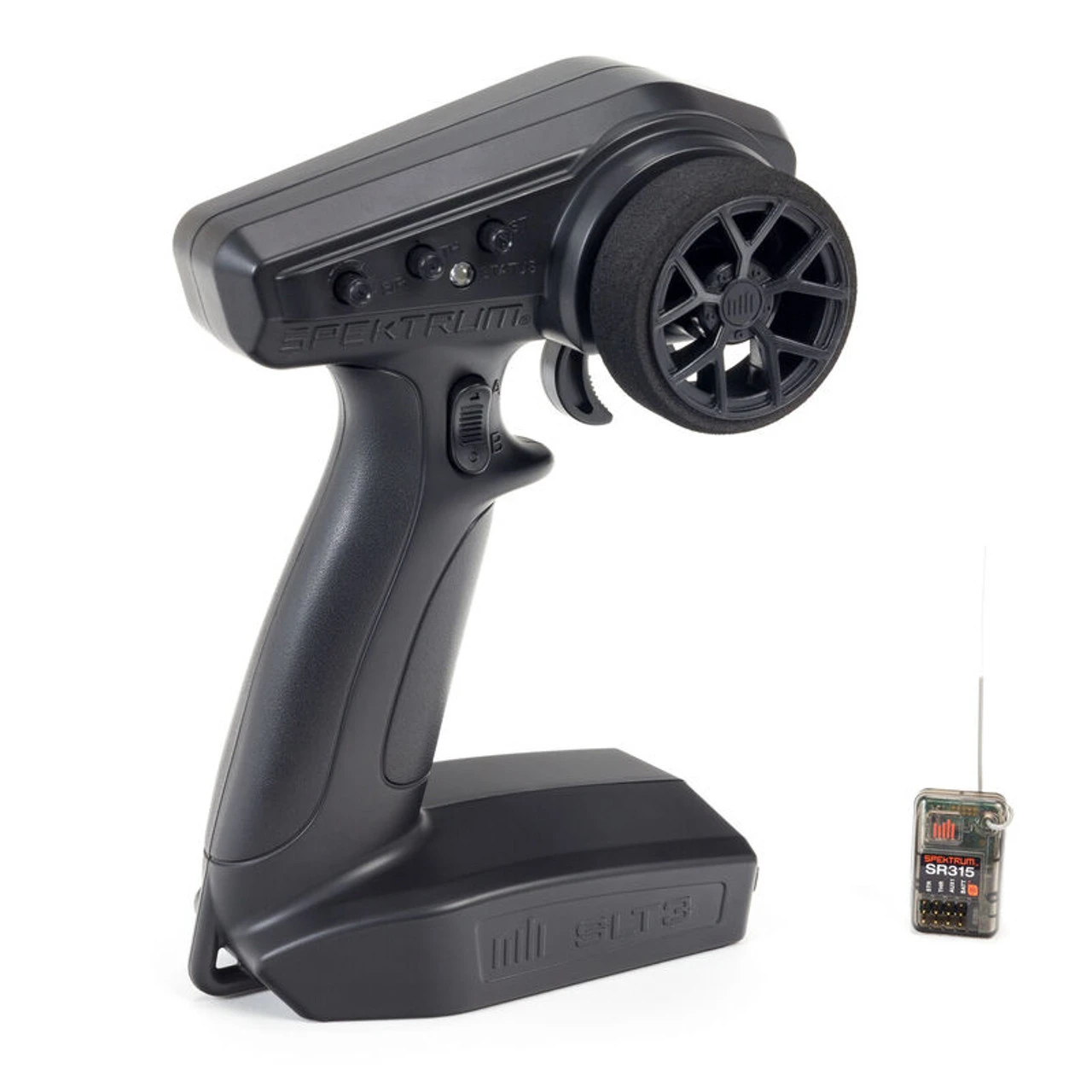

Spektrum SLT3 Radio

• Superb SLT response rate
• 50% and 75% throttle limited switch – great for beginners
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• Foam steering wheel grip
• Compatible with Tactic Receivers

Spektrum SR315 Receiver

• Dual Protocol – Compatible with SLT and DSMR® 2.4GHz protocol transmitters
• Fast reponse rate and outstanding range
• No tool binding and protocol switching
• SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
• 3-Channels

Firma 150A SMART Brushless ESC

• Waterproof* and dustproof design
• 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
• Spektrum® SMART Technology
• Fitted with reliable IC5® connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

Firma 4074 2050Kv Brushless Motor

• 2050Kv 4074 size 6S brushless motor
• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• 4mm gold bullet connectors for reliable and efficient connection
• Black anodized aluminum motor can for increased heat dissipation
• Super strong 5mm shaft
• Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

Specifications:
Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Battery: Sold Separately
Body: Painted, decaled and trimmed
Brakes: User programmable
Charger: Sold Separately
Chassis: 0.12″ (3mm) 6061-T6 aluminum
Completion Level: Ready-To-Run
Differential: 3-gear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 17.92
Front Shock Spring Rate: 6.2lbs/in (1.09N/mm)
Front Track: 18.15″ (461mm)
Power Type: Electric
Gear Pitch: 1.0MOD
Ground Clearance: 1.85″ (47mm)
Inner Tire / Outer Wheel Diameter: 3.8 in
Internal Gear Ratio: 4.3
Motor Size: 4074
Motor Type: Brushless – Sensorless
Pinion: 12T
Product Height: 7.68″ (195 mm)
Product Length: 23.39″ (594 mm)
Product Weight: 10.67lb (4.85kg)
Product Width: 18.15″ (461 mm)
Radio: Included
Rear Shock Spring Rate: 5.0lbs/in (0.87N/mm)
Rear Track: 18.15″ (461mm)
Receiver: Included
Scale: 1/8
Servos: Included
Shock Type: Aluminum body oil-filled adjustable
Speed Control: Included
Spur Gear: 50T
Suspension: Independent
Tire Tread: dBoots COPPERHEAD 2
Tire Type: Multi-terrain
Vehicle Type: Monster Truck
Water-Resistant: Yes
Wheelbase: 14.84″ (377mm)
Wheel Hex Size: 17mm
Wheel Type: Five split-spoke monster truck
Wheel Width: 3.3″ (81.5mm)

Includes:

• ARRMA® KRATON™ 6S BLX 1/8 Speed Monster Truck 4WD RTR
• Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
• Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
• Spektrum ™ S652 Metal-Geared Digital Servo (installed)
• Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
• Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio

Need to Complete:

• (2) 2S or 3S 35C+ 5000mAh LiPo batteries with IC5/EC5 connector or
• (1) 4S or 6S 35C+ 5000mAh LiPo battery and harness with IC5/EC5 connectors
• Suitable LiPo balancing charger
• (4) AA batteries (for transmitter)
• LiPo charging bag or case (recommended)
